Tiny Network Fibonacci Clock With Ws2812 8x8 Matrix With 1 Minute Display

Hi this is second instructable i love the fibonacci clock but that did not have one minute display so i have added that.

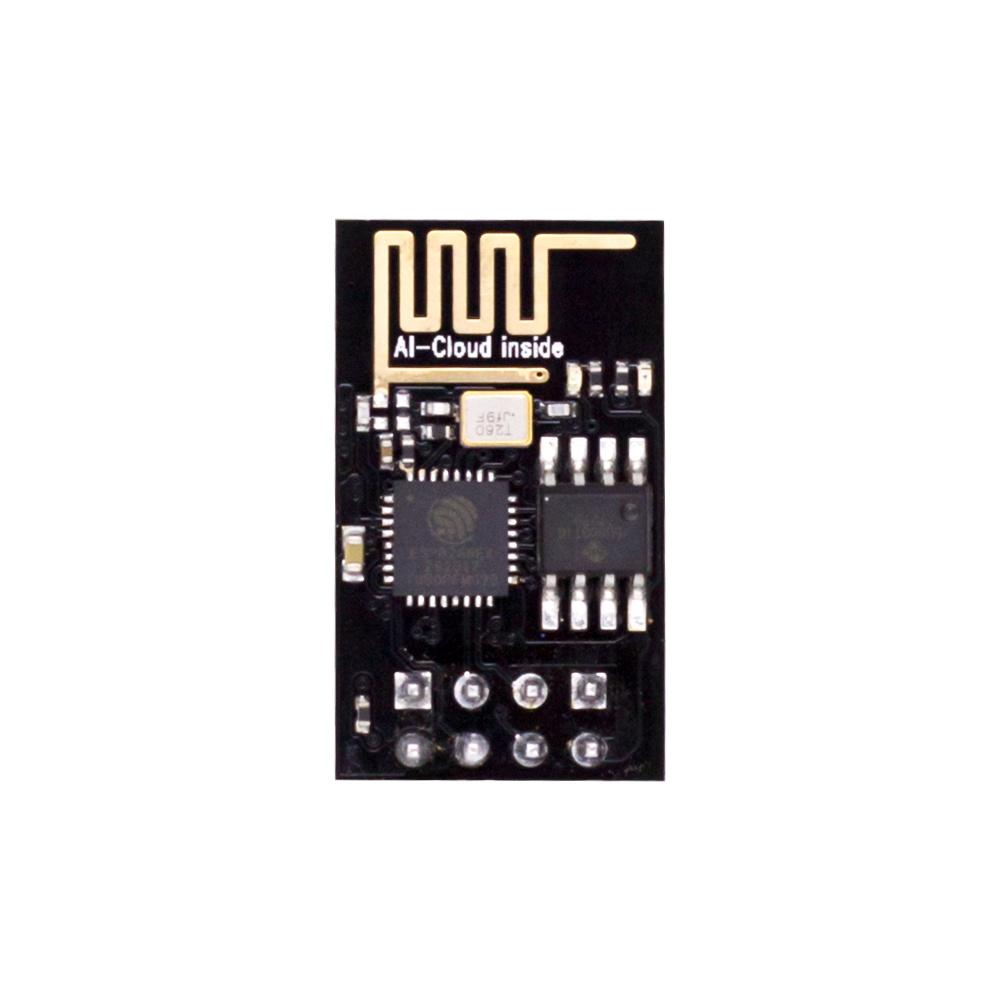

One Esp01 module

Esp-01 RGB LED controller module

ws2812 RGB 8x8 Matrix

5V adapter

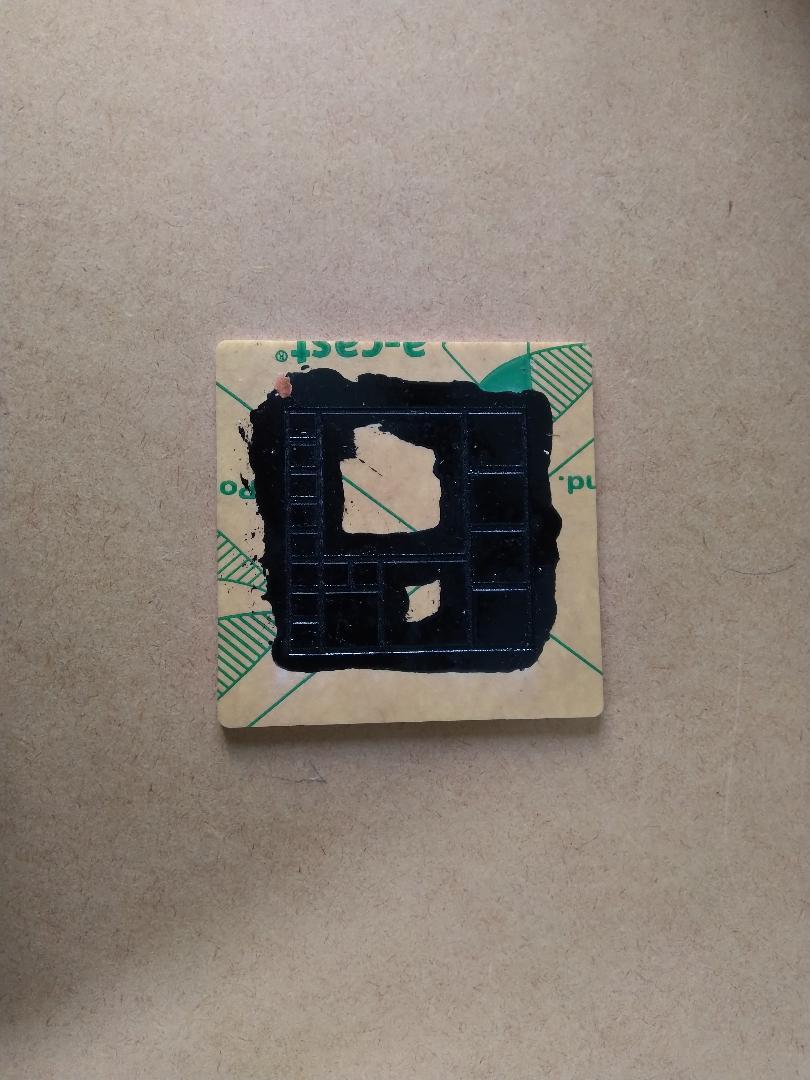

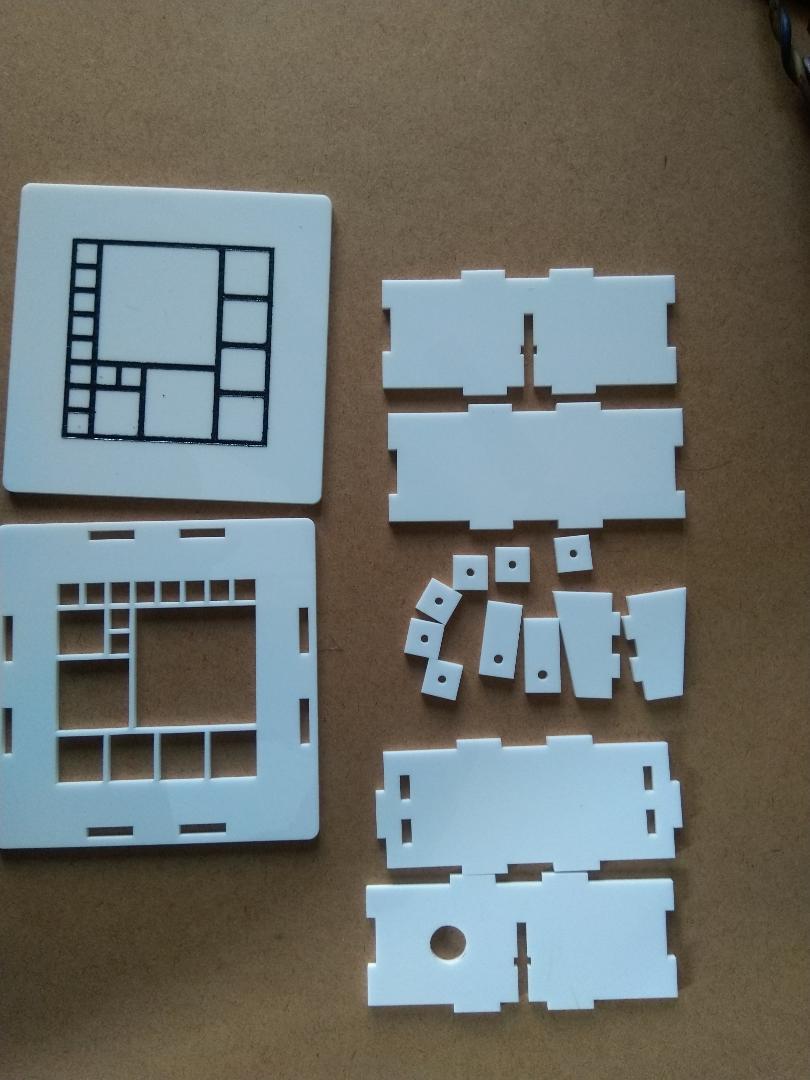

Down Load dxf file from the link and laser cut on 3 mm acrylic , paint etch with black color, and then peel off all apaper from acrylic

https://github.com/esp8266/Arduino/blob/master/libraries/ESP8266WiFi/src/ESP8266WiFi.h

https://github.com/adafruit/Adafruit_NeoPixel

Insert Your User name and Password in the sketch , change the time zone to your time zone and upload sketch to ESP-01 ,Install all libraries in Arduino IDE

"https://www.ntppool.org/en/" ntp pool server select your time zone details from here

Tighten DC socket to Enclosure and solder two pin jumper wire and connect to controller boardfinally close the enclosure with 3 mm screws 2 nos

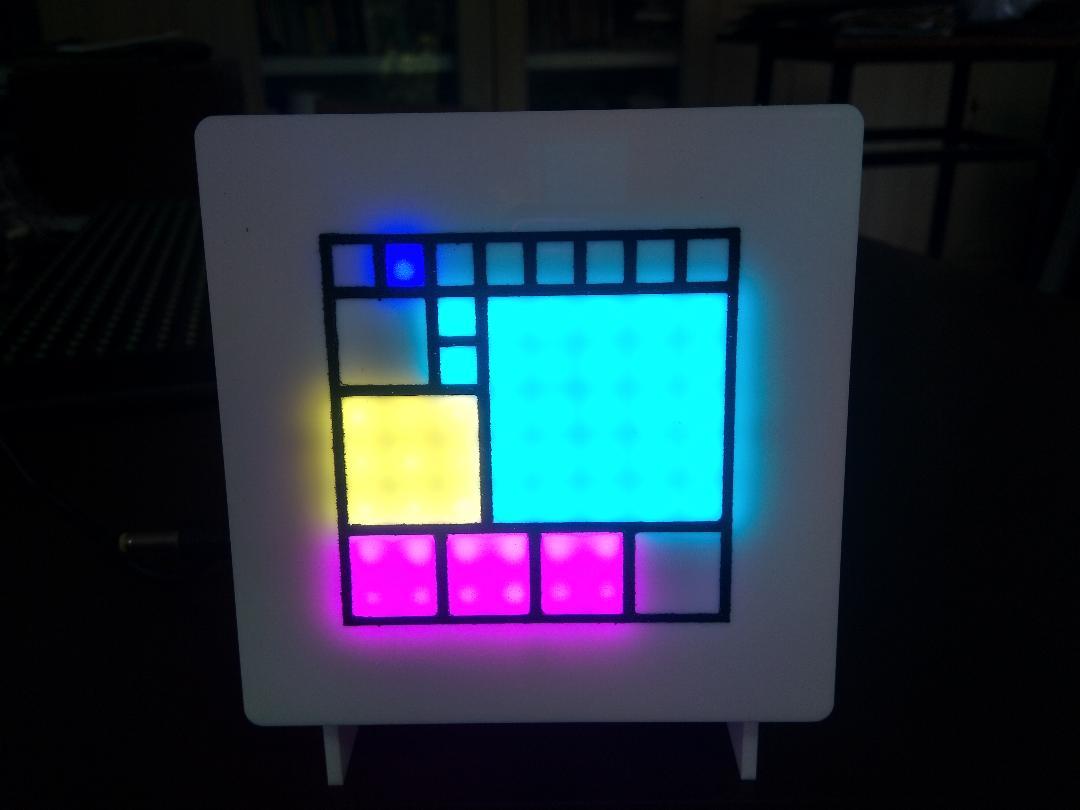

top 8 leds shows secongs display it is changed in 1000 milli second it shows red color in am and blue color in pm

fibonacci spiral yellow color shows hour, cyan color shows minutes and green color shows hours and minutes both. the bottom four squares represent one minute each.
