How about timeless time?!?! Yeah that's what I thought. An infinity mirror setup coupled with a clock produced interesting results. So how to infinity mirrors work? Well all they need is a mirror back with a one way reflective mirror several inches in front of it with a strip of LEDs in between. So why not put a clock in the middle of it all. I gave it a try and here's what I got.
Supplies
The build list for this clock was actually pretty simple.
- A simple clock from Walmart (I bought the cheapest one there that I could find)
- One way reflective tint.
- Plexiglass (I used this but wouldn't recommend it instead get a acrylic or other easy-to-cut mirror)
- Arduino Nano
- Analog RGB strip lights
- Tools- (Wire, Solder Iron...)
Disassemble the Clock
![DSC_0153.JPG](/proxy/?url=https://content.instructables.com/FUH/0MK6/LEJZ3TIO/FUH0MK6LEJZ3TIO.jpg&filename=DSC_0153.JPG)

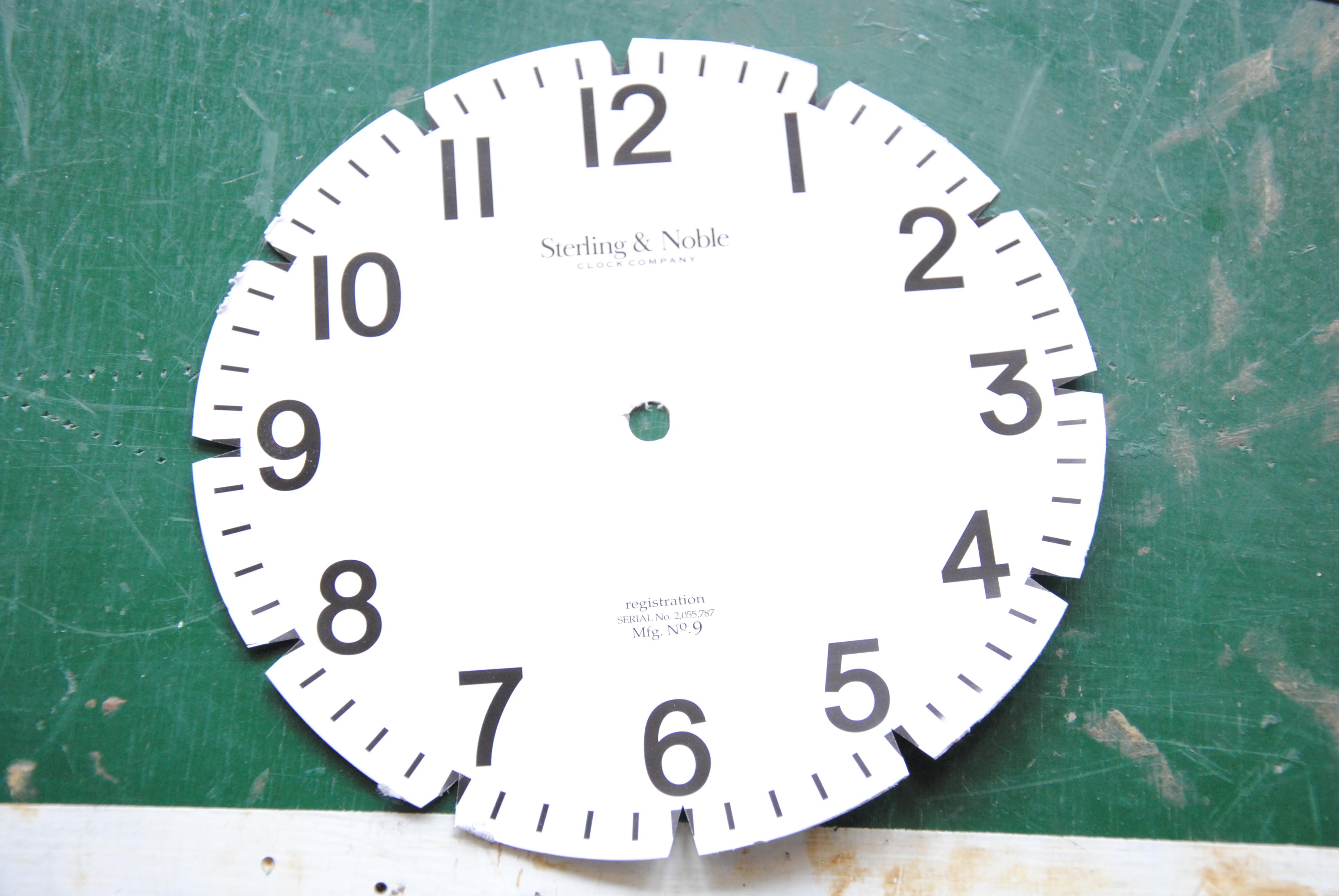

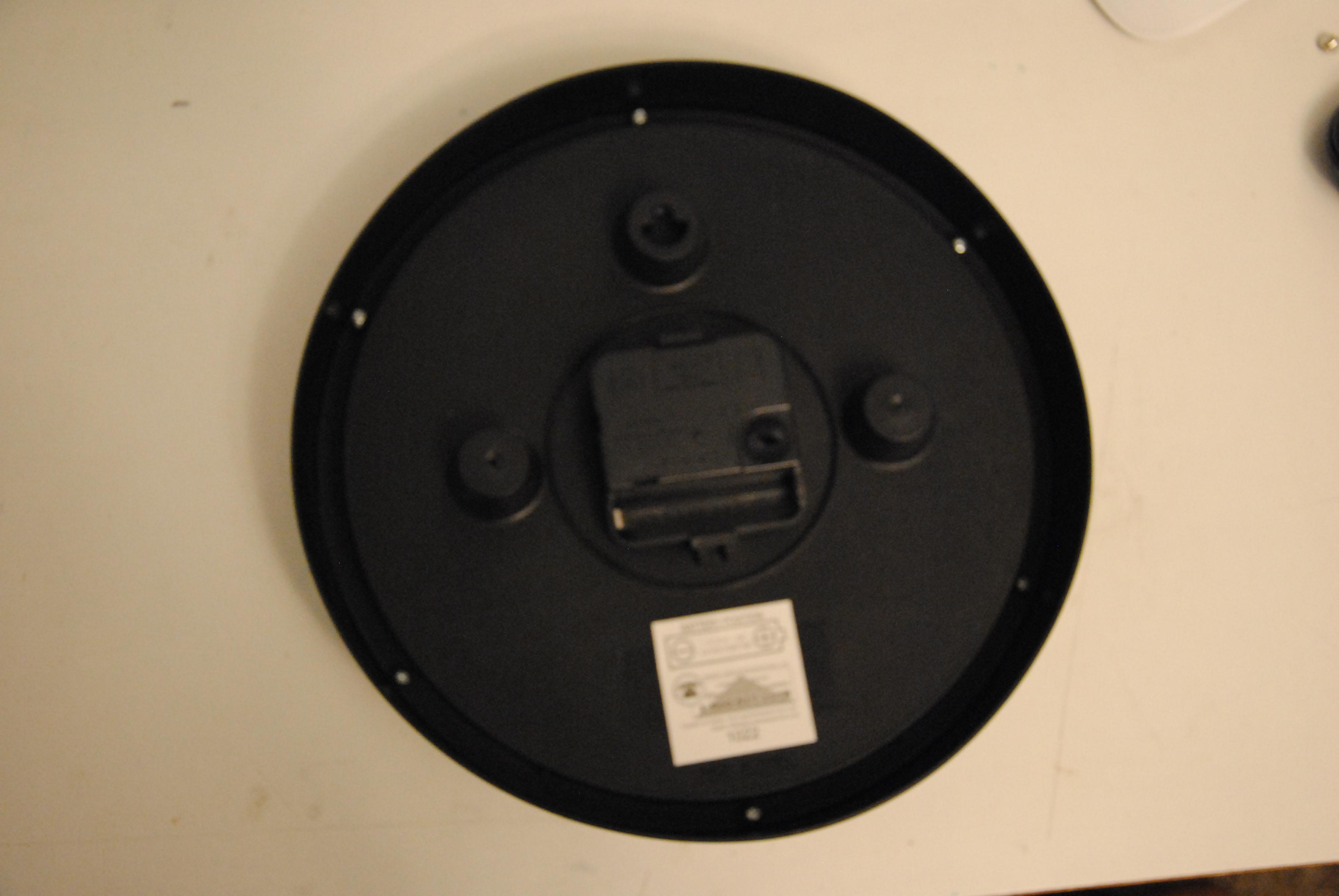

First I removed the six screws on from the back of the clock. Then I removed the hands and then pealed the paper face from the clock.
Printing the Spacer
![DSC_0160.JPG](/proxy/?url=https://content.instructables.com/FWZ/TWY2/LEJZ3S8H/FWZTWY2LEJZ3S8H.jpg&filename=DSC_0160.JPG)

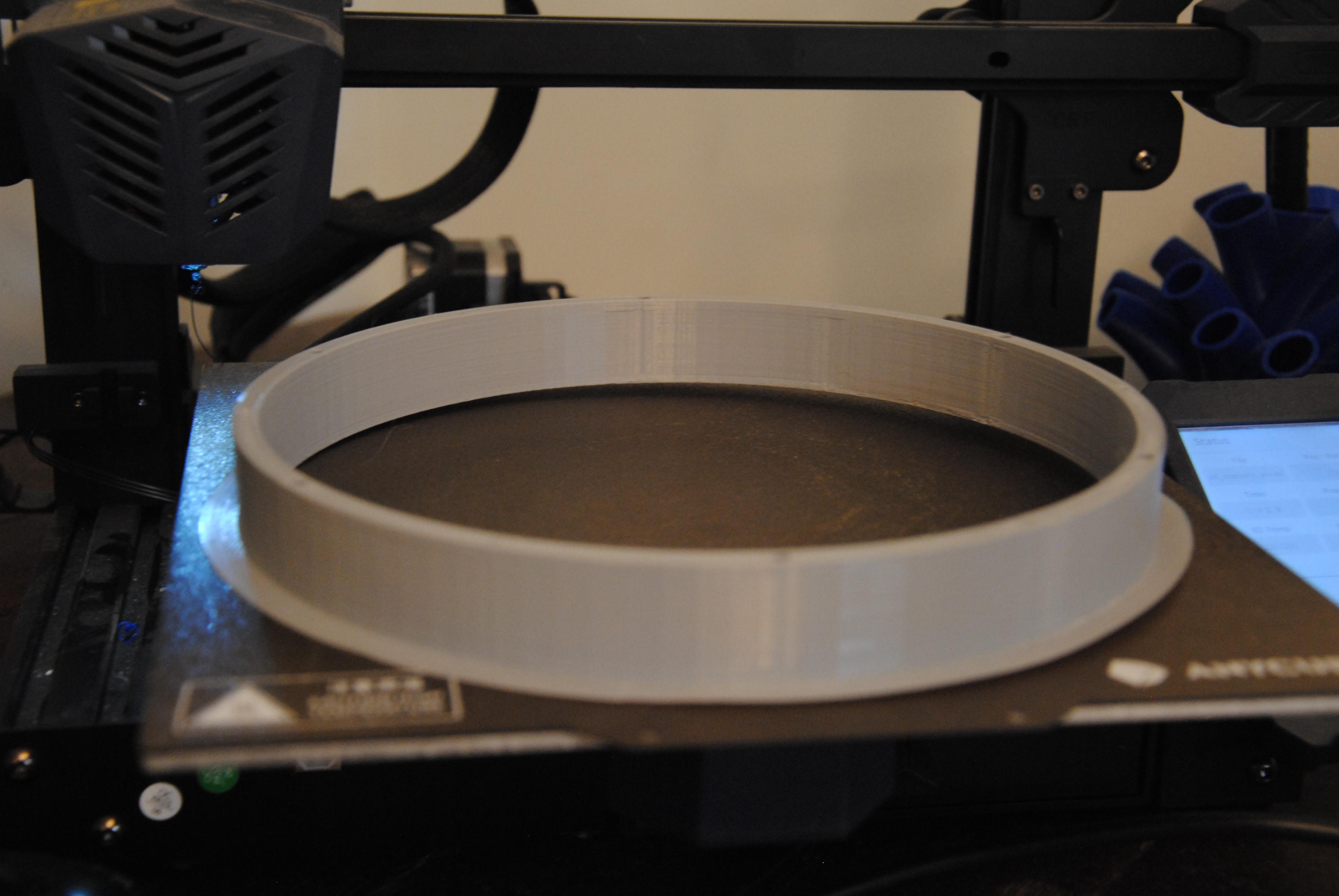

To add some depth to the clock I went and drew up a simple spacer to space the face glass out from the back of the clock.
Reflective Tinting
Next I went and put reflective tint on a piece of plexiglass to make the clock face. And I then I went and tinted the original glass clock face. Sorry that I didn't get any pictures of it.
Numbering the Clock Face
![DSC_0164.JPG](/proxy/?url=https://content.instructables.com/FPN/YR51/LEJZ3S8J/FPNYR51LEJZ3S8J.jpg&filename=DSC_0164.JPG)
![DSC_0173.JPG](/proxy/?url=https://content.instructables.com/F8B/DHGH/LEJZ3S8M/F8BDHGHLEJZ3S8M.jpg&filename=DSC_0173.JPG)
![DSC_0166.JPG](/proxy/?url=https://content.instructables.com/FHN/M7DA/LEJZ3S8K/FHNM7DALEJZ3S8K.jpg&filename=DSC_0166.JPG)

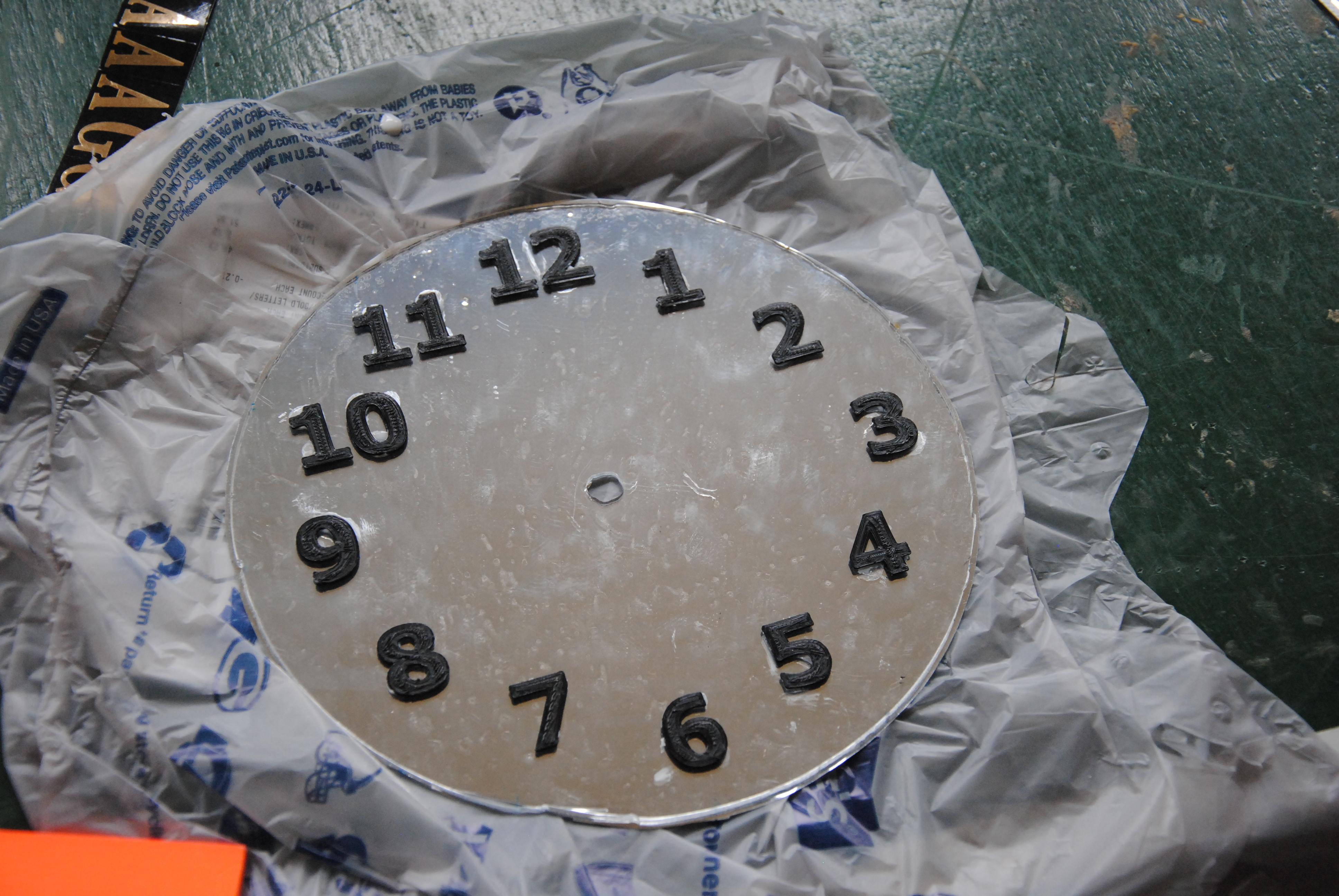

For the numbers on the clock drew up some 3D text and printed it off. To help place the numbers I notched each little black wedge. Then I simply glued each number on with some Tacky Glue.
Wiring It Up
![DSC_0162.JPG](/proxy/?url=https://content.instructables.com/FGT/9JJX/LEJZ3S8I/FGT9JJXLEJZ3S8I.jpg&filename=DSC_0162.JPG)
![DSC_0175.JPG](/proxy/?url=https://content.instructables.com/FAE/XRP9/LEJZ3S8N/FAEXRP9LEJZ3S8N.jpg&filename=DSC_0175.JPG)
![DSC_0170.JPG](/proxy/?url=https://content.instructables.com/FC2/ML4K/LEJZ3S8L/FC2ML4KLEJZ3S8L.jpg&filename=DSC_0170.JPG)
![DSC_0203.JPG](/proxy/?url=https://content.instructables.com/FRV/8Z8W/LEJZ3S8U/FRV8Z8WLEJZ3S8U.jpg&filename=DSC_0203.JPG)

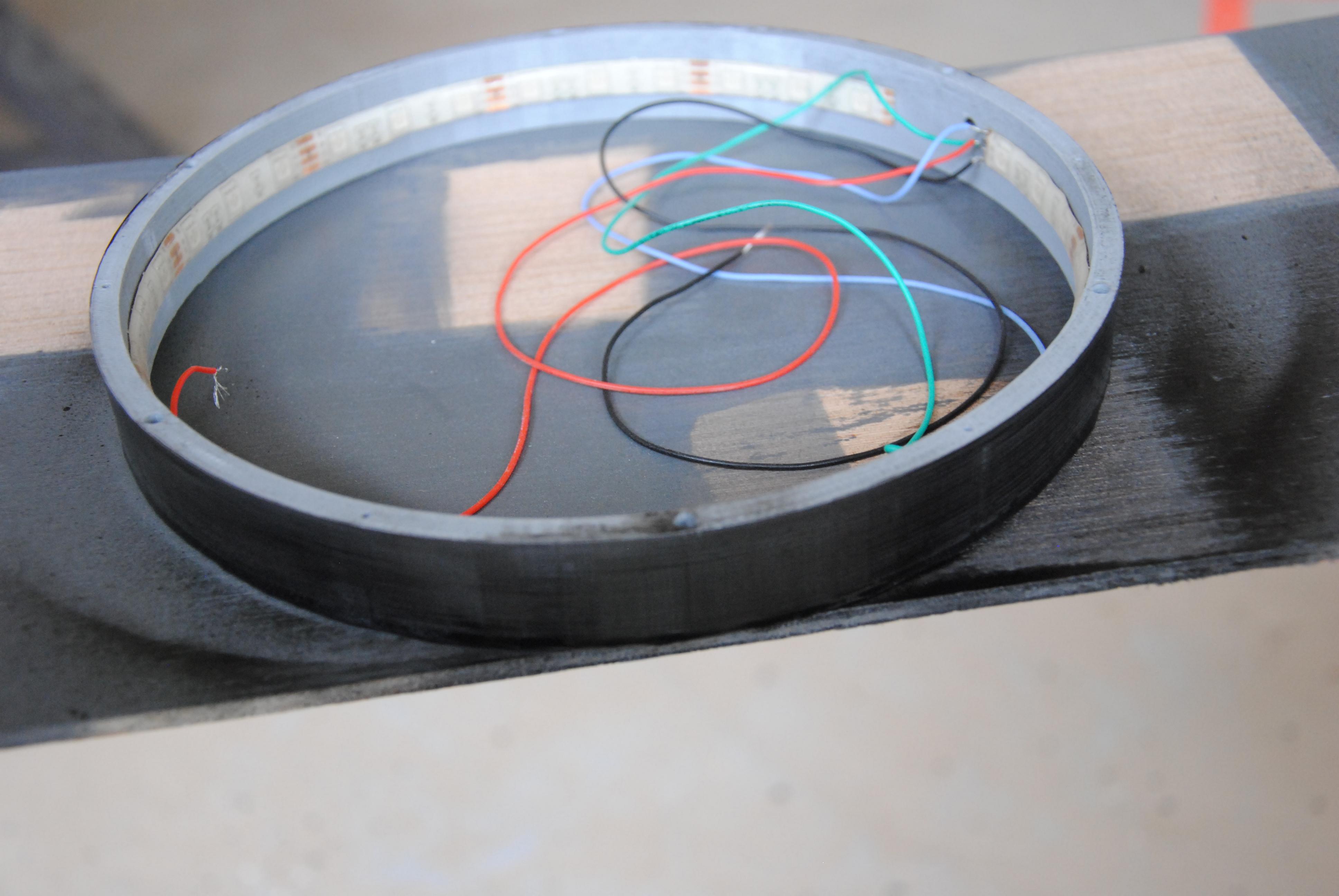

The strip light need to be run around the inside of the 3D printed spacer ring. The second picture shows how I went and painted the outside of the ring but that is totally unnecessary because the trim ring will cover it. To wire up the RGB lights follow this guide: https://learn.adafruit.com/rgb-led-strips/arduino-code

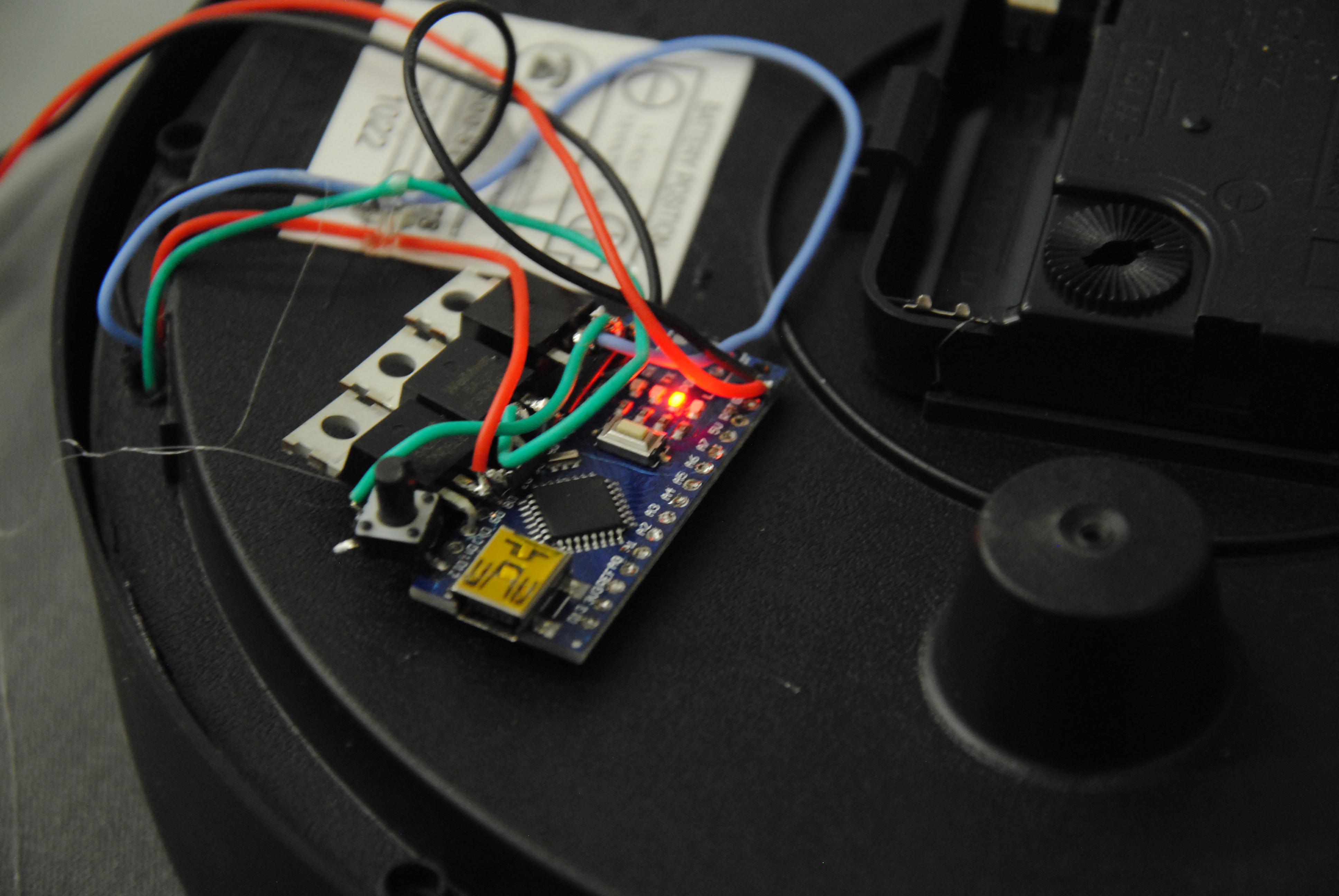

On my Nano I went and removed all the headers. To allow it to lay flat against the back of the clock. I also went and wired in a selector switch to allow me to toggle through the various colors. Here is the code. It's nothing fancy but it works!
Downloads
Finishing It Up
![DSC_0177.JPG](/proxy/?url=https://content.instructables.com/F5T/2PI0/LEJZ3S8O/F5T2PI0LEJZ3S8O.jpg&filename=DSC_0177.JPG)
![DSC_0205.JPG](/proxy/?url=https://content.instructables.com/FRI/25D7/LEJZ3S8V/FRI25D7LEJZ3S8V.jpg&filename=DSC_0205.JPG)
![DSC_0206.JPG](/proxy/?url=https://content.instructables.com/FKG/XMVY/LEJZ3S8W/FKGXMVYLEJZ3S8W.jpg&filename=DSC_0206.JPG)
![DSC_0236.JPG](/proxy/?url=https://content.instructables.com/FJ9/E3SX/LEJZ3S8Z/FJ9E3SXLEJZ3S8Z.jpg&filename=DSC_0236.JPG)
I had to grind off the risers from the black trim ring that goes over the outside. I also had to router a small hole to allow the wires to pass to the backside of the clock. Lastly I simply powered it up and presto!! I like when things work out!
What Would I Do Different
I am really pleased with almost everything. But if I would do it again I would paint the clock hands white and print the letters with white filament. And I would order plastic mirrors if I could find them. I was pressed for time on this build. But I did a couple quick searches on Amazon and saw some mirrors that I believe would work better than my one way reflective window tint.
