Compact Tilting Cargo Trike

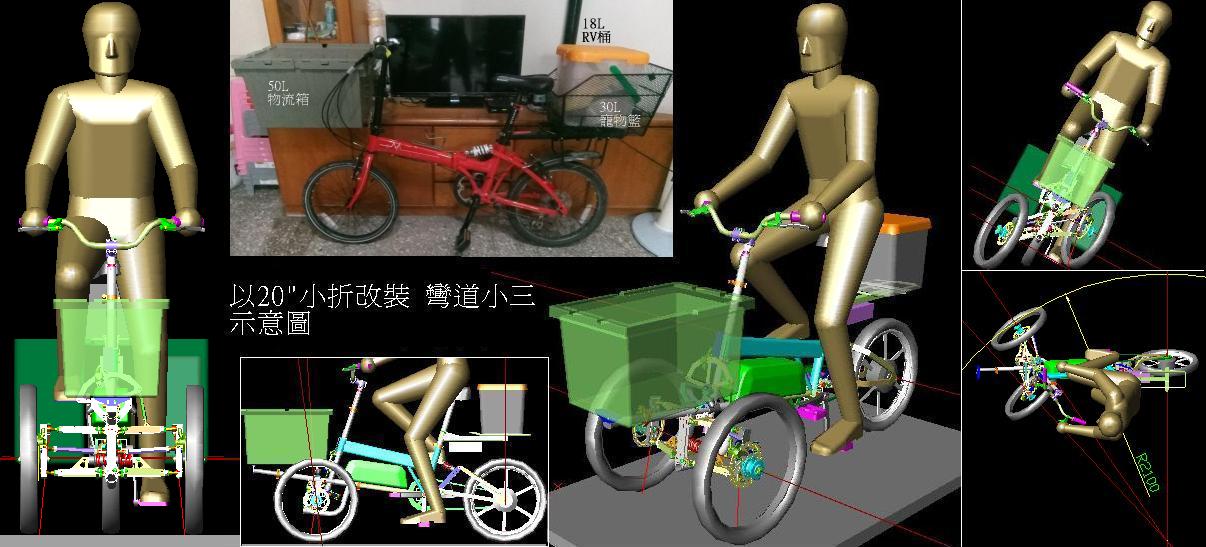

Design and draw in computer before build anything; you can build a whole new trike or modify from a bike

動手造物前先設計製圖; 可設計製作整車,或現成單車改前二輪快些

Sub frame of the front end kit; mass production need welding jigs

前支架; 批量製造須有焊接治具

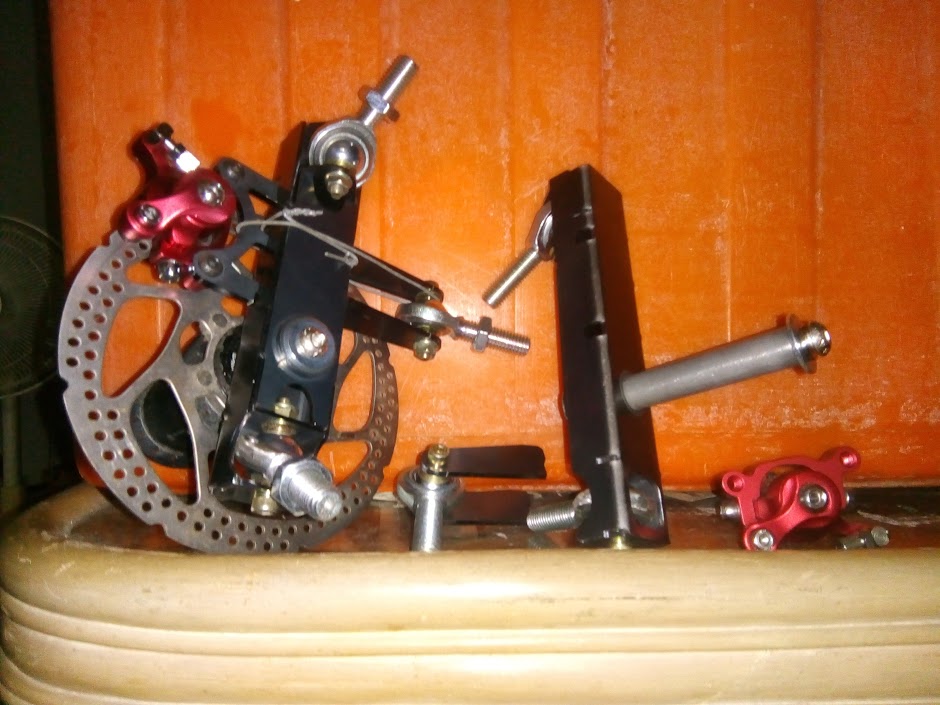

Suspension arms and Steer knuckles, structures made by laser cut sheet metal

懸掛與轉向節, 主体以鐳射割鈑金製作

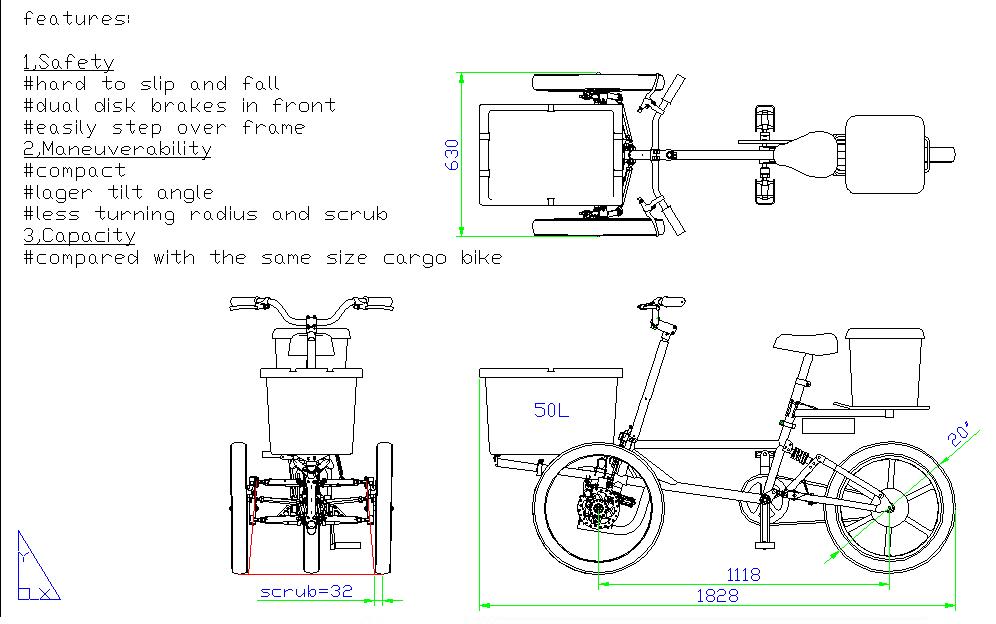

Scrub of different kind of knuckles and wheels,now I'm building G2

現在造第二代G2,單車專用幾何之套件

Lean angle compared with the similar trike in the market

與相似之市售產品比較側傾角

This kind simple style front end kit is a carriage steering mod, you have to exert much more power (say scrub 25cm;about 8 times of sports car mod)on handle bar, not fit for non-pavement terrain

獸力車轉向方式,手臂施力約為轎跑車轉向式8倍

Sub frame tubes and welding jig positioning completed

副支架管結構完成, 找工廠代工焊接

Aluminum alloy subframe also available

量產可用鋁合金支架

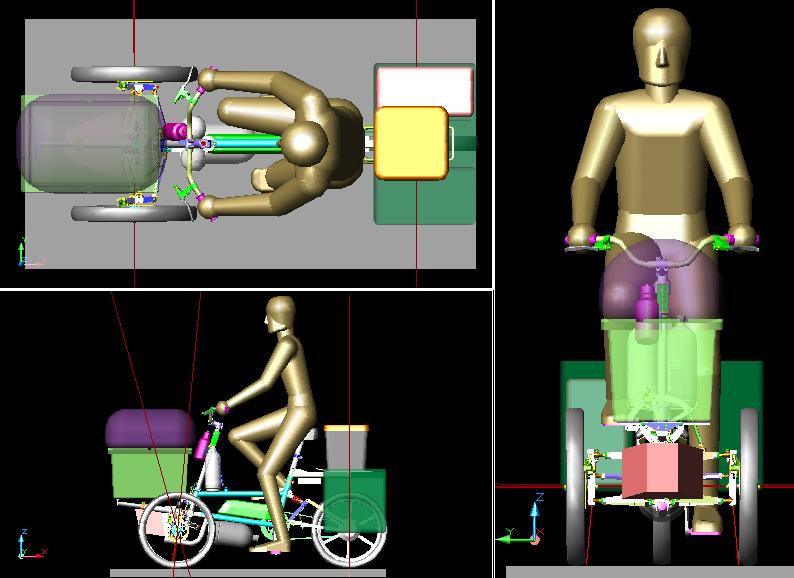

What capacity of the compact trike?even when in tight turn without interference

小車有多大裝載量? 以不影響跨越起落安全騎行為前提

You need a 4th wheel bumper in front when carry a kid, and more- -it turn into a mighty all terrain bike

親子車前端再加一輪更安全, 搖身一變就成了無敵越野車- -

Almost done;waiting for hub motor and controller

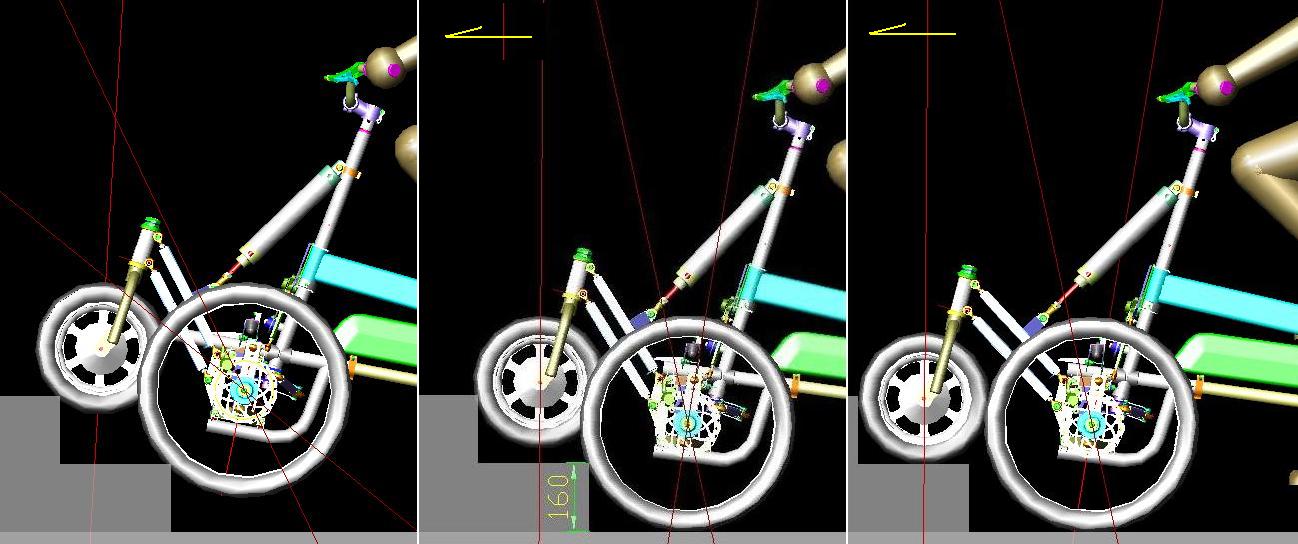

Easily run over obstacles and climb up sidewalk curbs without stunts

And hub motor installed
