Thump Mat

by asemery in Outside > Knots

3930 Views, 12 Favorites, 0 Comments

Thump Mat

thump 001.JPG
thump mat 017.JPG

The thump mat was used on sailing boats to protect the deck from the movement of rigging blocks attached to the deck.

To make the large sisal mat (6" o.d.) I started with 12' of 1/4" rope. After tightening there about 5" left over to trim.

I will use the cotton mat as a coaster.

thump mat 019.JPG

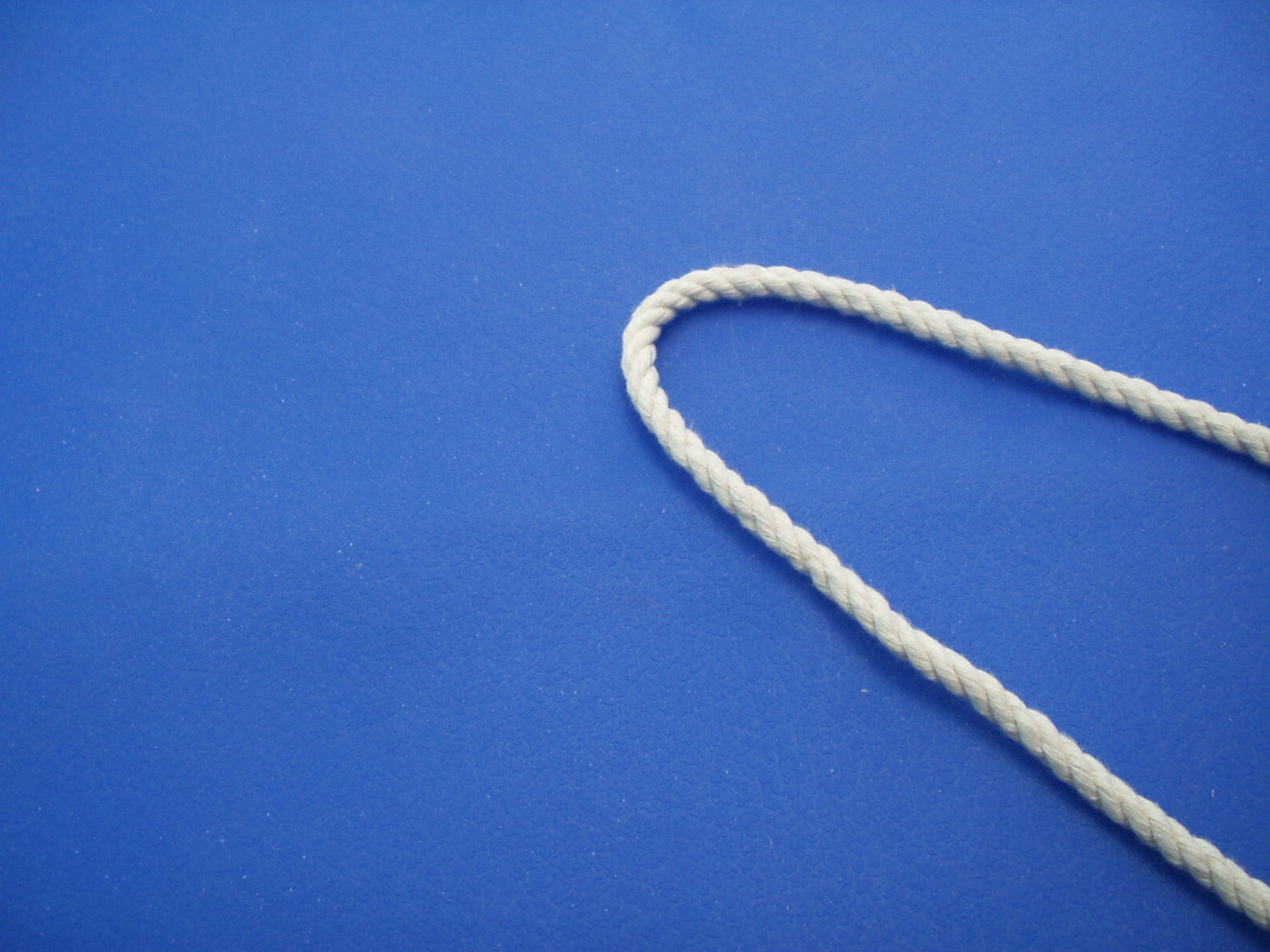

I started with 8' of 3/16" cotton cord, folded in half

thump mat 020.JPG

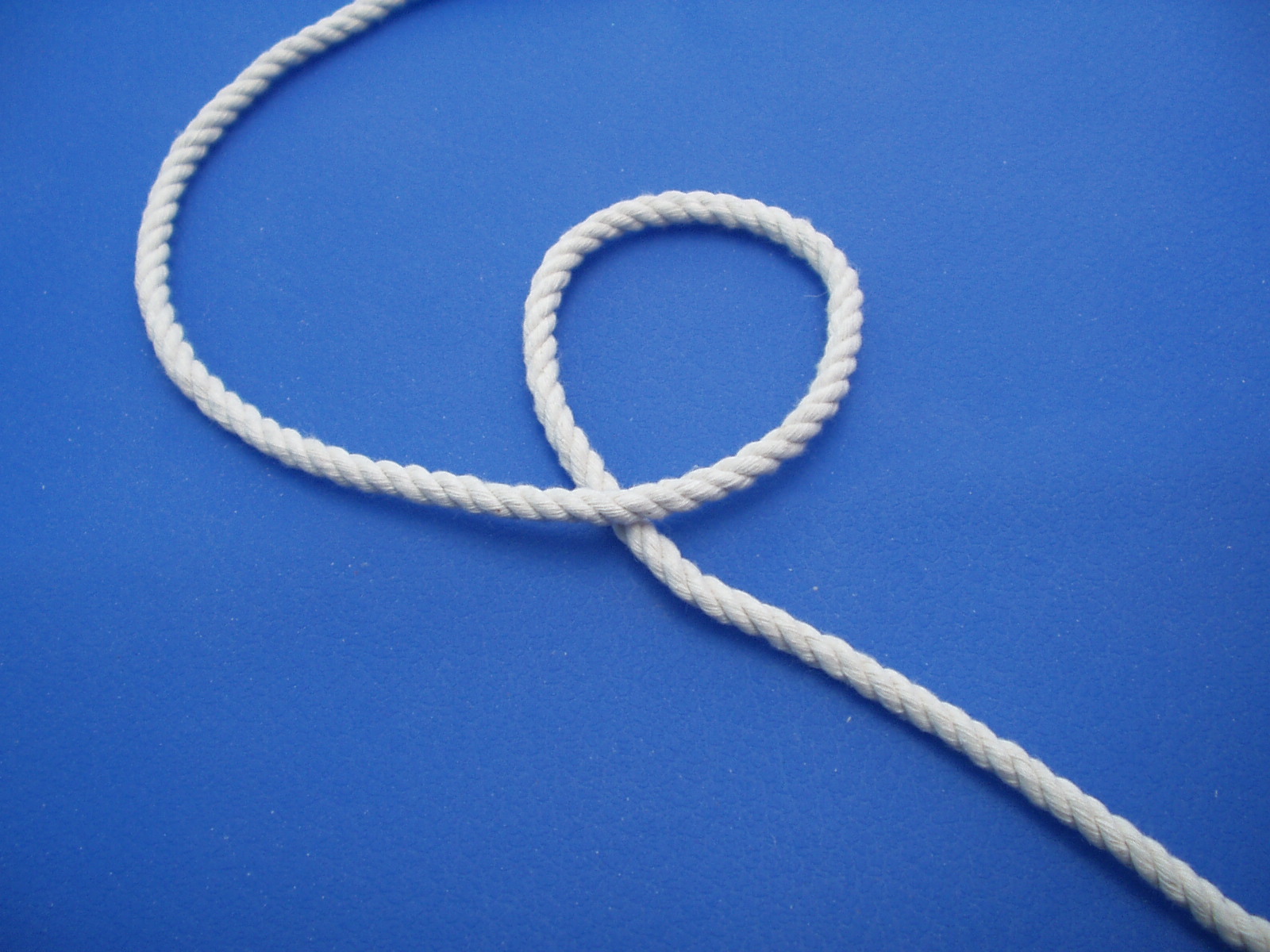

Bring the upper half around to make a loop . . .

thump mat 021.JPG

. . .and down across the loop

thump mat 022.JPG

Bring the same end up over two strands and under one.

thump mat 023.JPG

Bring the end down over two strands

thump mat 024.JPG

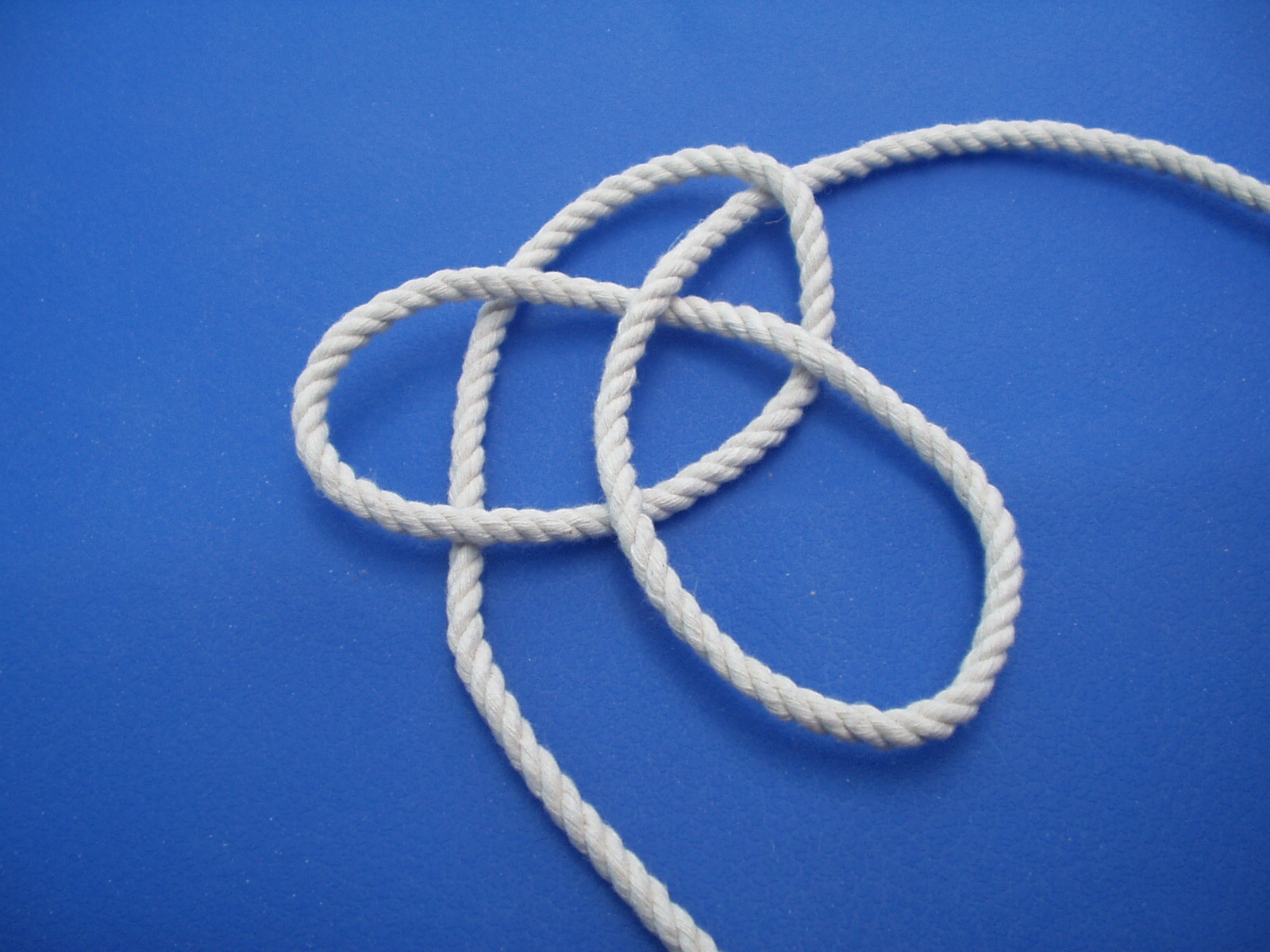

Bring the left hand strand over to the right

thump mat 025.JPG

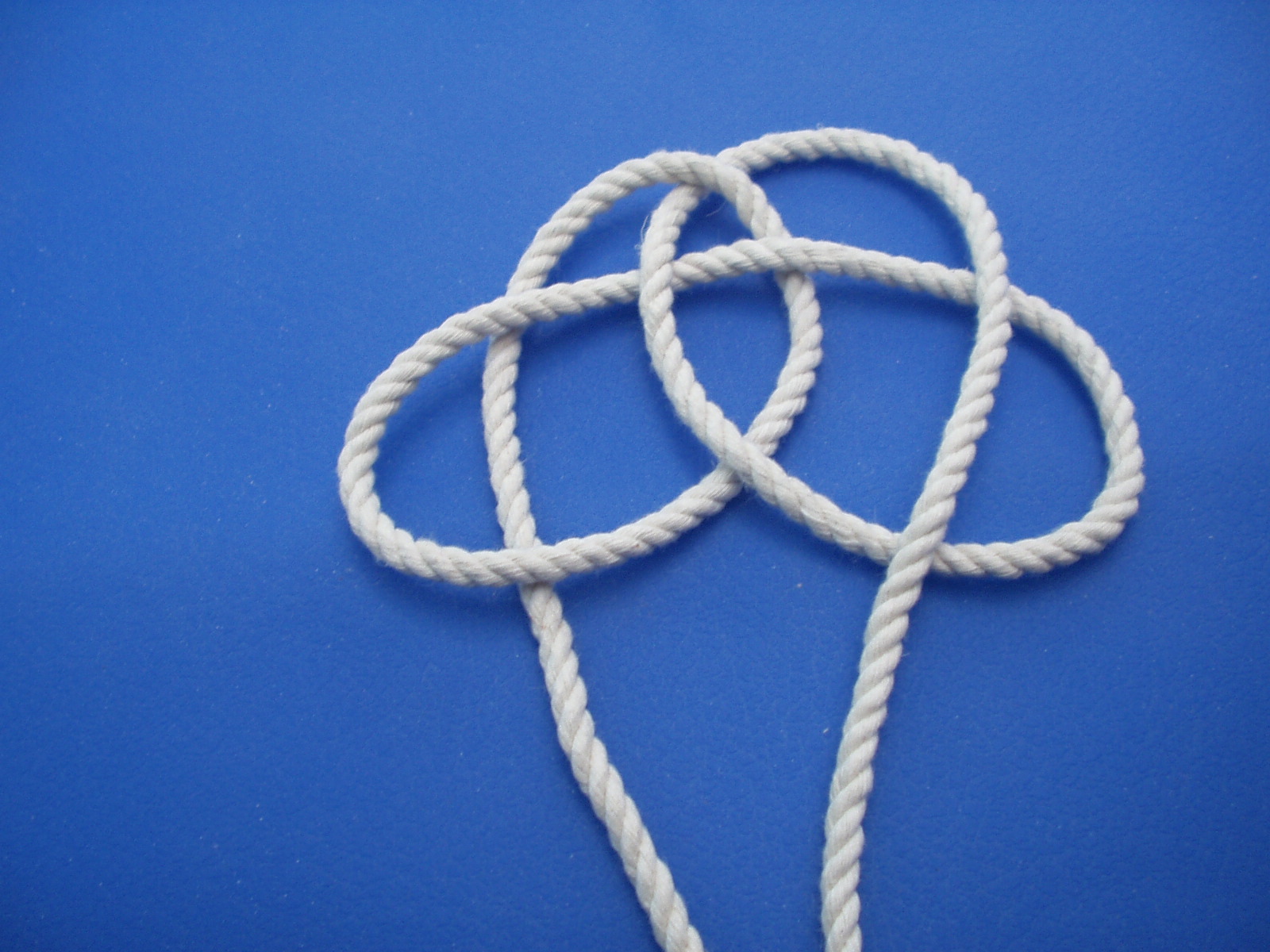

and back to the left going Under, Over, Under, Over, Under, Over to complete the knot

thump mat 008.JPG
thump mat 010.JPG

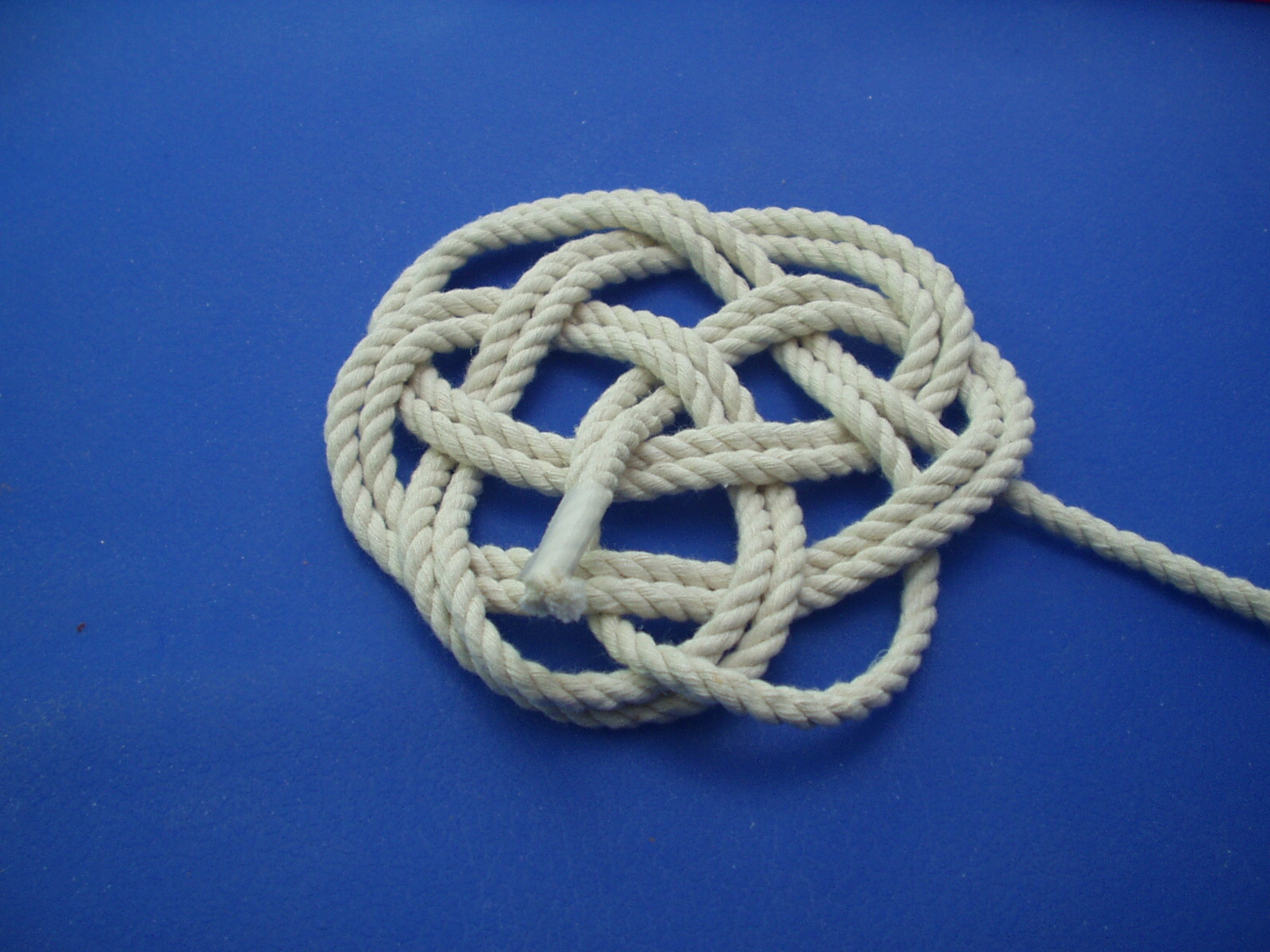

Begin to double the knot by taking that same strand and follow the path of the right hand strand until you reach the end of the cord.

thump mat 012.JPG

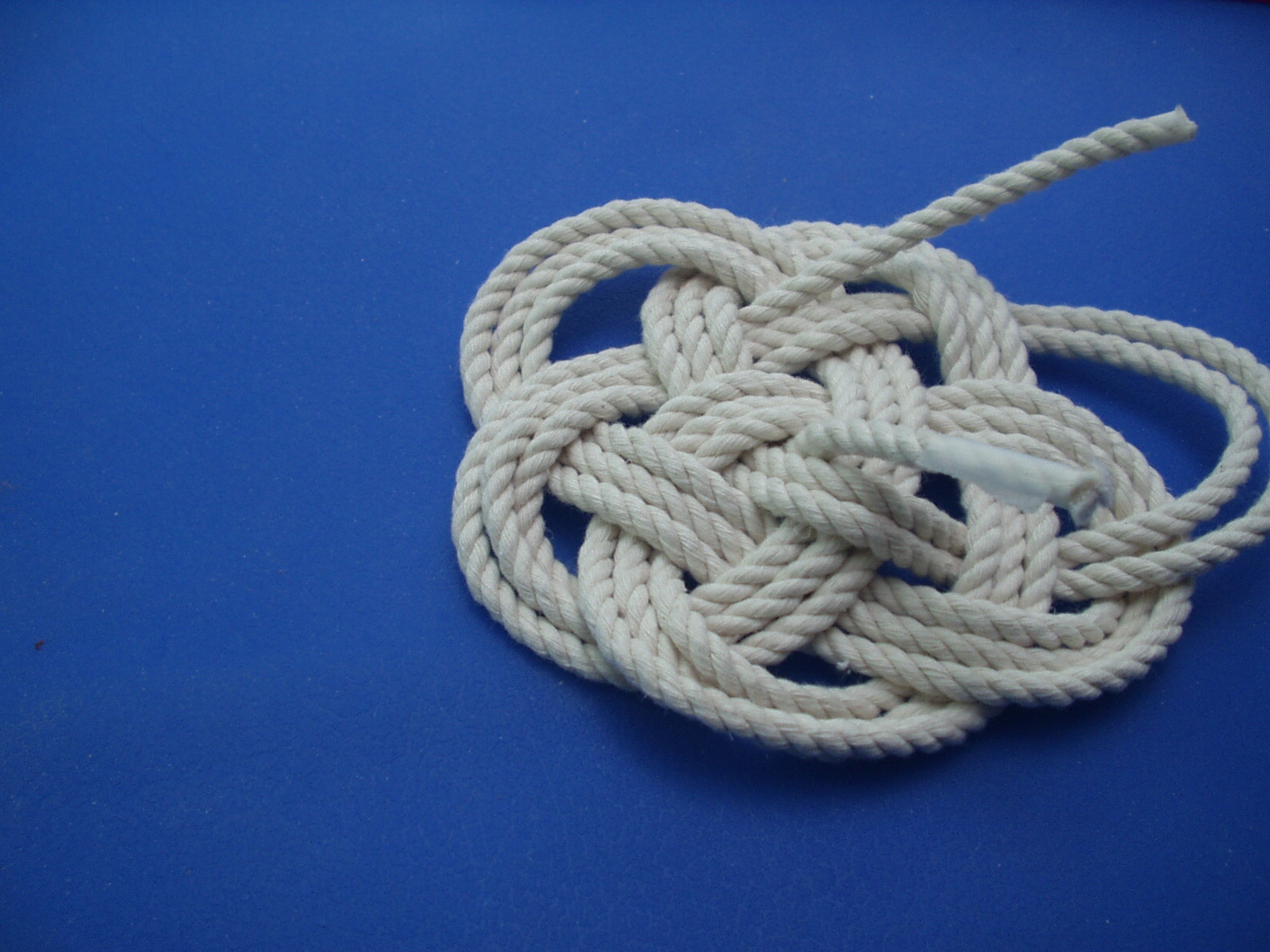

Take the remaining strand and follow the path around in the other direction.

There is a short bit between the two ends that needs to be completed

thump mat 013.JPG
thump mat 014.JPG
thump mat 015.JPG

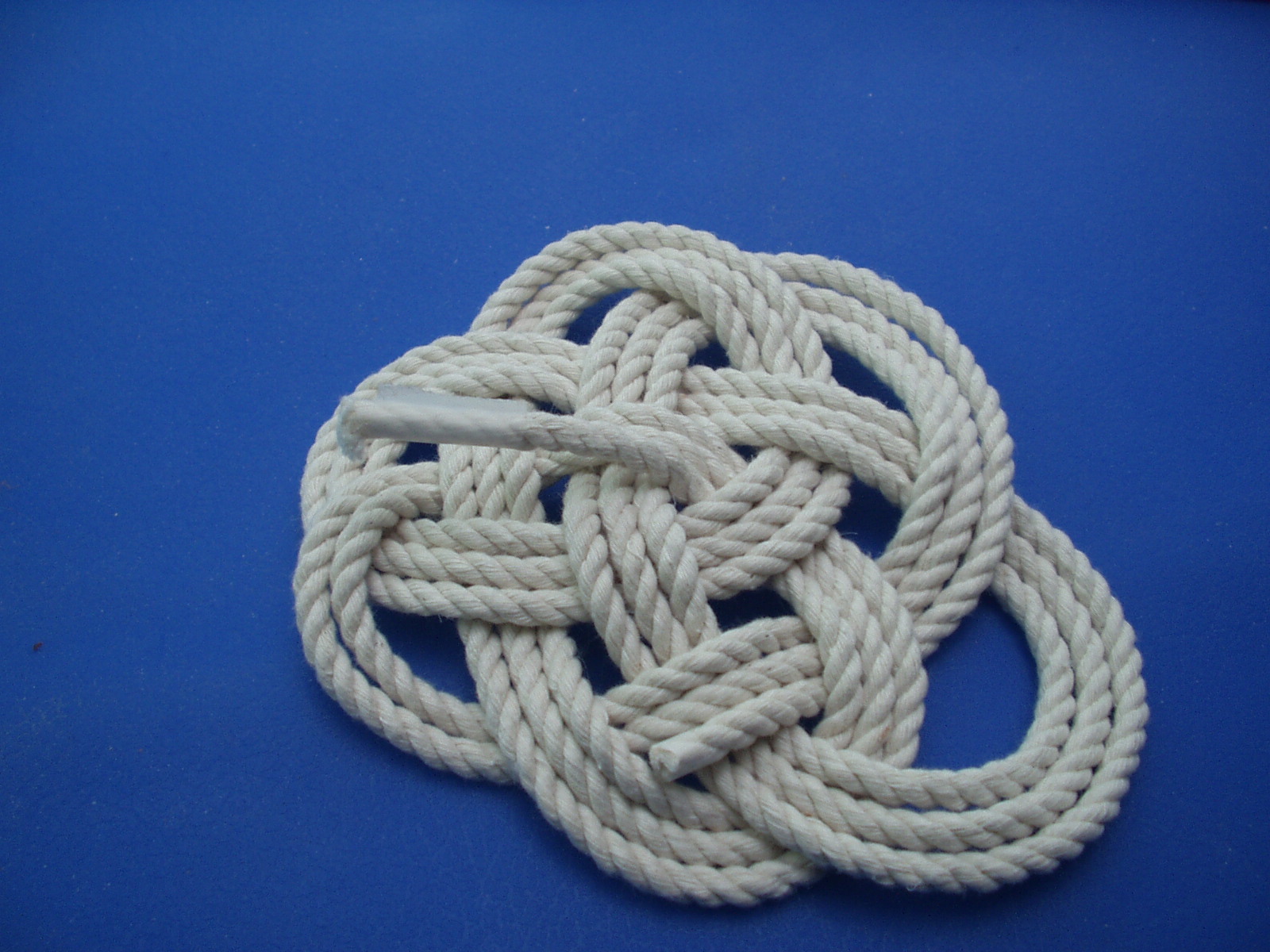

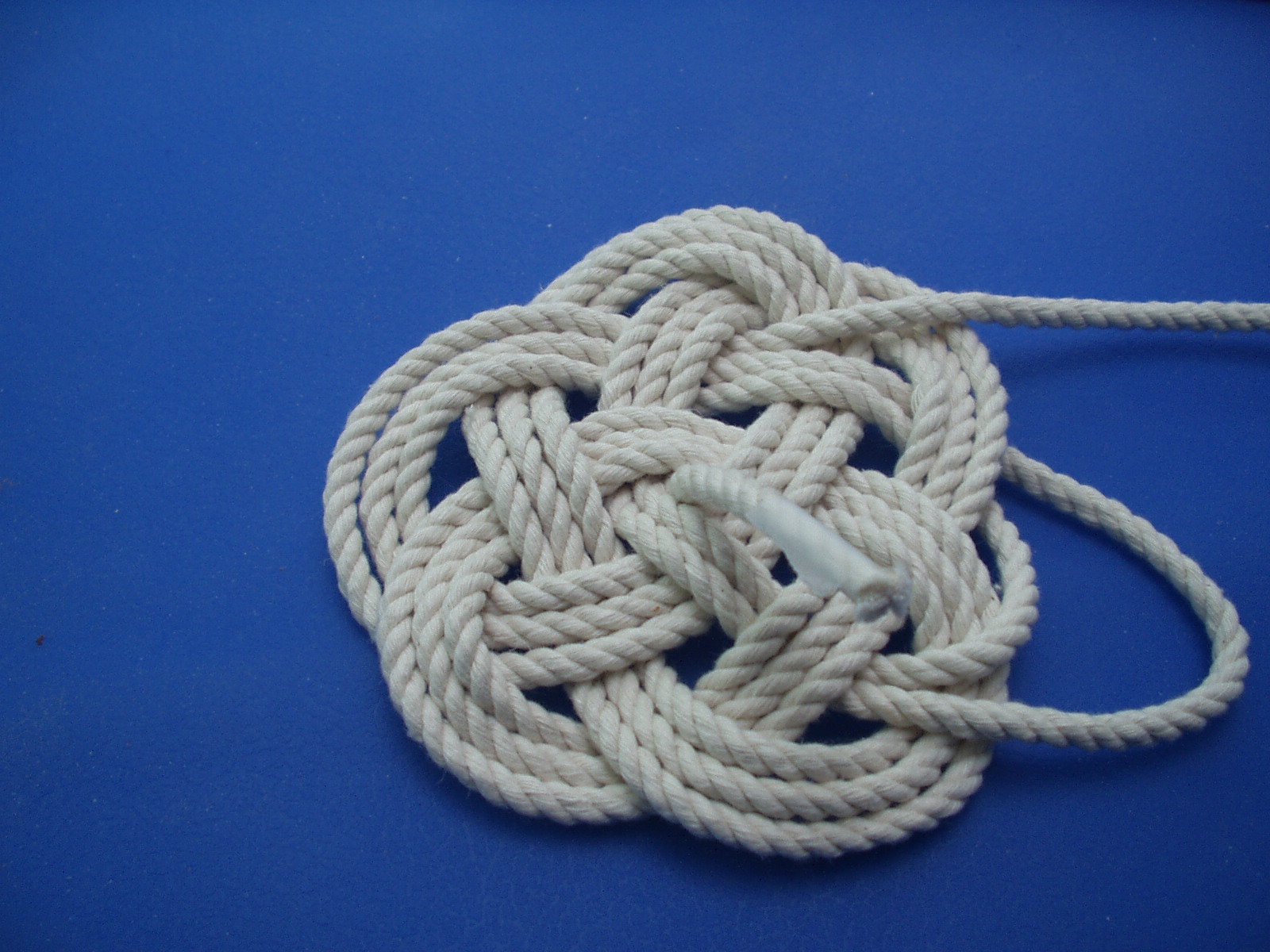

Begin to take the slack out of the mat by pulling on the strands in either direction. This will take three goes around to take slack out of each of the three plies

thump mat 016.JPG
thump mat 017.JPG

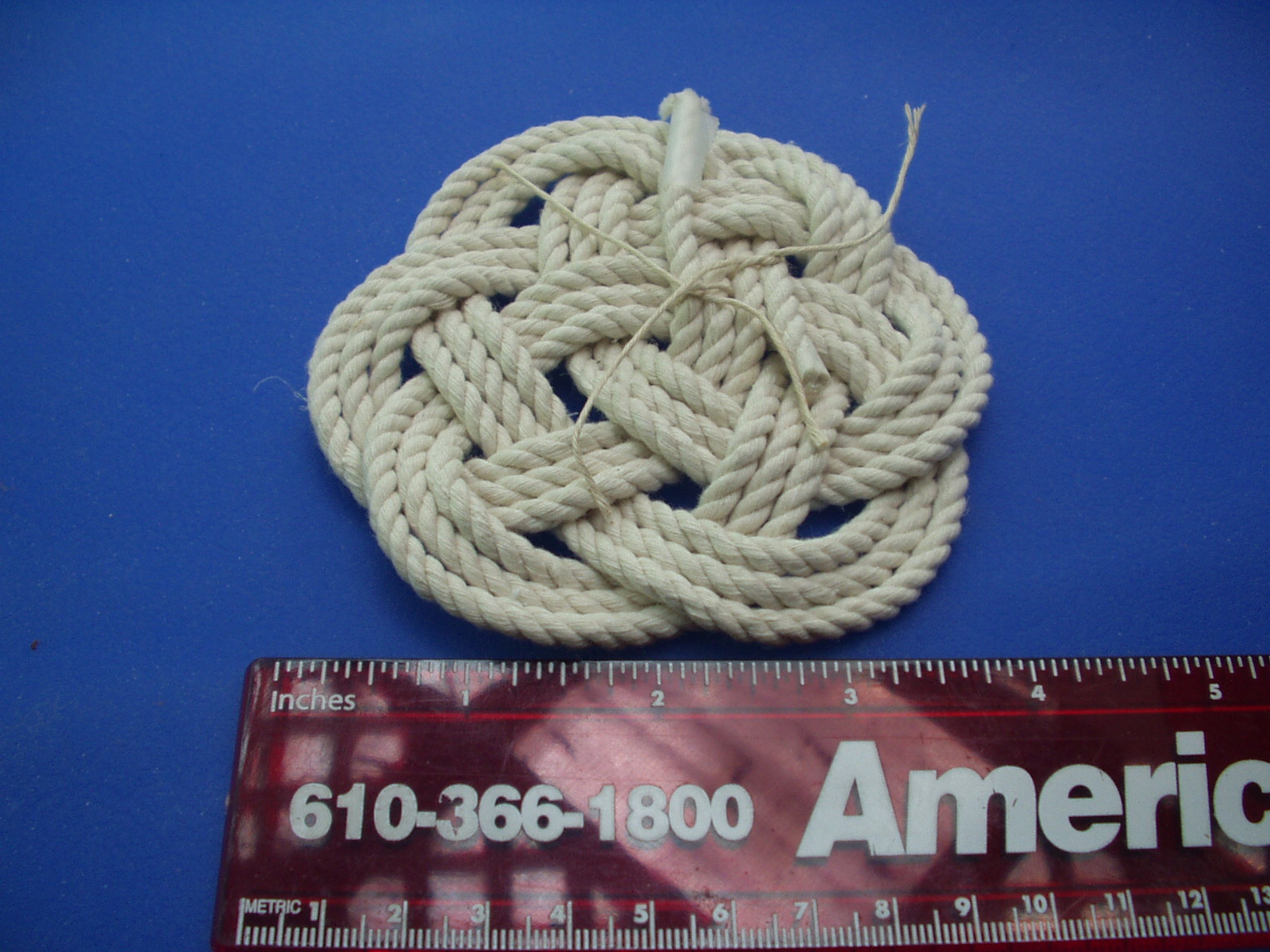

When the tightening is complete (there are three plies all around the mat) tie a constrictor knot to lock each end to its adjacent strand. Trim the ends
