Third Hand of the Tripod
![44.JPG](/proxy/?url=https://content.instructables.com/FEJ/51W4/II0M7T2R/FEJ51W4II0M7T2R.jpg&filename=44.JPG)
![45.JPG](/proxy/?url=https://content.instructables.com/F4T/RX30/II0M7T4Z/F4TRX30II0M7T4Z.jpg&filename=45.JPG)
![50.JPG](/proxy/?url=https://content.instructables.com/F6N/0XQ5/II0M7TBW/F6N0XQ5II0M7TBW.jpg&filename=50.JPG)
![51.JPG](/proxy/?url=https://content.instructables.com/FMK/HGRJ/II0M7TGC/FMKHGRJII0M7TGC.jpg&filename=51.JPG)
![52.JPG](/proxy/?url=https://content.instructables.com/FFT/K1TK/II0M7TI0/FFTK1TKII0M7TI0.jpg&filename=52.JPG)
![53.JPG](/proxy/?url=https://content.instructables.com/F5W/IZ7Q/II0M7TLI/F5WIZ7QII0M7TLI.jpg&filename=53.JPG)
![58.JPG](/proxy/?url=https://content.instructables.com/FES/CXEE/II0M7TSD/FESCXEEII0M7TSD.jpg&filename=58.JPG)
![57.JPG](/proxy/?url=https://content.instructables.com/FF1/XK33/II0M7TQM/FF1XK33II0M7TQM.jpg&filename=57.JPG)
![55.JPG](/proxy/?url=https://content.instructables.com/FAF/RYTJ/II0M7TP8/FAFRYTJII0M7TP8.jpg&filename=55.JPG)
![60.JPG](/proxy/?url=https://content.instructables.com/FW8/QU0X/II0M7TVB/FW8QU0XII0M7TVB.jpg&filename=60.JPG)
![54.JPG](/proxy/?url=https://content.instructables.com/F7E/NEYS/II0M7TN3/F7ENEYSII0M7TN3.jpg&filename=54.JPG)
![56.JPG](/proxy/?url=https://content.instructables.com/F8V/AD5Q/II0M7TPT/F8VAD5QII0M7TPT.jpg&filename=56.JPG)
![59.JPG](/proxy/?url=https://content.instructables.com/FAC/EZ6C/II0M7TT6/FACEZ6CII0M7TT6.jpg&filename=59.JPG)
Hello.
(I apologize in advance for the text translated Google).
By mistake, I bought all the famous tripod spider in an amount as three parts. Not only bought because of the law of meanness they were with a bunch of marriage in many joints were cracked, resulting in virtually no stiffness in the joints. I had to think about where they can apply to use. "Third hand" I have not and would like to get it, so I decided to try to assemble it using the same support, not to throw the same))) Here's what happened:

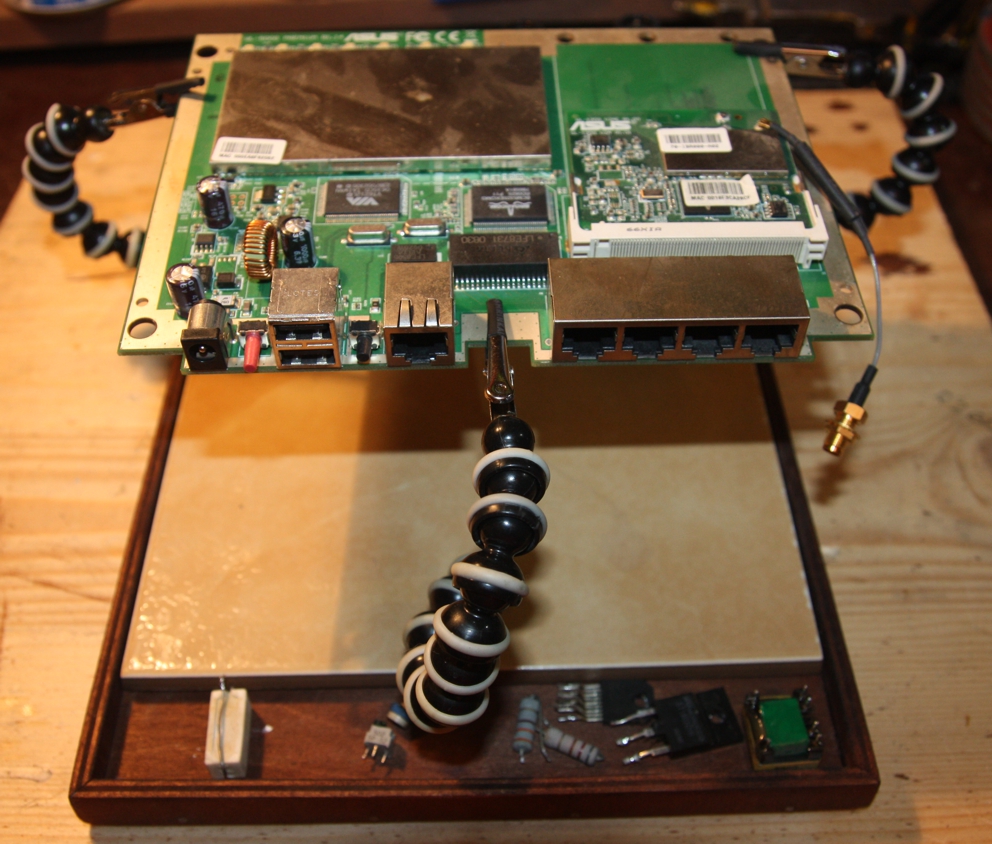

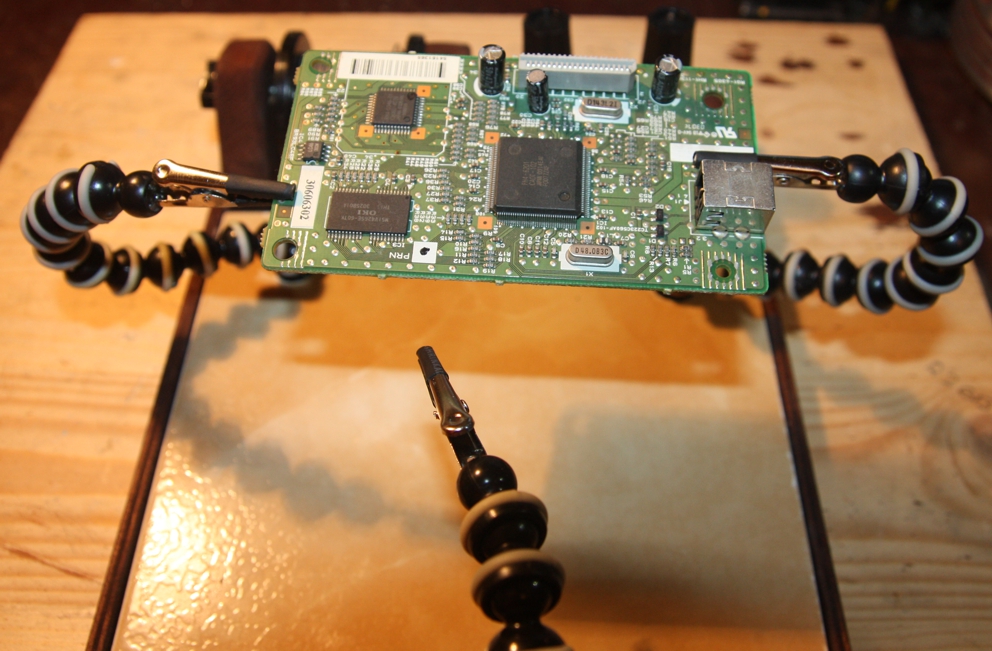

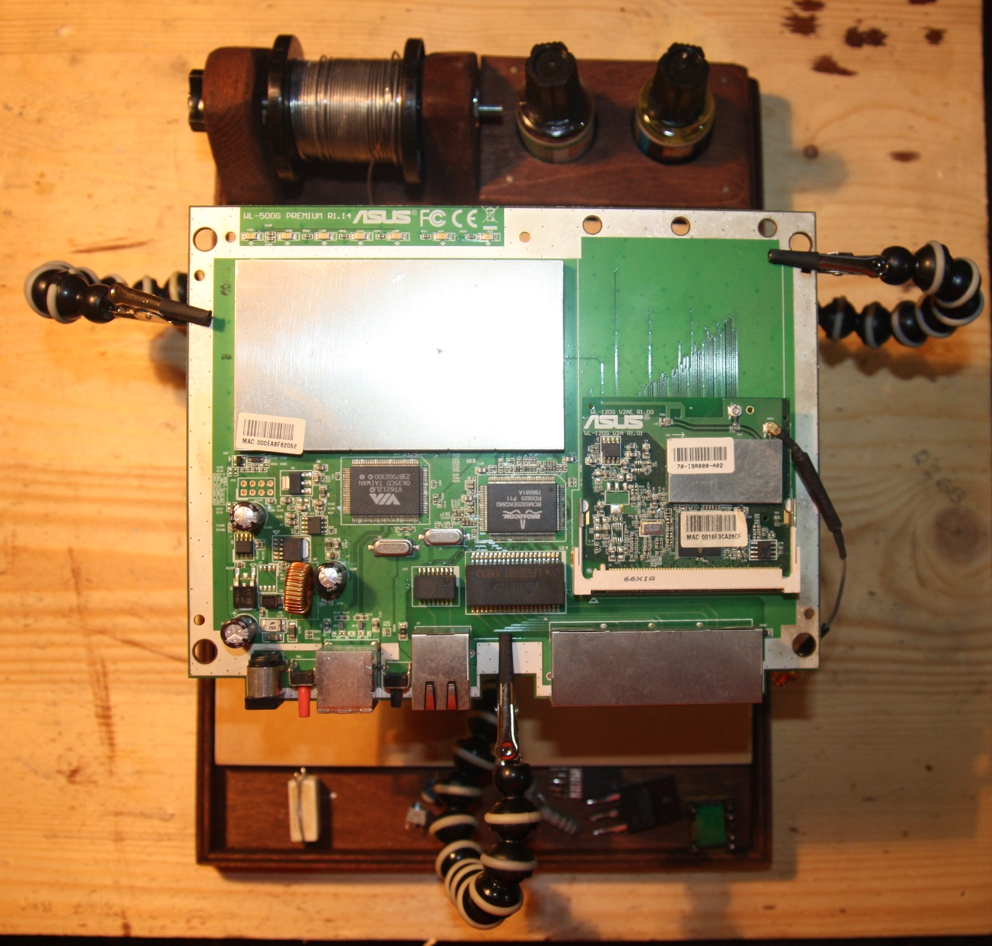

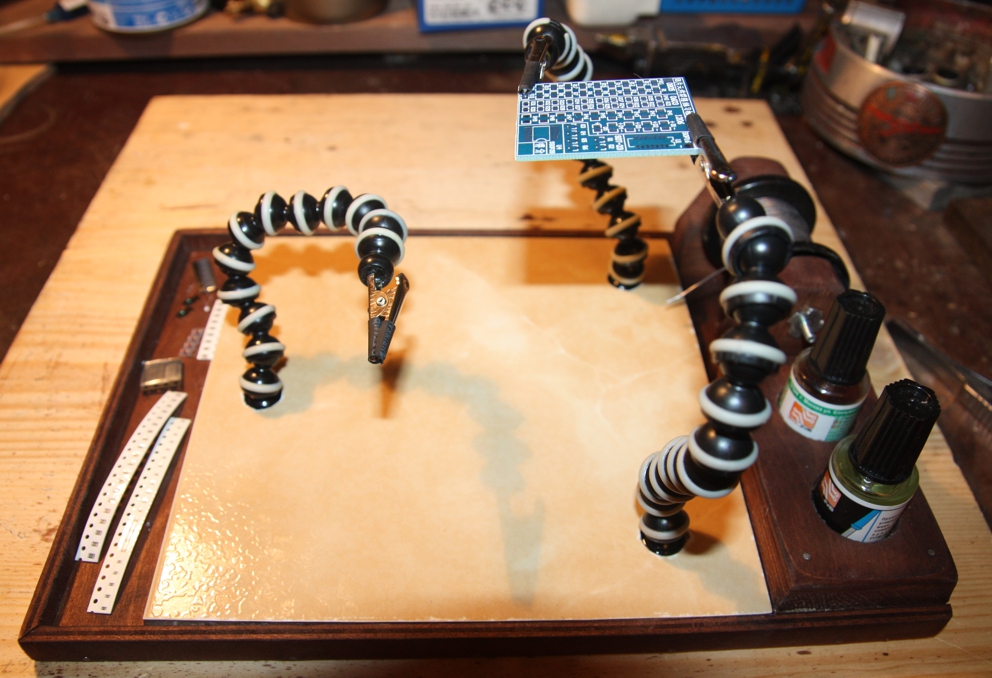

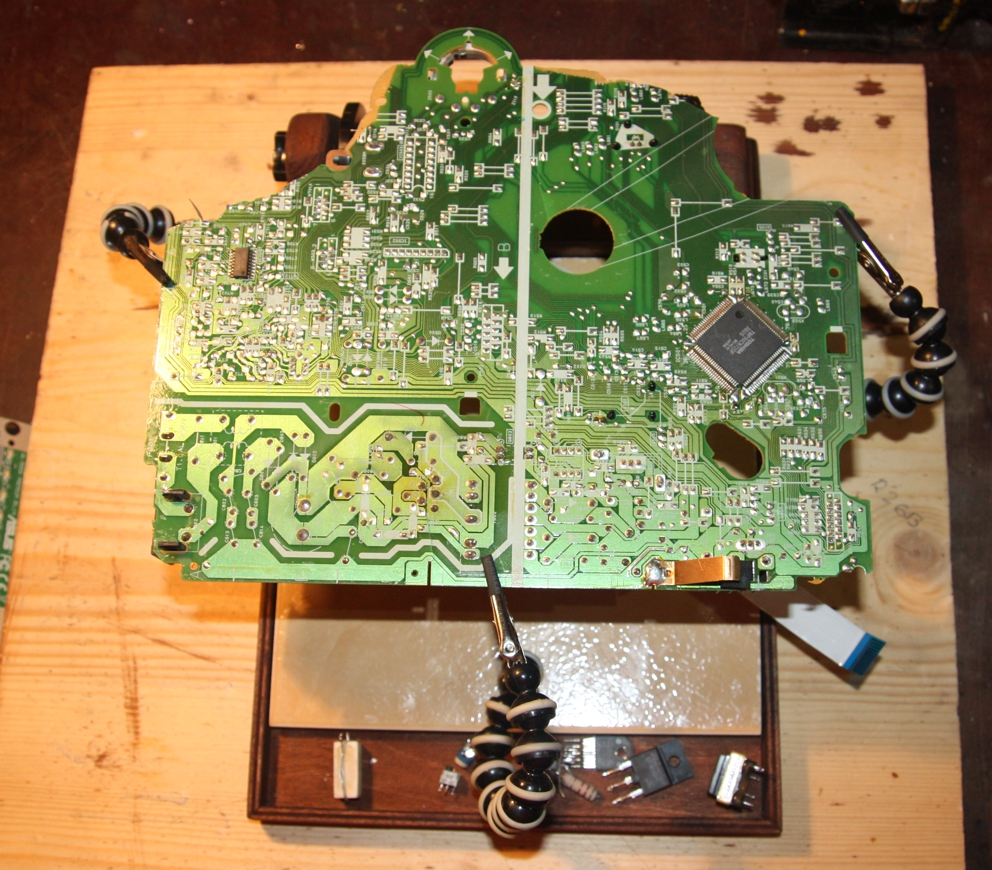

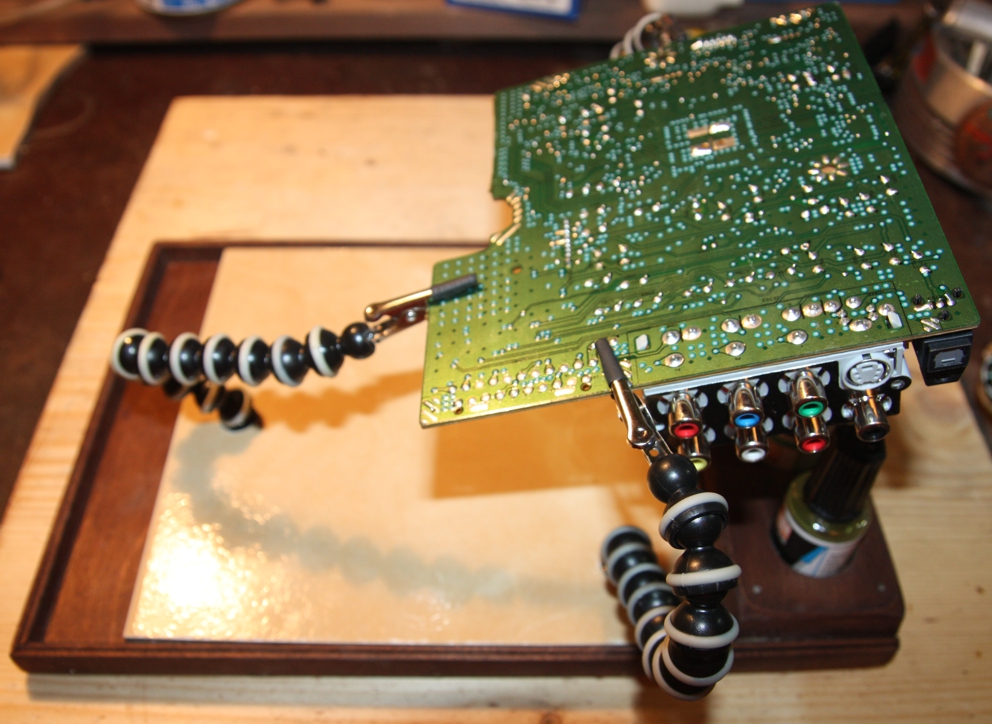

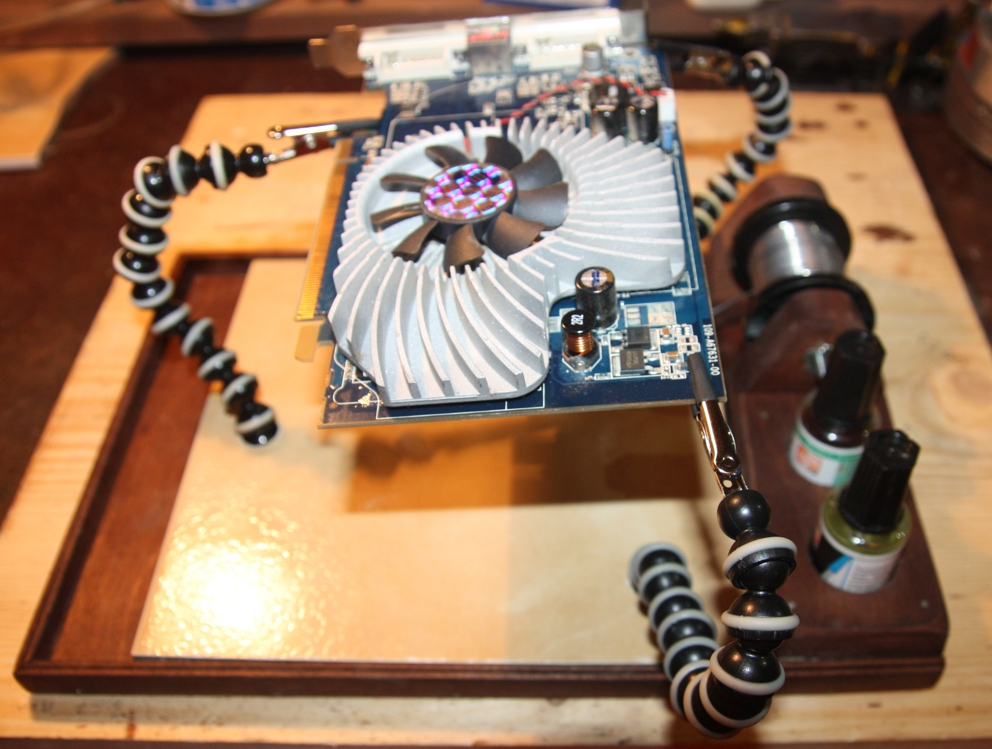

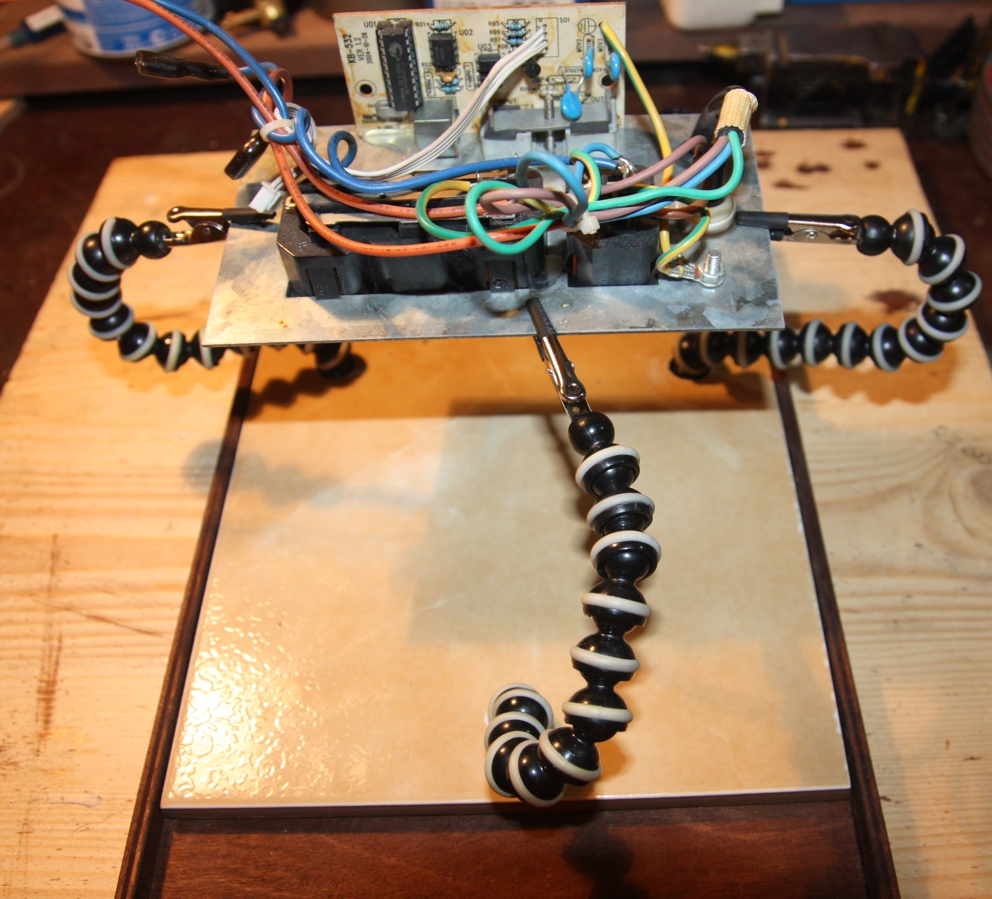

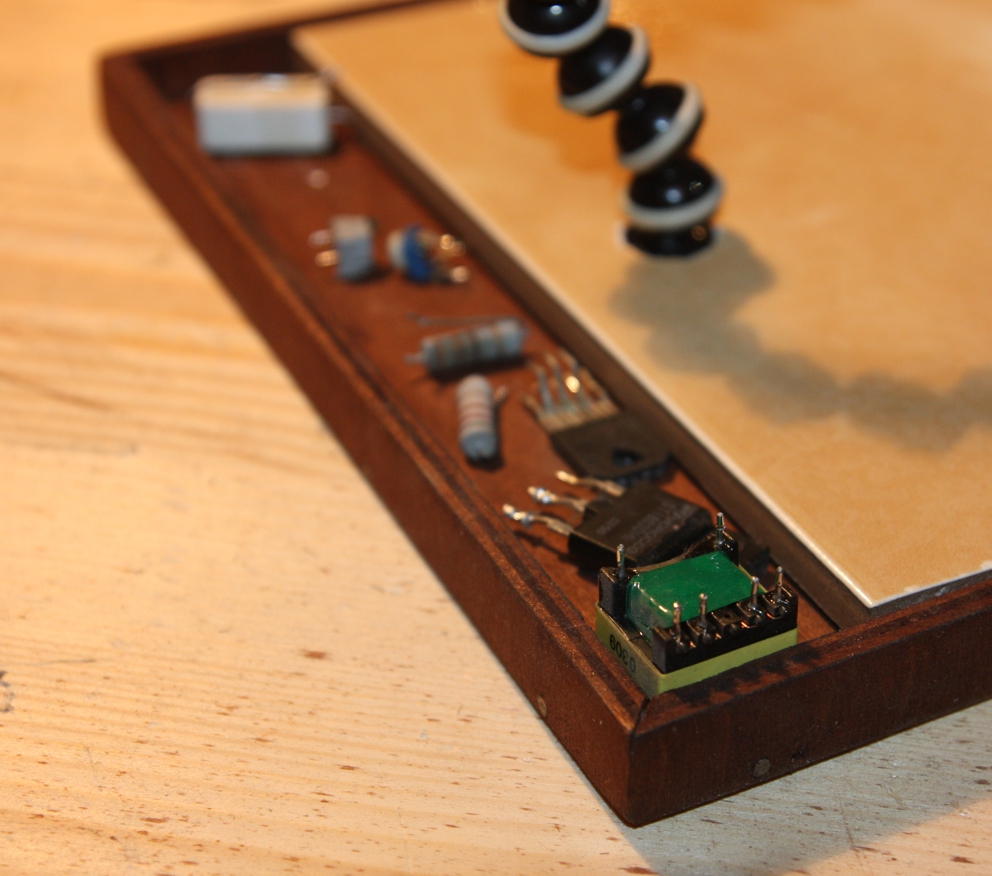

This is actually something that happened as a result:
It was made all homemade and the remains after repair. Database size 200x200mm selected exists on the basis of a piece of floor tiles.

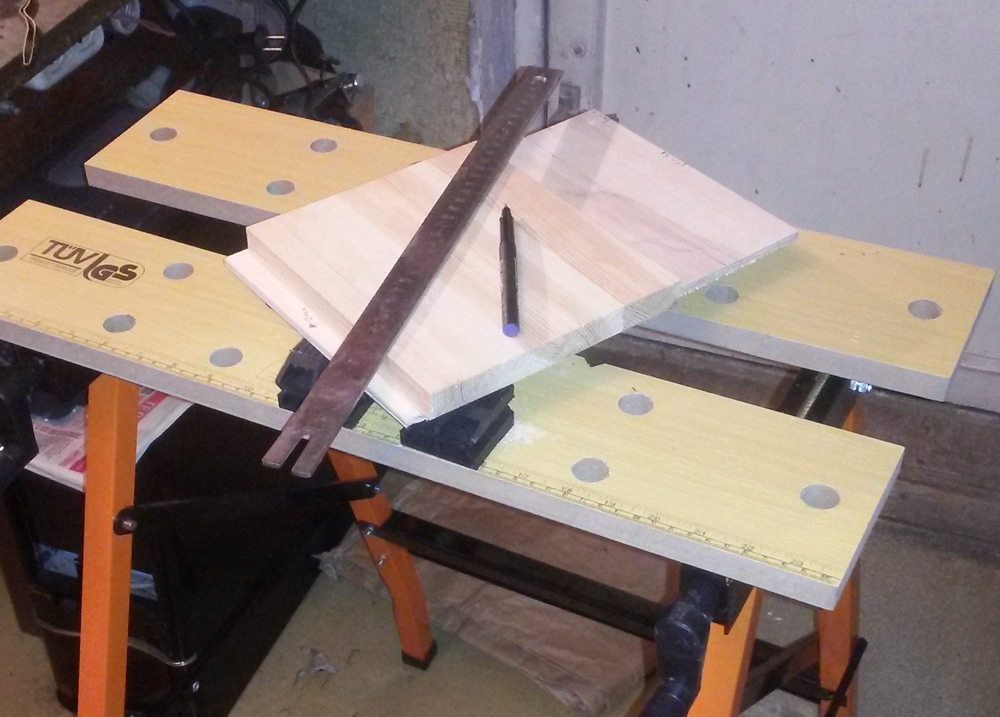

Cutting of Material.
![1.jpg](/proxy/?url=https://content.instructables.com/FPA/IT1Z/II0BKV4V/FPAIT1ZII0BKV4V.jpg&filename=1.jpg)
![2.jpg](/proxy/?url=https://content.instructables.com/FKX/JKM3/II0BKV5A/FKXJKM3II0BKV5A.jpg&filename=2.jpg)
![5.jpg](/proxy/?url=https://content.instructables.com/F8K/7YVJ/II0BKV7C/F8K7YVJII0BKV7C.jpg&filename=5.jpg)
![6.jpg](/proxy/?url=https://content.instructables.com/FTQ/A2Q9/II0BKV7D/FTQA2Q9II0BKV7D.jpg&filename=6.jpg)
![7.jpg](/proxy/?url=https://content.instructables.com/FB7/A3QO/II0BKVA6/FB7A3QOII0BKVA6.jpg&filename=7.jpg)
![8.jpg](/proxy/?url=https://content.instructables.com/FYF/BFK5/II0BKVAO/FYFBFK5II0BKVAO.jpg&filename=8.jpg)
![9.jpg](/proxy/?url=https://content.instructables.com/F4H/XLVR/II0BKVCE/F4HXLVRII0BKVCE.jpg&filename=9.jpg)
The sidewalls of the base cut, drill-holes 0,8-1mm for small studs.
Then apply the adhesive for wood and carefully assemble the side cover.
![10.jpg](/proxy/?url=https://content.instructables.com/FWQ/95ZH/II0BKVDQ/FWQ95ZHII0BKVDQ.jpg&filename=10.jpg)
![11.jpg](/proxy/?url=https://content.instructables.com/FMQ/1Q4V/II0BKVEQ/FMQ1Q4VII0BKVEQ.jpg&filename=11.jpg)
![12.jpg](/proxy/?url=https://content.instructables.com/FE5/8QZ6/II0BKVER/FE58QZ6II0BKVER.jpg&filename=12.jpg)
![13.JPG](/proxy/?url=https://content.instructables.com/FPV/Y7XN/II0BKVG2/FPVY7XNII0BKVG2.jpg&filename=13.JPG)
![14.JPG](/proxy/?url=https://content.instructables.com/FZC/XH70/II0BKVG3/FZCXH70II0BKVG3.jpg&filename=14.JPG)

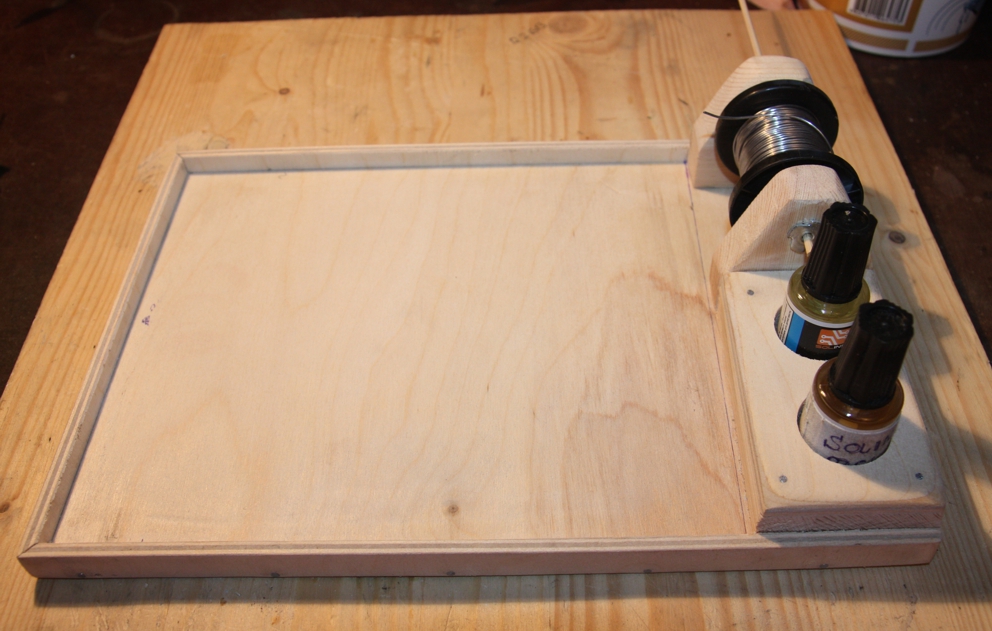

Full Version assemble mount the coil with the solder and the base of the holder under flux.
The size of a pin nuts M4 Everything is going on screws, studs, and do not regret the glue for wood.
![15.JPG](/proxy/?url=https://content.instructables.com/FSX/2NI8/II0BKVHV/FSX2NI8II0BKVHV.jpg&filename=15.JPG)
![16.JPG](/proxy/?url=https://content.instructables.com/F02/G8MM/II0BKVI4/F02G8MMII0BKVI4.jpg&filename=16.JPG)
Sverlom Forstner drill 30mm recess for bottles flux.
![17.jpg](/proxy/?url=https://content.instructables.com/F3F/F0UL/II0M7RWW/F3FF0ULII0M7RWW.jpg&filename=17.jpg)
![18.JPG](/proxy/?url=https://content.instructables.com/FP0/6BES/II0M7RYO/FP06BESII0M7RYO.jpg&filename=18.JPG)
Then grind everything by hand or machine.
Unfortunately the photo process is not preserved. (((
![19.JPG](/proxy/?url=https://content.instructables.com/FLZ/5ZSA/II0M7S0T/FLZ5ZSAII0M7S0T.jpg&filename=19.JPG)
![20.JPG](/proxy/?url=https://content.instructables.com/FF5/OGQI/II0M7S15/FF5OGQIII0M7S15.jpg&filename=20.JPG)
![21.JPG](/proxy/?url=https://content.instructables.com/F80/DH84/II0M7S60/F80DH84II0M7S60.jpg&filename=21.JPG)
![22.JPG](/proxy/?url=https://content.instructables.com/F1A/OTTS/II0M7S7V/F1AOTTSII0M7S7V.jpg&filename=22.JPG)
- To hammer small cloves into the ground as the legs before applying stain.

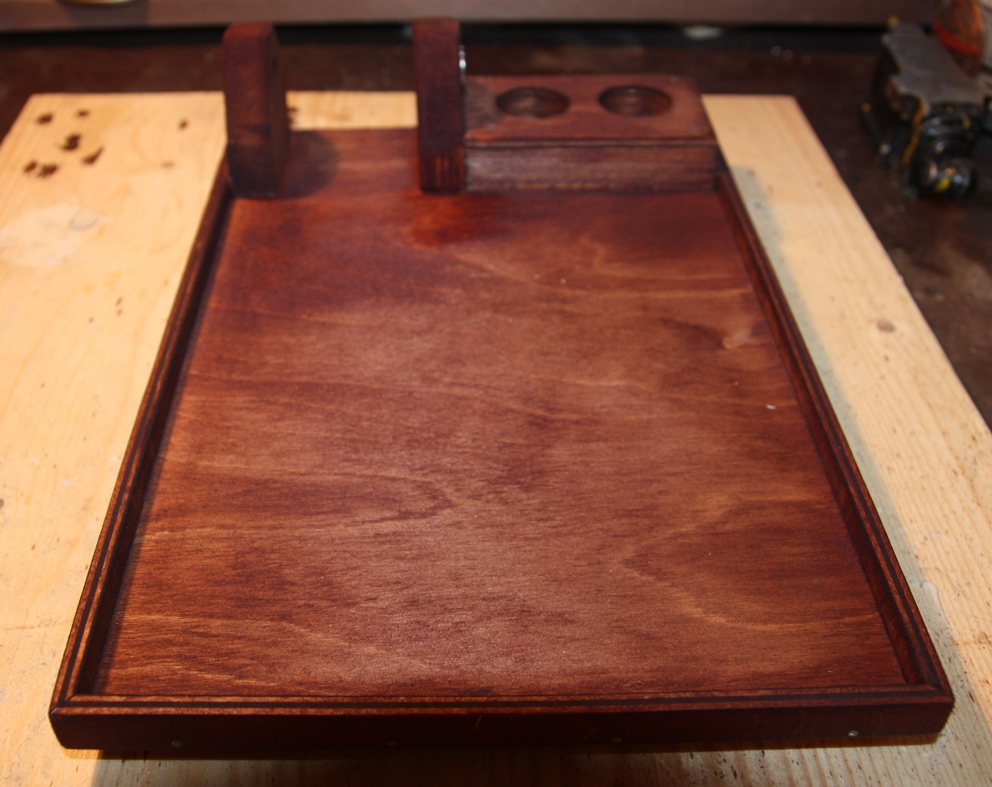

- A sponge or a brush apply a layer of stain.
![23.JPG](/proxy/?url=https://content.instructables.com/F5P/HF73/II0M7SB4/F5PHF73II0M7SB4.jpg&filename=23.JPG)
![24.JPG](/proxy/?url=https://content.instructables.com/F8J/7YCZ/II0M7SCW/F8J7YCZII0M7SCW.jpg&filename=24.JPG)

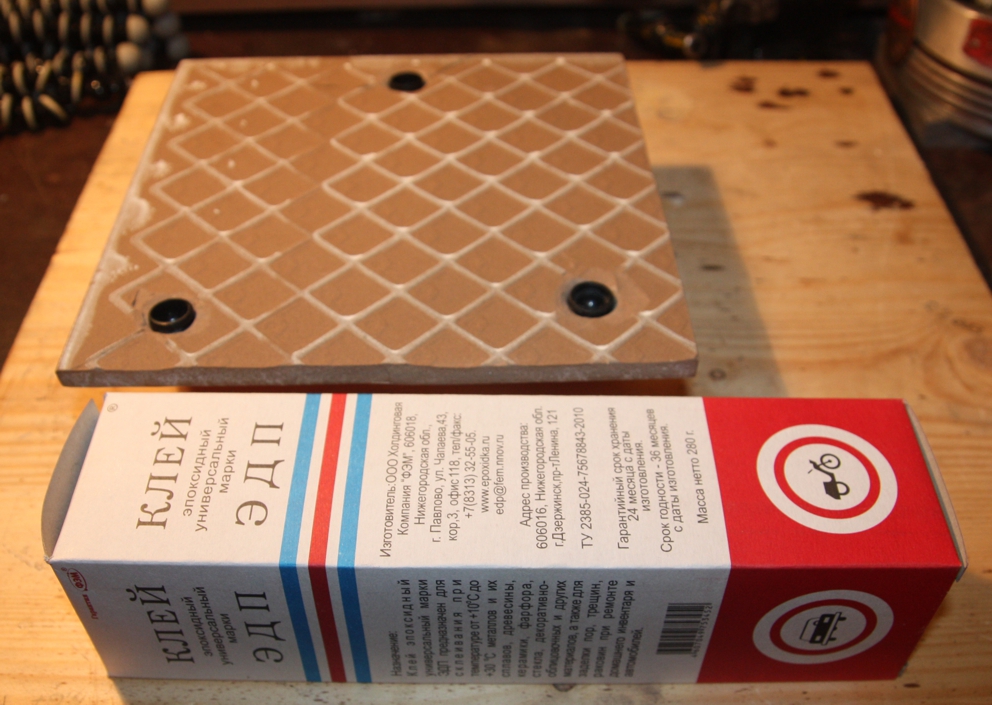

Cut the correct size piece of tile and grind sandpaper edge.
![25.JPG](/proxy/?url=https://content.instructables.com/FXZ/7A1O/II0M7SF4/FXZ7A1OII0M7SF4.jpg&filename=25.JPG)

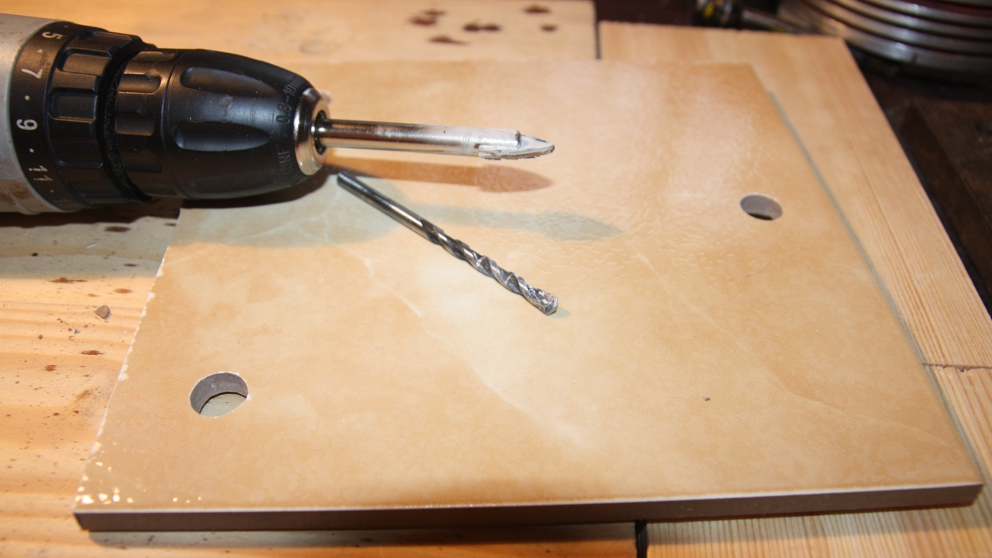

Drill holes for the holders.
Pobeditovym scheduled to drill, then drill reams glass.
![26.JPG](/proxy/?url=https://content.instructables.com/FQ6/4F9Z/II0M7SI5/FQ64F9ZII0M7SI5.jpg&filename=26.JPG)
![27.JPG](/proxy/?url=https://content.instructables.com/FVF/NE6L/II0M7SI6/FVFNE6LII0M7SI6.jpg&filename=27.JPG)

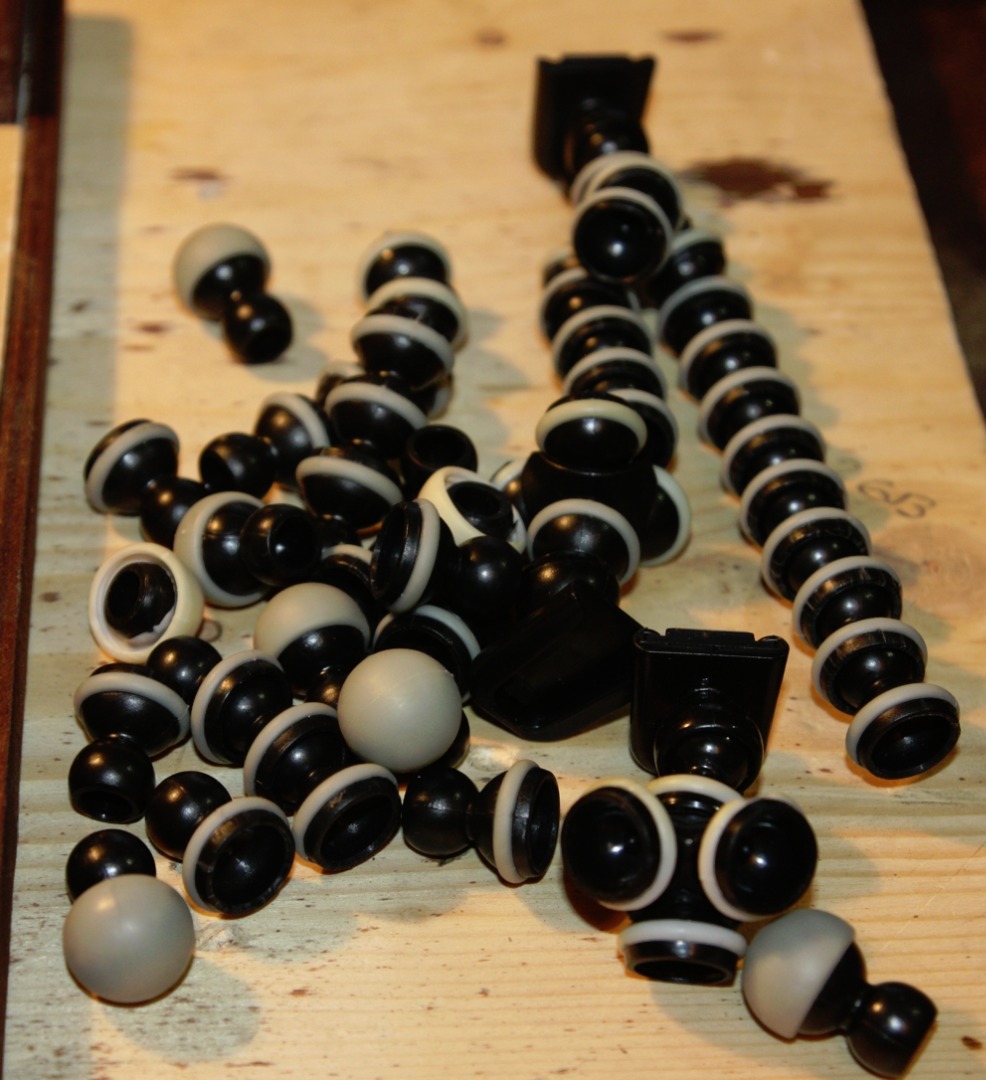

Parse tripods.
Detachable hinges and pick out the last of these rubber feet.
![29.JPG](/proxy/?url=https://content.instructables.com/FLN/MCT3/II0M7SKK/FLNMCT3II0M7SKK.jpg&filename=29.JPG)
![28.JPG](/proxy/?url=https://content.instructables.com/FSQ/HWDX/II0M7SKG/FSQHWDXII0M7SKG.jpg&filename=28.JPG)
![30.JPG](/proxy/?url=https://content.instructables.com/FU7/0L0W/II0M7SL9/FU70L0WII0M7SL9.jpg&filename=30.JPG)
![31.JPG](/proxy/?url=https://content.instructables.com/FMV/WK30/II0M7SLU/FMVWK30II0M7SLU.jpg&filename=31.JPG)
![32.JPG](/proxy/?url=https://content.instructables.com/F17/9NCD/II0M7SNM/F179NCDII0M7SNM.jpg&filename=32.JPG)
![33.JPG](/proxy/?url=https://content.instructables.com/FER/JNEM/II0M7SOF/FERJNEMII0M7SOF.jpg&filename=33.JPG)
![36.JPG](/proxy/?url=https://content.instructables.com/F46/9OH2/II0M7SSV/F469OH2II0M7SSV.jpg&filename=36.JPG)
![34.JPG](/proxy/?url=https://content.instructables.com/FGO/UFFJ/II0M7SOI/FGOUFFJII0M7SOI.jpg&filename=34.JPG)
![35.JPG](/proxy/?url=https://content.instructables.com/F6Q/WRJT/II0M7SSU/F6QWRJTII0M7SSU.jpg&filename=35.JPG)
![37.JPG](/proxy/?url=https://content.instructables.com/FXR/MRYO/II0M7SU4/FXRMRYOII0M7SU4.jpg&filename=37.JPG)
Insert the hinges into our hole, I put in the back of the tile.

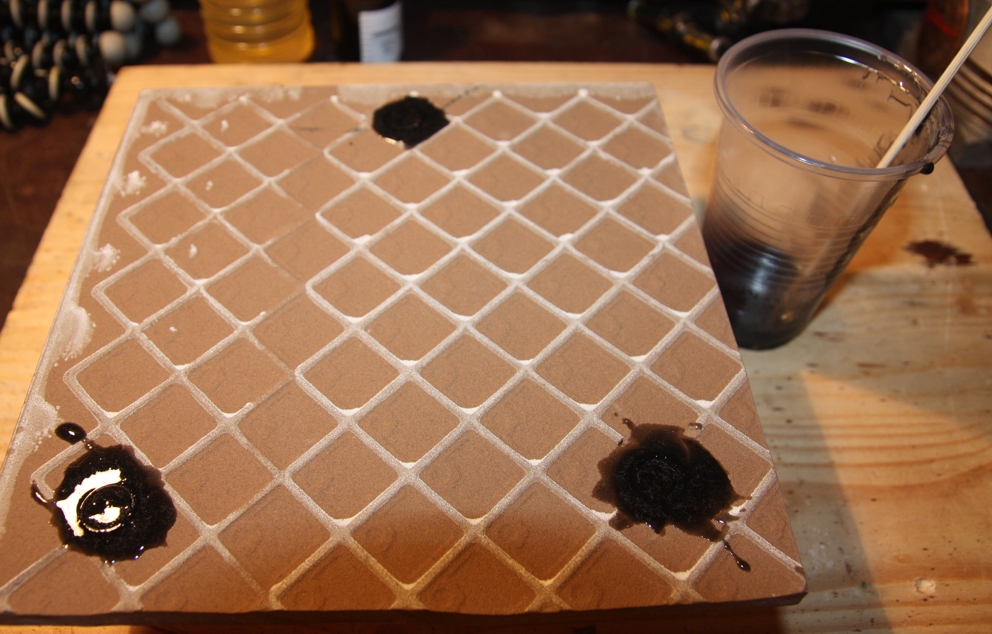

Fill epoxy resin

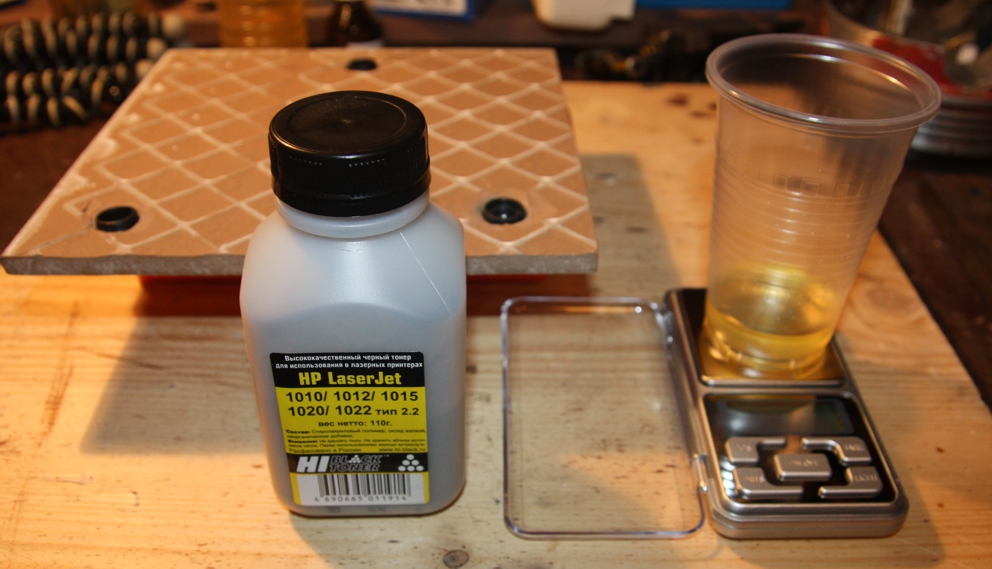

To make black glue in color with a tripod, add a pinch of toner from the printer (on the tip of a screwdriver, not more)
![38.JPG](/proxy/?url=https://content.instructables.com/F7Z/P9SI/II0M7SUL/F7ZP9SIII0M7SUL.jpg&filename=38.JPG)
![39.JPG](/proxy/?url=https://content.instructables.com/F68/DJRL/II0M7SVW/F68DJRLII0M7SVW.jpg&filename=39.JPG)
![40.JPG](/proxy/?url=https://content.instructables.com/FV1/HSQH/II0M7SVX/FV1HSQHII0M7SVX.jpg&filename=40.JPG)
![41.JPG](/proxy/?url=https://content.instructables.com/FPY/OXCZ/II0M7SZF/FPYOXCZII0M7SZF.jpg&filename=41.JPG)

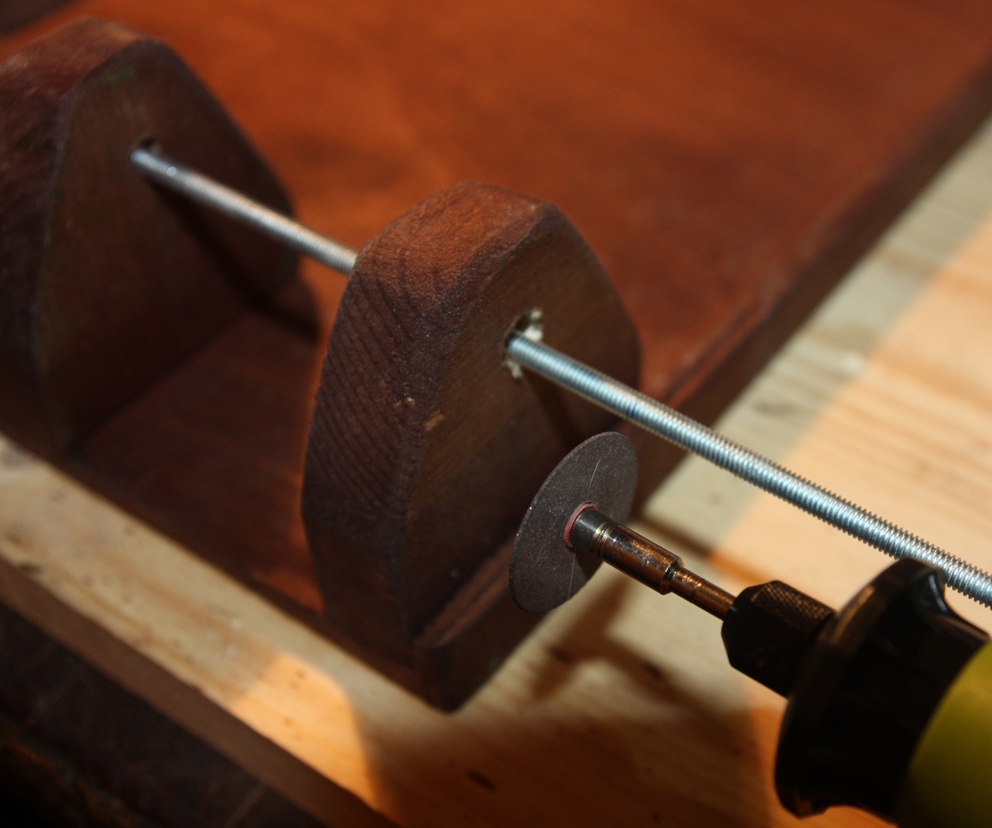

Cut the required length of the stud.
As the pen found at the lamb from the lamp from Ikea, went well, it is doubled on both sides with additional nuts.
![42.JPG](/proxy/?url=https://content.instructables.com/FRD/DD4V/II0M7SZI/FRDDD4VII0M7SZI.jpg&filename=42.JPG)
![43.JPG](/proxy/?url=https://content.instructables.com/F2J/SM7Q/II0M7T00/F2JSM7QII0M7T00.jpg&filename=43.JPG)
![IMG_0004.JPG](/proxy/?url=https://content.instructables.com/F61/0RYZ/II0M89EA/F610RYZII0M89EA.jpg&filename=IMG_0004.JPG)
Disassemble the components of our racks, carefully check all the joints for cracks and collect our "hands" we needed length.
Hinges can be lubricated alcohol-rosin solution to better movement of joints.
![46.JPG](/proxy/?url=https://content.instructables.com/F0D/SO88/II0M7T5G/F0DSO88II0M7T5G.jpg&filename=46.JPG)
![47.JPG](/proxy/?url=https://content.instructables.com/FBG/18OC/II0M7T7C/FBG18OCII0M7T7C.jpg&filename=47.JPG)
![48.JPG](/proxy/?url=https://content.instructables.com/FDX/LRM7/II0M7T96/FDXLRM7II0M7T96.jpg&filename=48.JPG)

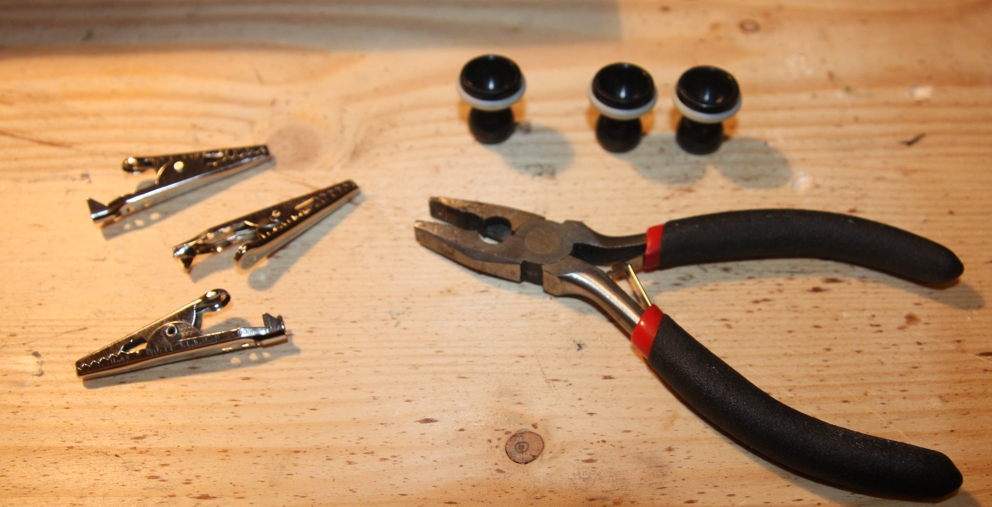

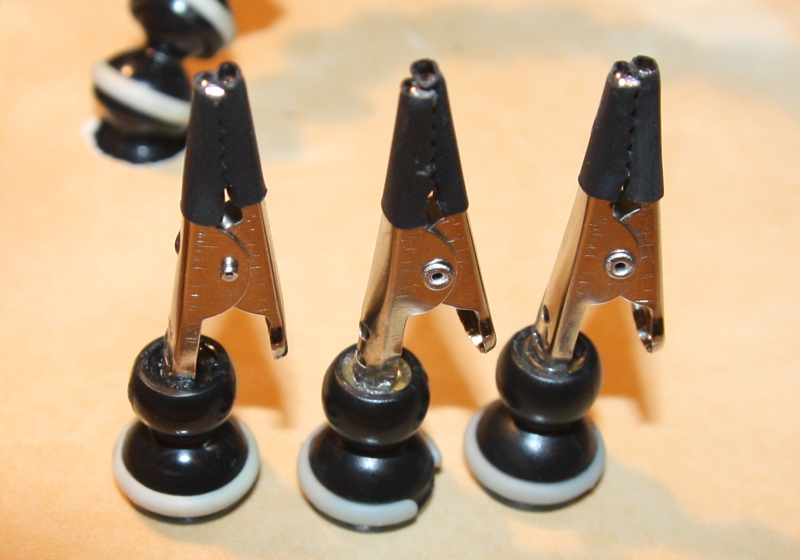

In order to clips do not damage the board or wire insulation, heat shrink tubing to dress clips.
Here's how to all)))
Maybe someone will be useful.
