"Third Hand" for Soldering
Every third hand I have ever used has been really terrible. I've heard that coolant tubes (used in machining) make great third hands (they don't move around once you place them, and you can place them anywhere, at any angle, in 3D space).
I looked online, and sparkfun (who I love), sells a third hand that takes advantage of this (yay!), but theirs is just a rectangular plate with some threads in it.
BORING!!
We can definitely do better!
Today I'll show you my version of a third hand. It was made as a gift for a good friend of mine (sidenote: flate rate shipping boxes from USPS are awesome! This thing ended up weighing a TON, but it was still cheap to mail it halfway across the country).
The "body" of the 3rd hand here came from some remnant stock I picked up at my local metal supplier (been sitting on the scrap shelf in the lab for at least a year now), and the head and legs (bolts and nut) came from a really awesome scrap yard in Phoenix called Davis Salvage (the only place I know of in town that still lets people dig through scrap).
I built this at Heatsync Labs in Mesa, AZ. If you want to come there and build something like this with us, come over! We have open hours almost every day of the week! (come in and use the lab: as always, it's free).
I looked online, and sparkfun (who I love), sells a third hand that takes advantage of this (yay!), but theirs is just a rectangular plate with some threads in it.
BORING!!
We can definitely do better!
Today I'll show you my version of a third hand. It was made as a gift for a good friend of mine (sidenote: flate rate shipping boxes from USPS are awesome! This thing ended up weighing a TON, but it was still cheap to mail it halfway across the country).
The "body" of the 3rd hand here came from some remnant stock I picked up at my local metal supplier (been sitting on the scrap shelf in the lab for at least a year now), and the head and legs (bolts and nut) came from a really awesome scrap yard in Phoenix called Davis Salvage (the only place I know of in town that still lets people dig through scrap).
I built this at Heatsync Labs in Mesa, AZ. If you want to come there and build something like this with us, come over! We have open hours almost every day of the week! (come in and use the lab: as always, it's free).
Gather Your Materials
Here you can see the base materials that I'm going to work with layed out here. Not pictured are: the alligator clips I used for the "hands", and a heatsink that I cut in half for the mohawk!
Sketch It Out
Put your materials together and figure out an aesthetic that you like. I found that having my robot-figure "sitting down" was a LOT better than having it standing, because if it was standing it was really top heavy.
Mill Some Holes for Threading
The threads that I used were #14-1.5. I didn't know this until I started, and figured it out by threading one of the dies from our tap and die set over the thing I wanted to bolt in.
Consult your tap-and-die set for a drill-size. For size #14-1.5, I needed a 1/2 inch mill.
I plunged a .5inch deep hole into my piece for this. This gave enough room for my hoses to thread into, as well as some "run out" space for the tap (I'll explain in the next step).
Sidenote: here is a great chart of tap:drill sizes: http://www.carbidedepot.com/formulas-tap-metric.ht...
Consult your tap-and-die set for a drill-size. For size #14-1.5, I needed a 1/2 inch mill.
I plunged a .5inch deep hole into my piece for this. This gave enough room for my hoses to thread into, as well as some "run out" space for the tap (I'll explain in the next step).
Sidenote: here is a great chart of tap:drill sizes: http://www.carbidedepot.com/formulas-tap-metric.ht...
Tap the Threads!
Tapping threads is REALLY easy, just make sure that your tap starts out straight.
I used a little thread cutting oil for this. To do it, get your tap, put it in the hole, and twist! Super simple stuff!
A tip for tapping: your hole needs to be a little bit deeper than what you actually need to thread into. Keep in mind that your tap is tapered; it starts out not very aggressively cutting threads into a hole, and gradually tapers up to your full thread size. Give it a little extra room at the bottom to account for this.
I used a little thread cutting oil for this. To do it, get your tap, put it in the hole, and twist! Super simple stuff!
A tip for tapping: your hole needs to be a little bit deeper than what you actually need to thread into. Keep in mind that your tap is tapered; it starts out not very aggressively cutting threads into a hole, and gradually tapers up to your full thread size. Give it a little extra room at the bottom to account for this.
Clean Your Materials
I said in the intro that I got these bolts/nut at a scrap yard. They were COVERED in corrosion, paint, and gods knows what else. Get that nasty stuff off of them, ESPECIALLY if you're going to be welding them.
No questions here: gotta clean these up.
Wear a respirator when you're grinding. One time I didn't wear a respirator (don't need no respirator!), and the next day, I found some grey slurry coming out of my nose. GROSS! I learned that lesson!
You don't want to breathe old paint and corrosion into your lungs, let a cheap-o respirator catch those particles instead.

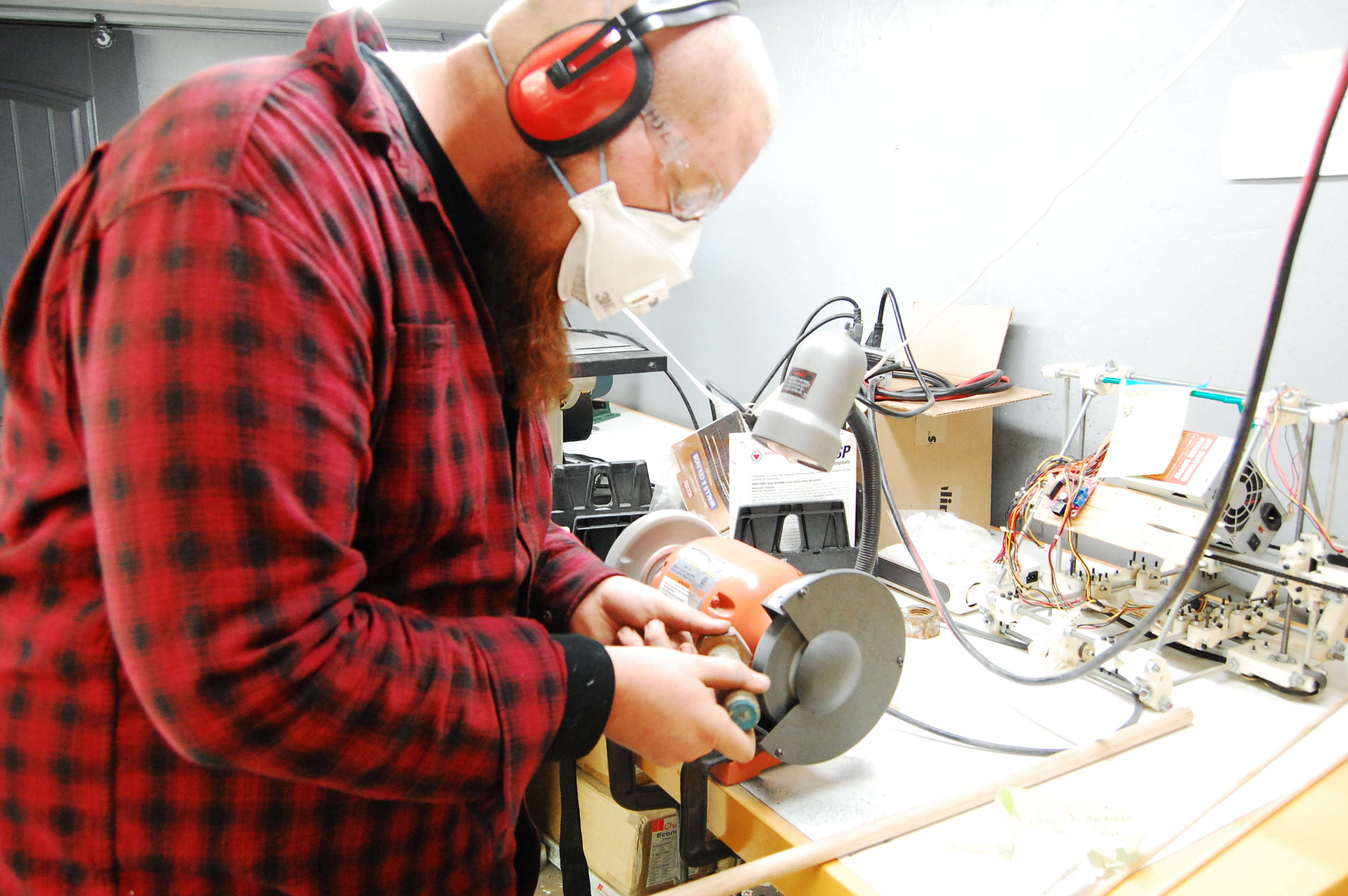

I started off by cleaning these up with a bench grinder, but it was taking longer than I wanted, so I switched to a wire brush mated to an angle grinder. The metal brush worked a LOT better, although seeing clouds of old paint and corrosion poofing off of them every time grinder met bold was a solid reminder about that respirator
No questions here: gotta clean these up.
Wear a respirator when you're grinding. One time I didn't wear a respirator (don't need no respirator!), and the next day, I found some grey slurry coming out of my nose. GROSS! I learned that lesson!
You don't want to breathe old paint and corrosion into your lungs, let a cheap-o respirator catch those particles instead.
I started off by cleaning these up with a bench grinder, but it was taking longer than I wanted, so I switched to a wire brush mated to an angle grinder. The metal brush worked a LOT better, although seeing clouds of old paint and corrosion poofing off of them every time grinder met bold was a solid reminder about that respirator
Weld Everything Together
I don't have a picture for this :(
Weld your bits together. On our machine, I used maximum current (there wasn't a setting for 2" square stock, haha).
Weld your bits together. On our machine, I used maximum current (there wasn't a setting for 2" square stock, haha).
Combine Alligator Clips and Tubes

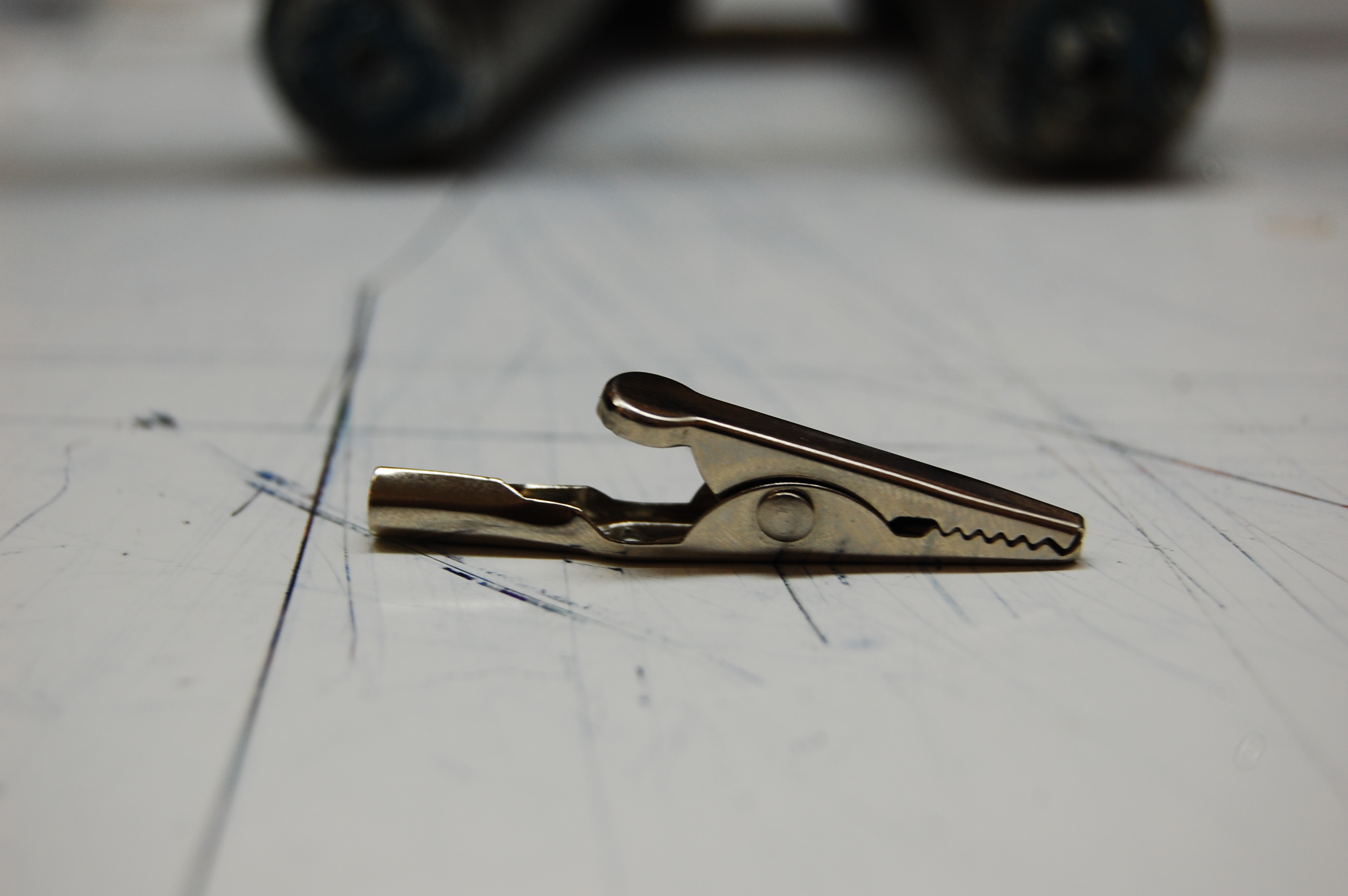

These alligator clips fit perfectly into the slots at the end of my coolant hoses. I smashed them with a big pliers to get them flat, then super glued them in place.
Super glue worked great. Really, really strong hold on these, I don't think they're coming out any time soon.
Don't get superglue on your hands!
Super glue worked great. Really, really strong hold on these, I don't think they're coming out any time soon.
Don't get superglue on your hands!
Admire Your Work

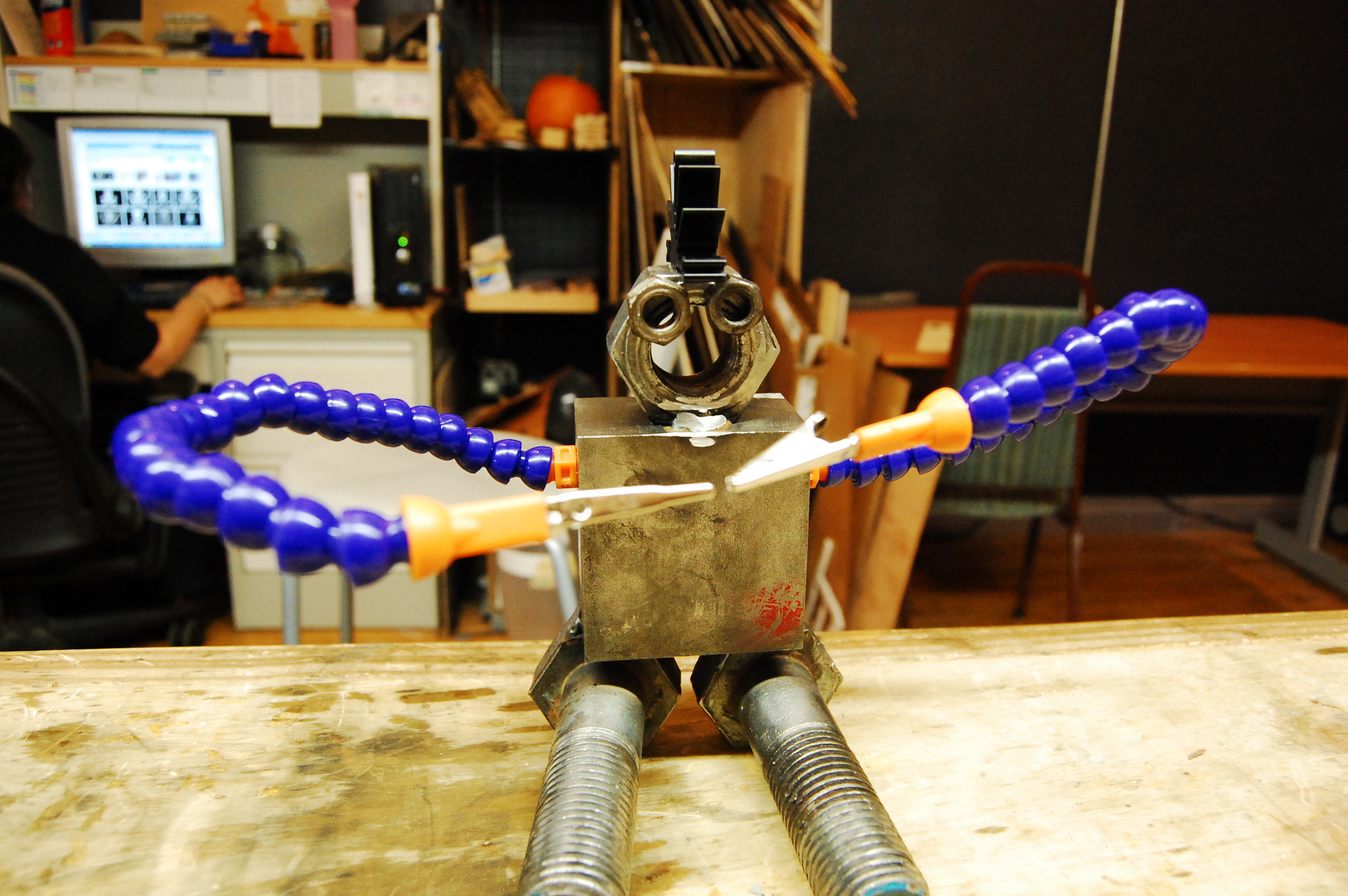

Yay! It's all put together, and it looks cool! I wanted mine to have some extra coolness on it, so I headed to our tear apart bins and cut an old heatsink in half. It looked really cool as a mohawk (mohawks are ALWAYS cool.)
(Last picture is proof that old and new can still be friends)
(Last picture is proof that old and new can still be friends)
