Thermoplastic Paper & Cameo Cutter

Hi! Everyone,

Today I would like to show you how you can take paper cutouts and turn them into a plasticized material.

When modeling miniature scenery, water is a major part of the design, and I am a little impatient when it comes to my work so I came across E-Z water years ago, it is sold in the model railroading industry. You melt and pour these pellets and voila, in seconds instant water, but not the best color, looks yellow,and the thicker it gets it turns amber, over heating will amber it even more. After working with the material,I thought maybe E-Z water could be colored with powdered pigments, (my gears were turning) remember, this is before scrap booking and embossing powders, were readily available. The manufacture had no suggestions for adding color at the time, so I started taking powdered pigment, used for other mediums and mixing it in, and it worked, so skip forward some time.

I was working on some props, and they needed a unique finish, and too dry quick, so putting on the proverbial thinking cap I decided to play around with E-Z water on cereal boxes, which were cut by hand and painted. Not the greatest but it would work. I begin to prefect the process, by researching other materials like poly-morphing plastic, friendly plastic, embossing powders, etc. then once again, it comes down to budget. These projects might get pretty big, and E-Z was the most cost effective, it was not only possible to incorporate color into melted resin, the surface could be painted to look like lots of different materials, and the substrate was recycled card board so it was a win win, except the labor to cut lots of details, and well time is money.

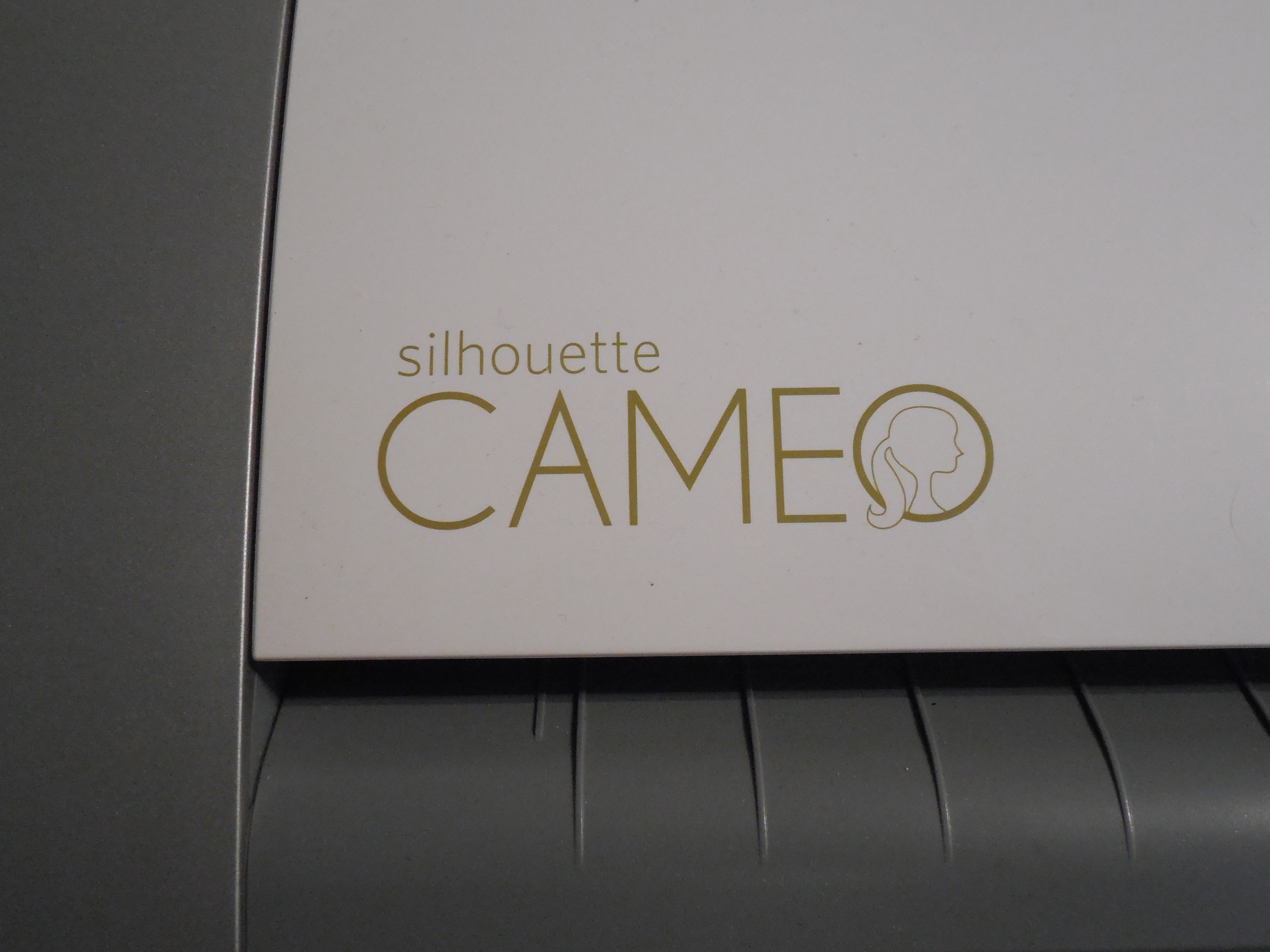

In the mean time, a friend gets a Silhouette cameo cutter, which can cut designs you purchase, or you can design your own. Having cut sign vinyl before, this cutter might be the answer too the ornate cut designs, that I so desired. By coating, the paper it would add strength, texture, quick drying and then could be painted to mimic metals of ancient times. E-Z water meet Cameo my new best friend.

My friend cut out some snowflakes, and other things using different papers, for my tests, just what I had hoped.

I would like to own this cutter so I may design and cut a full set of armor with lots of details.

There are many products and ways to create cool finishes and this is just one of those. Hope you enjoy, and please help me if you will, to create great Instructables. Your critiques are much needed.

Thank you! Julia

Tools

• Plenty of working room
• Heat safe work surface
• Freezer paper
• Heat gun-Embossing gun
• Heat glove,pot holders
• 2 pair metal tweezers(long handle if you can)
• Stir Sticks
• Cooker or cookie sheet( you will need to designate them for this and this only)
• Some form of stove( oven,cook top,electric skillet used just for E-Z water)
• Optional silicone spatula( E-Z water or embossing powders after melted will peel off)
• Optional cutting tools( if you will be hand cutting your paper patterns)
• Optional ( digital craft cutter,die cutter like Cameo)
• Your designs

Supplies

• Card stock( double up to create thicker material ) 2 pieces of card stock were used for my project)
• E-Z Water (comes in a 16 oz. volume bag,sells for 14.99,I use a coupon and get it for half price)
• Spray paints( Optional you can color it with powder pigment ,mica,water based paints)

Before starting you should play with E-Z water first, to get the hang of things, it is very hot and it will burn you. Keep your design small at the beginning, it takes preparation and quick, but safe movement to do large projects as the material cools quickly. It is still manipulated with the aid of the heat gun, which makes this product so versatile.

I take no responsibility for your project or your handling of this and all materials. READ READ READ Instructions please.

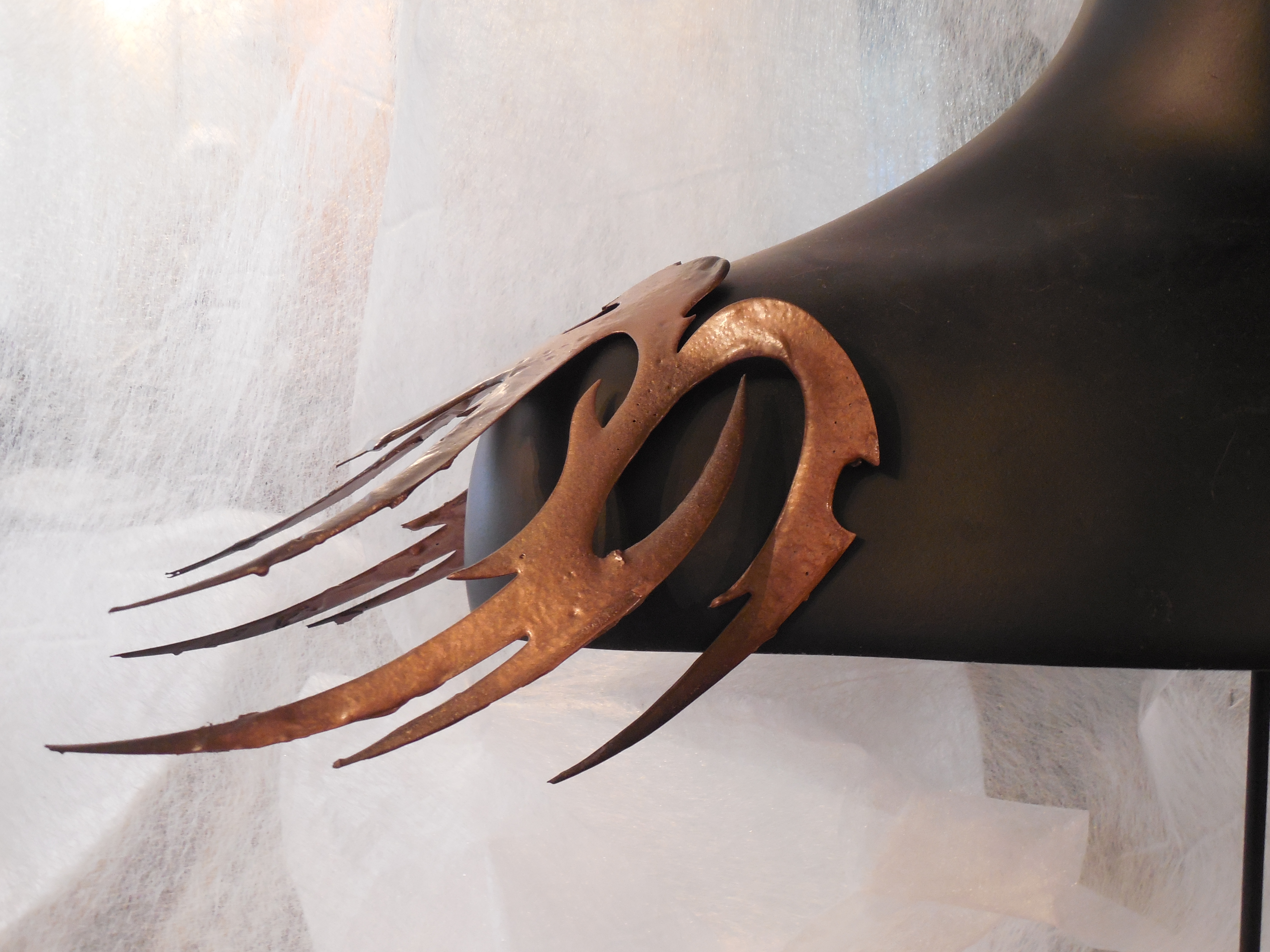

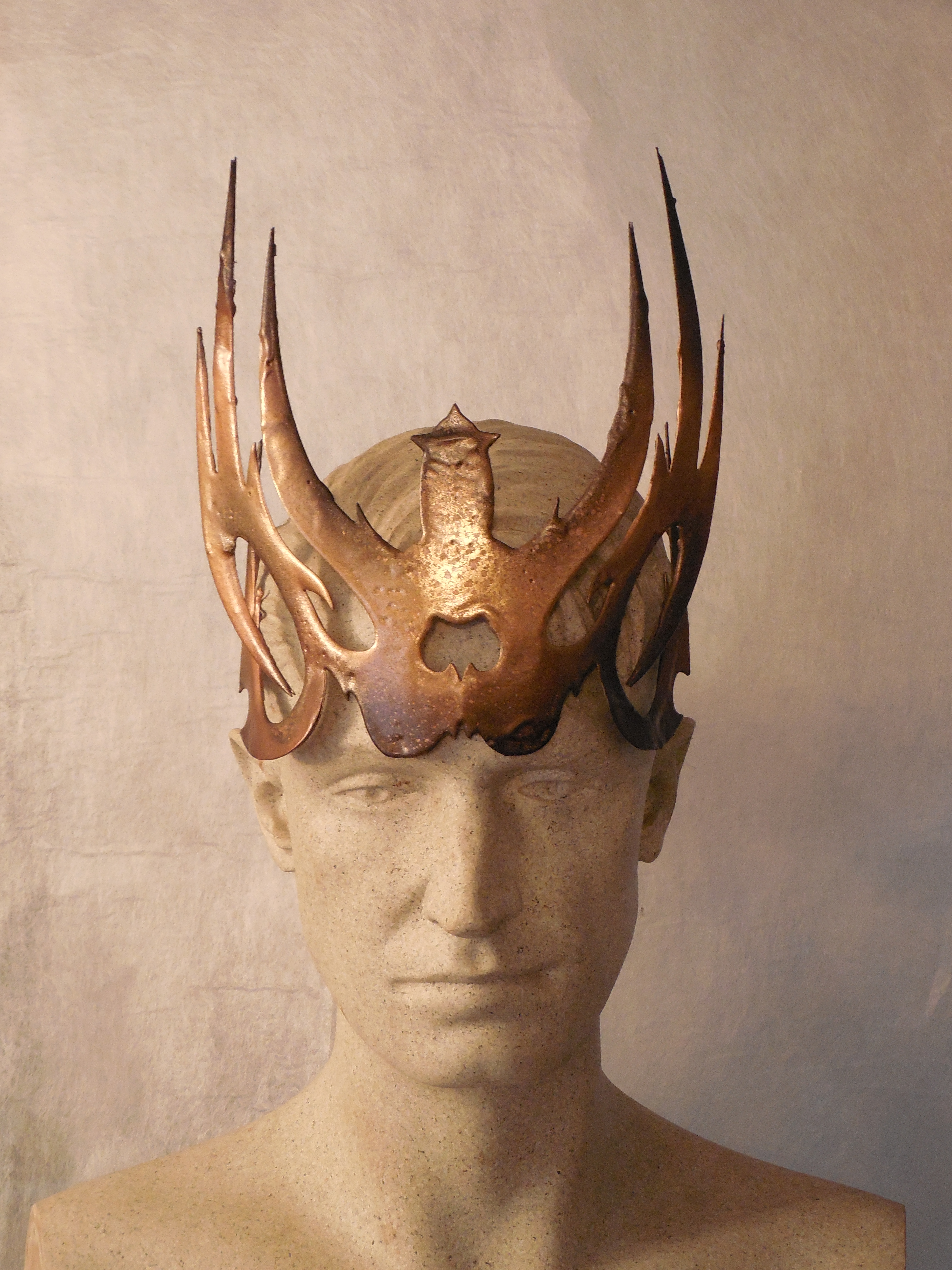

For this piece I took EPS vectors and modified them to create a design that could be a crown, shoulder armor, collar, etc.

The design is then made into a jpeg and opened in Silhouette Studio. This file is then traced and rendered into a cut file. There are lots of tutorials on using a digital craft cutter. If you or someone you know doesn't have a craft cutter you can create your own designs and hand cut them, the process for applying the melted E-Z water is the same.

After 2 copies were cut of the same design, they were taped together with double stick; this gave me a thicker but manageable material.

Remember the color, type, and the texture of the paper can play a roll in the end result.

It is time to make your area ready for your project. Start with heat resistant or protected area (pot holders etc.) I keep my items for E-Z water separate from other tools; this just makes it better for me. I place the pot holders in-front of me, directly behind the cookie sheet is a piece of card board covered with freezer paper to the each side of the cookie sheet is a pair of tweezers one for each hand, heat gun is set to the side that is easiest for you.

Everything should be ready to go.

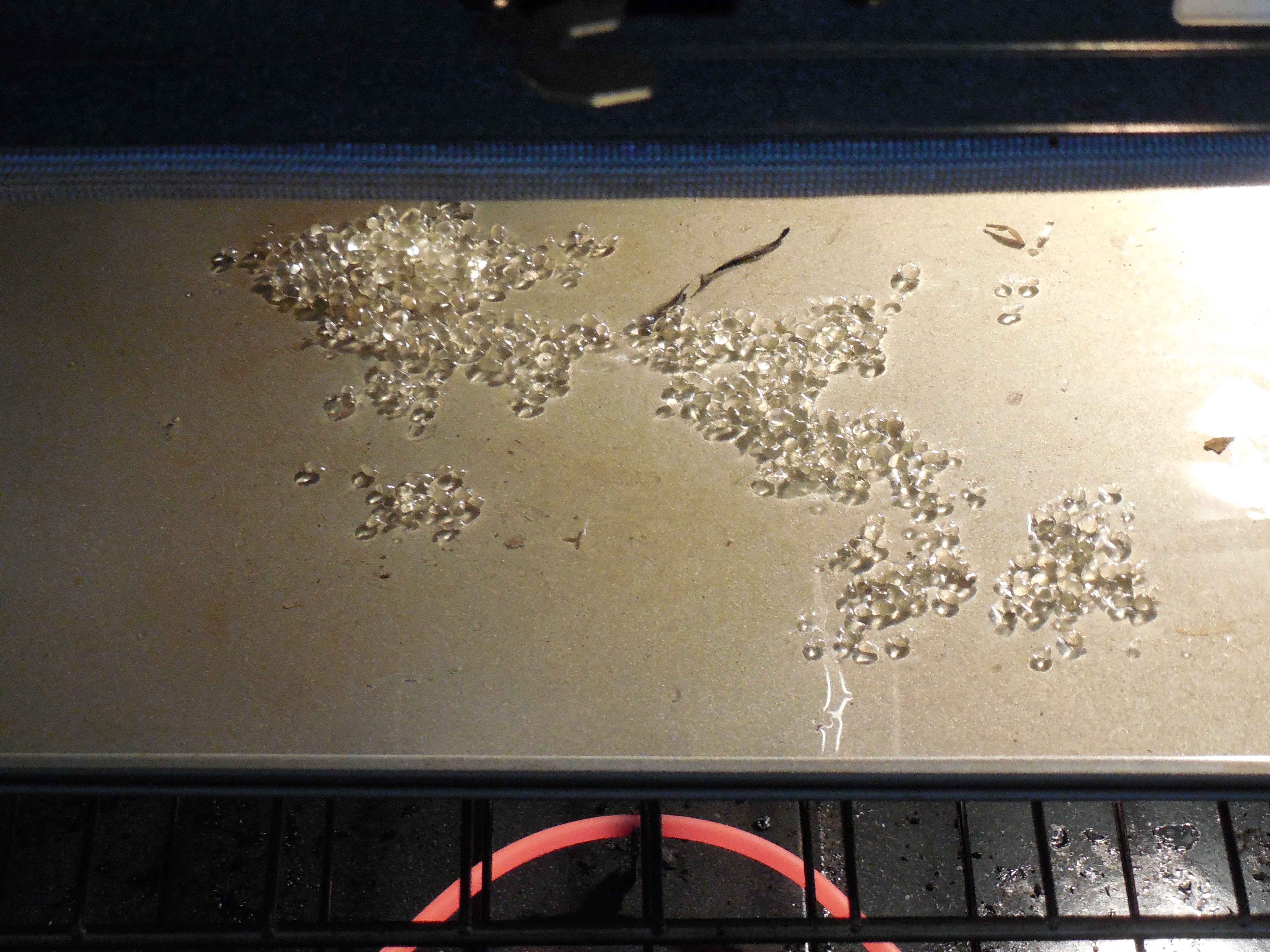

For this time a cookie sheet was used, seeing how the cutout was good size. Following the instructions on the product, the oven was heated to 200°F, the instructions say 180° my oven runs cooler. Do not over heat or cause smoke it may harm the oven or you. Best option is to use a hot plate or an electric skillet. Watch closely, try not to stir, it will level out and be clear looking. I reduce the oven temp to 160° this keeps E-Z fluid.

Note: I have been using this product a long time, and not always as it was intended like now, by the company. Many tests were done to learn the properties and limitations of this product and I suggest you do the same I cannot express this enough. I push bounders of products all the time but I hold my self-responsible for this no one else.

Bring cookie sheet to your table, be quick, but careful, this is an electric skillet is good because maintaining constant temperature is achievable. When secure on pot holder take tweezers in both hands lift up project, try and lift quick and let drip, then immediately set on freezer paper drag it towards you a little this cleans the edge some.

Let cool and then release from freezer paper. You can trim pieces off with scissors, save the trimmings, this is reusable, use the heat gun to clean edges more, by holding up, as heat melts E-Z from edges. Cool your cutout.

Texture can be added to E-Z before or after. You can layer coated paper on top of coated cutout just heat both areas and attach, great for adding mountings for gems or fancy trim. Tissue paper or fabric can be placed on the surface after it is heated this ads texture as well. It is all about dimension.

The paper can be formed in many ways. When it is warmed it becomes soft again so don't create a project you are going to keep in the heat. When using an object to form on keep it covered with release paper and make sure it can withstand the heat you will be applying. I used a piece of aluminum it works great; you can shape the aluminum to form on.Use the heat glove if you can when using the heat gun.if not just be careful not to get burned. Regular cotton work gloves will work, sometimes I double them up if I am heating near may hand.

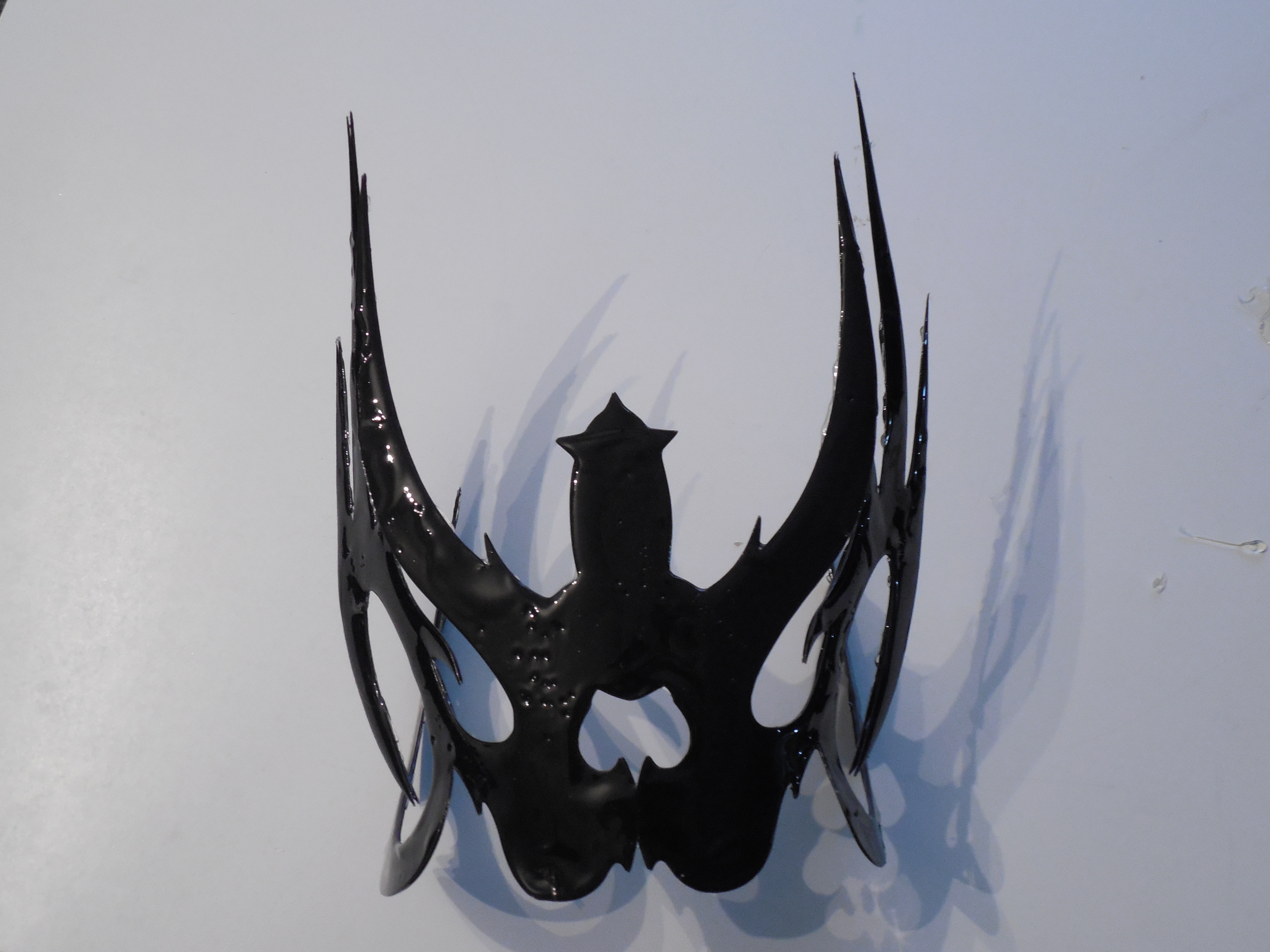

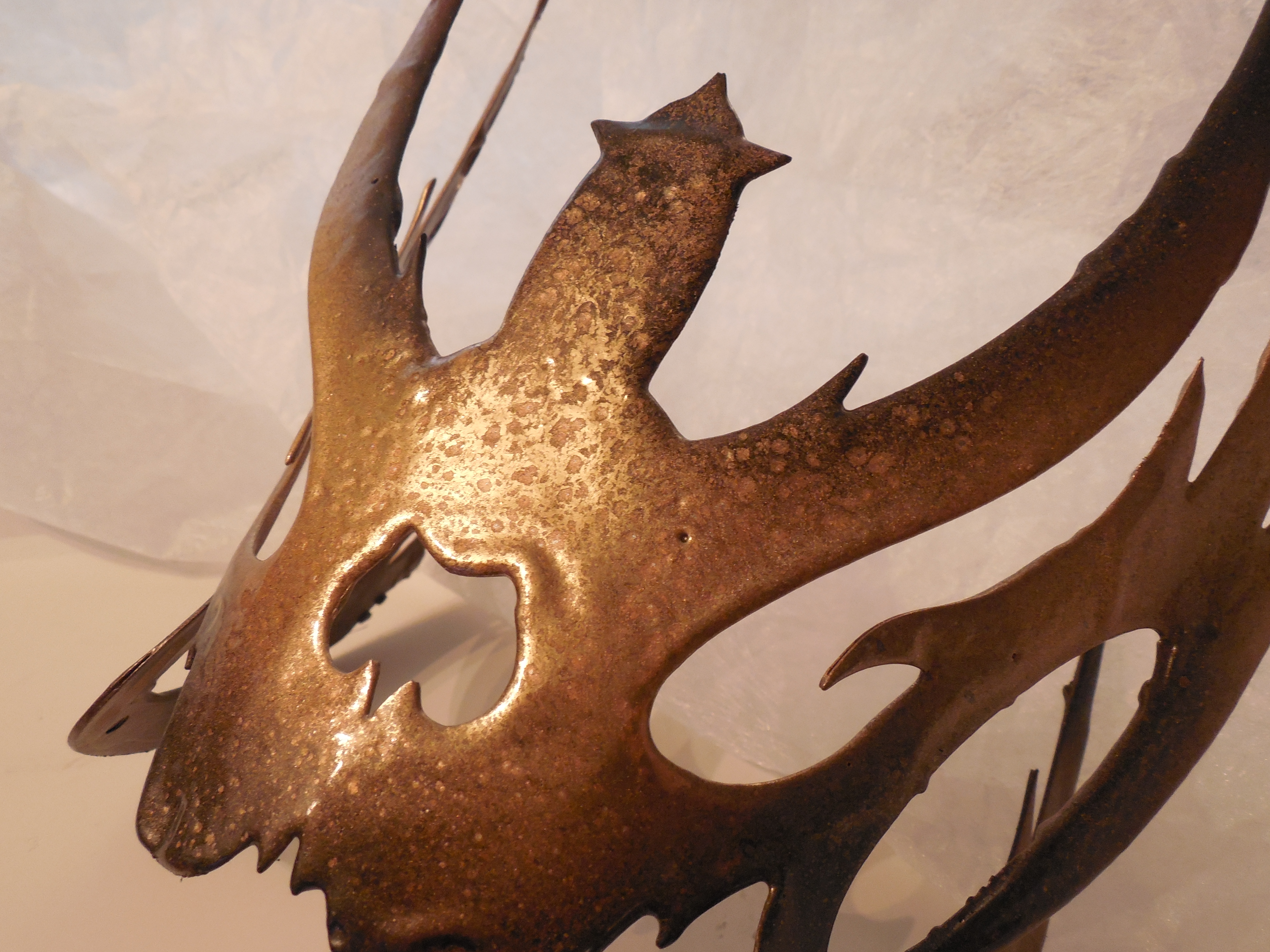

I used spray paint, you can use what ever you want, and these colors were hammered copper, gold and flat black. Copper first, light black on tips and a mist of gold in the center. This plastic paper makes great riveted metal looks. I think having a digital cutter really can make dreams a reality. The designs are saved so patterns can be cut from copy paper, use the print and cut software, create the perfect design, cut, coat, form and finish. I hope to make more instructables with this medium.

Hope you enjoy and please let me know if you have ever used this material or done something like it, would be great to see.

Thank you! Julia
