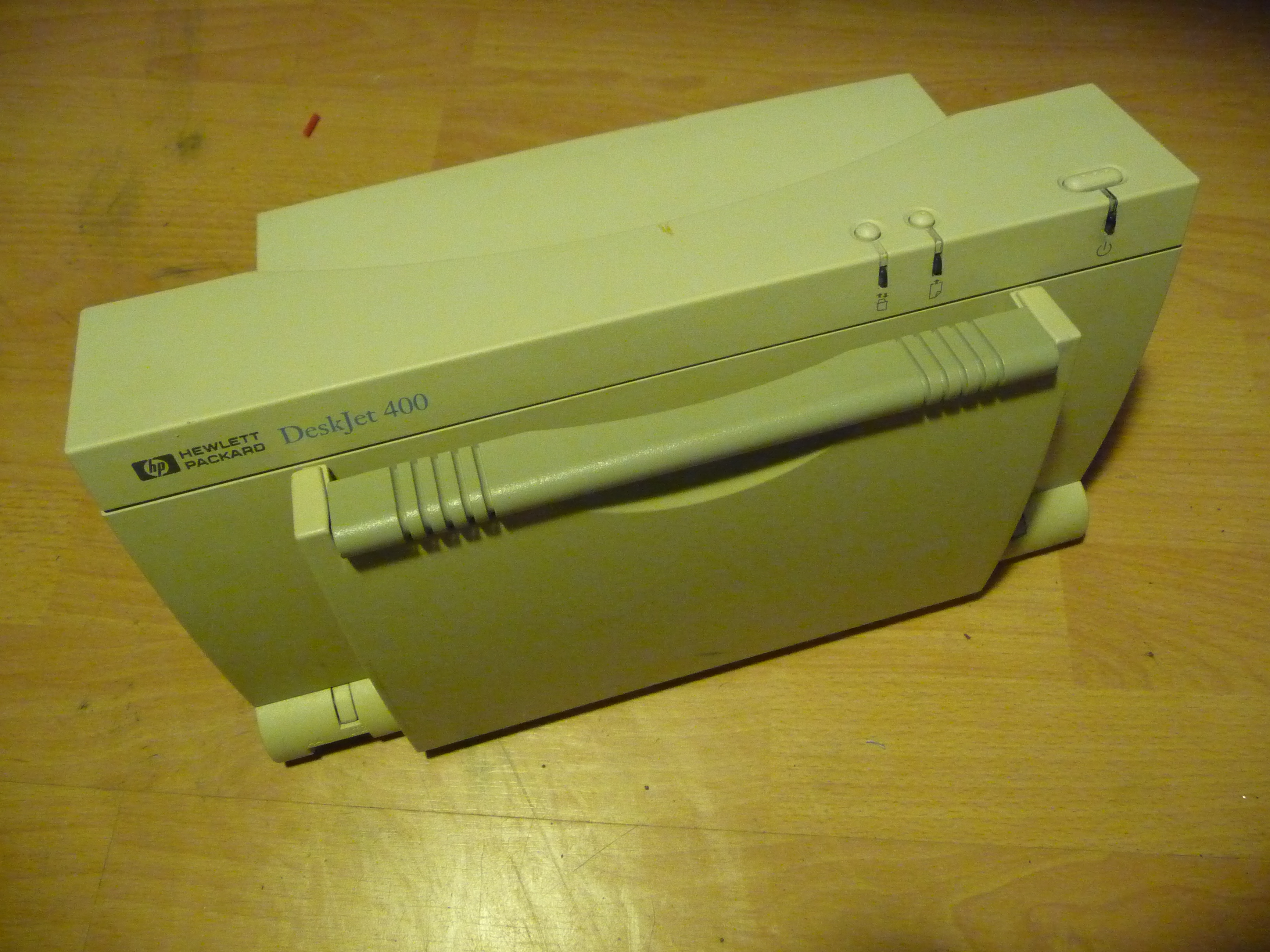

The purpose of this instructable is to build an "ideas printer". I transformed an old broken HP deskjet 400 in both a container and a workplace to solder, glue, cut and build my projects.
I want also to hide tools when not used.
I want also to hide tools when not used.
Materials
- old printer
- hot glue
- screwdriver
- soap
- multimeter
- solder
- tools you want to store in the printer
- breadboard
- copper wires
- hot glue
- screwdriver
- soap
- multimeter
- solder
- tools you want to store in the printer
- breadboard
- copper wires
Disassemble the Printer
- find the screws that keep the printer together
- unscrew them
- open the printer

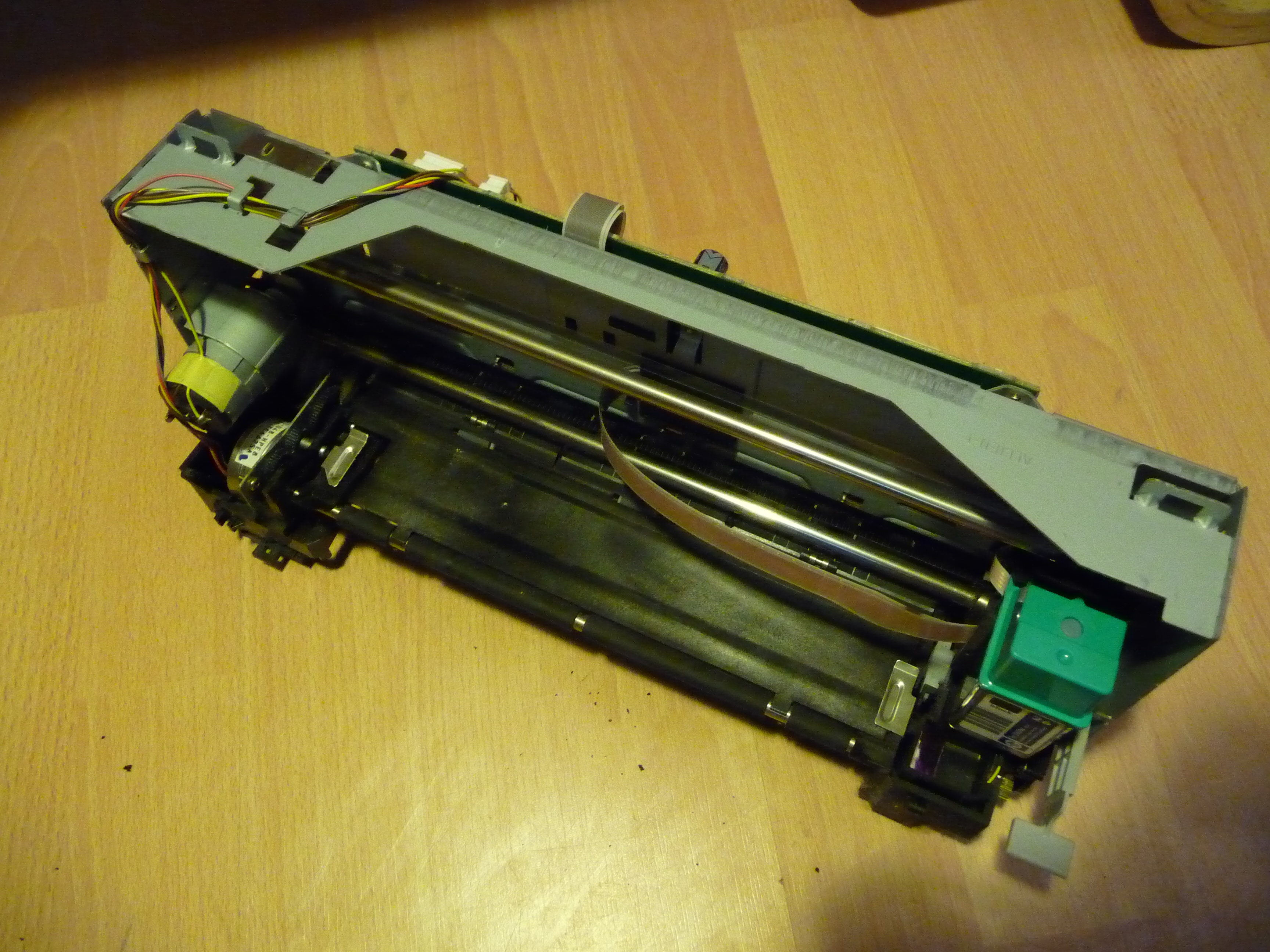

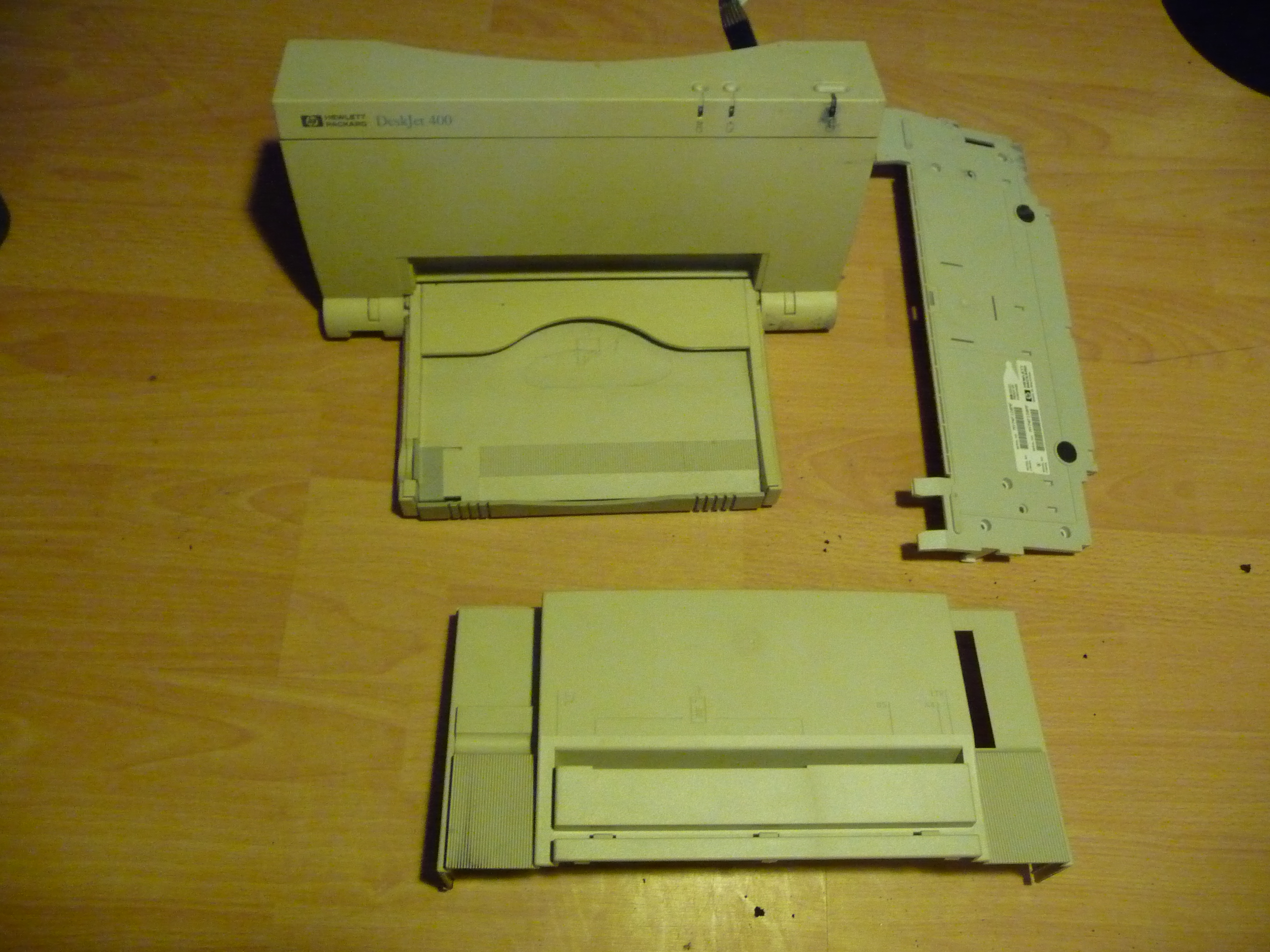

- remove all electronics and mechanics of the printer until you have a plastic box
NOTE: keep ll this precious stuff, it will be usefull in other projects
- unscrew them
- open the printer
- remove all electronics and mechanics of the printer until you have a plastic box
NOTE: keep ll this precious stuff, it will be usefull in other projects
Clean the Printer
The first step is to clean the printer.
- use water and soap
- be patient and take your time, you want to get dirt only once. If you do a good job in this step, next steps will be cleaner
- you can use also products to clean glasses or windows (they are more efficient on old ink)
- before putting together all pieces, be sure that they are dry
- use water and soap
- be patient and take your time, you want to get dirt only once. If you do a good job in this step, next steps will be cleaner
- you can use also products to clean glasses or windows (they are more efficient on old ink)
- before putting together all pieces, be sure that they are dry

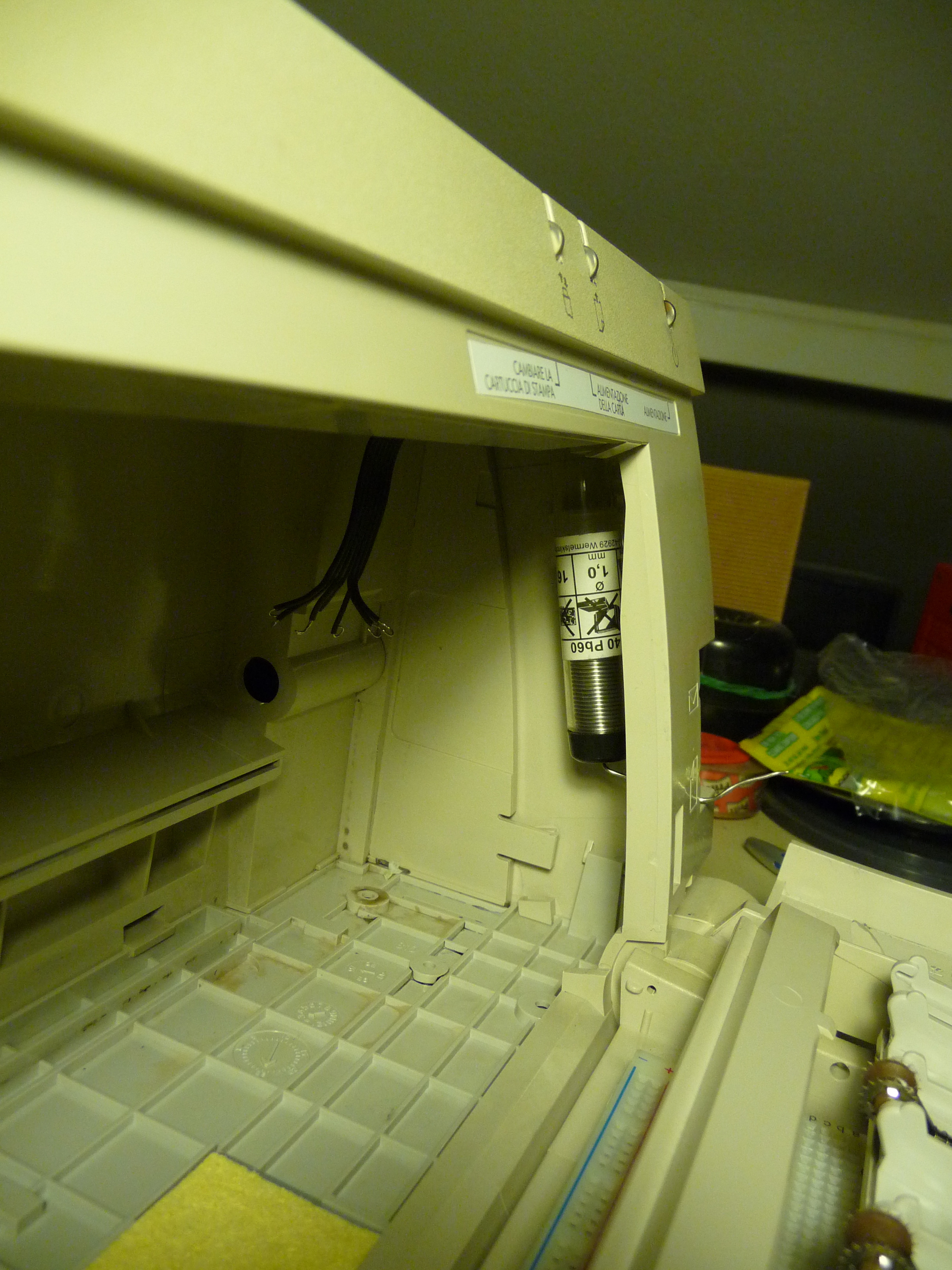

Explore Potentiality
- when I build some project I usually take some time to explore if there are some creative way of using you material
- I will try to find some of the lights and buttons of the printer as I/O (input/output) in my circuit prototypes

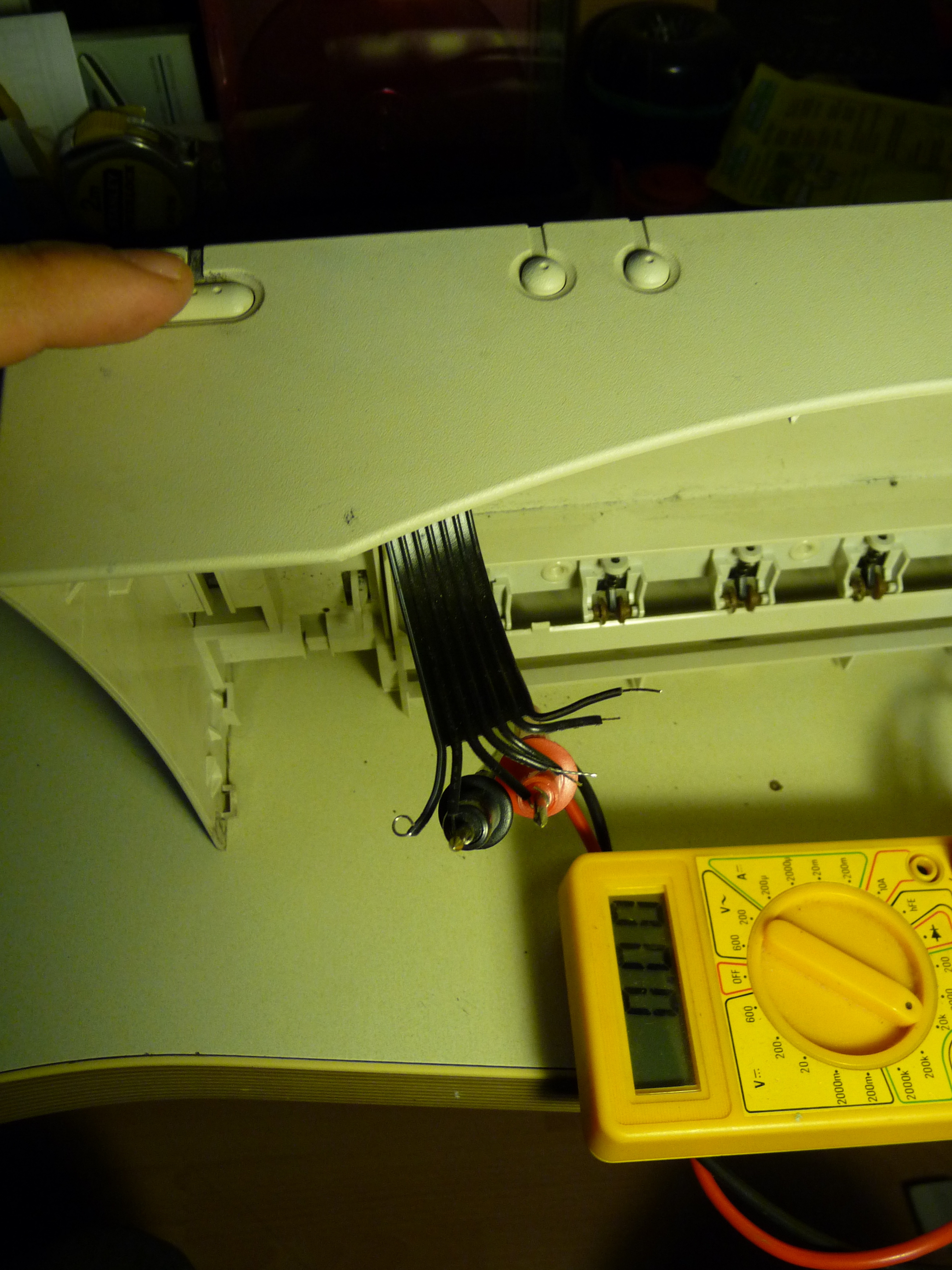

- using the tester to measure resistance, I find two wires that loops when the big button is pressed. I will use this feature later in the project
- I will try to find some of the lights and buttons of the printer as I/O (input/output) in my circuit prototypes
- using the tester to measure resistance, I find two wires that loops when the big button is pressed. I will use this feature later in the project
Add the Breadboard
The breadboard is the main component to prototype your electric circuits.

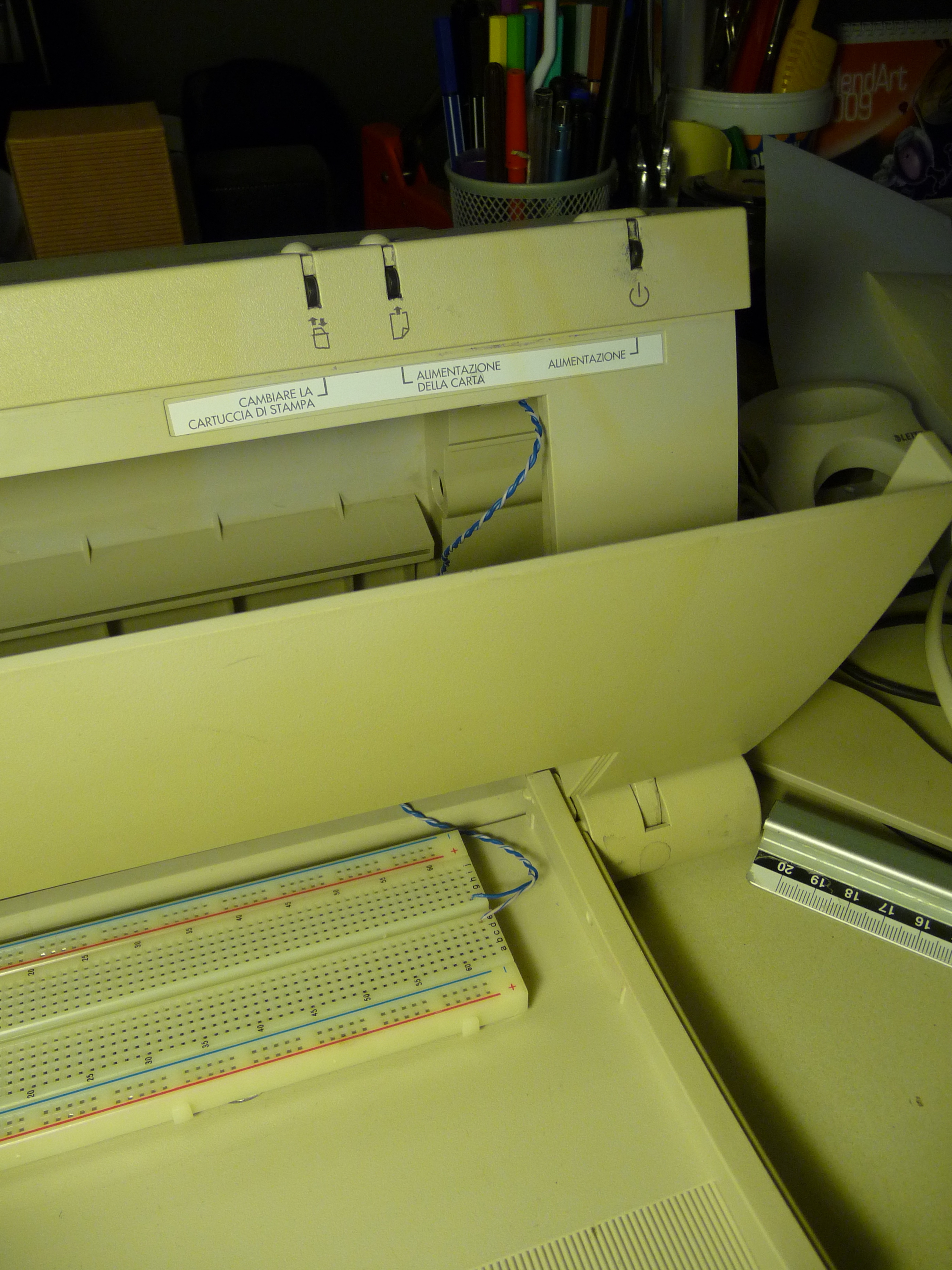

- use some hot glue to attach a breadboard to the paper tray of the printer
- before gluing, be sure that paper tray with the breadboard attached can close
The free space left on the paper tray will be used to cut or glue. You can use the extensible part of the tray when needed to enlarge the size of the working area.
- use some hot glue to attach a breadboard to the paper tray of the printer
- before gluing, be sure that paper tray with the breadboard attached can close
The free space left on the paper tray will be used to cut or glue. You can use the extensible part of the tray when needed to enlarge the size of the working area.
Add More Features to the Printer
Based on your interests and usual activities you can add a lot of features:

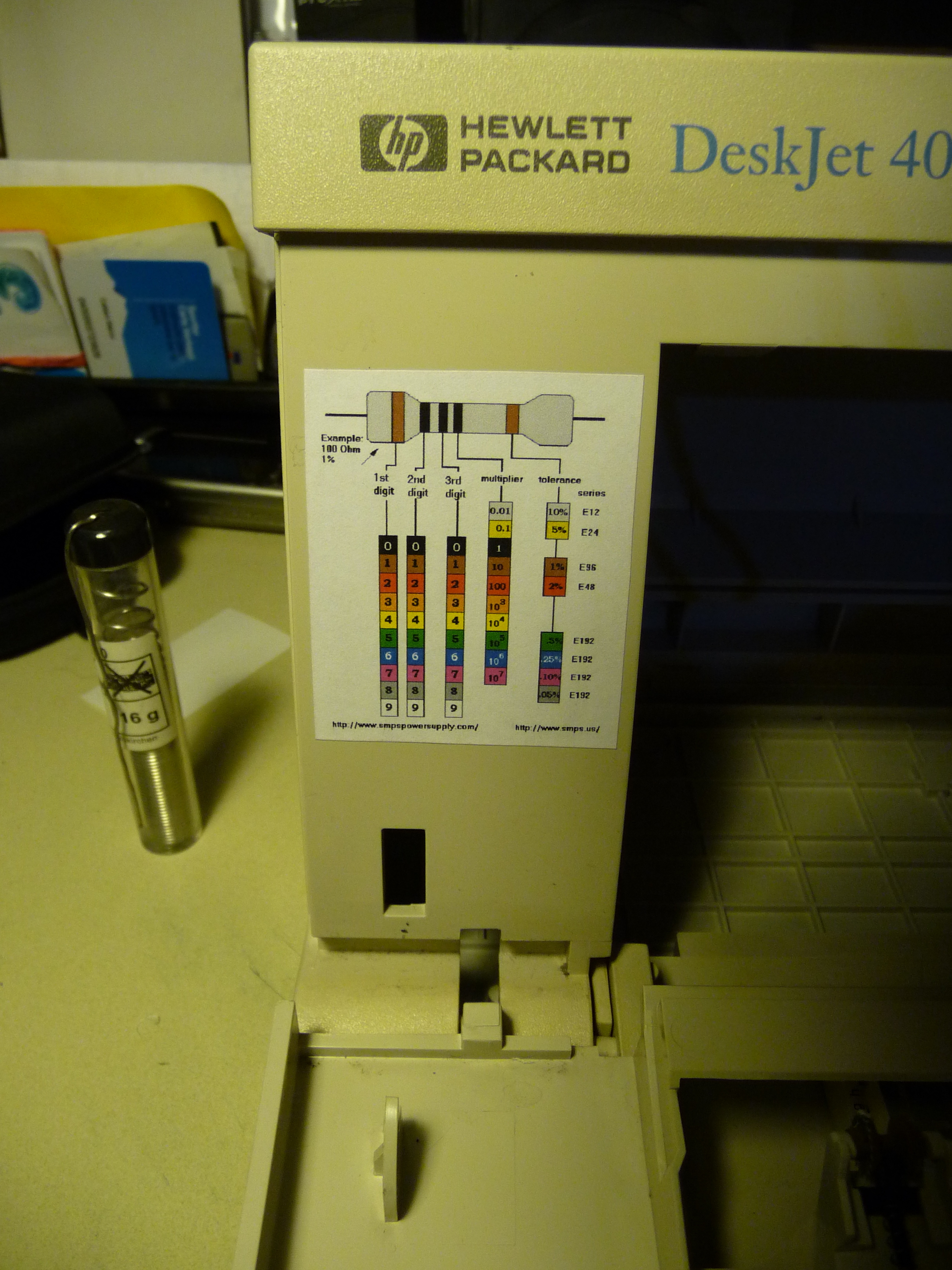

- useful labels (I sticked a resistor color scheme)
- solder pad (to clean the solder)
- solder wire
- a button wired to the breadboard
NOTE: you can also add a power supply to give 5v and 12v to the breadboard (you can use one from an old computer)
- useful labels (I sticked a resistor color scheme)
- solder pad (to clean the solder)
- solder wire
- a button wired to the breadboard
NOTE: you can also add a power supply to give 5v and 12v to the breadboard (you can use one from an old computer)

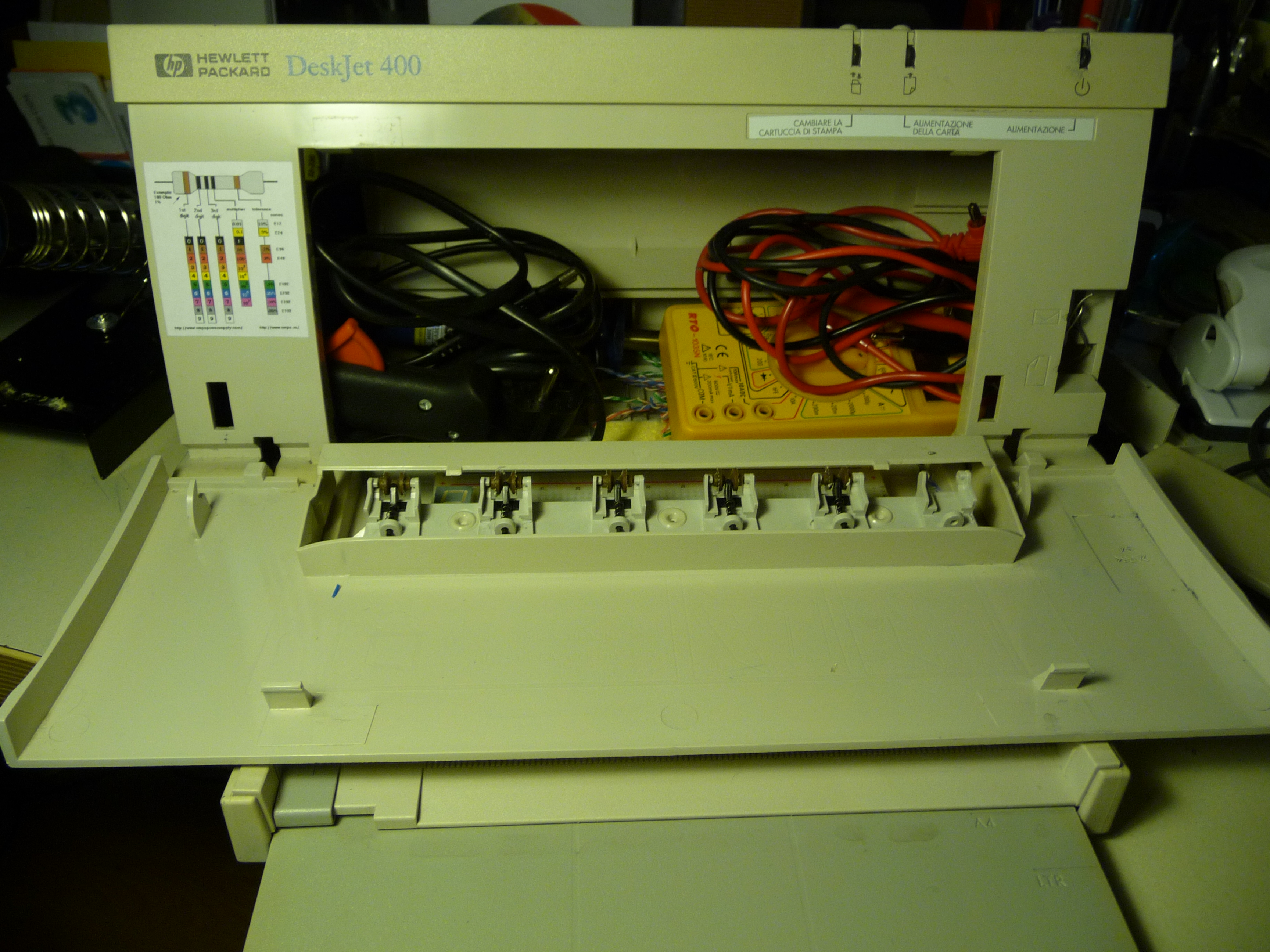

Add Tools
Now you can add useful tool inside the empty space of the printer:

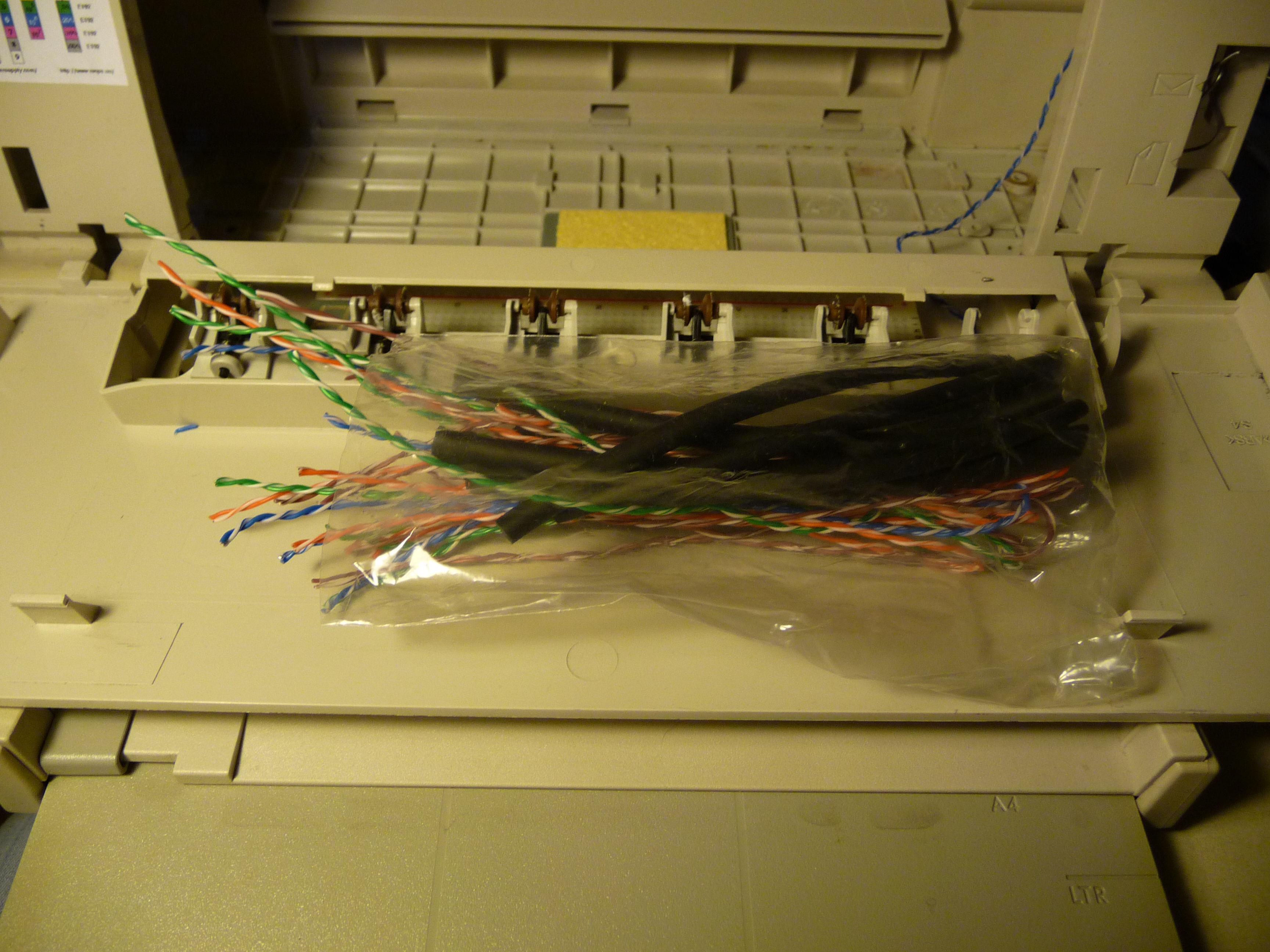

- wires and rubber
- solder

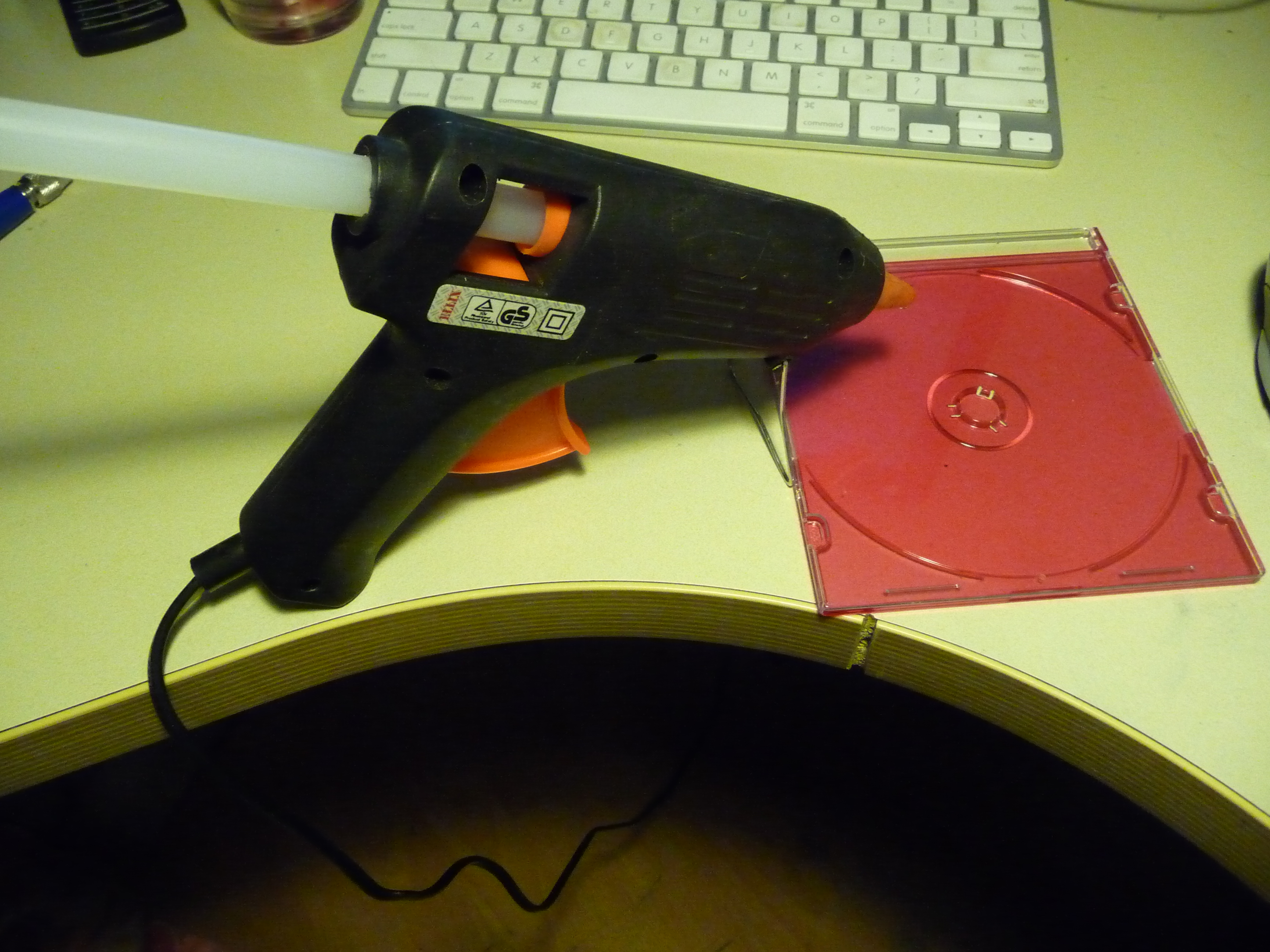

- a little hot glue gun
- voltage/current meter
You can also add boxes to store electronic components like diodes, resistor or condensator.
- wires and rubber
- solder
- a little hot glue gun
- voltage/current meter
You can also add boxes to store electronic components like diodes, resistor or condensator.
