Everybody who is interested in high voltage herd about  the zvs driver for the flyback transformer.
Parts:
2x IRFP250 n-fet
2x 12v zenner diodes
2x 470ohm resistors
2x 10kohm resistors
2x 400v fast diodes
1x inductor 200uH
1x 250v capacitor 0.68uF or higher

Assembly

0 036.JPG
0 037.JPG
0 038.JPG
0 036.JPG
0 037.JPG
Mount mosfets on a large heatsink,
Solder everything togather

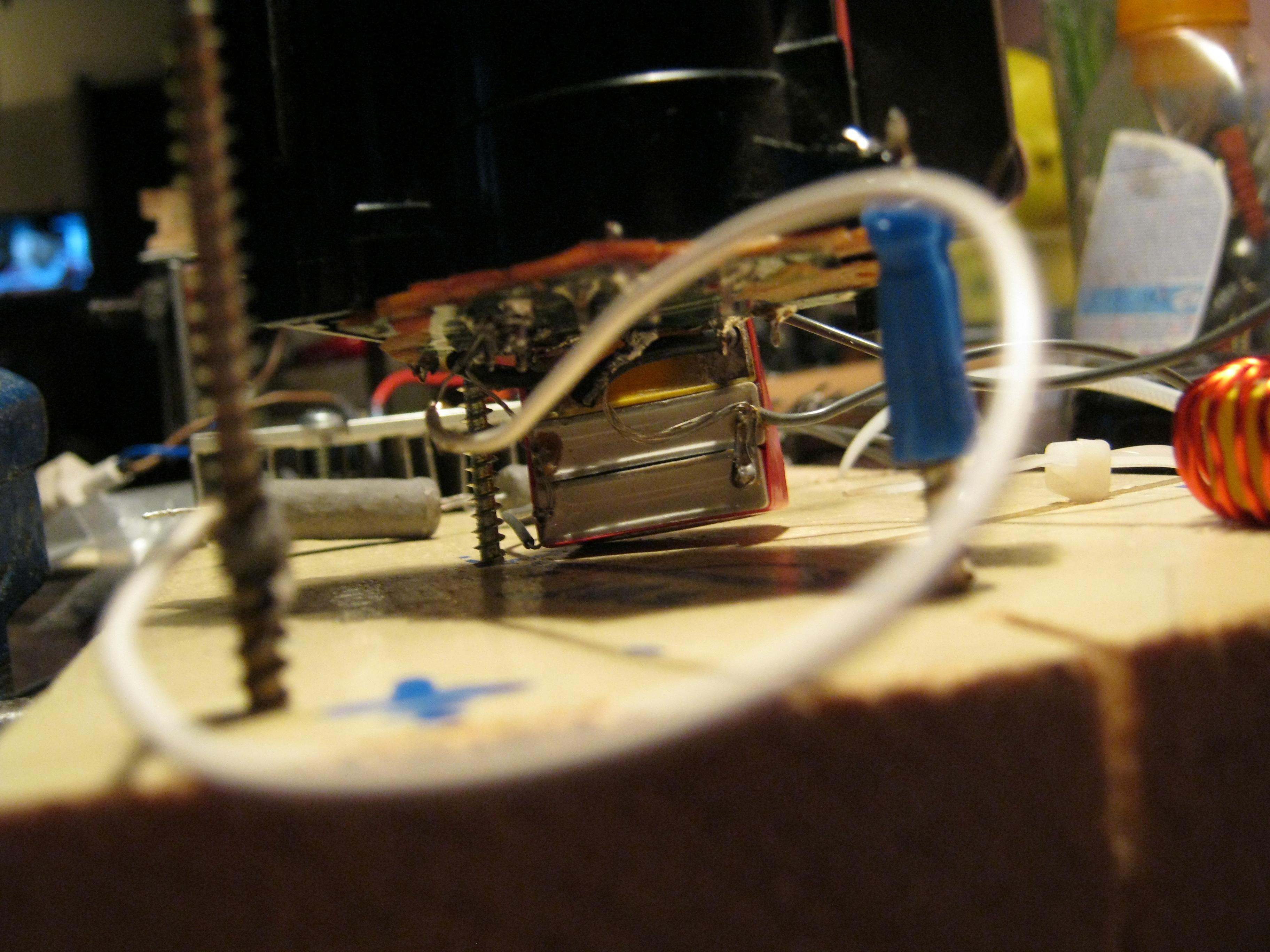

Fineshed Assembly

0 037.JPG
0 036.JPG
0 039.JPG
0 038.JPG
0 043.JPG
Everything ready to be connected to power supply.

Use for the Driver

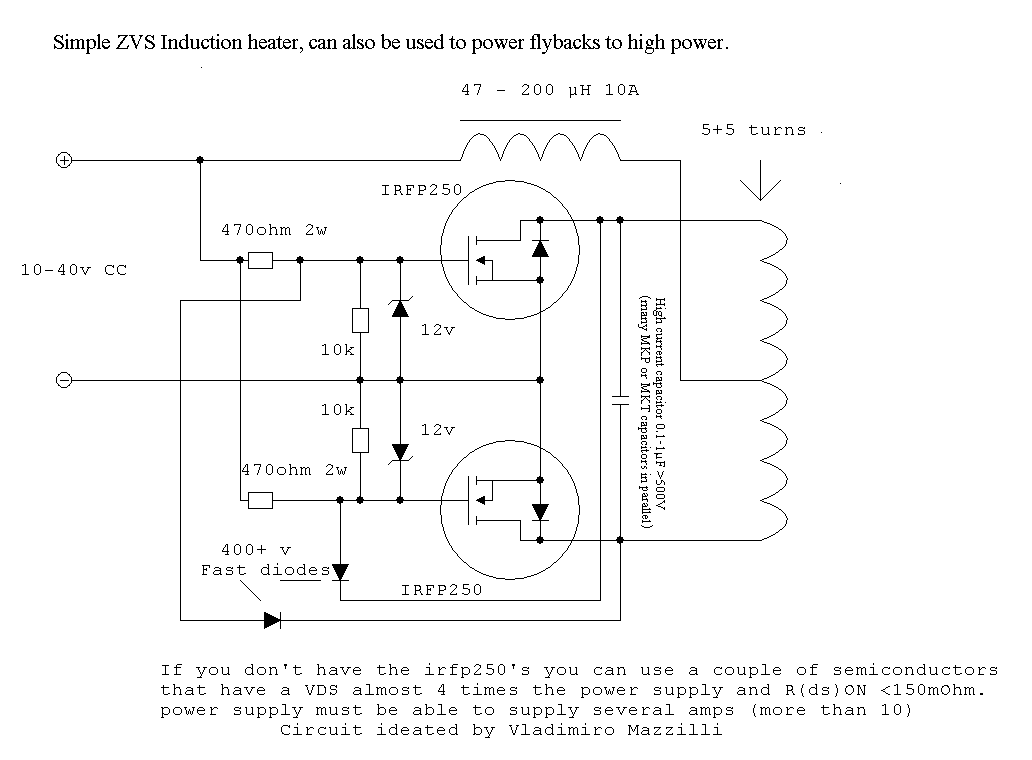

zvs ih.PNG

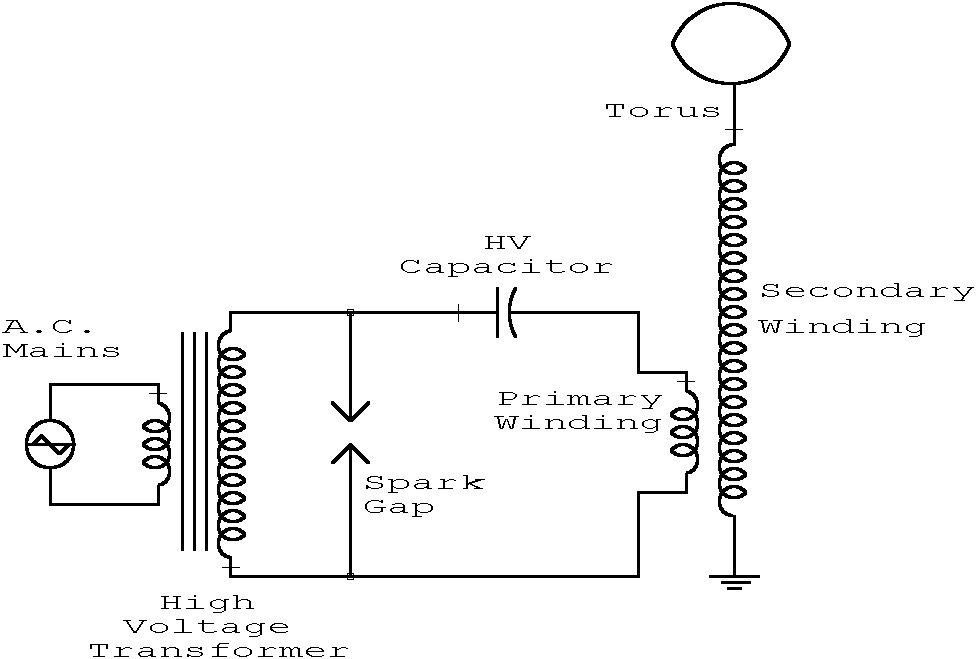

It can be used as a power supply for the tesla coil or it can be used as an inductin heater ( for the induction heater try a 300v with 1uF or higher)
