The X-swing

![IMAG0428[1].jpg](/proxy/?url=https://content.instructables.com/F5A/L7JO/I4J7AEYY/F5AL7JOI4J7AEYY.jpg&filename=IMAG0428[1].jpg)

In this instructable I'll show you how to make one step by step...
Materials

![IMAG0257[1].jpg](/proxy/?url=https://content.instructables.com/FHJ/L0UJ/I3KC59OJ/FHJL0UJI3KC59OJ.jpg&filename=IMAG0257[1].jpg)
![IMAG0324[1].jpg](/proxy/?url=https://content.instructables.com/F3X/V6ZH/I49RRAZF/F3XV6ZHI49RRAZF.jpg&filename=IMAG0324[1].jpg)
![IMAG0325[1].jpg](/proxy/?url=https://content.instructables.com/FUS/BKWE/I49RRAZH/FUSBKWEI49RRAZH.jpg&filename=IMAG0325[1].jpg)
![IMAG0350[1].jpg](/proxy/?url=https://content.instructables.com/FJ8/YYVT/I4E67JSE/FJ8YYVTI4E67JSE.jpg&filename=IMAG0350[1].jpg)
![IMAG0347[1].jpg](/proxy/?url=https://content.instructables.com/FDE/0C7Z/I4E67JTI/FDE0C7ZI4E67JTI.jpg&filename=IMAG0347[1].jpg)
For my project at school " The X-swing", you need some materials like:
Rope (use one of 8mm thick and 20 m long)
A small rope
Drill + drill bit that is slightly larger than the rope's width
Wood (multiplex 9mm)
Brush stick
8-form (regulate the length of the rope)
2 sticks (10 cm long - random diameter)
A machine park
And of course you also need a tree.
Saw Your Pieces
![IMAG0283[1].jpg](/proxy/?url=https://content.instructables.com/FLP/14KA/I4E67I9O/FLP14KAI4E67I9O.jpg&filename=IMAG0283[1].jpg)
![IMAG0281[1].jpg](/proxy/?url=https://content.instructables.com/FM3/XODE/I4E67IA0/FM3XODEI4E67IA0.jpg&filename=IMAG0281[1].jpg)
![IMAG0351[1].jpg](/proxy/?url=https://content.instructables.com/FW0/QOKE/I4E67JUJ/FW0QOKEI4E67JUJ.jpg&filename=IMAG0351[1].jpg)
![IMAG0352[1].jpg](/proxy/?url=https://content.instructables.com/FWJ/B79D/I4E67JUI/FWJB79DI4E67JUI.jpg&filename=IMAG0352[1].jpg)
![IMAG0288[1].jpg](/proxy/?url=https://content.instructables.com/F2M/GVXF/I4E67IA2/F2MGVXFI4E67IA2.jpg&filename=IMAG0288[1].jpg)

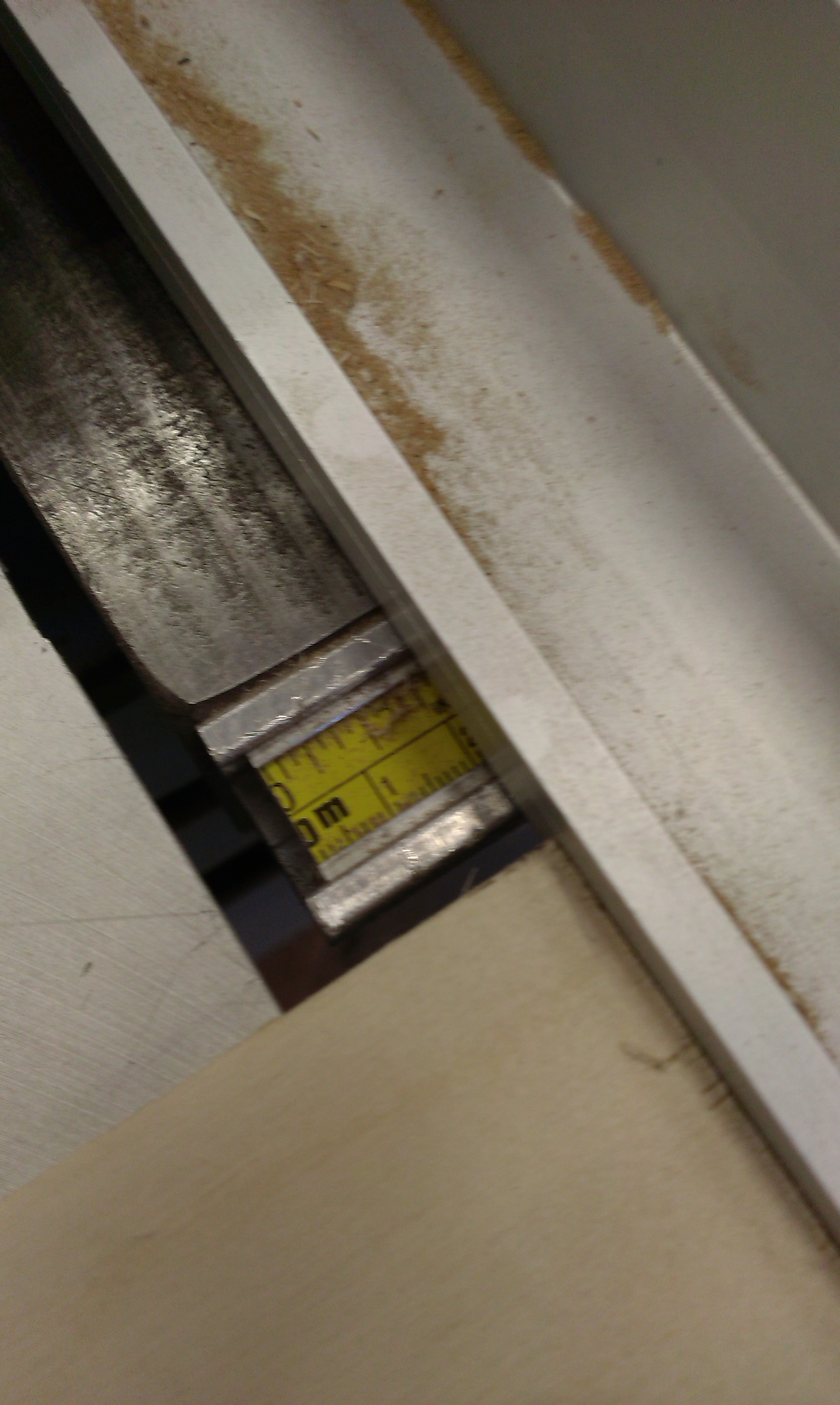

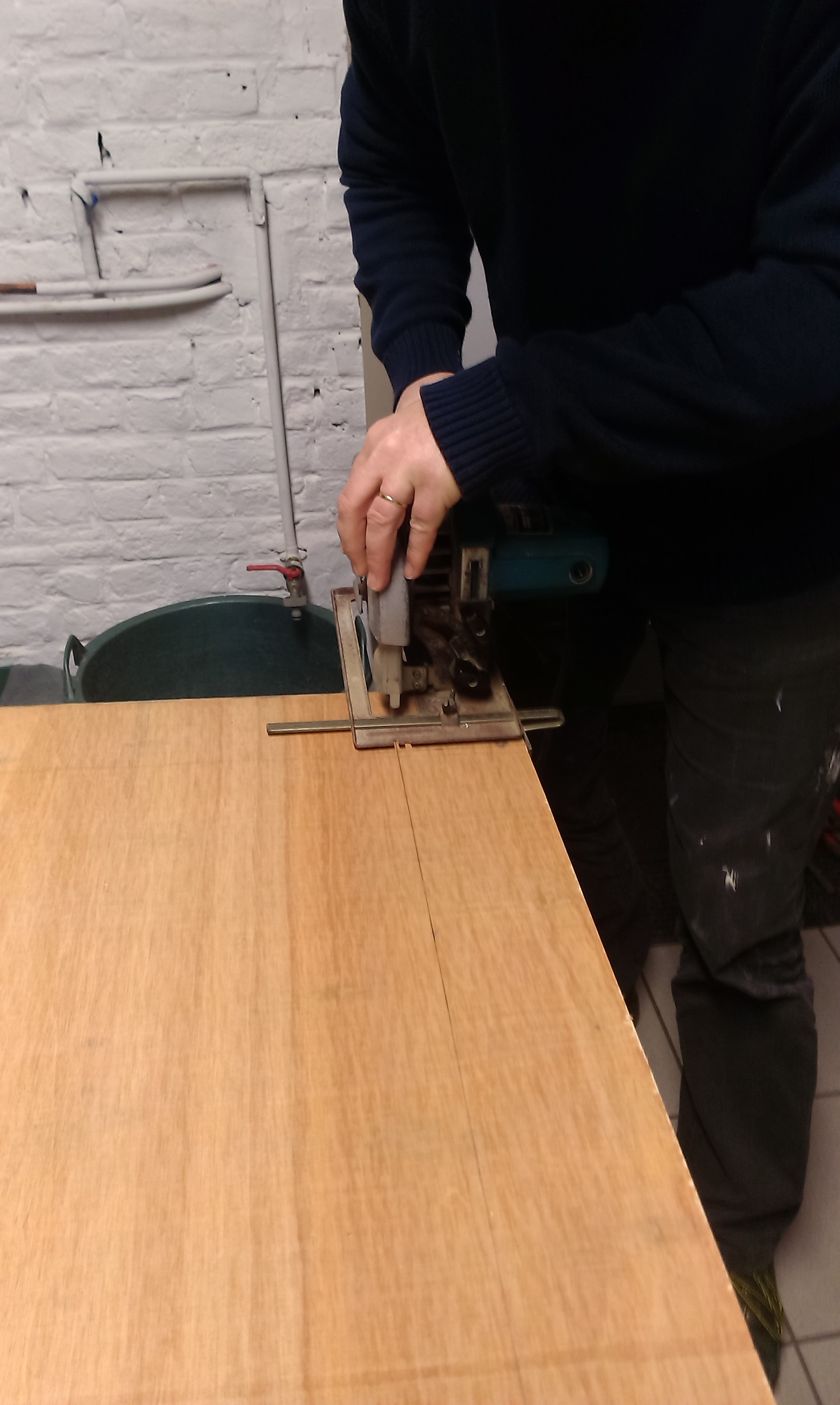

Take your wood (Multiplex) and cut it down with a length of 62 * 10 cm
(hint: use a circural saw)

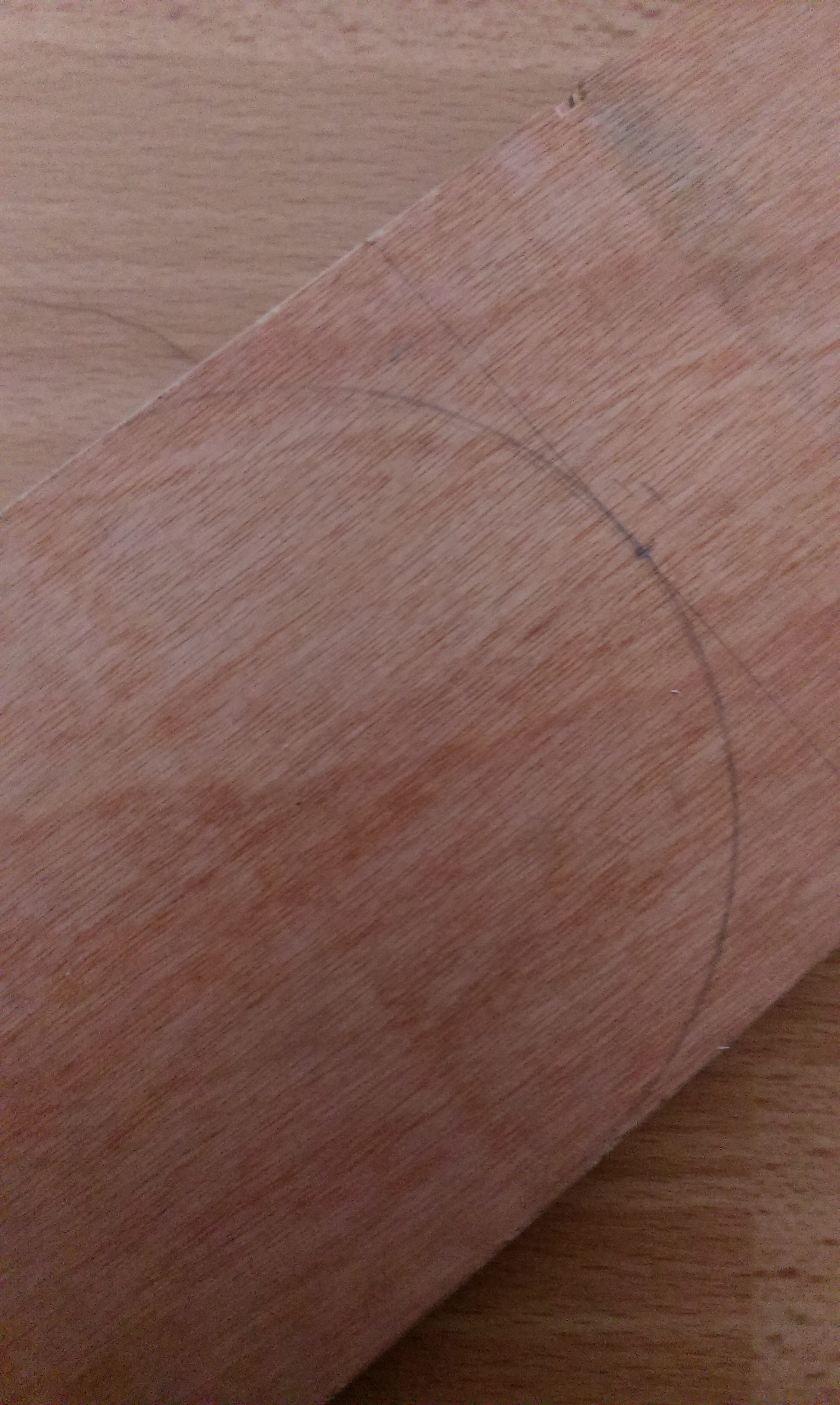

To finish you can round off the edges
Comfortable Seat
![IMAG0389_BURST002_COVER[1].jpg](/proxy/?url=https://content.instructables.com/FUH/5Y6E/I4E6C2TV/FUH5Y6EI4E6C2TV.jpg&filename=IMAG0389_BURST002_COVER[1].jpg)
![IMAG0289[1].jpg](/proxy/?url=https://content.instructables.com/FZP/YFQY/I4E67IR3/FZPYFQYI4E67IR3.jpg&filename=IMAG0289[1].jpg)
![IMAG0296[1].jpg](/proxy/?url=https://content.instructables.com/FSR/Y4WV/I4E67IR4/FSRY4WVI4E67IR4.jpg&filename=IMAG0296[1].jpg)
![IMAG0299[1].jpg](/proxy/?url=https://content.instructables.com/FBW/IPJD/I4E67IR6/FBWIPJDI4E67IR6.jpg&filename=IMAG0299[1].jpg)
![IMAG0359[1].jpg](/proxy/?url=https://content.instructables.com/FH5/NDZ0/I4E67NLR/FH5NDZ0I4E67NLR.jpg&filename=IMAG0359[1].jpg)

To sit comfortable you can make 4 pieces from a rectangle with a chamfer on 1 side ( longest side shortest side 26.5 - 15 cm)

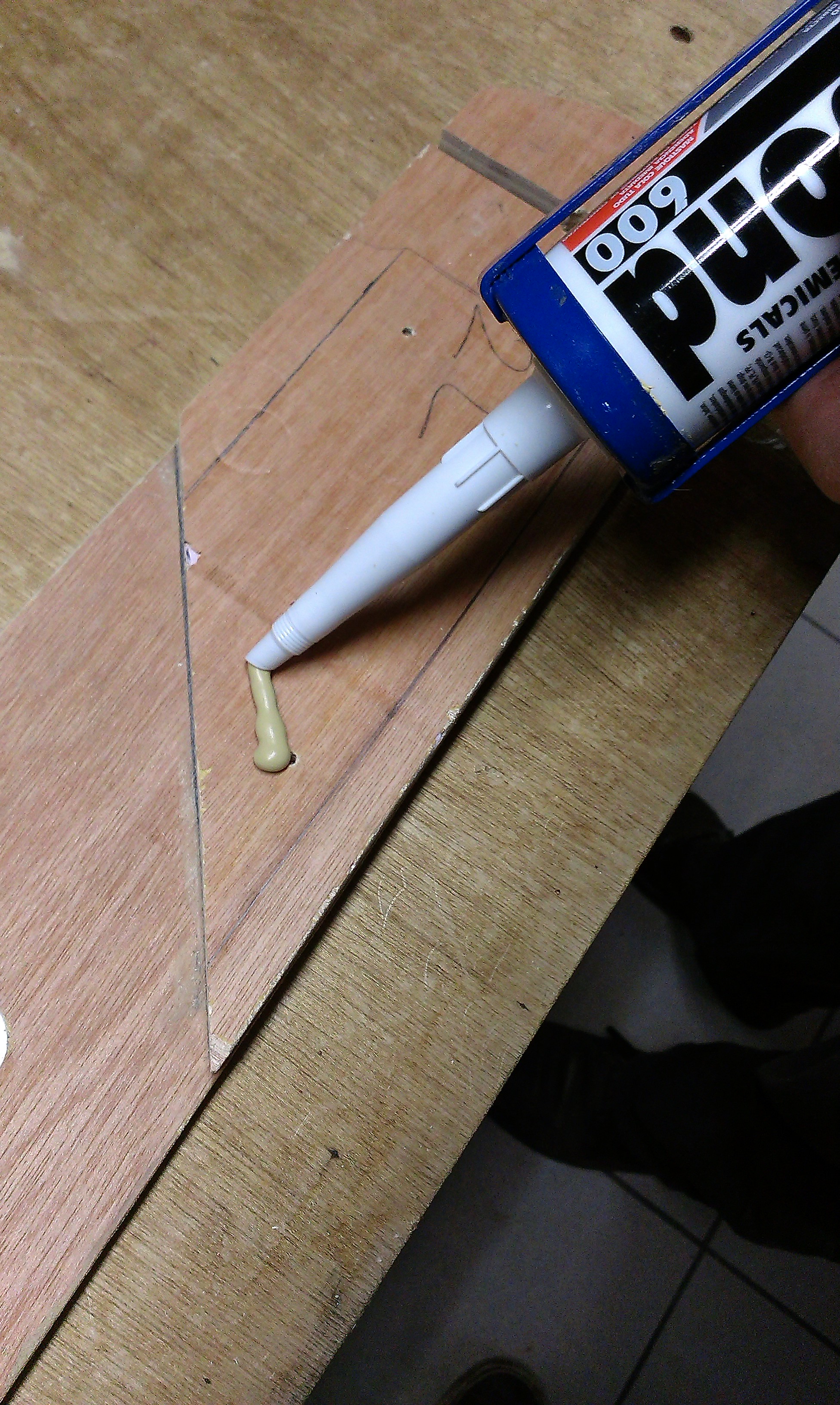

then you take your wood glue and comfirm them together. (see picture).
wait 24 hours...
Confirmation Plank
![IMAG0230[1].jpg](/proxy/?url=https://content.instructables.com/F3T/QKUS/I3KC6XQU/F3TQKUSI3KC6XQU.jpg&filename=IMAG0230[1].jpg)
![IMAG0235[1].jpg](/proxy/?url=https://content.instructables.com/F8R/TNWW/I3KC5WIV/F8RTNWWI3KC5WIV.jpg&filename=IMAG0235[1].jpg)

When you're done with drilling, the next step is confirmation.
Take a wooden bar and go to the wood lathe and rotate it to a selected diameter.
(hint: take a brush stick and use the metal lathe)
When you did that, glue your piece in the enter hole.
For the finishing off you can make a circle of plastic with the same diameter.
First Reinforcement

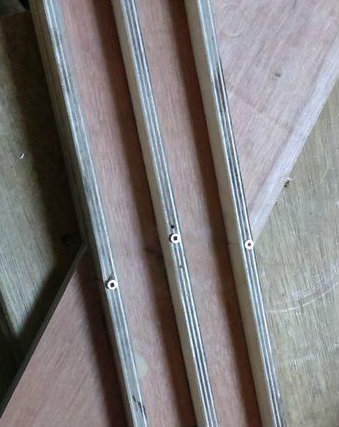

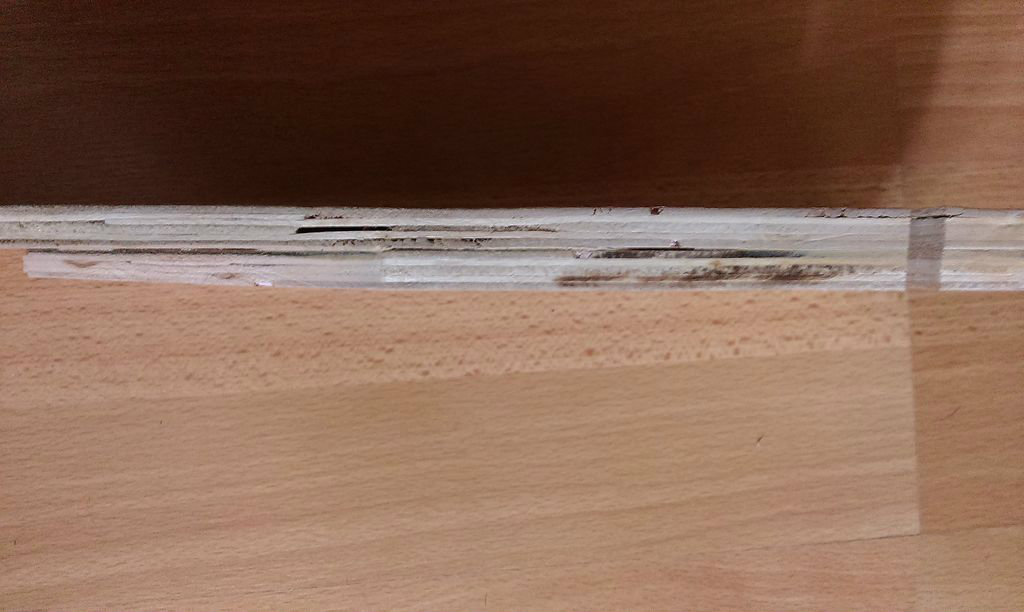

To make my swing stronger, I placed 3 strengthening ribs with e lenght of 45 * 0,9 * 2 cm
Drill a hole on: 5 cm, 22,5 cm and 40 cm ( in all 3)
(If you want you can round the corner)
Then i glued them and fixed them with screws.
wait 24 hours...
Take Away

![IMAG0361[1].jpg](/proxy/?url=https://content.instructables.com/F71/K7Q6/I4E68WRG/F71K7Q6I4E68WRG.jpg&filename=IMAG0361[1].jpg)

![IMAG0426[1].jpg](/proxy/?url=https://content.instructables.com/FNV/PR1H/I4J7AEOL/FNVPR1HI4J7AEOL.jpg&filename=IMAG0426[1].jpg)
for carrying my rope, I placed 2 sticks now it's possible to wind my rope and carry my swing around with ease
Second Reinforcement
![IMAG0387_BURST002_COVER[1].jpg](/proxy/?url=https://content.instructables.com/F24/6P6I/I4E6C0K6/F246P6II4E6C0K6.jpg&filename=IMAG0387_BURST002_COVER[1].jpg)
![IMAG0388[1].jpg](/proxy/?url=https://content.instructables.com/F2Z/31IN/I4E6C0KY/F2Z31INI4E6C0KY.jpg&filename=IMAG0388[1].jpg)
![IMAG0386[1].jpg](/proxy/?url=https://content.instructables.com/FII/ORB5/I4E6C0KZ/FIIORB5I4E6C0KZ.jpg&filename=IMAG0386[1].jpg)
![IMAG0381[1].jpg](/proxy/?url=https://content.instructables.com/FSE/XUMX/I4E6C0P3/FSEXUMXI4E6C0P3.jpg&filename=IMAG0381[1].jpg)
![IMAG0394[1].jpg](/proxy/?url=https://content.instructables.com/FDT/O6LI/I4ID9HQ3/FDTO6LII4ID9HQ3.jpg&filename=IMAG0394[1].jpg)
![IMAG0401[1].jpg](/proxy/?url=https://content.instructables.com/FGP/8CLJ/I4ID9J6Z/FGP8CLJI4ID9J6Z.jpg&filename=IMAG0401[1].jpg)

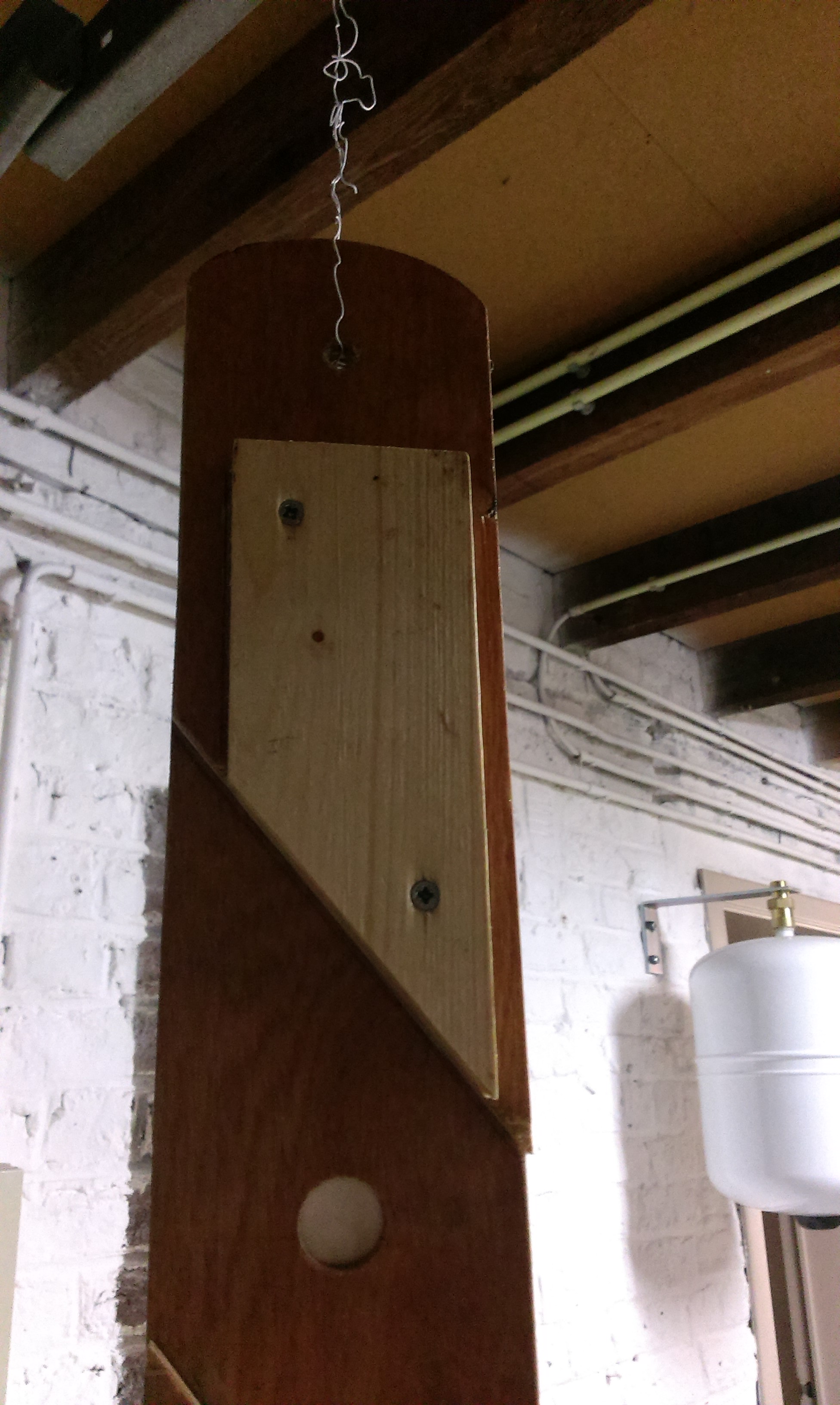

For extra strenght:
Glue 2 reinforcement pièces with a dimension (see picture) and screw them tight with screws.
Wait 24 hours...
My End Result
![IMAG0421[1].jpg](/proxy/?url=https://content.instructables.com/FF4/O4CY/I4J7A4YZ/FF4O4CYI4J7A4YZ.jpg&filename=IMAG0421[1].jpg)


![IMAG0428[1].jpg](/proxy/?url=https://content.instructables.com/FNP/YHJX/I4J7AF7O/FNPYHJXI4J7AF7O.jpg&filename=IMAG0428[1].jpg)

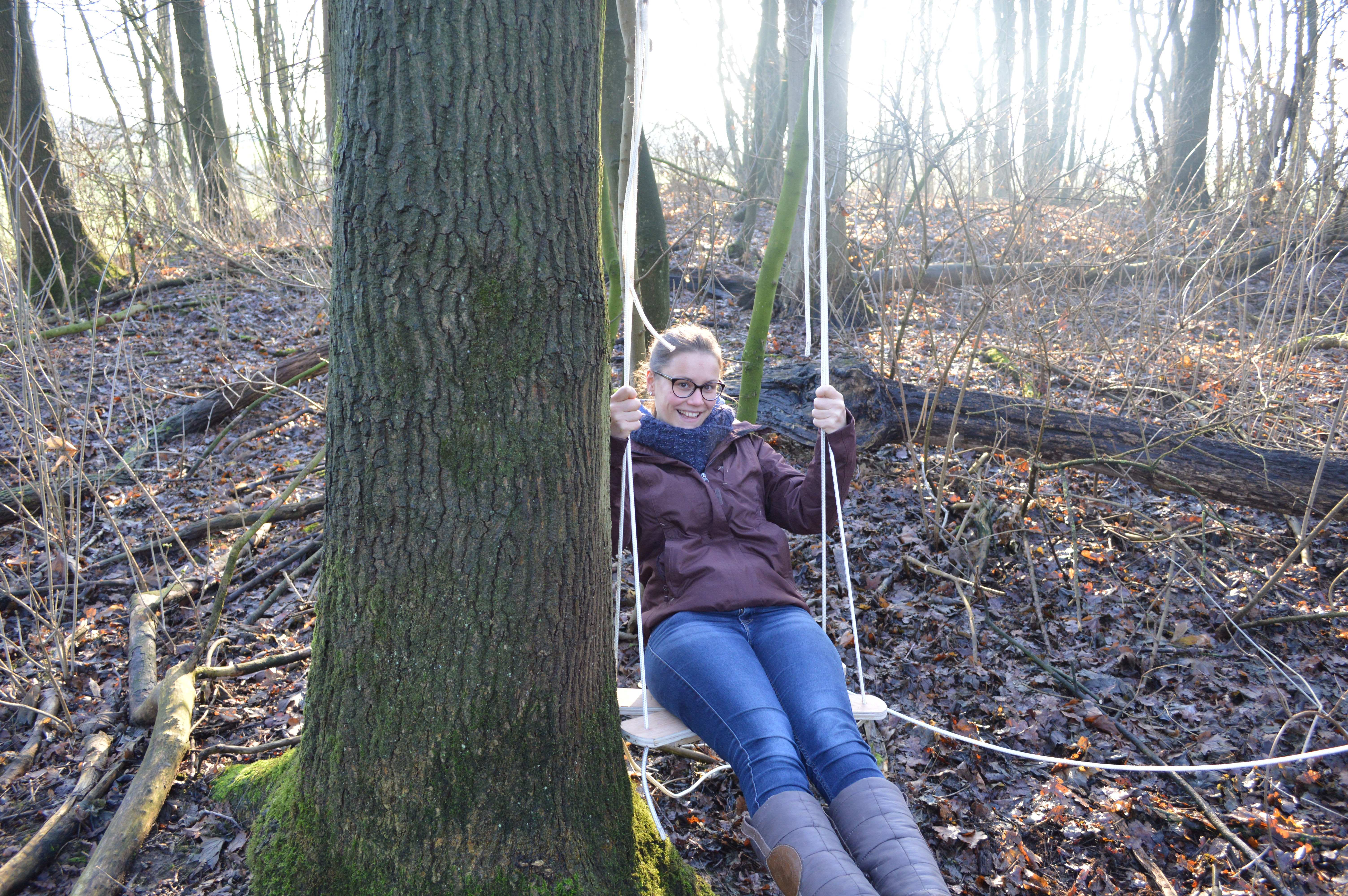

After a drop of paint, this is my own (take away) swing...
