The Ultimate Magnetic Pegboard!

This my new Magnetic Pegboard over my projects table, it is where I do most of my Soldering, Hot Gluing, Dismantling, And sadly, Also my School Home-Work.

It's funny to say that this project costed me about $2 in parts because I had almost everything that was needed, but if I had to buy everything I can estimate it would have costed $100+

Maybe It looks small in the picture but it's more than 2 meters long (~2 yards)

That's more than 2,000,000,000,000 pico-meters! ;)

I had a toolbox but I got tired of it because it takes too long to find the tool you need, The small tools always fall to the bottom of the box, which means you have to dump the whole toolbox on the floor just to find the tiny screwdriver you were looking for.

I won't even start about how dirty and dusty they get...

For Short: You don't know how annoying toolboxes are until you try something else...

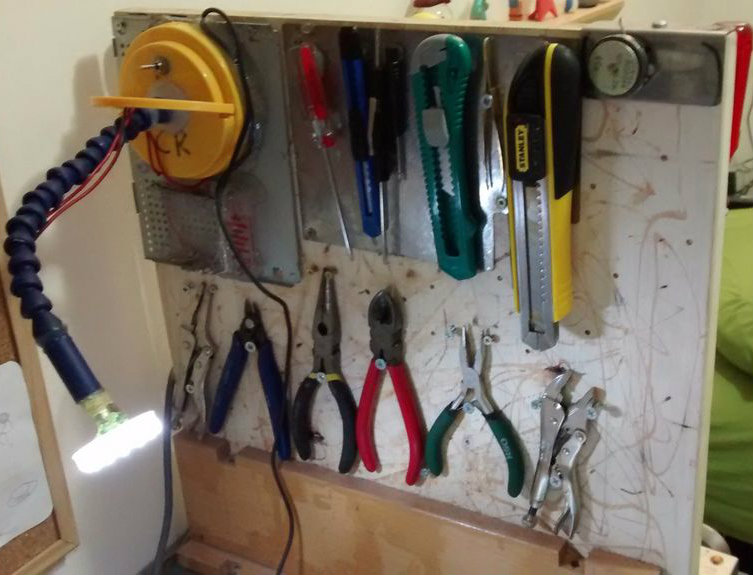

So I built this Standing Pegboard which was okay, But wasn't big enough, Tools kept falling off, And It was uncomfortable on my table because it was double sided. I had this pegboard for a couple months until a weird idea came to my head... A MAGNETIC PEGBOARD!

If I wasn't a even little pessimistic and learned to live with what I had, I wouldn't have thought of improving what I have...

Also If you noticed, I mentioned all of the things I didn't like about the standing pegboard, This helped me to improve the Magnetic Pegboard!

Okay enough talk, Lets get to work!

Weeks of Planning, Trying, Adjusting, And Failing, With my new wooden boards** until I was done.

What you need to make this isn't expensive tools, Huge walls, Or just to be a genius. What you need is:

1. TIME

2. Food to keep you from getting bored in my case pretzels work fine ;)

** High Quality sandwich boards, They look new (except for some small scratches that covered up by the tools) and were found for free while dumpster diving!

What I Used:

A Hot Glue Gun*** (You can use other kinds of adhesives such as: Silicone, Sugru, Epoxy, Double Sided Tape And More...)

A Pencil (for marking where to glue the magnet)

Any Kind Of Wooden Board

The Tools You Want To Hang

A Sharp Utility Knife (Optional)

Magnets From eBay (I had most of the Magnets from Speakers I took apart for free, But I did need a couple )

And If you're not interested in spending a lot of money on magnets like me (there really is no reason to...), The links below could probably be helpful:

Where To Find Free Magnets

How To Salvage A Magnet From A Speaker

*** Hot Glue usually isn't recommended for gluing metal or magnets but It was the best option for me:

Hardens quickly

I already had it

Strong enough (If it isn't it helps to scratch the surface of the wood and the magnet with a knife or a file)

Really cheap (I used 1 1/2 sticks for all of the boards combined, That is about $0.75 of glue!

This Instructable Isn't a "How-To" on everything I glued because it would be probably about 100 steps, It isn't very hard to glue a magnet to a wooden board and make it fit your own needs, I am just showing what I did and giving some tips.

This is how I did it:

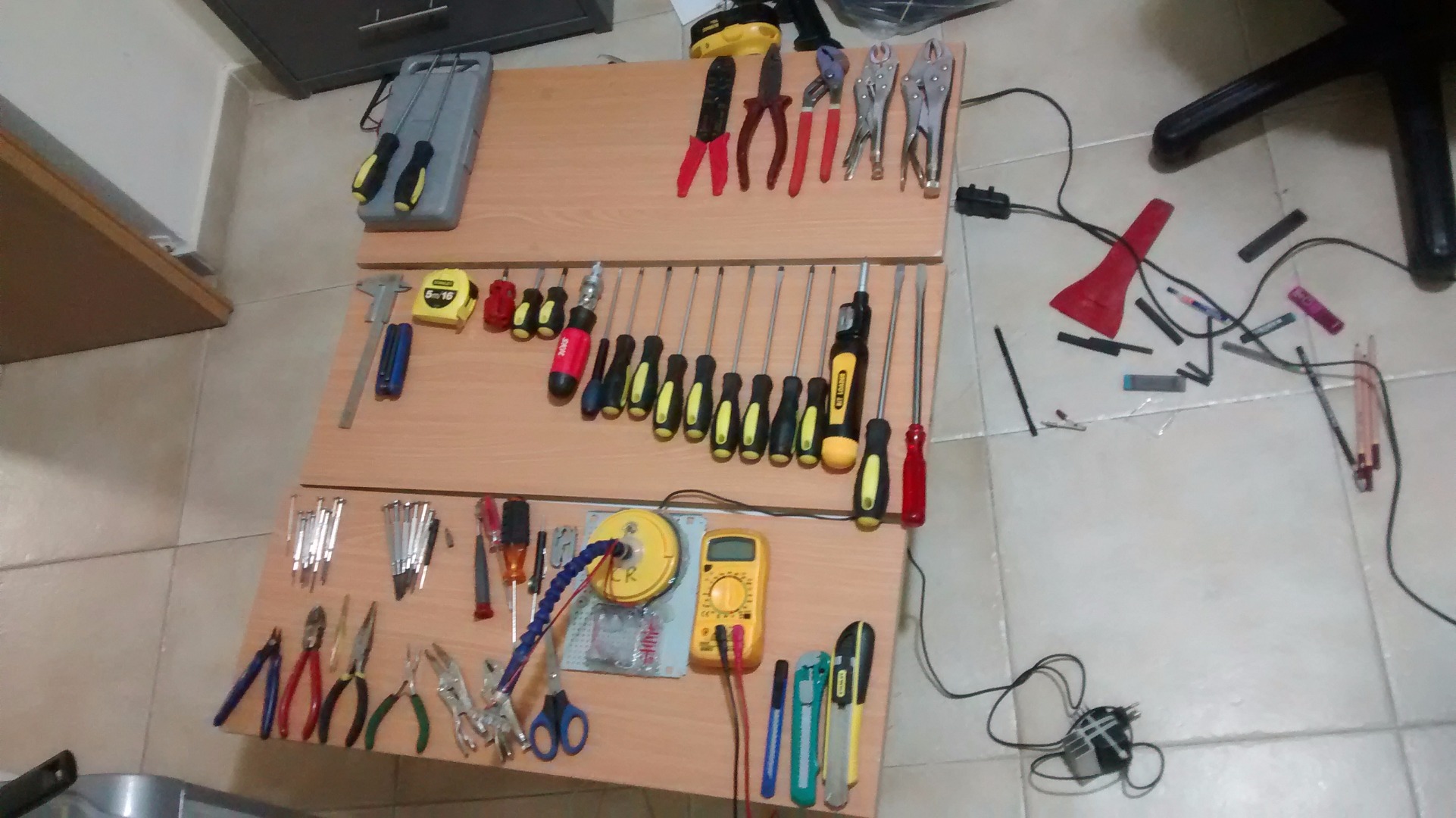

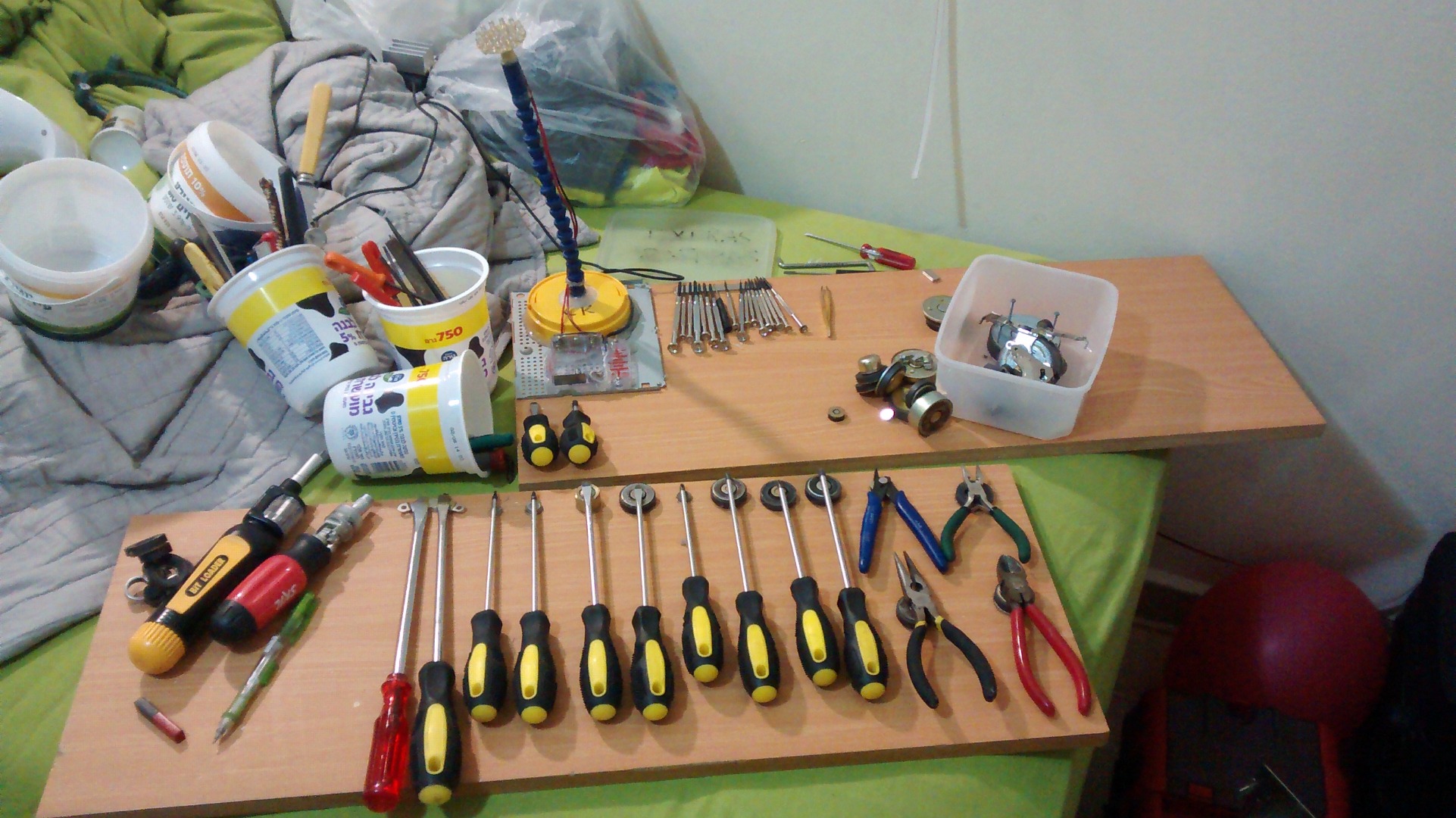

1. Put the tool on the *magnet*, And find a place where the tool doesn't interfere with another tool, and is easy to reach

2. Take off the tool from the magnet, so only the magnet stays where you want it to be

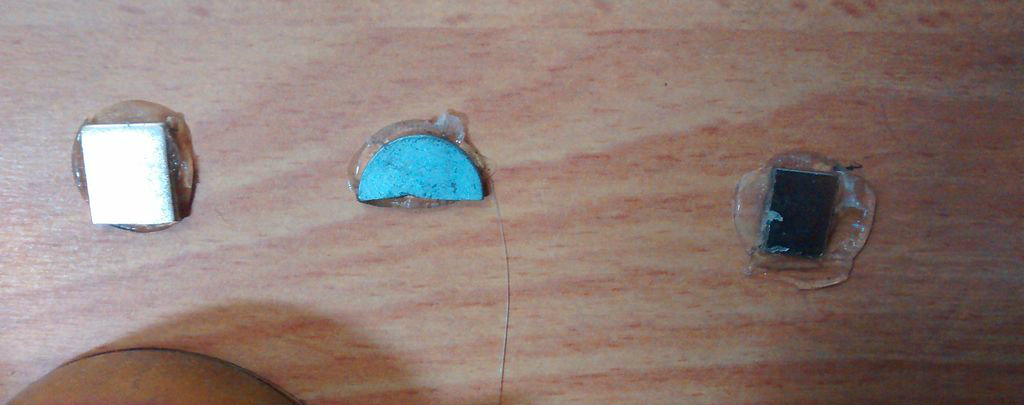

3. Mark the outline of the magnet*** with a pencil on the board

4. Place the tool on the magnet again and make sure it's in a good place (similar so step #1)

5. Scratch the the back part of the magnet and inside of the OOTMOTB***, to increase the adhesion (optional)

6. Fill the OOTMOTB*** with Hot Glue (or with any other glue of your choice...) and quickly place the magnet on the glue and apply pressure, while still making sure that the magnet stays in place.

7. If you choose a smaller magnet, It will take the glue more time to harden...

*I chose the right magnet by making sure it is strong enough to too hold the tool when I shake it gently, But also not too strong so I will be hard to take it off.*

***"Outline Of The Magnet On The Board" will be marked as OOTMOTB***

There are notes on most of the pictures, explaining what each tool is, But I wasn't able to have notes on all tools.

Retractable Solder Fume Extractor

24 LED Light

2X Helping Hands

The second picture shows how the pegboard looks without any tools, How messy the table is without a pegboard...

I used the magnets I bought on eBay to make a magnetic strip to hold the screwdrivers, This way is cheaper, And I can decide exactly how big I want the strip to be.

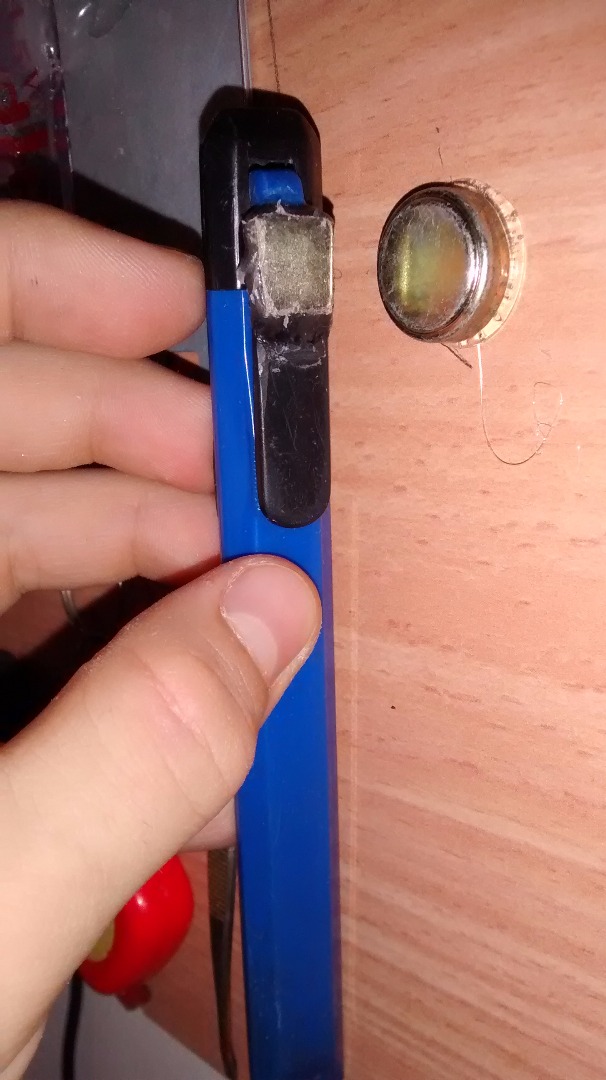

Both of these utility knives do not have metal connections so I had to glue small magnets on to them.

I added 2 magnets to the big green knife because it weighed more, and I had to put it upside-down because the knife comes out automatically when it is turned upside-down.

I added some shrink tube onto the magnet that holds the caliper to prevent scratches, only to find out later that this caliper is over 40 years old and is probably the hardest to scratch metal tool in my house.

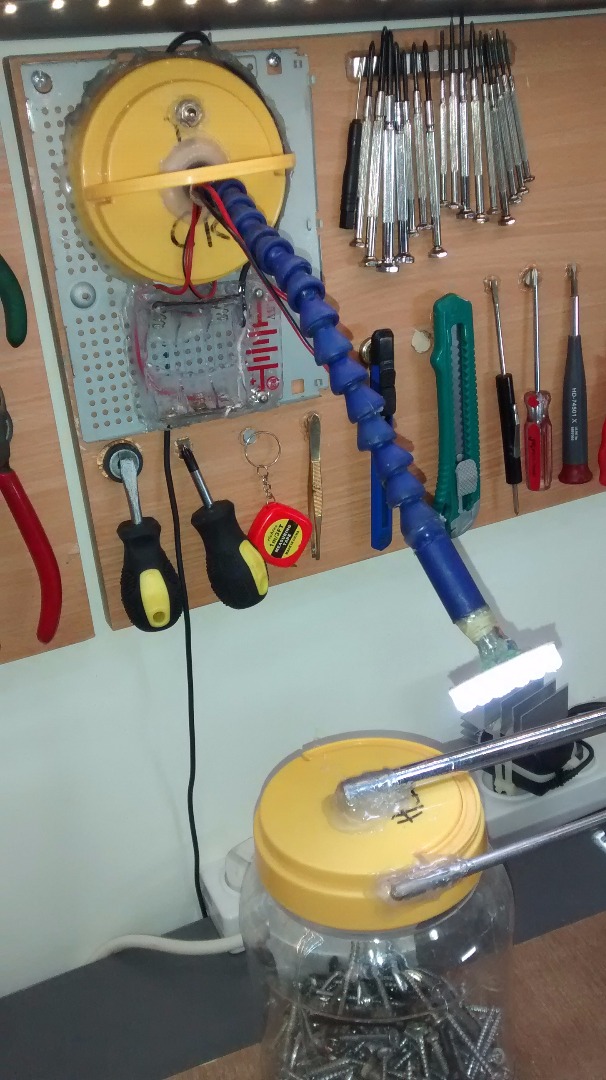

I attached the 24 LED Spotlight For Soldering metal base to the wood with 2 screws that were a little smaller that the holes (There was only one so I had to drill the other one with a Dremel) of the base so I would still be able to remove it easily

If you look closely you can see I broke my snips (small wire cutters) But that hopefully that isn't really noticeable in the picture ***oops***

The box is held with one hook on each side of the handle which makes it very easy to remove it when I need to.

I used 3 small flat magnets to hold this file on the pegboard, Nothing really special...

The problem with mounting this saw is that the metal handle of the saw is probably made of aluminum so it isn't magnetic.

I had to hot glue a magnet to the handle, and then put 2 magnets (picture 2) so they would be farther from the board, because the magnet that held the top of the saw was bigger.

And yes, the saw still works as good as new!

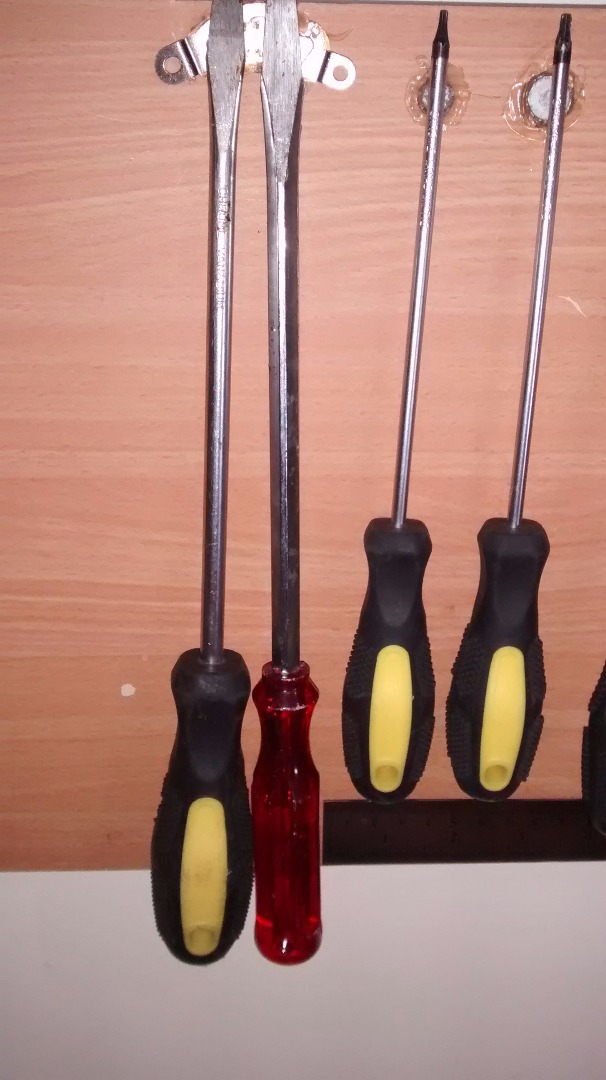

I have two big flat screwdrivers that I use mostly for salvaging magnets from speakers, And prying big electronic devices open

They are pretty heavy so I used a hard-drive magnet to hold them, since none of the other magnets I had were strong and big enough to hold both of the screwdrivers.

I had to use a couple small magnets because I didn't have enough big magnets for all of the screwdrivers (I had enough big magnets but they were really strong, So I felt It was kind of a waste...), But I will replace them when I have enough big magnets.

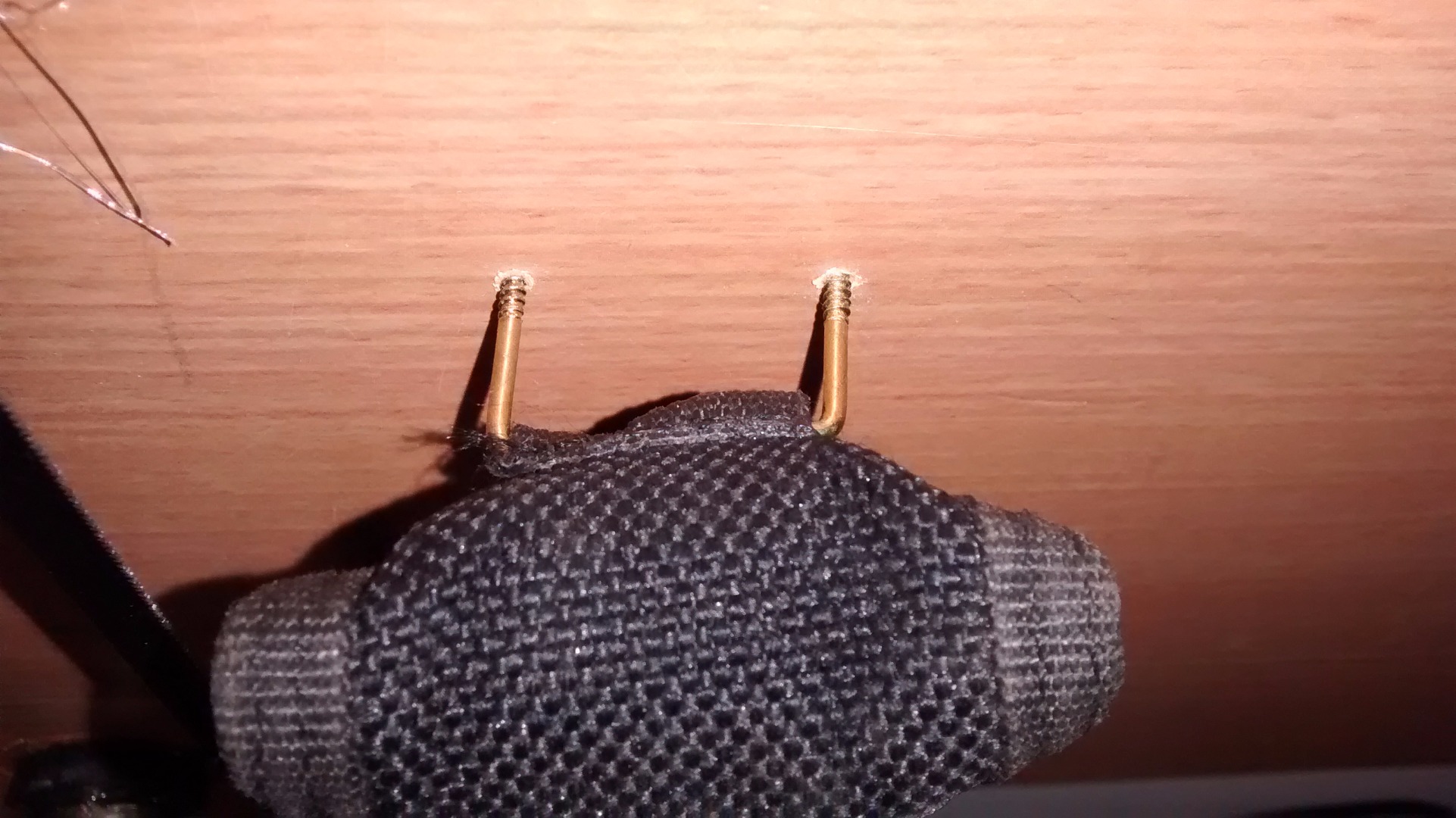

I wasn't able to use a magnet so instead I used two 90 degree screw-hooks That were screwed close to each other so It would be possible to slide in the pocket-knife case, as seen in picture 3.

I hope you enjoyed my Instructable, If you wan't to see more projects like this, Don't forget to visit my Instructables page and subscribe for future projects!

If you find a that I made a mistake please point it out so I can fix it

I'd also really appreciate it if you vote for me in the contests I've entered :)

If you build a Magnetic Pegboard that is similar to what I built, Please post a picture in the comments to show everyone!
