Electric Trolling Motor Canoe

If you are not looking for super-speed, or want a quiet way to fish, get around the lake, or extend your camping trips, an electric canoe is the way to go! This canoe modification is easy to build and will get you a top speed of 6km/h, or 10km/h if you paddle as well. You can also expect to get up to 7.5km on a single charge with one battery on a four person canoe. The range greatly increases with less weight.

Another added advantage is the sound. It's actually quieter than regular paddling.

The idea here is that you add a 12v trolling motor to the side of a canoe and use it (at an angle) to get around. Watch this video to get a better idea:

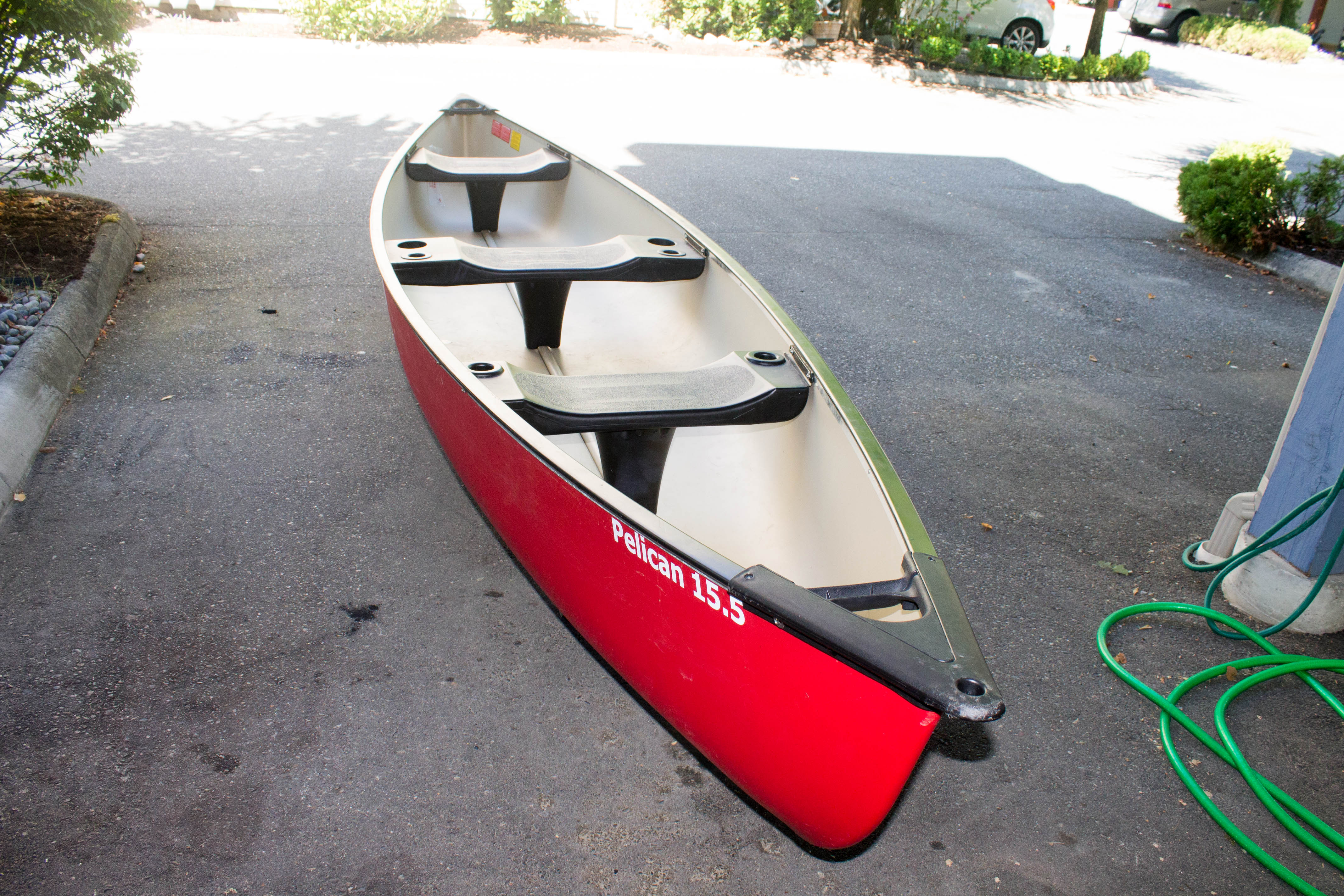

• A canoe (the victim)

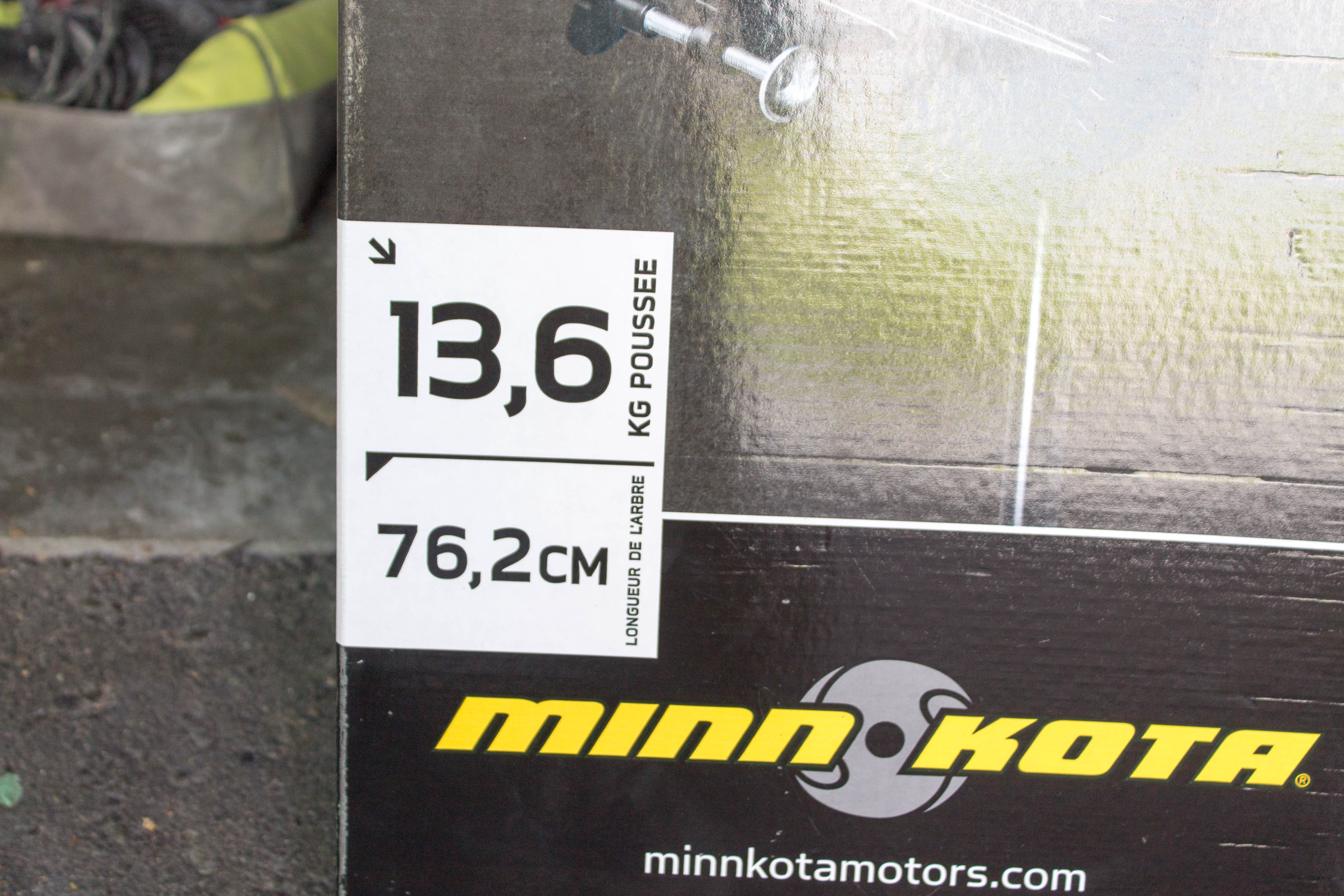

• Trolling motor (Minn Kota Endura C2)
• 2x4 (that is longer than the width of the canoe)
• 2x (3/8” by 4” bolts)
• 2x (3/8” nuts)
• 2x (3/8” washer with an outer diameter of 1.5”)

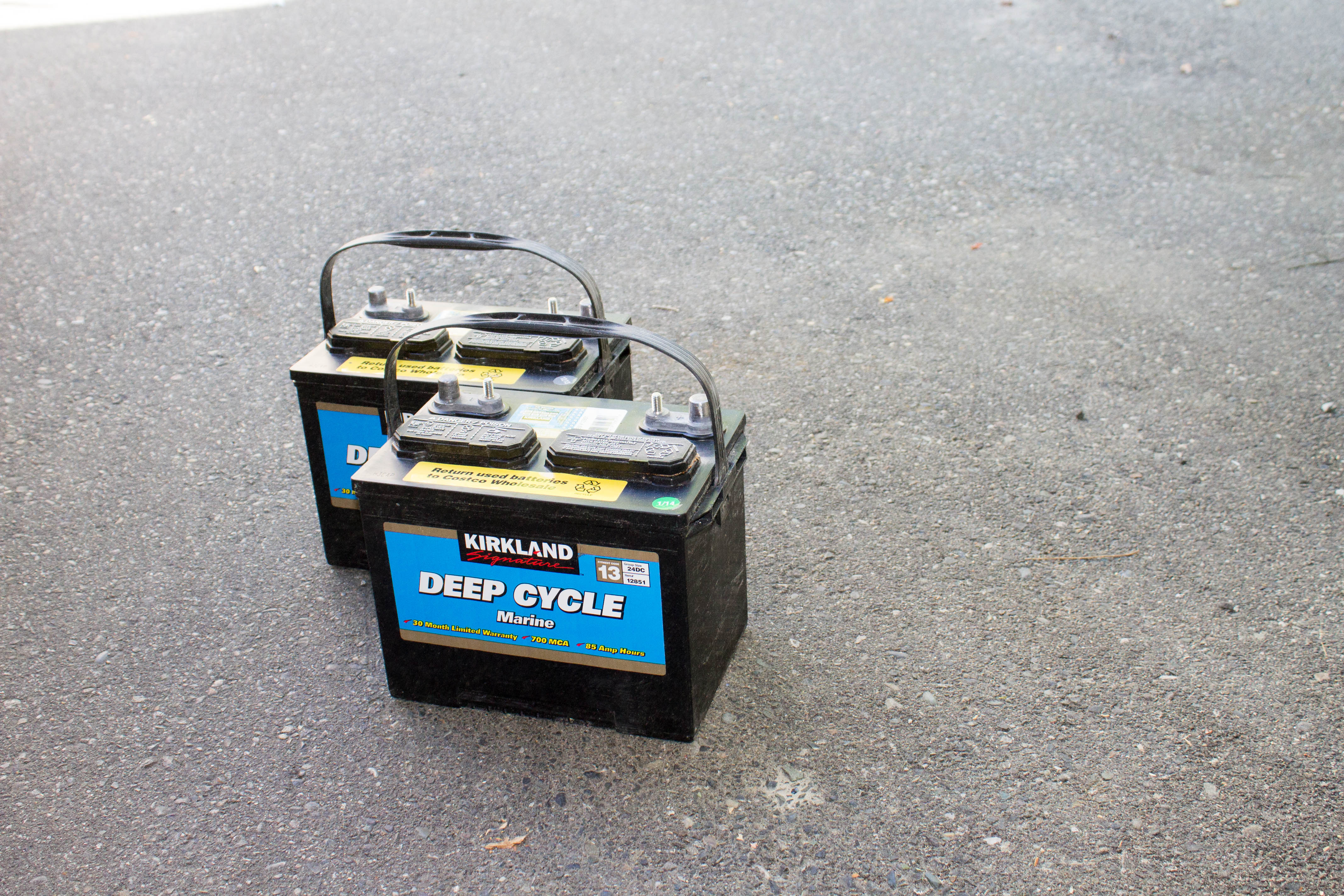

• 12v deep cycle marine battery

The trolling motor was bought at Canadian Tire, batteries at Costco, 2x4, nuts, washers and bolts at Home Depot, and the canoe we had lying around.

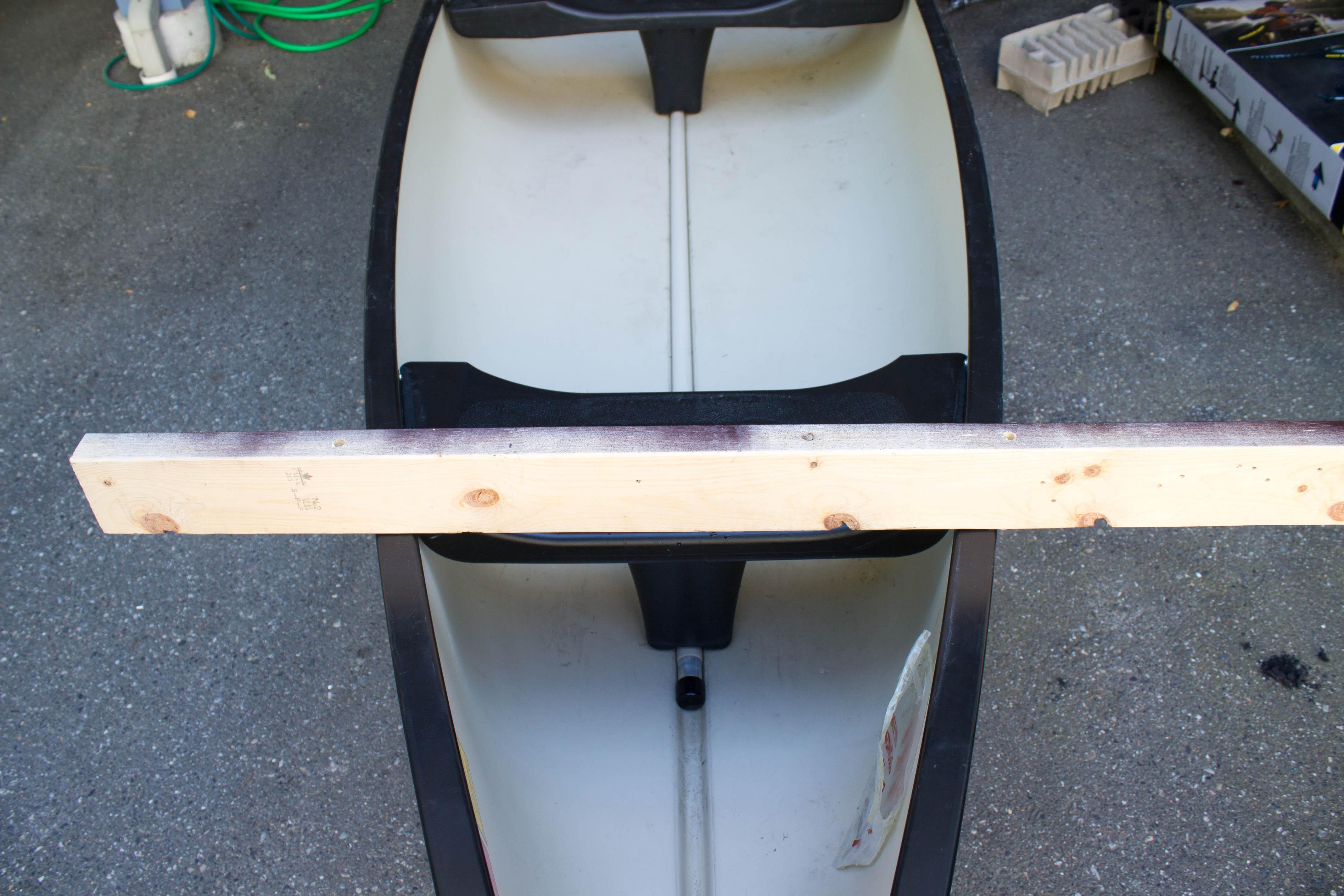

One of the first things we did was place the 2x4 about two inches behind the rear seat. Then we marked and drilled two 3/8" holes that touched the outside of the canoe edges. We made sure that on the right-hand side of the 2x4 there would be at least a foot of space for the trolling motor. These holes are for the two bolts which will keep the mount secured to the canoe.

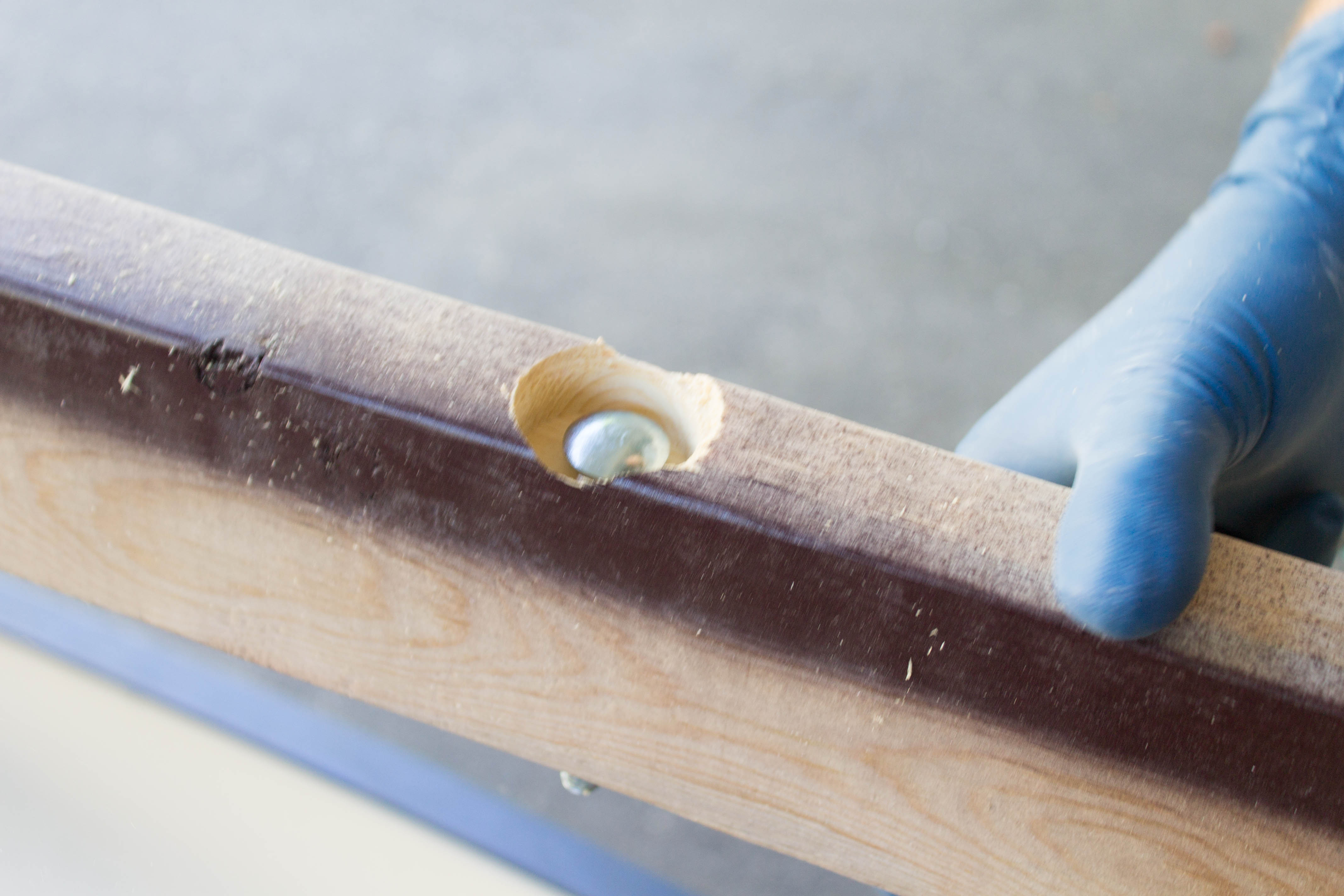

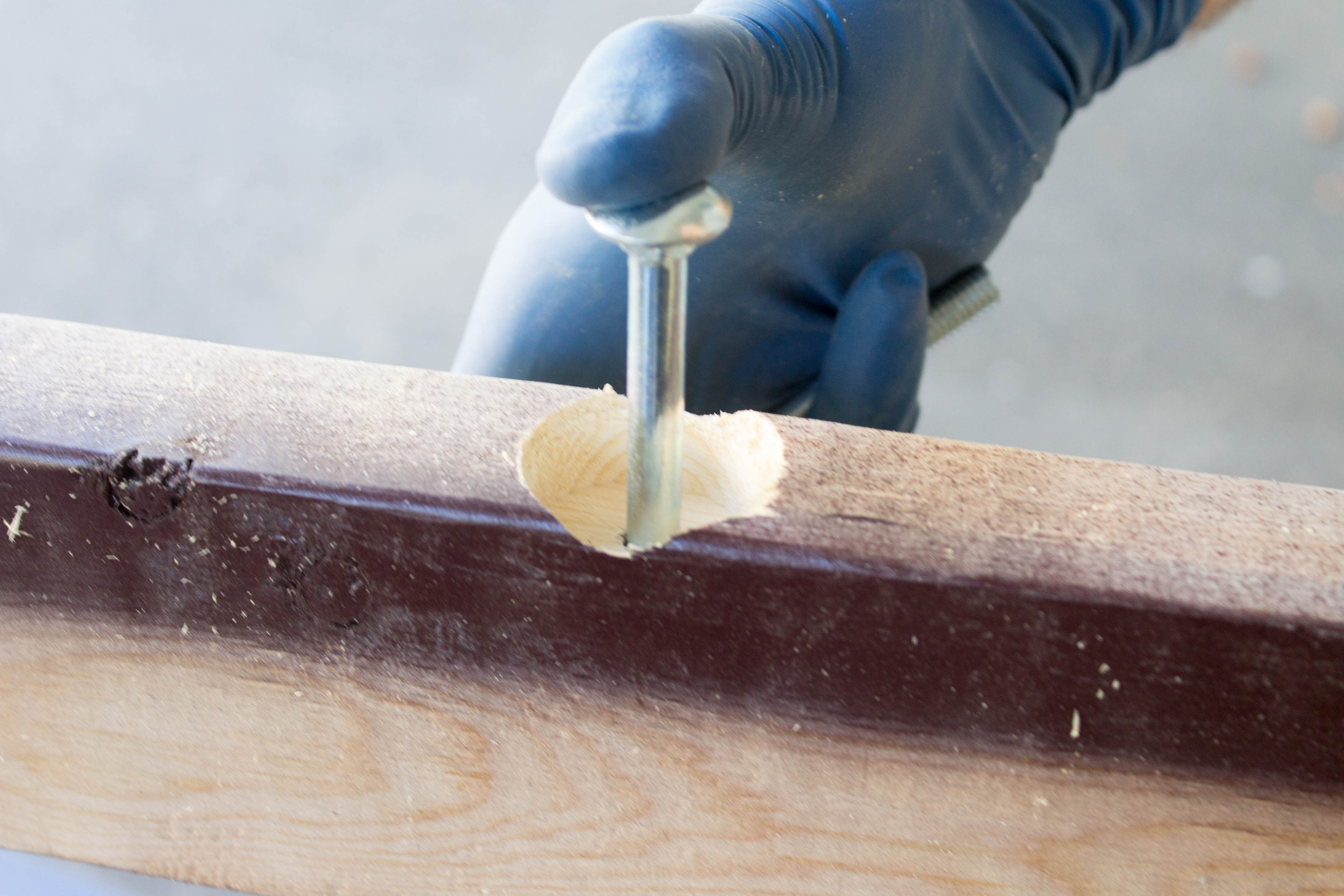

After threading the bolts, we decided to use a large drill bit to sink the bolts in a bit further so there would be more space for the nuts.

We put the mount back onto the canoe (2 inches from the back seat) and marked out the inside and outside edges of the canoe (see gif). These four marks (remember to do both sides of the canoe) will be used to make the notches that help hold the mount.

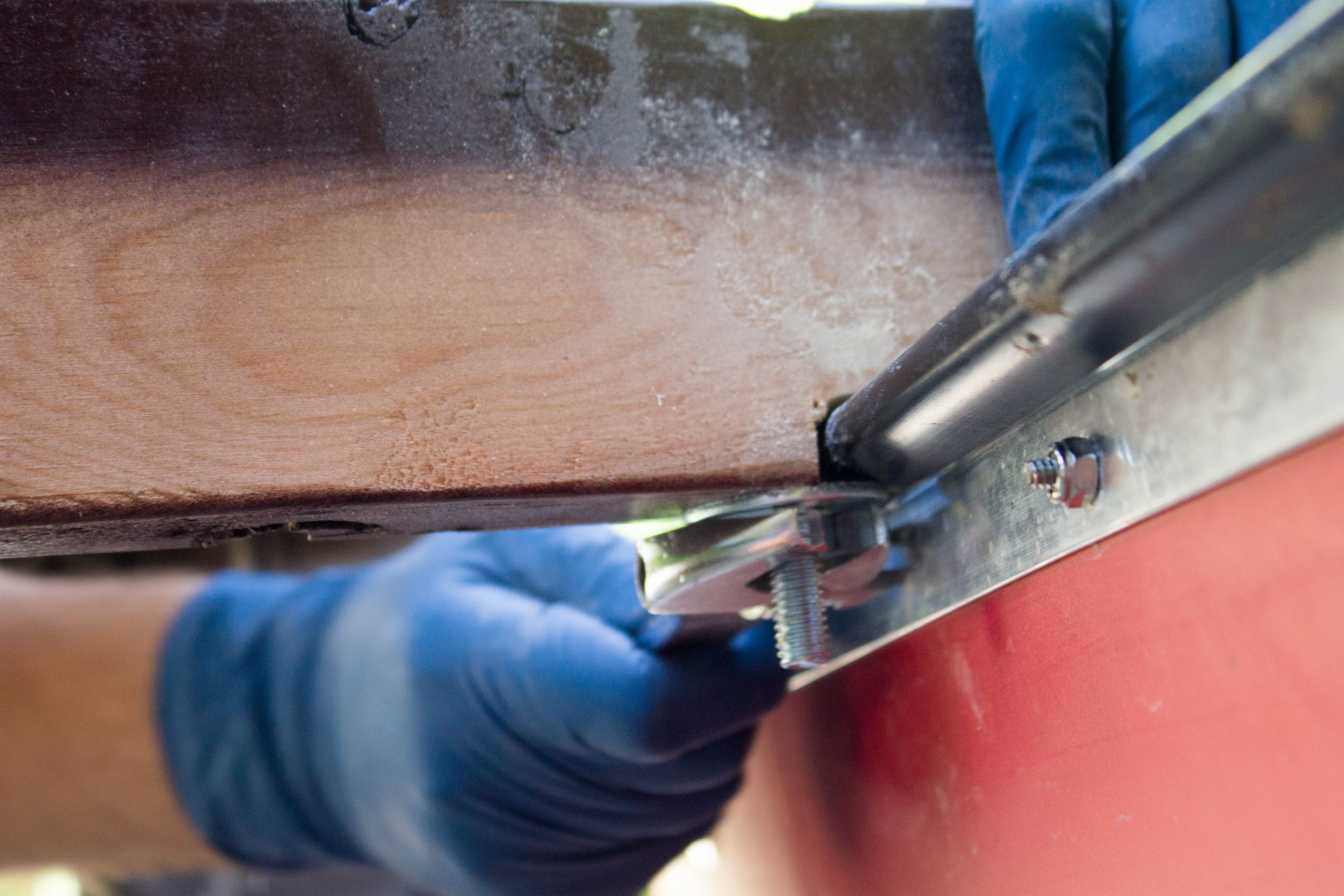

We cut about half an inch down these four lines and chiseled out the excess. We sanded the rough edges down and dry-fit the mount onto the canoe by threading the bolts, putting washers on, then threading the nuts on.

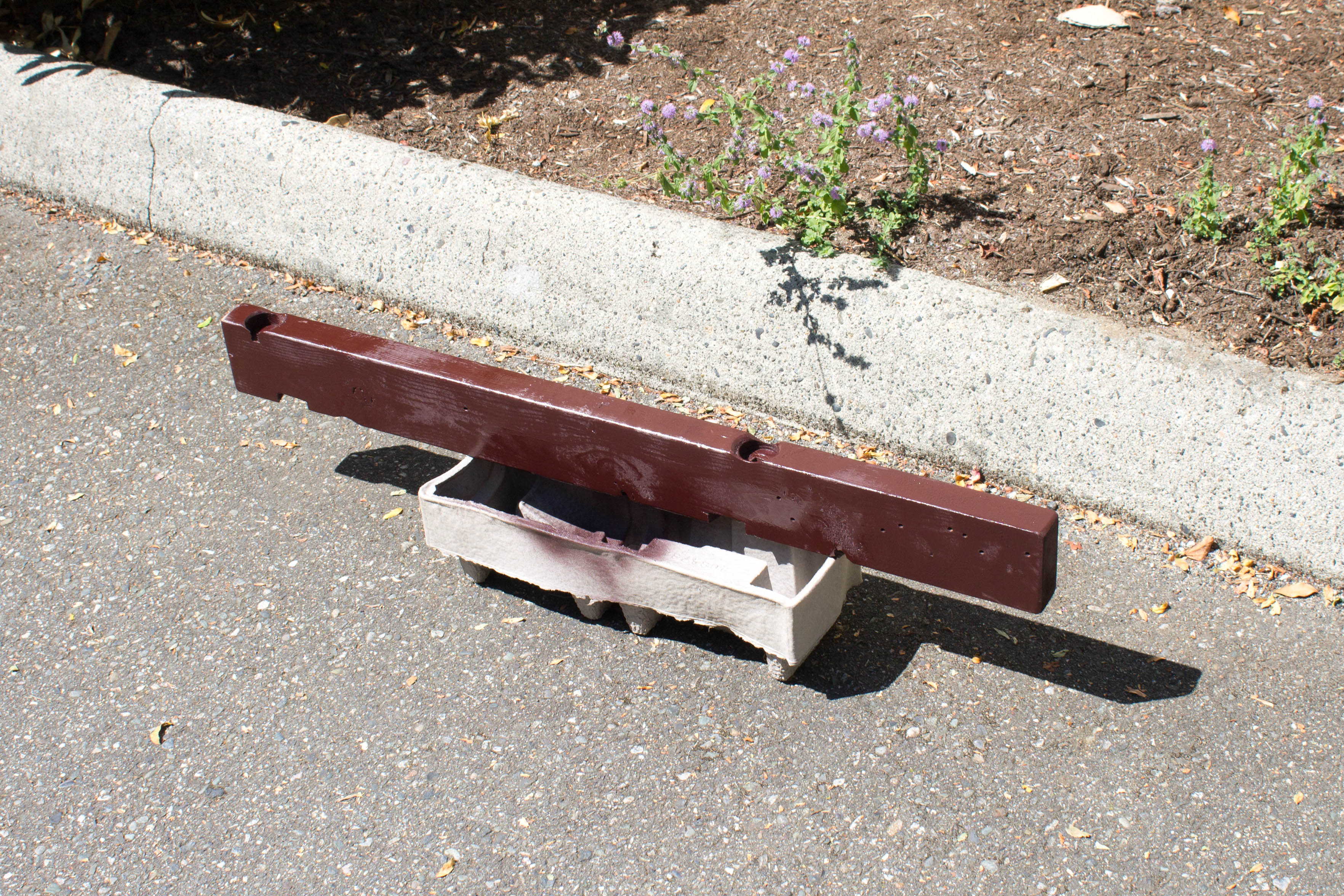

We cut the mount down to size by trimming the left side at the bolt, and the other side, about a foot from the bolt. Then we sanded down the surfaces and edges and spray painted it. We left the mount out in the sun and worked on the batteries in the meantime.

You can get away with connecting only one battery to the trolling motor, but we decided to double our range by connecting two batteries.

Connecting the batteries:

Since the trolling motor was 12v, and each battery was 12v, we connected the batteries in parallel to double the capacity. Depending on your motor, connecting the batteries in series might break it. See the above diagrams.

Securing the batteries on the canoe:

We had an old box made specifically for carrying two of these batteries lying around. We sanded the edges and surfaces down (resulting in super-cool sparks) and gave it a spraypaint. Be sure to use more than one newspaper layer when spray-painting.

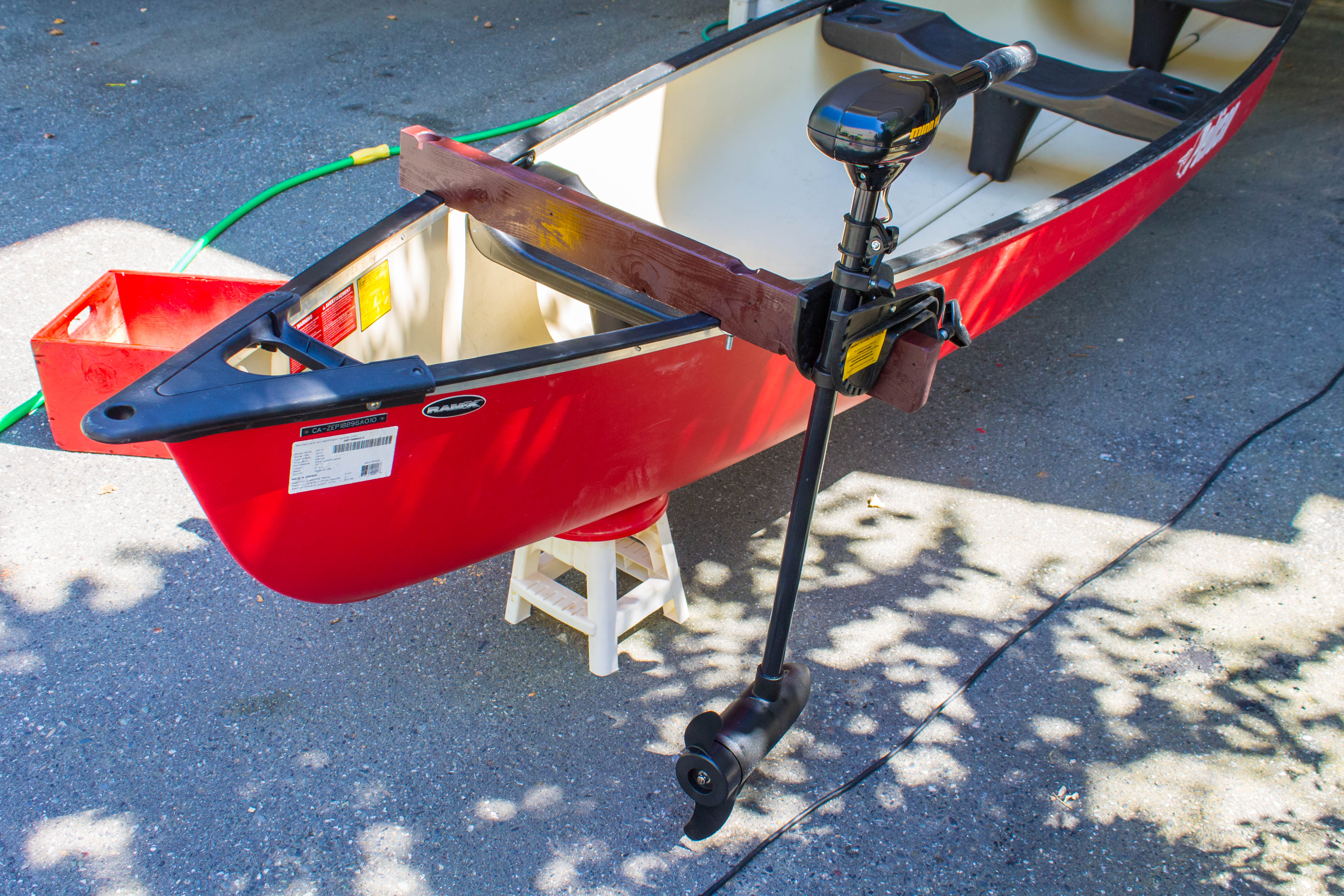

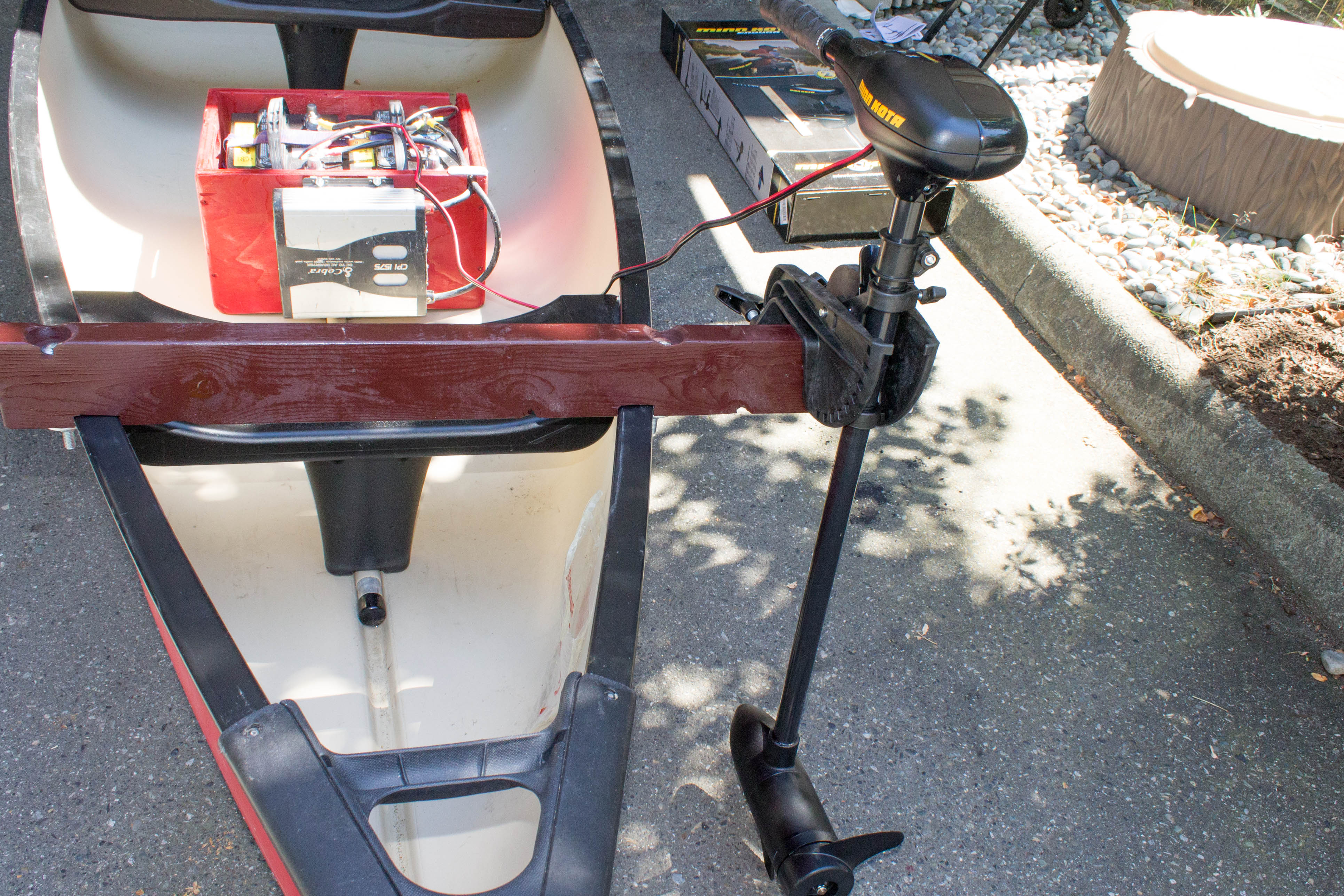

We secured the motor mount onto the canoe by tightening the nuts. Then we mounted the trolling motor onto the mount by tightening the larger bolts. Very simple.

The batteries were already connected in parallel so all we had to do was connect the leads from the trolling motor to the positive and negative terminals.

We tested the motor and we were happy with the results! The trolling motor had 5 speeds and the first speed was barely audible, even close up! Time to get it down to the water!

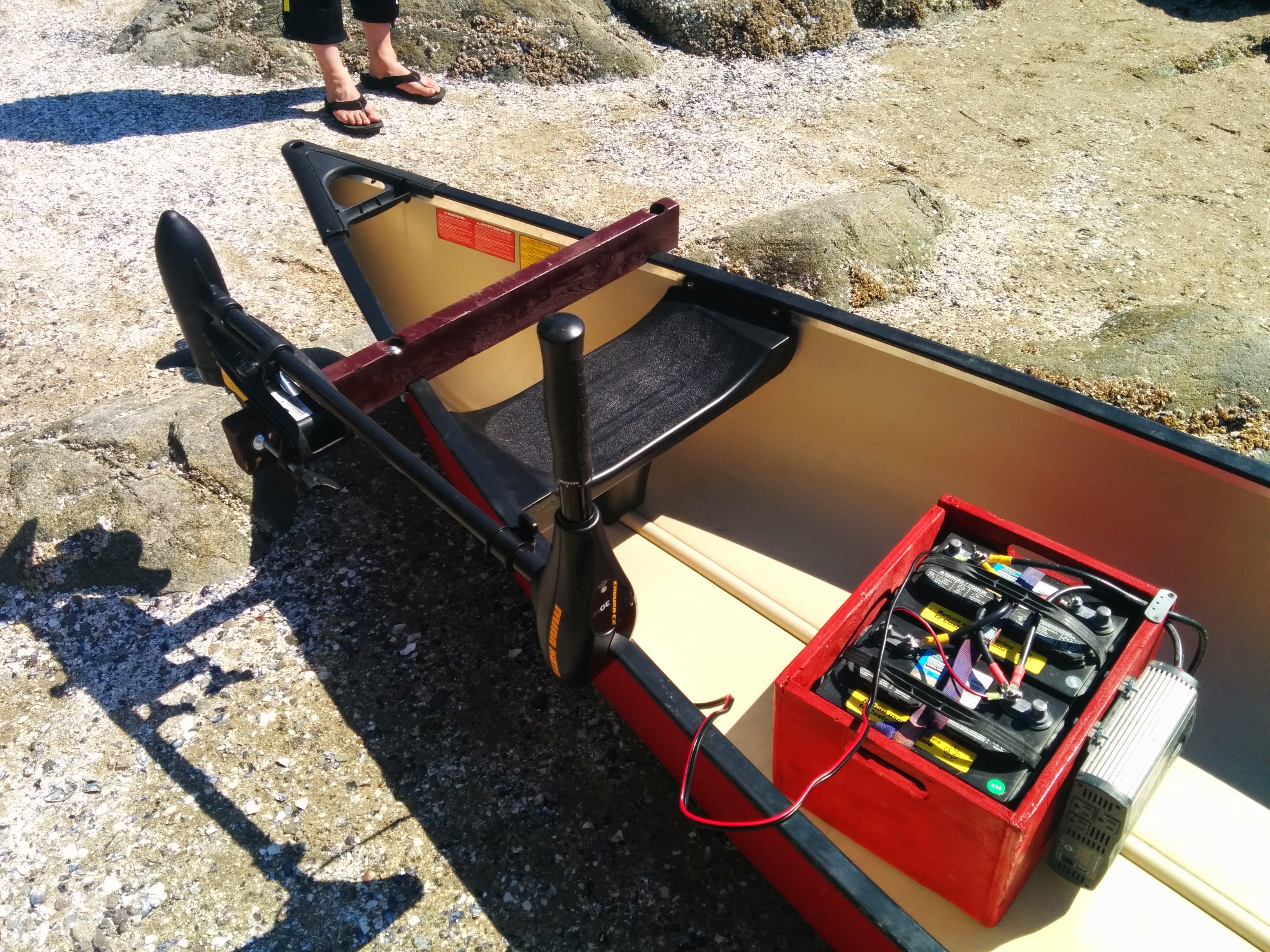

We placed the batteries quite far back and used a wheel assembly to get the canoe from the car and into the water. The batteries were quite heavy, but even with a 5th person and the batteries, the canoe still would have been underweight.

We got a 6.5km/h speed while on motor only and with only two people in the canoe. We did the same thing with four people and paddled and got a top speed of 10km/h.

In all we had a ton of fun using this canoe, and we'll probably use it every weekend for the rest of the summer!
