The Story, Santa's Shop 2016


It began by talking about ideas--then a pencil sketch on a yellow pad.

This techno/art installation was constructed through the collaboration of Mike and Annelle Rigsby, a husband/wife team. Mike, an electrical engineer, and Annelle, an artist, spent over 2000 hours creating this display. Ten Arduino microcontrollers and dozens of motors were combined with hundreds of 3d printed parts to make this happen.

Mike and Annelle are both authors and this project was created for the community to enjoy. Using clay, Annelle formed models for the Elf heads (and Santa), smaller elves, dozens of animals (riding the ferris wheel) and other parts. The clay models were 3d scanned, adjusted in size (or adapted to fit motor shafts), then 3d printed.

Annelle painted the figures and made the clothing. Servo motors (controlled by Arduino microcontrollers) allow the characters to “act” in a planned fashion. The “story” acted by the characters lasts about 3 minutes and is repeated.

Santa’s Shop will be on display daily this December, operating from 5 P.M. to 9 P.M. in the window at:
Brightway Insurance Agency; 9127 SW 52nd Ave, Gainesville FL 32608


The sketch was refined after considering what would fit and what we had the skills to construct.

shop - 1.jpg

This is an elf head that Annelle made using clay. It is on a 3d scanner to be converted into a digital file. That file can be resized and hollowed out to make room for a motor attachment, then printed using a 3d printer.

shop - 1 (2).jpg
shop - 1 (1).jpg
shop - 1 (3).jpg

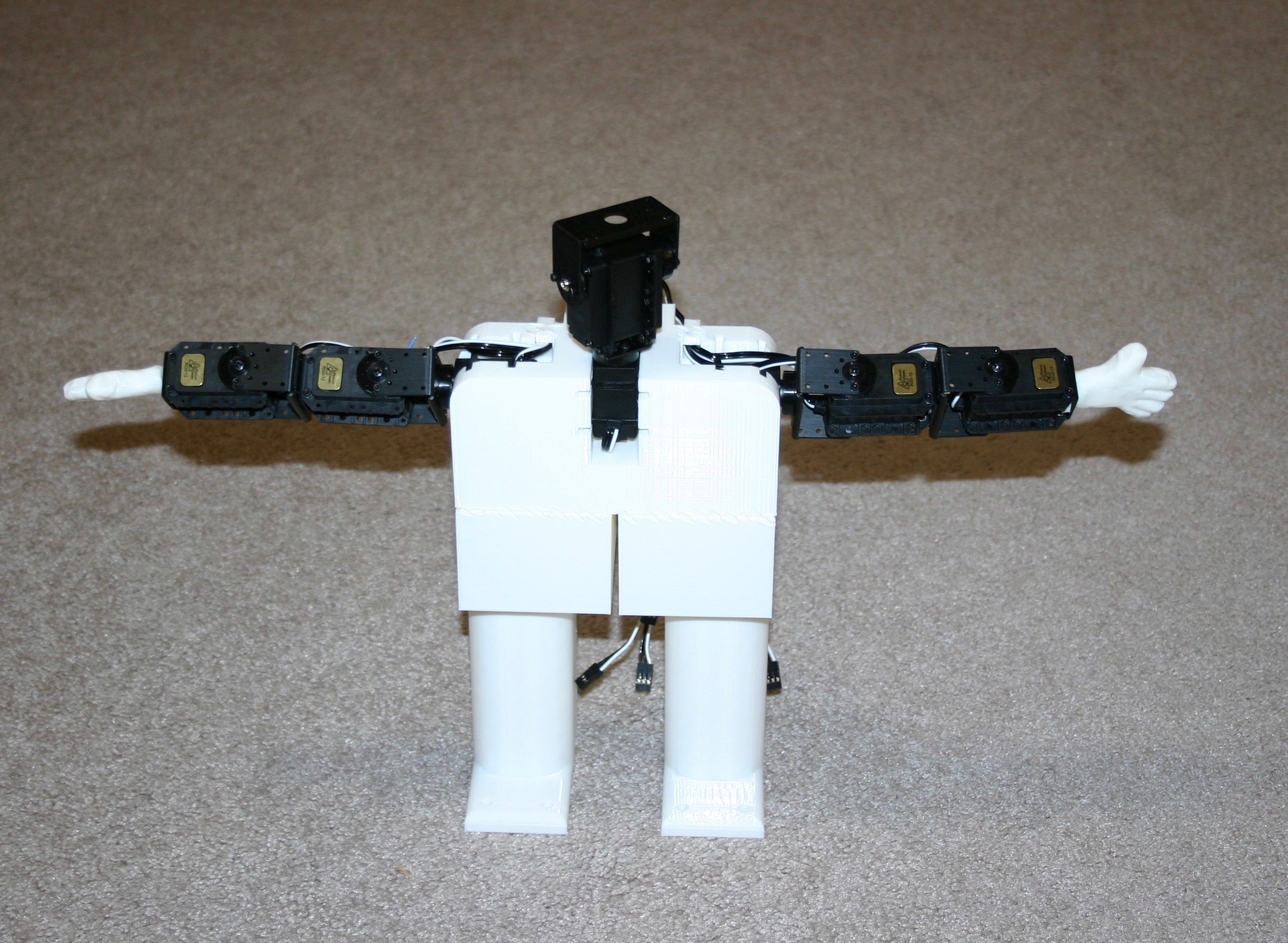

A body was printed, then motors were added.

shop - 1 (4).jpg

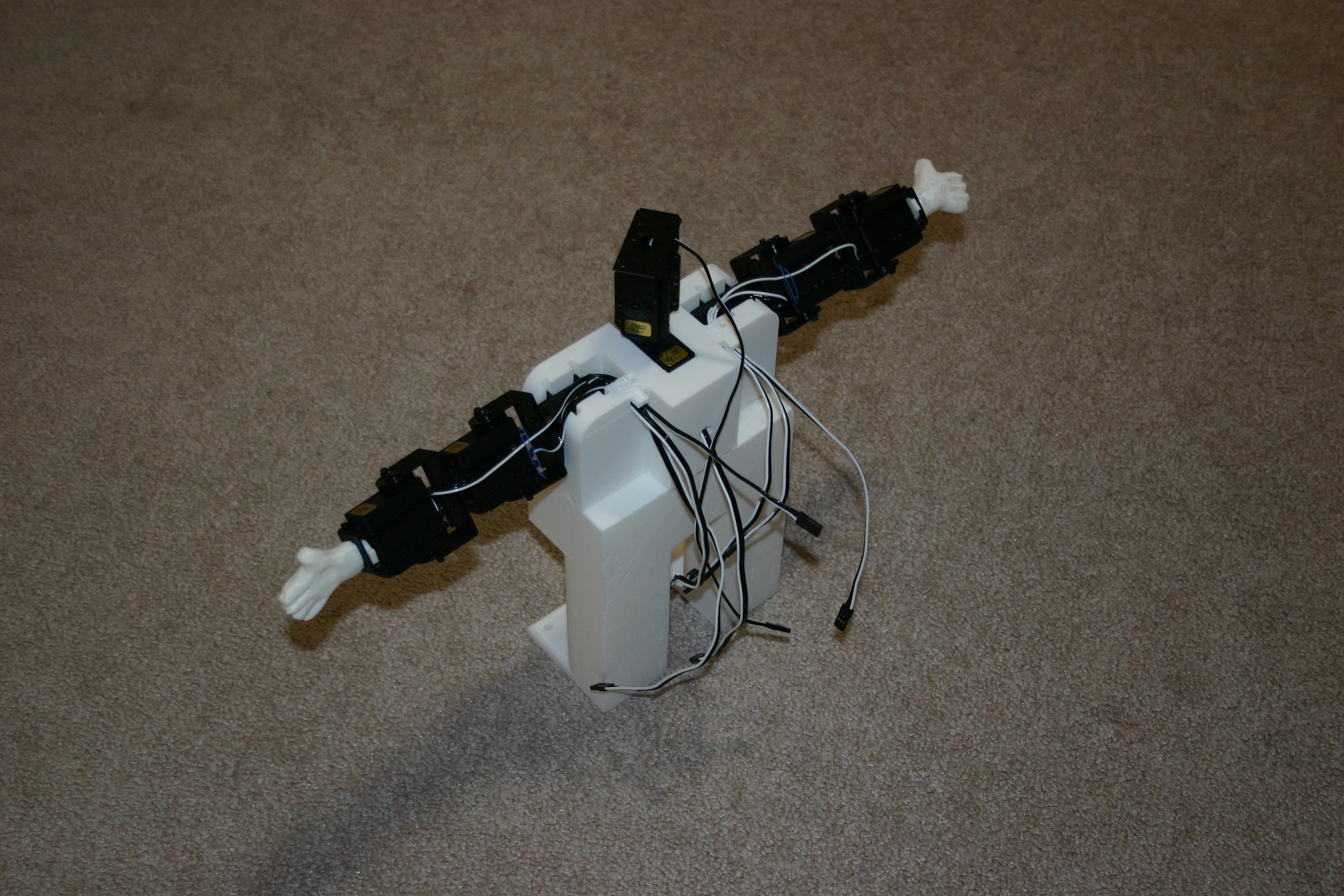

Motors were added for the arms and hands were attached at the end of the arms. Wires are brought out the back.

shop - 1 (5).jpg
shop - 1 (6).jpg

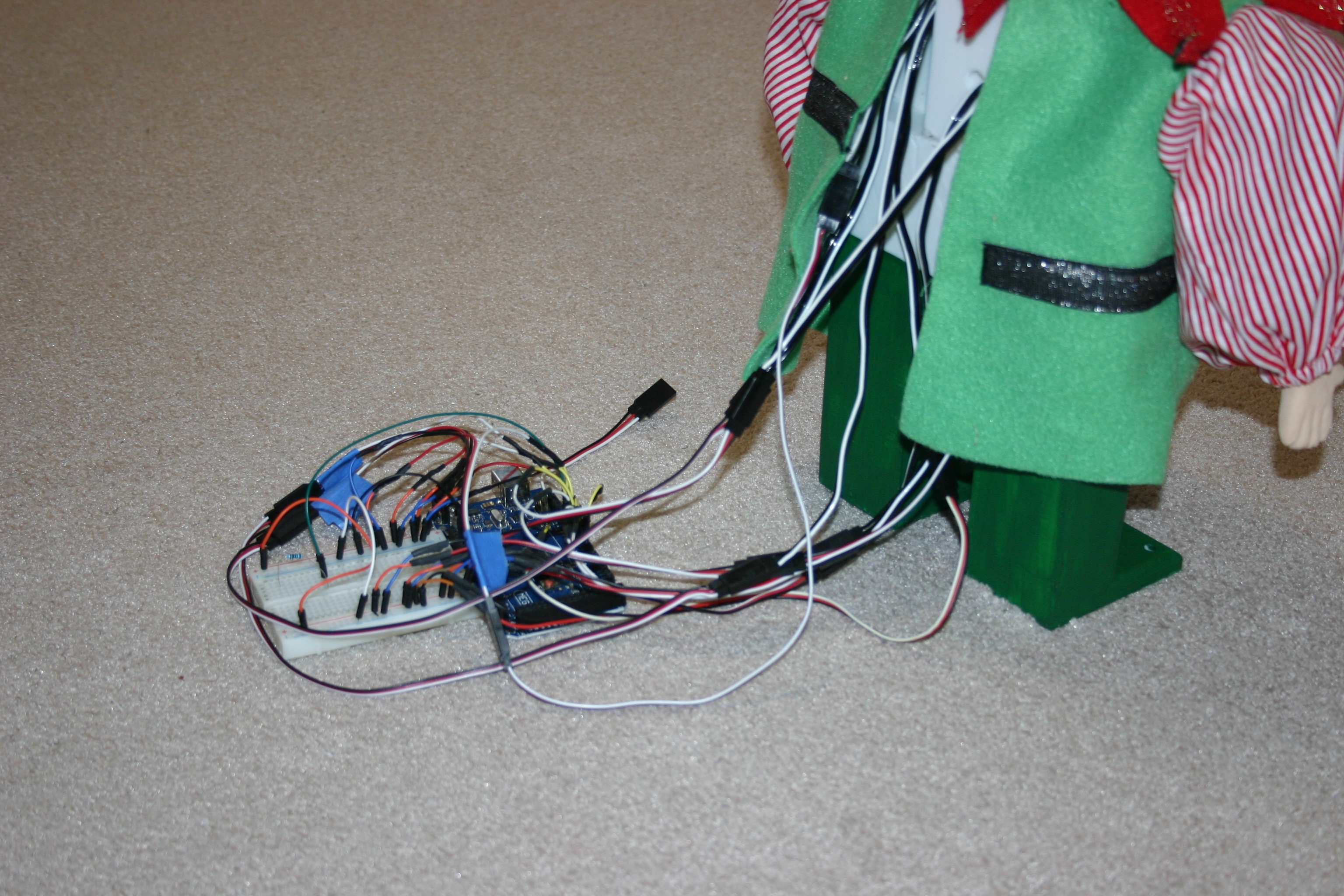

The hollow part of an elf head (seen from the neck end) slides over a motor. The elf was dressed (custom made clothing) and wires brought out to an Arduino.

shop - 1 (7).jpg

Santa is similar to an elf, but he has longer legs, boots and a larger stomach.

shop - 1 (9).jpg
shop - 1 (10).jpg
shop - 1 (11).jpg

Drum sticks were 3d printed and assembled, as was the drum. Two electromagnets are hidden inside the drum.

shop - 1 (12).jpg
shop - 1 (13).jpg

The drum is assembled, then painted.

shop - 1 (14).jpg
shop - 1 (15).jpg
shop - 1 (16).jpg

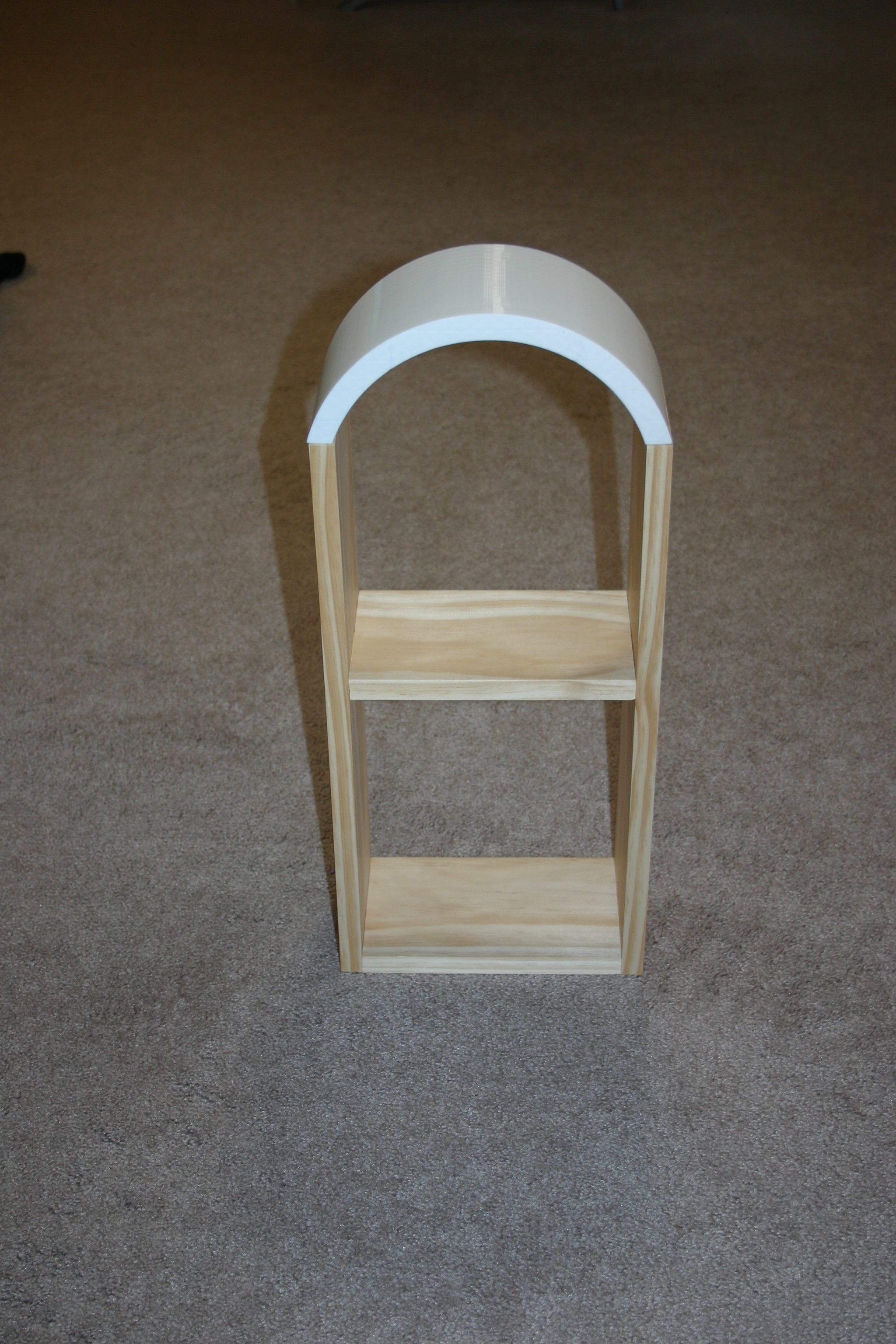

The boxes at the rear of the display are made using wood and a curved (3d printed) roof.

shop - 1 (8).jpg

The display is starting to shape up.

shop - 1 (17).jpg

On the left is my view (engineering perspective) of an elf head. The right side is Annelle's (artist) interpretation.

shop - 1 (18).jpg

This is an automated "Wheelo" using an Arduino microcontroller, servo motor and ultrasonic transducer.

shop - 1 (20).jpg
shop - 1 (21).jpg

These are pieces assembled for the elf swing.

shop - 1 (22).jpg

The elf was formed in clay, scanned and 3d printed.

shop - 1 (23).jpg

The head was painted.

shop - 1 (24).jpg
shop - 1 (25).jpg

Clothes were made, then arms and legs inserted in body holes (the body holes were designed in the digital file, then 3d printed).

shop - 1 (26).jpg
shop - 1 (27).jpg

Finishing touches are added to the elf. There are twelve of these characters (each with a different face) in the display.

shop - 1 (28).jpg

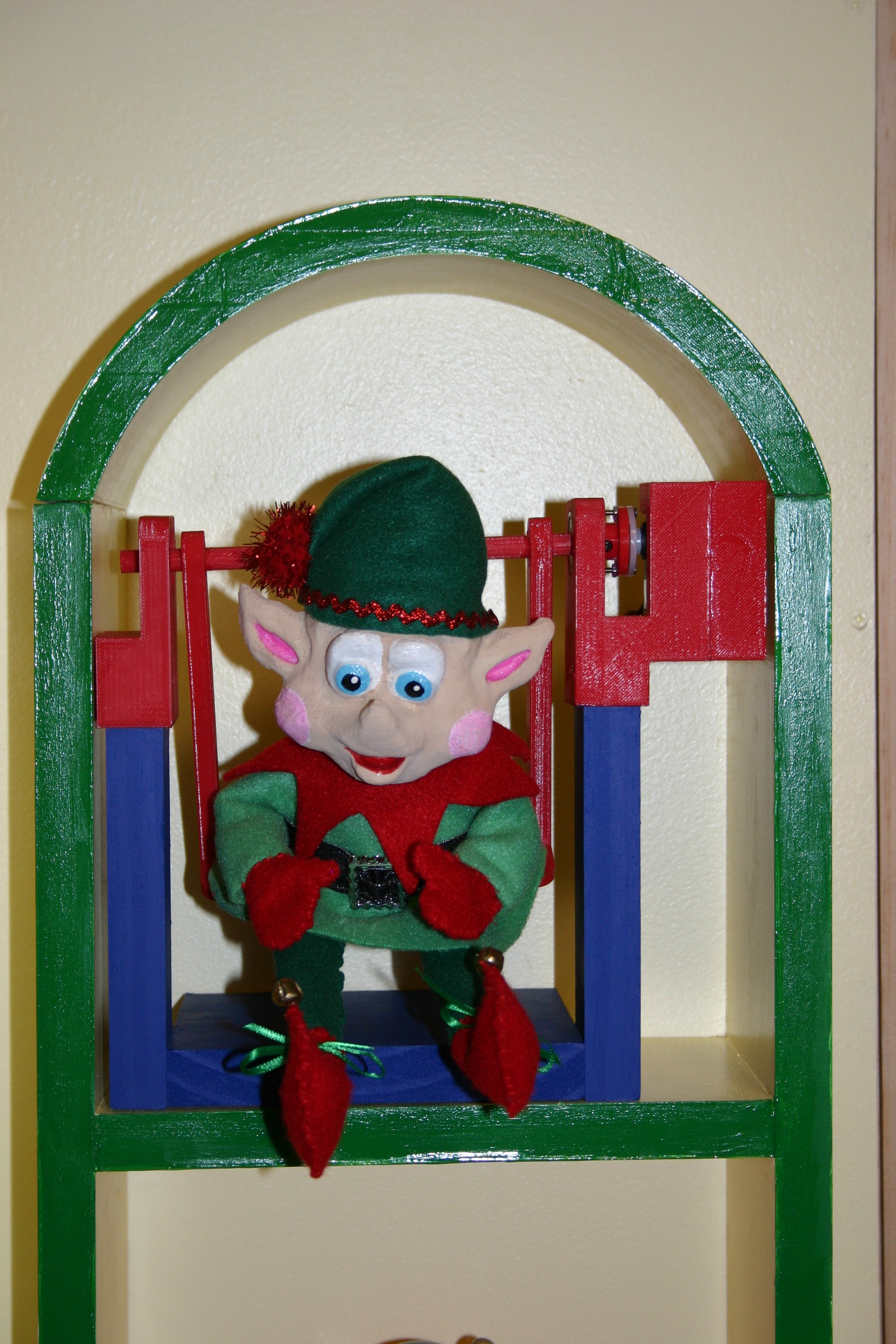

One elf wound up on the swing.

shop - 1 (29).jpg

The display is progressing.

shop - 1 (30).jpg

Work tables that flip from a "work" to "play" mode were 3d printed.

shop - 1 (31).jpg
shop - 1 (32).jpg

Elfis was assembled and wired up.

shop - 1 (33).jpg

The automated "Wheelo" gets a face and decorations.

shop - 1 (34).jpg

The "Naughty and Nice" list, signs, elves and props are assembled on a shelf.

shop - 1 (35).jpg
shop - 1 (36).jpg

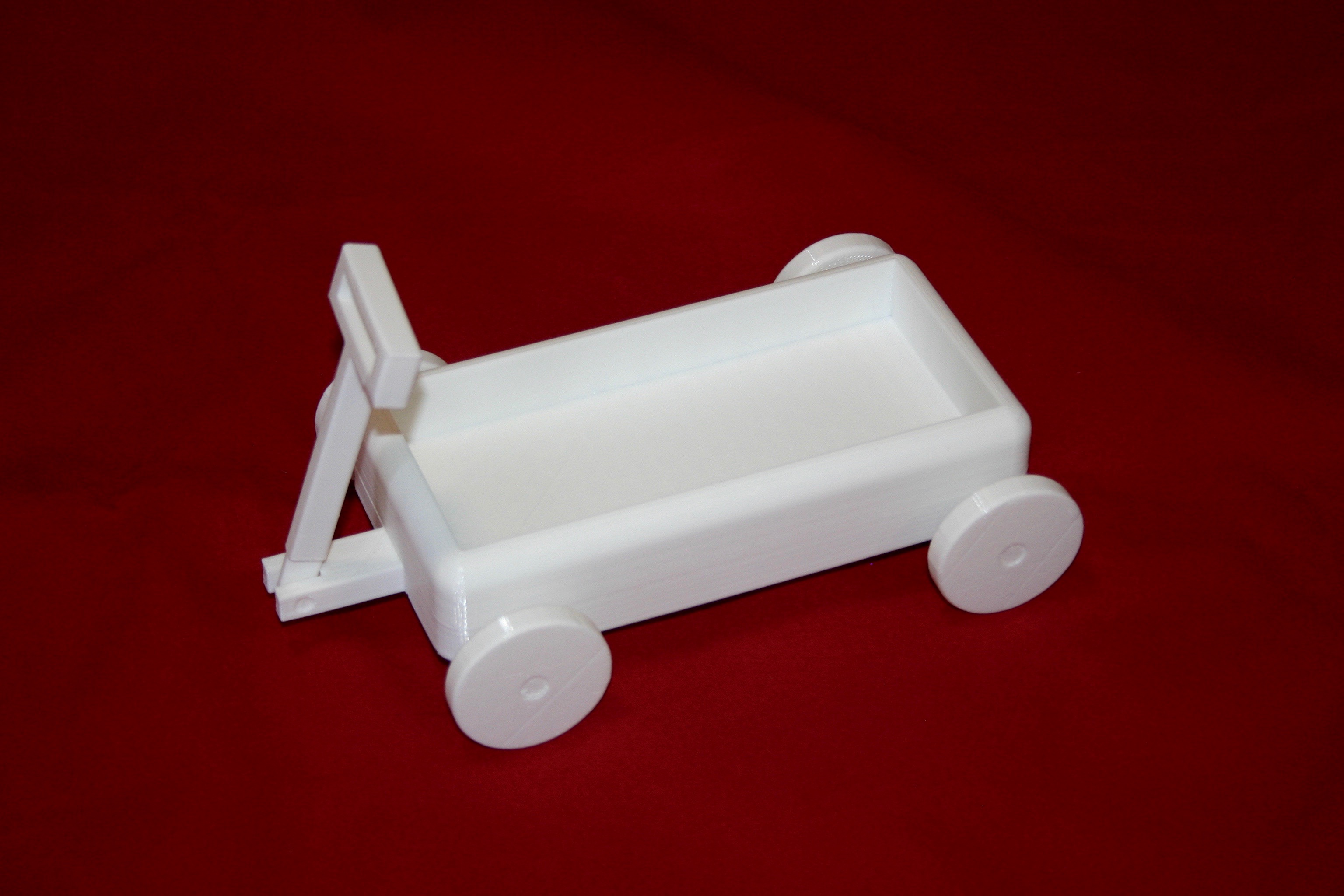

A wagon was designed, 3d printed and painted.

shop - 1 (37).jpg

A train track up in the air has been added.

shop - 1 (38).jpg
shop - 1 (39).jpg

Santa is assembled, dressed and his controller wired.

shop - 1 (40).jpg

Drinking birds (without water) are made to bob by heating their posteriors.

shop - 1 (41).jpg

Tools formed from clay (baked and painted) were added to the table--food was added on the play side of the table.

shop - 1 (43).jpg

Wiring is getting more intense.

shop - 1 (44).jpg

The roof is starting to take shape.

shop - 1 (45).jpg

Lights are added to the ceiling.

shop - 1 (46).jpg
shop - 1 (48).jpg
shop - 1 (51).jpg
shop - 1 (52).jpg

The fake stained glass was designed by Annelle, lead glued to glass then filled with colors. Lights were added around the inside edge of the frame, then it was powered up.

shop - 1 (49).jpg
shop - 1 (50).jpg

Special mounts were designed and 3d printed for the bubble lights along the top rear of the display.

shop - 1 (54).jpg

A bear was designed in clay, 3d scanned, then printed hollow to accept a light. The bear was painted and placed on a specially designed, 3d printed stool.

shop - 1 (55).jpg

A reindeer in an airplane was designed in clay, scanned, sized and 3d printed--then painted. It was placed on a magnetic levitating platform so that it "floats" in the air.

shop - 1 (53).jpg

Mike is working on some of the wiring in the back.

shop - 1 (57).jpg

Mostly finished (something always gets changed) we are at the end.

For more details on the construction (3d files, software sketches, etc.) go to

https://hackaday.io/project/11397-santas-shop
