The Starry Night - DIY Clock Using PVC

by Rustickraft in Workshop > Tools

723 Views, 13 Favorites, 0 Comments

The Starry Night - DIY Clock Using PVC


#This clock will also work as a night lamp and the time can also be read during dark.

Supplies

4 inch PVC Pipe (20")

Dremel tools

Sanding paper 100 grit

Spray paint - black and yellow

Mini Movement Machine

Hacksaw

b22 lamp holder

3-9watt light bulb

Step 1 : Preparing the Pvc


Slash cut the pvc pipe using a hacksaw.

Used a 100 grit water paper to smudge the pipe to create a base texture on the pvc

used some acetone/thinner you can clean the pvc after finishing with the texture.

Colour the inner wall of the pipe with yellow acrylic spray paint

applied a printed space-holder for a small clock model and cut the area using rotary dremel tool

apply black spray from the exterior and left it to dry

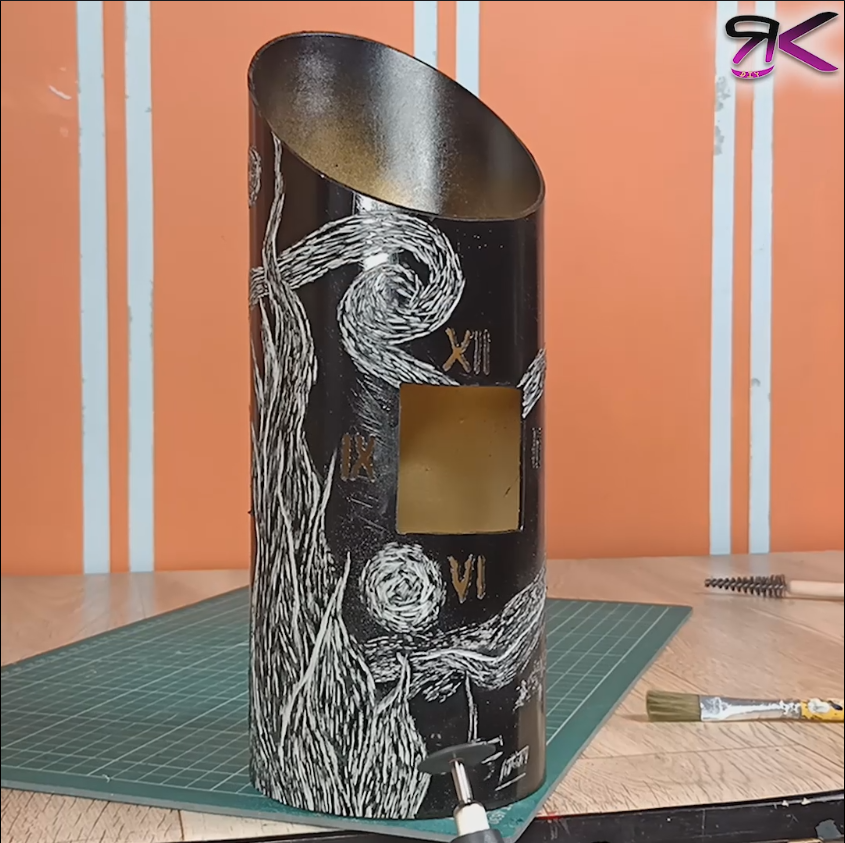

Step 2 : Engraving


Tools used to engrave -

Mini Rotary Die Grinder Kit with Flexible Shaft

With the use of a 1" resin blade attached in the flexible shaft I tried engraving the famous

Van Gogh's Starry Night.

I took some screenshots of my time-lapse (attatched).

The Movement Machine Installation


I installed the movement machine inside the PVC space-holder and secured the machine using screws from inside.

After putting a AA battery the Movement Machine was successfully moving.

The Lamp Extension


Initially I planned to make it a wall mounted clock, but later I changed it to a table-clock.

On a small piece of foam board I cut a circle, as of a diameter of the 4" PVC.

Using a screw I fitted a B22 lamp holder and fixed a 9watt night bulb onto the piece of foam board. And placed the PVC above it.

A small nook was made on the PVC from below to secure the wire coming out.

And the clock was ready.

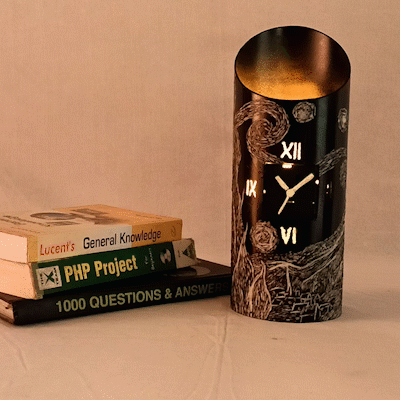

Final Product

Untitled design (22).png

Although it was a speedy product. It was fun making something new. I was quite happy with The Starry Night design and the lights coming out from the PVC.


#Golden acrylic spray paint was sprayed inside the PVC, thus the yellow light from inside gave a beautiful texture.

#This clock will also work as a night lamp and the time can also be read during dark.

Hope you like it!
