The Reason You Should Not Put Damaged LED Lights in the Trash

Everything we throw in the trash has more or less impact on the environment. I want to share with you how I restore my broken leds. Let's protect the environment together.

You can find old resistors in electrical appliances.

How to calculate resistance you can see here:

https://www.hebeiltd.com.cn/?p=zz.led.resistor.calculator

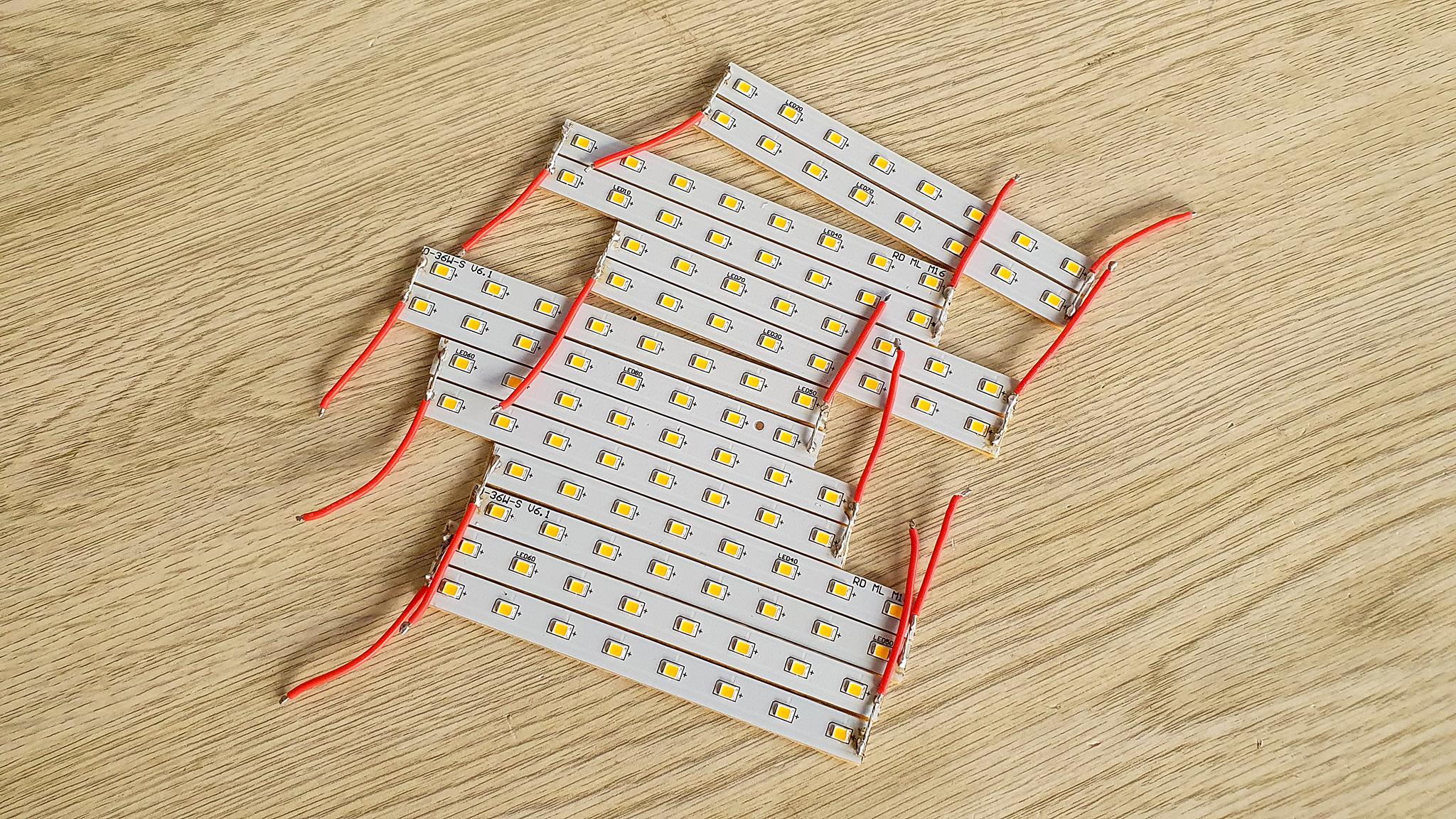

• We will cut the led bar into small pieces that match the desired voltage.
• Each white led has a voltage of about 3v so I cut it into pieces with 8 leds to use with 24v
• Then I paired these 2 led bars in parallel

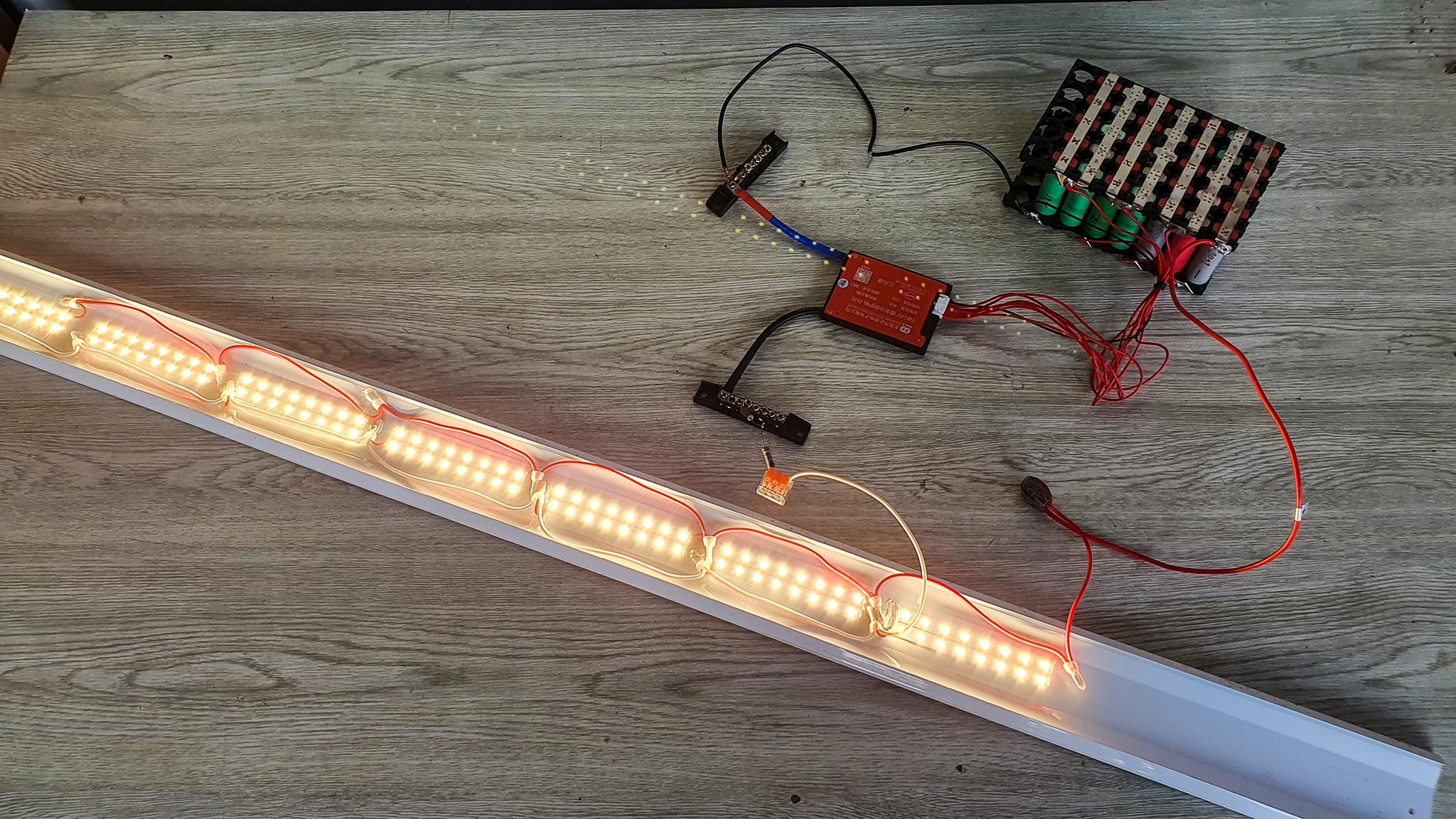

• We will supply power to check whether the led is working properly?
• I use double-sided tape to stick the led
• I use the quick connect jack to power the led

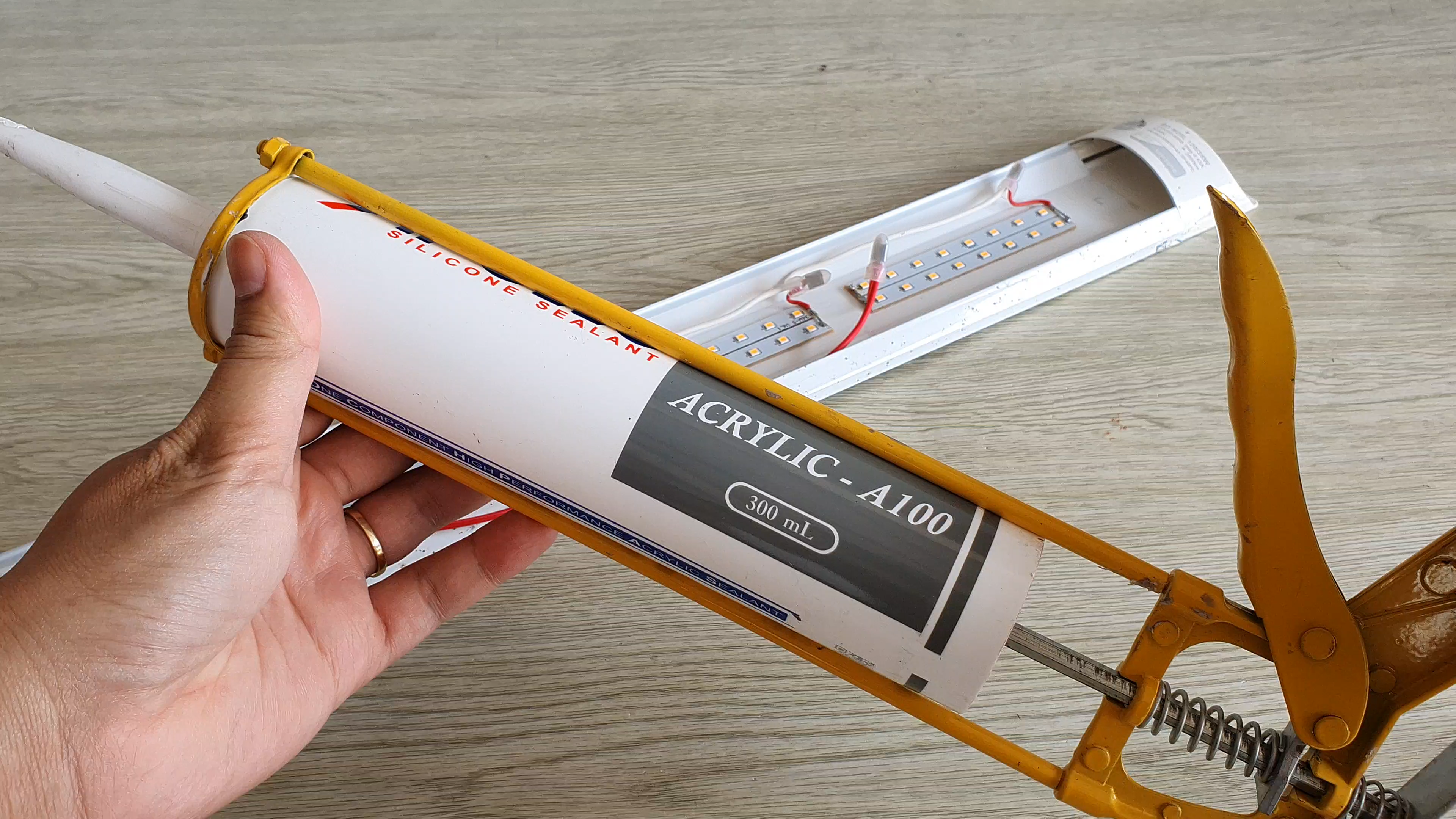

• Next I used silicone sealant for wiring and led
• Try the led again with 24v . battery
• I drilled a hole for the connection jack
• Use glue to fix the resistor. Resistors will generate heat during use. I use the lamp cover as a heat sink
• Mount the light spreader back on. We already have 1 led light to use for many purposes such as camping, supporting filming...Thank you for reading. Good luck
