The Princess Playhouse

A Princess Playhouse for my two girls.

It features:

An Interactive Magic Mirror (See Separate DIY Magic Mirror Instructable)
Vintage Light Fixtures
Stained Glass Windows
A Built-in Bookshelf
Recessed TV
Sound System
In-Ceiling Speakers
Network
Phone

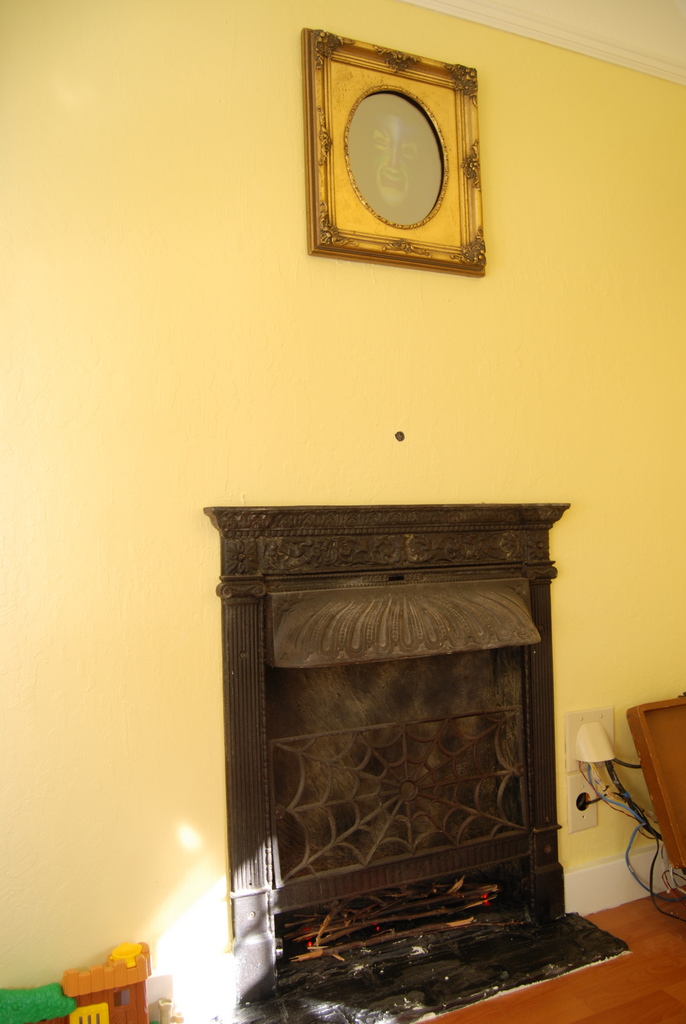

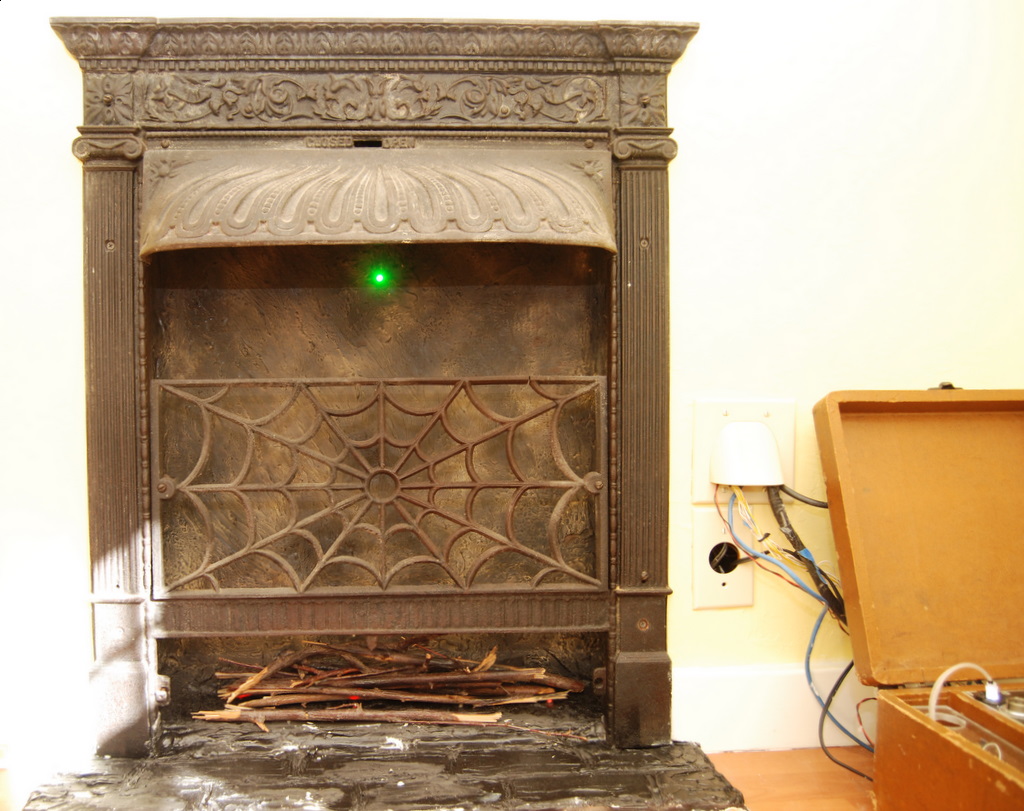

Faux Fireplace
Doorbell
Picture Rail Molding
Ceiling Vent
Gutters
Laminate Flooring & Baseboard

I should also add that I'm an electronics tinkerer/computer geek, this was my first construction project. I had great help from my Dad and lots of good advice from friends and the Internet. It took me 8 months. So if I can do it, so can you with the right help.

Yes I know, it's a little over the top, but if you're going to spoil your girls you might as well do it right :-)

Rough breakdown of the costs:

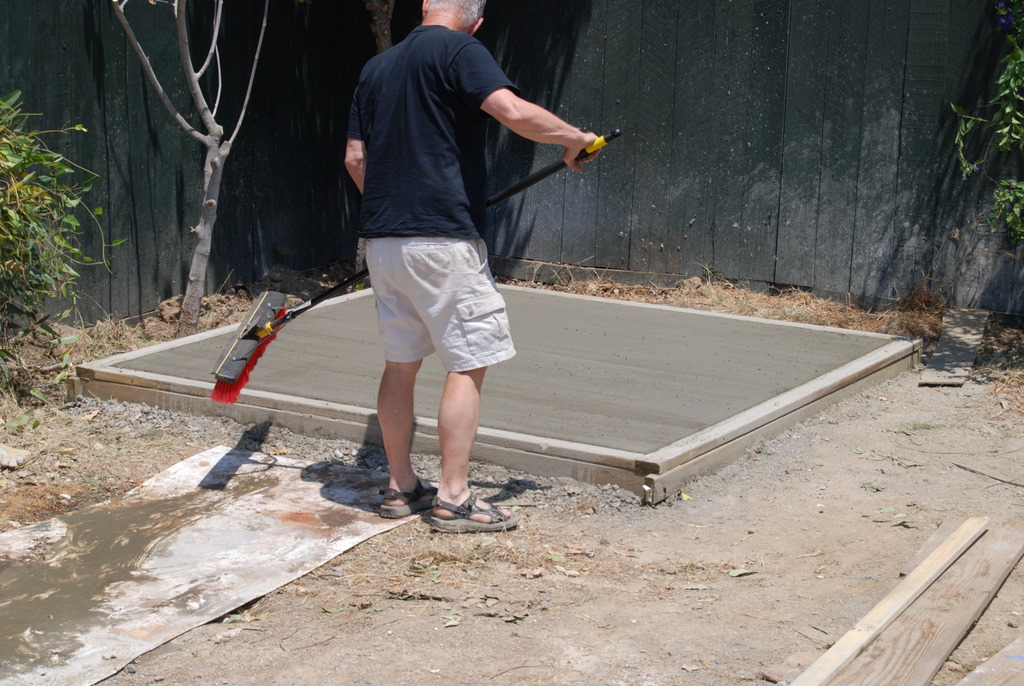

8x8 concrete slab - $200
wood and internal trim - $200
electrical wiring and panel - $100
speaker wire and in wall speakers - $100
roof shingles and flashing - $150
drywall - I paid someone to hang and mud the drywall $400
tv mount and tv - $150
vintage light scounces- $80
foam panel insulation - $80
pergo floor - $120
custom sized windows - $200
see http://diymagicmirror.com for parts and costs for the magic mirror

Plans and Framing

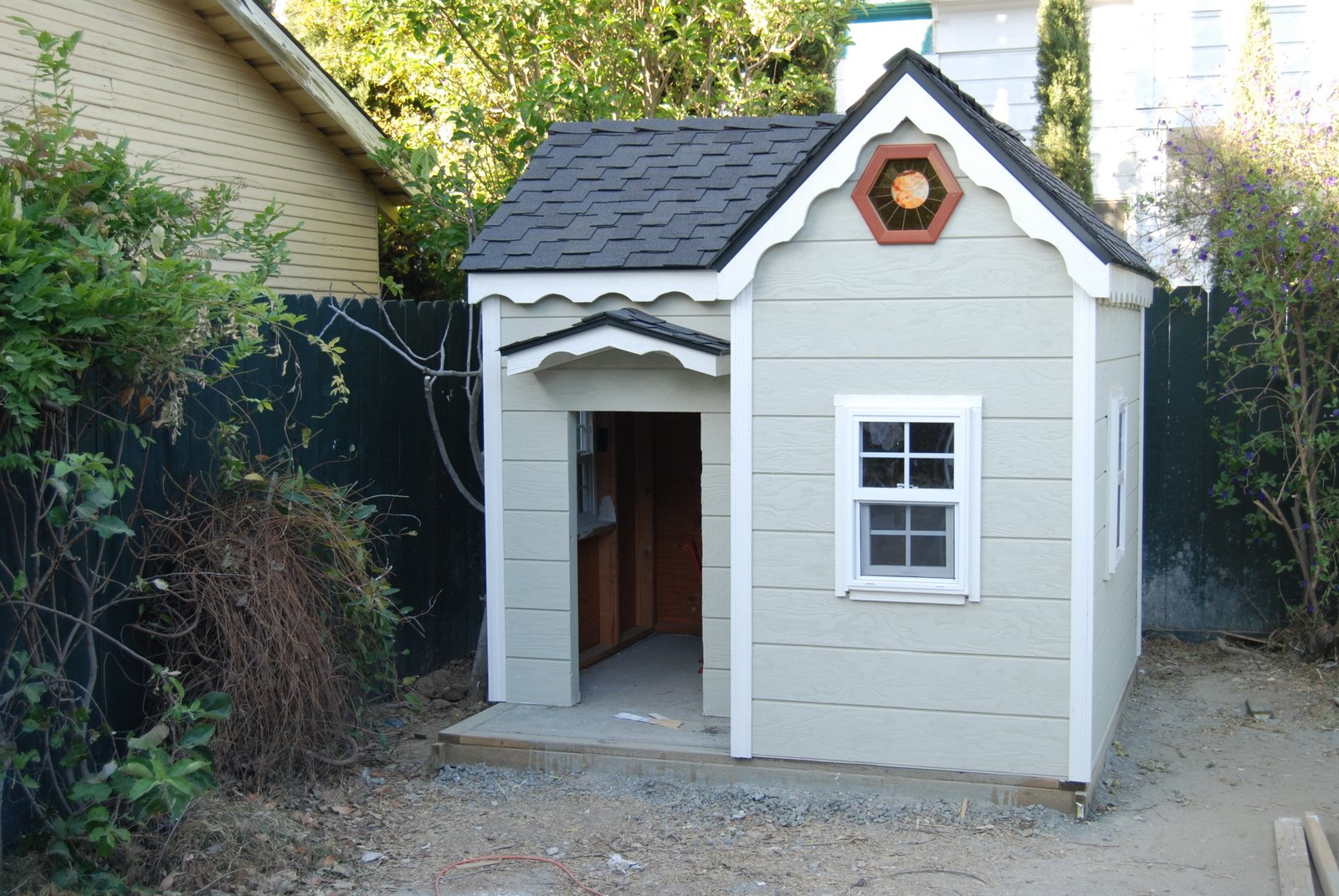

After some Googling for playhouse plans, this one fit the bill, http://www.woodmanor.net/Little-miss-playhouse-plans.html The dimensions are 8x8x8 feet.

My Dad framed it in Oregon, took it apart, and then drove it down to my place in California where we assembled it together.

Roofing

Next up was the roof. Roofing pretty much sucks. I'd probably pay someone if I had to do it again.

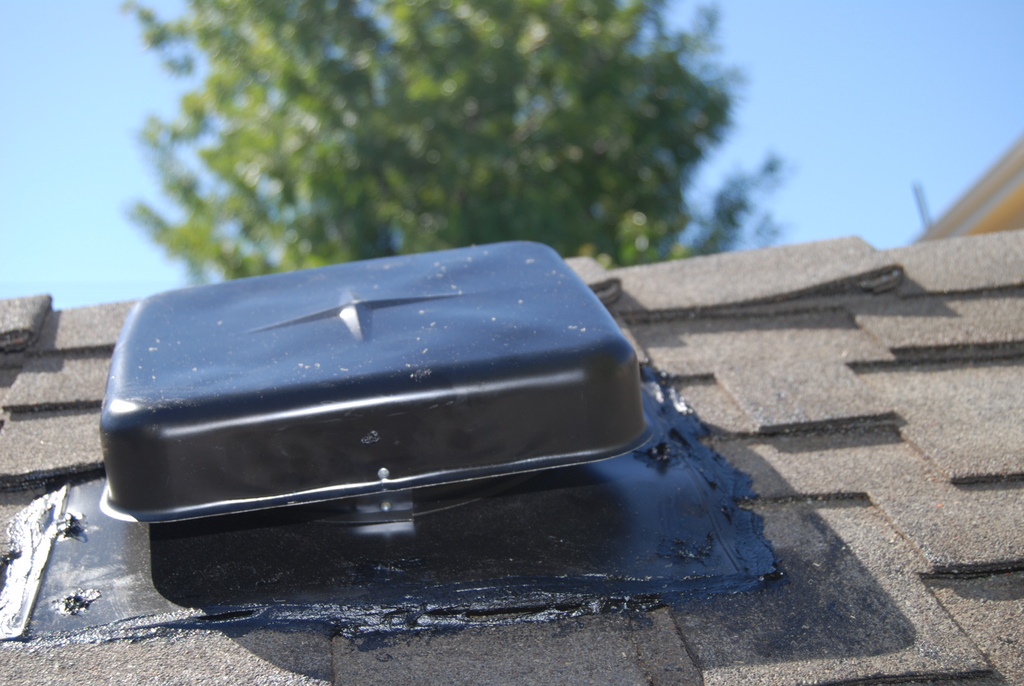

After the roof was on, the playhouse became really hot inside. I added a roof vent to let the hot air out which cooled things down nicely.

Electrical and Audio/Video Wiring

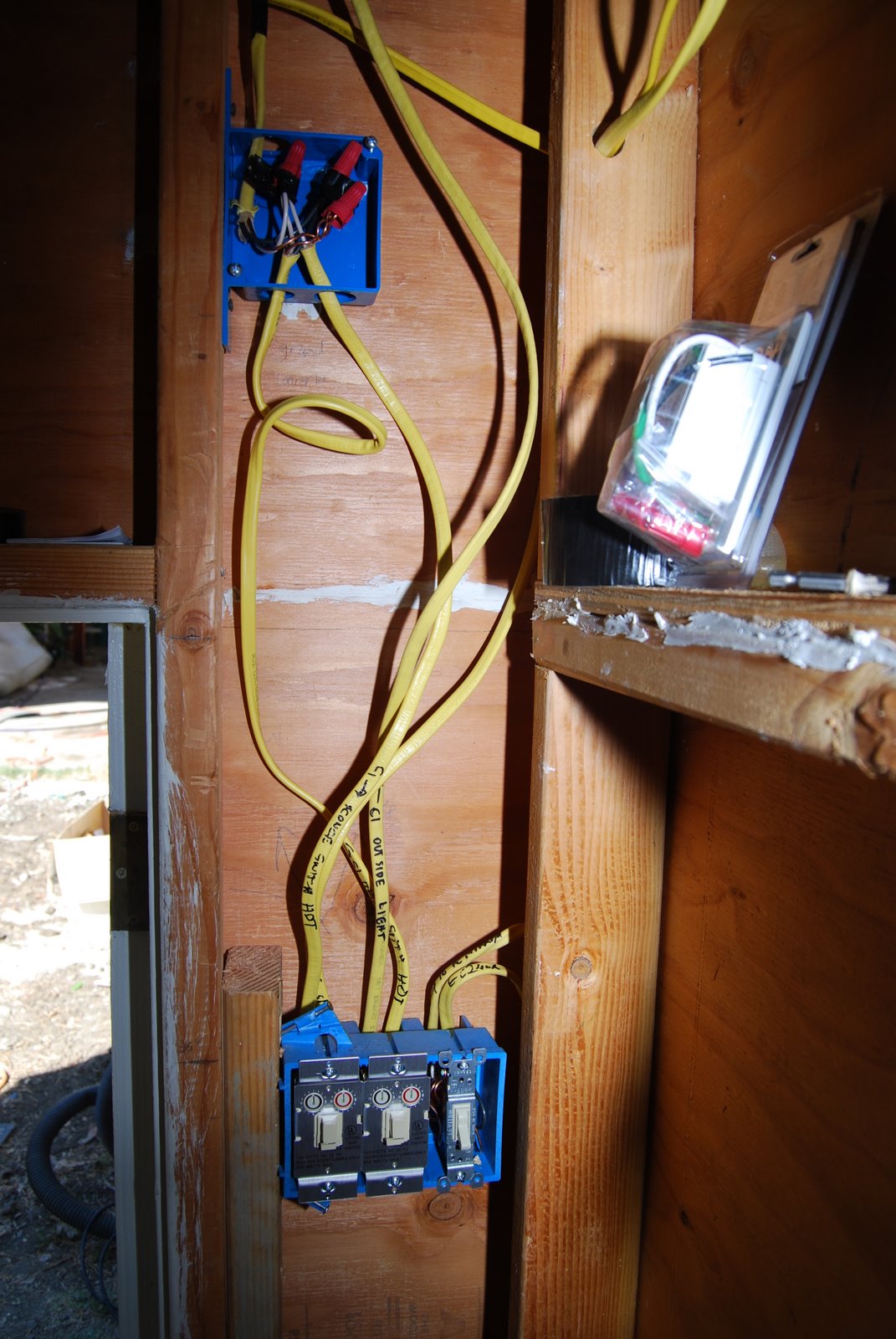

The electrical was fun although digging the trench was a back breaker. The playhouse has two AC circuits and a breaker panel attached to the back.

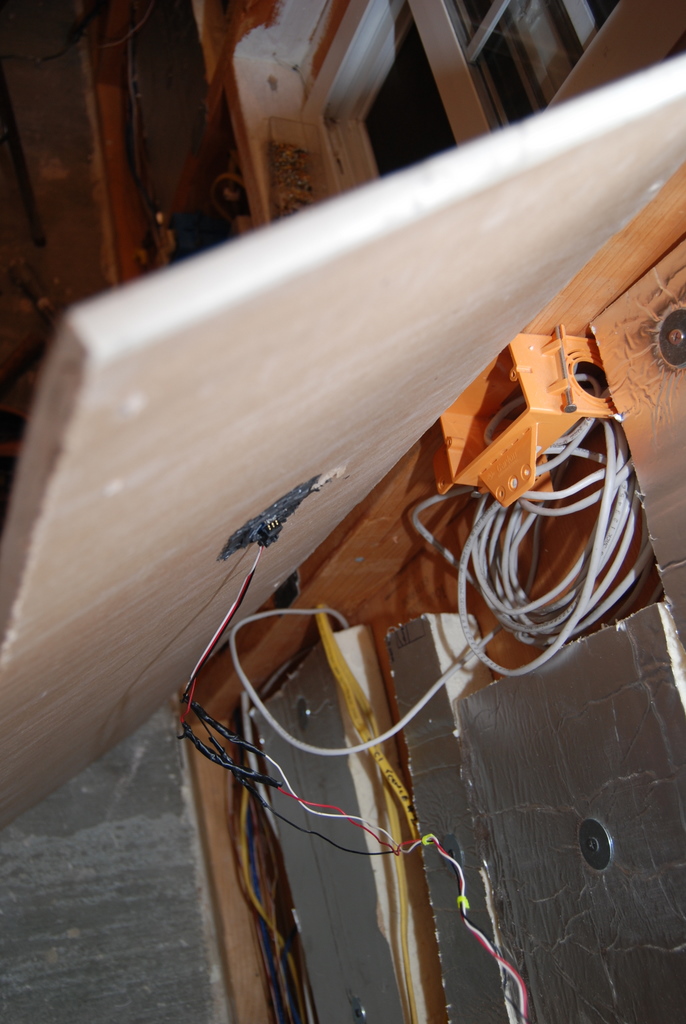

I also pulled in structured wiring combo cable (one cable sheath with 2 CAT 5e, 2 COAX, and 2 Fibers), speaker wire, and a whole lot of wires (using thermostat wire) for the sensors for the Magic Mirror.

The Magic Mirror

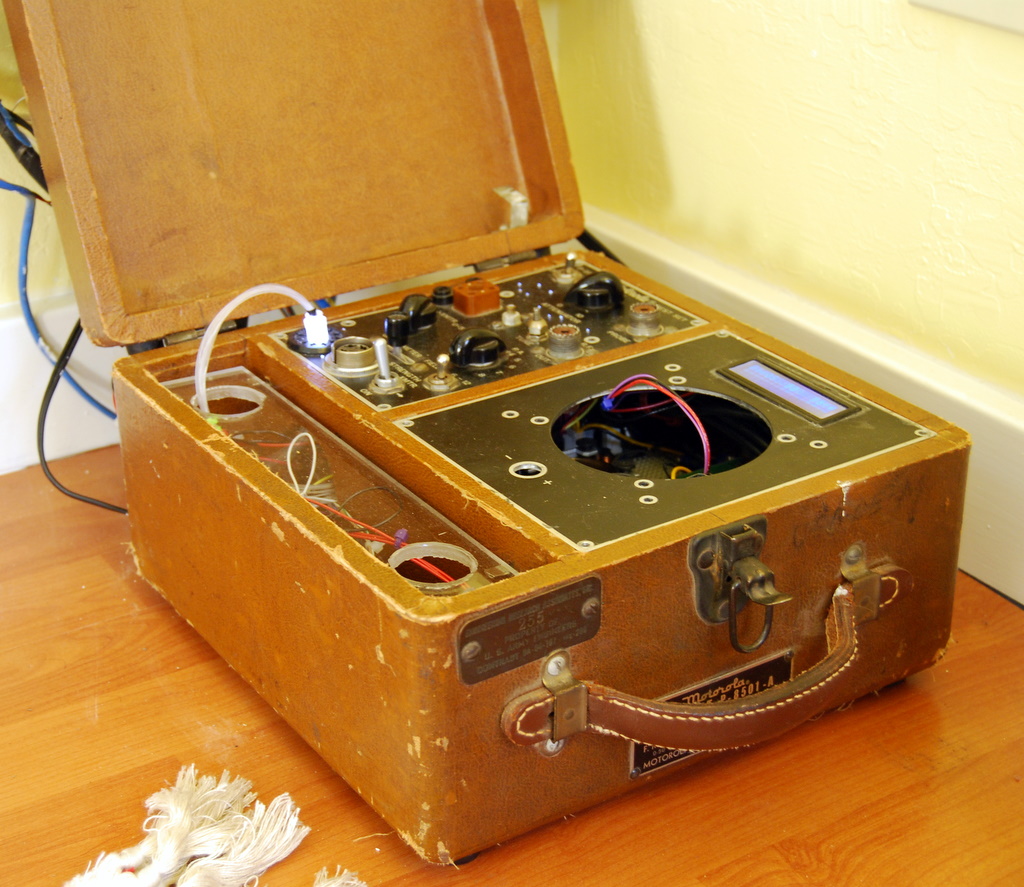

The Magic Mirror is the center piece of the playhouse. Its interactive and responds to various sensors (proximity, touch, and reed switches) that are embedded within the playhouse.

The full Instructable on the Magic Mirror is here . I also recently finished a software product version of the Magic Mirror at http://diymagicmirror.com

TV and Sound System

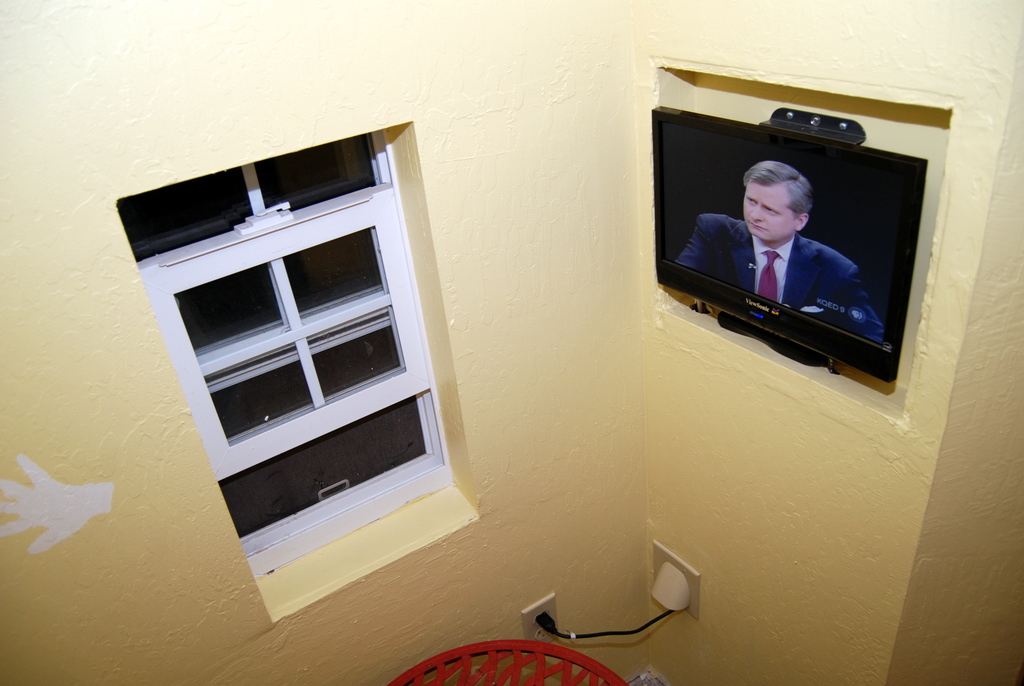

The TV is recessed in the wall and attached with a flush LCD mount.

I had a Nuvo Grand Concerto whole house audio system already in the main house and had an extra zone so I just needed to run speaker and Cat 5 to wire the Playhouse for sound. The Nuvo Grand Conerto is very nice, they run $3,500 & up retail but you can pick one up off eBay for $2K.

I picked up the in-wall ceiling speakers from www.hometech.com that weren't too expensive ($80) and sound pretty good. The speaker grills are paintable to blend in with the ceiling.

Insulation and Drywall

Since the walls are only 3.5" deep, I did some research to find the most efficient insulation by thickness which turned out to be the rigid foam type from R-Max. The thickest one I could find at Home Depot was 2". Its not cheap as far as insulation goes and runs $20 per 4x8 panel. It's very easy to work with though, just cut it to size and screw it in. Make sure to use a washer on top of the screw for more holding area.

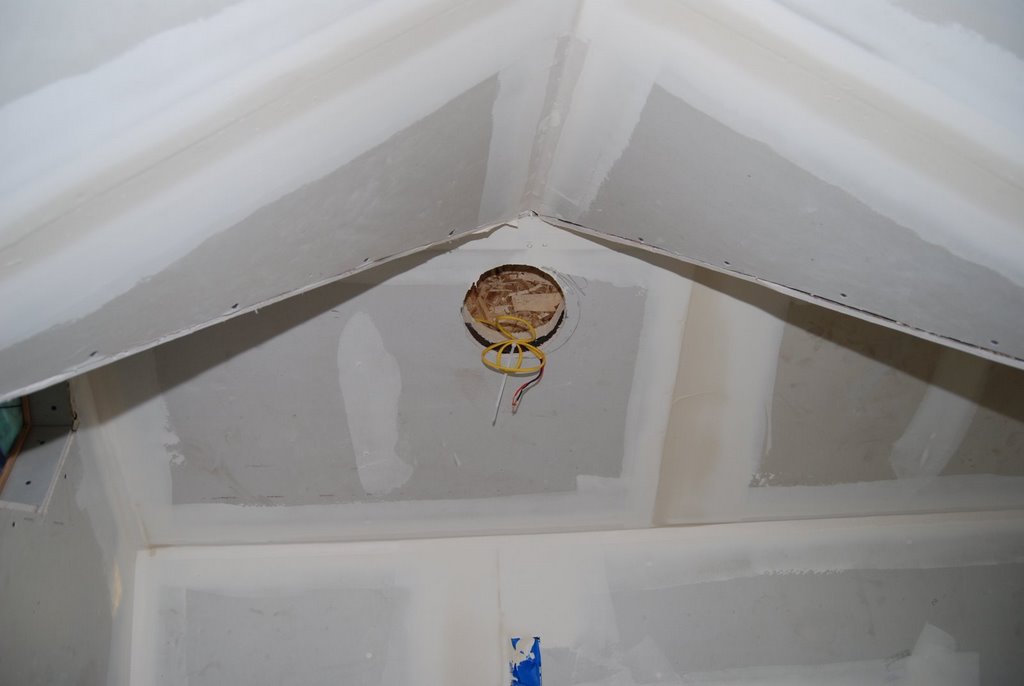

The drywall was the one thing I had someone else do which I'm glad I did. I found a local guy who did it for $300.

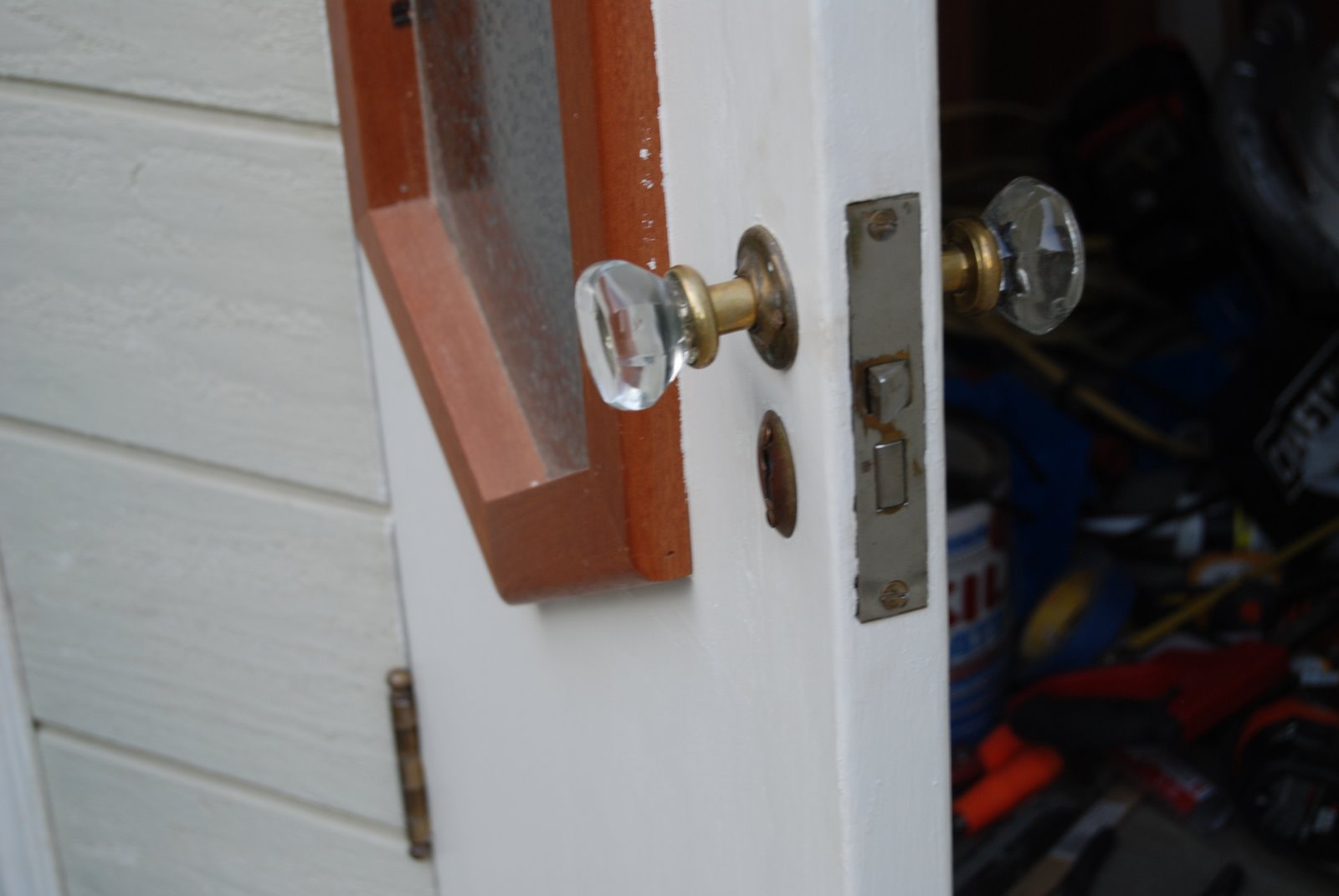

Lighting, Windows, and Door

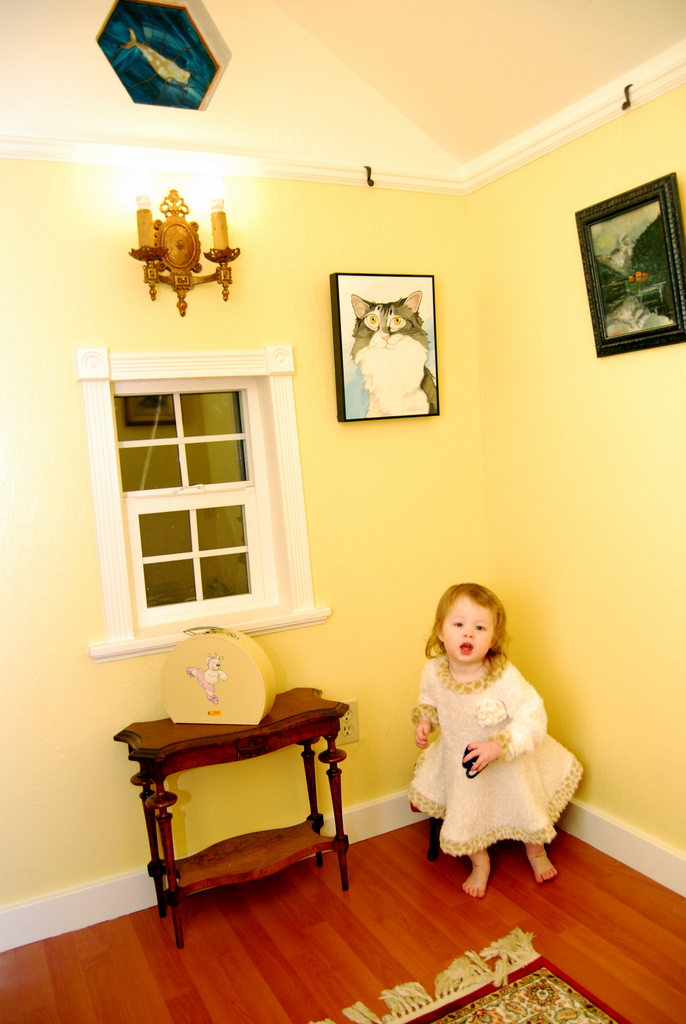

My wife is quite good at finding vintage light fixtures on eBay. She then takes them to a local lighting guy in town who re-wires them.

Sylvania now makes a dimmable compact fluorescent bulb which you can see in the pictures, they work great.

Floor, Picture Rail Molding, and Baseboard

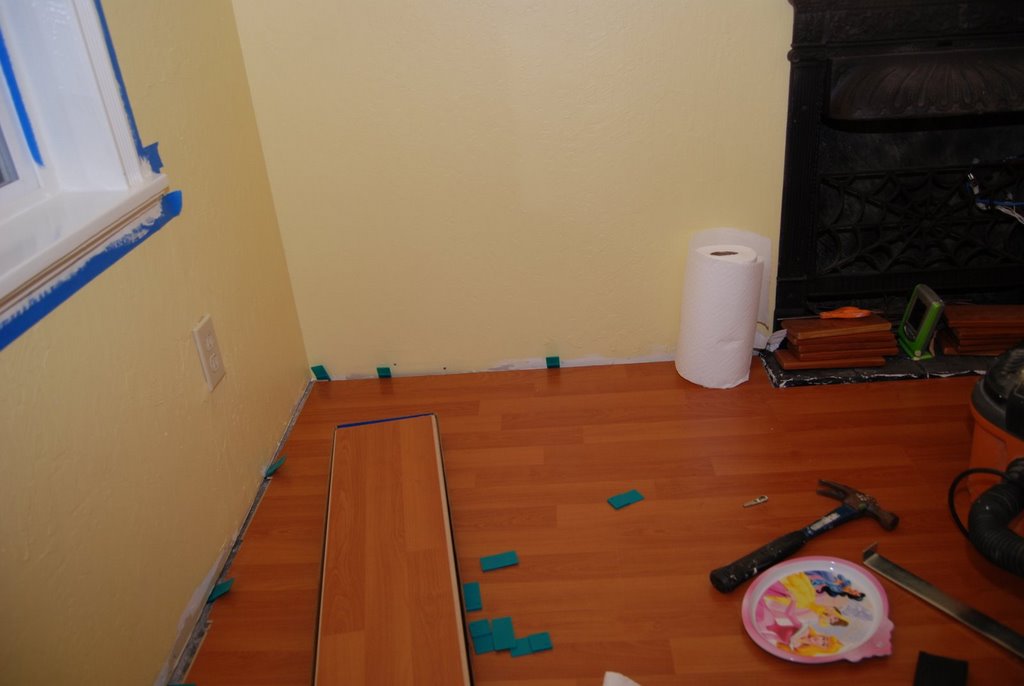

I installed laminate flooring. There are plenty of good tutorials out there for installing laminate. Do be sure to leave a 1/4" at the edges to allow for expansion.

Picture rail molding has a small gap behind it that lets you hang a hook and picture frame. You can't really see it in the photos but using a high sheen oil based paint makes the molding really pop in contrast to the flat water based paint on the walls.

Be sure also to sand the baseboard & give the top a nice rounded edge.

One big lesson learned on molding & baseboard: Spend the $10 on an angle finder toolangle finder tool. I didn't figure this out until the last few cuts unfortunately. Many corners aren't exactly 90 degrees so this will allow you to cut the exact angles needed with your miter saw.

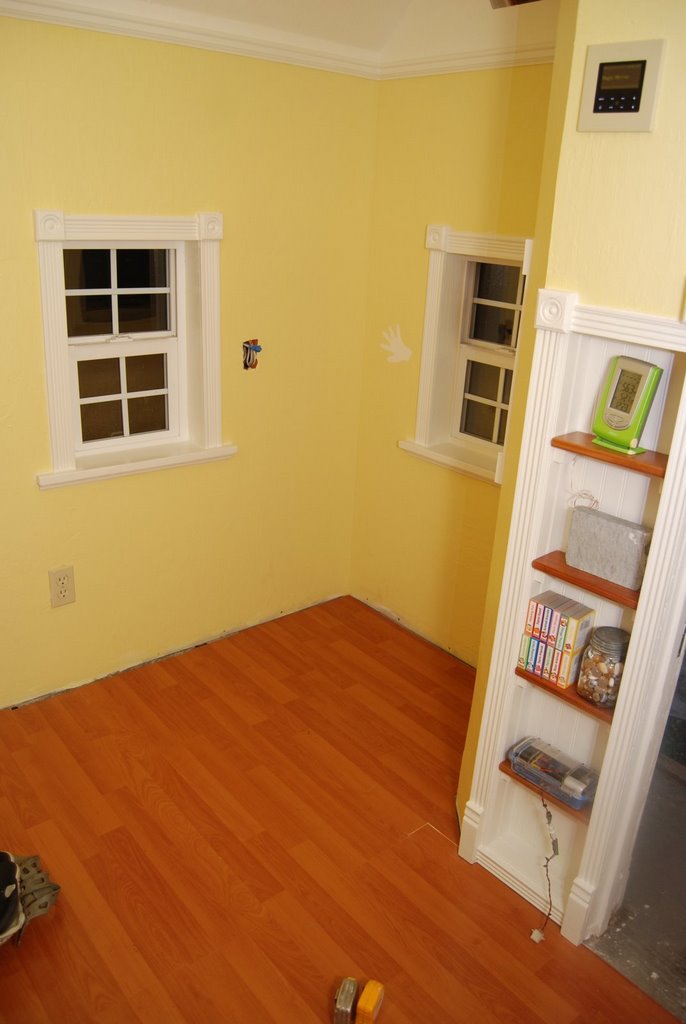

Built-in Bookshelf

The built in bookshelf has bead board on the back and sides. The shelves are stained & lacquered Redwood which are glued on the shelves notches with Liquid Nails construction adhesive.
