The Mood Wine

Hello, I'm a student at Howest Kortrijk education Industrial productdesign.

In this turtorial, I will show you how do make a mood lamp from a wine crate in a simple way.

A wine crate

A flexible transparant tube

Led strips (12V) inclusive  trasformer 230V/12V and controler

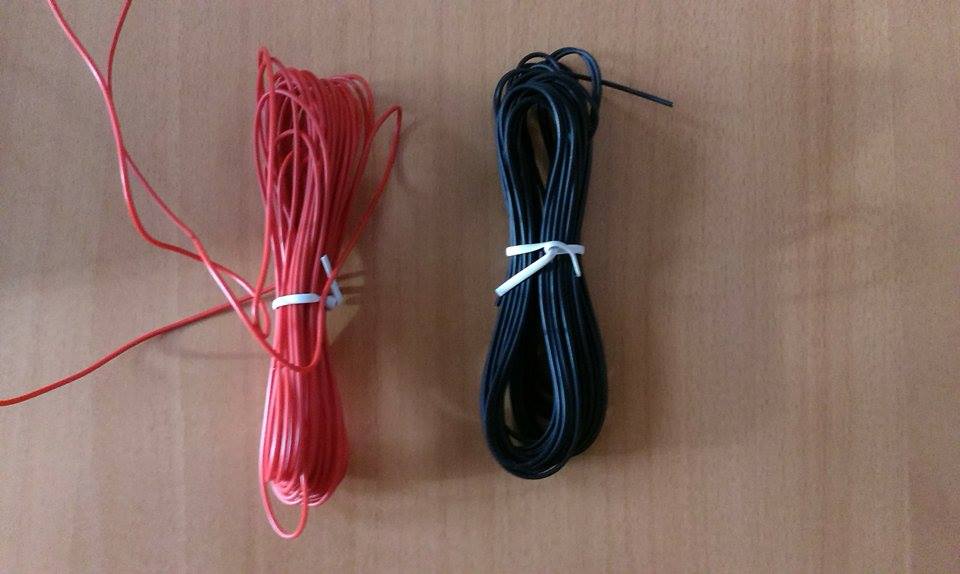

Red and black wire

Strip tang

A soldering iron

Solder

A lat

Marker

Draw a rectangle 160 * 21 starting at the side (all 8 sides)

the full lines are folding lines

the stripped lines are cutting lines

Fold the 2 flaps over and make e square

(hint: make a smal incision inside the box to make the folding easier)

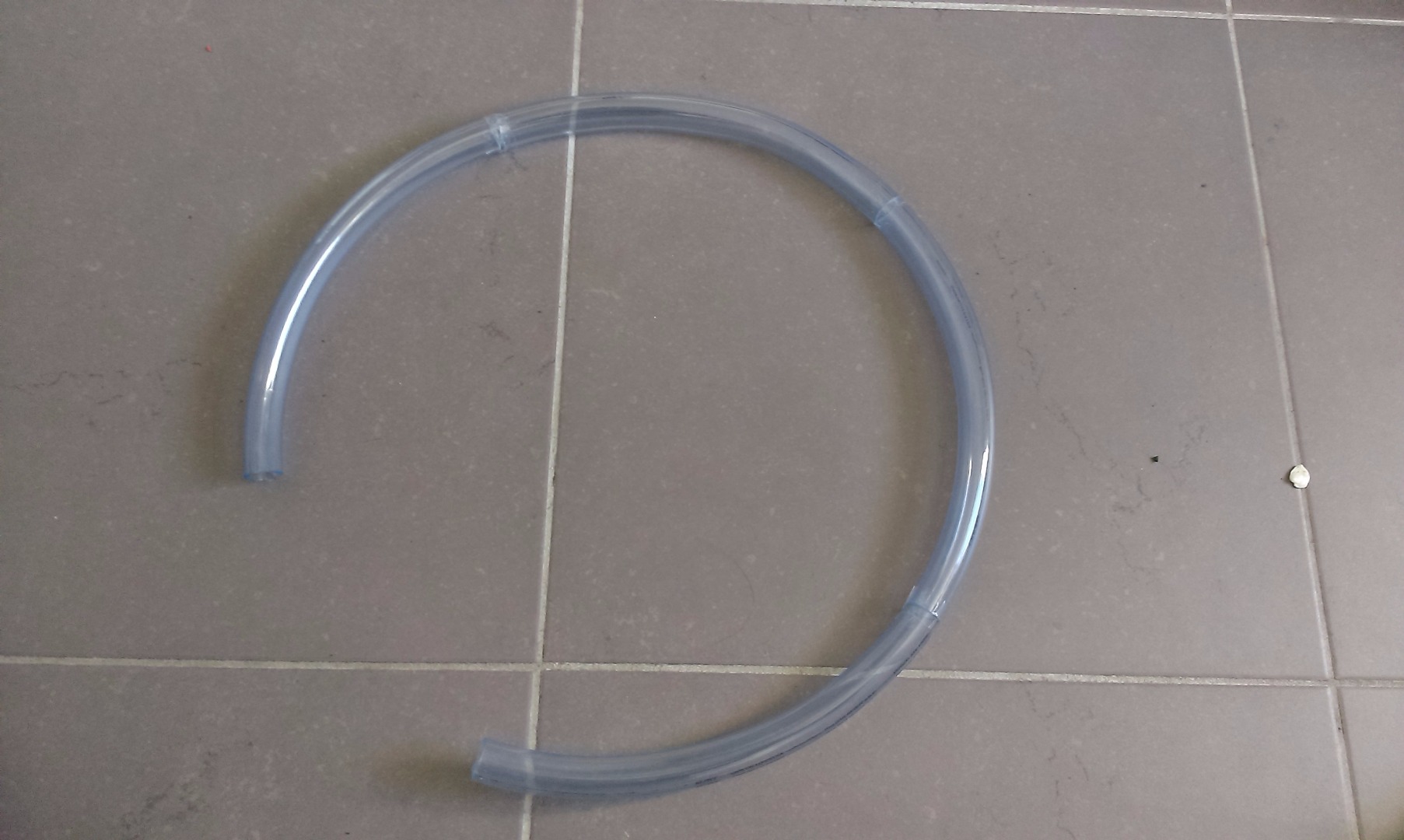

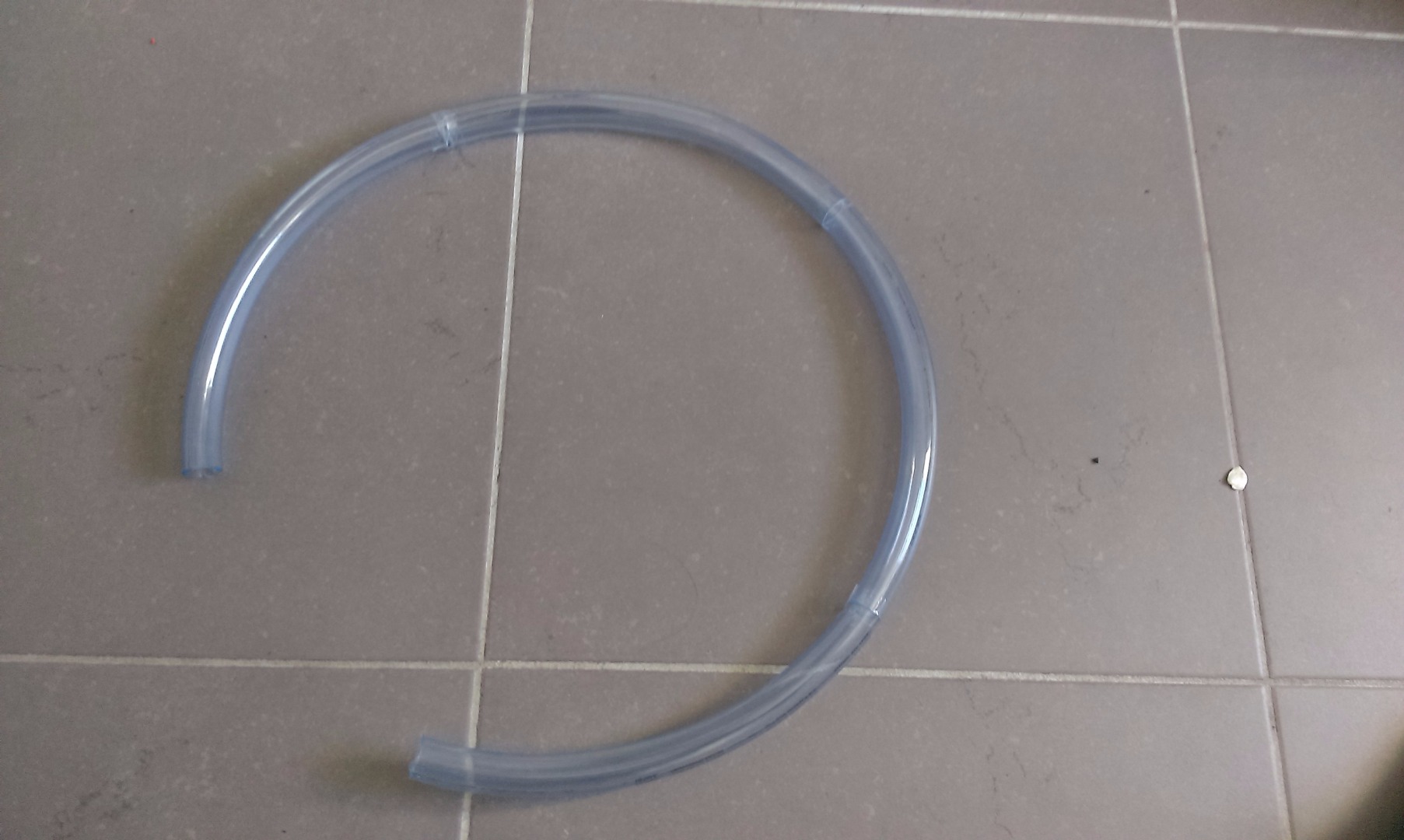

Cut the tube in 4 pièces of 24 cm

(hint: you can use a normal stanley knife)

1 Cut the strips on a lengt of -+24 cm (You can see where you should cut the line with a scissors)

2 Cut out the silicone CAREFULLY

3 Tin your path.

4 Unwrap the electrical treat

5 tin your elektrical treat

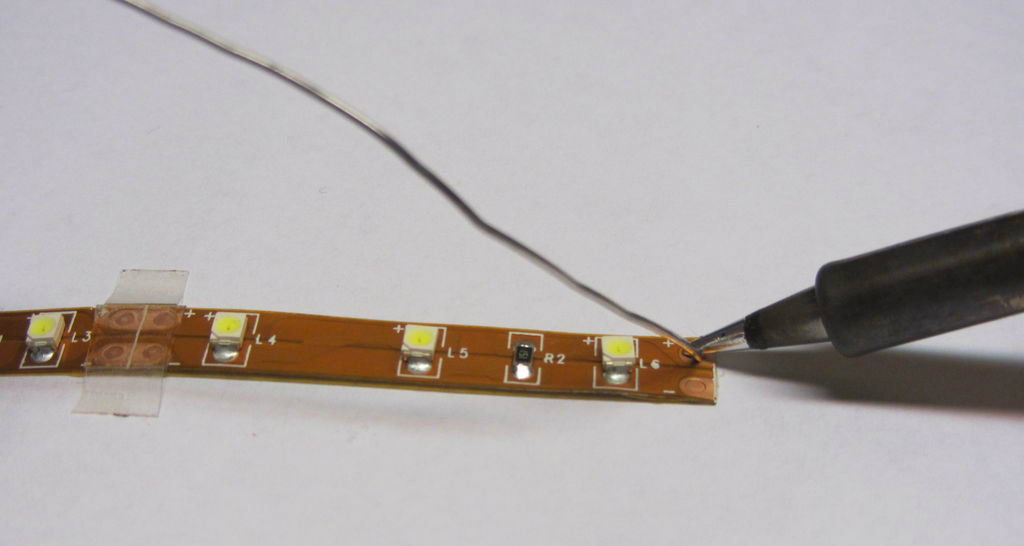

6. Solder the electrical treat on the paths

(Hint: Solder the ledstrips in parallel (they keep working also when one led is down)

Make sure that your led Strip definitely works, is'n that so check your solder contacts.

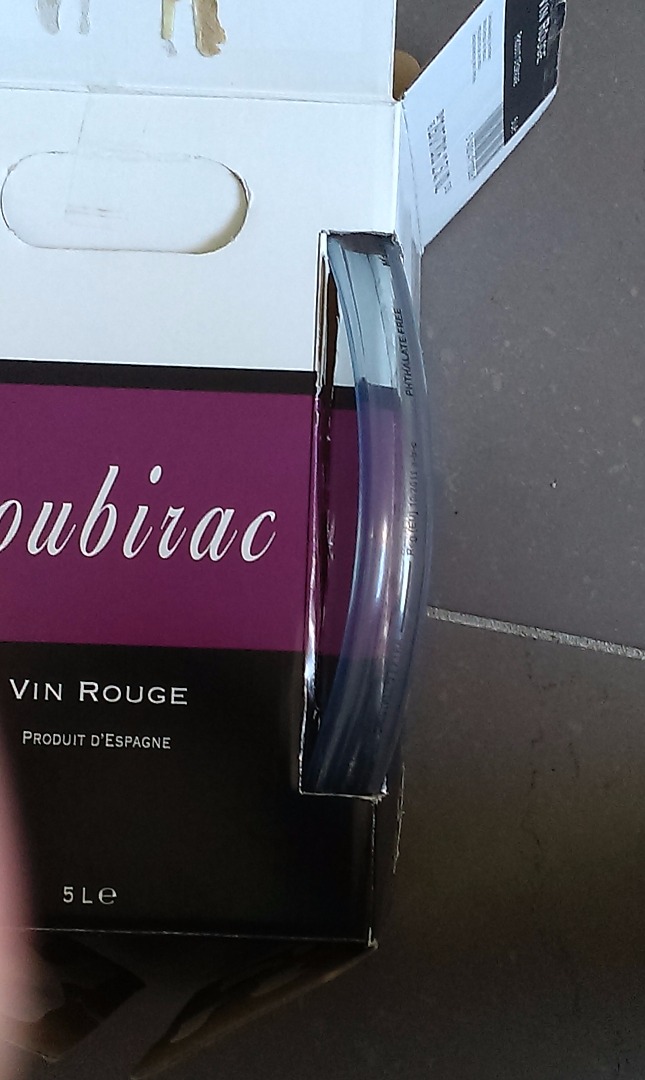

Slide the transparant tube inside the square

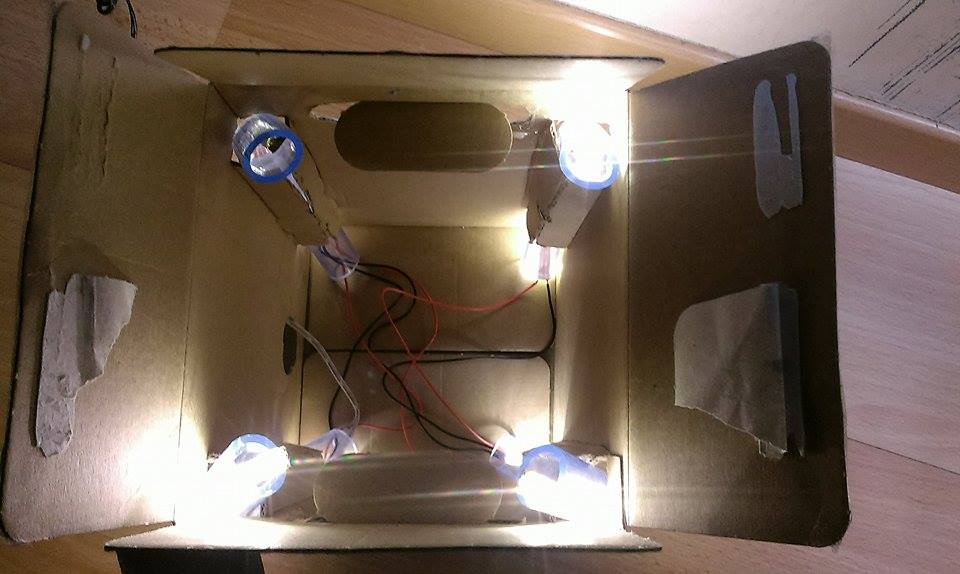

Past the ledstrips into the tube

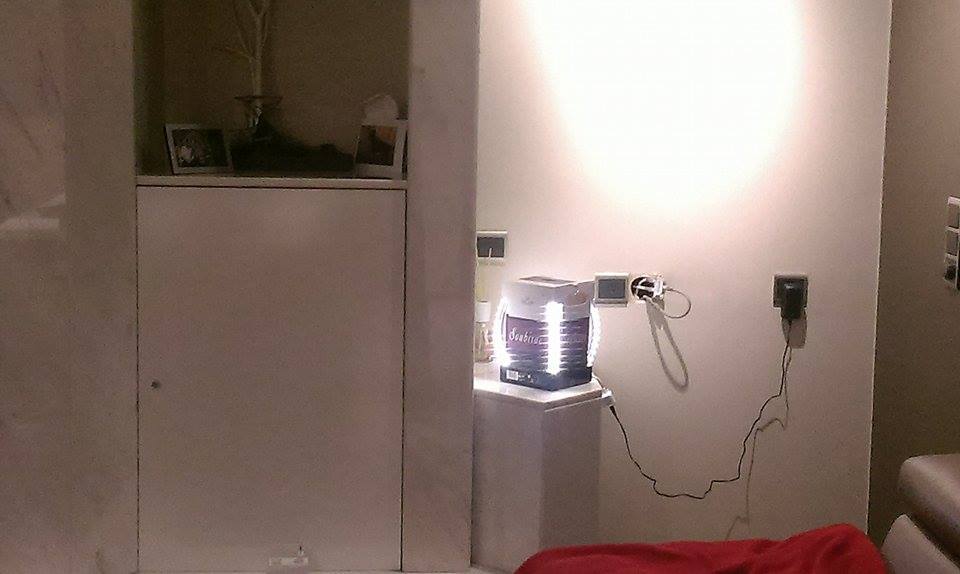

Connect the led strip to the transformer

Close the top of the box with glue or transparant tape
