The Monobox Amp

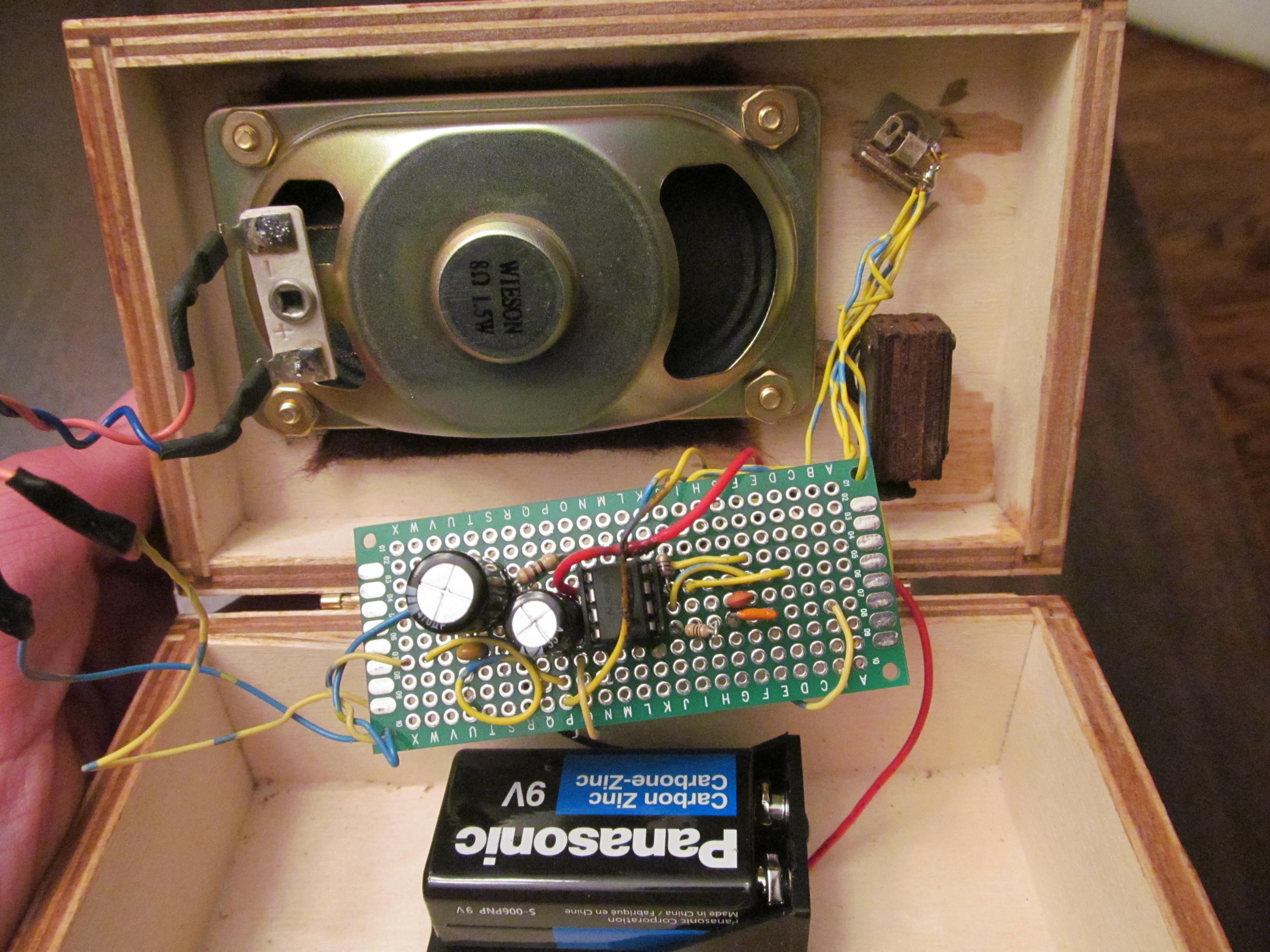

I just completed my version of the Monobox Amp project from Make Magazine issue 34. First off, it was fun, but you'll defiantly need to know what your doing if you attempt this project. I actually made a mistake when I made mine, soldered a jumper wire from pin 5 after the capacitors to pin 8. However it still works, and why fix what aint broke right? So without further delay, here are some pictures and a video of the completed project. Please ask any questions if you have any, I'll try to answer them.



Link to video should the embed code fail you: http://youtu.be/EeerIsO8OuA

 & here is the link to the make project video: http://youtu.be/zQ4KsTOj_No
