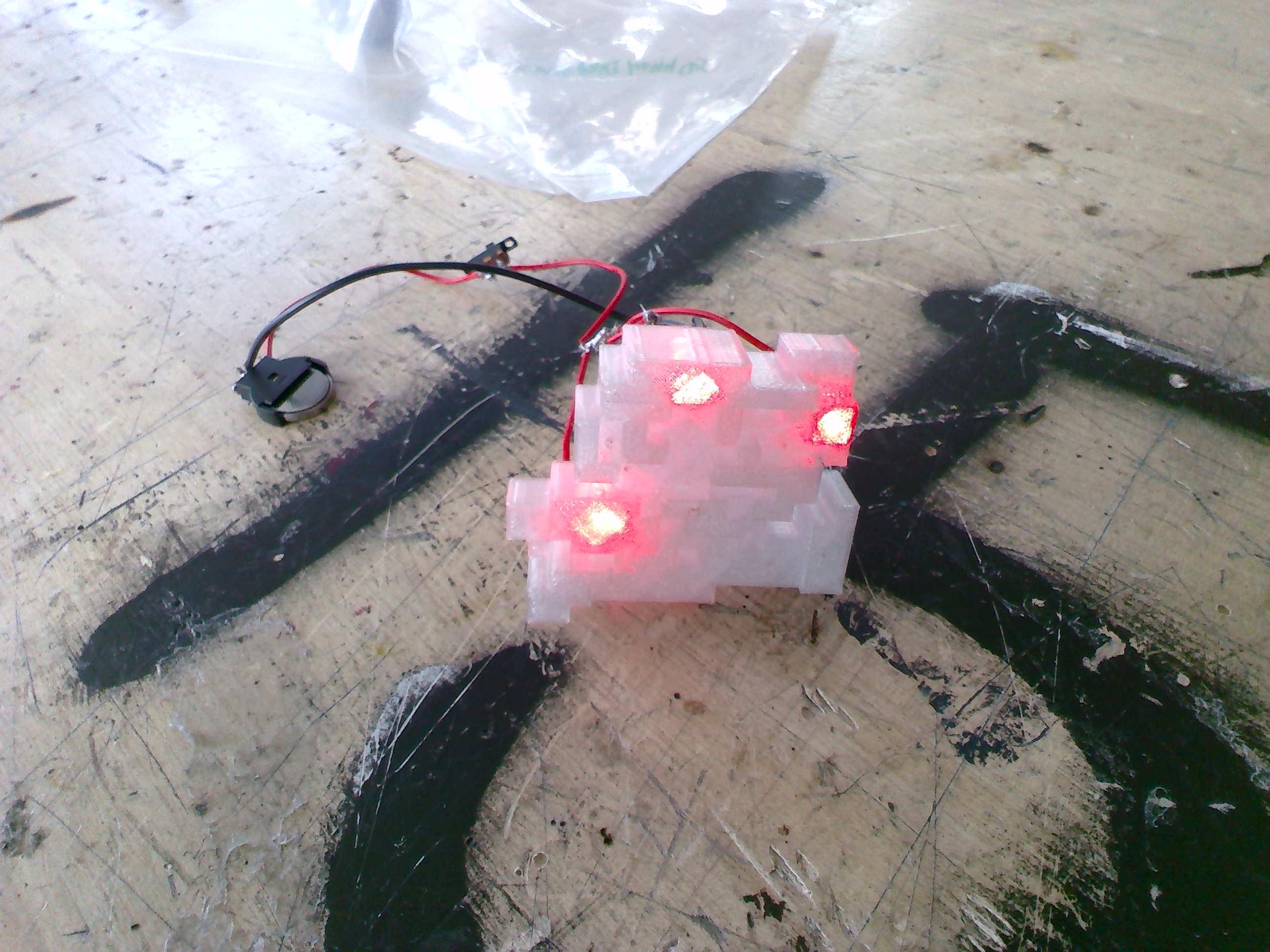

The Mario Led


Its-a-me Mario

Downloads

Exquisite Gaaris.stl

Supplies


wires


color and number of leds needed.


need 4 black wires and 5 red wires allowed by a switch and a battery.

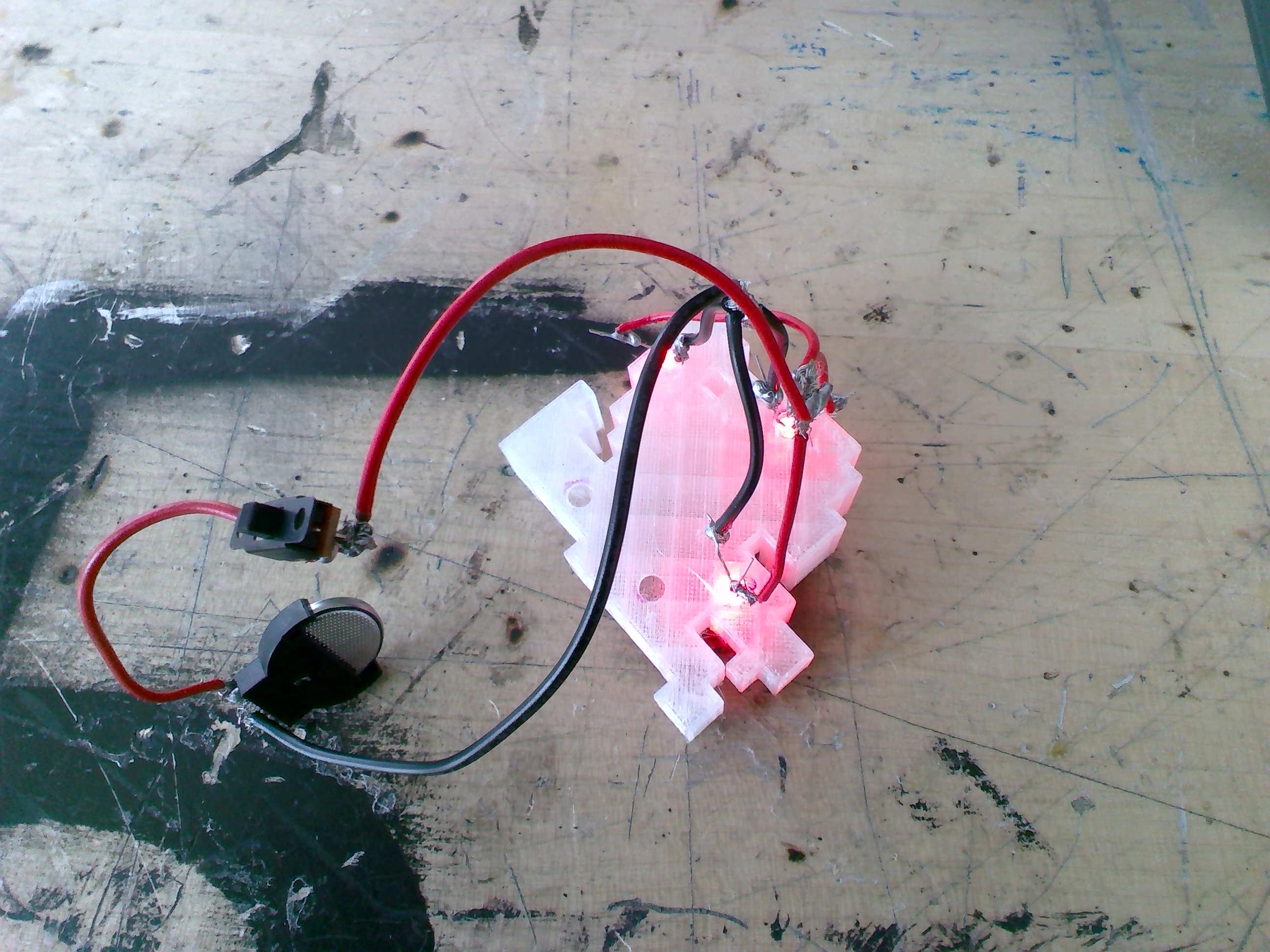

solder the red and black wires on the less and then solder the two other red wires to the switch and the battery.


connect the black wires together and then solder the black wire to the battery.
