The Luggage Speaker

by Noahrothberg in Circuits > Speakers

1693 Views, 18 Favorites, 0 Comments

The Luggage Speaker


A faux leather wrapped Speaker system.

Build Box


design and create wood box, and then wrap with textured paper. Then add box hardware.

Solder Board

IMG_1971 2.JPG

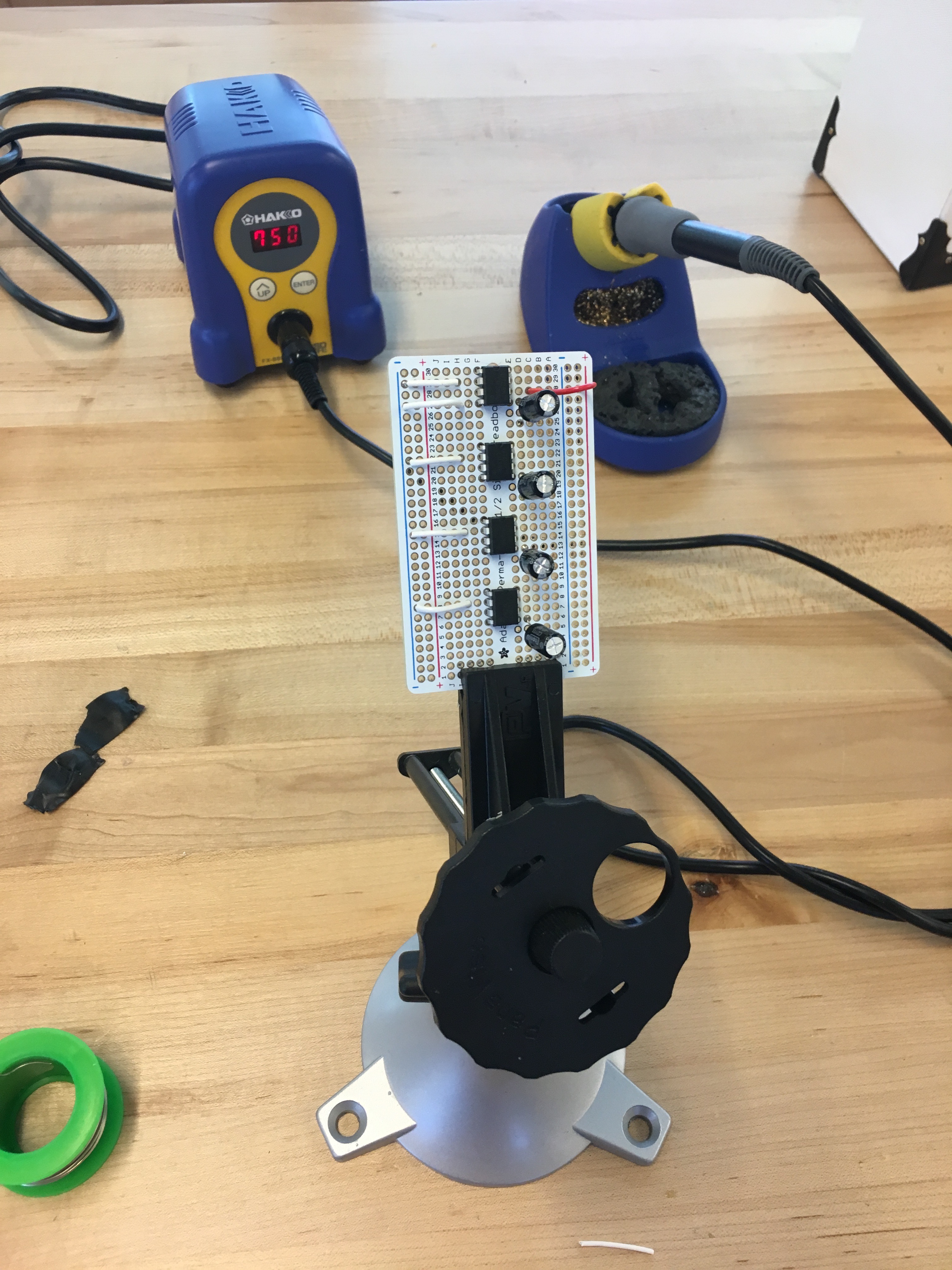

Make a circuit board that has 4 amplifiers for 4 speakers.

Attach Board

IMG_1980 2.JPG

Attach board to the box.

Final Box

IMG_1974 2.JPG
IMG_1972 2.JPG
IMG_1977 2.JPG

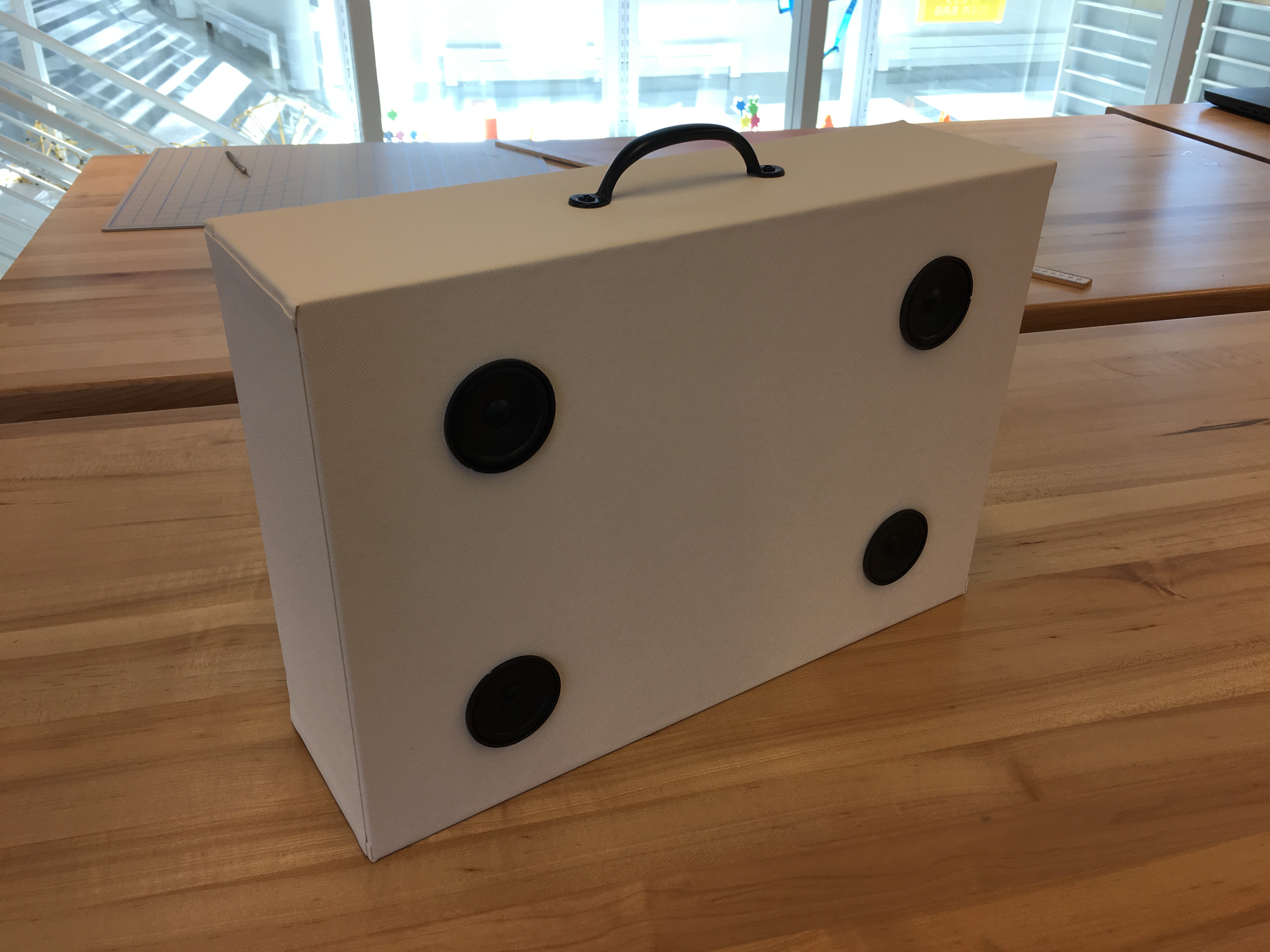

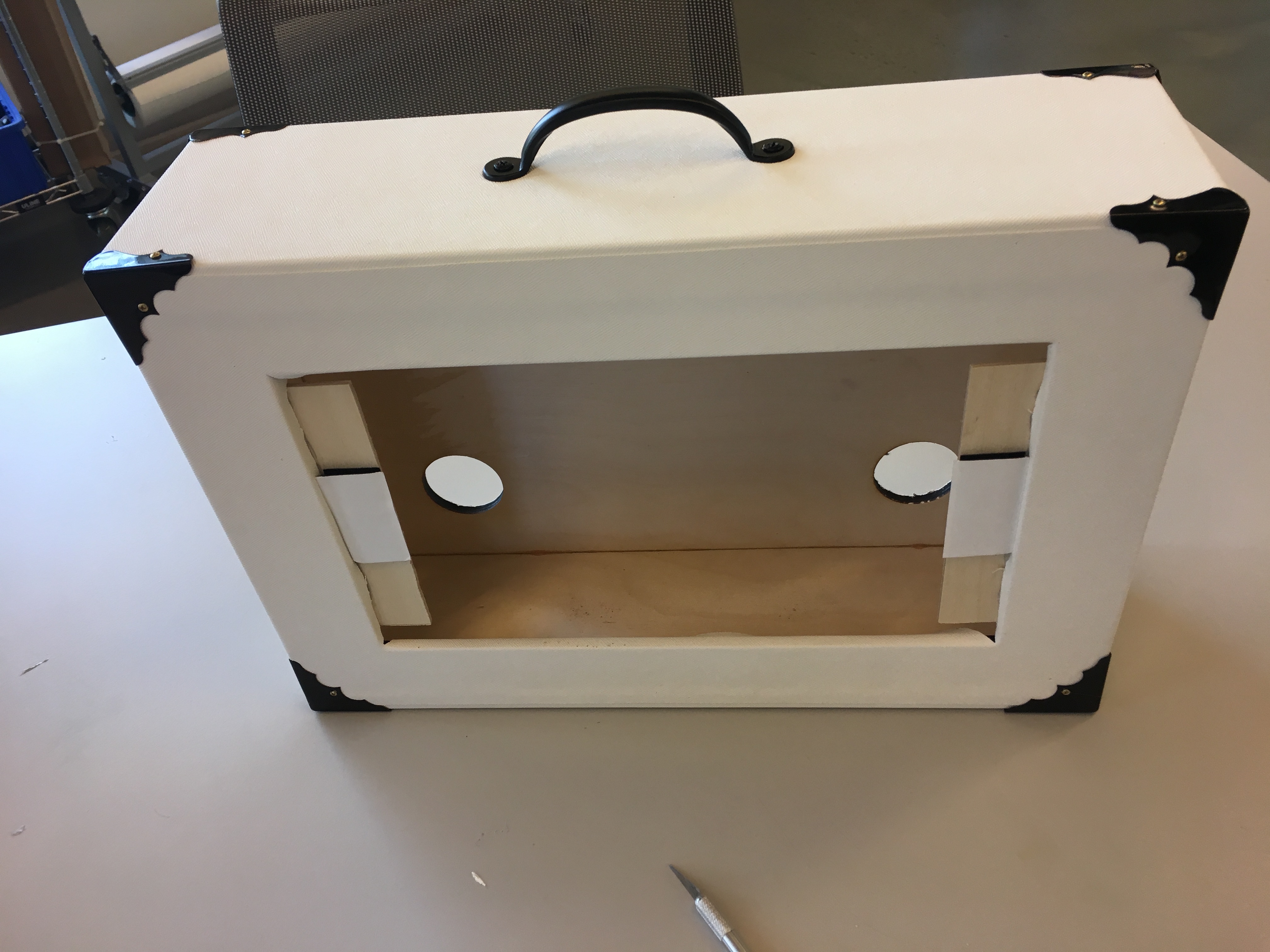

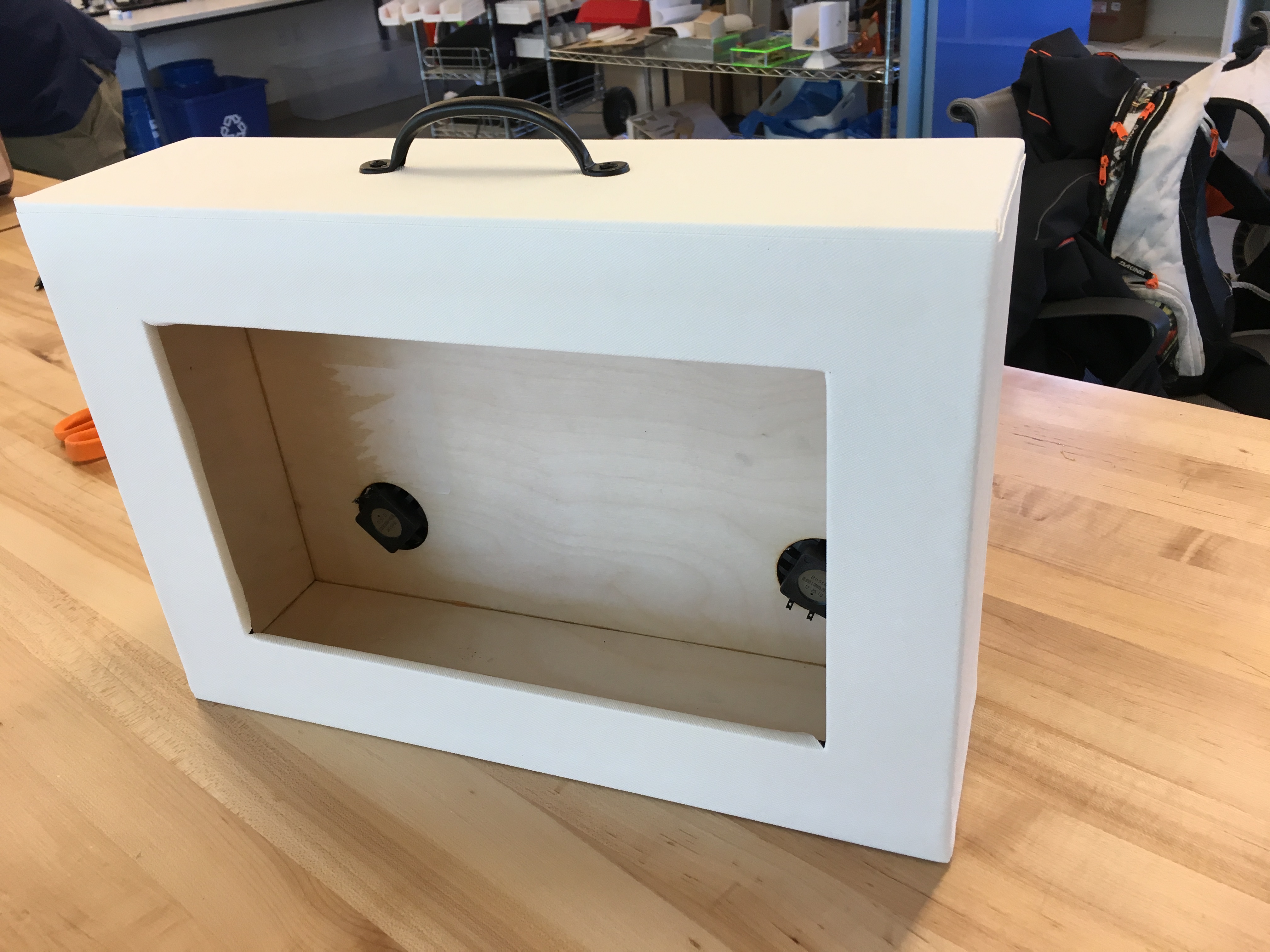

Now the box is complete. The building went smooth, but wrapping it was a challenge. For next time I would use hinges instead of velcro for the back plate. I would also use a bigger handle because the one I used is a bit too small to fit whole hand through.
