The Knitting Pipe (now With 3D Printing!)
by Kiteman in Craft > Knitting & Crochet
69755 Views, 665 Favorites, 0 Comments
The Knitting Pipe (now With 3D Printing!)
Another step in the irregular quest for a French knitting tool that does not look über-girlie, this project shows how to make "French knitting" with a scrap of plastic tubing.
Making and using the tube makes a creative activity for the weekend - in an hour's work, you could make enough knitting pipes to keep your kids, and all their friends, constructively occupied for ages.
I used power tools and a blowtorch, but you could also use hand tools and sandpaper.
As a bonus, I'll also explain how to use the pipe. Even better, there is now a 3D printed upgrade to the idea (see step 7)!
Making and using the tube makes a creative activity for the weekend - in an hour's work, you could make enough knitting pipes to keep your kids, and all their friends, constructively occupied for ages.
I used power tools and a blowtorch, but you could also use hand tools and sandpaper.
As a bonus, I'll also explain how to use the pipe. Even better, there is now a 3D printed upgrade to the idea (see step 7)!
Materials
I made my knitting pipe from a short section of 15mm PVC overflow pipe.
You could use any tube you like, as long as you have the tools to deal with it.
You could use any tube you like, as long as you have the tools to deal with it.
Drill

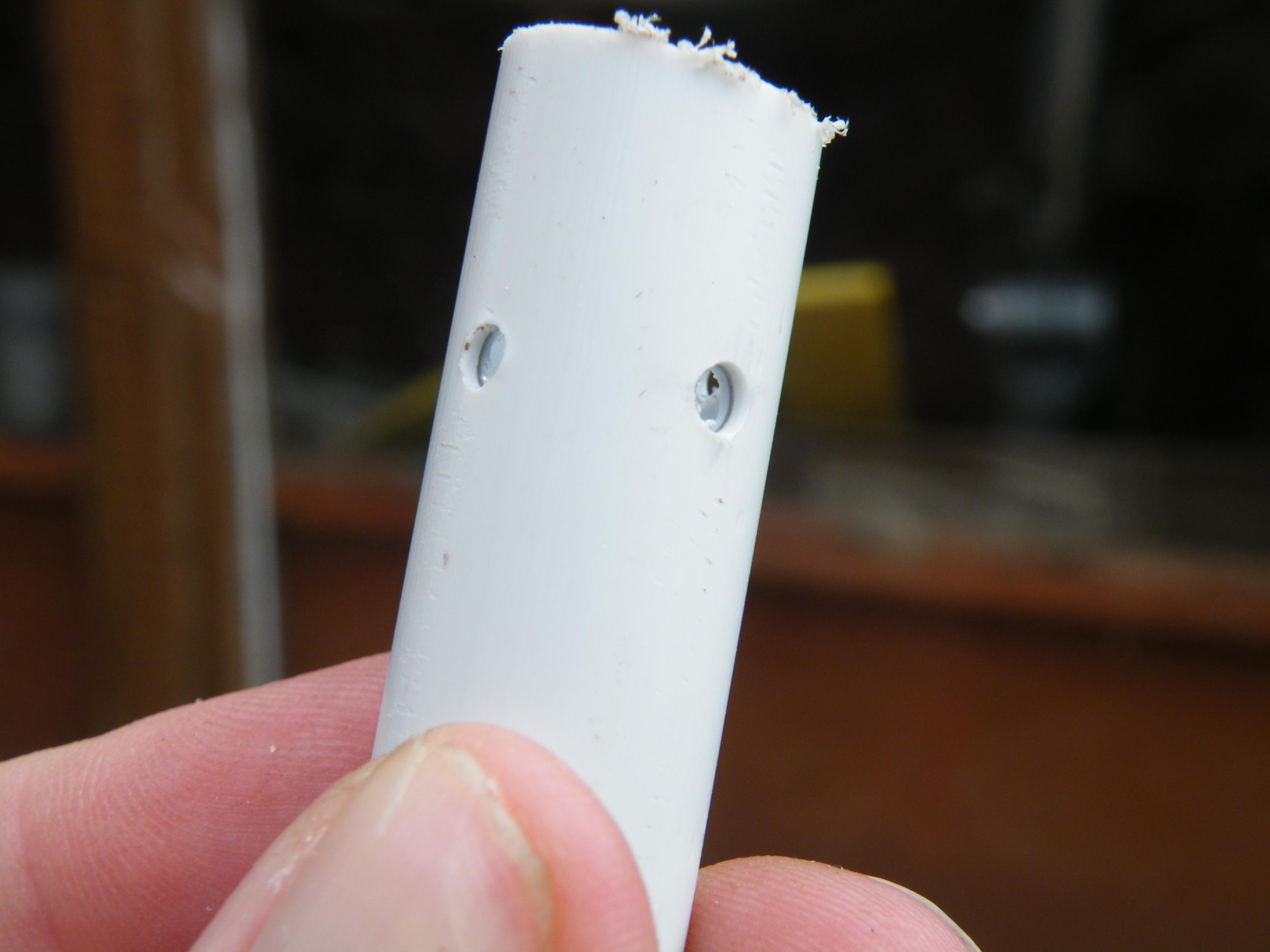

About 2cm from the end of the tube, I drilled four holes, spread equidistantly around tube.
I used a 3mm twist bit, which cut through the tube quite easily, but did slip a little on the smooth PVC. If you have a wood bit, with the small spike at the tip, it won't slide around as much.
To drill the pipe, I clamped it gently in my vice. If you are not using a drill-press, do not be tempted to drill right through the pipe, because the tip of the drill bit will wave around once it pierces the pipe wall, and hit the wrong spot on the other side.
I used a 3mm twist bit, which cut through the tube quite easily, but did slip a little on the smooth PVC. If you have a wood bit, with the small spike at the tip, it won't slide around as much.
To drill the pipe, I clamped it gently in my vice. If you are not using a drill-press, do not be tempted to drill right through the pipe, because the tip of the drill bit will wave around once it pierces the pipe wall, and hit the wrong spot on the other side.
Snip

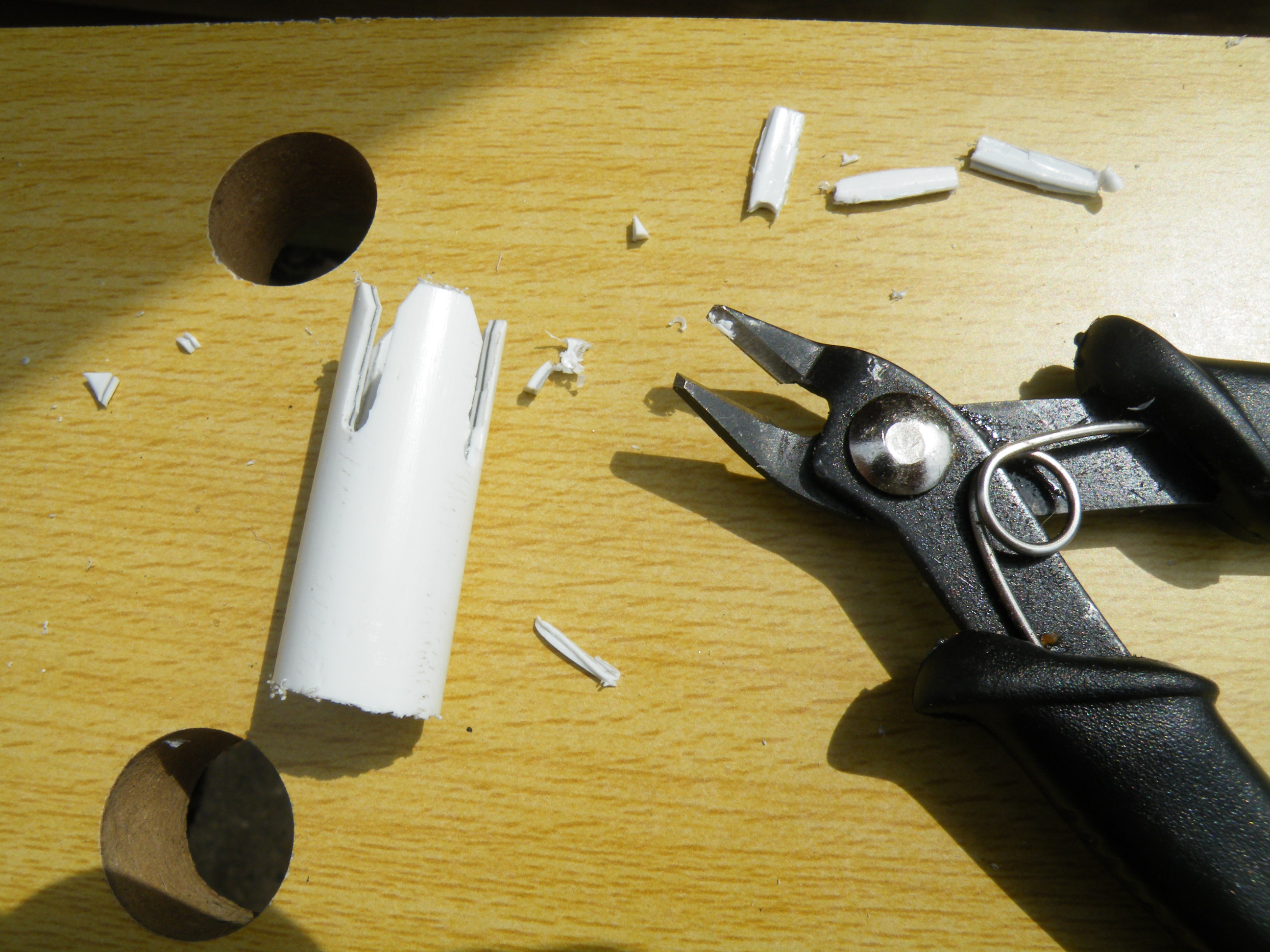

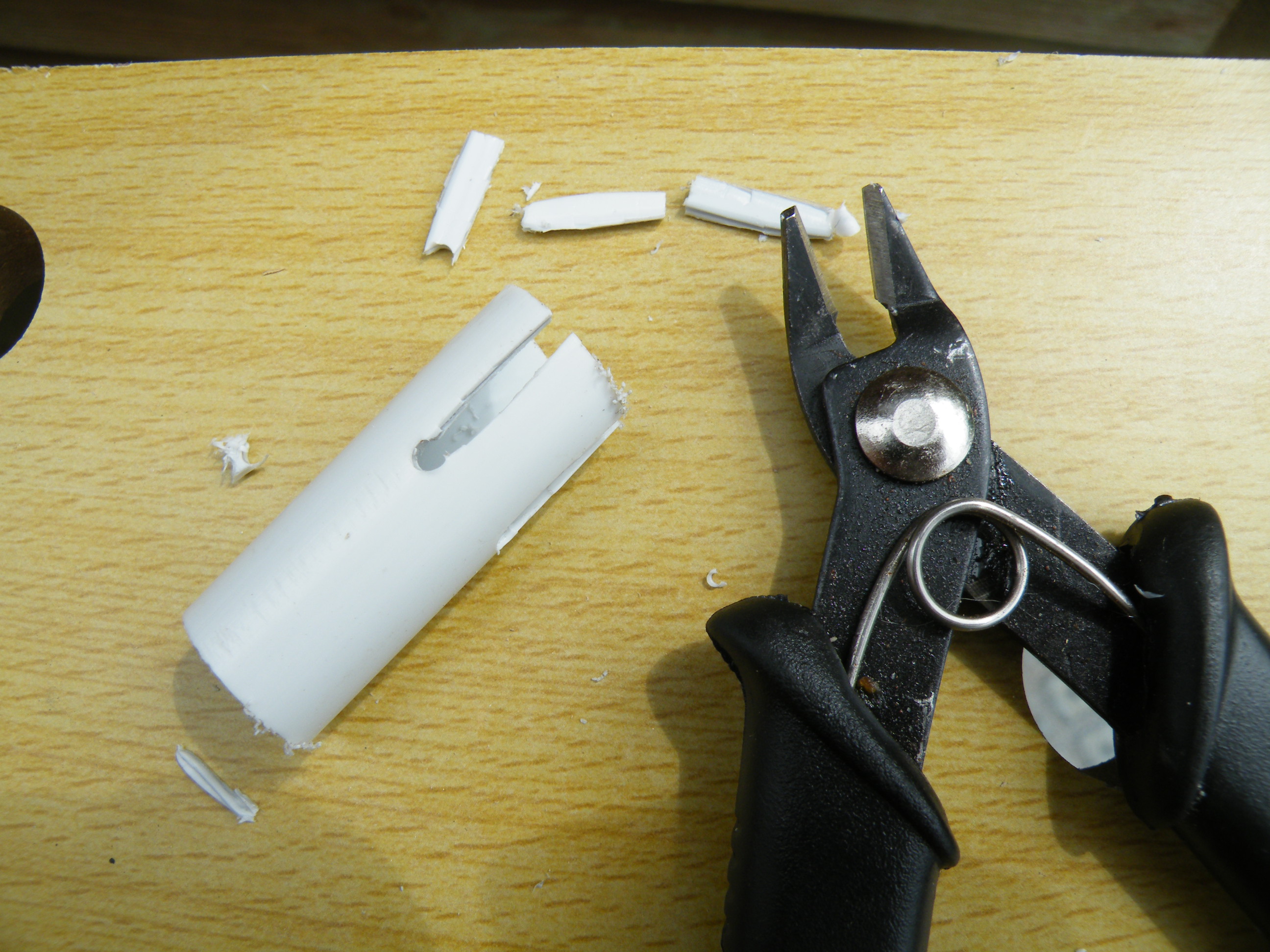

I used a pair of wire cutters to cut from the end of the pipe to the drilled holes, making four tabs at the end of the pipe.
I used the same snips to roughly round off the corners of the tabs.
I used the same snips to roughly round off the corners of the tabs.
Drill Again
This step isn't vital if you have good, sharp fingernails, but it provides a space for you to grasp the wool with blunt nails, or hook it with a crochet hook.

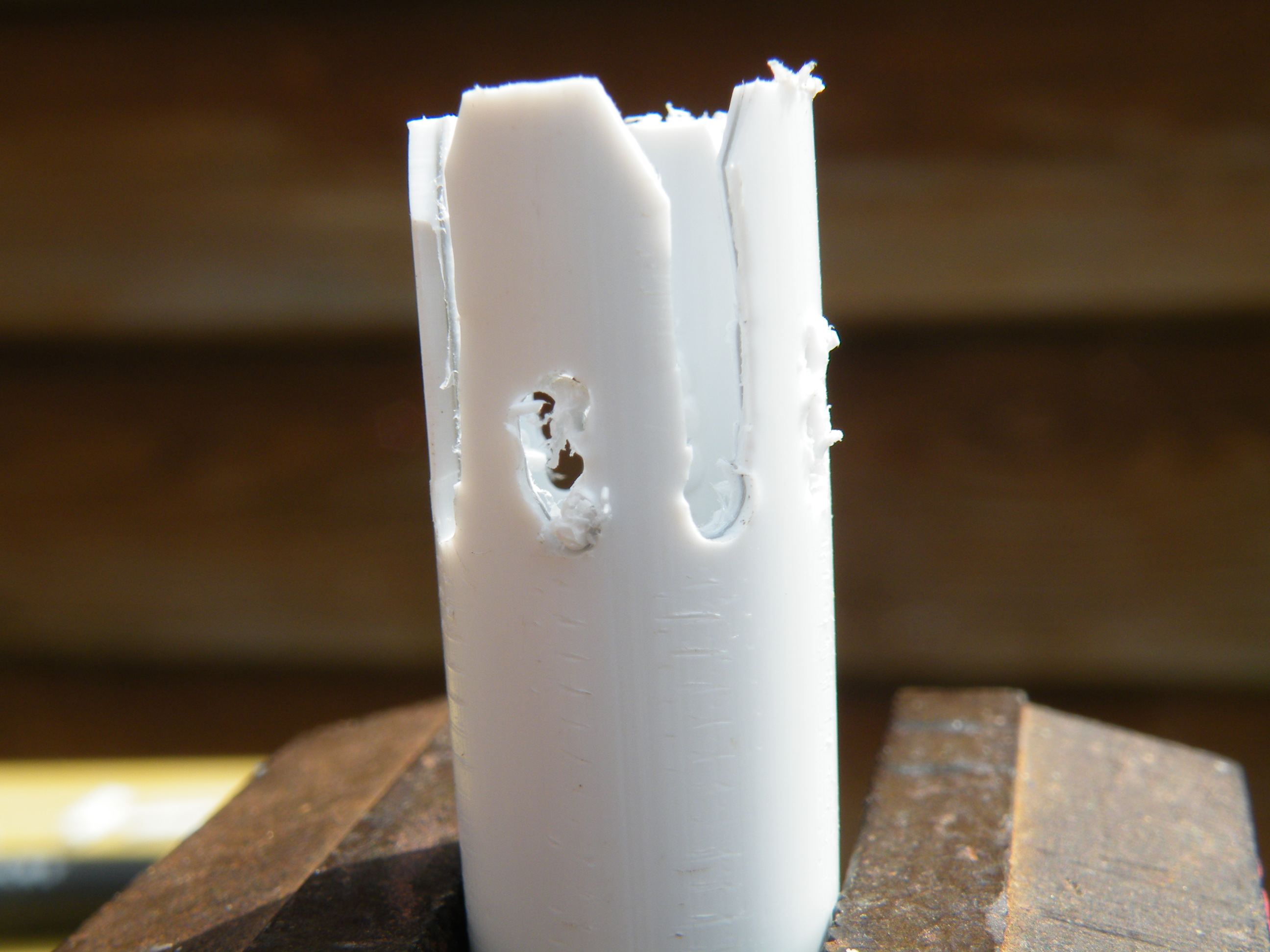

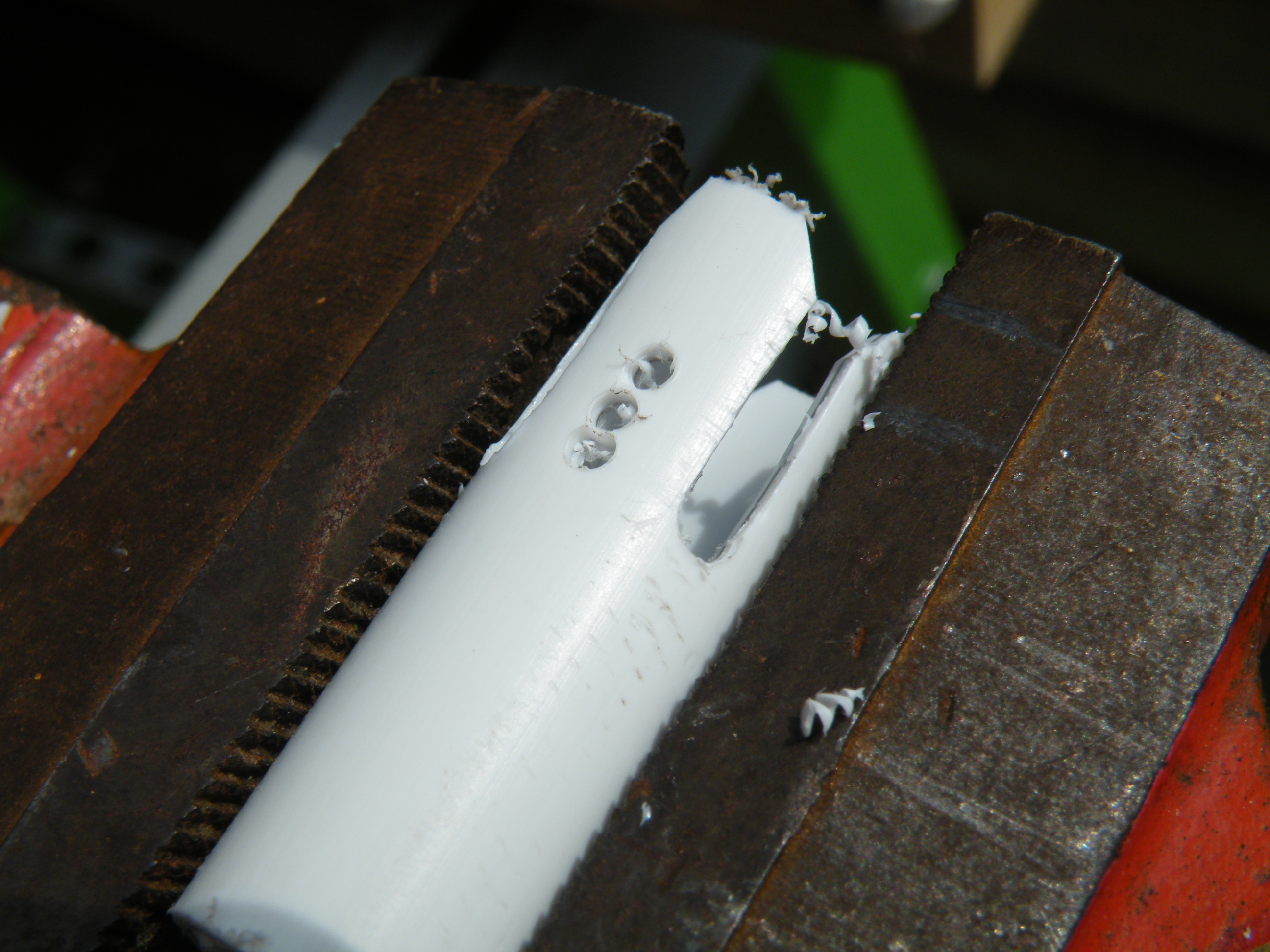

At the base of each tab, I drilled a row of holes, this time with a 2mm bit.

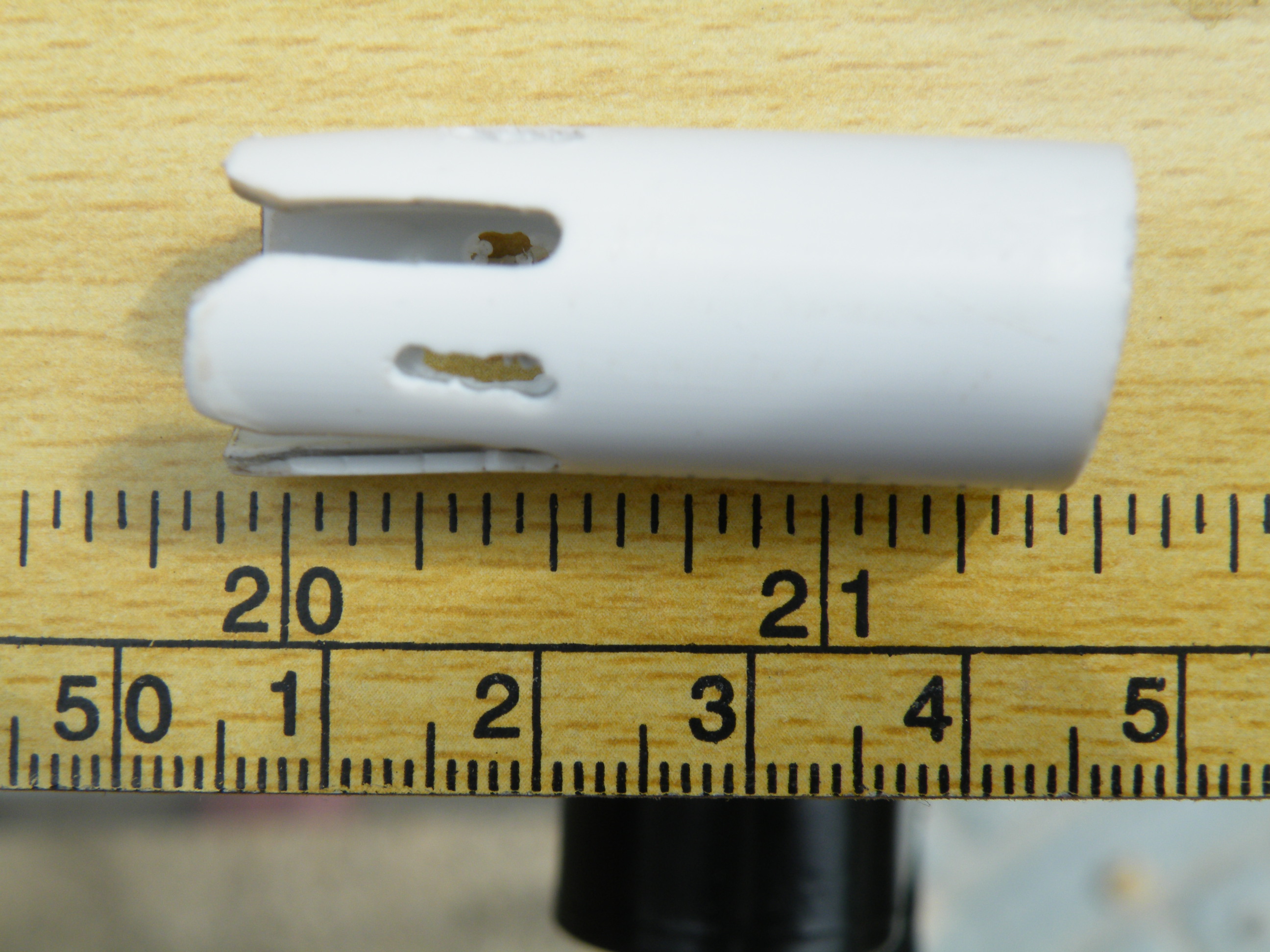

The three holes proved surprisingly tricky to turn into a slot. I used the wire cutters, scissors and a sharp knife, but eventually ended up wriggling the drill bit back and forth to turn the three holed into a slot.
At the base of each tab, I drilled a row of holes, this time with a 2mm bit.
The three holes proved surprisingly tricky to turn into a slot. I used the wire cutters, scissors and a sharp knife, but eventually ended up wriggling the drill bit back and forth to turn the three holed into a slot.
Fire!
If you have access to a blowtorch, it is very good for smoothing edges.
Don't get carried away, just give the tube a few "licks" with the flame. Rough edges should melt more quickly than the rest of the plastic, leaving them smooth. I also gave a blast down inside the tube to smooth off the inside of the pipe and stop the yarn catching.
You may also want to soften the tabs and curve them slightly outwards, to help the yarn stay in place, but that's a matter of personal choice.
To stop burning my fingers, I clamped the pipe in my vice. Unfortunately, when it softened, it was marked by the vice. Not shown here, a light scraping with a sharp knife took off the texture, and some of the discoloration caused by the blowtorch.
..........
If you don't have a blowtorch, use small files and sandpaper to smooth off the jagged edges.
Don't get carried away, just give the tube a few "licks" with the flame. Rough edges should melt more quickly than the rest of the plastic, leaving them smooth. I also gave a blast down inside the tube to smooth off the inside of the pipe and stop the yarn catching.
You may also want to soften the tabs and curve them slightly outwards, to help the yarn stay in place, but that's a matter of personal choice.
To stop burning my fingers, I clamped the pipe in my vice. Unfortunately, when it softened, it was marked by the vice. Not shown here, a light scraping with a sharp knife took off the texture, and some of the discoloration caused by the blowtorch.
..........
If you don't have a blowtorch, use small files and sandpaper to smooth off the jagged edges.
Knit!
This is how we "French knit", but there are other methods.

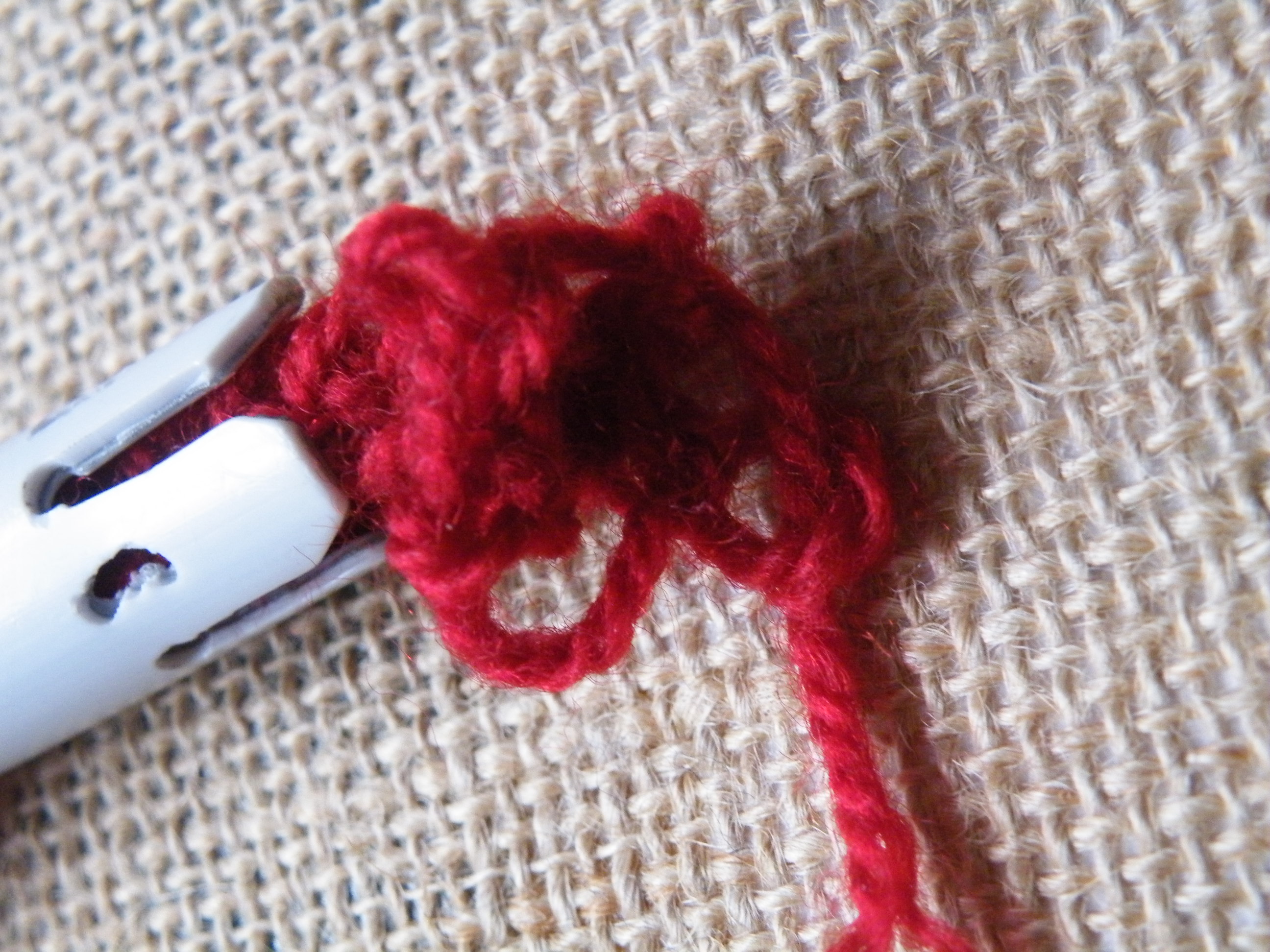

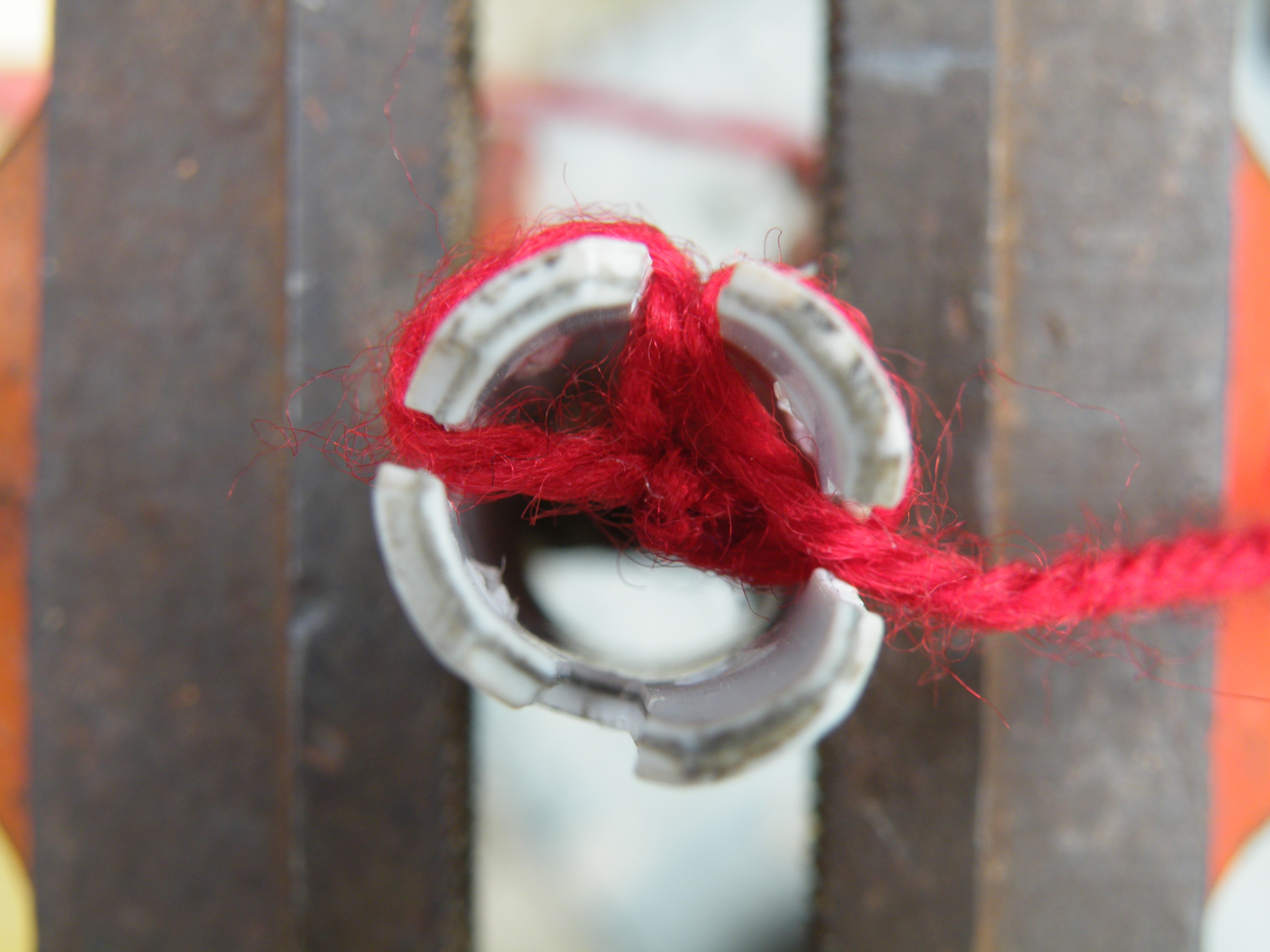

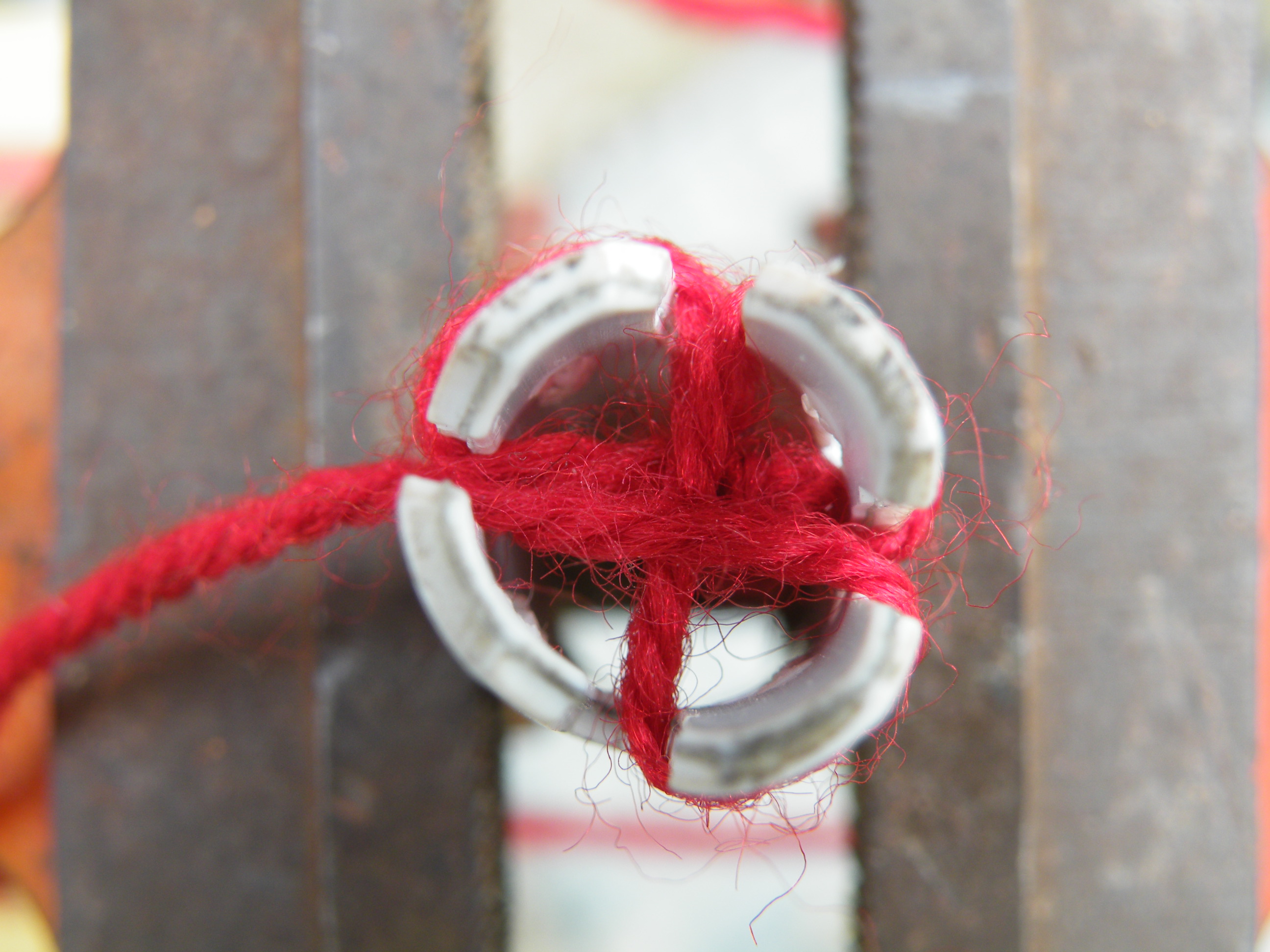

Take your yarn, and tie a small loop a few centimetres from the end. Drop the loose end down the tube (it should hang out of the end of the tube a little), and hang the loop over one of the tabs.

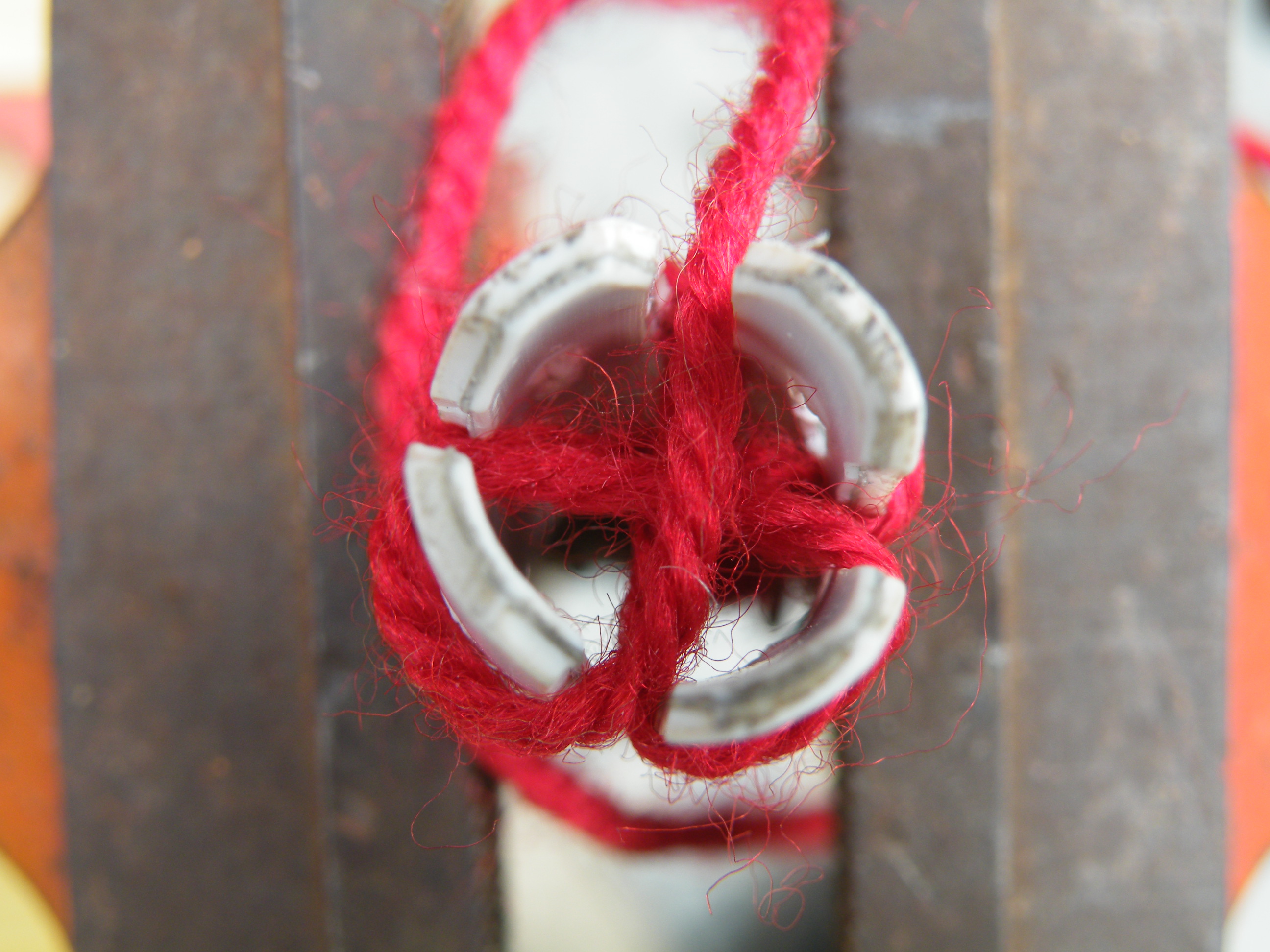

Wind the wool around all the tabs in turn, looping around the inside. To start off, go around the tabs twice (that is, right around twice, 1-2-3-4, 1-2-3-4, not 1-1-2-2-3-3-4-4). The second loop around should be above the first.

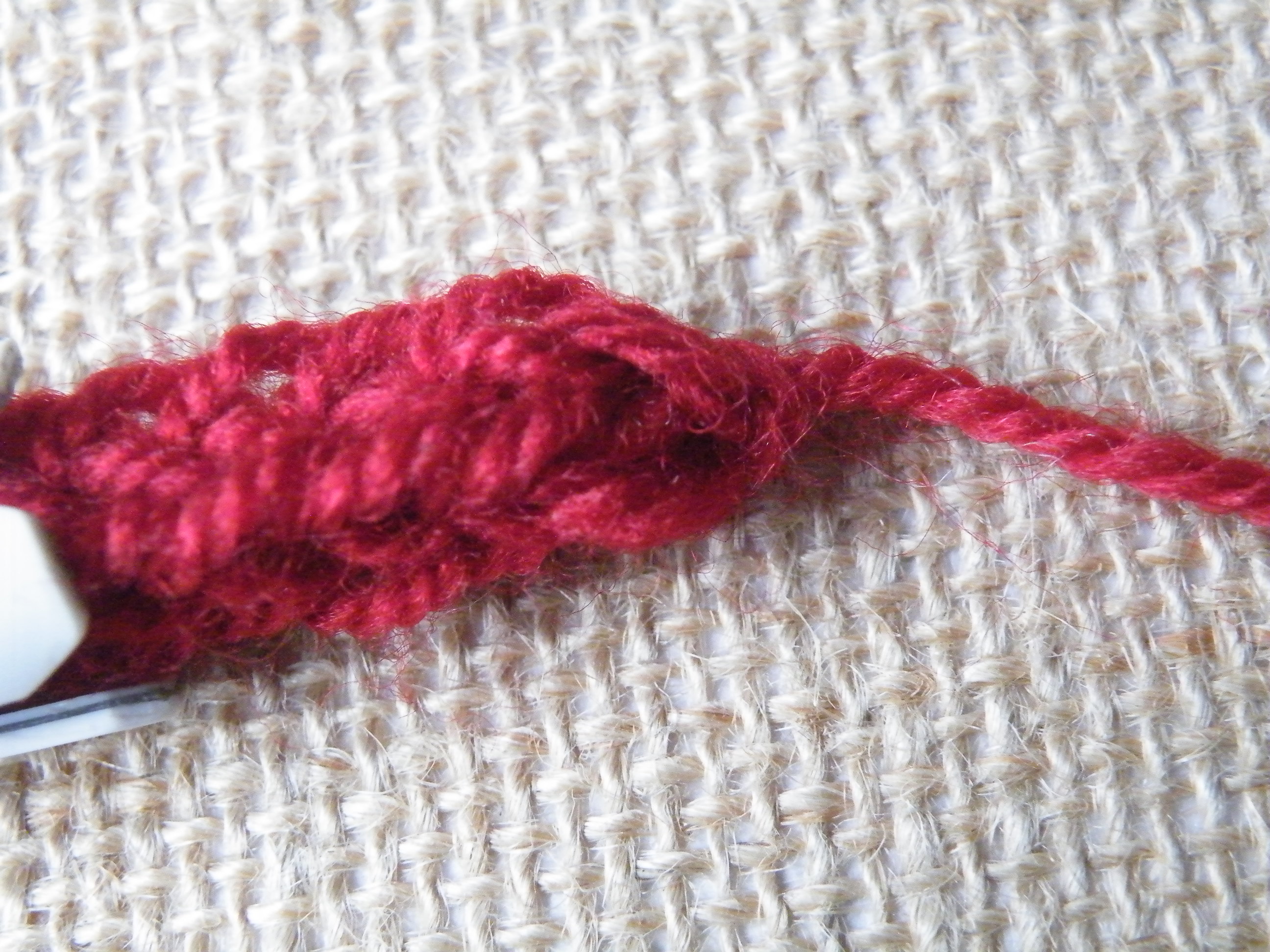

With your fingernails, a crochet hook or similar, lift the first, lower, loops over the top of the tabs, so that they trap the second, upper loops in place. Give the end of the wool a gentle tug to slide the loops to the bottom of the tabs.

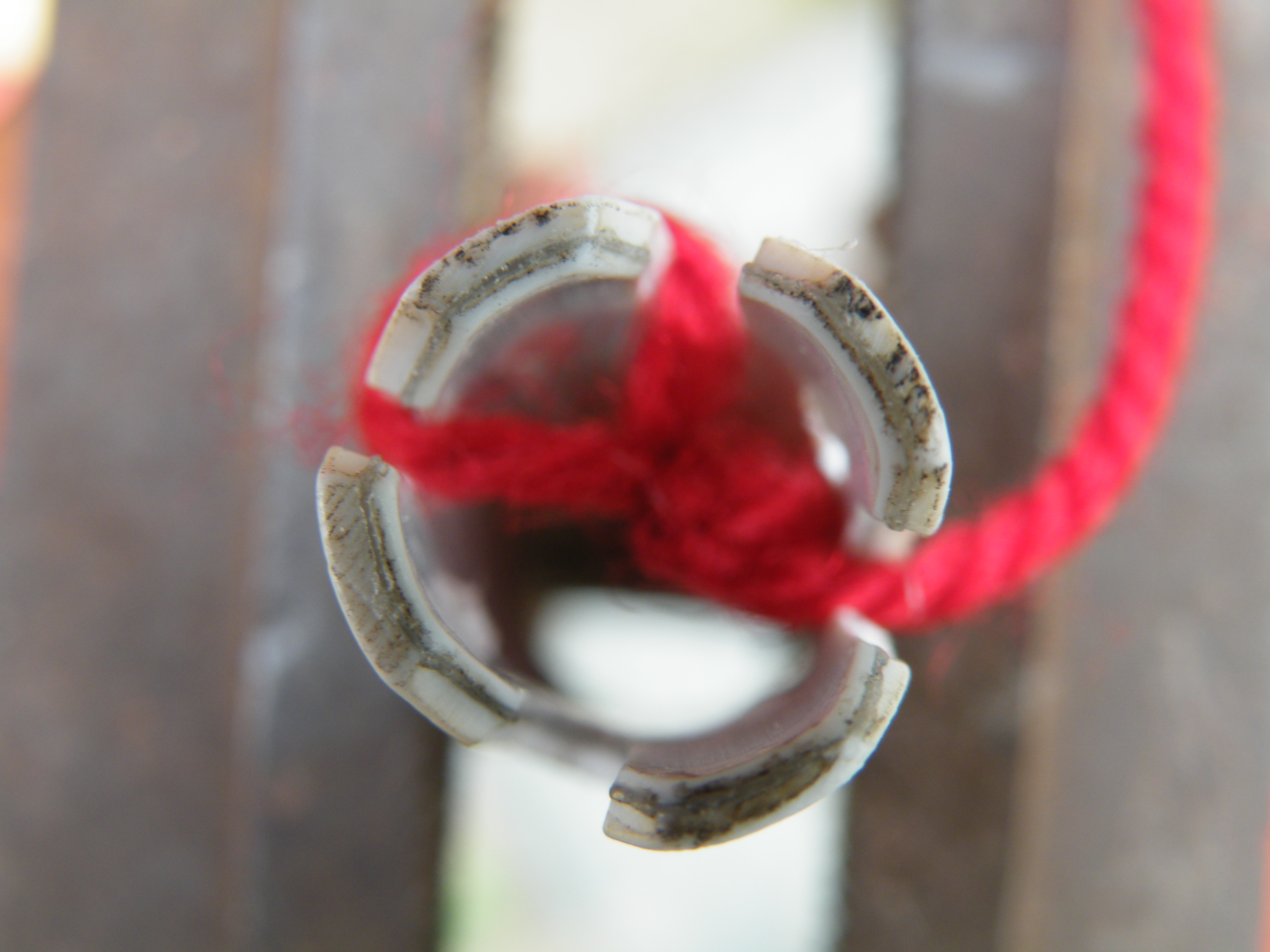

Wrap the yarn around the tabs again, above the previous loops. Repeat the loop-lift-tug sequence until the cord you make is as long as you want.
To finish off (cast off), slide your tube down the cord, gently lifting your last four loops off the tabs. Trim the yarn if you need to, then thread the loose end through the last four loops, and pull tight.

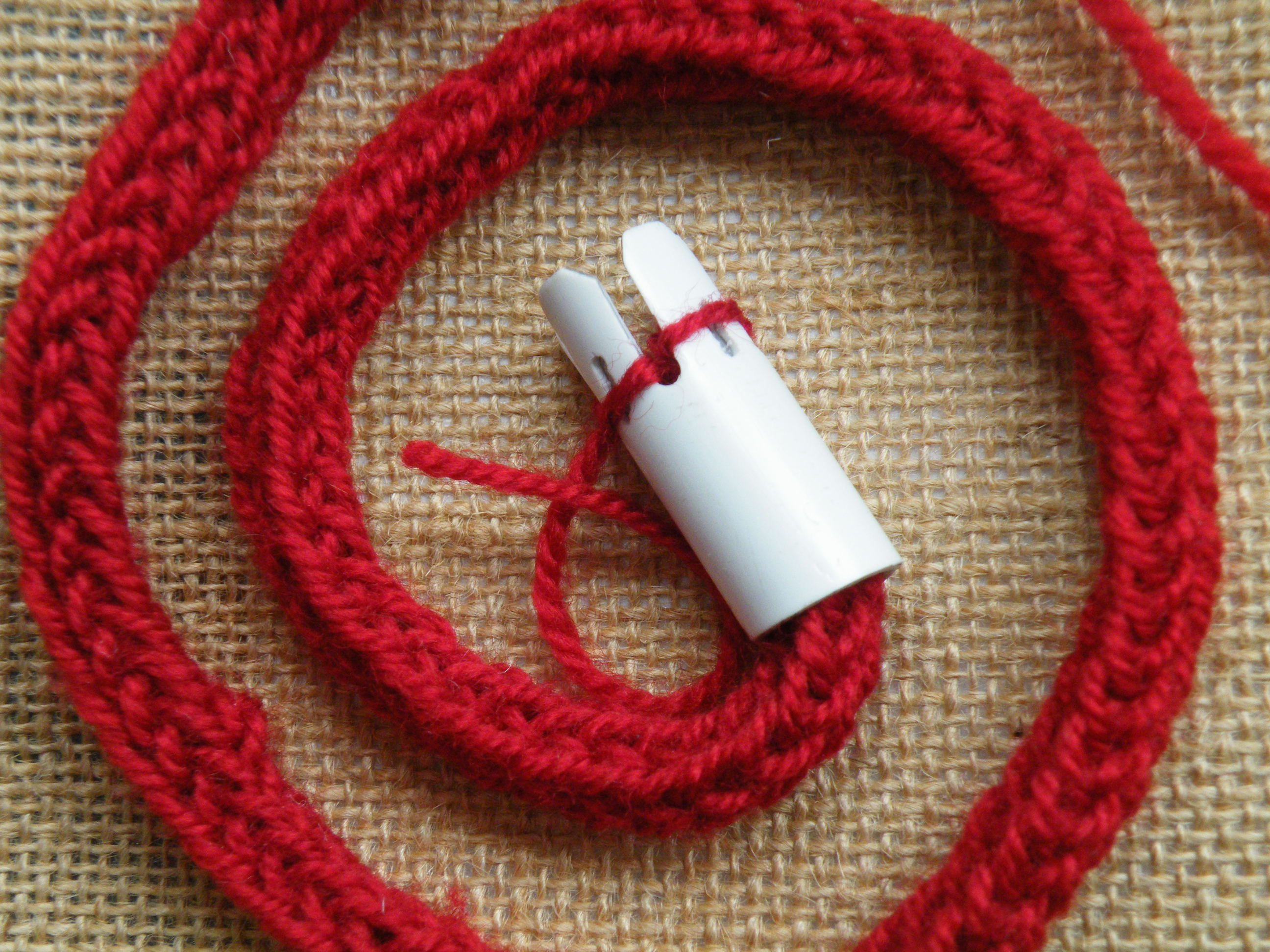

You now have a knitted cord, to do with as you will.
If you get bored easily, or are short of time, then knit short cords and make bracelets or necklaces. If you are more patient, or have more time, you can make longer cords to use more creatively.
(See also)
Take your yarn, and tie a small loop a few centimetres from the end. Drop the loose end down the tube (it should hang out of the end of the tube a little), and hang the loop over one of the tabs.
Wind the wool around all the tabs in turn, looping around the inside. To start off, go around the tabs twice (that is, right around twice, 1-2-3-4, 1-2-3-4, not 1-1-2-2-3-3-4-4). The second loop around should be above the first.
With your fingernails, a crochet hook or similar, lift the first, lower, loops over the top of the tabs, so that they trap the second, upper loops in place. Give the end of the wool a gentle tug to slide the loops to the bottom of the tabs.
Wrap the yarn around the tabs again, above the previous loops. Repeat the loop-lift-tug sequence until the cord you make is as long as you want.
To finish off (cast off), slide your tube down the cord, gently lifting your last four loops off the tabs. Trim the yarn if you need to, then thread the loose end through the last four loops, and pull tight.
You now have a knitted cord, to do with as you will.
If you get bored easily, or are short of time, then knit short cords and make bracelets or necklaces. If you are more patient, or have more time, you can make longer cords to use more creatively.
(See also)
The Third Dimension

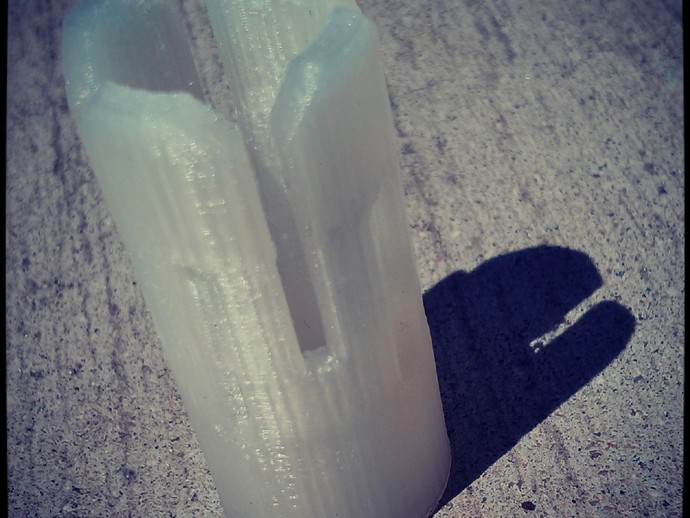

I you don't want to spend time cutting pipe, member Carnright was inspired, and created a 3D model of the knitting pipe.
Available on Thingiverse, it comes out at around 20 cents in plastic.
Go, see.
Available on Thingiverse, it comes out at around 20 cents in plastic.
Go, see.
