The G1 Lego Under-Barrel Grenade Launcher

This is the first lego gun I have made which can fit under a regular gun and fire grenades/rockets. The main thing the G1 fires is the X3 Mini-Rocket. The G1 can also fire the Y1 Shotgun Shell from the C3.1 video, making it useful for close-quarters. The G1 has a 45 foot range (when firing the X3 at an angle). It is also very powerful and fairly accurate. To load the G1, the launcher must be taken off of the gun, and the top opened, so that the rubberbands can be placed on the firing gear. Then, the top is replaced, and the whole launcher put back on the gun. To load, the X3 Mini-Rocket s simply slid down the hole in the front, and it 'locks' in place, because the rubberbands keep it from sliding out, which is very useful. To fire, the 'hair' trigger on the back is pushed down. The launcher can be easily removed because of how the top was designed, and can be put under any gun with 6x19 studs of free space underneath it or more. The launcher does not misfire, and will not fire accidently.



MY WEBSITE: http://sites.google.com/site/bblegobrickworks/Home

For the G2, I intend to add many different new features, such as: the firing system will be semi-automatic, and will be able to hold up to 2-3 shots' worth of rubberbands, it will be shorter, and there will be a true trigger placed on it.

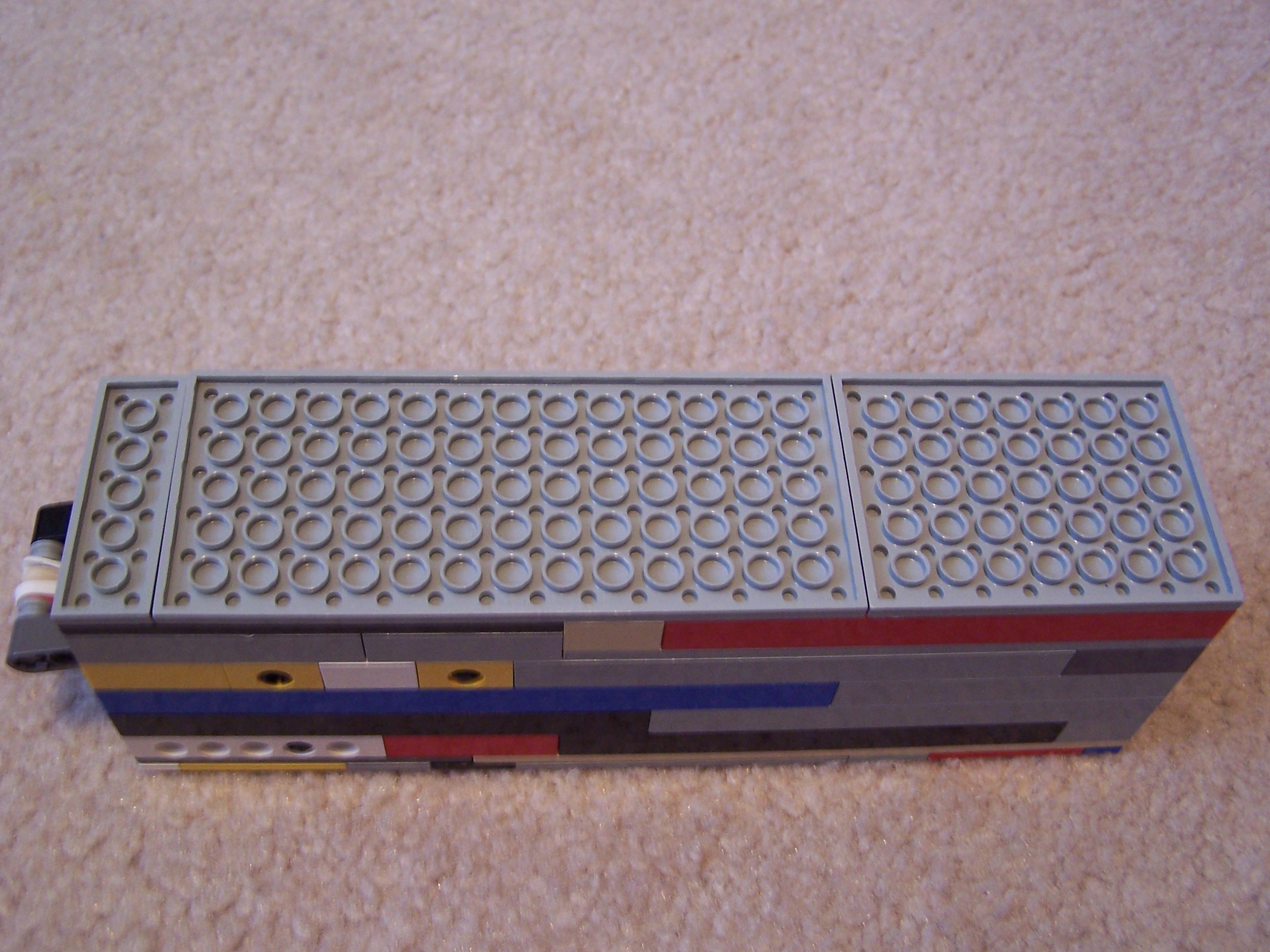

This step just builds up the bottom of the launcher.

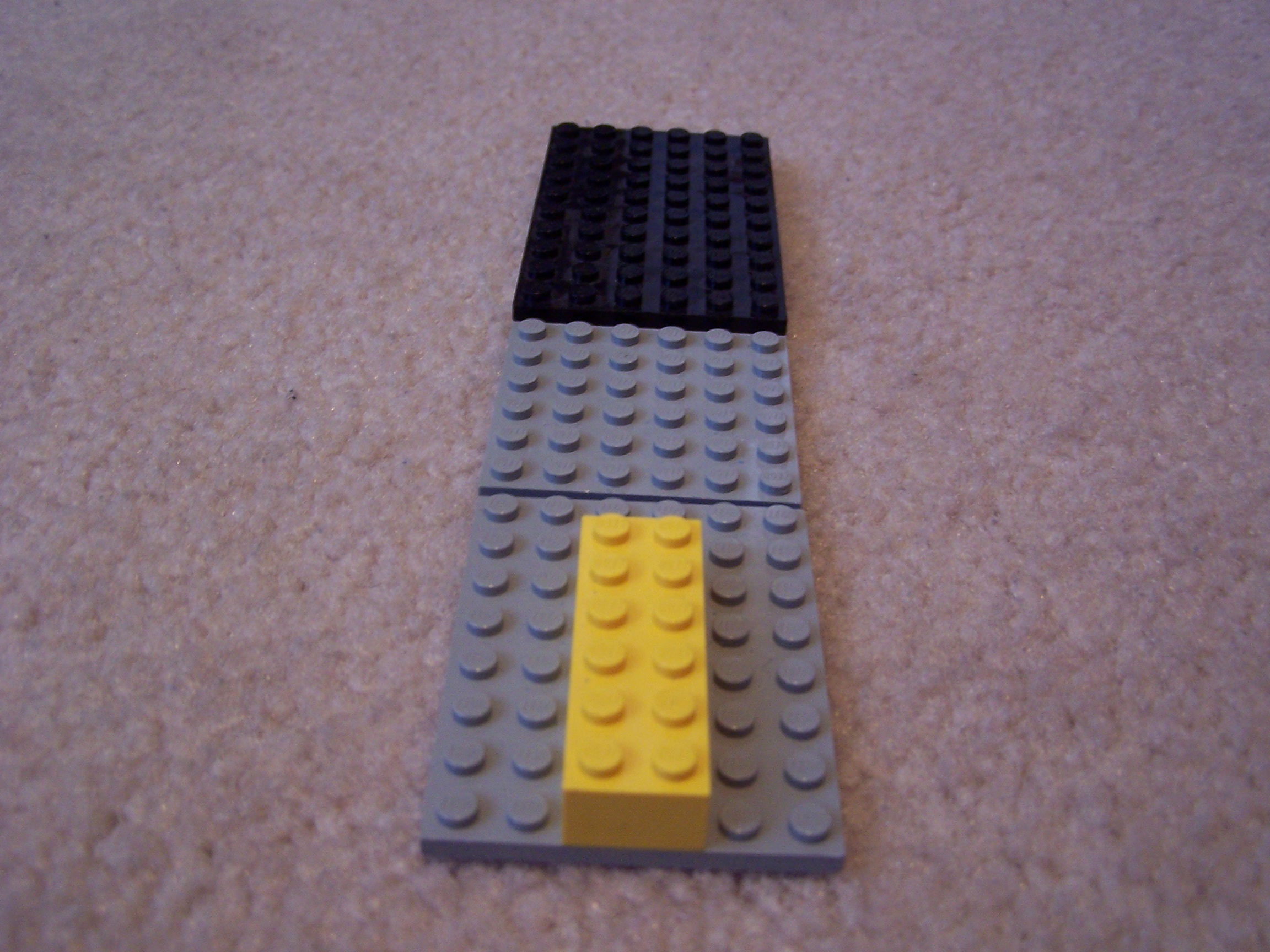

This step builds the runway which the ammo goes on.

This step builds the firing gear, and builds me of the back.

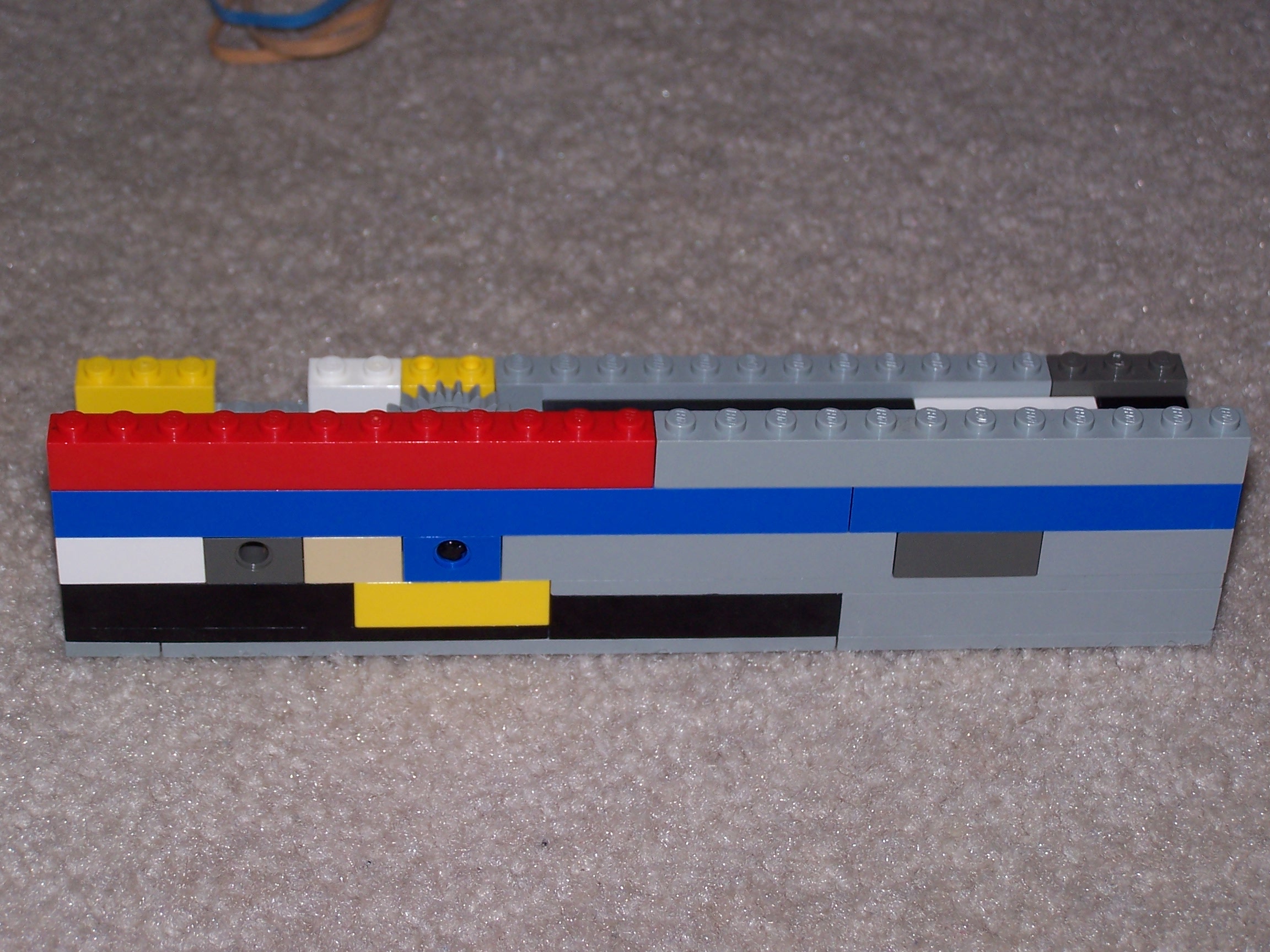

This step finishes one side of the launcher.

This step builds half of the trigger, and the area which holds the counterweight rubberbands.

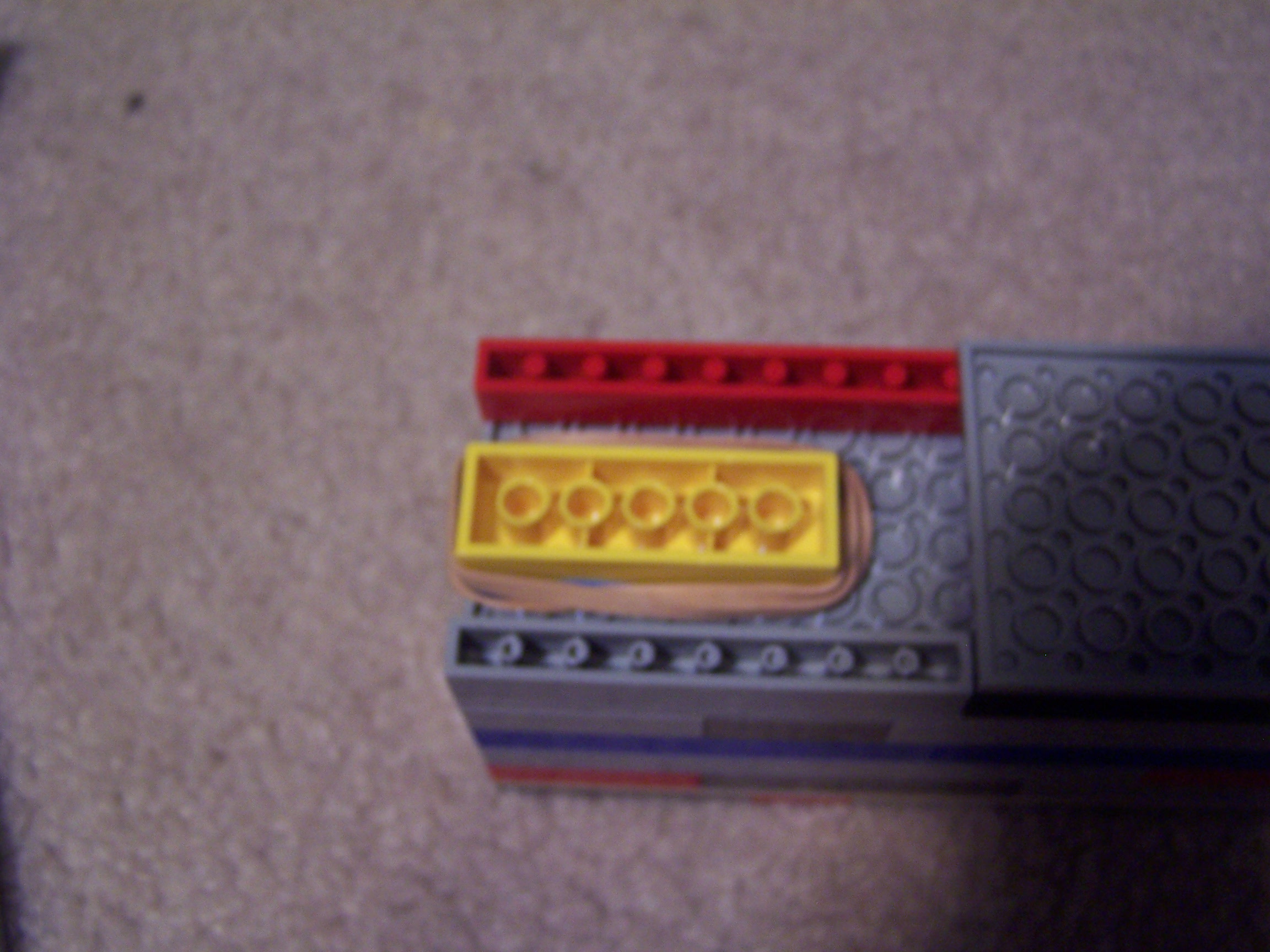

This step will need 4 small rubberbands to act as a counterweight. The rest of the step will finish off the other side of the trigger and firing system,

This step will finish the side of the gun, and the top piece.

This is the ammo for the G1, the X3 Mini Rocket, which is a much smaller rocket than the X2 and X1.

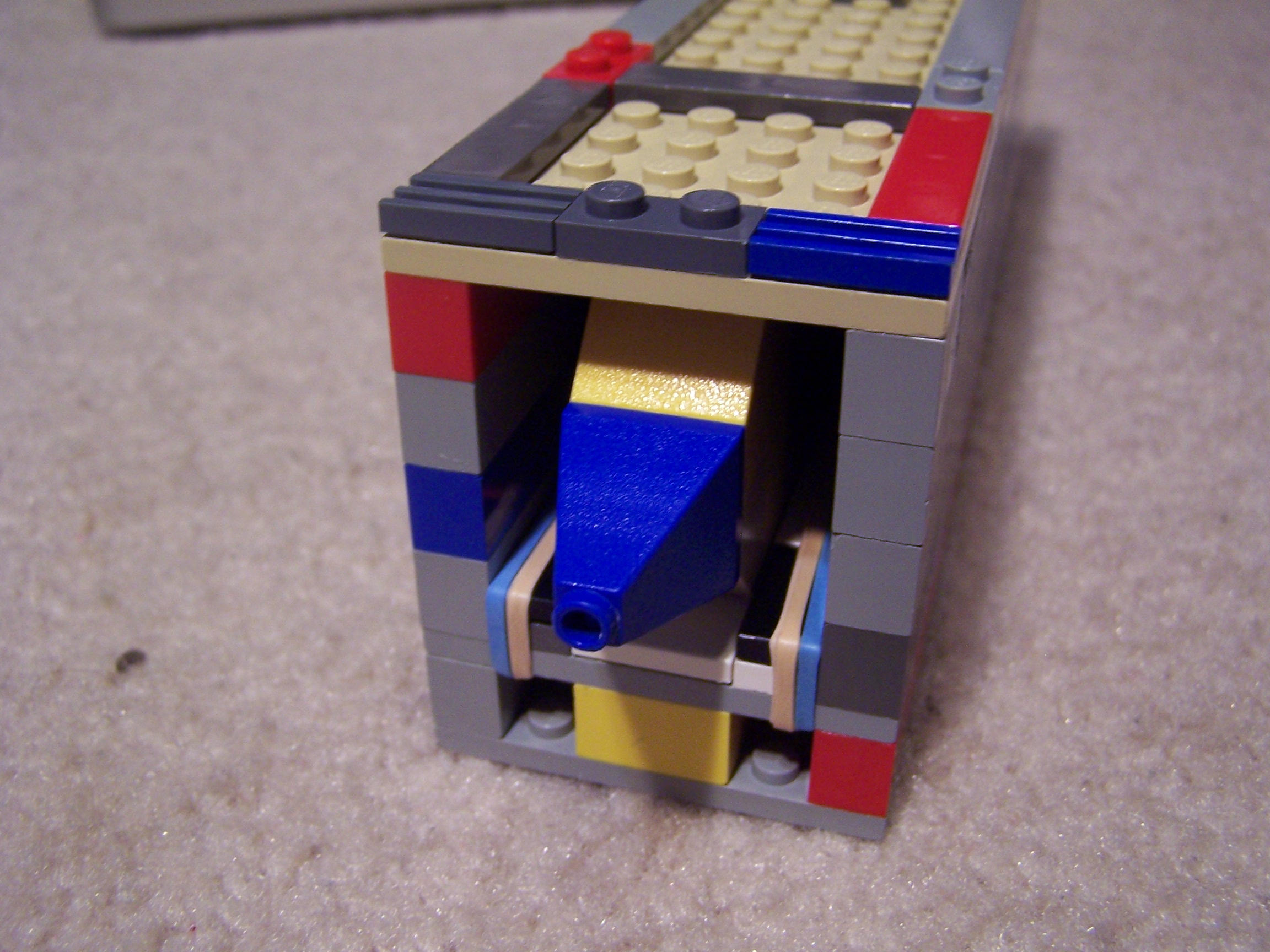

This step shows how to load the firing rubberbands (you need 3 small-medium sized rubberbands), and how to put in the ammo.

Basically, it has 2 ways to mount it- with it completely on the gun, or with some of it hanging off it.
