Floating Shelves
![20 Finished Shelves Edit.jpg](/proxy/?url=https://content.instructables.com/F5P/KS75/HPL6CGG2/F5PKS75HPL6CGG2.jpg&filename=20 Finished Shelves Edit.jpg)
I don't know about you, but I have some stuff ... and some of that stuff looks pretty nifty on a shelf. If you saw "The Faux Metal Desk," you know my hatred for MDF, but you also know I had some left over and planned to use it specifically for shelves.
I wanted the shelves to be substantial ... not some 3/4" plank nonsense. Nice chunky shelves just floating there and being awesome.
I wanted the shelves to be substantial ... not some 3/4" plank nonsense. Nice chunky shelves just floating there and being awesome.
Cut and Prep the Parts
![02 Cleaning Rabbits.JPG](/proxy/?url=https://content.instructables.com/FTC/MF59/HPL6CGCG/FTCMF59HPL6CGCG.jpg&filename=02 Cleaning Rabbits.JPG)
I ripped the parts to width on the table saw and then cut them to length on the miter saw. After that, I cut the rabbets on the table saw and cleaned them up with a putty knife and hammer. It's MDF, you don't need a chisel ... you could do it with your fingernail (don't do that).
I chose rabbets because I like rabbits and they are similar. I also chose rabbets because they help me align the parts when assembling.
I chose rabbets because I like rabbits and they are similar. I also chose rabbets because they help me align the parts when assembling.
Assembly
![07 Screwed.JPG](/proxy/?url=https://content.instructables.com/F0H/W2U6/HPL6CGCQ/F0HW2U6HPL6CGCQ.jpg&filename=07 Screwed.JPG)
![06 Tack Assembled.JPG](/proxy/?url=https://content.instructables.com/F0N/F094/HPL6CGCK/F0NF094HPL6CGCK.jpg&filename=06 Tack Assembled.JPG)

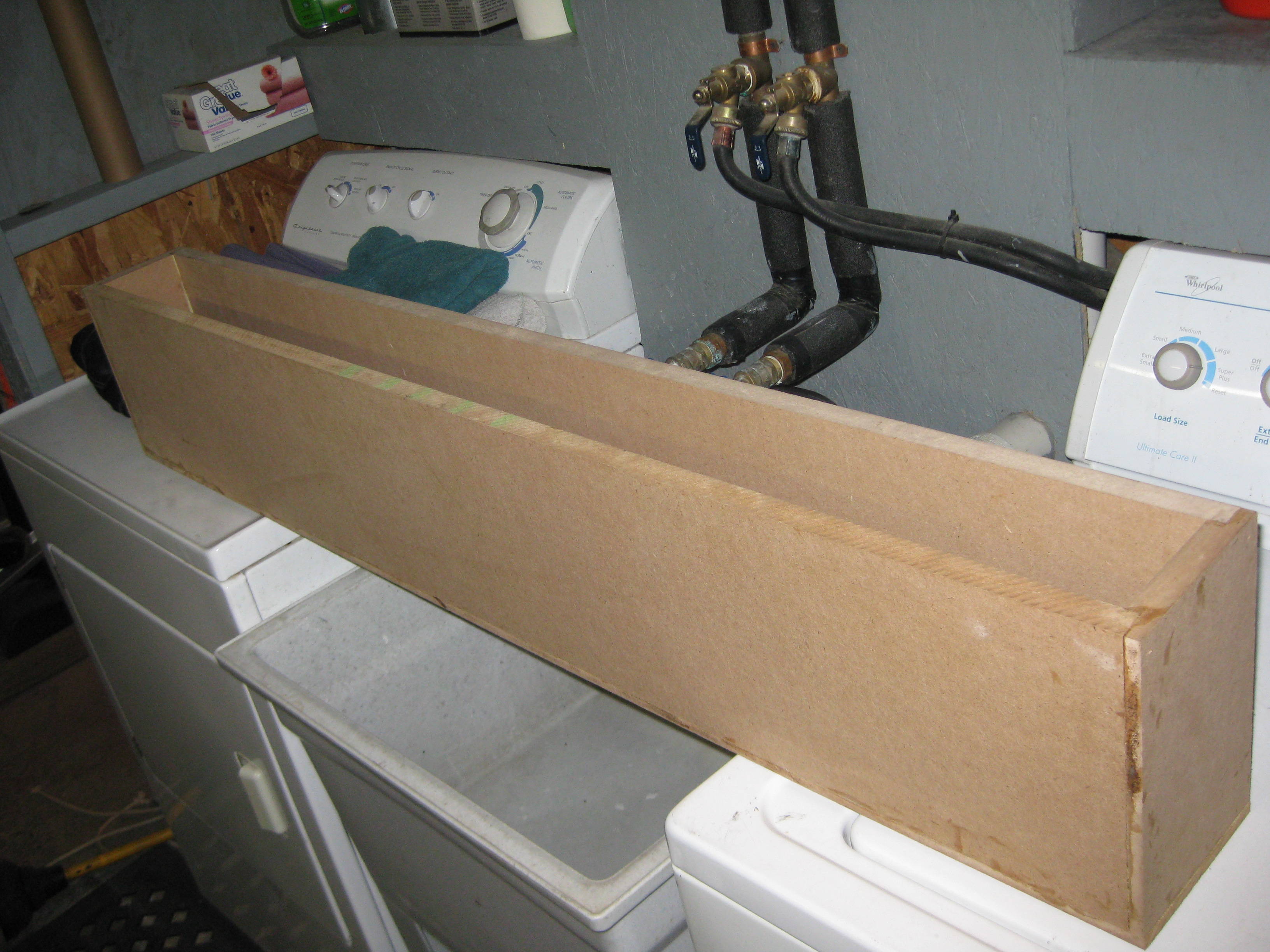

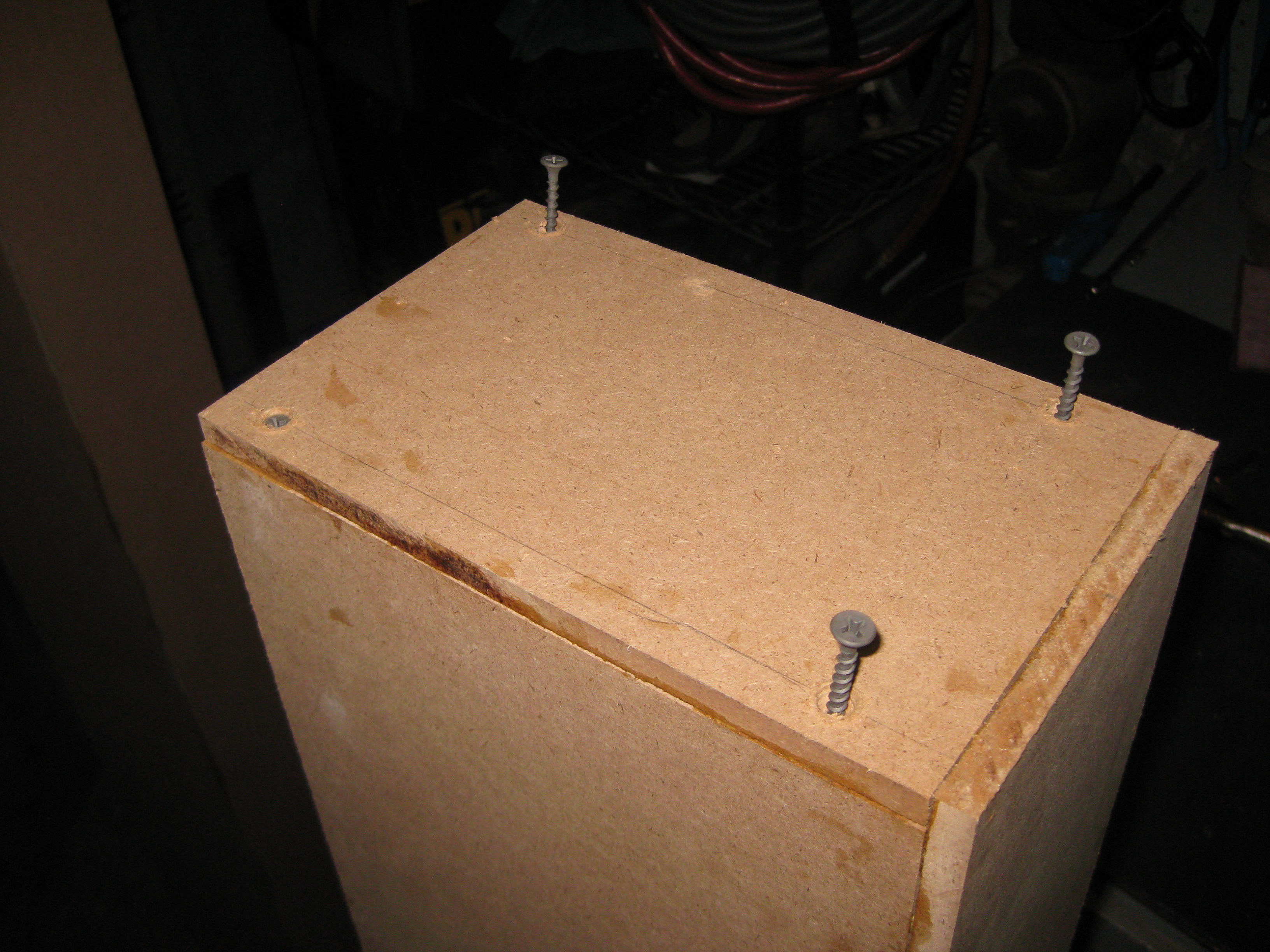

Initial assembly was done with glue and brad nails. Everything was reinforced with screws. I used drywall screws just to annoy the purists.
Filling and Sanding
![08 Putty.JPG](/proxy/?url=https://content.instructables.com/FQT/LA58/HPL6CGCX/FQTLA58HPL6CGCX.jpg&filename=08 Putty.JPG)
![09 Sanding.JPG](/proxy/?url=https://content.instructables.com/FZ2/9ZAK/HPL6CGD3/FZ29ZAKHPL6CGD3.jpg&filename=09 Sanding.JPG)

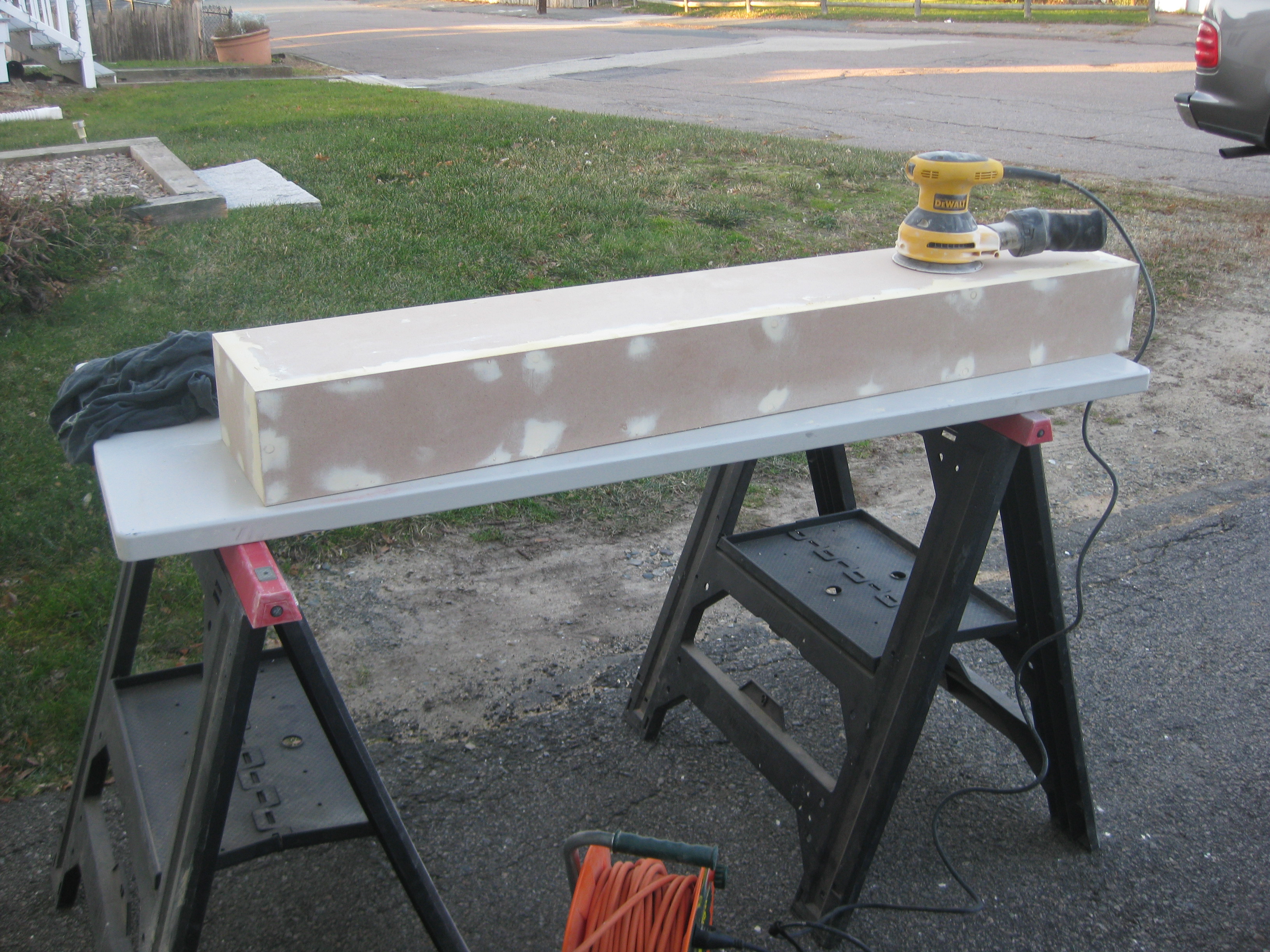

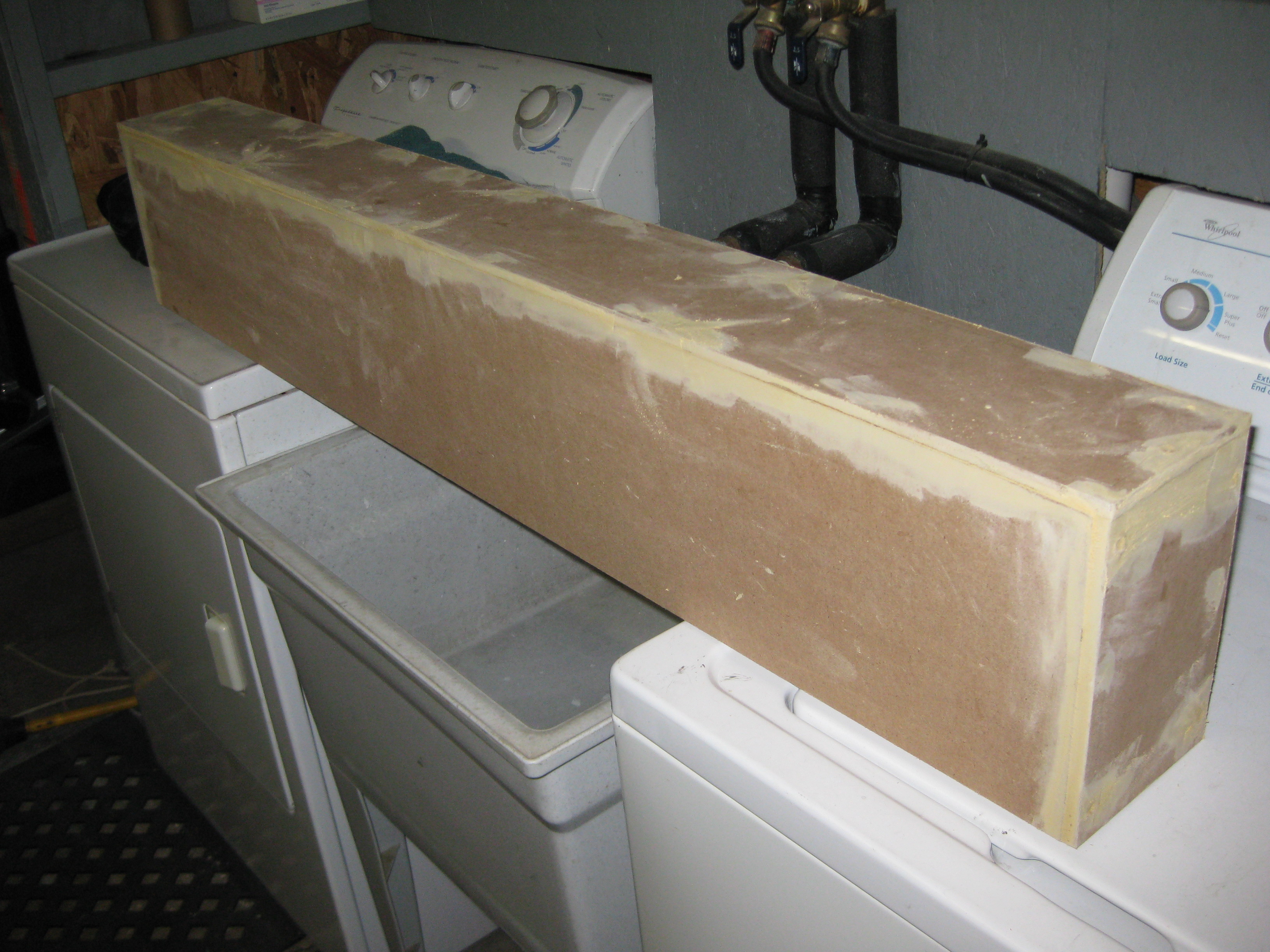

Since I wanted the look of a solid slab floating on the wall, I need to fill all the seams. I used wood putty and once it was dry, I sanded it outside with an orbital sander.
The dimensions on these shelves are somewhere around 48" Long x 8" Wide x 5" Deep.
The dimensions on these shelves are somewhere around 48" Long x 8" Wide x 5" Deep.
Paint
![11 Black Coat 2.JPG](/proxy/?url=https://content.instructables.com/FL9/HMFF/HPL6CGDZ/FL9HMFFHPL6CGDZ.jpg&filename=11 Black Coat 2.JPG)
Several coats of satin black paint until I was satisfied with the coverage (I'm never satisfied).
Installing the Cleats
![12 Layout.JPG](/proxy/?url=https://content.instructables.com/FSO/MDA5/HPL6CGE9/FSOMDA5HPL6CGE9.jpg&filename=12 Layout.JPG)
![13 Cleats Installed.JPG](/proxy/?url=https://content.instructables.com/FCK/9TXI/HPL6CGEJ/FCK9TXIHPL6CGEJ.jpg&filename=13 Cleats Installed.JPG)

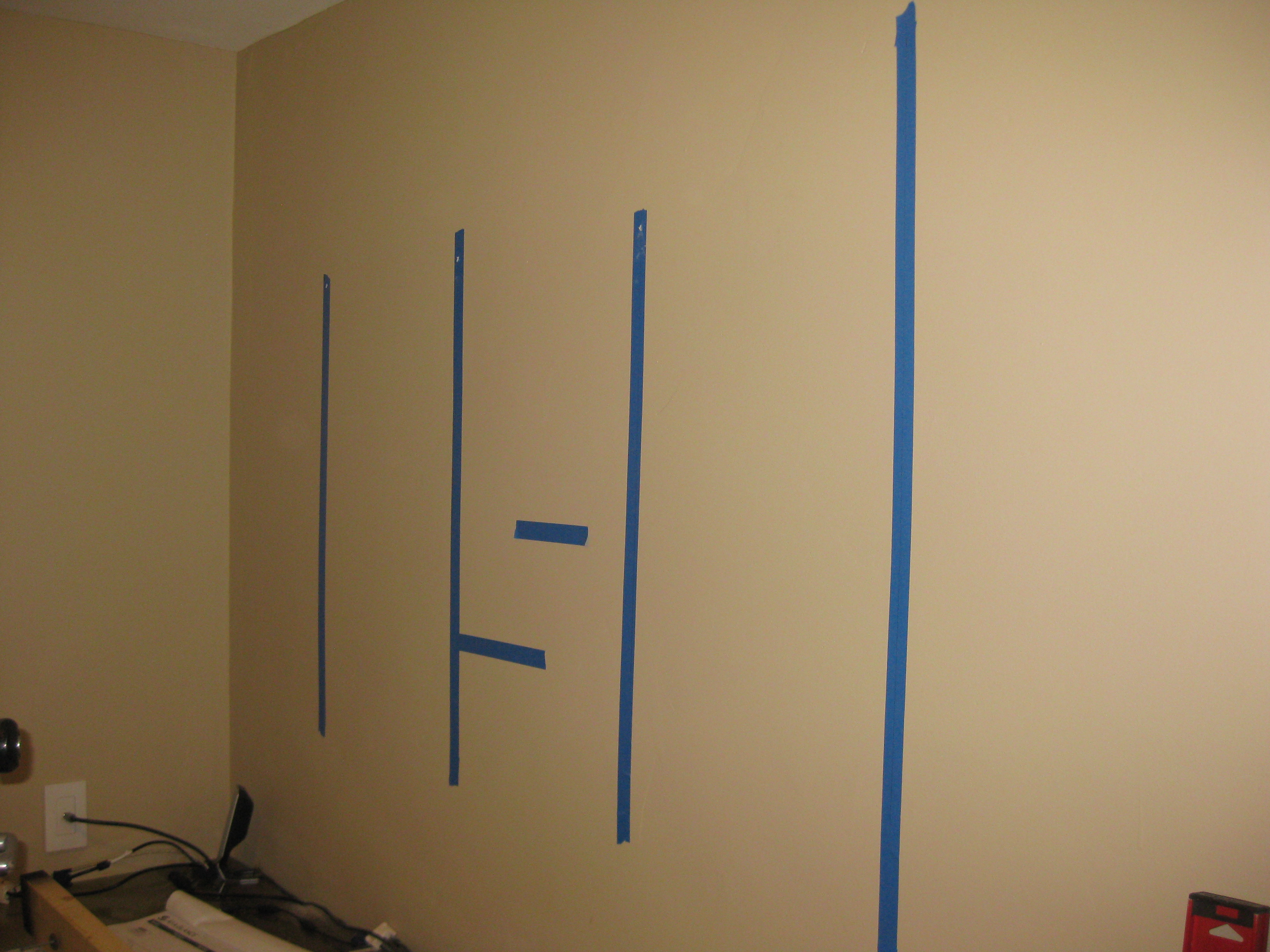

My house is 90 years old ... you guess it ... horse hair plaster. I take my time laying out the studs so as not to make a mess of the plaster. Placement of the cleats, and therefore the shelves, were somewhat dictated by the location of studs. I wanted to hit at least three studs per cleat. I secured them with some lag bolts and washers. I don't remember how long, but since the cleats are 1 1/2" + the plaster + the slats, I'd say at least 4" long. I painted the ends black because I foresaw gaps thanks to the wavy walls.
Hang the Shelves
![15 Shelf Countersinks.JPG](/proxy/?url=https://content.instructables.com/FSA/8O8Y/HPL6CGEV/FSA8O8YHPL6CGEV.jpg&filename=15 Shelf Countersinks.JPG)
![16 Top Shelf Installed.JPG](/proxy/?url=https://content.instructables.com/FAU/1QKL/HPL6CGFA/FAU1QKLHPL6CGFA.jpg&filename=16 Top Shelf Installed.JPG)
![18 Shelf Tops.JPG](/proxy/?url=https://content.instructables.com/FE9/12QM/HPL6CGFO/FE912QMHPL6CGFO.jpg&filename=18 Shelf Tops.JPG)

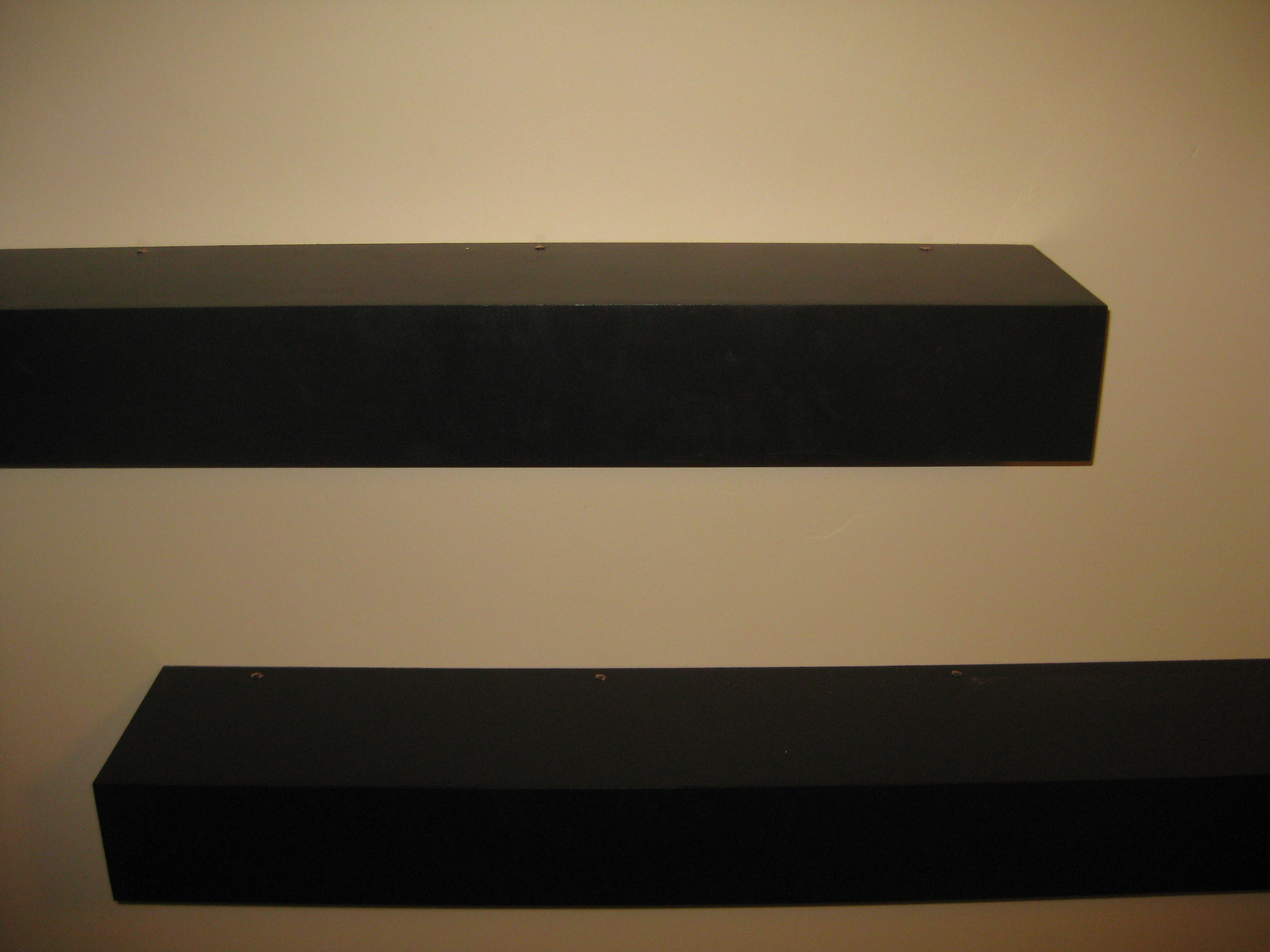

I laid out and drilled some holes in the tops of the shelves so I could secure them to the cleats. Some people screw them in from the bottom, but you are dealing with two forces here - gravity and shear. Screws on the top are way better at fighting shear than screws on the bottom trying to hold all the weight. I used tape so as not to mar the paint.
Last step was to display all my small percussion instruments.
Last step was to display all my small percussion instruments.
