The Chocolate Taker Revenge-Inator (Pocket Size)
It is good to share, but it is bad when people take without asking. The Chocolate Taker Revenge-Inator (Pocket Size) will enable you to get revenge on someone that would stoop so low as to take chocolate without asking. It is a simple circuit inside a box. When the box is lifted, it immediately emits a loud buzz that frightens the would be taker of chocolate, and alerts the owner, and everyone within earshot, that someone was thinking about taking chocolate.

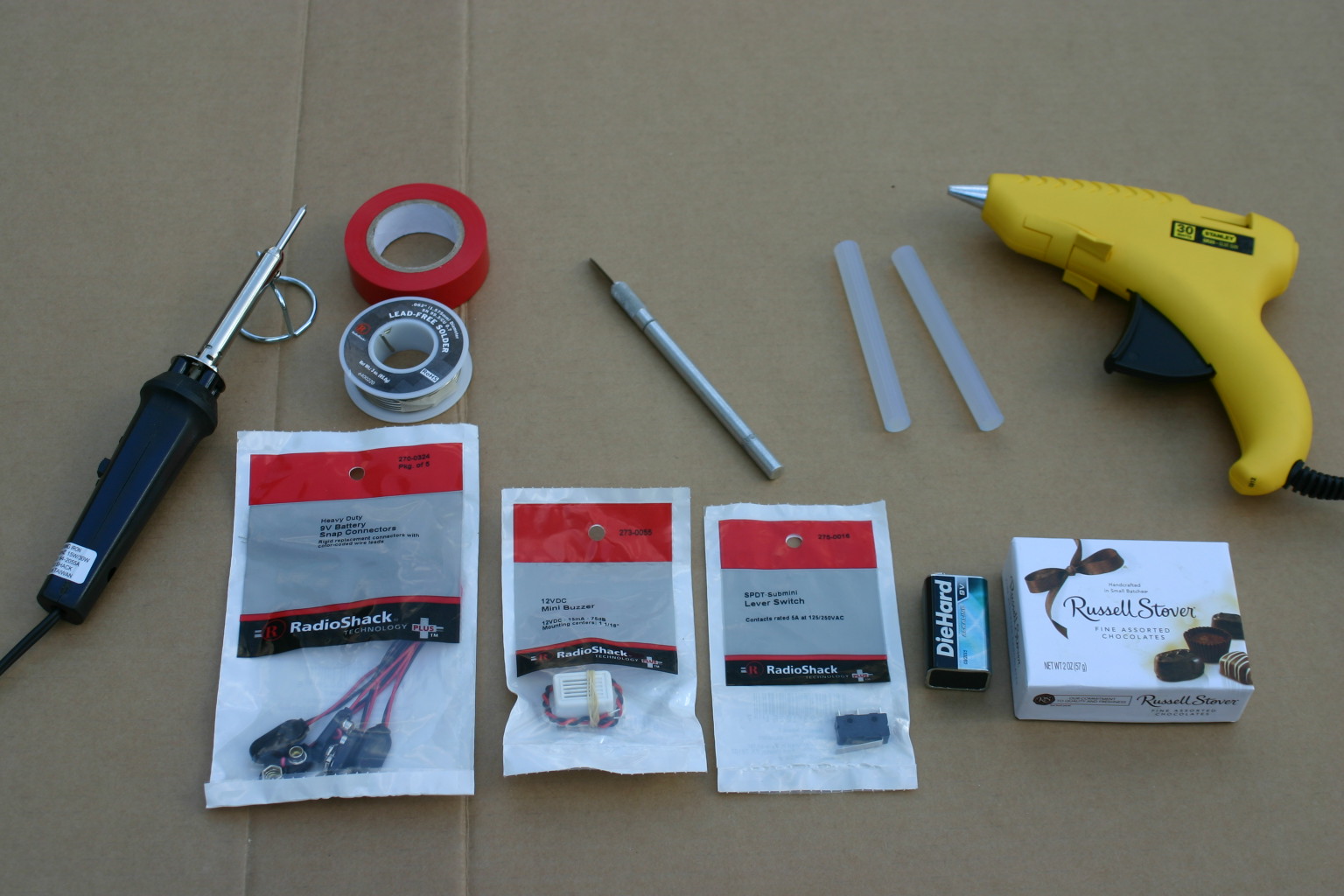

Tools and Materials
There are only a few items you will need to make the Chocolate Taker Revenge-Inator.
9-volt battery
9-volt battery holder - Radio Shack 270-0324
12-volt DC Mini Buzzer - Radio Shack 273-0055
Limit Switch - Radio Shack 275-0016

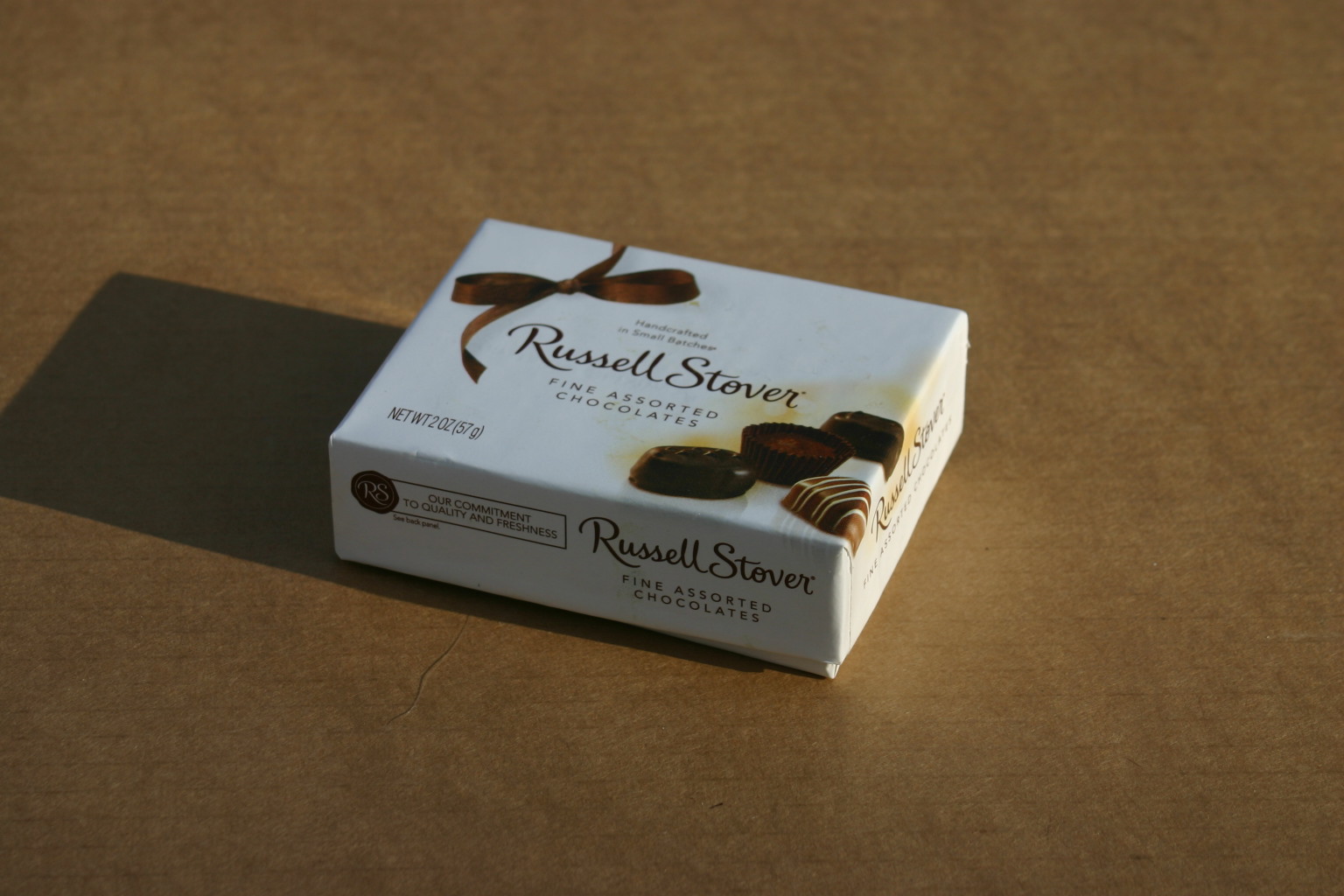

Tempting box (Christmas and Valentines small sample chocolates work perfect)
Solder
Soldering Iron
Electrical tape
Hobby Knife
Hot-Glue Gun
Hot-Glue
9-volt battery
9-volt battery holder - Radio Shack 270-0324
12-volt DC Mini Buzzer - Radio Shack 273-0055
Limit Switch - Radio Shack 275-0016
Tempting box (Christmas and Valentines small sample chocolates work perfect)
Solder
Soldering Iron
Electrical tape
Hobby Knife
Hot-Glue Gun
Hot-Glue
Limit Switch
The Limit switch can be wired two ways; normally opened and normally closed. In this circuit you will use the normally closed position.
Make the Circuit
The circuit is simple. Battery to switch to buzzer. If you have it right, the buzzer will start buzzing. Push the switch and the buzzer will stop buzzing. Once you have the circuit correct, solder the connections and Put electric tape over the bare wires.
Position the Parts in the Box and Mark for Cutouts
Position the parts in the box and mark the box for cutouts. The buzzer and switch need to face the bottom of the box.
Cut Out Openings
Cut out the openings in the bottom of the box. One is for the lever on the limit switch the other is to let out the sound of the buzzer.

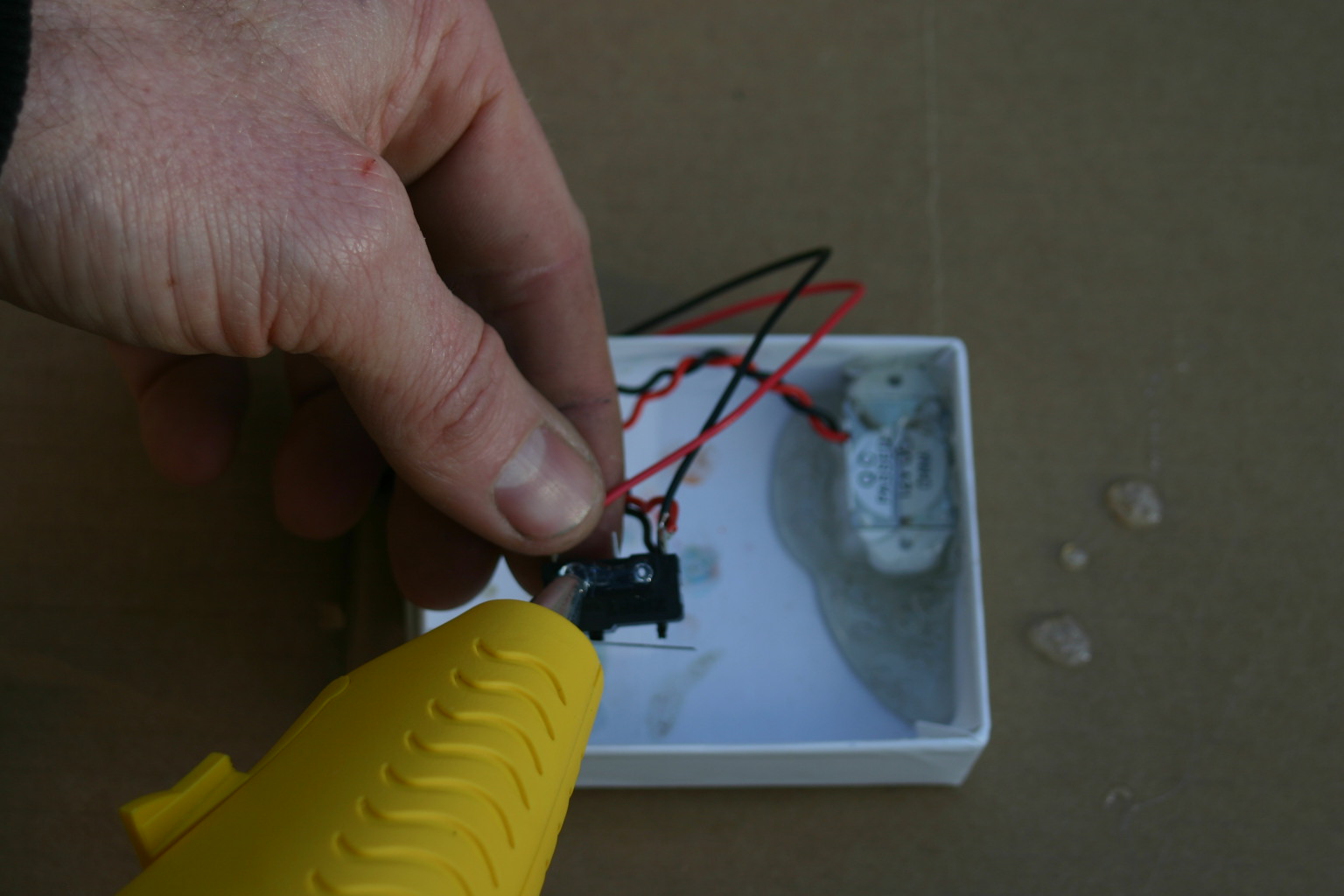

Glue the Buzzer and Limit Switch to the Bottom of the Box
Use the hot glue gun to glue the buzzer and the limit switch to the bottom of the box. Leave room for the battery in the middle. You can use a bunch of hot glue, but do not cover the grill of the buzzer and do not limit the movement of the lever of the limit switch. If glue does get in the way of the limit switch lever, make sure to clear the glue by trimming it with the hobby knife.
Enjoy Revenge Almost As Sweet As Chocolate
Put the lid on the box. If everything is working properly, it will be quiet as long as it is sitting on a flat surface, and make noise when it is lifted. Place the box where someone will be tempted to lift it. This works especially well if the same box was in the same location when it had chocolate in it. It is really fun in an office environment, where there are more witnesses to the person lifting the box.
I made this very simple to be small, cheap, and easy to make. You could add a power switch, a vibrating motor, flashing lights, a recorded message to the chocolate taker. Whatever
As always Enjoy.
