The Cat Launcher - Energetic Cat's Workout Toy or Just a Lazy Owner

Here I'm glad to present to you my next invention!!! - The Cat Launcher

This toy is for your cat or dog or other lovely friend that is going absolutely CRAZY to chase a moving object!

With this crazy machine you pull the string away from it ... place the string with the SHINY object at its end in front of the cat ... back off ... and ... press the launch button!

And then what you see is an animal desperate to catch the attractive bow!

Here is a short video that shows the Cat Launcher in action!

1: Put the switch to Astronaut mode.

2: Press the launch button and enjoy the cat orbiting around.

I'm sorry for the blurry photos, but cat is too fast!

These are the basic parts needed.

LEDs may be skipped, I have them just to make it more interesting.

You need:

• A plastic box
• Switches
• Small DC motor from a toy
• Reel and string
• Battery holder and batteries (holder for two or three 1.5V batteries)
• Cables and heat shrink tubng
• LEDs (optional)
• Labels (optional)

You may need:

• Drill and bits
• Knife
• Gauge
• Soldering iron and soldering wire
• Zip ties
• Cable cutters and Pliers
• Hot glue

The circuit schematic shows all the connections. For simplicity one of the speeds can be omitted as well as the LED.

Ensure that the box is large enough to fit the motor, battery holder as well as the switches.

I used a battery holder out of a flashlight.

Because the motor spins too fast at 4.5V, I soldered a cable at the 1.5V spot to have two different speeds for the operation.

NOTE: Use the first positive terminal as shown on the schematic diagram. The negative terminal is common for the two speeds.

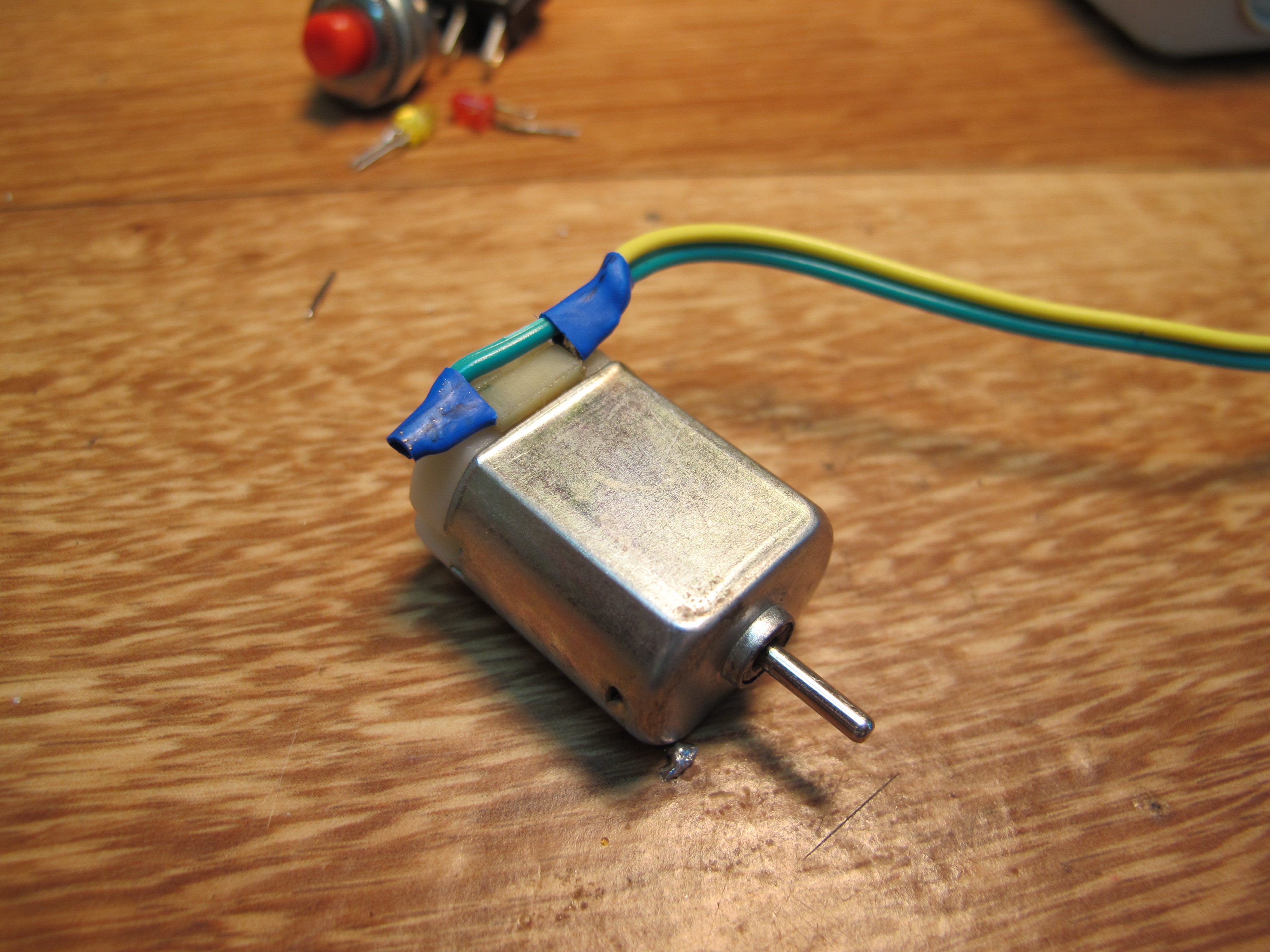

Solder two cables to the motors terminals and insulate with shrinking tube.

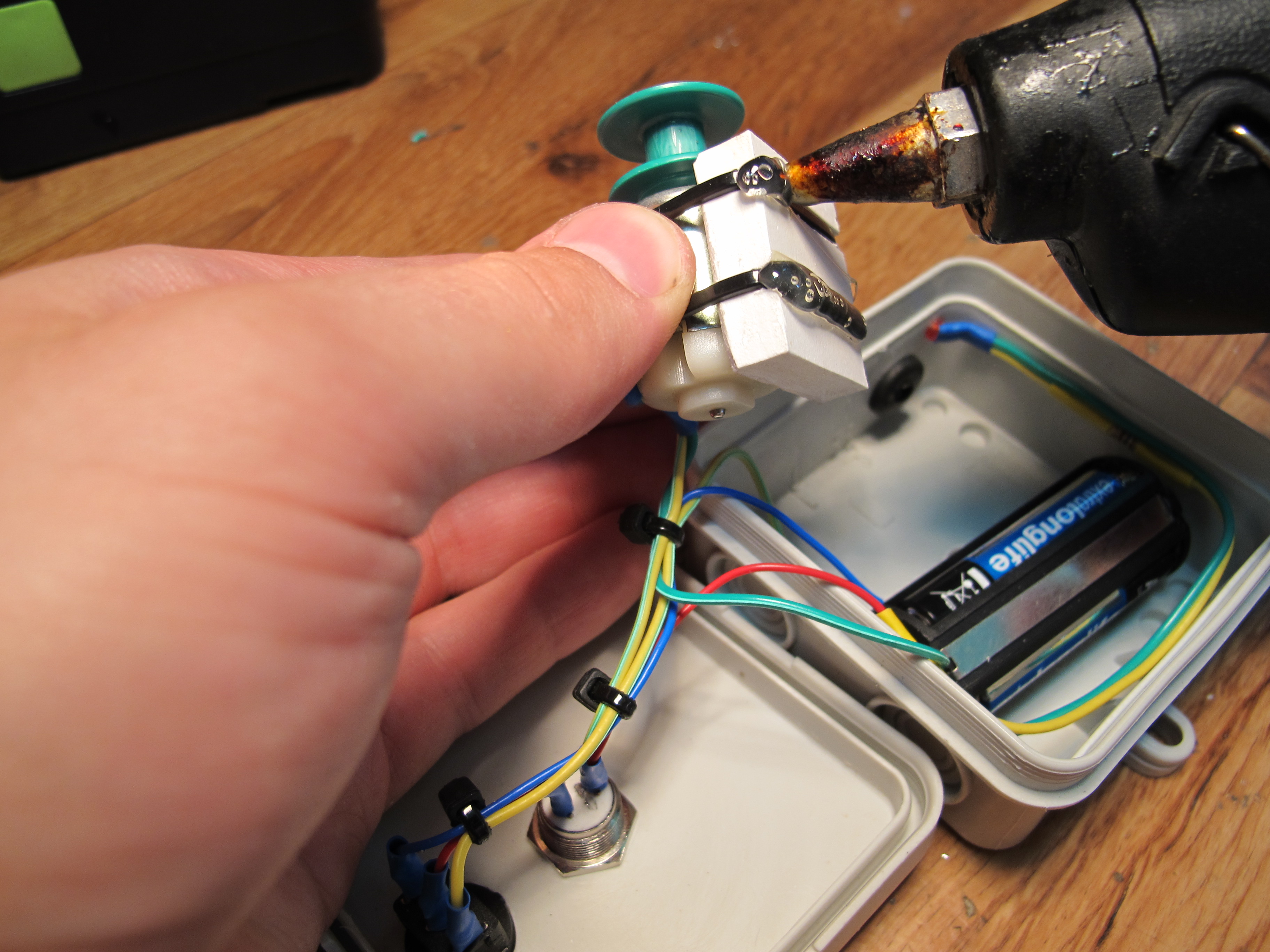

I used hot glue to attach the reel to the motor axis.

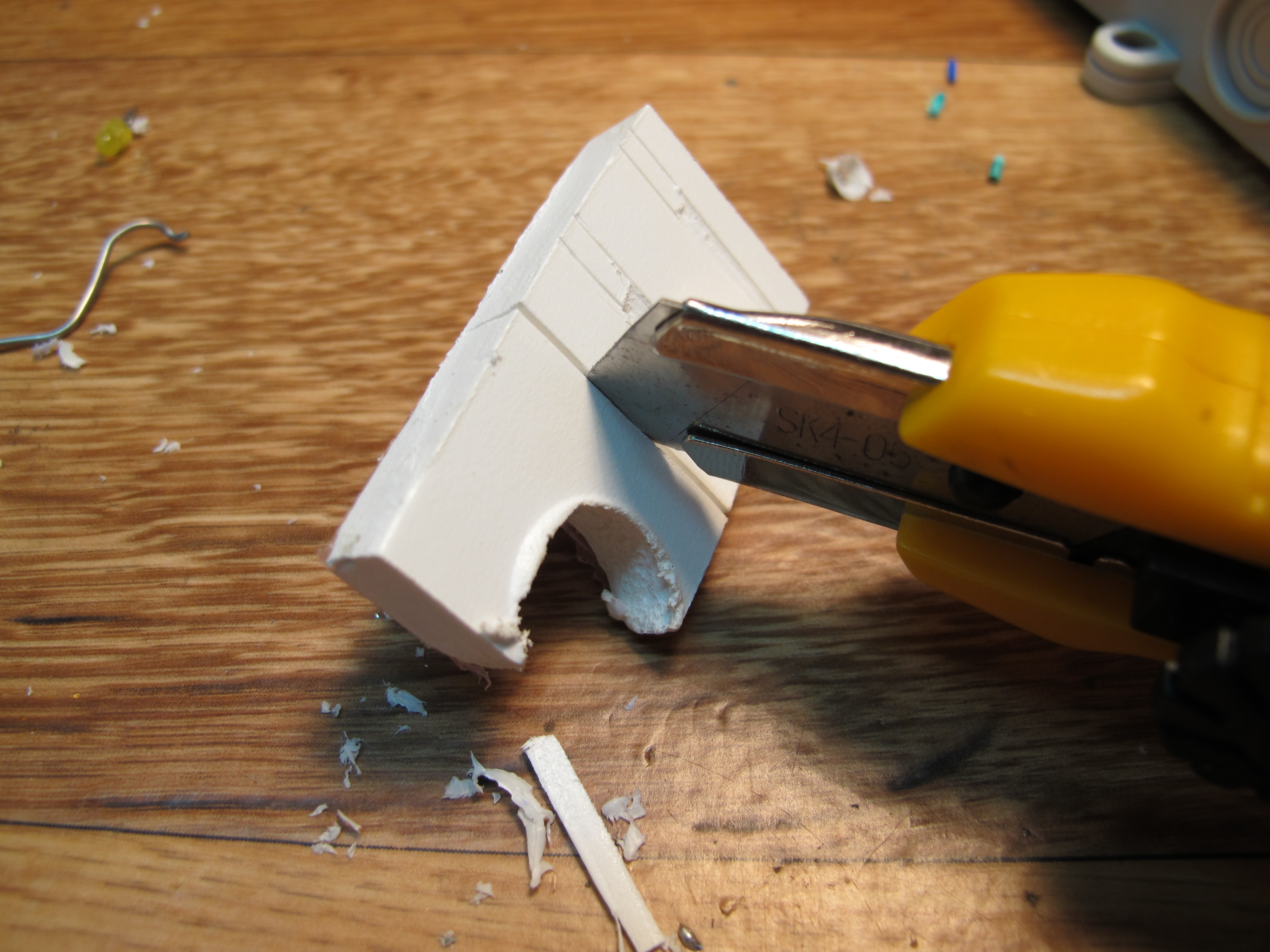

Using a piece of soft white plastic I made a stand for the motor. I cut two slots for zip ties and tied the motor to the stand.

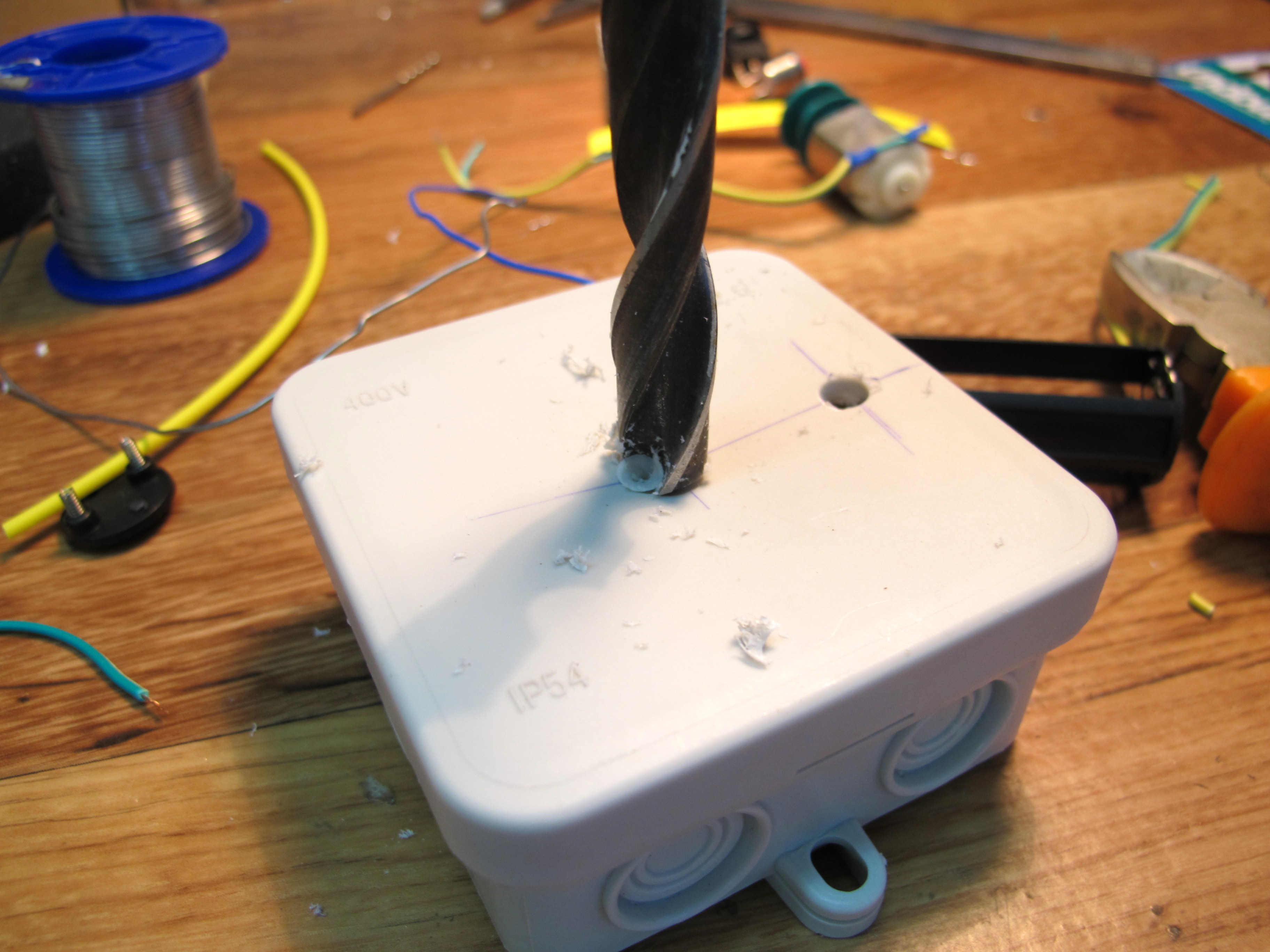

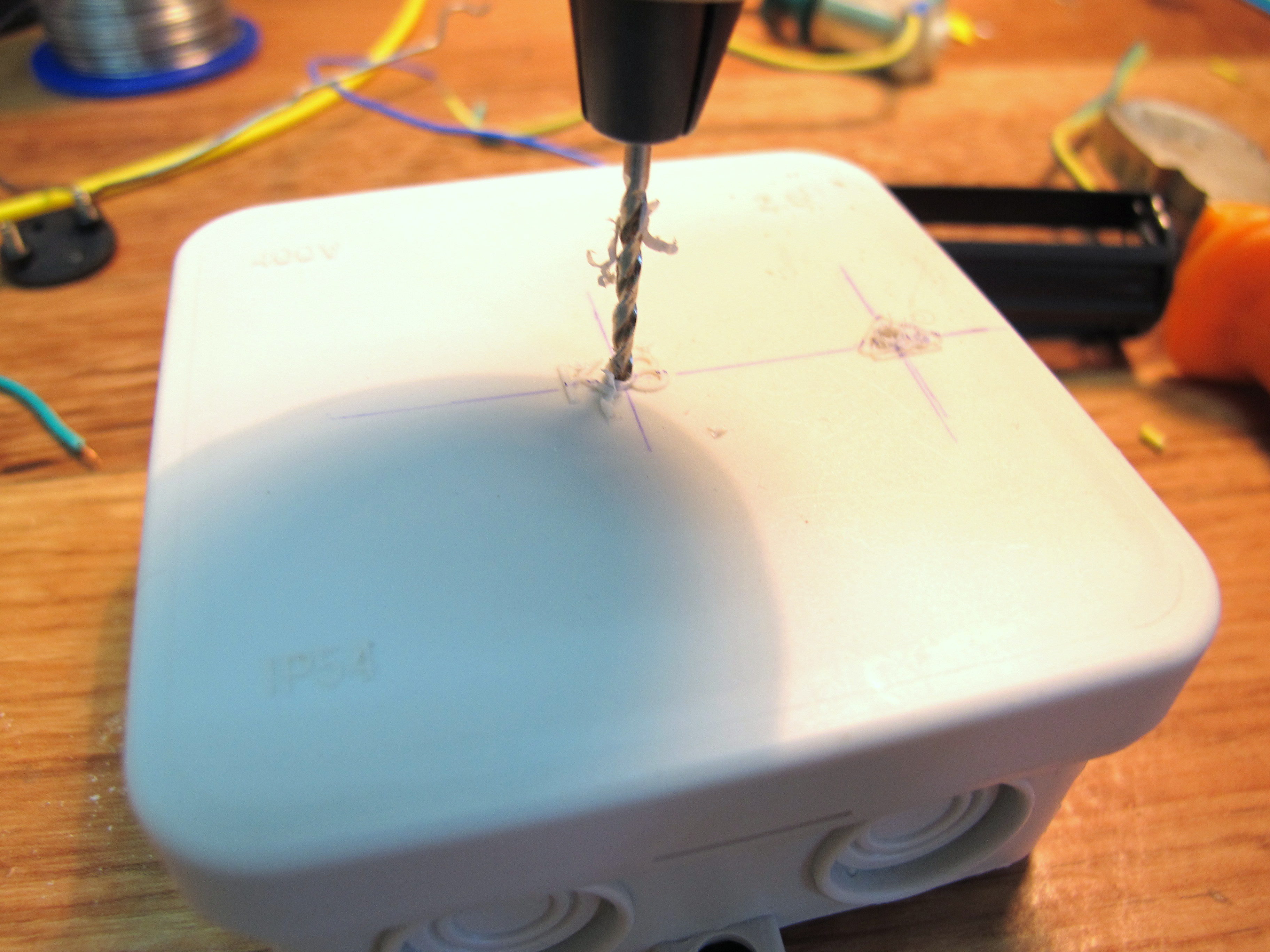

Drill two holes in the box to fit the buttons. Here you may need the gauge to measure what is the button diameter to determine the drilling bit.

One button changes the speed of the motor, other is the Start/Stop control.

If the box is very soft start with a small bit and progressively increase the size.

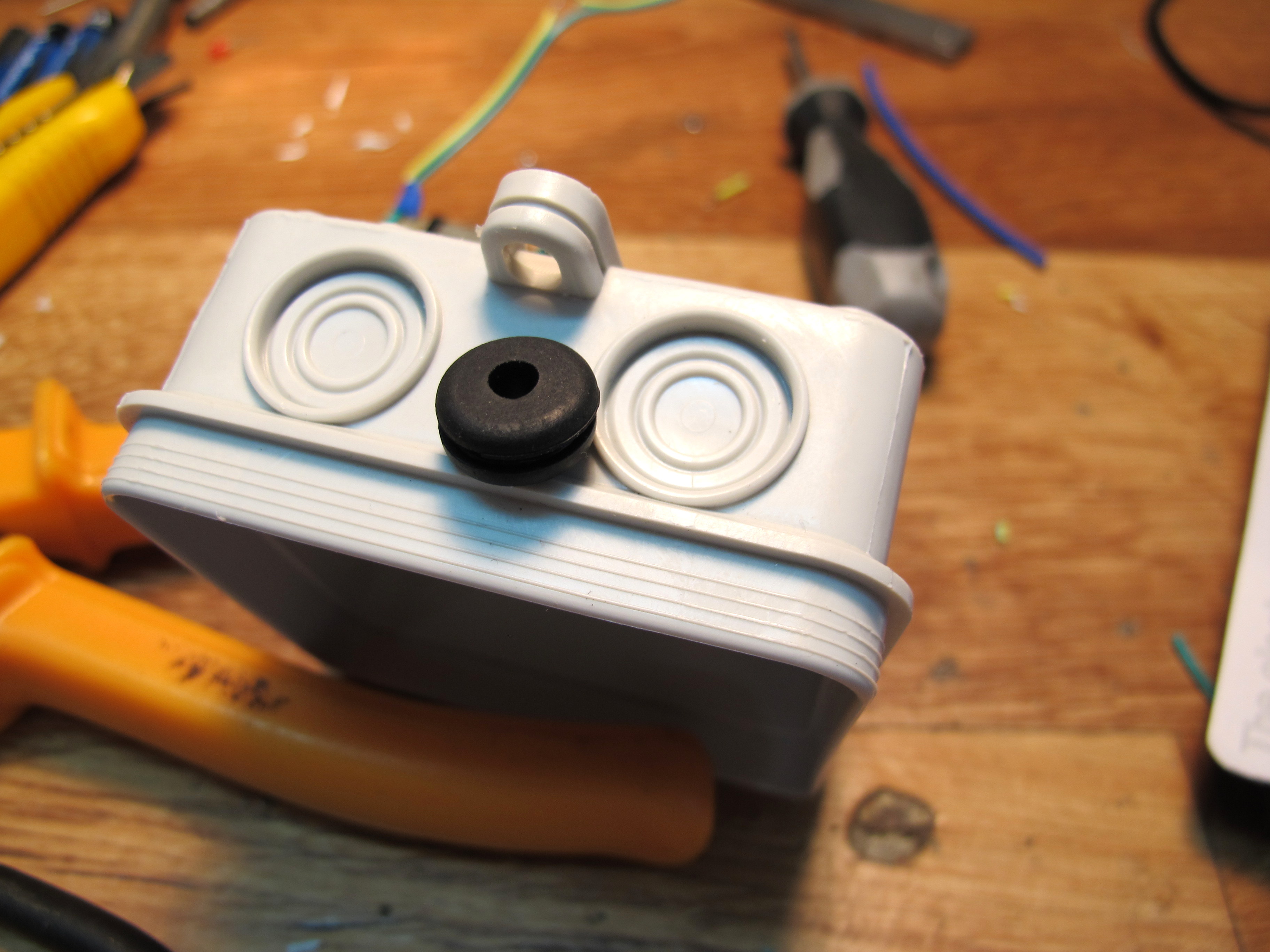

Just drill a hole on the side of the box where the reel rotates. Align the reel and the hole

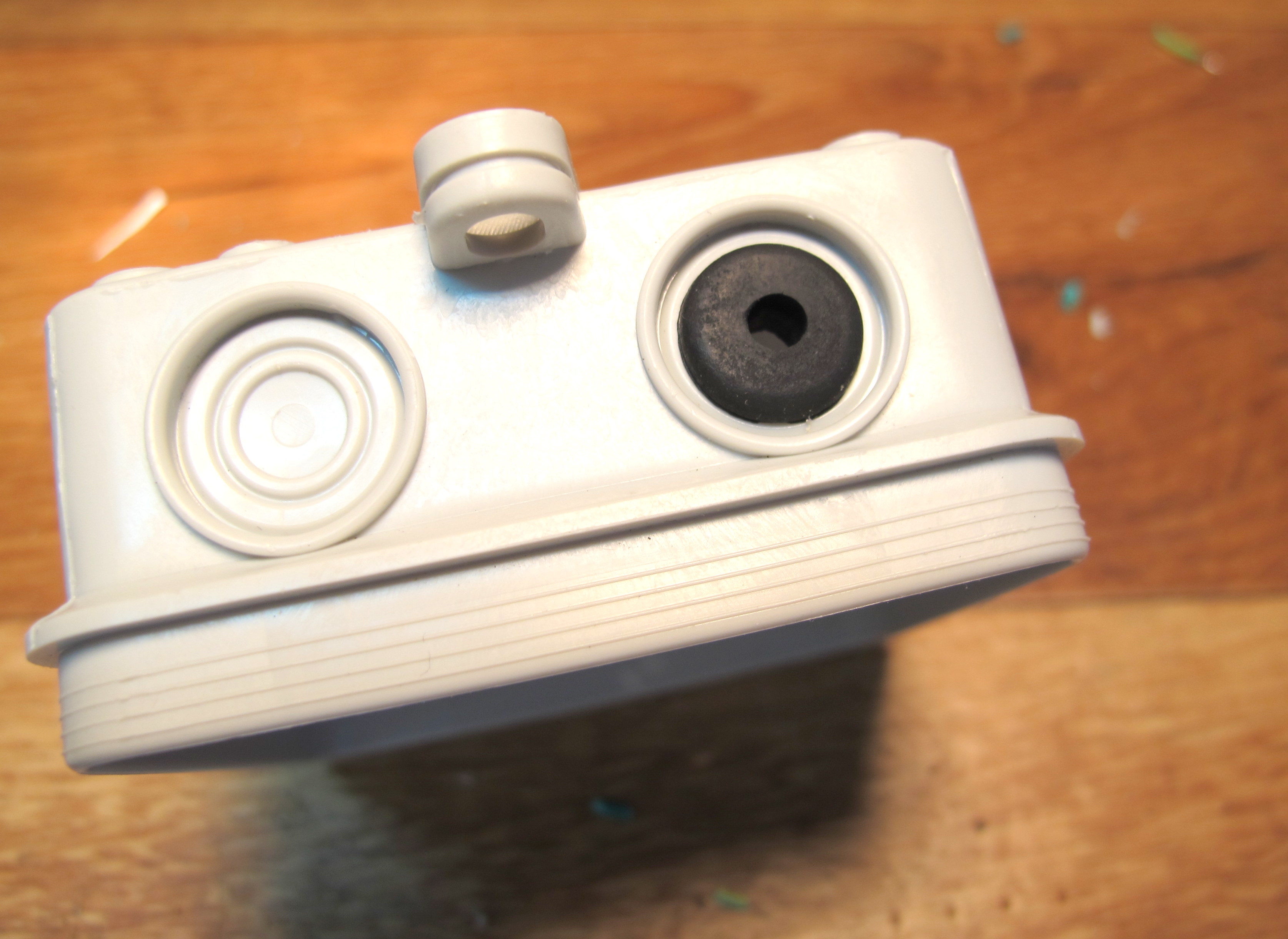

I used a soft rubber piece to lay over the hole and protect the string from the harder plastic.

LED is soldered and its wires are insulated using the shrinking tube.

Voltage drop on LED = Resistance * Current

Resistance  = Voltage drop on led / Current  = 2.5 V / 15 mA  = 160 Ohms

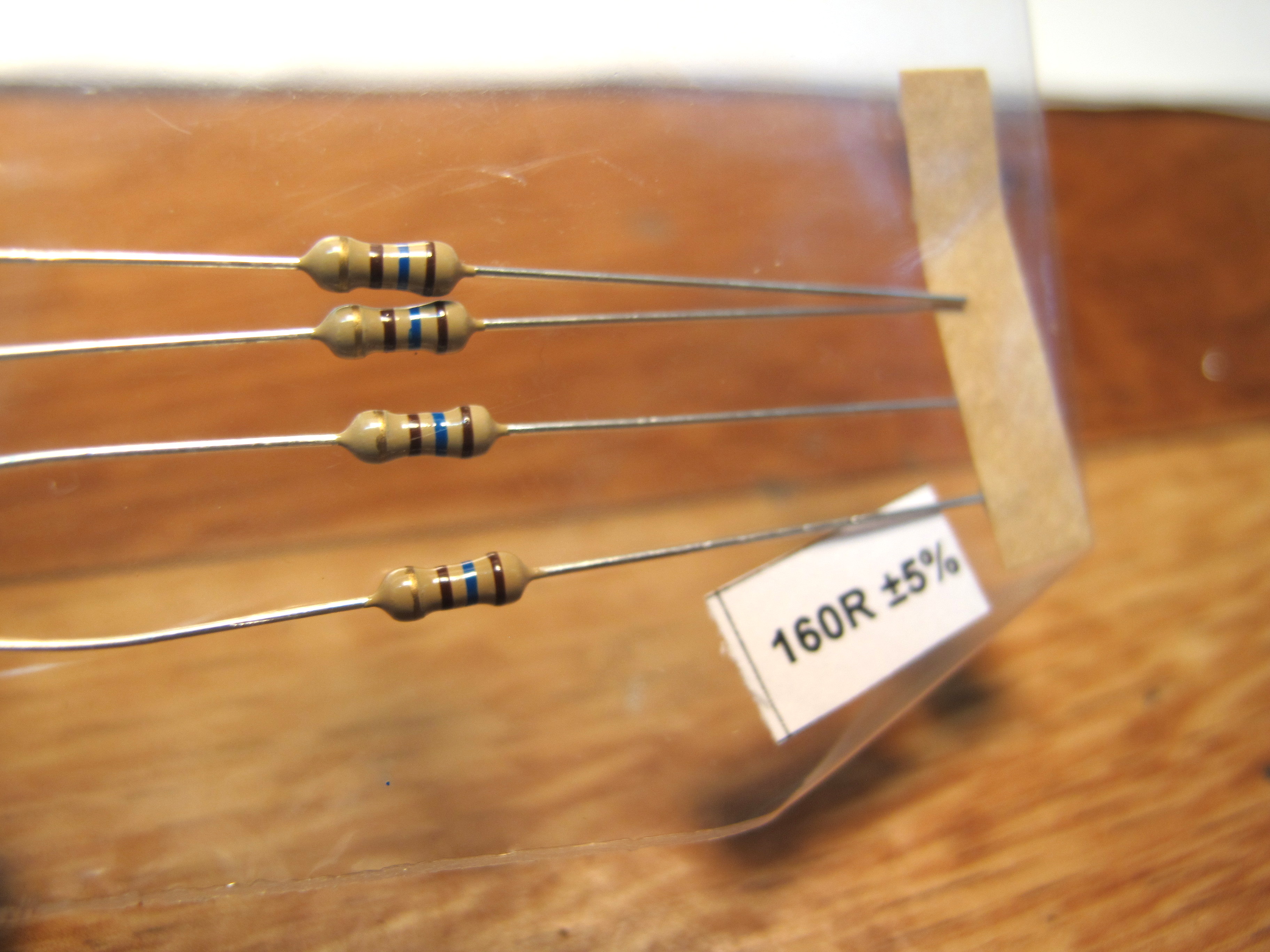

160 Ohms resistor is enough to limit the current through the LED to 15 mA.

NOTE: The LED will have sufficient current through it to light it up only when powered at the higher voltage with the resistance in series with it.

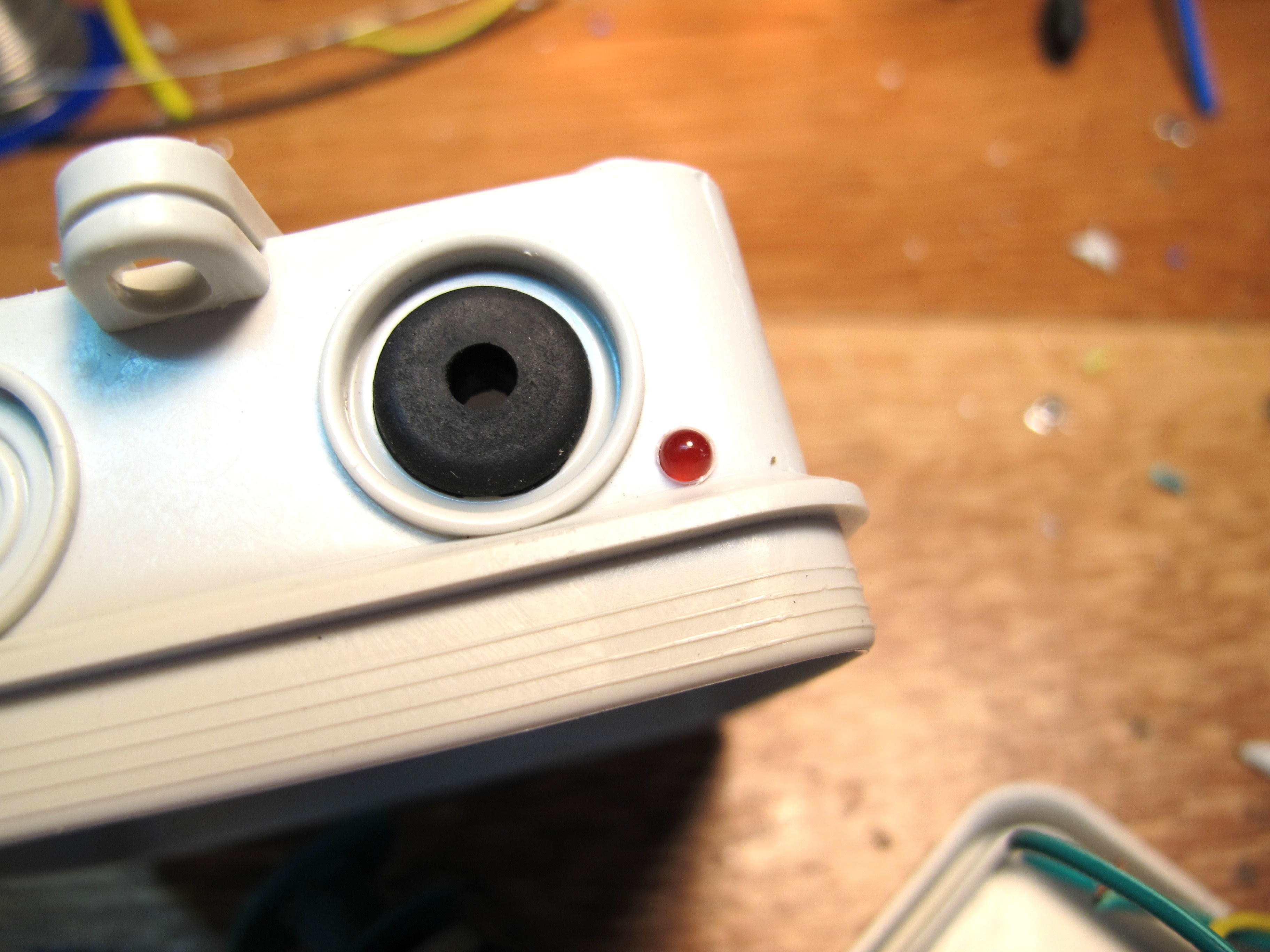

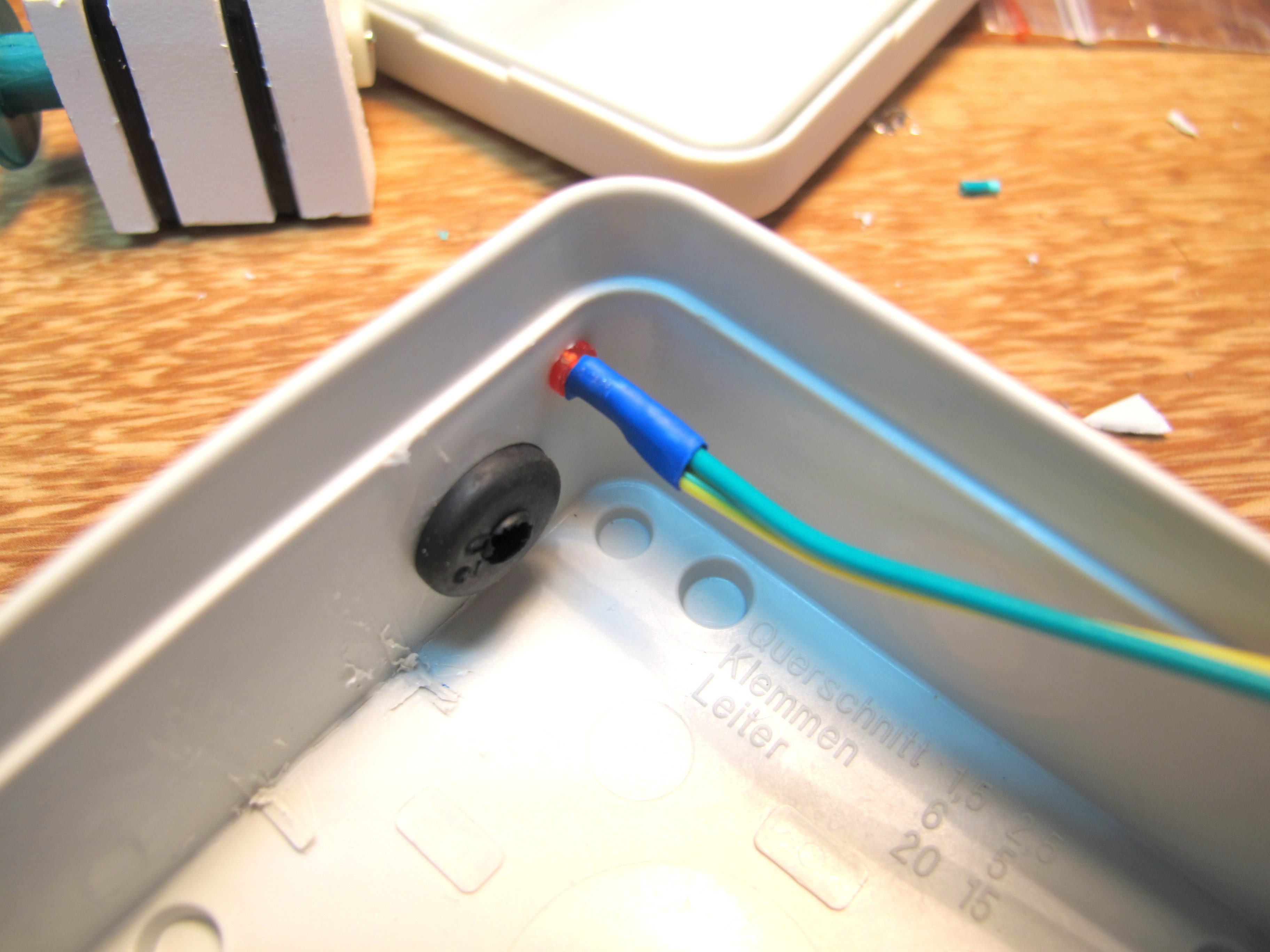

A hole is used to keep the LED in place just where the string enters the box.

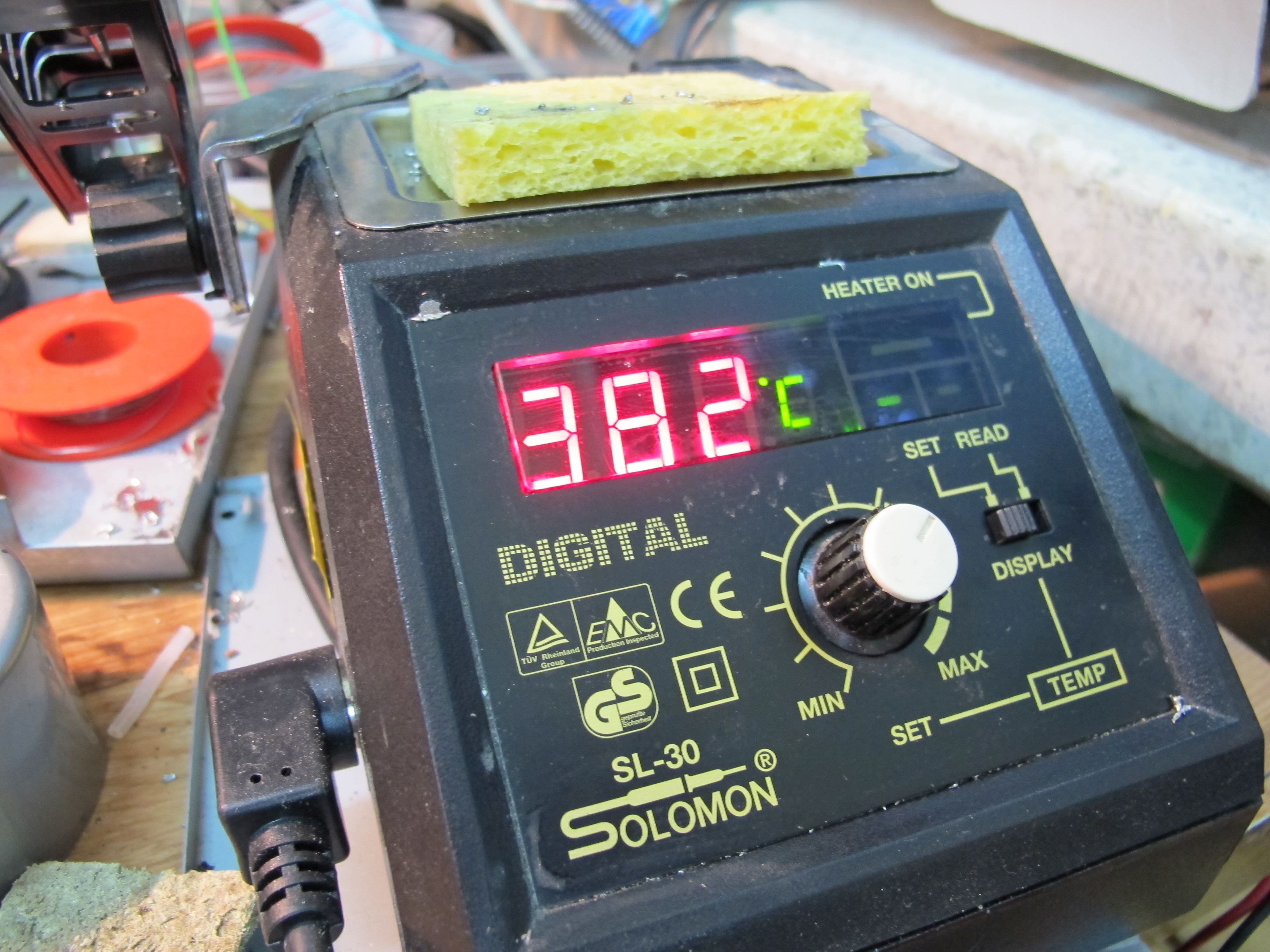

Ideal soldering iron temperature is about 380-390 degrees Celsius.

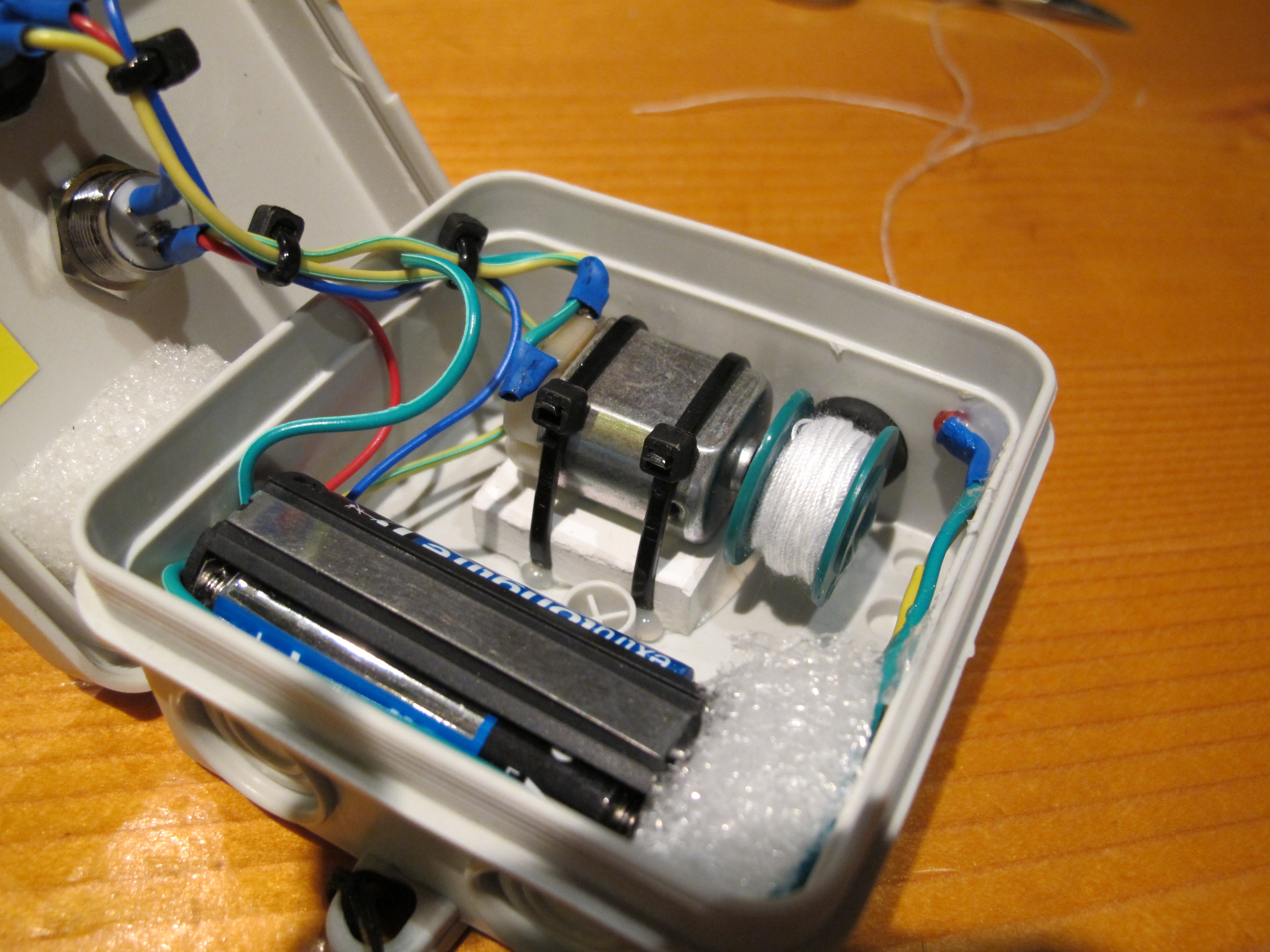

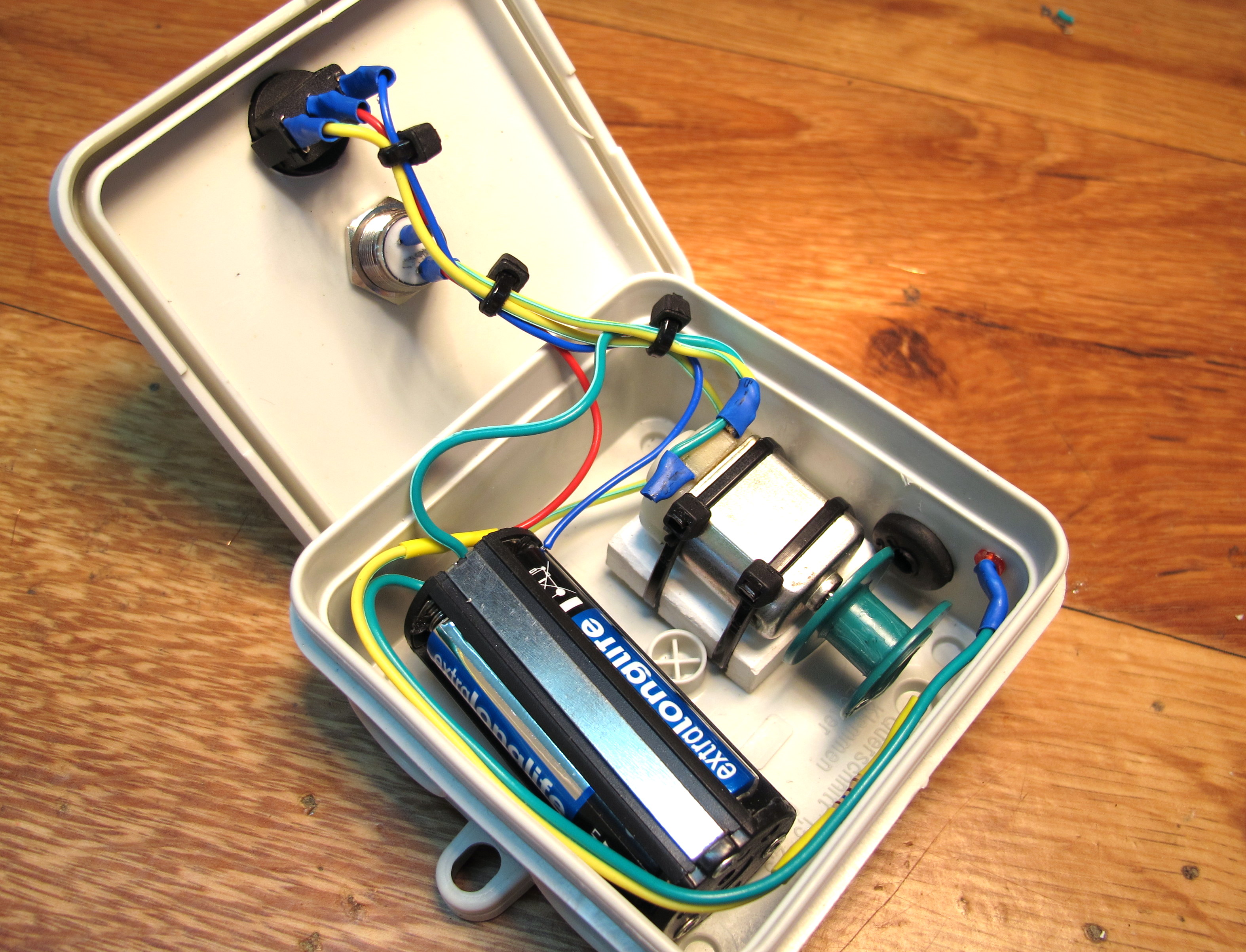

All cables are soldered and insulated with heat shrink tubing.

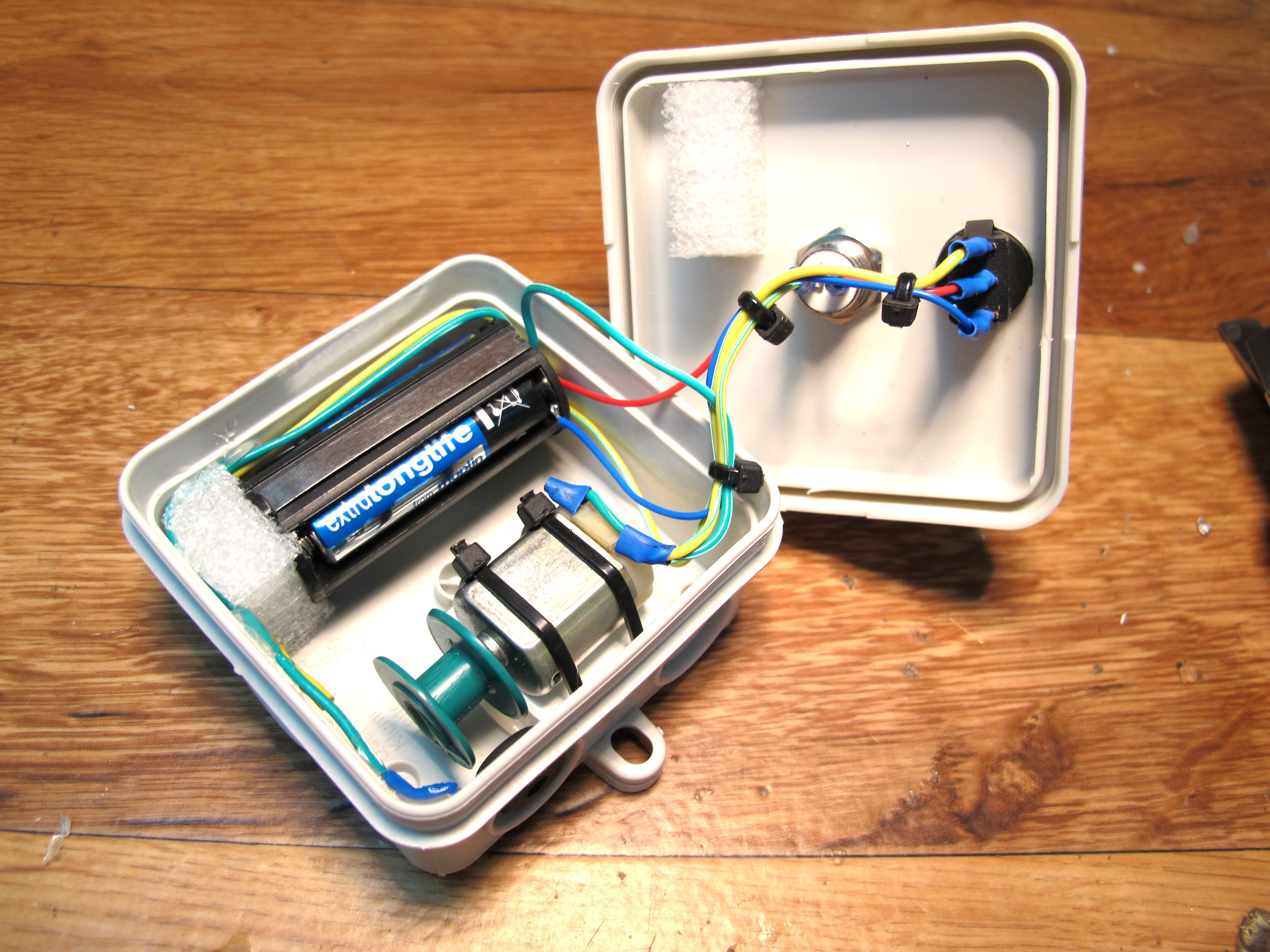

Finally zip ties tidy the mess and the connections look better.

It's a good idea to keep any wires away from the string and reel.

I used hot glue for the motor base and the cable that supplies power to the LED.

I used some kind of porous foam to help me keep the battery holder from wobbling around.

Could be hot-glued to the box too.

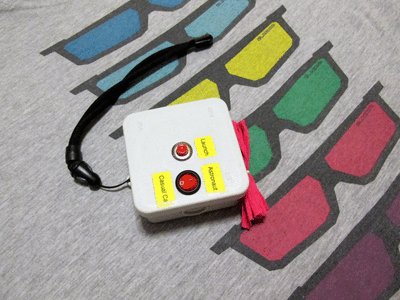

I had a printer at my disposal and printed some nice labels to show what each button is for.

One label is to change the speed from casual walk to astronaut's space travel speed.

Other for the string pull.

Finally the reel needs a string that has something attractive to the cat's preference.

I used about 5m of string (15 feet).

I also hang a wrist wrap at the side of the box.
