The CANARY. Arduino Based NO2 Sensor and Mapper
by SiddharthD27 in Circuits > Sensors
7061 Views, 24 Favorites, 0 Comments
The CANARY. Arduino Based NO2 Sensor and Mapper
![SAM_0367.JPG](/proxy/?url=https://content.instructables.com/F0R/X4SS/J4YFQUEA/F0RX4SSJ4YFQUEA.jpg&filename=SAM_0367.JPG)
This project was made by Davide Scola, Laura Newton and I, Siddharth D'Souza.
We undertook this topic as part of our module Applied Measuremental Control at Rhine-Waal University of Applied Science.
Being Environmentally conscious students, we wanted to measure and map the NO2 in the air around us. NO2 is a toxic gas emitted from vehicular exhaust.
The name CANARY comes from the bird that was used as a indicator of high carbon-monoxide levels in underground mines.
You can find more details about the different components and their working in our final presentation.
Take the CANARY with you!
We are happy to share all the files we used and created. Feel free to adapt and tweak them.
Feedback, comments and suggestions always welcome!
Downloads
The Sensors and the Code
![SAM_0365.JPG](/proxy/?url=https://content.instructables.com/FEK/56M4/J4YFQUNG/FEK56M4J4YFQUNG.jpg&filename=SAM_0365.JPG)
Things you will need:
- Seeeduino Stalker (V3 used for compatibility to micro SD Card)
- GPSBee
- UART SBee (to connect Stalker to computer)
- MiCS-2714 NO2 Sensor
- LED
- Resistors 132Ohm (2 264Ohm used in paralell) and 22kOhm
The Arduino code used can be downloaded.
The House for the CANARY
![20170628_173958.jpg](/proxy/?url=https://content.instructables.com/FZK/FSDW/J4SQB3CL/FZKFSDWJ4SQB3CL.jpg&filename=20170628_173958.jpg)
![20170628_165103.jpg](/proxy/?url=https://content.instructables.com/FFZ/9FCO/J4SQB3A9/FFZ9FCOJ4SQB3A9.jpg&filename=20170628_165103.jpg)

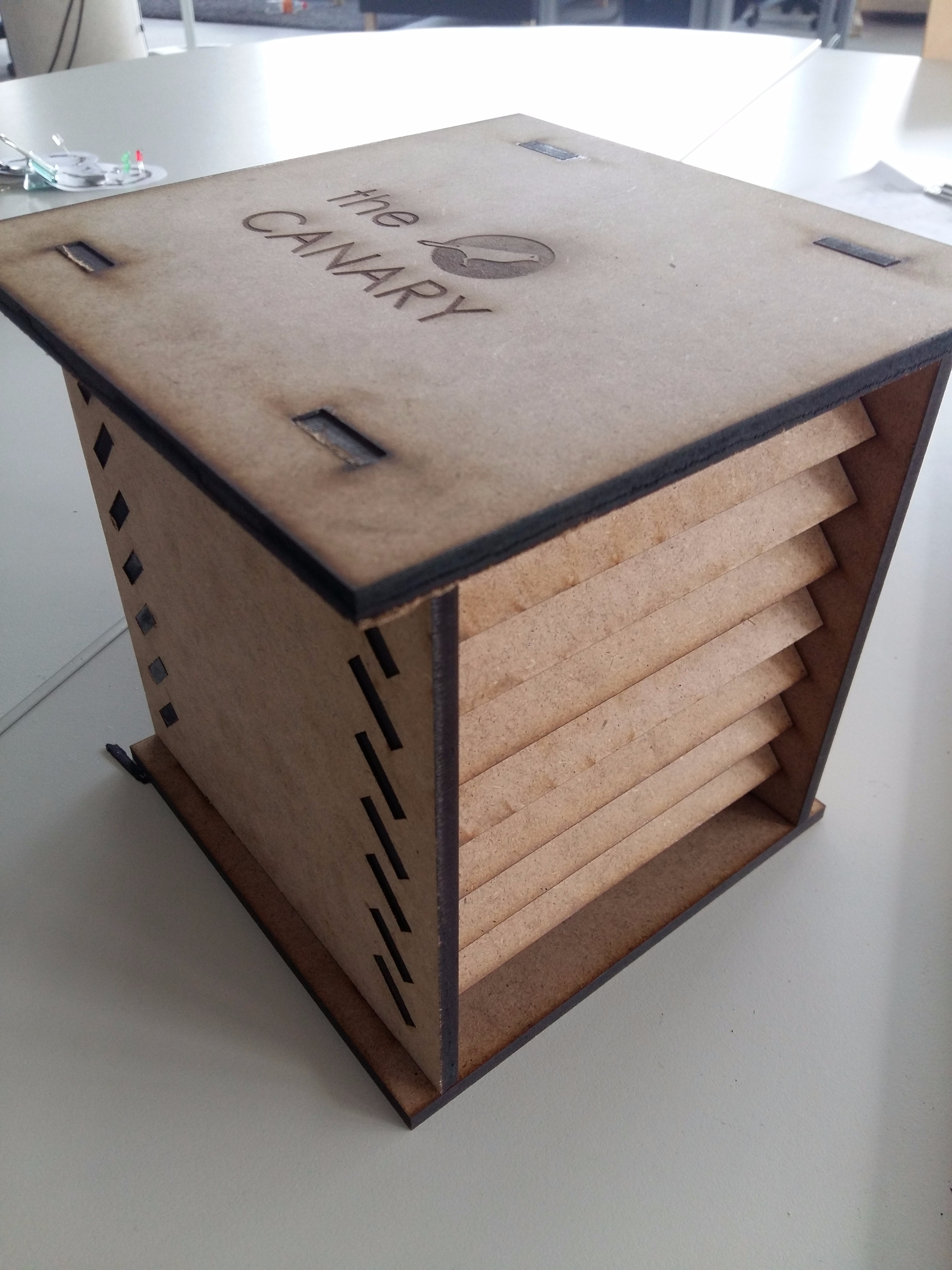

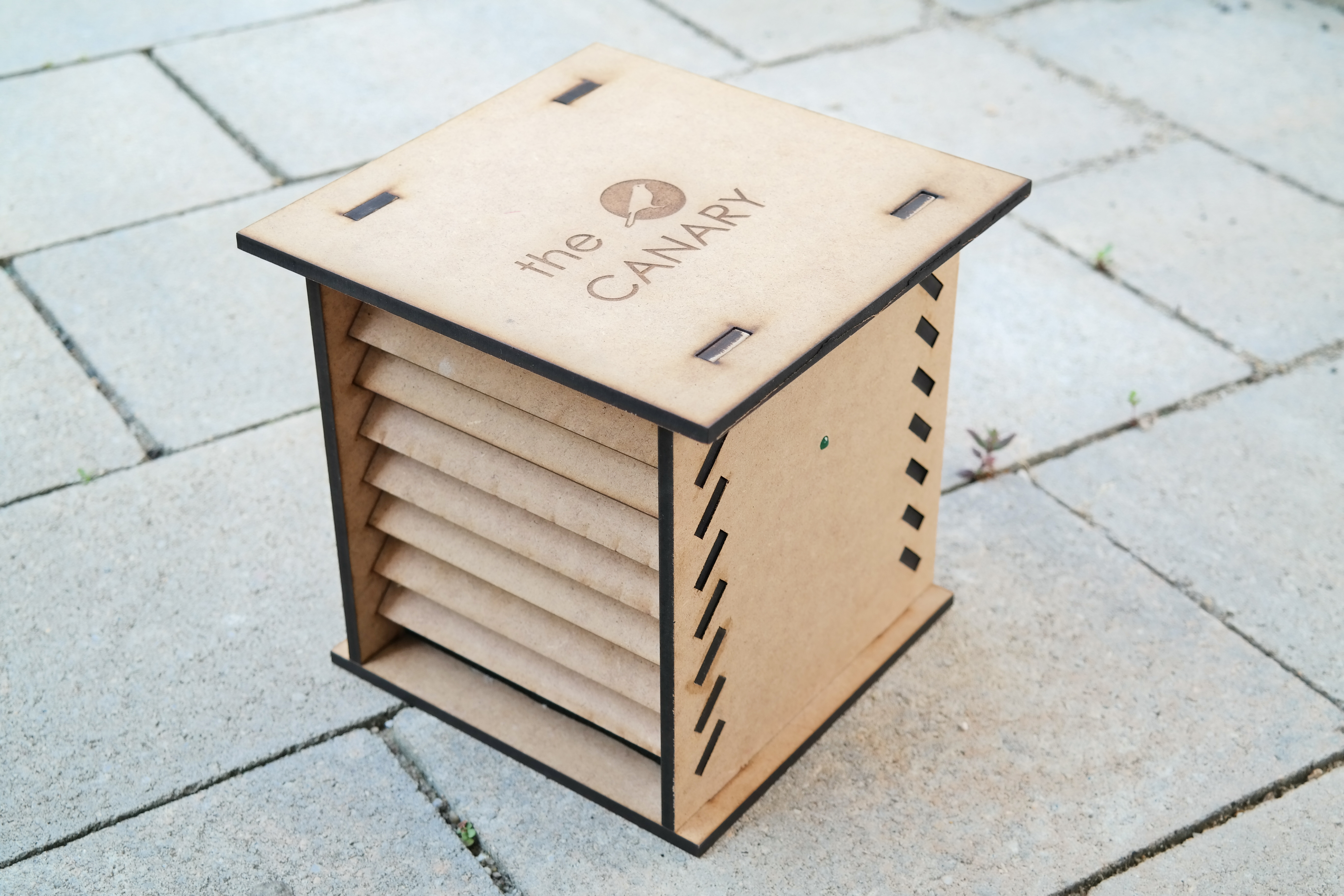

The house for the CANARY is based on a Stevenson's Screen. A standard box used to house weather measuring equipment. The basic idea was that there should be a natural air flow, while our devices are still protected from the natural elements.
We laser cut a box from 6mm MFD board. The sketch was made in Rhino and is available for download.
Downloads
Viola! the CANARY Is Ready to Go Around Town
![20170707_124846.jpg](/proxy/?url=https://content.instructables.com/FZY/2W8F/J4SQB3H6/FZY2W8FJ4SQB3H6.jpg&filename=20170707_124846.jpg)
As you can see, our box fits perfectly on a cycle carrier and is light and easy to take around.
![noon0707.png](/proxy/?url=https://content.instructables.com/F72/8KD8/J4SQB7FK/F728KD8J4SQB7FK.png&filename=noon0707.png)

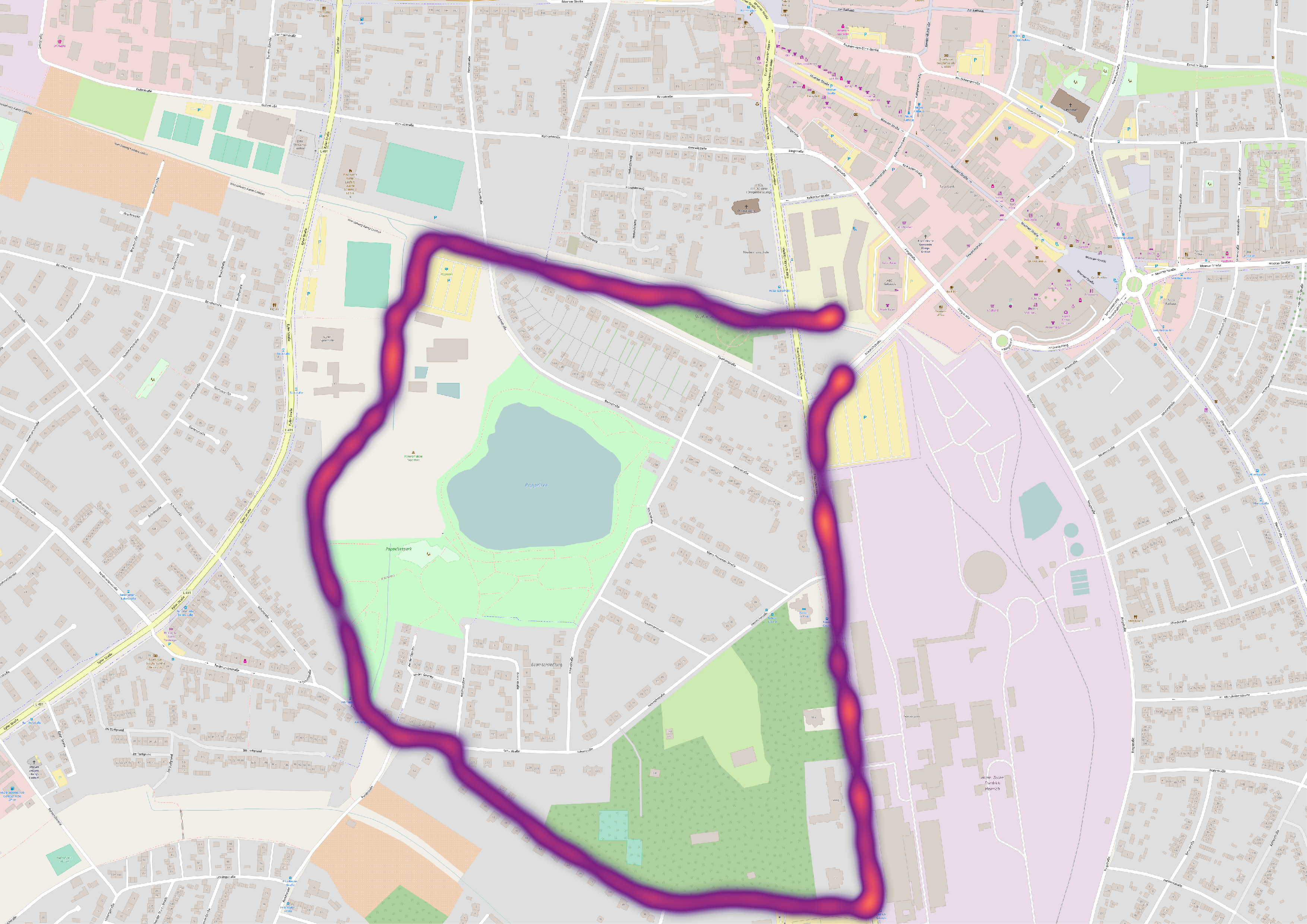

To create a heat-map, QGIS was used. Since the data coming from the GPS sensor was too long, a parser was created in Python to optimise the data.
