The Beginner's Guide to Soldering
![DOdSnPvUEAAofla.jpg](/proxy/?url=https://content.instructables.com/F15/0S1U/JHATLN04/F150S1UJHATLN04.jpg&filename=DOdSnPvUEAAofla.jpg)

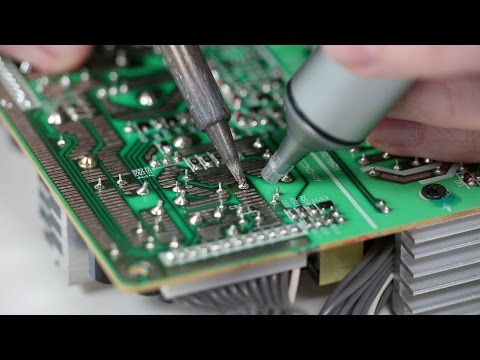

Today I wanted to talk about the beginners guide to soldering. Soldering is a fairly important concept for those who want to fix electronics or make their own PCB with limited resources.
Have Circuit Design in Mind
![DaMRXZcVAAAvjIc.jpg](/proxy/?url=https://content.instructables.com/FDQ/M38K/JHATLN8J/FDQM38KJHATLN8J.jpg&filename=DaMRXZcVAAAvjIc.jpg)

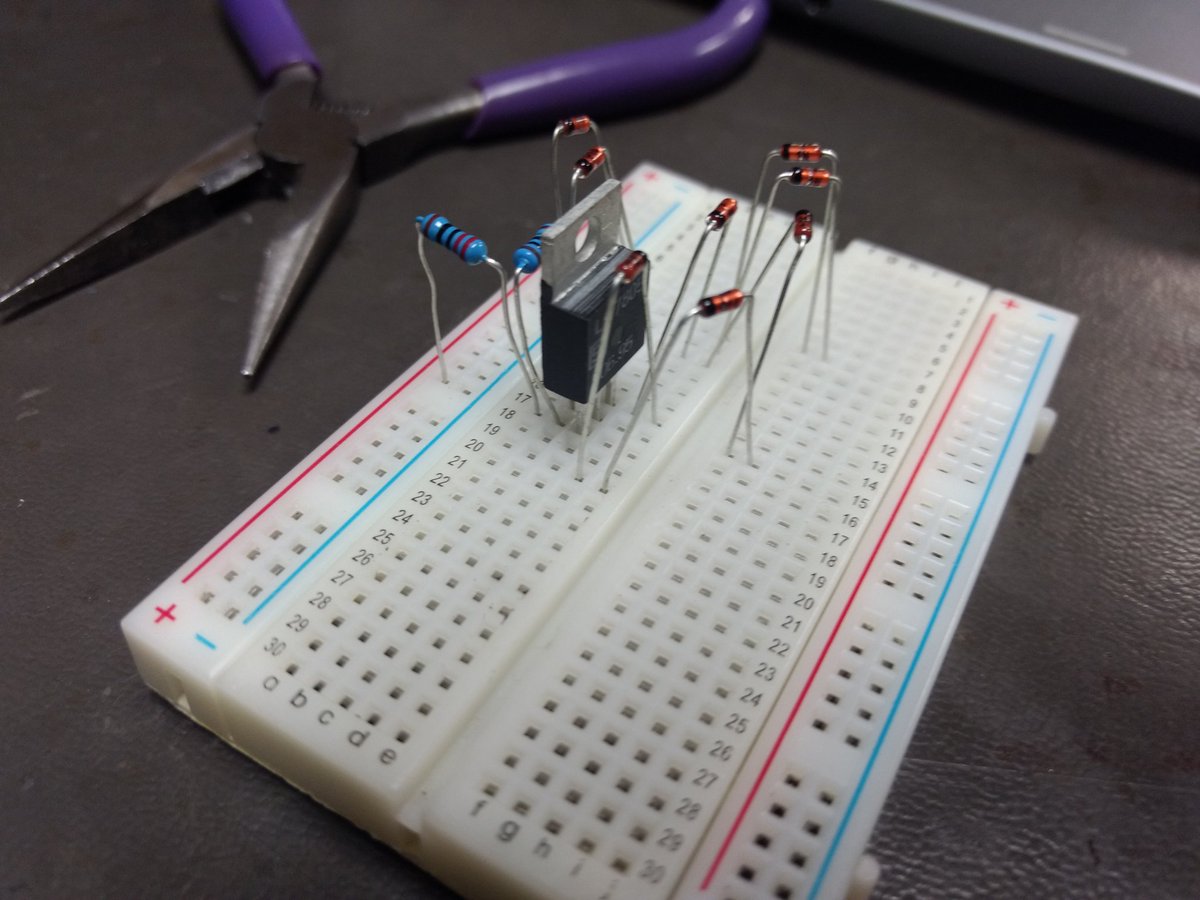

Have a circuit design in mind. Then test it on a breadboard and multi-meter before starting the soldering process.
Wear Safety Equipment
![C6KkkqpUYAA3qgB.jpg](/proxy/?url=https://content.instructables.com/FOD/VRO1/JHATLNBE/FODVRO1JHATLNBE.jpg&filename=C6KkkqpUYAA3qgB.jpg)
Wear safety equipment and make sure to use helping hands when soldering. Use a solder tip and soldering iron and solder each electronic part piece by piece. (Always keep in mind it is best to solder on an anti-static mat or wear safety/anti-static gloves while soldering to not ruin the electrical components).
Solder the Ends
![DVA6-W_UQAAJdzc.jpg](/proxy/?url=https://content.instructables.com/F8N/LGFO/JHATIZ4P/F8NLGFOJHATIZ4P.jpg&filename=DVA6-W_UQAAJdzc.jpg)
![C6Kks3XVAAEd1zT.jpg](/proxy/?url=https://content.instructables.com/FN0/EF26/JHATIW5D/FN0EF26JHATIW5D.jpg&filename=C6Kks3XVAAEd1zT.jpg)
Once the tips are done, solder each end point of the circuit then get ready to test your board. If you made a mistake, you can always use a solder pump or desolder.
Desoldering
![Collin’s Lab: Desoldering](/proxy/?url=https://content.instructables.com/F5E/XEHK/JHATJ1OL/F5EXEHKJHATJ1OL.jpg&filename=Collin’s Lab: Desoldering)
If all else fails, Adafruit has this wonderful desoldering guide
