The 8 Oz. Putter Hammer
![Par.jpg](/proxy/?url=https://content.instructables.com/FXJ/C451/LM0LX62L/FXJC451LM0LX62L.jpg&filename=Par.jpg)
![putter hammer.jpg](/proxy/?url=https://content.instructables.com/F8E/DCHO/LM0LX62T/F8EDCHOLM0LX62T.jpg&filename=putter hammer.jpg)
![workshop puttering.jpg](/proxy/?url=https://content.instructables.com/FIM/O9B5/LM0LX69L/FIMO9B5LM0LX69L.jpg&filename=workshop puttering.jpg)
A custom putter-hammer is exactly what my nephew, a woodworker and a golfer, needs in his kit. Either for hard to reach fasteners or R&R at the links, this putter-hammer nails both!
Supplies
![overlap.jpg](/proxy/?url=https://content.instructables.com/FCW/UI7E/LM0LX6P0/FCWUI7ELM0LX6P0.jpg&filename=overlap.jpg)
Parts were simple, fate provided me with a head of an 8 oz. claw-hammer which broke off the handle. I went to a local used sporting goods shop and found a nice putter for a few dollars. Lastly, a little J-B Weld to epoxy the parts together.
The tools I found helpful included
- Bench vise with 3 axis swivel (quite helpful !!)
- Some scraps of card stock / heavy paper
- Wood rasp
- Speed square
- Mallet
- Awl
- Drill and a collection of drill bits ( I used 5/16" and 3/16" and 1/16")
- 6" Spirit level
- Masking tape
- Dremel rotary tool with following tools
- cut-off wheels
- flap wheel grinder
- carbon steel brushes, both side and forward style
- felt polishing wheels, large and small diameter
- polishing compound
Parts Preparation
![head prep.jpg](/proxy/?url=https://content.instructables.com/FNO/P62S/LM0LX7RG/FNOP62SLM0LX7RG.jpg&filename=head prep.jpg)
![drilling.jpg](/proxy/?url=https://content.instructables.com/F7H/ROPB/LM0LX7R6/F7HROPBLM0LX7R6.jpg&filename=drilling.jpg)
![tilting.jpg](/proxy/?url=https://content.instructables.com/FVL/WRDE/LM0LX7RH/FVLWRDELM0LX7RH.jpg&filename=tilting.jpg)
Cutting the existing putter head from my upcycled purchase was easy. Just clamped the head in the vise and used a rotary cutting wheel. The cut end of the shaft gets buried in epoxy later, so a reasonably squared off end is fine with no other prep.
The makerspace I am at has a nice vise. However, the jaws are metal and could mar the hammer head. A little card stock works well to buffer between the vise and hammer head.
The handle remains in the head could be used as a seat for the shaft. Regulation putters are typically 20 to 30 degrees off straight up and down. The one I cutoff was 23 degrees, which I decided to copy. Set the head to that angle in the vise to get started.

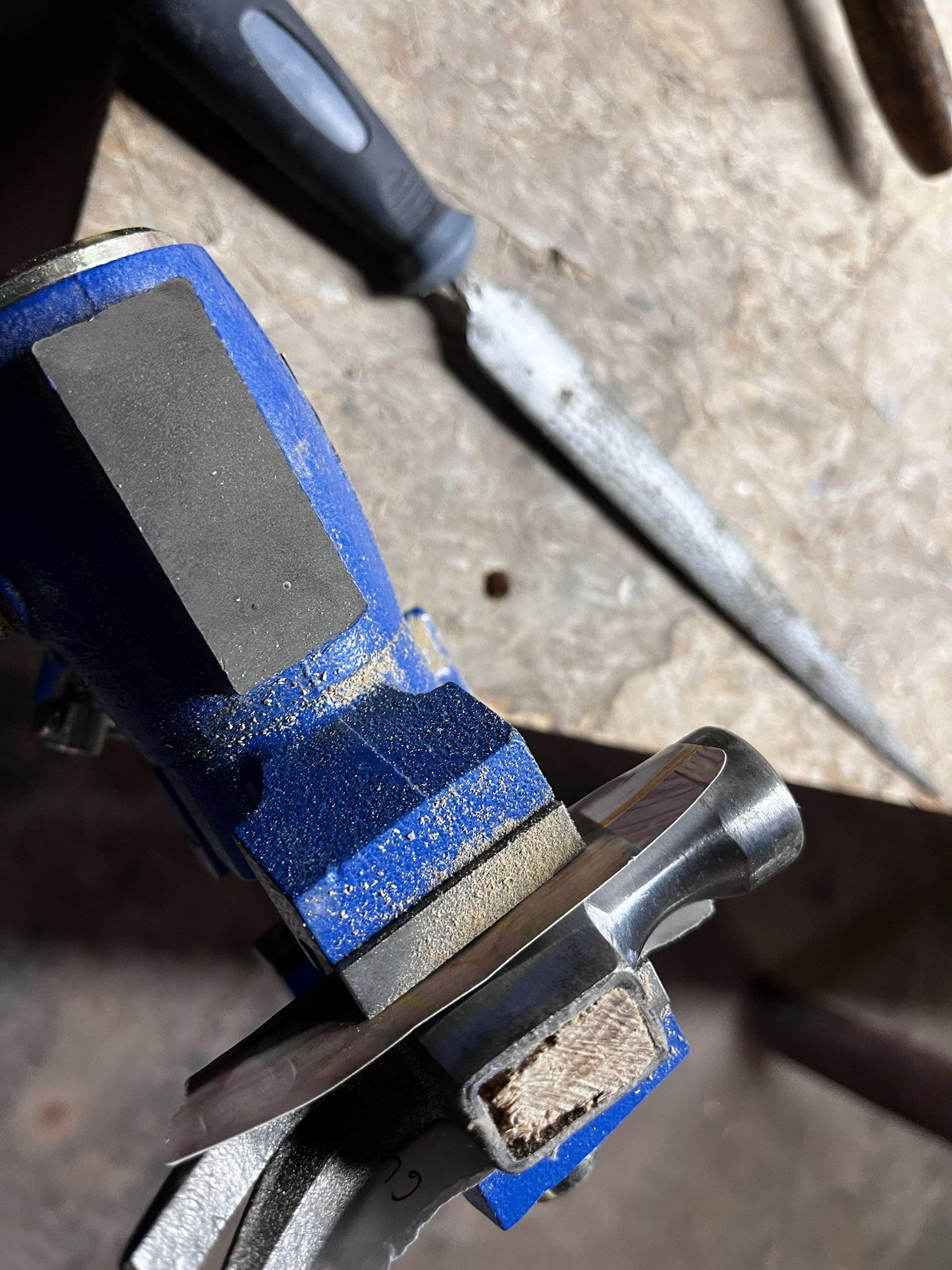

Because the broken wooden handle was a mess, I wasn't sure if there was a metal fixing wedge inside. Clamping it up, I gingerly cleaned up the remaining shaft with a wood rasp, testing for metal. Luckily there was nothing.

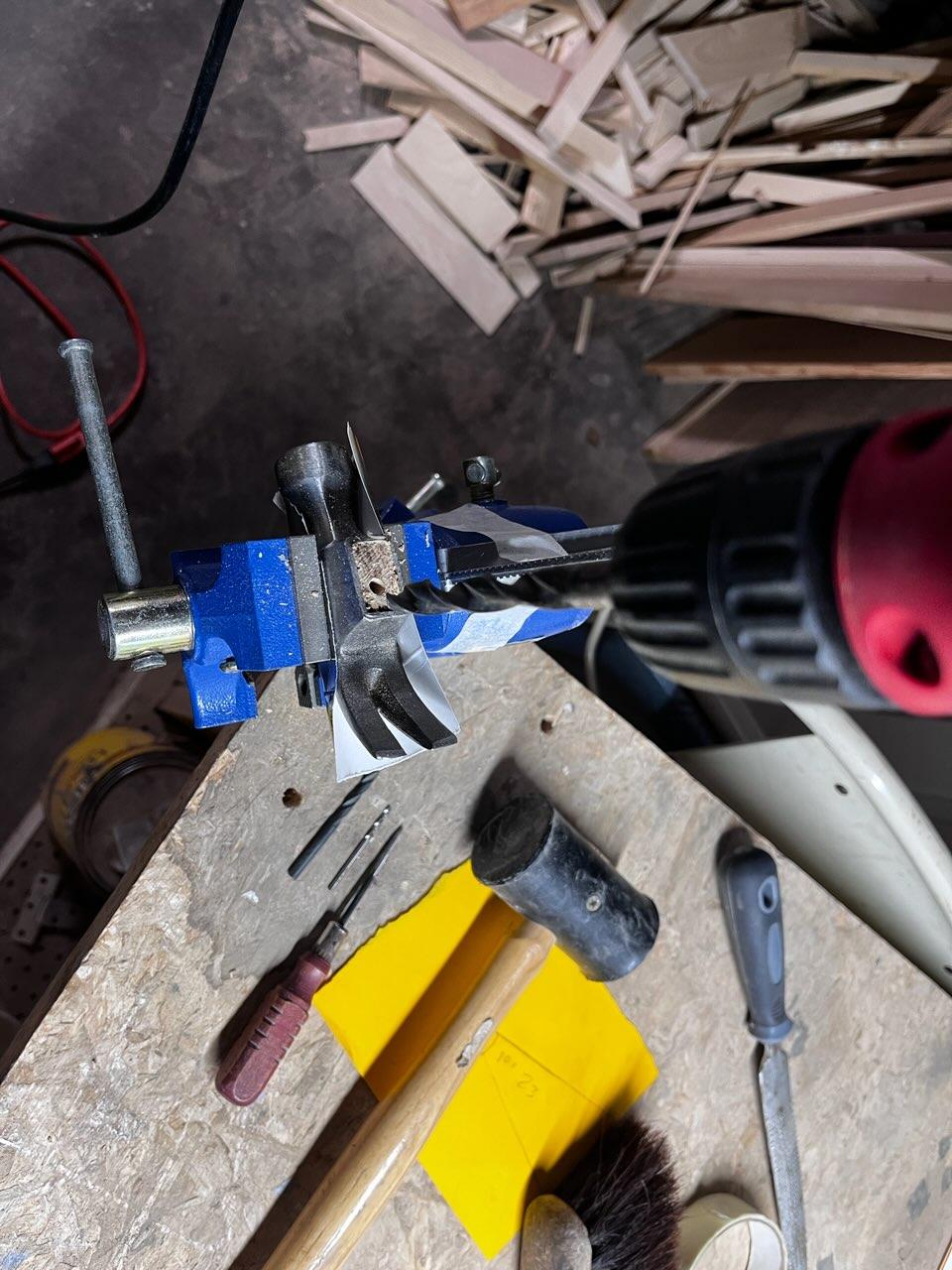

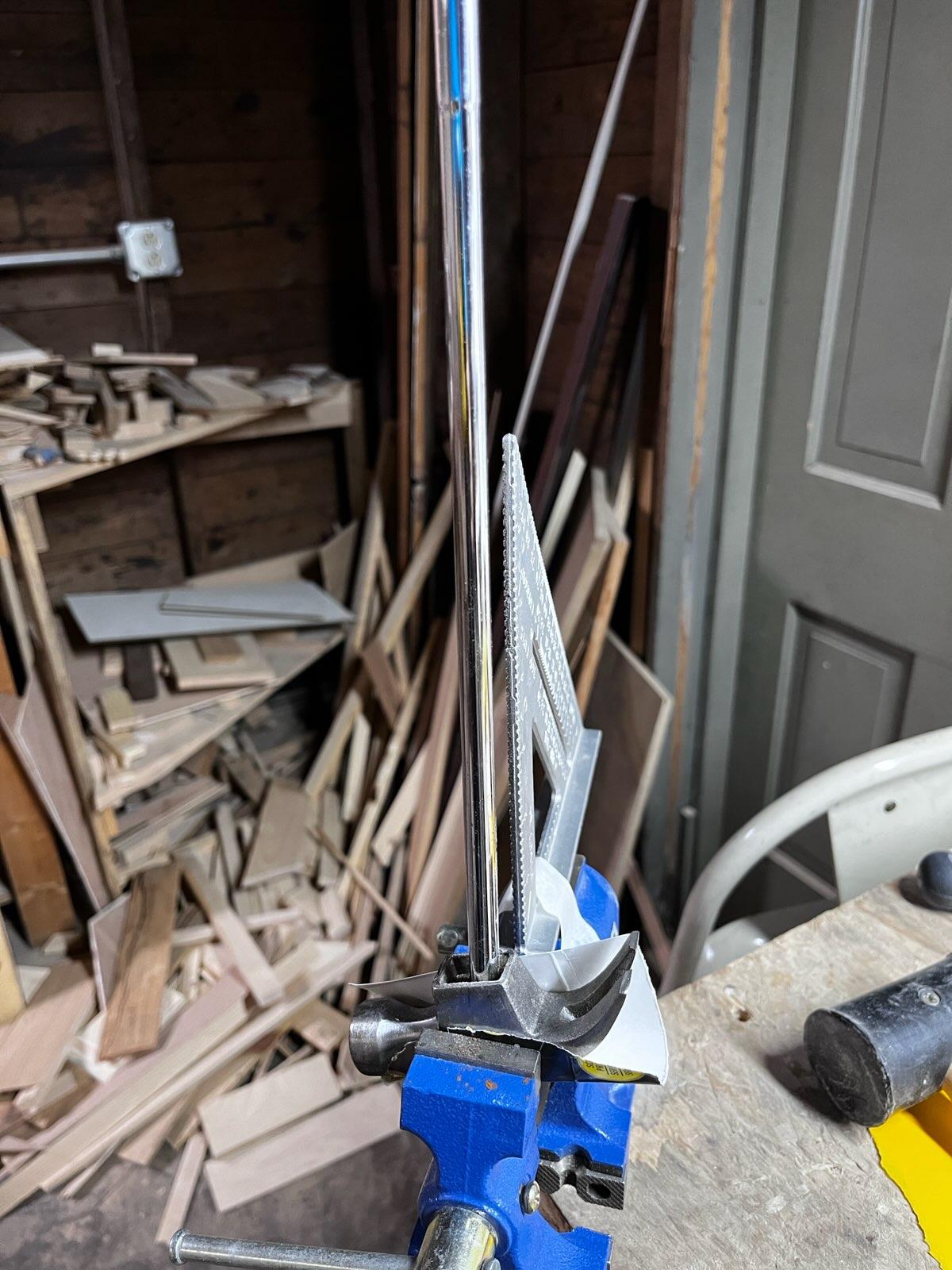

Drilling straight down into a tilted head is a bit tricky, particularly into the handle's hardwood. With a mallet and an awl, I set a hole for drilling, then used successively larger drill bits until just past the shaft diameter (5/16"). The speed square helped guide the drilling and alignment, which you can see in some of the photos.
The haft seated into the wood nicely and had a little play for adjustment.
Epoxying the Headspace
![mask.jpg](/proxy/?url=https://content.instructables.com/FRG/NNVG/LM0LWXZX/FRGNNVGLM0LWXZX.jpg&filename=mask.jpg)
![level.jpg](/proxy/?url=https://content.instructables.com/FLR/QW28/LM0LWXZW/FLRQW28LM0LWXZW.jpg&filename=level.jpg)

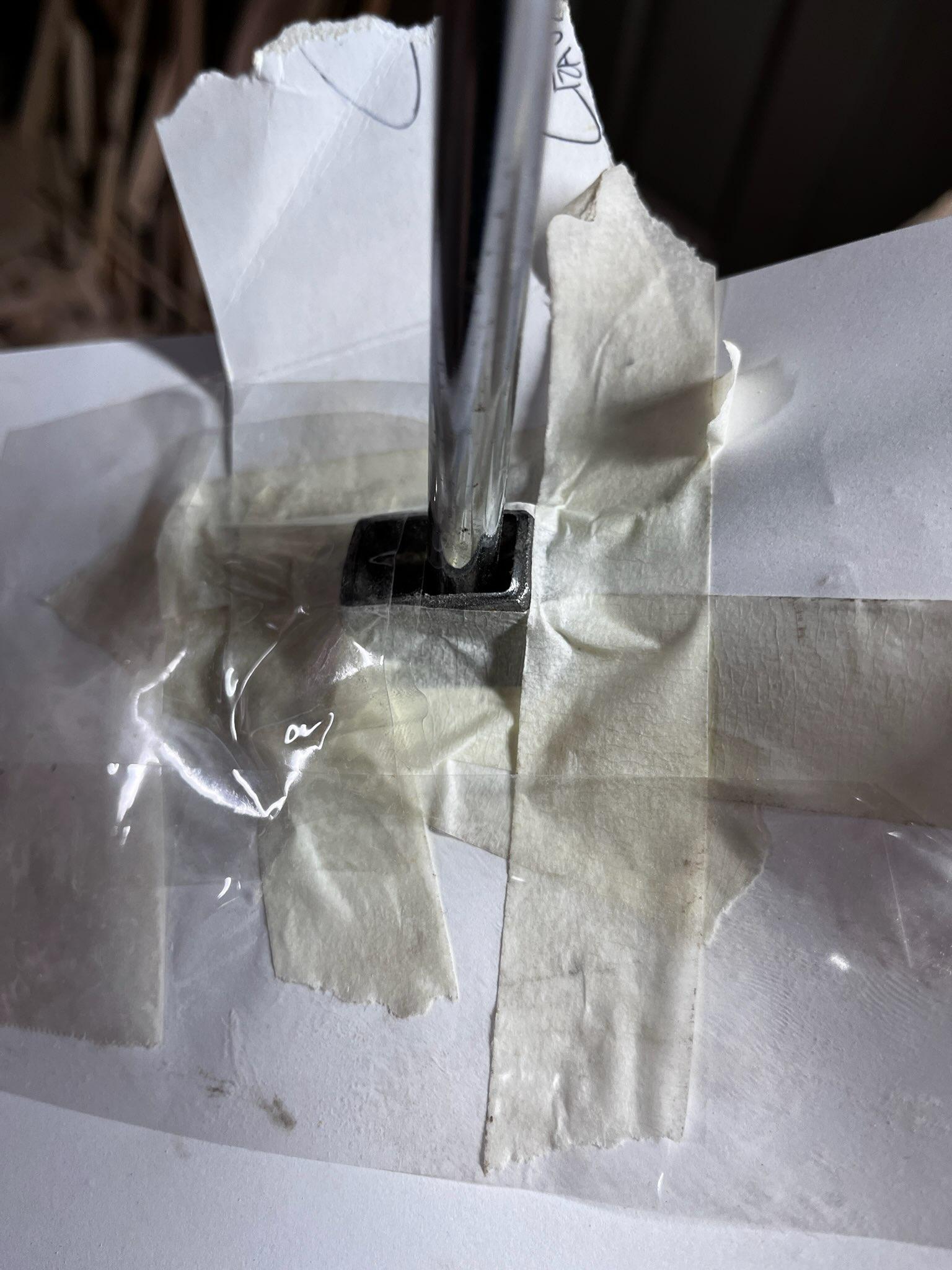

With the assembly ready, I masked around the head to catch overspill. The epoxy has a 3+ hours set time which is why standing the shaft up in the tilted head is useful. Gravity plus the wooden seat can hold the shaft straight up. Consulting a spirit level ensured alignment. I did have to cut a few shims of wood from the broken handle to tamp around the shaft to wedge it up just right.
Although the headspace opening was not level, J-B Weld is viscous enough that it will not run out the lower end. Due to that viscosity, I used a thin nail to poke up and down around the fill, catching a few voids. Added enough to fill the head and let it cure overnight.
Cleanup
![cleanup.jpg](/proxy/?url=https://content.instructables.com/F9F/H0SD/LM0LX2FR/F9FH0SDLM0LX2FR.jpg&filename=cleanup.jpg)
![cleaning and polishing.jpg](/proxy/?url=https://content.instructables.com/F6T/3XFU/LM0LX2FQ/F6T3XFULM0LX2FQ.jpg&filename=cleaning and polishing.jpg)
![looks good.jpg](/proxy/?url=https://content.instructables.com/FW1/ZABU/LM0LX2FS/FW1ZABULM0LX2FS.jpg&filename=looks good.jpg)

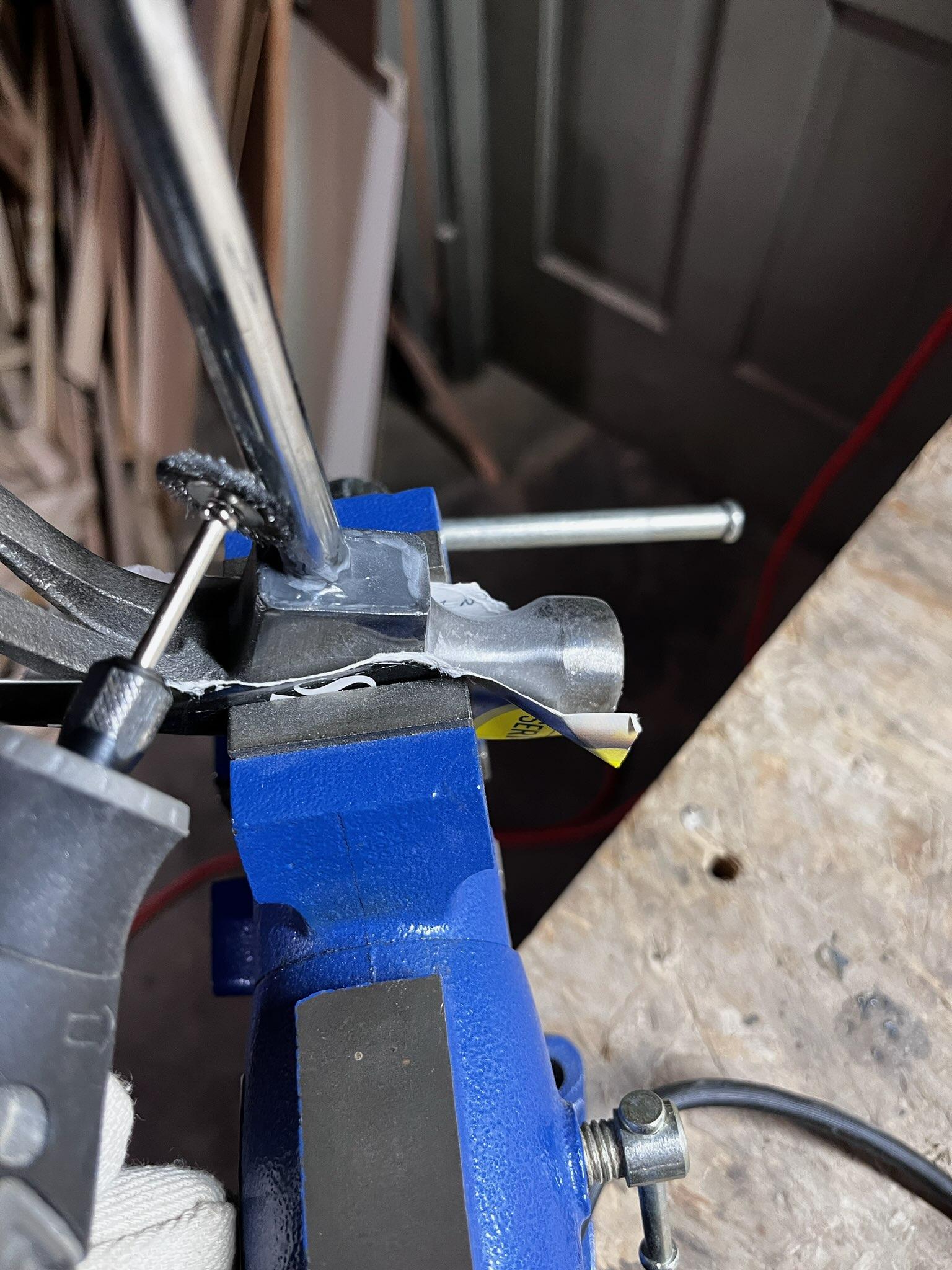

Cleanup is pretty easy with a rotary tool. The multi-axis swivel vise made it easy to reposition for cleaning and polishing the nooks and crannies.
The mask left only a little spillage on the shaft and along the head. Carbon steel brushes made quick work of that.
I noticed the hammer face was a bit rough, so I used a flap wheel to grind it smooth. Although I took a few grams of weight off, technically 8 oz. is too heavy for some golfing regulations. Everything that came off was for the better.
The steel polishes up nicely using felt wheels and polishing compound.
I was happy with the results for a fun gift!
