Test Continuity in Circuit and Polarity of Components PCB Device


A PCB-designed Tester to check the continuity of the circuit and polarity of components.

Introduction:

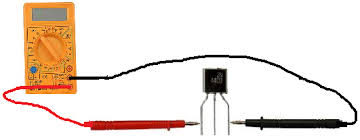

A continuity testing device is used to check the breakage and shortage of wires in a circuit. Sometimes in a complex circuit design, we are unaware of the fault so we have to test the circuit at every point to find the real problem. This plays an important role in designing the electric circuit. It is always a good practice to verify continuity in a circuit before implementing it. In electric circuits, we use conventional bulky meters to check the continuity of a circuit. While working in a field, it is not possible to carry a bulky meter with the circuit. Here is a PCB device with a compact size board and components on it that can check the continuity as well as the polarity of the components like diodes, Zener diodes, LEDs, etc. It is important to place the components in the right polarities otherwise placing the components in opposite polarities can damage the whole circuitry. You can carry it easily in your pocket and can test your circuit anywhere.

Supplies

Hardware Components:

  1. Red LED x2
  2. Resistor 820R ohm x1
  3. Resistor 33k ohm x2
  4. Resistor 270R ohm x1
  5. Resistor 1M ohm x1
  6. Header 2 pins x2
  7. Buzzer x1
  8. Capacitor 0.1uF x2
  9. BC547 x3
  10. Diode 1N4148WT x2

Software Tools:

  • Inventhub
  • Altium Designer


Working

When you connect the component which you want to test with the PCB device continuity tester, both the LED will glow showing the activation of the circuit. There are two LEDs in a board performing different functions separately. LED1 will glow only when the wire of the circuit is connected to the cathode terminal of the diode.

There are two transistors connected in the circuit which are not in phase with each other. This means that if one transistor will give high output then the other will give low output and vice versa. First LED will turn on when transistor one is on and the second LED will turn on when the second transistor will turn on keeping the other low. When the component is placed between the wires to test the polarity it bypasses the LED depending on the polarity as a result the current will start flowing current through the circuit. If no LED will glow this will identify that there is a short circuit at someplace in a circuit.

If the component is placed in the right polarity, then placing the probes across the component in a circuit will sound the buzzer alarm. This will indicate that the circuit is in working condition or perfectly alright to implement. Using this PCB device you can check different types of circuits and components.

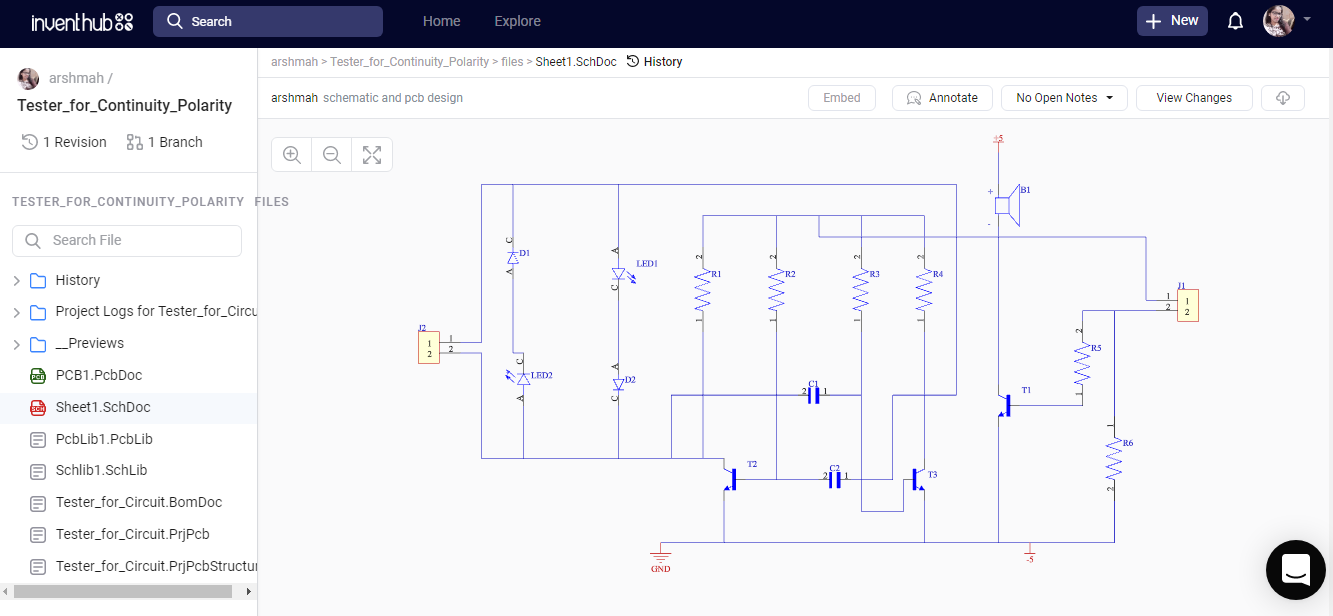

Schematic Diagram

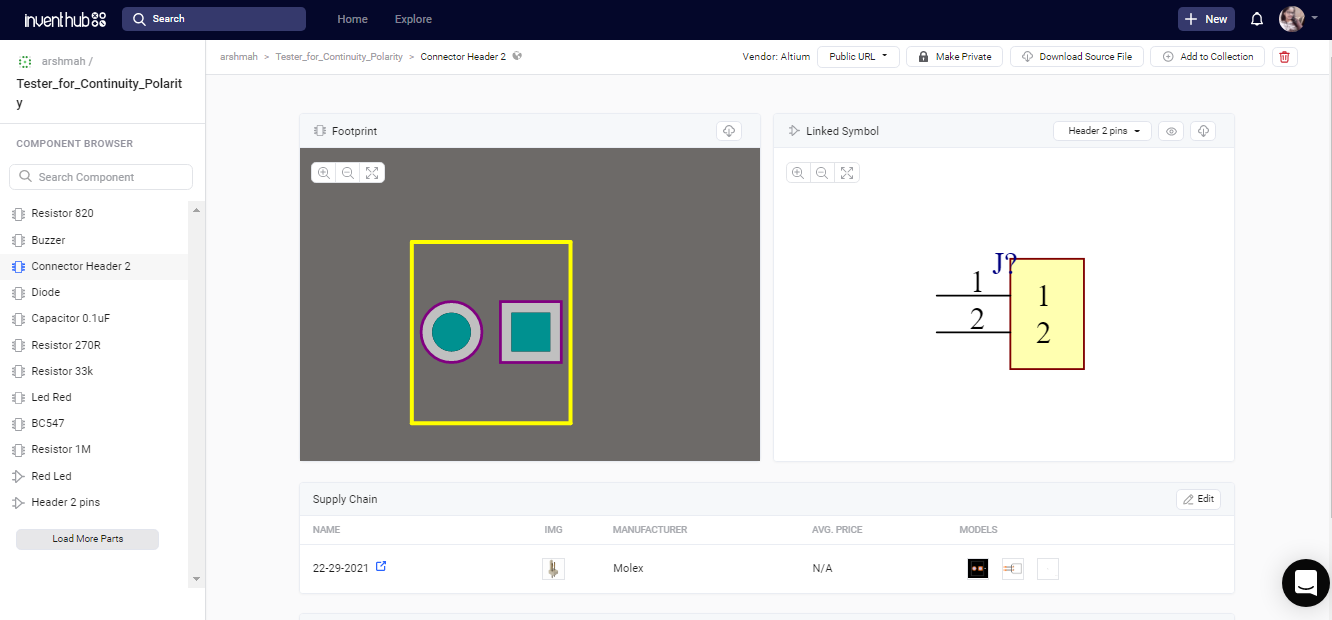

I have implemented the design on Altium designer. I have designed symbols and footprints for each component then I uploaded my symbols and footprints libraries online on Inventhub where users can view, download, or use them. Users do not need to design the components for their design. Thus, it can save time. After completing the design of components. I have used them in my schematic to complete my design. I have uploaded my schematic file for the users and viewers on Inventhub.

PCB Design


After designing schematic, I have converted my schematic file to the PCB file so that I can design a board, connect my components, and can visually view my board in 3D. I have uploaded my PCB file on Inventhub where the manufacturer can view or download my PCB file for the fabrication.

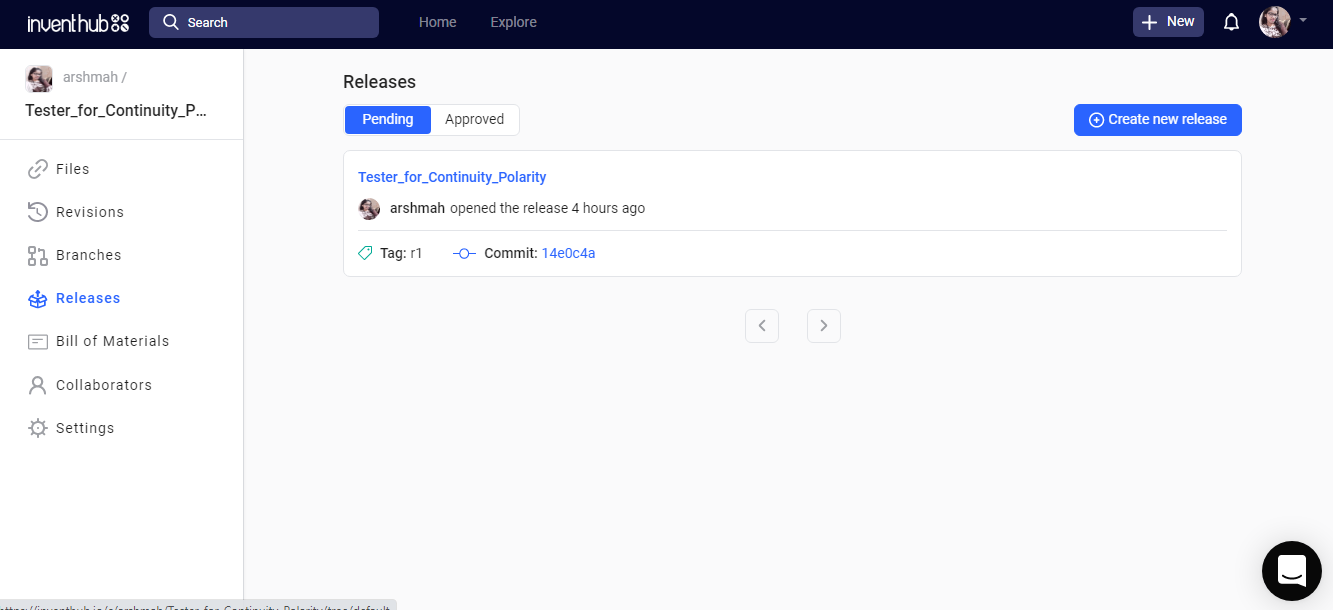

Design for Manufacturing


For the manufacturer, I have created a release of my project which contains all design files including schematic, PCB, and their component libraries. Instead of visiting my manufacturer, I can send him the release of my design files. He can view or download files in ZIP format and can fabricate my PCB without any errors.

Bill of Materials


After getting my fabricated board, I need to embed components on it. I have created a BOM file on Inventhub which contains library reference, footprint, and quantity of each component. My component provider can simply download the file in CSV format and can send my components. I can calculate the total cost of my design by selecting the ‘supply chain’ option. I can select my distributor for the components depending on the price and availability of the components. Our total cost is $7.43.
