Terminator Foot Nut Cracker (revised)

by Random_Canadian in Workshop > Metalworking

4500 Views, 45 Favorites, 0 Comments

Terminator Foot Nut Cracker (revised)

Builds 1262.jpg
Builds 1256.jpg
Builds 1259.jpg
Builds 1260.jpg
Builds 1261.jpg
Builds 1187.jpg

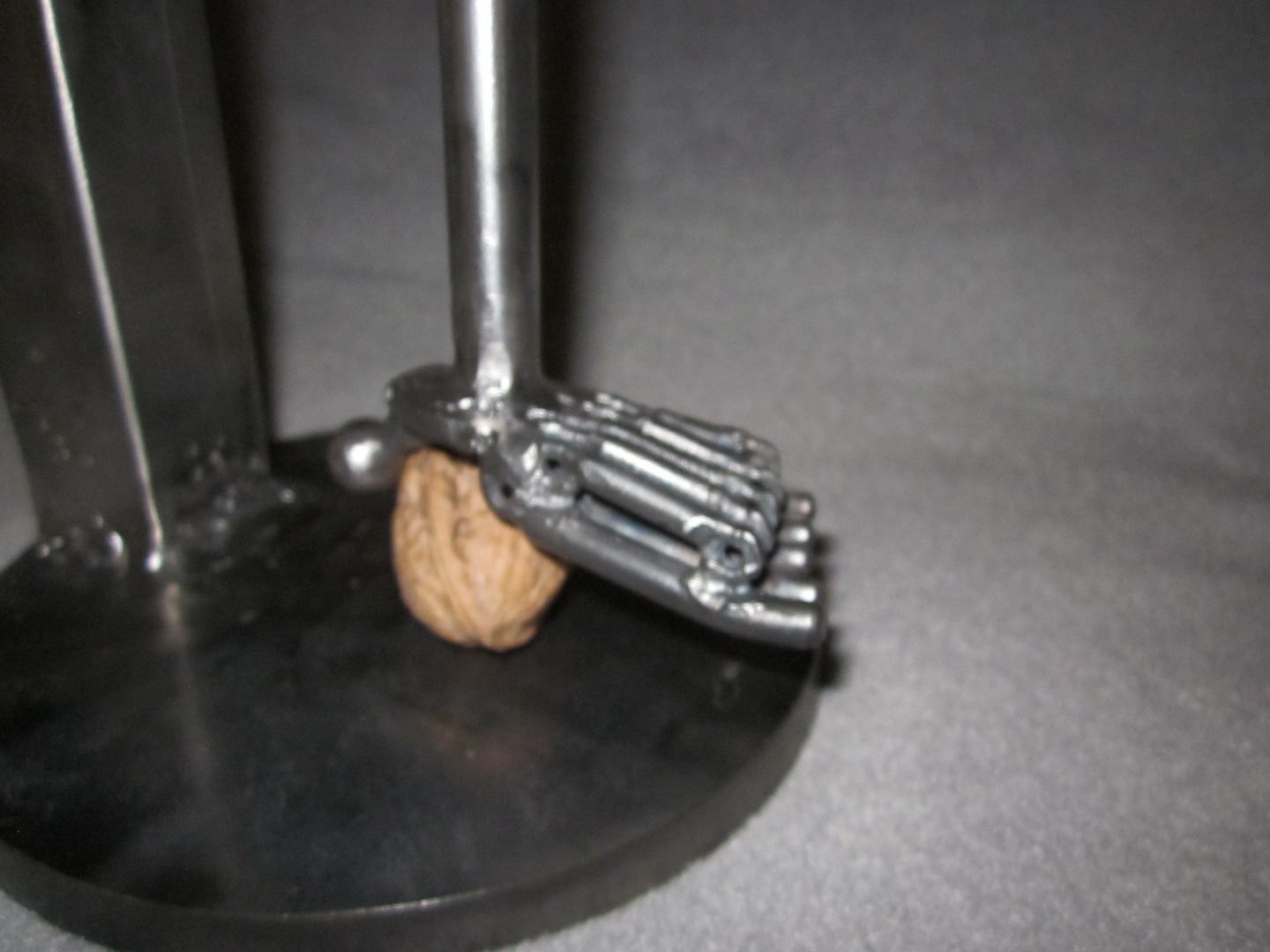

I figure that skull crushing force of a terminator foot can easily take on a walnut....

With over 250 pounds of crushing force there really is no contest here...

Turn This Into THIS...

Builds 1240.jpg
Builds 1245.jpg

I Was actually able to find Walnuts in Calgary in August!

Starting with scrap materials you can easily make this project.

Did I mention that you will need to Torch weld with 1/16 steel rod.

Begin With Assessing the Materials That You Have.

Builds 1083.jpg
Builds 1182.jpg
Builds 1090.jpg

I used a thick piece of plate steel that was from a scrap bin. It happened to be a cut circle.

The upright and lever are 1.25 inch X 0.065 square steel tube.

The big toe is 3/16 steel rod.

The reaming toes and upper foot pieces are 1/4 steel rod all cut at proportional lengths

The heel and leg are 1/2 inch steel rod.

The joining nuts are 6/32 machine

The hinge bolts are 1/4 20 with nuts

Base and Stand

Builds 1125.jpg
Builds 1126.jpg
Builds 1127.jpg
Builds 1130.jpg
Builds 1132.jpg
Builds 1133.jpg
Builds 1134.jpg
Builds 1136.jpg

I used a scrap piece of steel from a local recycler. This was covered with foundry scale which was removed with a flap disc to reveal a shiny surface...

this is a simple lever design using the supposed knee joint as a hinge pivot. this upper lever is attached to a solid rod which is the crushing force application device.

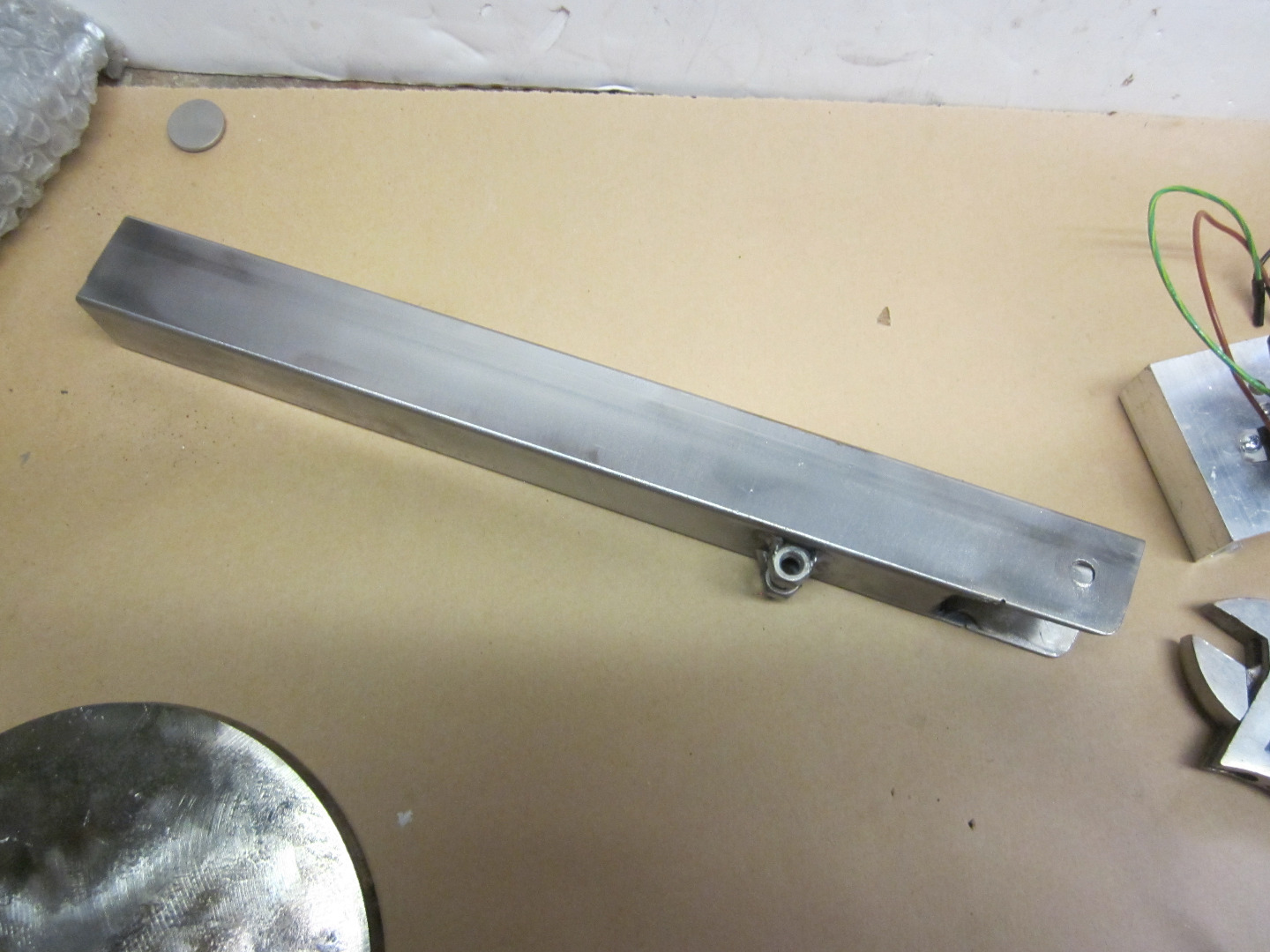

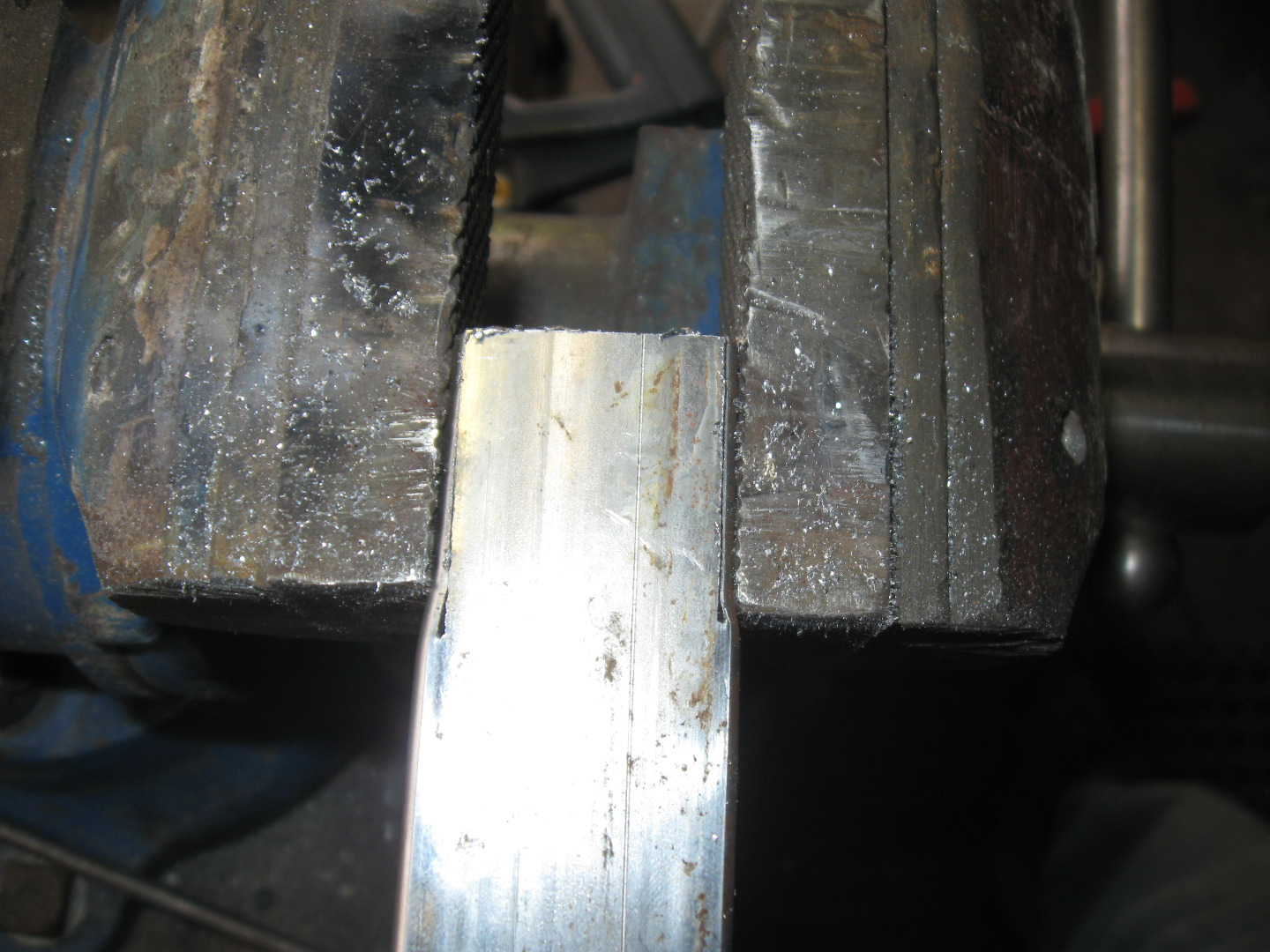

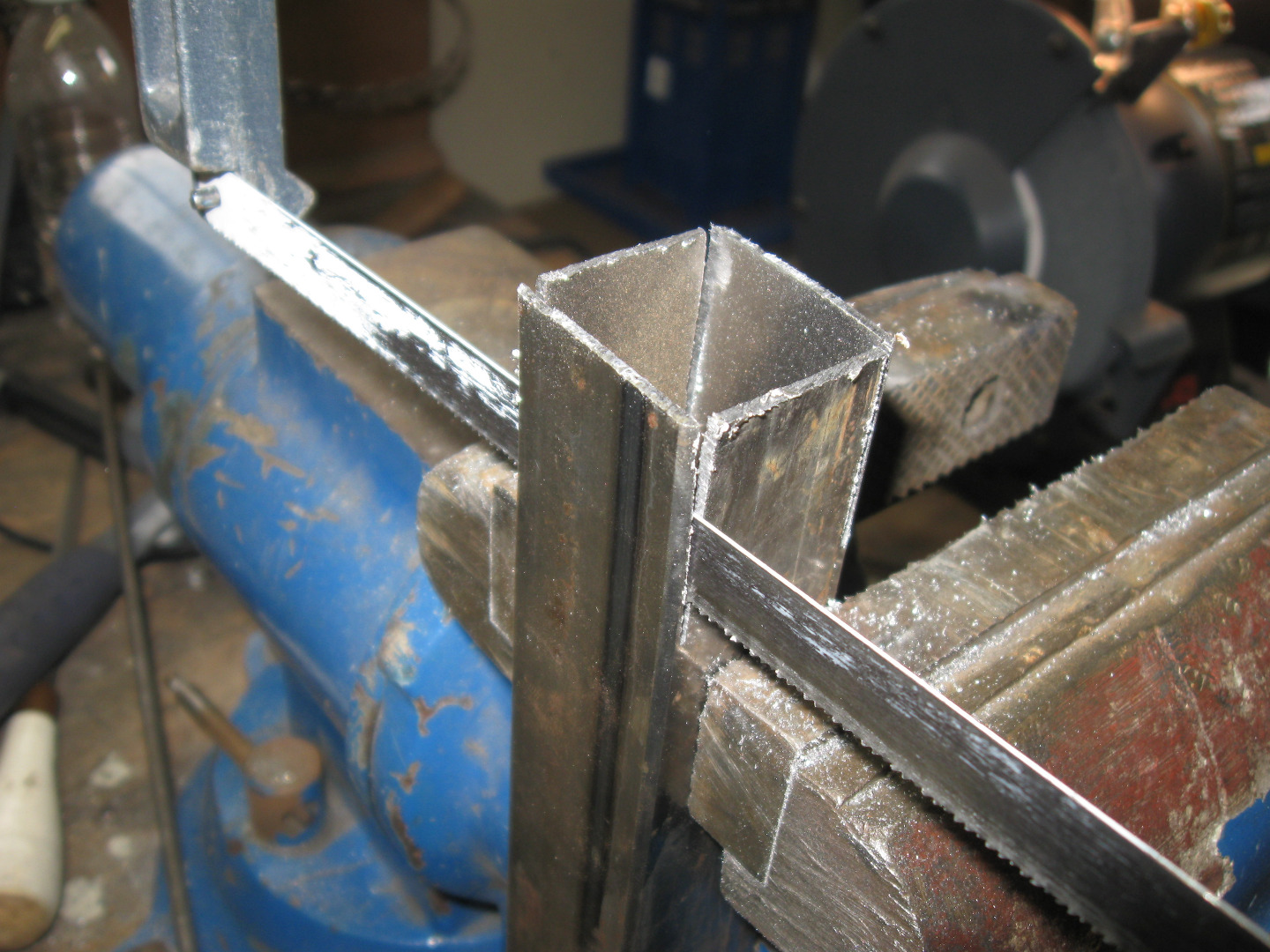

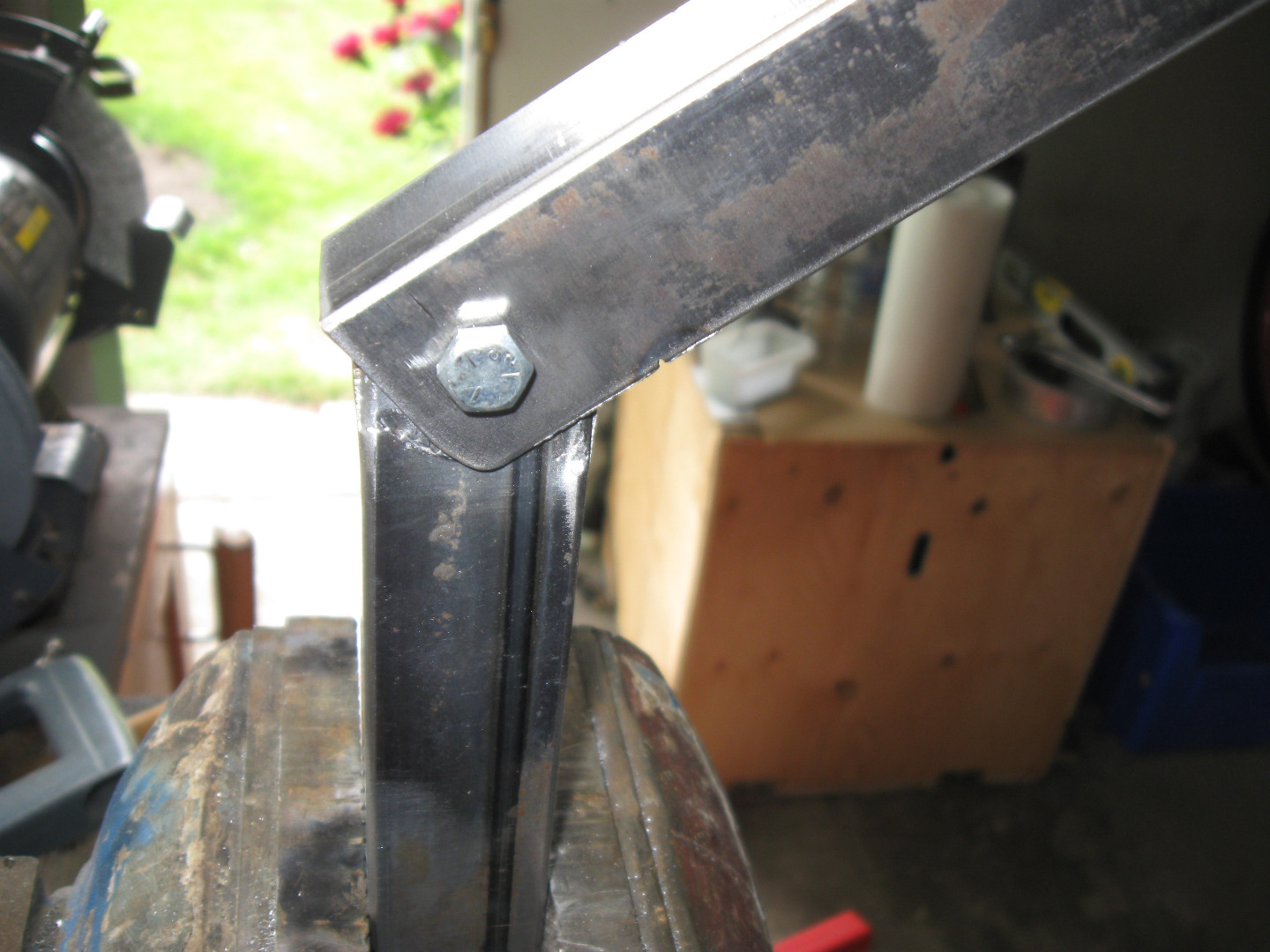

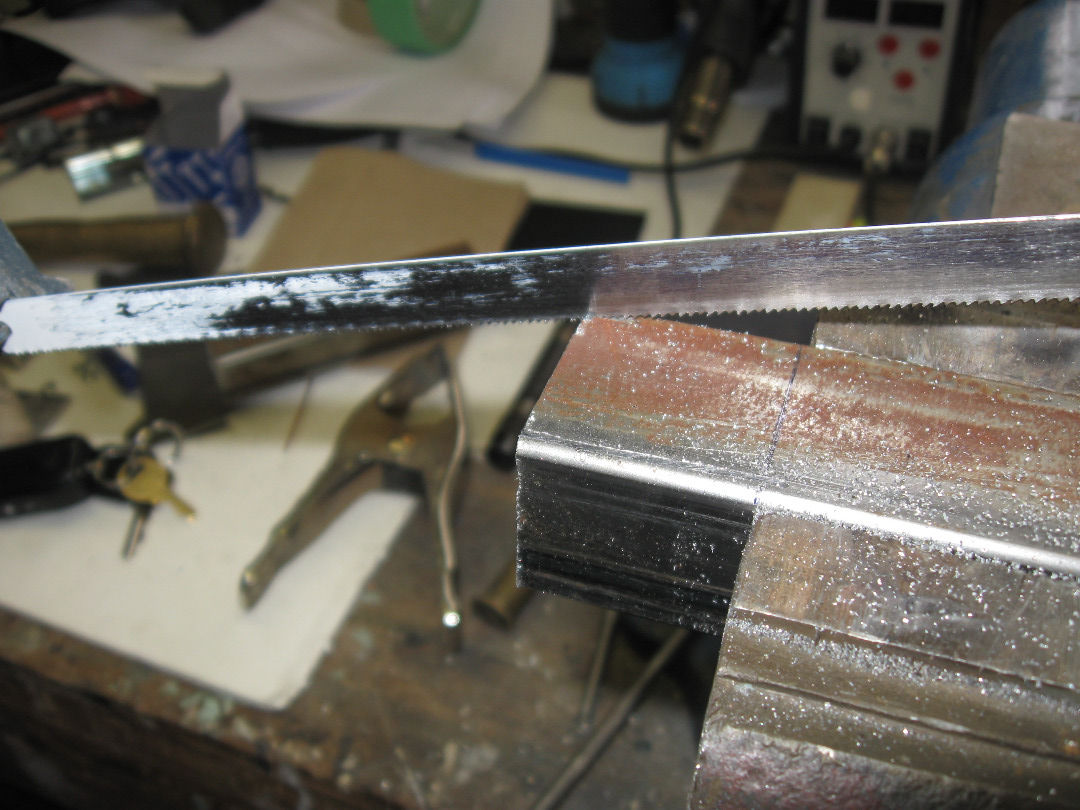

The lever joint is cut from one end of the longer piece of square steel then I cut and flattened one end of the shorter piece. The two ends were fitted together then drilled with a 1/4 inch bit. Finally I used a 1/4 20 bolt to secure them together.

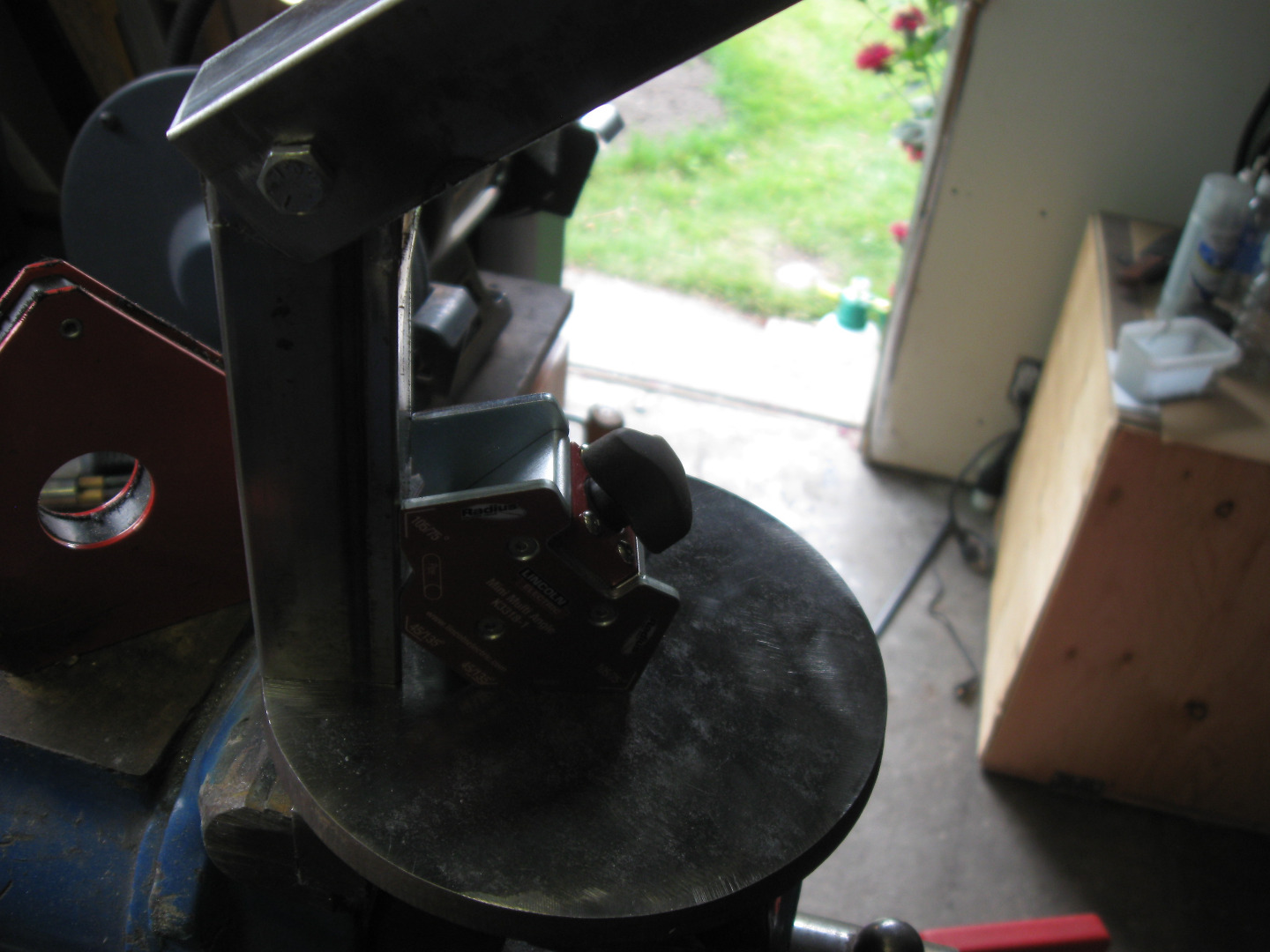

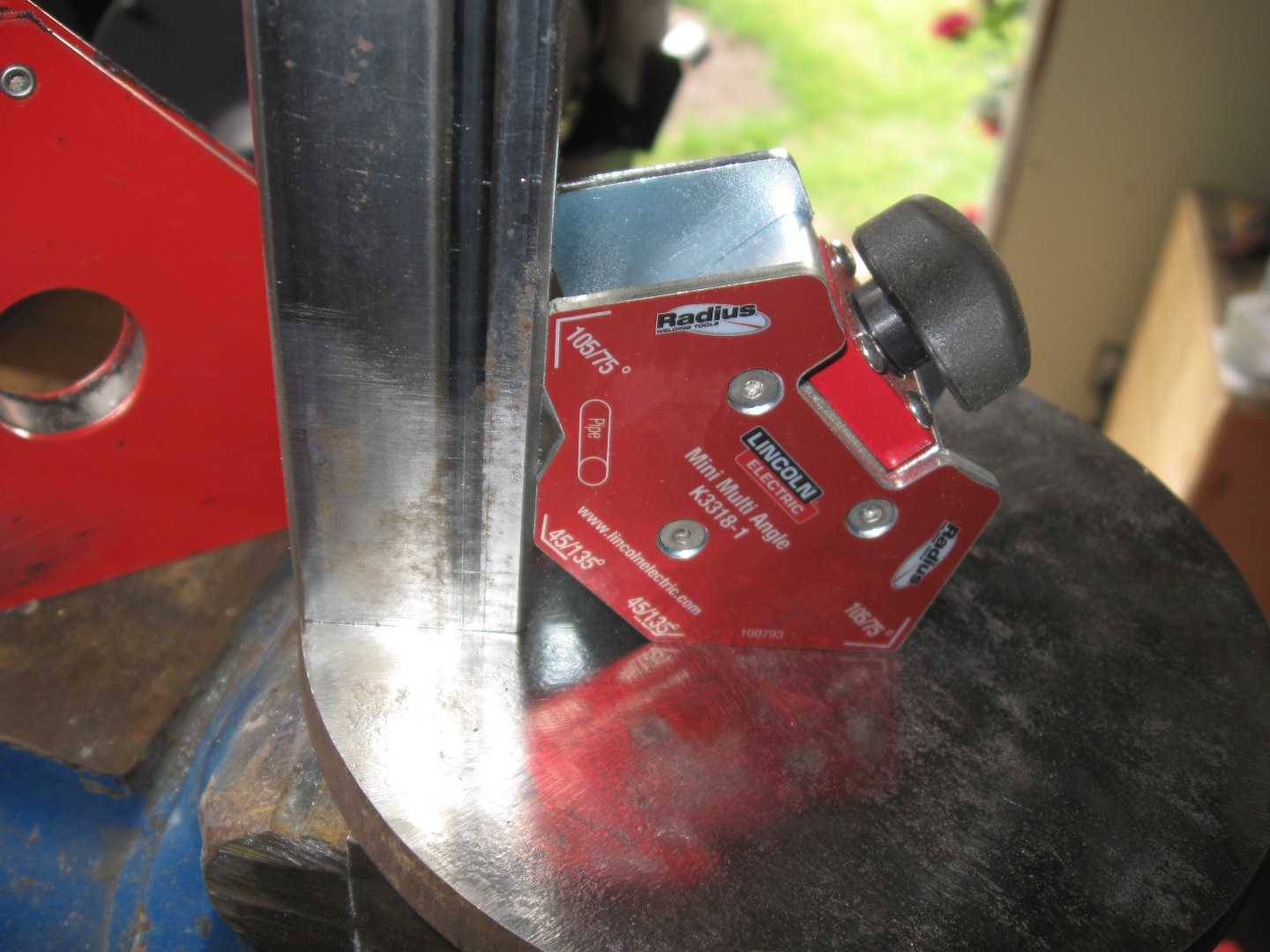

The short upright piece was positioned and clamped to the base using a magnetic clamp.

The shorter upright is welded to the base using sufficient heat to create a solid weld. In this case I cheated and used my Stick welder.

The Foot!

Builds 1084.jpg
Builds 1085.jpg
Builds 1086.jpg
Builds 1087.jpg
Builds 1088.jpg
Builds 1091.jpg
Builds 1089.jpg
Builds 1092.jpg
Builds 1095.jpg
Builds 1098.jpg
Builds 1100.jpg
Builds 1101.jpg
Builds 1106.jpg
Builds 1104.jpg
Builds 1105.jpg
Builds 1110.jpg
Builds 1112.jpg
Builds 1113.jpg
Builds 1114.jpg
Builds 1115.jpg
Builds 1116.jpg
Builds 1118.jpg
Builds 1137.jpg
Builds 1140.jpg
Builds 1141.jpg
Builds 1142.jpg
Builds 1143.jpg

There are no measurements as this was done in the appreciation of aesthetics...

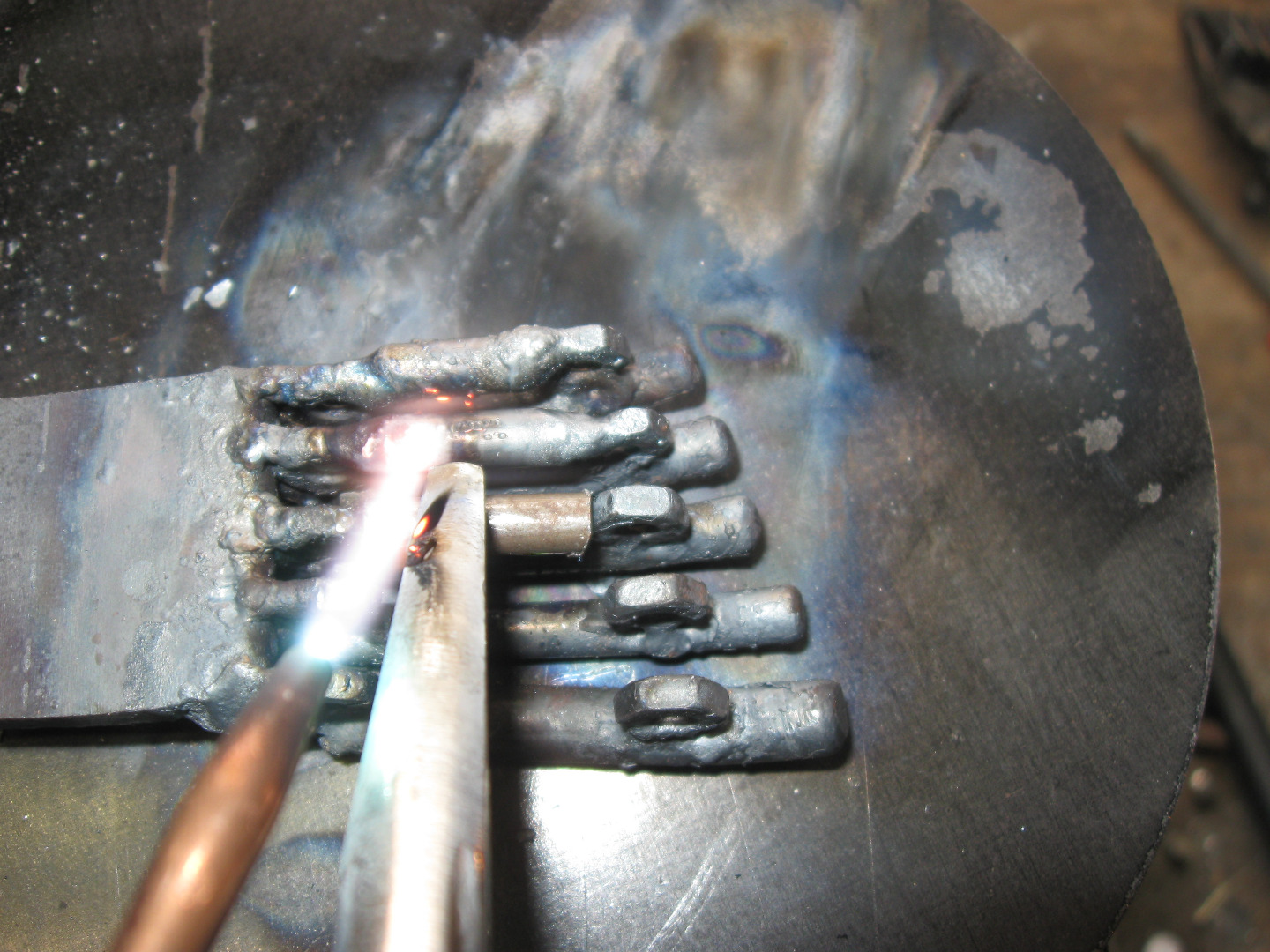

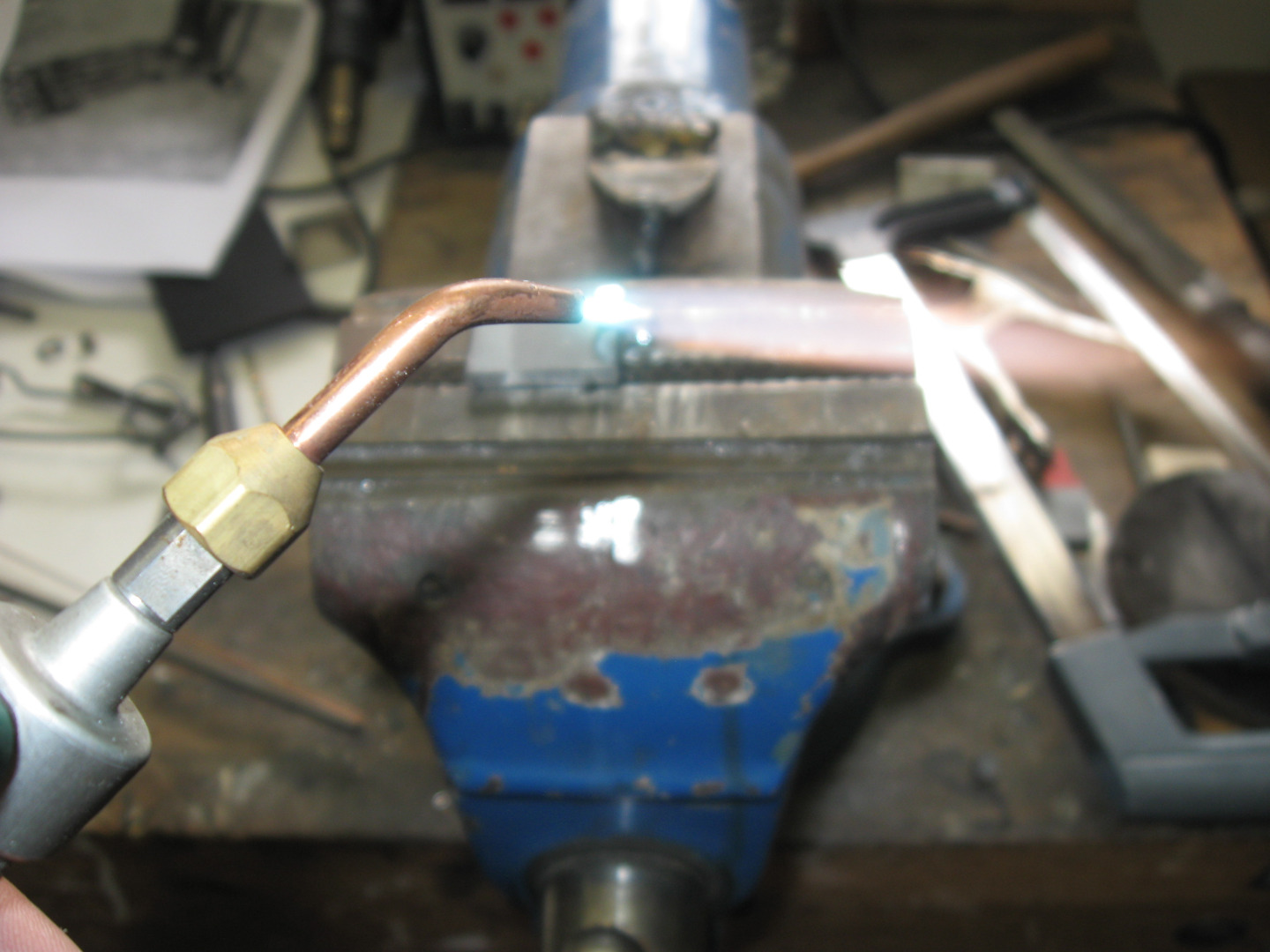

I used Gas Torch welding with a 1/16 copper coated rod for all joints.

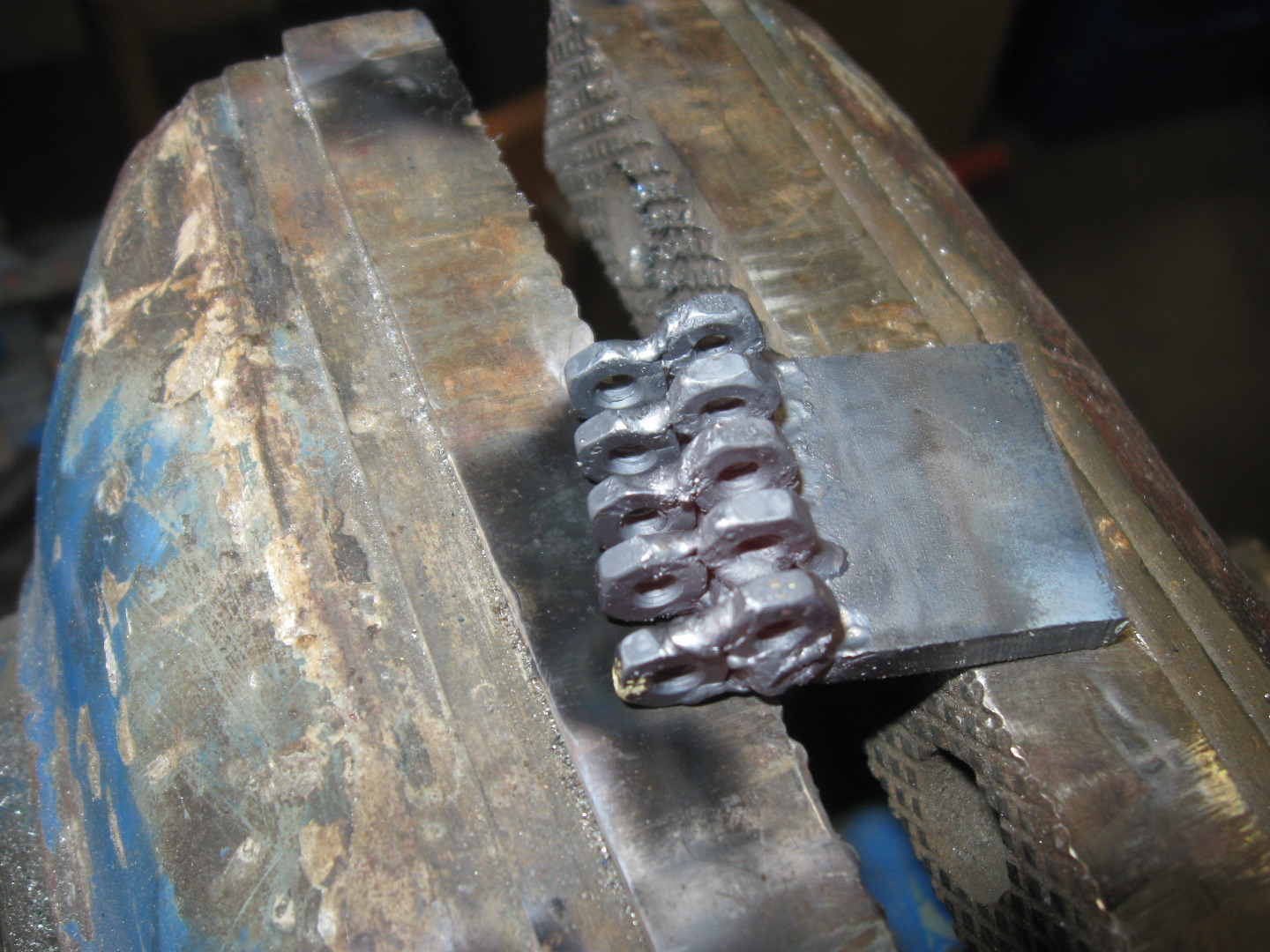

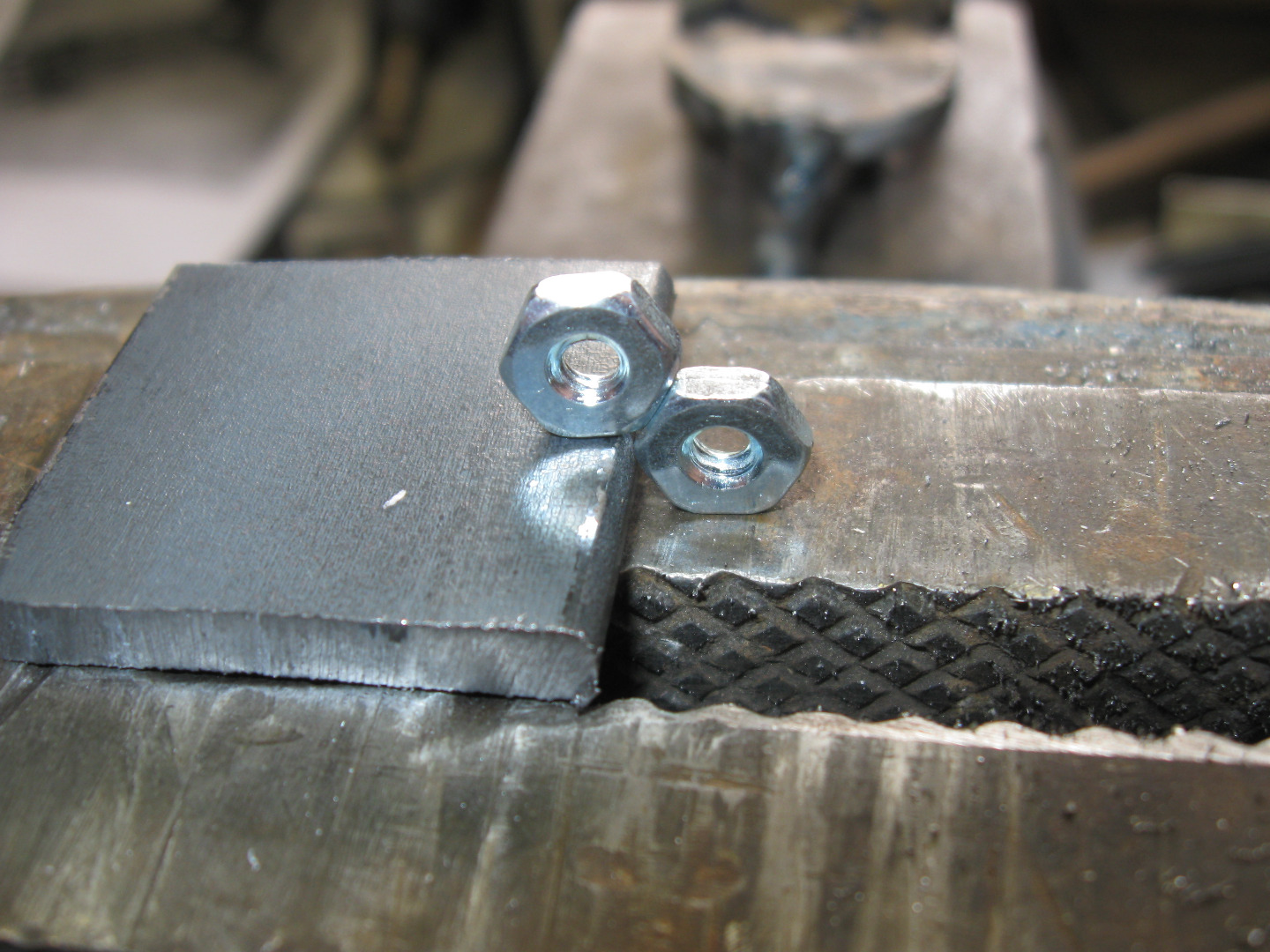

I cut a 1 inch square piece of 1/4 inch steel bar then began welding machine nuts to it starting in the center as shown.

Once the upper and lower machine nuts were welded in place I moved on to the lower toes.

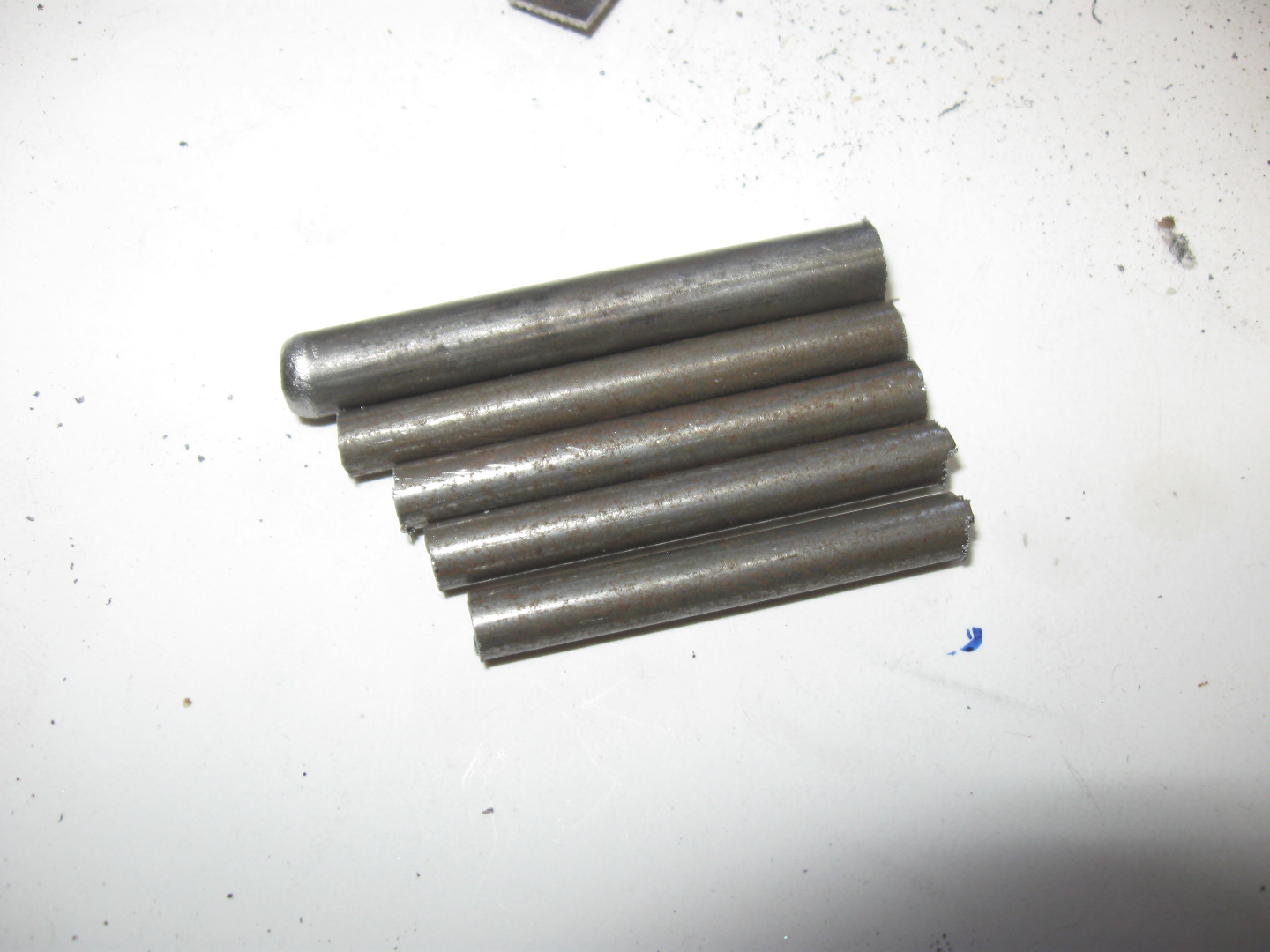

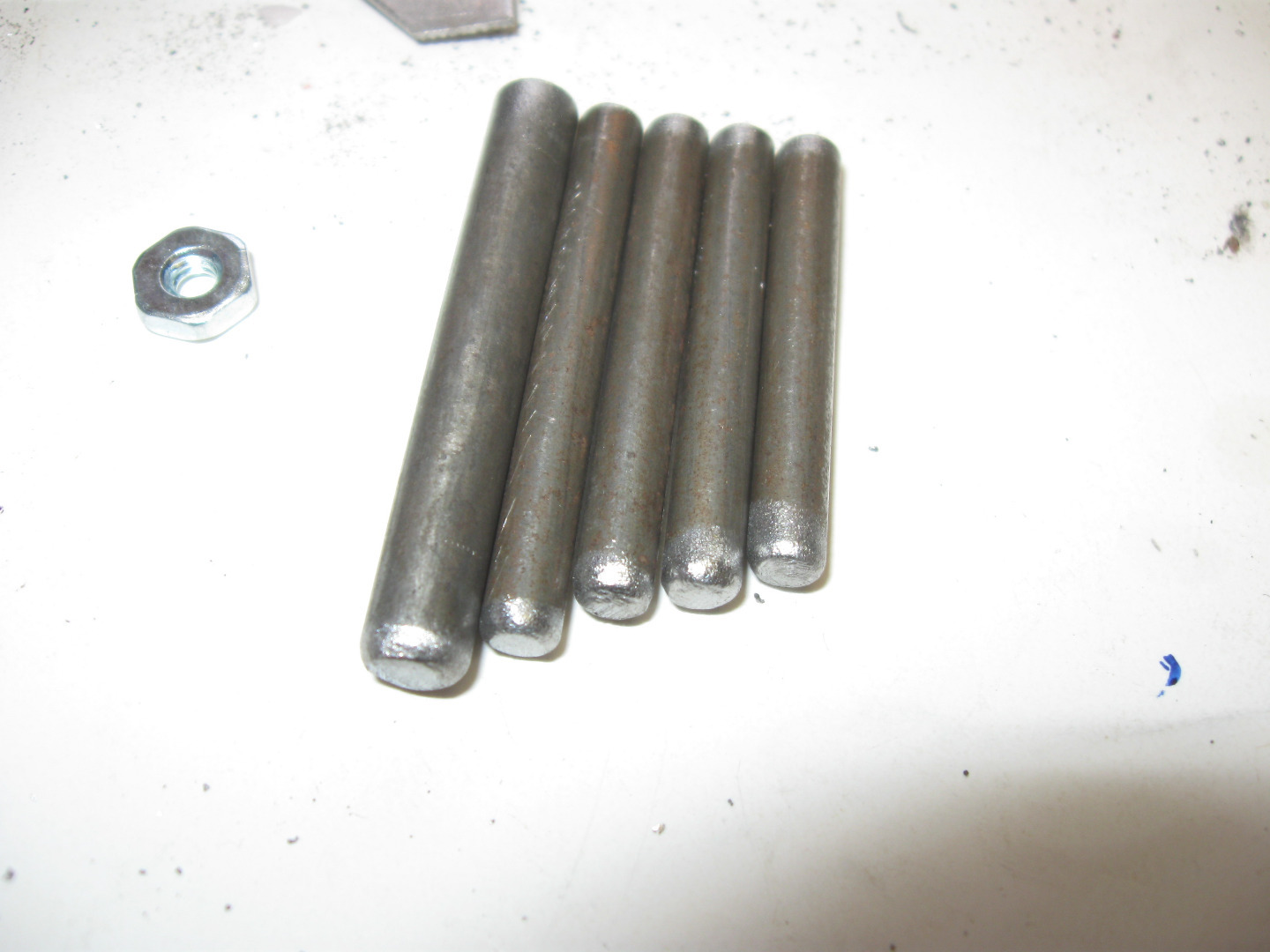

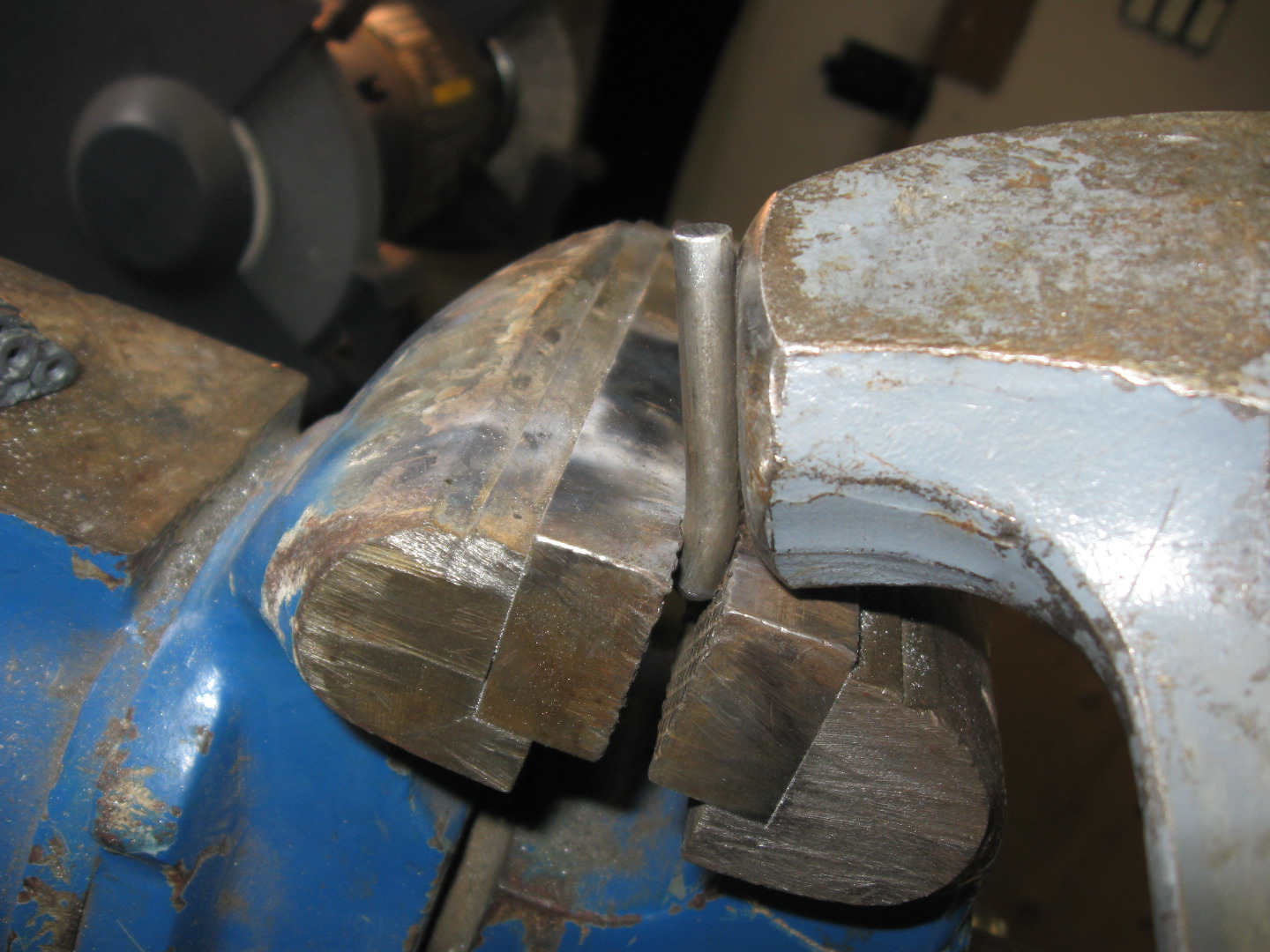

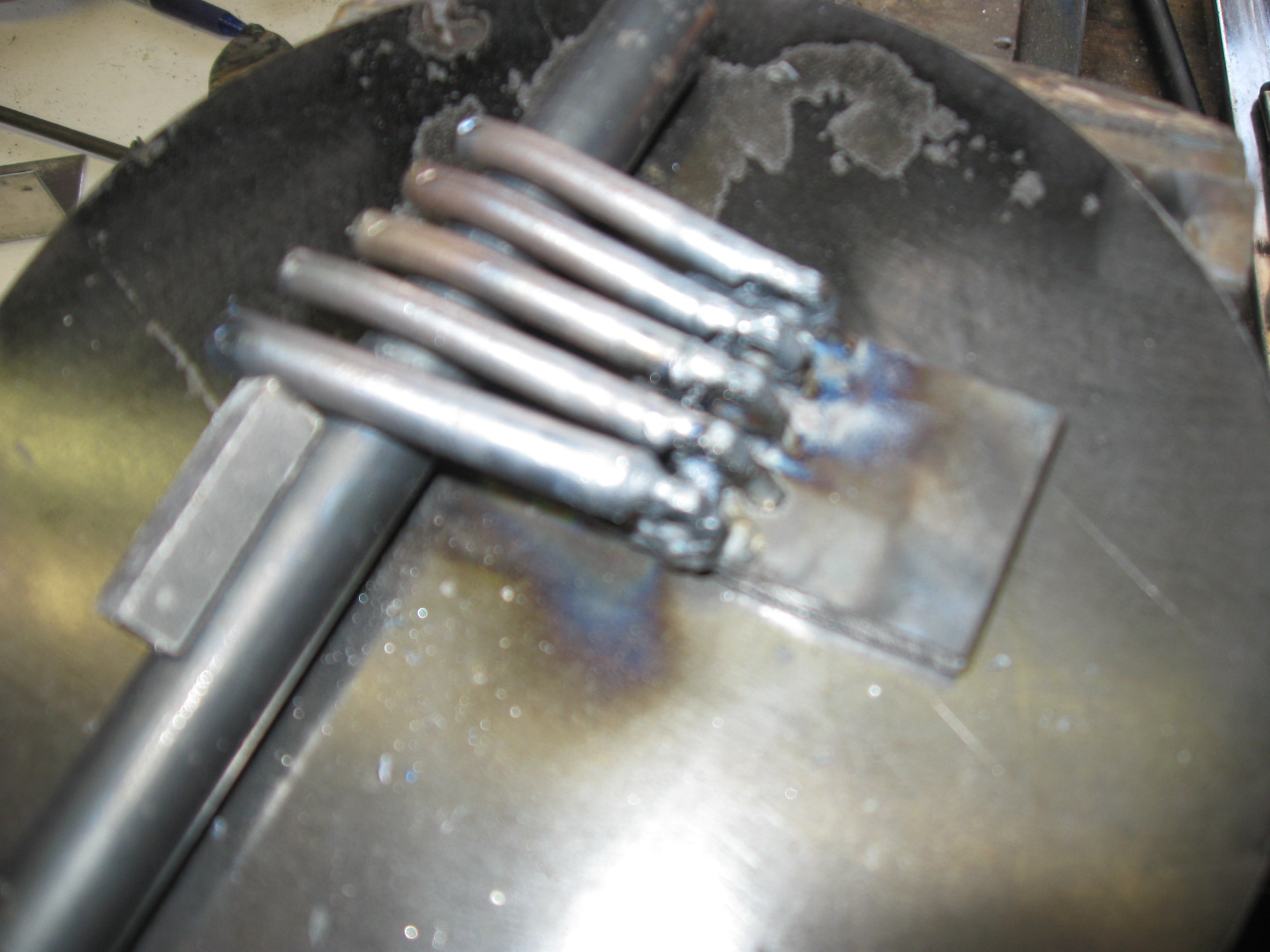

The toe, metacarpal pieces are from 1/4 inch for the big toe and 3/16 inch for the rest. The big toe is about 1.5 inches long, one end rounded on a grinder and bent at about the 3/8 mark. moving with fluidity, I bent the others while maintaining a real looking skeleton.

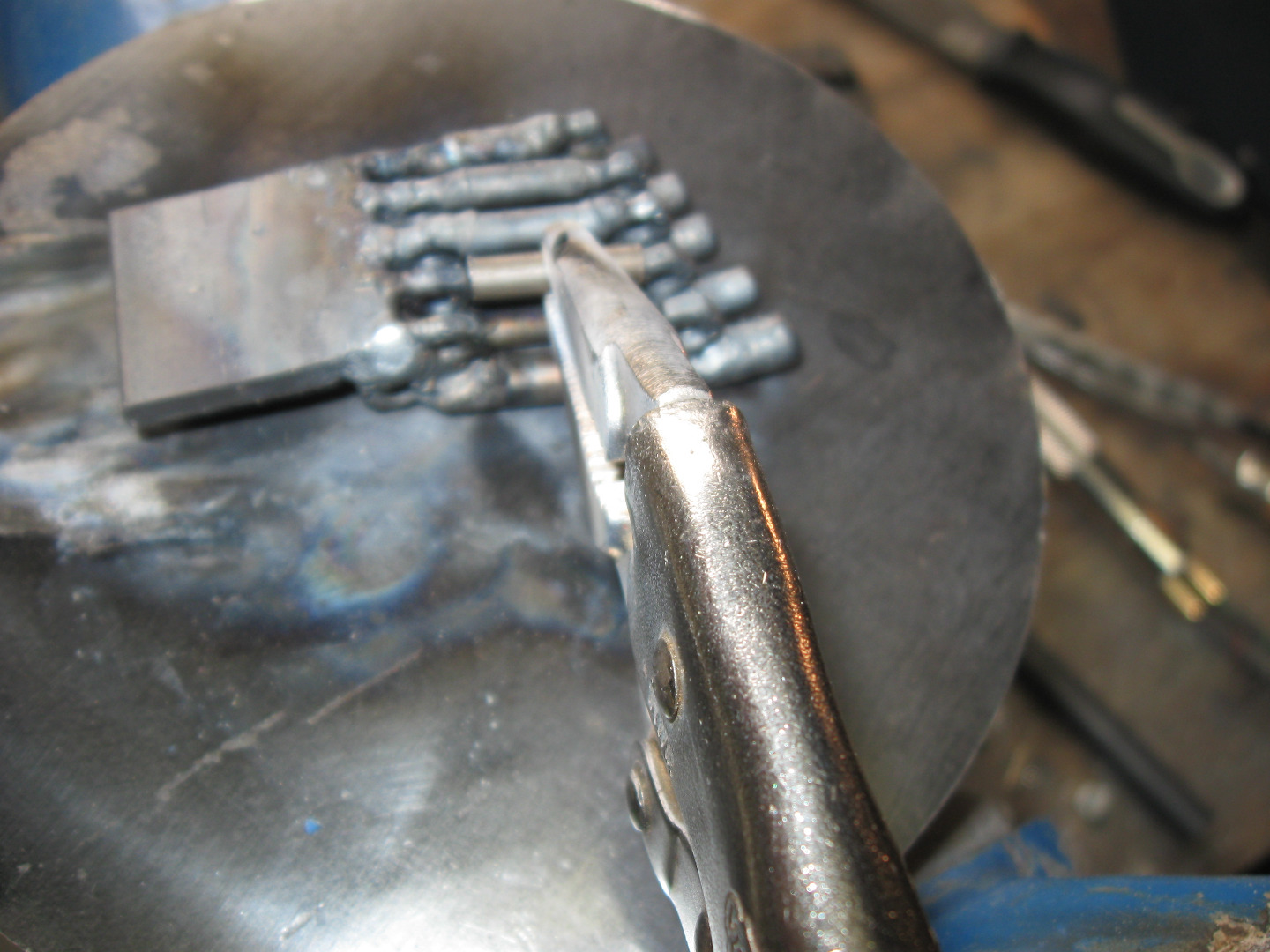

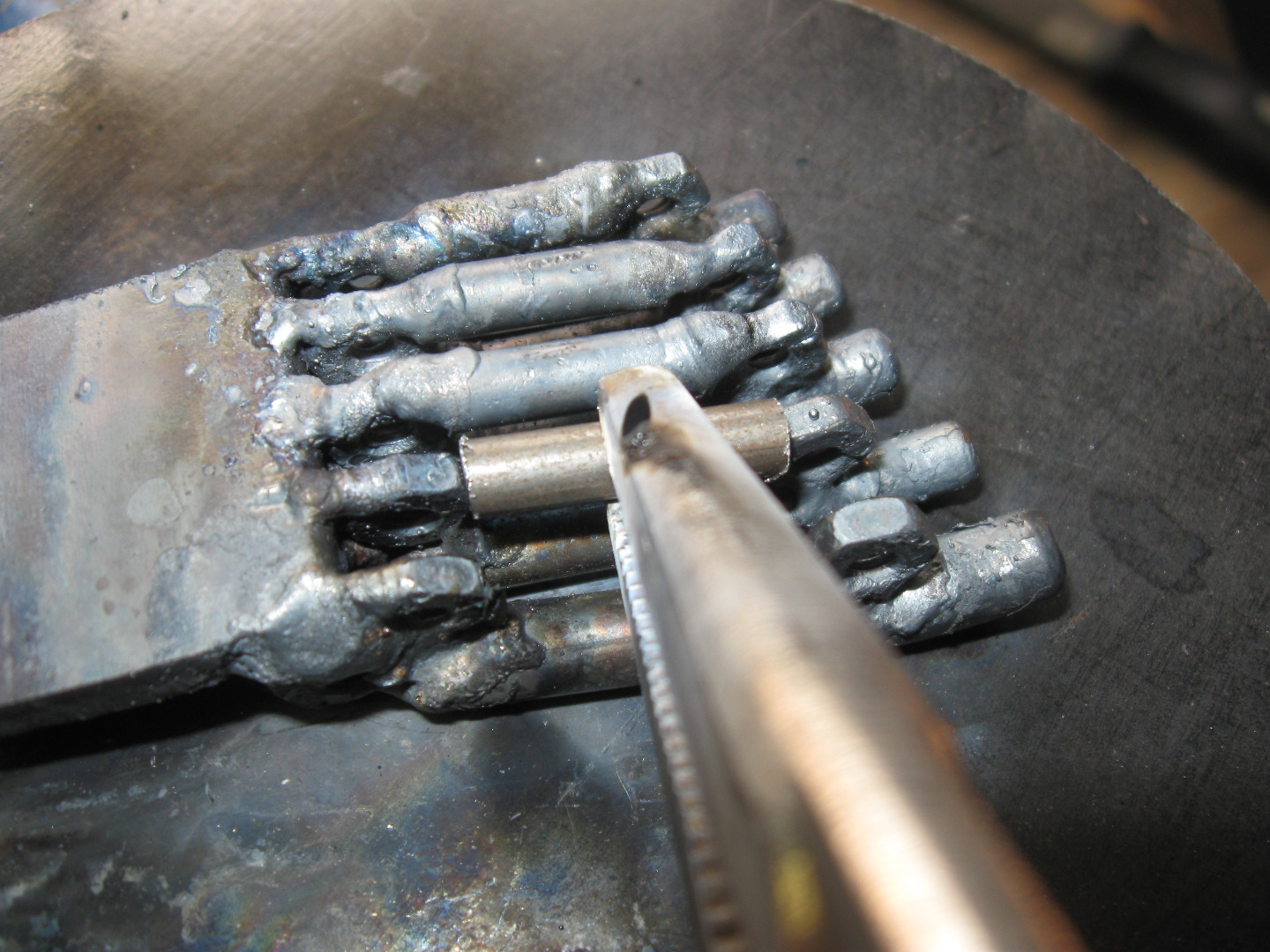

All steel rod is held in place with a needle nose vice grip to allow my hands to be free to weld.

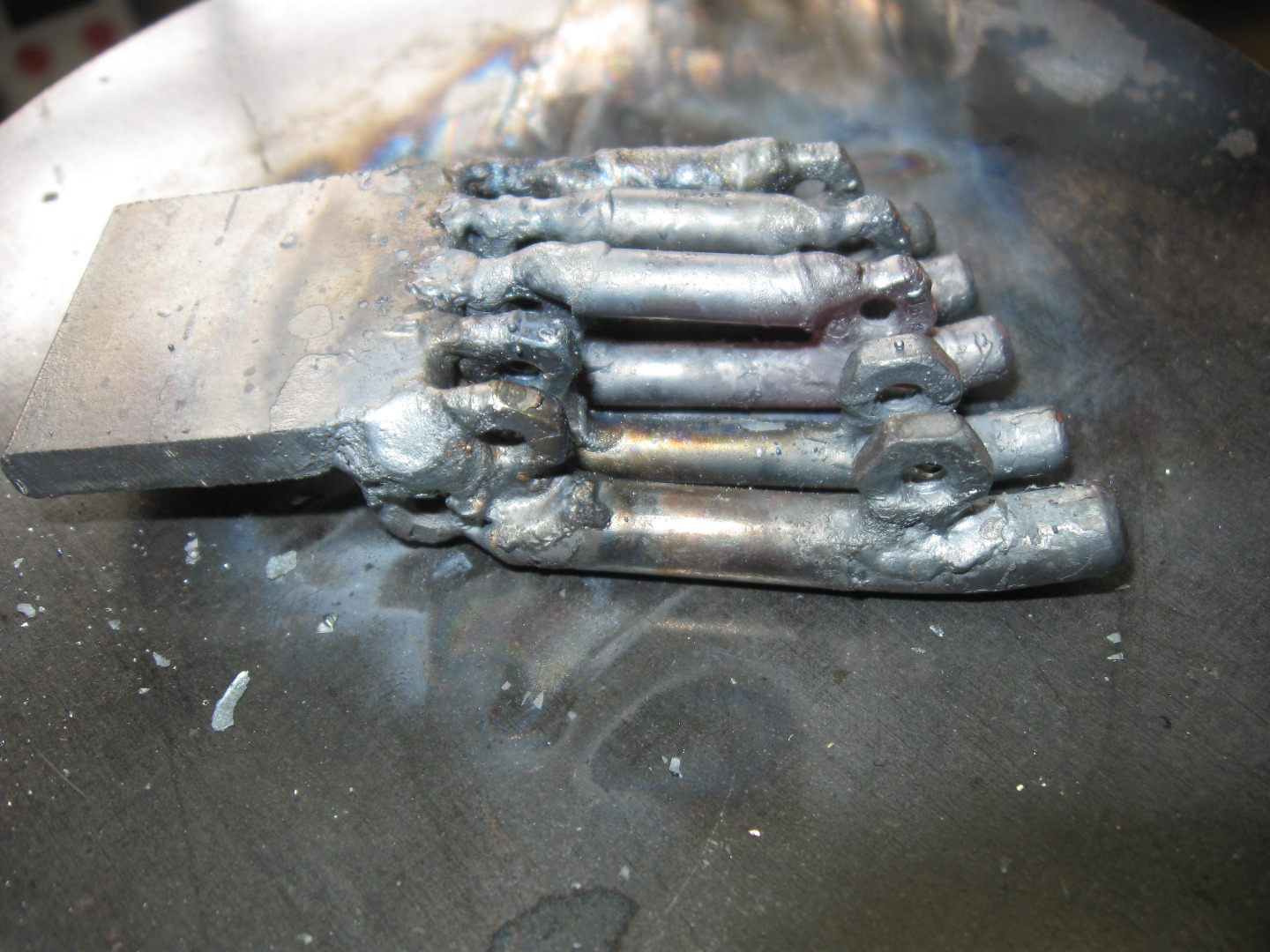

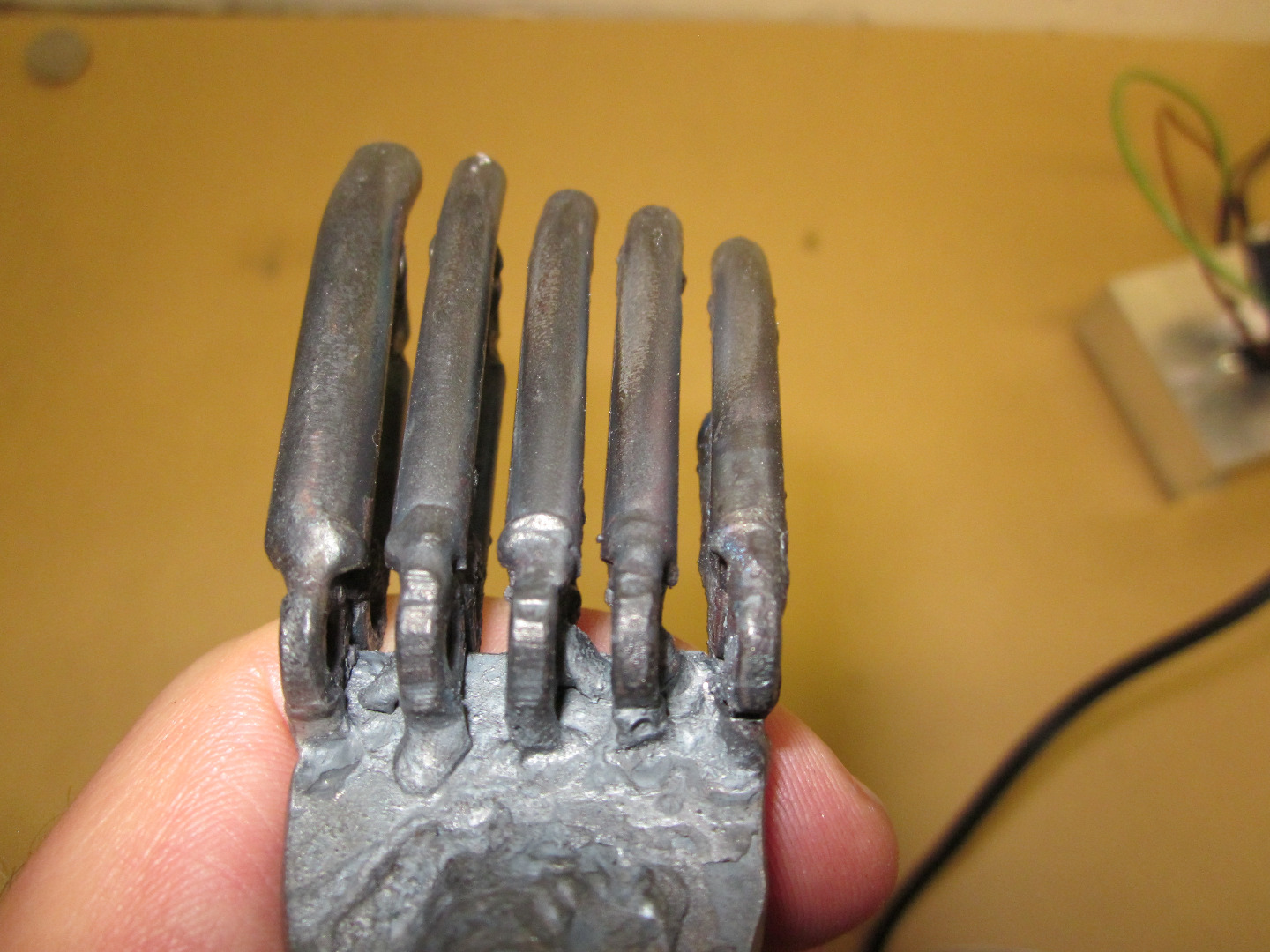

1/4 inch Steel rod is then cut and ground to fit between the upper nuts applied to give a parallelogram type of assembly for each toe element.

All welding is to the machine nuts only. This allows for space to present the illusion of movement...

The back of the foot had its back corners cut off at about 45 degrees then it was filed round.

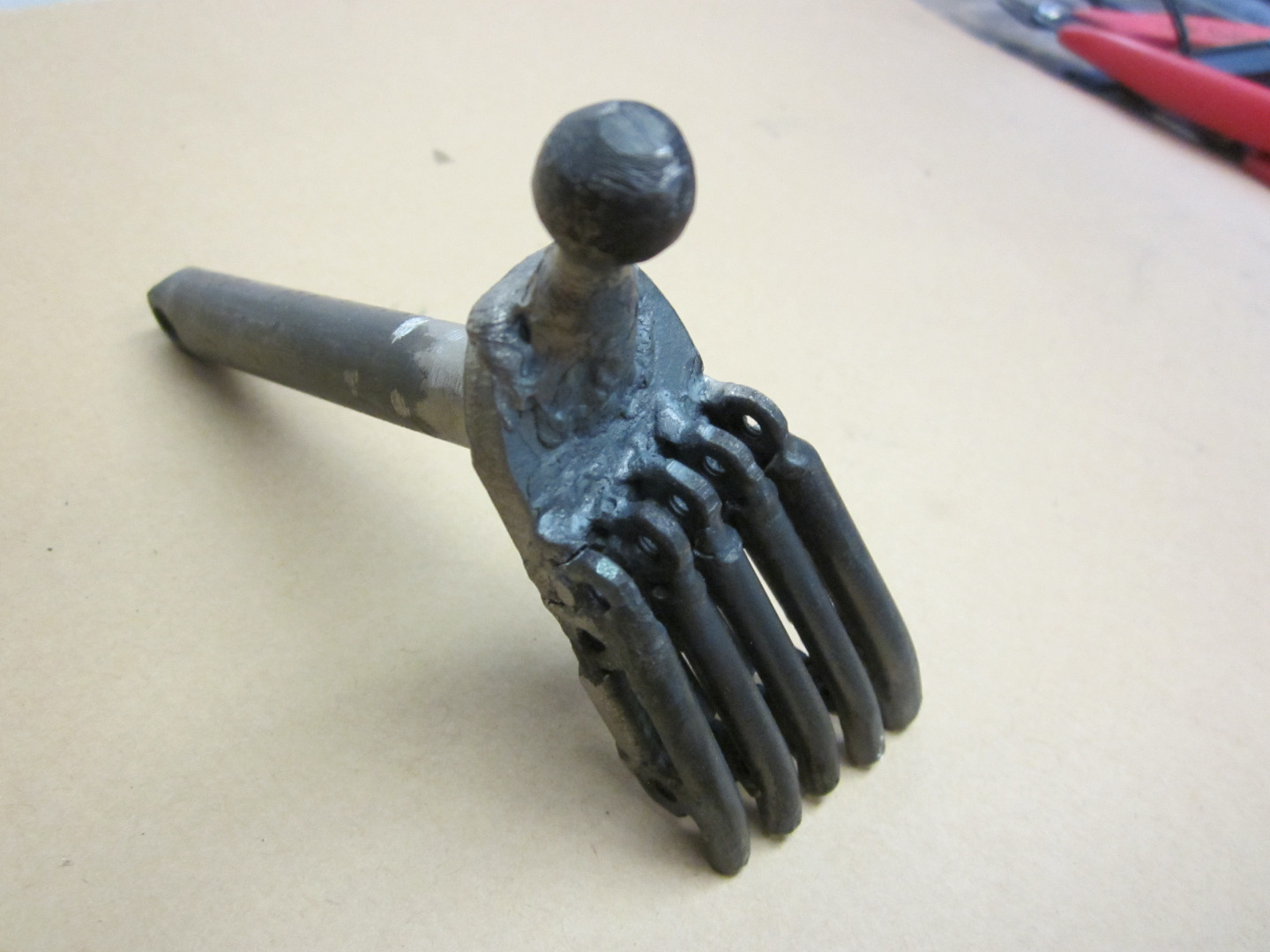

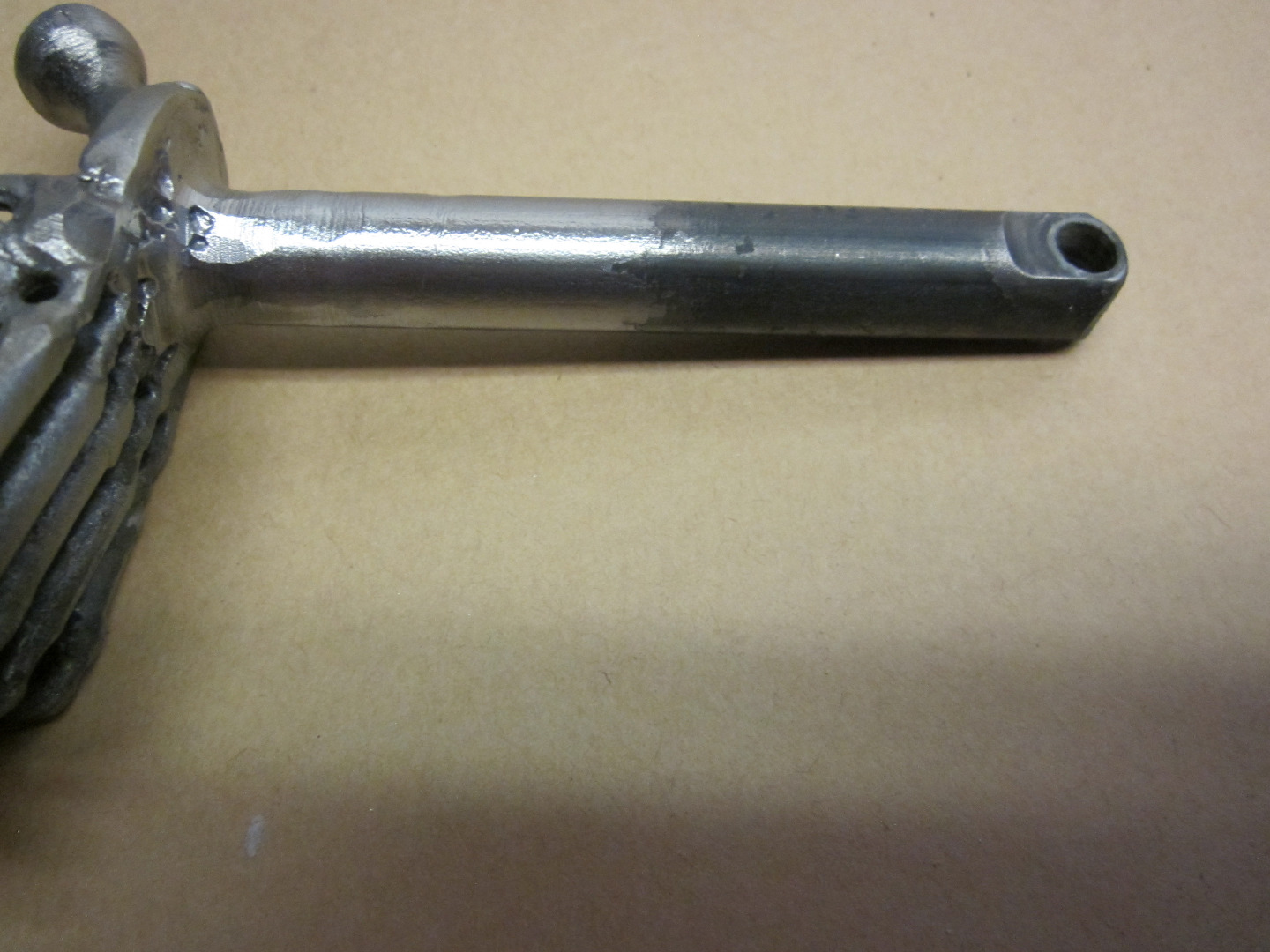

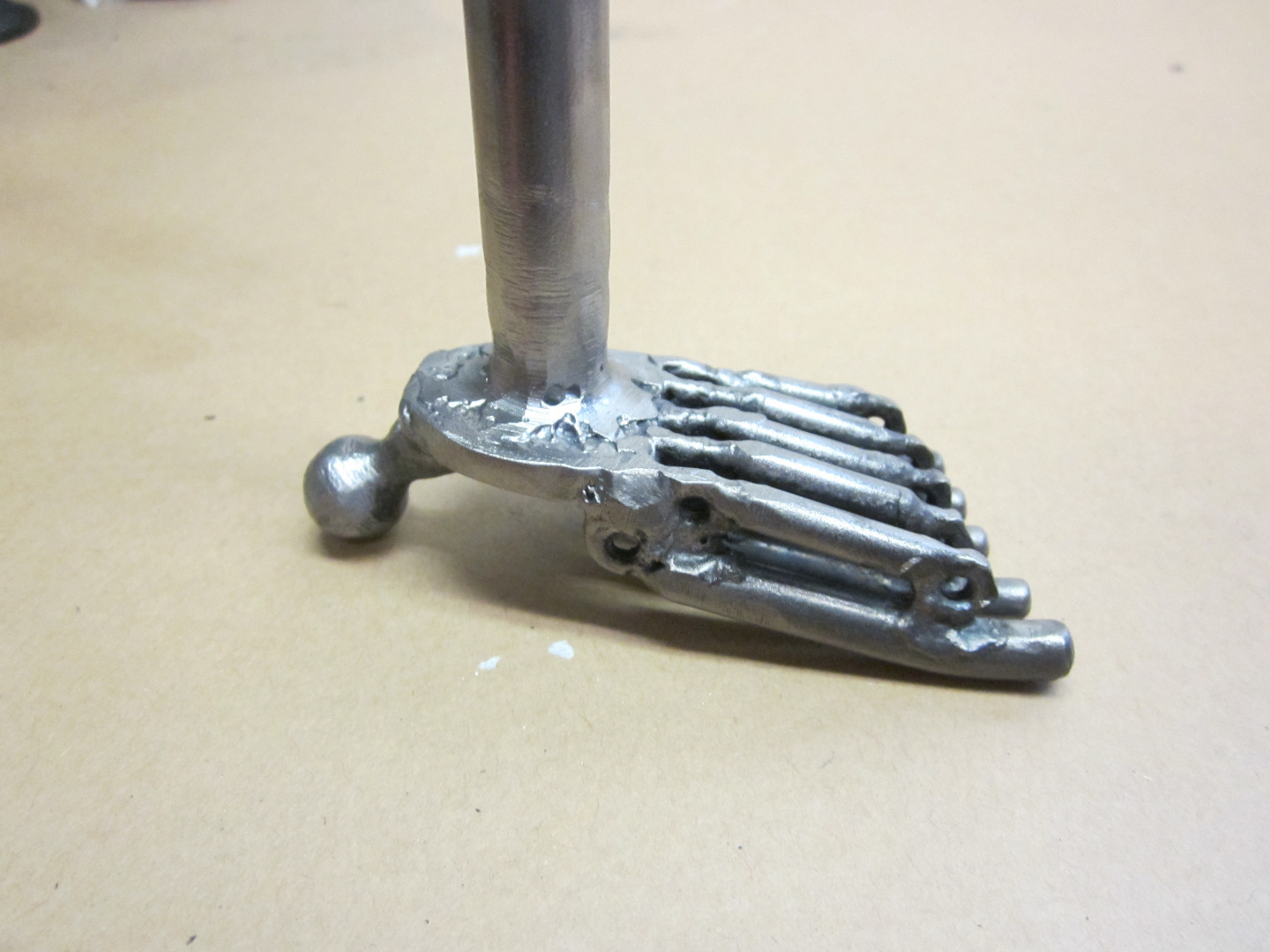

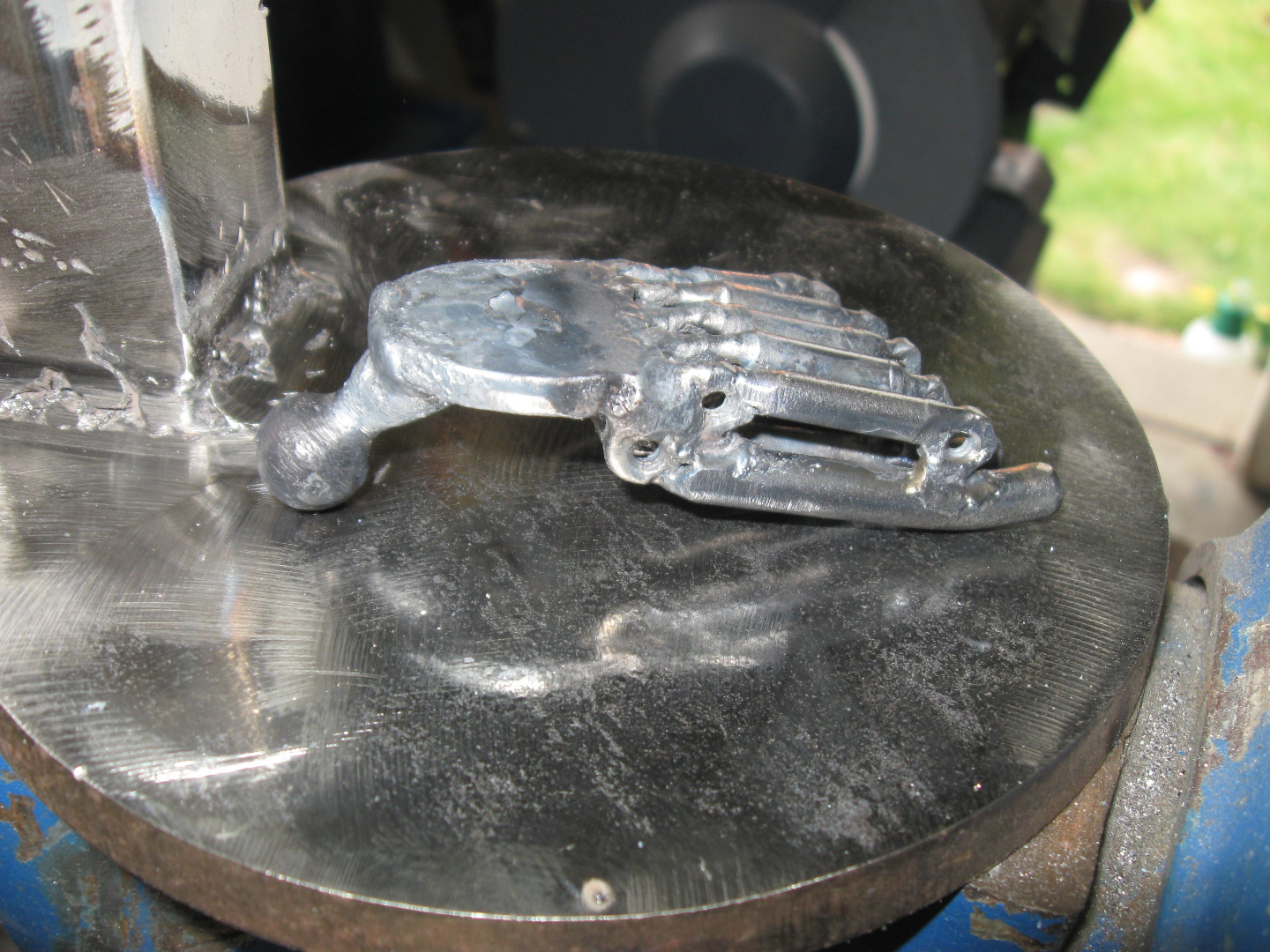

The heel part is a piece of 1/2 inch steel rod that was filed to a ball end, the other end was cut at a bevel then it was welded to the underside of the foot.

Join the Foot to the Base

Builds 1157.jpg
Builds 1144.jpg
Builds 1145.jpg
Builds 1146.jpg
Builds 1147.jpg
Builds 1148.jpg
Builds 1151.jpg
Builds 1152.jpg
Builds 1155.jpg

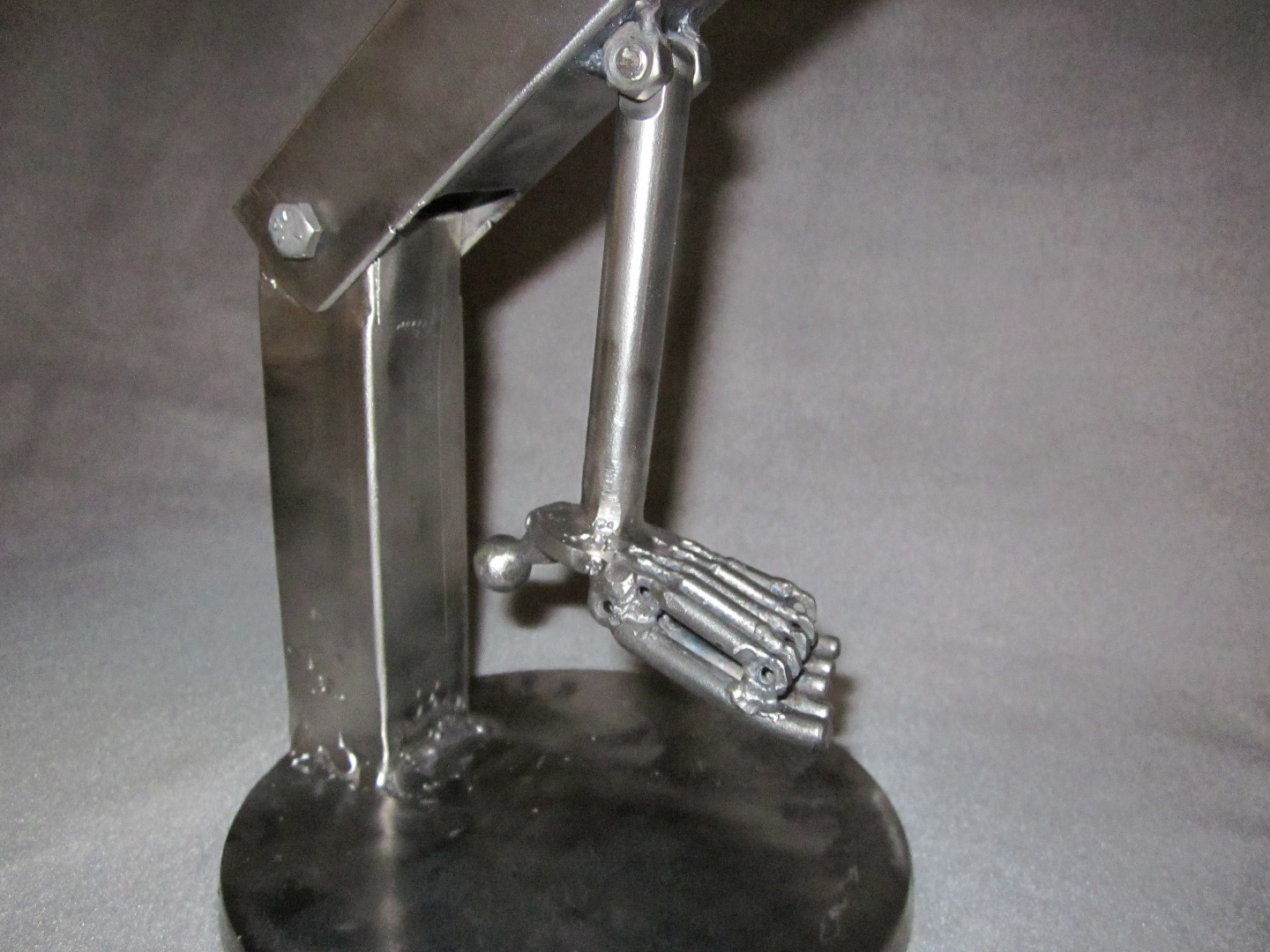

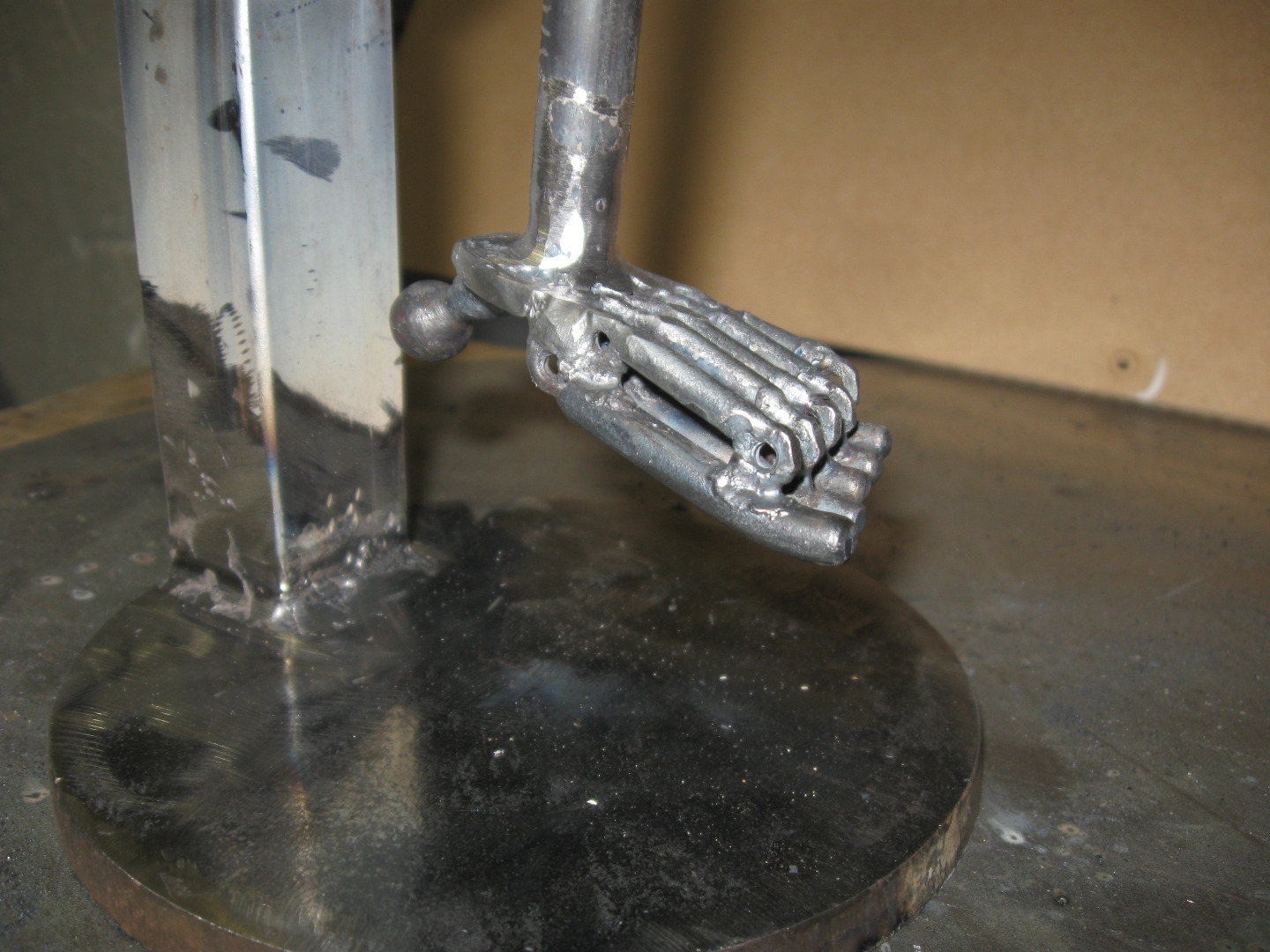

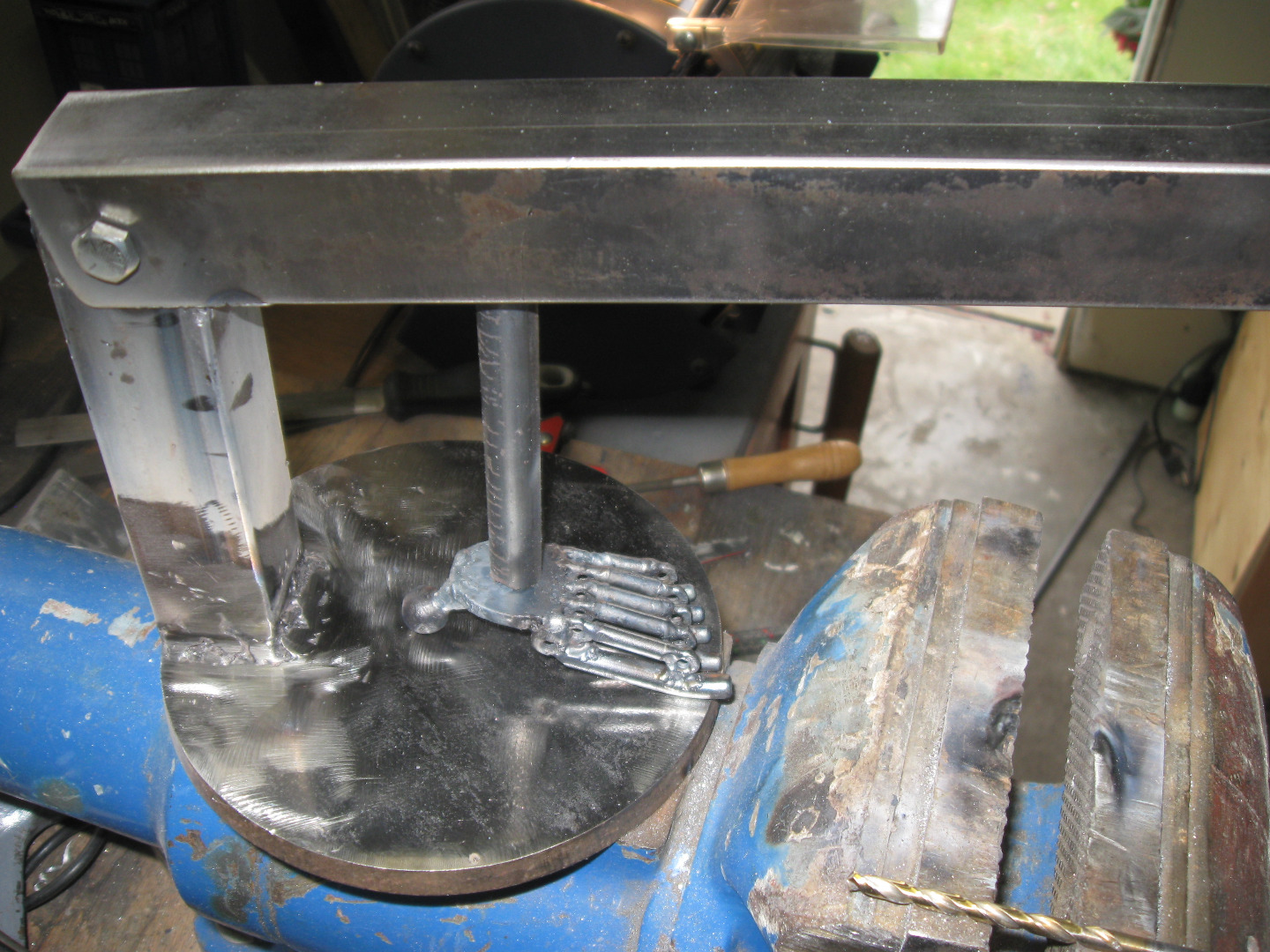

Place the foot on the base where it looks good.

I cut and place a small section of 1/2 inch steel rod to act as a leg, between the foot and lever, then marked the lever where the leg should be.

I welded the the foot to the leg.

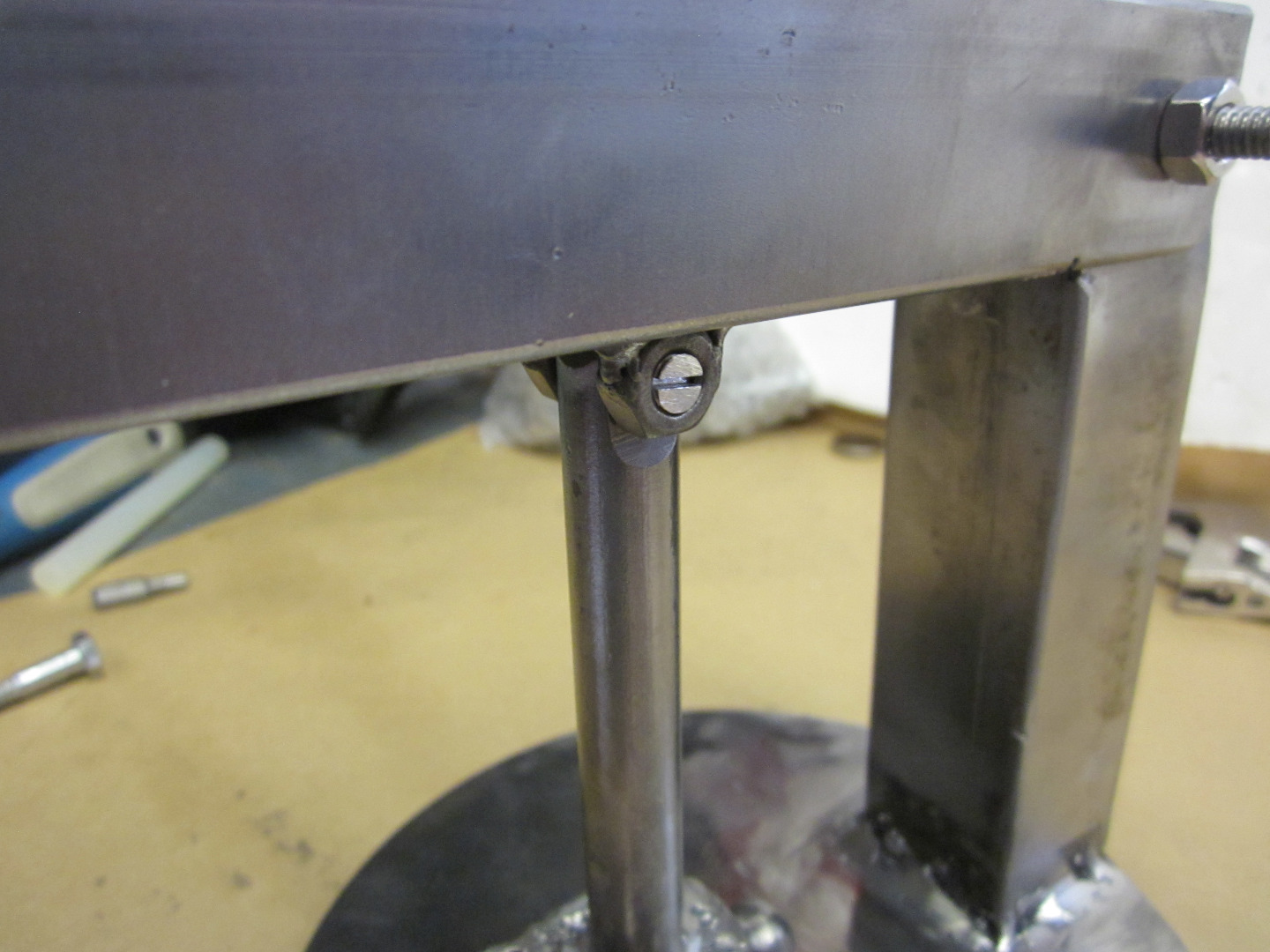

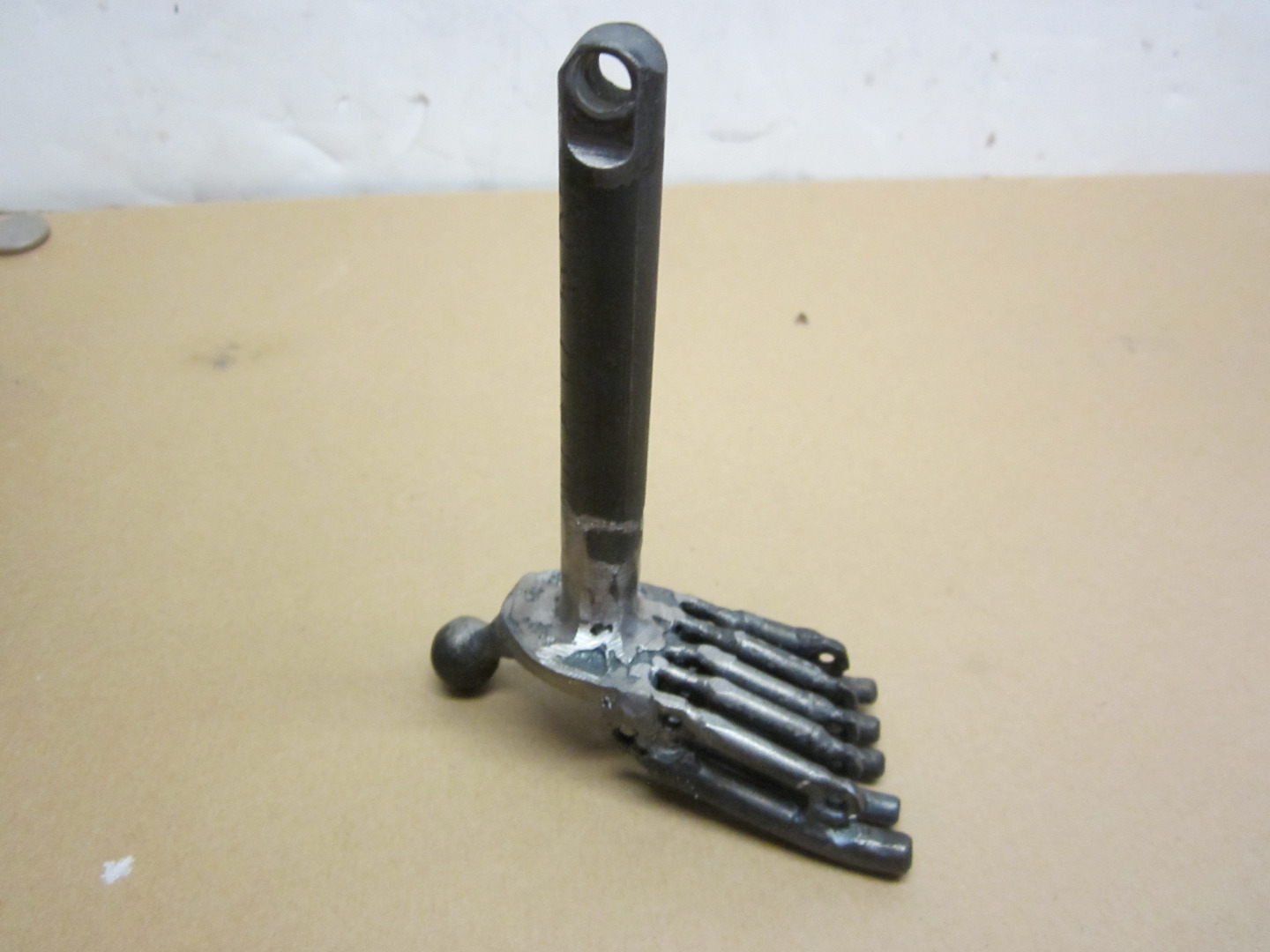

The I ground 2 flat section on the top of the leg for a knee joint. Then drilled a 1/4 inch hole and finally rounded out the top corners.

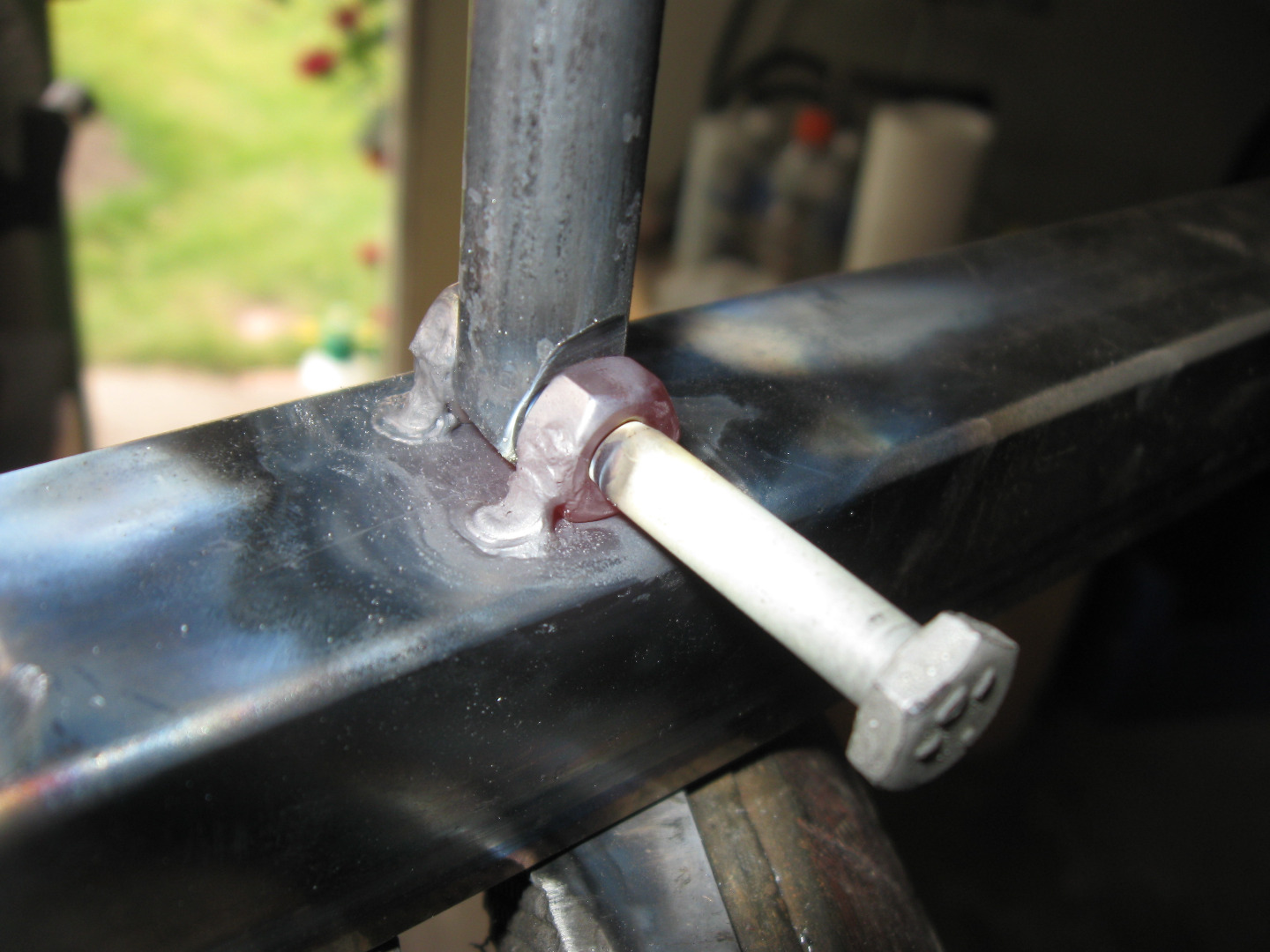

Next I placed a 1/4 inch bolt with nuts one either side of the knee joint then welded it to the underside of the lever where I had marked.


Polish and Finish.

Builds 1235.jpg
Builds 1205.jpg
Builds 1209.jpg
Builds 1210.jpg
Builds 1211.jpg
Builds 1213.jpg
Builds 1224.jpg
Builds 1212.jpg
Builds 1218.jpg
Builds 1217.jpg
Builds 1214.jpg
Builds 1222.jpg
Builds 1225.jpg
Builds 1228.jpg
Builds 1233.jpg

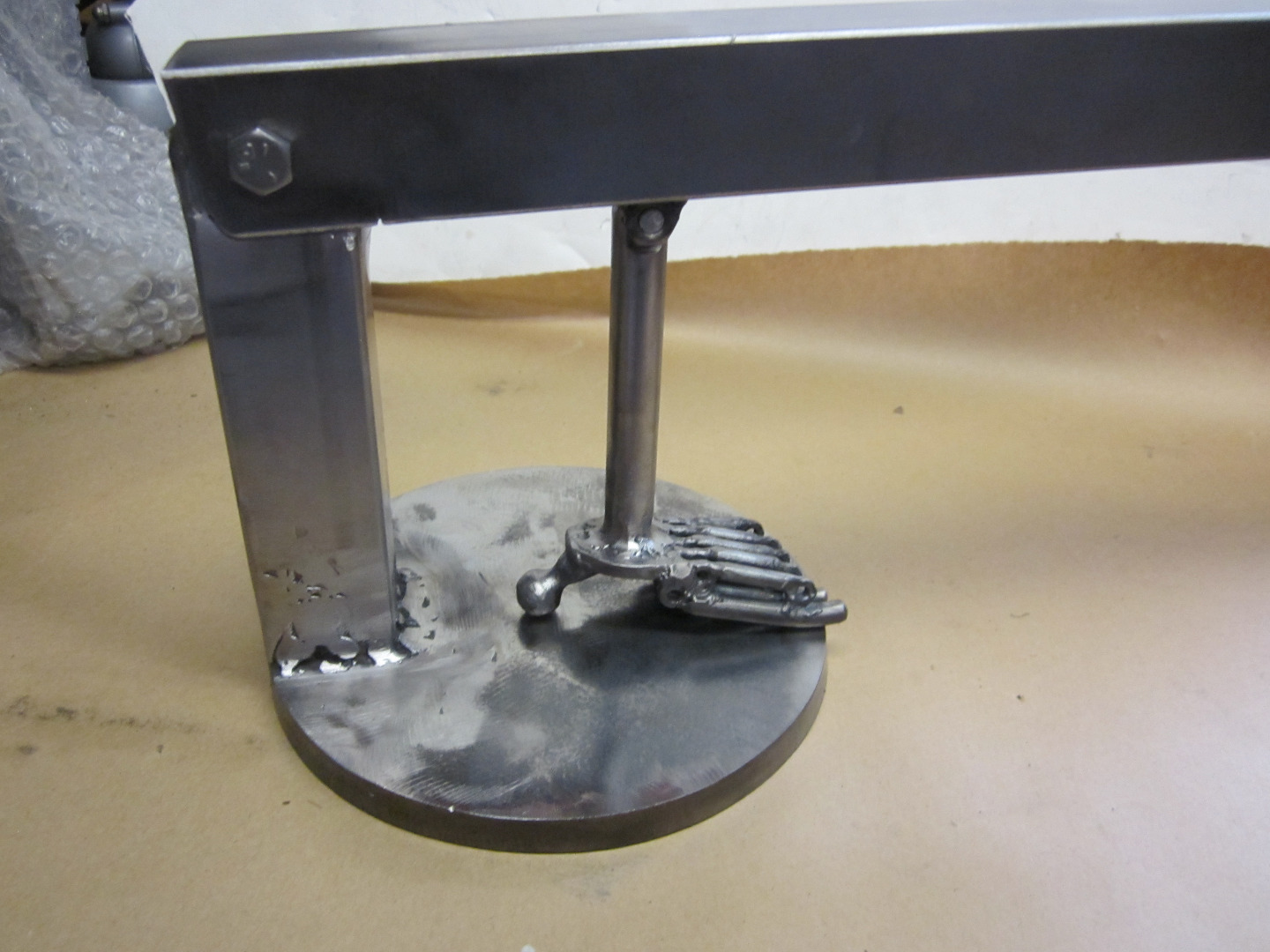

I disassemble then polished ever piece on a bench grinder with a wire wheel.

I reassembled it using new and custom cut bolts.

Now the walnuts are no longer safe.
