Takedown Recurve Bow - Home Made

I had wanted to make a re-curve bow for some time now and I have finally done it!!

I made the bow by designing and building my own riser from 3 different types of exotic woods to give me a great look once complete. I used skis as the arms because of the flex and it was much easier then forming my own arms, though I may now attempt that.

I have included a whole bunch of pictures in each step to make things easier to understand.

Overall this project wasn't that hard.

materials needed

For Riser

- A single, 3" x 24" x 2-1/4" block of hardwood ( I made mine by gluing 3 types of wood together)

- Pencil and paper for sketching the riser design

- Jig saw or ban saw (to cut out the riser)

- Wood Glue

- Lots of clamps

- Sand Paper and Belt Sander

- Wood Rasp

- Epoxy self mixing resin ($9.50)

- Varathane and paint brush

For Arms

- 1 set of cross country skis

- measuring tape

- fine toothed saw to cut skis

- drill and attaching hardware

- paint

- Round wood file

Extra Items

- Bow String

- Arrows

- Some sort of target material

The first step is to design how your riser (the middle wood section) of your bow will look as well as function. I started by looking at bows online and trying to do simple sketches of what I thought would look good. Basically there are only a few main things you will want to be sure of. They are:

- Total riser length - Should be around 16" minimum to 24" maximum, My bow riser is 20"

- Where the arrow will sit - The arrow should sit when finished in the exact middle of the riser

- handle location - Your handle should be just below the arrow location.

- Angles of arms when attached - Most store bought bows have an angle of 15-20 degrees but because I am going to use cross country skis I will change my angle to 10 degrees so the skis will sit more upright. The reason for this is because they are quite flexible and I want to get the most power I can out of these arms.

I am proficient in " Google Sketchup" and actually did a rough 3D model of what the riser would look like before sanding.This is not necessary but helped a little.

Choosing wood for a bow riser is not very hard and there is only 1 main rule that should be followed but in all honesty will probably work regardless.

Main rule - Use hard wood. - Hard Wood will make for a stronger and more powerful finished product along with the fact that hardwood usually has beautiful grain associated with it.

I went to Lee Valley and grabbed 4 pieces of wood

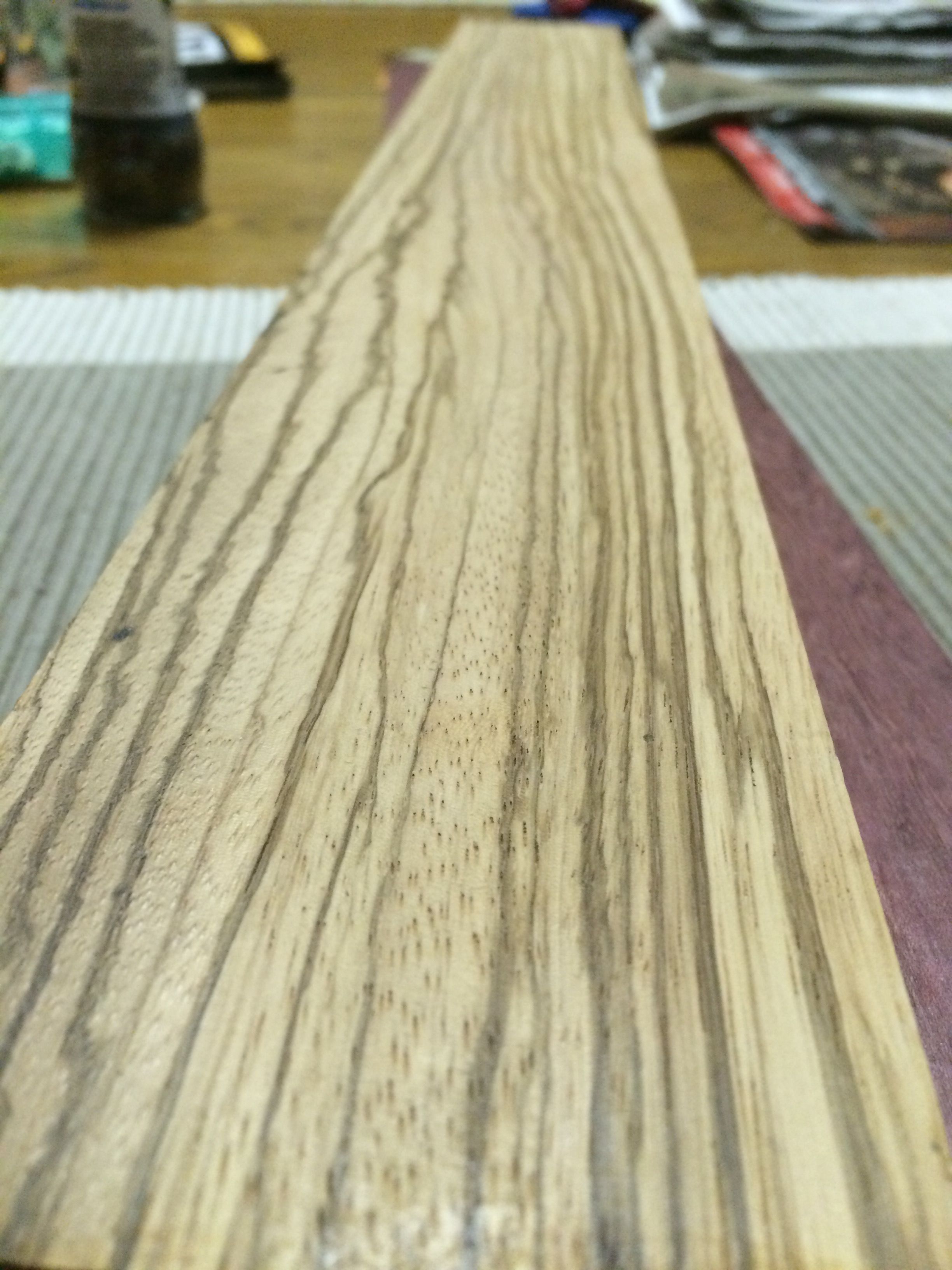

1- Zebra wood - 3" x 24" x 1.5"

2 - Purple Heart - 3" x 24" x 1.5"

3 - Padauk x 2 - 3" x 24" x 3/8"

*** I wanted a "fancy" riser so I bought pricy wood you don't have to, any hardwood will work just fine***

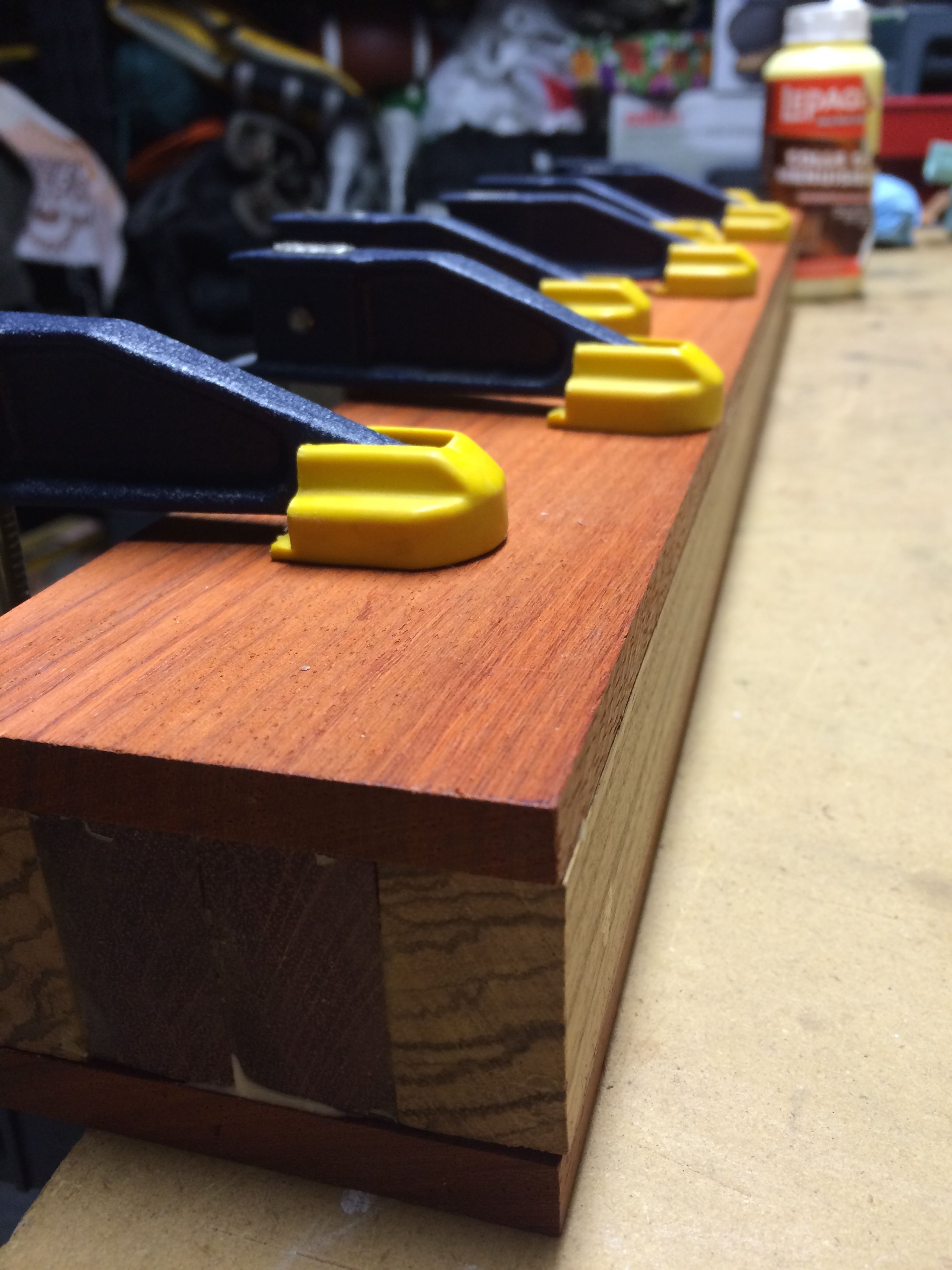

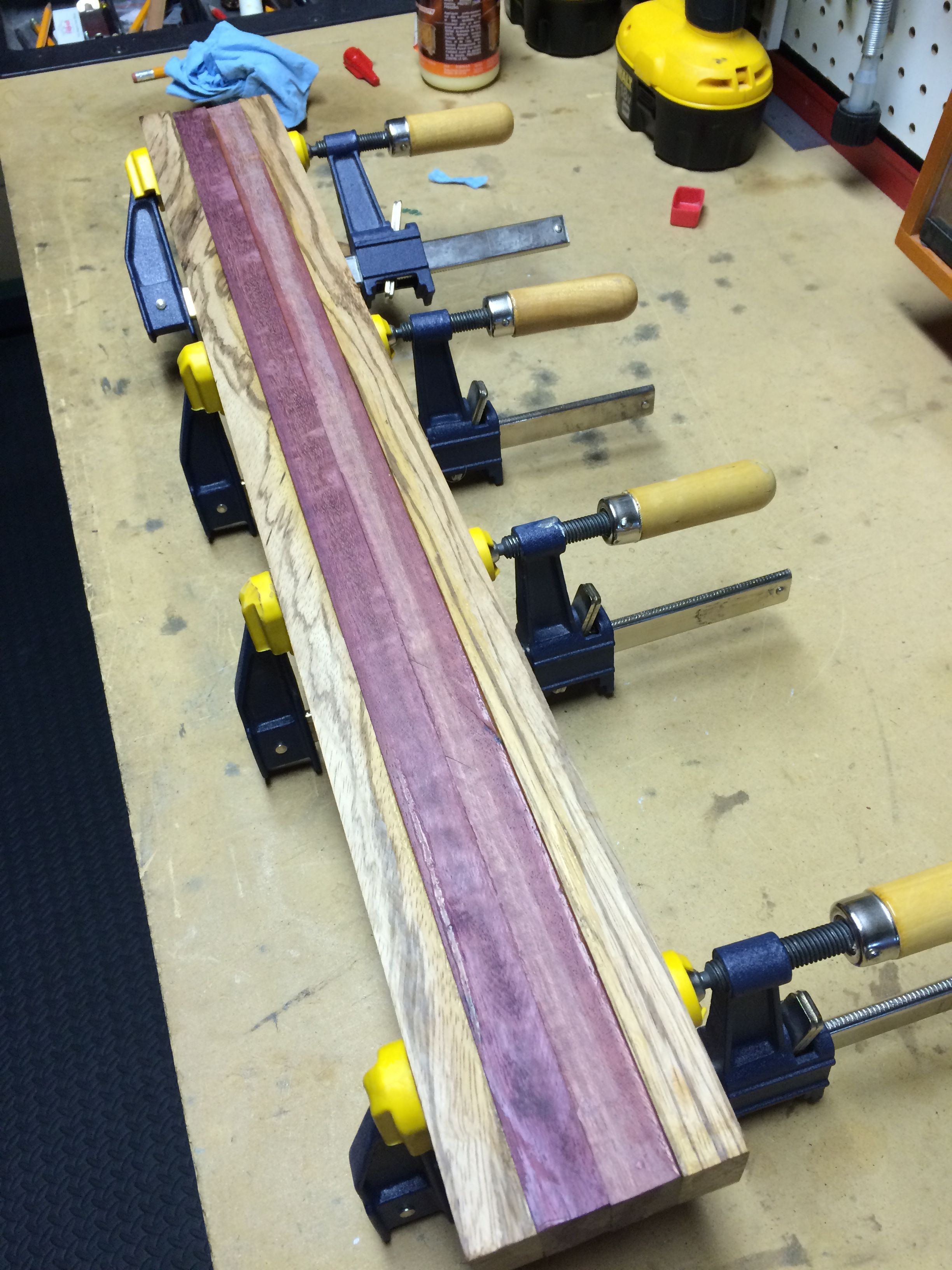

I cut the Zebra wood and Purple heart in half and laminated them together making sure to give the glue 24 hours to set.

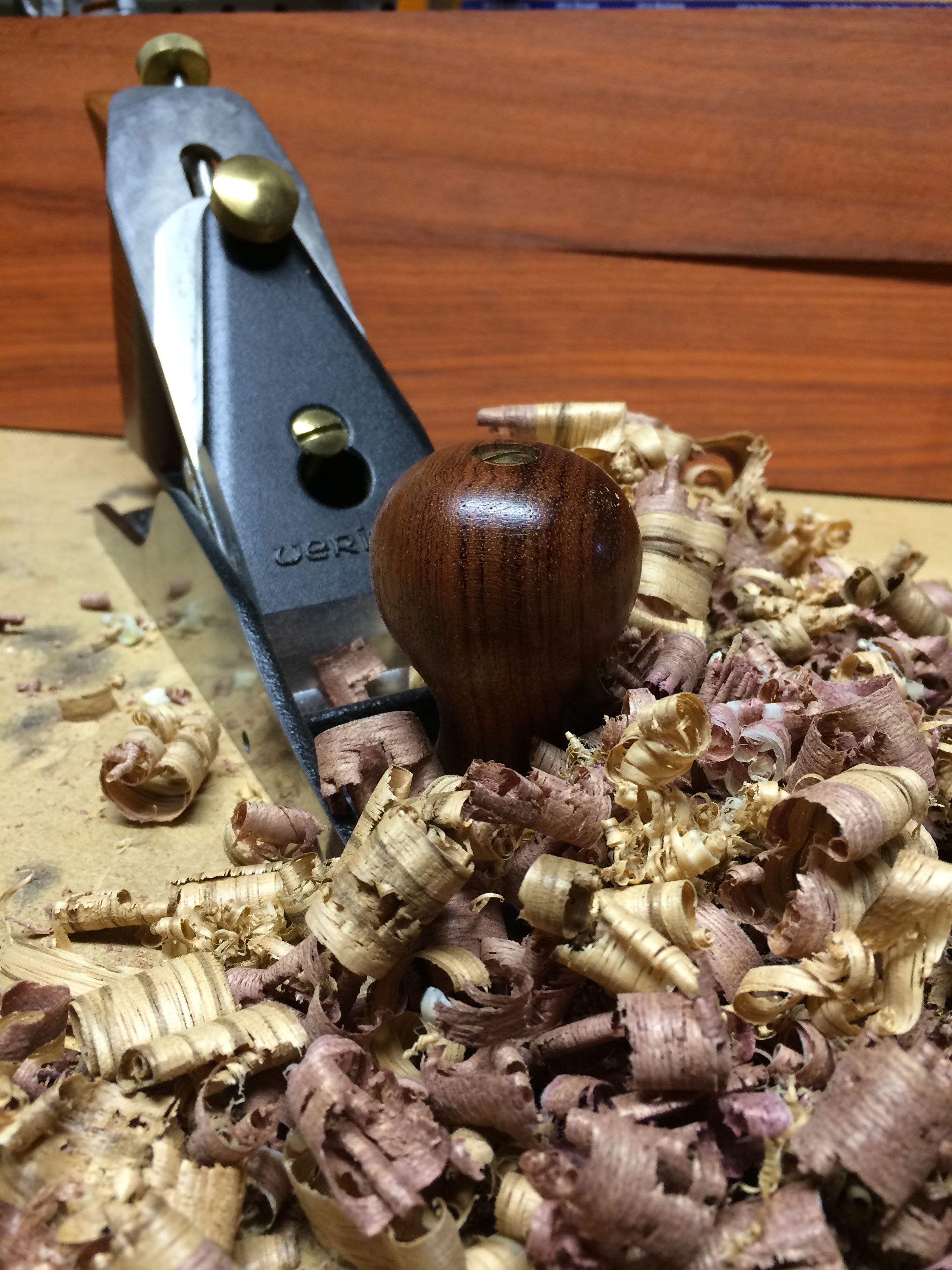

After un-clamping, the 4 pieces we not totally flat so I used a clamp and a hand plane to smooth them out before attaching the Padauk to the top and bottom of the other pieces.

after all glue had dried there might be small gaps around the edges I filled these with a clear drying self mixing epoxy resin just to fill the gaps in the wood.

I now have a block of wood that measured 3" x 24" x 2-1/4"

Draw out your riser design to scale and place it on your wood block. Then trace the design with a pencil and then go over it in marker because its much easier to see when cutting and saw dust is everywhere. I used a ruler to draw where I would like to make my cuts in order to make cutting out the piece easier. I don't own a ban saw so I have to use a jigsaw which is harder for cutting smooth lines.

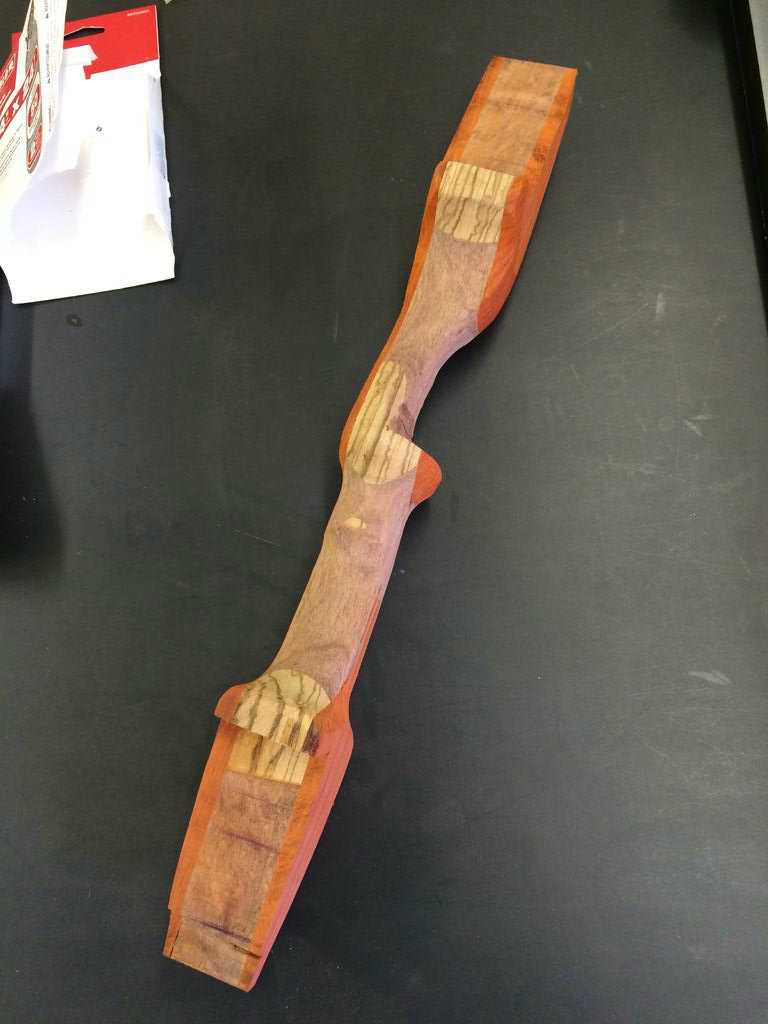

I made a series of small cuts perpendicular to my riser line to make cutting much simpler. My finished cut piece is very blocky and has saw marks all over it but that's okay we are going to sand that bad boy down and make it look nice.

Not really a fast way to do this other then some gritty sand paper and a power tool. I only have a belt sander so what I had to do was flip the sander upside down and sand my riser that way.

I just worked away at the riser until I began to get the shape I wanted.

after I got it close I used a wood rasp to sand where the belt sander could not.

Sanding tips.

- Be sure to always be moving your riser as to not take off to much material

- pay attention to other parts that may be getting sanded with out you meaning to when working on weird angles.

- take your time and take breaks, no point rushing

- Wear a face mask and safety glasses to protect from ingesting wood dust.

- Wear ear protection, its going to take a while so don't damage your ears

- keep sanding until you reach your desired shape

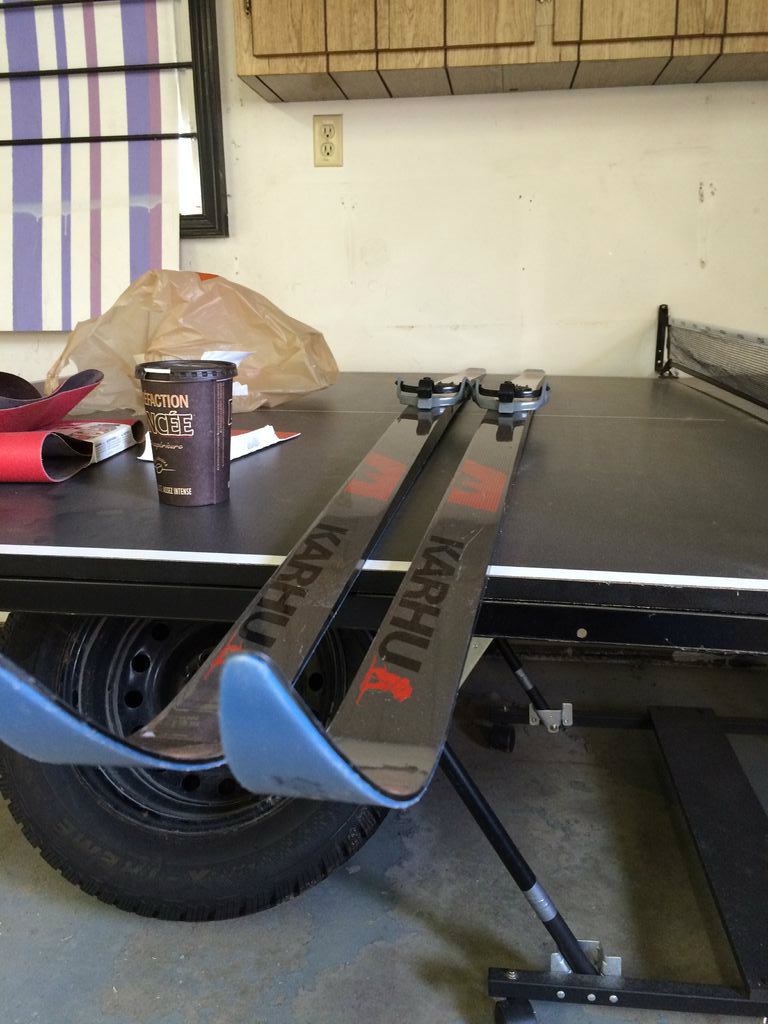

I used a pair of old cross country skis for the arms. I got these a my local re-use center for $20.

Measure your skis from the tip down anywhere from 20" 26" for good spring power. I cut these at 23.5" from the tip.

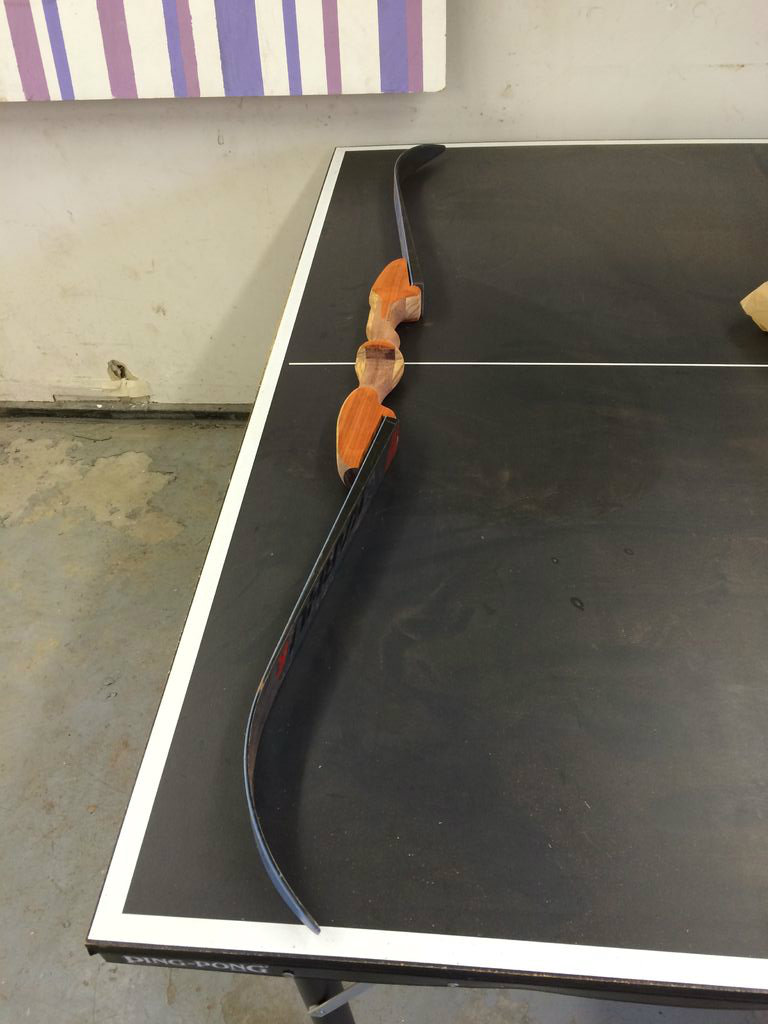

I laid out the bow to see how everything was going to look.

attaching the arms is easy but needs to be done correct so follow these steps

go and buy your attaching hardware;

2 bolts @ 3"

2 bolts @ 2"

4 washers

4 wing nuts

all hardware is 5/16

1 - measure where the wood of your riser stops on your ski from the bottom. draw a line across the top of the ski as guide.

2 - make points where you are going to drill that are directly in the middle of the ski. from the cut edge of the ski I made marks at 1" and 2.5".

3 - using masking tape tape the ski to the wood as best as you can exactly where you want it to sit when attached

4 - clamp the wood and ski down and using a bit that can be used for wood and plastic drill through the ski and wood. I used a 5/16 bit because that was the size of my bolts.

Using a hole cutter bit drill from the back of the riser making the holes large enough for the head of the bolt to fit in. drill the holes deep enough so the bolt sticks up just past the riser maybe 1/4-1/2"

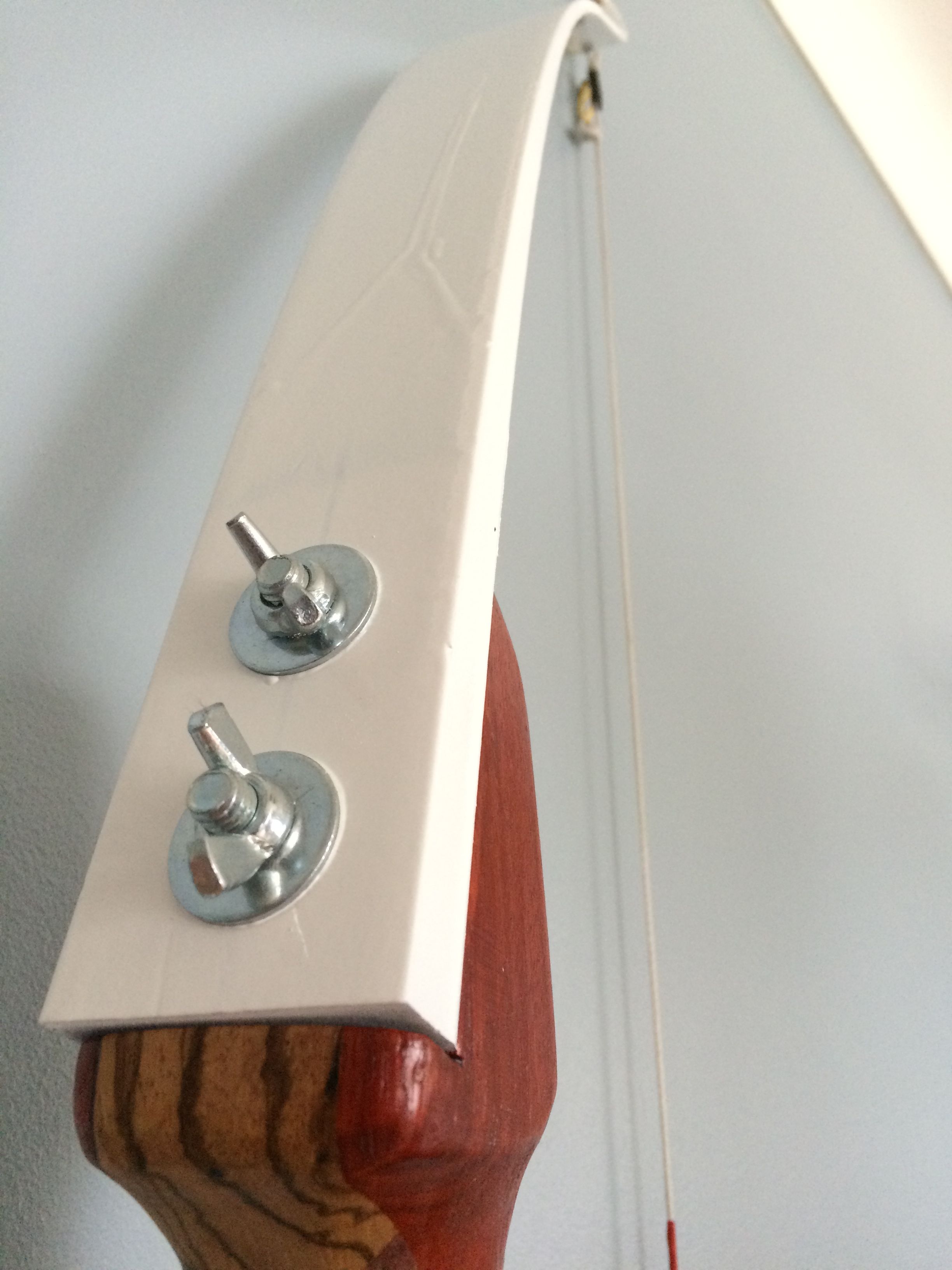

after all holes are drilled use a nail set to hammer in bolts so the fit snug then add your arms and tighten down with a washer and wing nut.

Using a round file, work in some notches where the string will fit. Angle the notches away from the middle of the bow to act as a rest and not have the string fall off.

At this point I have basically a functioning bow but it needs to be tested before paint.

Here is a quick testing video

This was shot at close range about 20'

Notice I only pulled it back about 50%-75% draw. I have another video of it at full draw. Because of where I was shooting I wanted to be safe.

Now that we know that the bow is shooting correctly we can make it look a little fancier.

After making sure everything fits nicely do a final sand on your
riser then add some stain or varathane. I wanted the natural wood colours so I went right to varathane.

let everything set for 24-36 hours

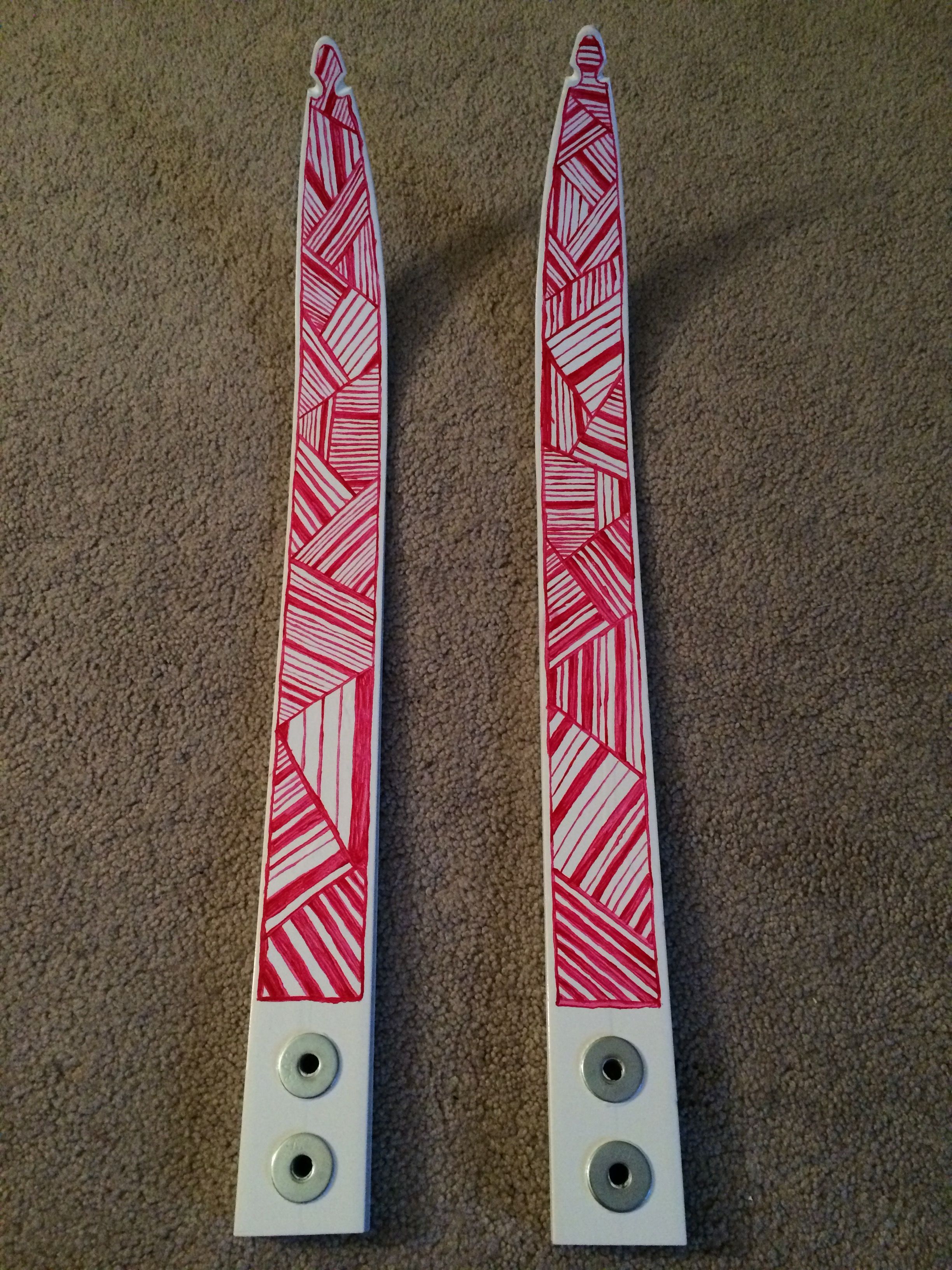

Hang it up somewhere and use multiple of layers of paint. Try to use a paint that has some flexing agents in it because the arms will have to flex quite a bit, automotive paint should work great.

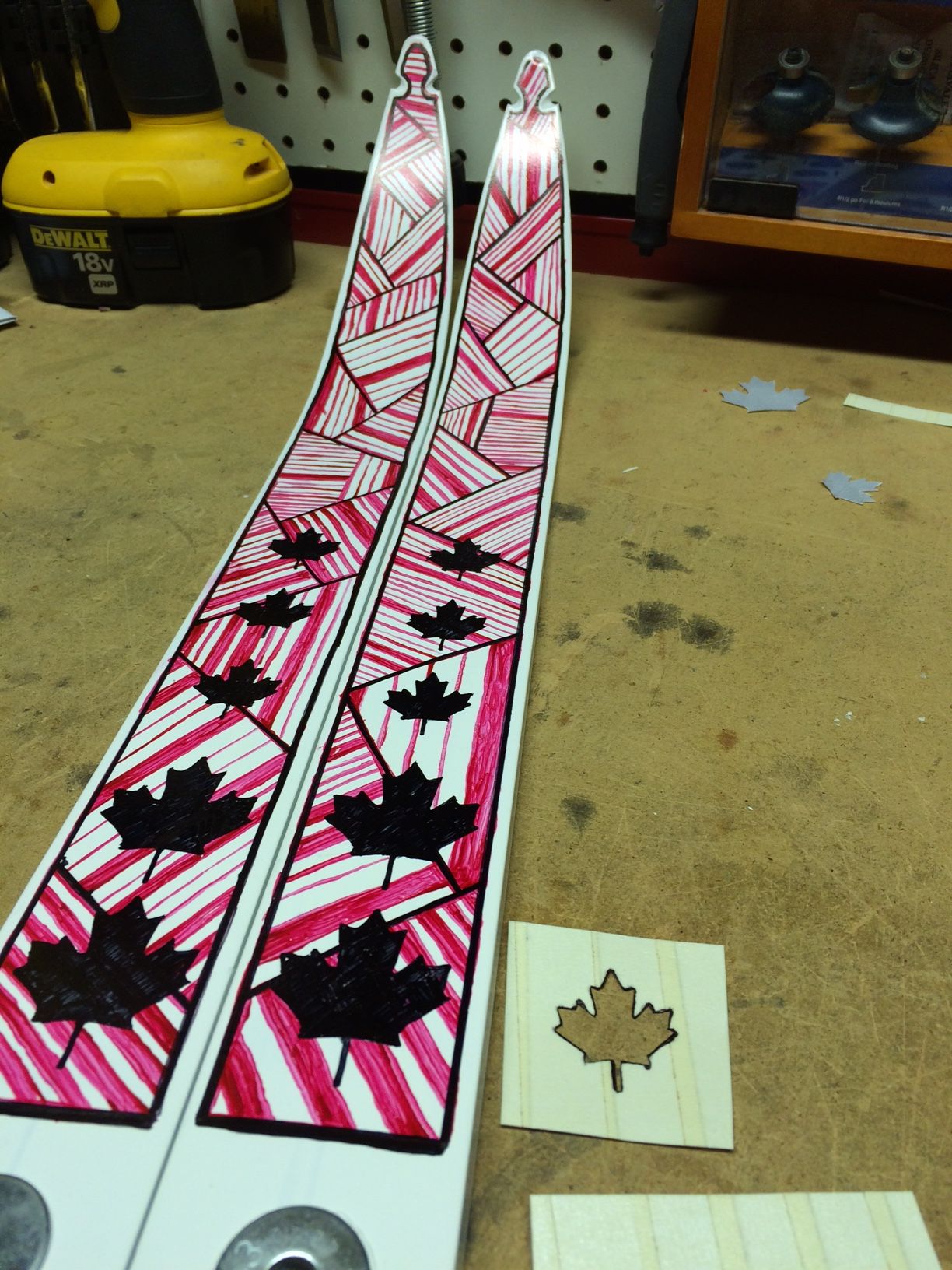

keeping the bow all white looked good but I wanted to add a Canadian feel to it so I did some detail work.

All Done!!

The bow is complete and ready for real testing

These shots were taken at about 35yrds and the grouping is pretty good.

In the video it looks like the arrow is wobbly but in actuality is was flying straight I was using a cell phone to film it. When I walk up you can see how the arrows have hit the target for a better idea of how it was coming off the bow. All consistent

(sorry about not turning the camera)

I hope you have all enjoyed this instructable

I did this for fun enjoy.
