Tactical Water Bottle

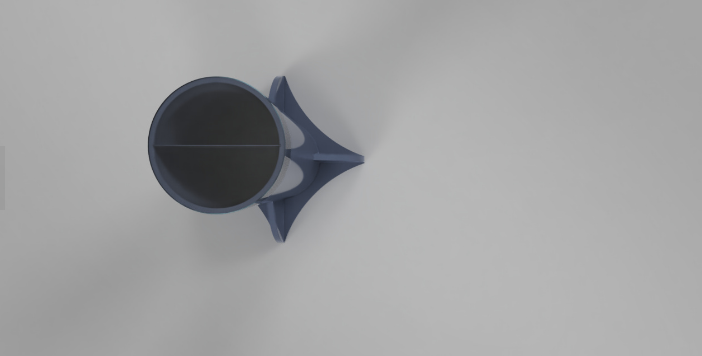

![ok.PNG](/proxy/?url=https://content.instructables.com/FZD/GG1B/KUV8SWOC/FZDGG1BKUV8SWOC.png&filename=ok.PNG)

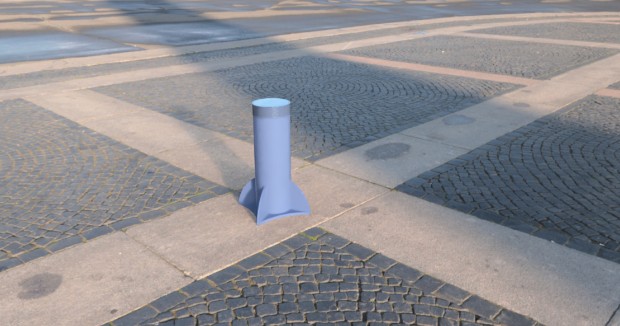

Have you ever spilt your water on your papers while in class?
While this handy water bottle will make sure it never happens again. It comes with a handy device at the bottom that makes sure it cant be tipped over. It also has the ability to store 2 separate beverages of your choosing, as it has a separation wall that you can take out.
Supplies
This water bottle was made in fusion 360. In order to create it, you need:
- 3d Printer
- 3d Printer plastic
Inspiration
![water-damaged-book.jpg](/proxy/?url=https://content.instructables.com/FLF/QU5G/KUV8SX3E/FLFQU5GKUV8SX3E.jpg&filename=water-damaged-book.jpg)
My inspiration was that I always end up spilling water on my papers in class. So I decided to fix that.
Start
![wheb.PNG](/proxy/?url=https://content.instructables.com/FBQ/C24V/KUV8SX9F/FBQC24VKUV8SX9F.png&filename=wheb.PNG)

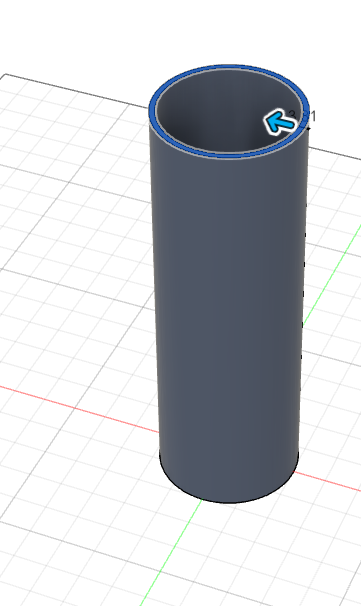

To start I created the water bottle shaft and put a whole through the window.
Legs
![this is.PNG](/proxy/?url=https://content.instructables.com/FRU/CX6H/KUV8SXCR/FRUCX6HKUV8SXCR.png&filename=this is.PNG)
I then created the 4 legs
Platform
![circle.PNG](/proxy/?url=https://content.instructables.com/F5I/VBKB/KUV8SY05/F5IVBKBKUV8SY05.png&filename=circle.PNG)

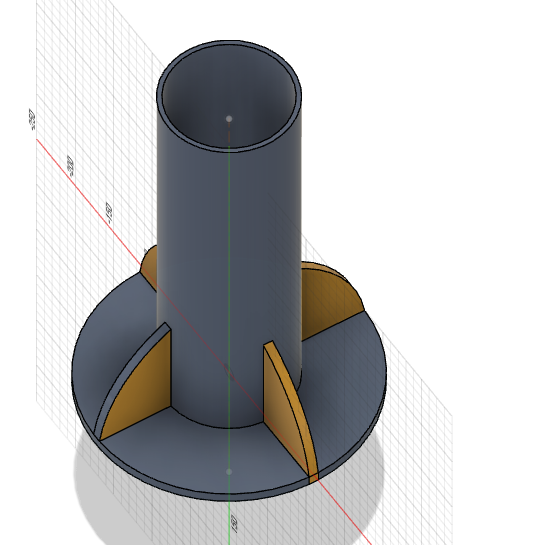

I then created the bottom platform
Platform Cutting

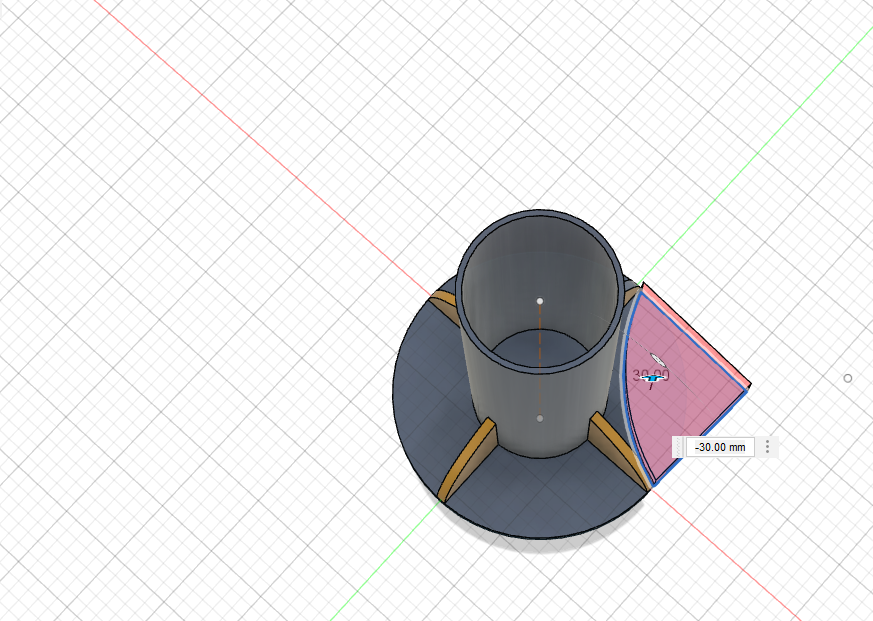

![w.PNG](/proxy/?url=https://content.instructables.com/F6R/XY9P/KUV8SY77/F6RXY9PKUV8SY77.png&filename=w.PNG)

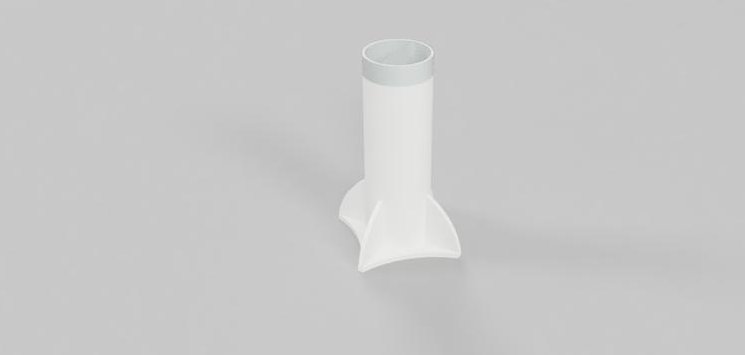

I then cut the platform to make it more practical
![o.PNG](/proxy/?url=https://content.instructables.com/FHF/2XSB/KUV8SYBH/FHF2XSBKUV8SYBH.png&filename=o.PNG)
![i.PNG](/proxy/?url=https://content.instructables.com/FOA/42LP/KUV8SYO0/FOA42LPKUV8SYO0.png&filename=i.PNG)
![wooo.PNG](/proxy/?url=https://content.instructables.com/FGD/645B/KUV8SYVM/FGD645BKUV8SYVM.png&filename=wooo.PNG)

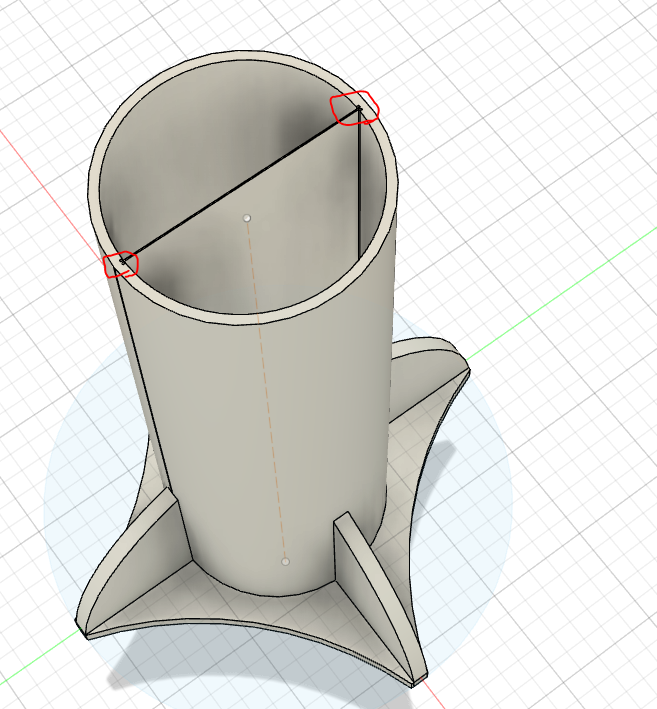

After that, I cut a small gap in the water bottle so I could put in a small wall that can be taken out so I can have two beverages In the bottle at once.
I then created the wall.
Next Part of the Project
![finally.PNG](/proxy/?url=https://content.instructables.com/FAH/AW5V/KUV8SYWK/FAHAW5VKUV8SYWK.png&filename=finally.PNG)

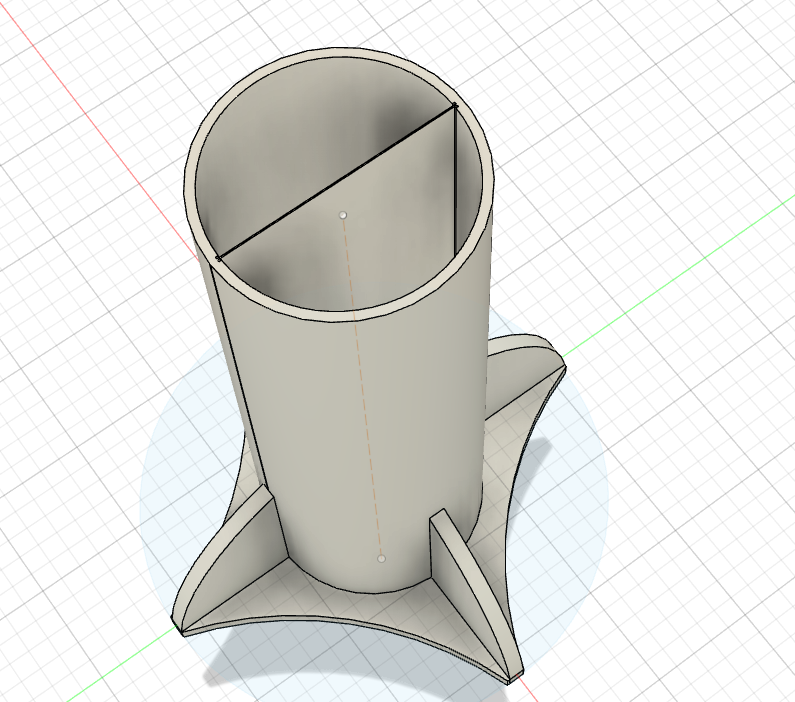

I finished the bottle portion, and next I needed to create a lid.
Start
![cirlce.PNG](/proxy/?url=https://content.instructables.com/FMU/5BWY/KUV8SZAL/FMU5BWYKUV8SZAL.png&filename=cirlce.PNG)

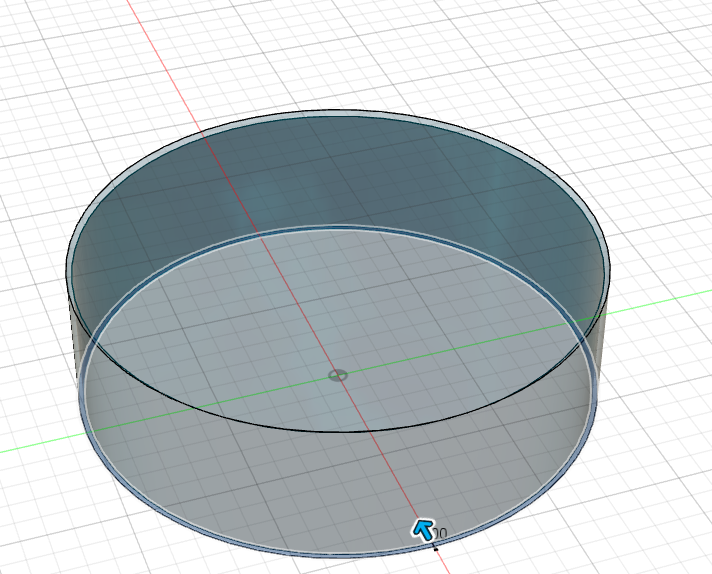

To start, I created a circle and extruded to make a 3d circle.
Shelling & Construction
![shel.PNG](/proxy/?url=https://content.instructables.com/FGW/Q2Z2/KUV8T01Z/FGWQ2Z2KUV8T01Z.png&filename=shel.PNG)
![assembled.PNG](/proxy/?url=https://content.instructables.com/FAL/APBO/KUV8T154/FALAPBOKUV8T154.png&filename=assembled.PNG)
I Shelled lid so it could be placed on the bottle.

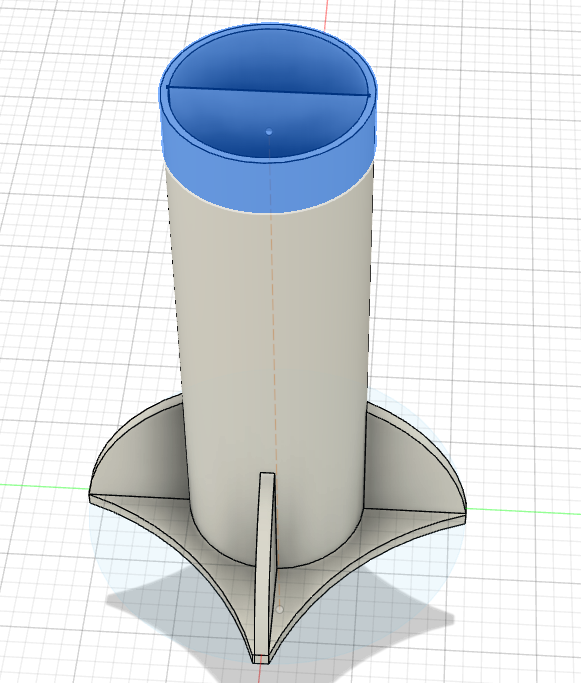

I then preceded to assemble the whole thing which finished the building of the bottle.
Material and Designs
![db.PNG](/proxy/?url=https://content.instructables.com/FS0/0Z7N/KUV8T31T/FS00Z7NKUV8T31T.png&filename=db.PNG)
![b.PNG](/proxy/?url=https://content.instructables.com/FBP/7HRX/KUV8T39F/FBP7HRXKUV8T39F.png&filename=b.PNG)
![t.PNG](/proxy/?url=https://content.instructables.com/F3A/DG37/KUV8T40W/F3ADG37KUV8T40W.png&filename=t.PNG)
![re.PNG](/proxy/?url=https://content.instructables.com/FAV/3TW8/KUV8T4H7/FAV3TW8KUV8T4H7.png&filename=re.PNG)
![g.PNG](/proxy/?url=https://content.instructables.com/FGP/JZV6/KUV8T52P/FGPJZV6KUV8T52P.png&filename=g.PNG)
![f.PNG](/proxy/?url=https://content.instructables.com/F9R/9CXM/KUV8T54S/F9R9CXMKUV8T54S.png&filename=f.PNG)
![w.PNG](/proxy/?url=https://content.instructables.com/FSM/8VHA/KUV8T5D7/FSM8VHAKUV8T5D7.png&filename=w.PNG)
I made the bottle and lid out of plastic so it will be easier and less costly to create.
I wanted there to be multiple colors so this is what I got:
- Dark Blue
- Beige
- Turquoise

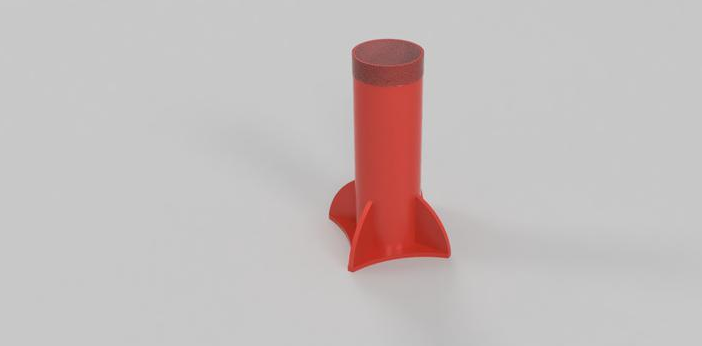

- Red

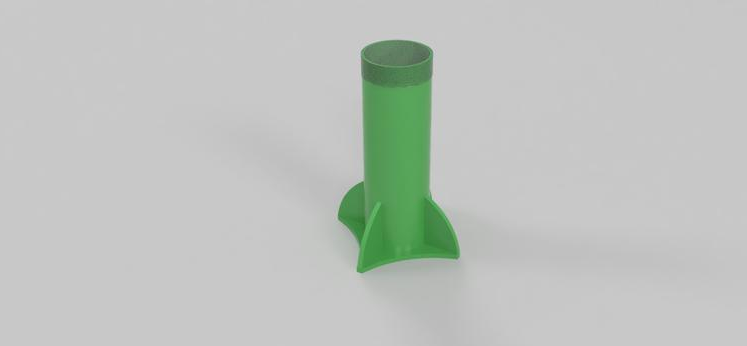

- Green
- Black
- White
Conclusion
It was a fun project and I enjoyed it and I hope you do to.
