Table Tennis Counter

We have a lot of struggling with counting the points at a pingpong game. With this handy electronic counter there is no more arguing. Also the person to serve and which side to serve is pointed with the leds.
A very multi functioning gadget which is easy to use and install.

I added 2 gamemodes to choose:
The winner is who wins first 3 sets (best of five)

11 points winner - the original table tennis rules (switch serve by 2 points)
21 points winner - larger game (switch serve by 4 points)

For this counter you need the led&key module. This is a cheap arduino module with lots of possibilities.
It uses 3 control pins (SPI) and 2 pins for ground and VCC.

You need:

1. Led&Key TM 1638 module, a cheap module
2. Arduino, any model with SPI works (for example Uno, Nano)
3. 5V booster module (MT3608 step up power module)
4. 2 AA batteries
5. switch (19 x 6 x 13 mm)
6. battery contacts (buy or make)
7. 4 small screws

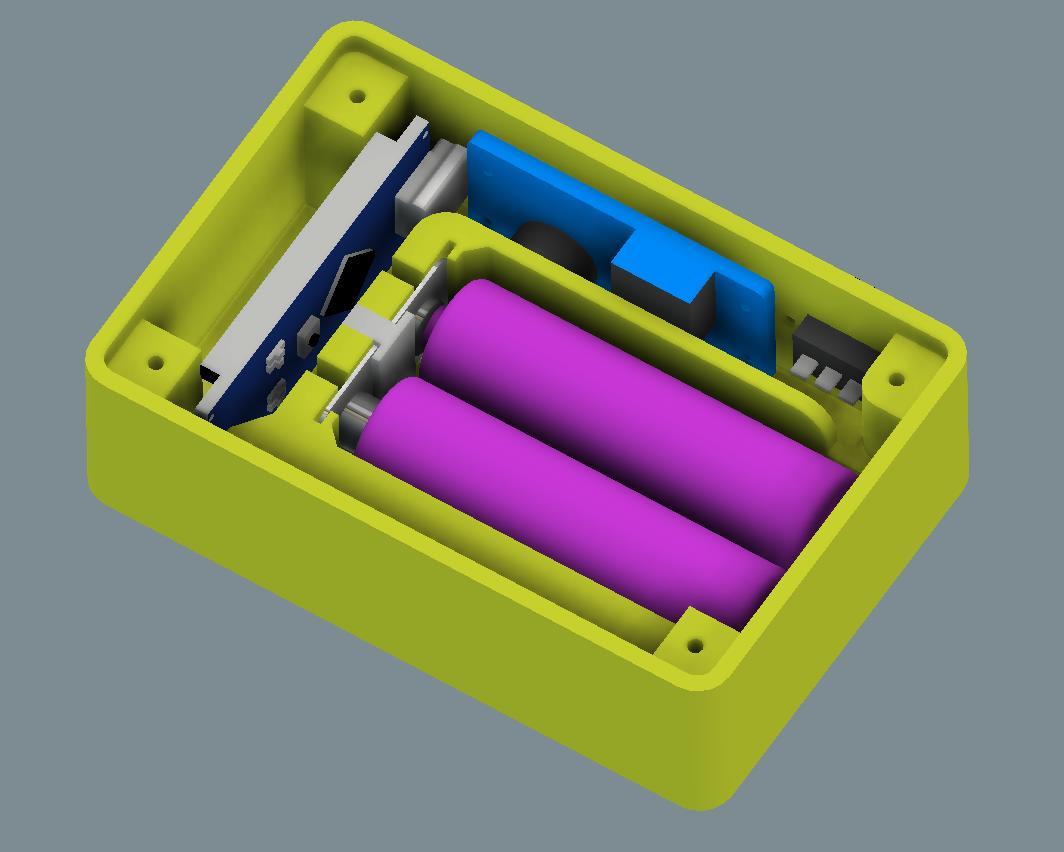

7. case is 3D-printed (thingiverse DIYhans)

The Led & Key module

This module is very cheap and has a lot of functions. There are 8 keys, 8 red leds and 8 digital led numbers.
For using it, it has to be connected to an Arduino or other microcomputer. There are 5 pins which has the following connections:

- VCC – 5v from Arduino

- Gnd – GND from Arduino

- STB – strobe pin, an output from your Arduino

- CLK – clock pin, an output from your Arduino

- DIO – data pin, another ouput from your Arduino

The files for 3D printing can be found on Thingiverse.

The electronics are straight forward according to fritzing-image

/*****************************
 * TABLE TENNIS SCORE COUNTING
 * DATE: 2-7-2019
 * LED&KEY SHIELD
 *****************************/

const int strobe = 10;
const int clk = 9;
const int data = 8;
                        /*0*/ /*1*/ /*2*/ /*3*/ /*4*/ /*5*/ /*6*/ /*7*/ /*8*/ /*9*/
const byte digits[] = { 0x3F, 0x06, 0x5b, 0x4f, 0x66, 0x6d, 0x7d, 0x07, 0x7f, 0x6f };
                        /*A*/ /*B*/ /*b*/ /*C*/ /*d*/ /*G*/ /*H*/ /*n*/ /*O*/ /*E*/ /*L*/ /*P*/ /*r*/ /*S*/ /*t*/ /*u*/ /*y*/
const byte letter[] = { 0x77, 0x7f, 0x7c, 0x39, 0x5e, 0x7d, 0x76, 0x37, 0x3f, 0x79, 0x38, 0x73, 0x31, 0x6d, 0x78, 0x3e, 0x6e };

const byte buttonNo[9] = { 0, 1, 2, 4, 8, 16, 32, 64, 128 };
const byte digitNo[]   = {0xc0, 0xc2, 0xc4, 0xc6, 0xc8, 0xca, 0xcc, 0xce};
const byte ledNo[]     = {0x00, 0xc1, 0xc3, 0xc5, 0xc7, 0xc9, 0xcb, 0xcd, 0xcf};
byte yesNoTXT[] = { letter[13], letter[14], letter[8], letter[11], 0x00, letter[16], 0x40, letter[7] };
byte serveTXT[] = { 0x00, letter[13], letter[9], letter[12], letter[15], letter[9], 0x00, 0x00 };

#define maxG11 11
#define maxG21 21
#define maxSet 5
#define minSet 3

const bool LEFT  = true;
const bool RIGHT = false;
int gameMode = maxG11; // 11 or 21 point game
int p1Game = 0;        // player 1 game score
int p2Game = 0;        // player 2 game score
int p1Set = 0;         // player 1 set score
int p2Set = 0;         // player 2 set score
int serve = 0;         // serve counter
bool serveSide = LEFT;  // player to serve
bool serveStart = LEFT; // serve after set played
int serveChange = 2;   // max serve
int serveChTemp = 1;   // serve change after maxGx
bool gameON = false;   // Play games
bool setON  = false;   // Play sets
bool score  = false;   // regular score variable
byte buttons = 0;

void setup() {
//  Serial.begin(9600);  // start serial for output
  LK_setup();          // activate LED&KEY module
  LK_reset();
}

void loop() {
  p1Set = 0;
  p2Set = 0;
  kies11or21();        // choose game length 11 or 21
  kiesServe();
  setON = true;
  do {
    p1Game = 0;
    p2Game = 0;
    serve  = 0;
    serveChange = serveChTemp;
    gameON  = true;
    do {                   // play game
      LK_reset();
      plotScore();
      plotServe(1,serve);
      score = false;
      while (readButtons() != 0) {};          // wacht op loslaten knop
      do {                                    // play point
        flashServe(serve+1);
        buttons = readButtons();
        if (buttons > 0) {
          score = true;
          if (buttons == buttonNo[1]) { p1Game++; serve++; }
          if (buttons == buttonNo[2]) { p1Game--; serve--; }
          if (buttons == buttonNo[7]) { p2Game--; serve--; }
          if (buttons == buttonNo[8]) { p2Game++; serve++; }
          if (buttons == buttonNo[4] || buttons == buttonNo[5]) {
             plotTXT(yesNoTXT);
             do {
               buttons = chooseBut();         // buttonNo[6] = Yes = True = Quit
               if (buttons == buttonNo[6]) {
                 gameON = false;
                 setON = false;
               }
             } while (buttons < buttonNo[6]);
          }
          if (p1Game < 0) p1Game = 0;
          if (p2Game < 0) p2Game = 0;
          if (serve < 0) {
             serve  = serveChange-1;
             serveSide = !serveSide;
          }
        }
      } while (score == false);
      if (p1Game >= gameMode || p2Game >= gameMode) {
        serveChange = 1;
        serve = 0;
        serveSide = !serveSide;
        if (abs(p1Game-p2Game) > 1) {
          gameON = false;
          showWinner();
        }
      } else {
        if (serve>0 && (serve % serveChange == 0)) {
           serve = 0;
           serveSide = !serveSide;
        }
      }
    } while (gameON == true);

    if (p1Game > p2Game) p1Set++;
    else p2Set++;

    if (p1Set >= minSet || p2Set >= minSet) {
      setON = false;
      showWinner();
    }
    else changeSide();
  } while (setON == true);
}

void plotScore() {
  LK_reset();
  plotDigit(0,1,p1Game);
  plotDigit(0,8,p2Game);
  plotDigit(1,4,p1Set);
  plotDigit(0,5,p2Set);
}

void kies11or21() {
  byte side = 0;
  LK_reset();
  plotDigit(0,4,maxG11);
  plotDigit(0,8,maxG21);
  side = chooseBut();
  if (side <= buttonNo[4]) {
     gameMode = maxG11;
     serveChange = 2;
  } else {
     gameMode = maxG21;
     serveChange = 4;
  }
  serveChTemp = serveChange;
}

void kiesServe() {
  byte but = 0;
  plotTXT(serveTXT);
  while (readButtons() != 0) {}; // wacht op loslaten knop
  do {
    but = readButtons();
    setLed(1,1);
    setLed(0,8);
    delay(80);
    if (but > 0) {
      if (but <= 16) serveSide = LEFT;
      else serveSide = RIGHT;
    }
    setLed(0,1);
    setLed(1,8);
    delay(80);
  }
  while (but == 0);
  serveStart = serveSide;
}

void changeSide() {
  int p1Temp;
//  serveStart = !serveStart;  // changed sides after set win
  serveSide   = serveStart;
  serveChange = serveChTemp;
  p1Temp = p1Set;
  p1Set  = p2Set;
  p2Set  = p1Temp;
}

void showWinner() {
  byte pos;
  clearLeds();
  plotScore();
  if (setON) {               // set win
    if (p1Game > p2Game) {
      pos = 0;
      flashScore(0,pos, p1Game);
    } else {
      pos = 6;
      flashScore(0,pos, p2Game);
    }
  } else {                   // match win
    if (p1Set > p2Set) {
      pos = 3;
      flashScore(0,pos, p1Set);
    } else {
      pos = 4;
      flashScore(0,pos, p2Set);
    }
  }
}

Controlling keys:

1. Choose game mode 11 or 21 points to win (choose keys 1-4 or 5-8)
2. Choose which player starts to serve (blinking leds, choose keys 1-4 or 5-8)
3. Playing game:
4. key 1 and 8 - increment points (also automatic increment serve)
5. key 2 and 7 - decrement points (also automatic decrement serve)
6. key 4 and 5 - stop game, asking for Yes (key 6) or No (key 7+8)

The blinking led is the side (person) who has to serve.

Setpoints are showed in the inner and game points on the outer side of the LCD-display

After a game won players has to switch side, the points also switch side

so the points are always at the right side of the players.
