TUBE SCREAMER FX PEDAL
This is a very popular electric guitar fx pedal in the clone world, easy to make and sound good.
I follow a previous instructable and www.tonepad.com big help., thank you . I desinged my own enclosure to give an original touch.
I follow a previous instructable and www.tonepad.com big help., thank you . I desinged my own enclosure to give an original touch.
THE SCHEMATIC, THE STUFF & TOOLS
RESISTORS: CAPACITORS: TS9 PARTS(IVANEZ)
6- 10K 2- 1 uF/NP Ra- 470
4- 1K 2- 0.22 uF TANT Rb- 100K
2- 510K 1- 0.047uF CLIPPING DIODES
1- 4K7 1- 0.027uF Asymetrical:
1- 51K 1- 47uF D1- 1N914
1- 220 1-10uF D2 - 1N914
1- 2M2(2.2M) 1-0.1uF D3- 1N914
1-51pF
POTS: TRANSISTORS & ICs:
1- 20K LIN 2- 2N3904
1- 500K LOG IC1 4558
1- 100K LIN
Schematic and layout ready to transfer, can be found at www.tonepad.com.
TOOLS: pliers, screw driver, soldering, multimeter; if you decide to make the enclosure will need metal sheet at least 20 ga, clamps, folding tool and scissors.
6- 10K 2- 1 uF/NP Ra- 470
4- 1K 2- 0.22 uF TANT Rb- 100K
2- 510K 1- 0.047uF CLIPPING DIODES
1- 4K7 1- 0.027uF Asymetrical:
1- 51K 1- 47uF D1- 1N914
1- 220 1-10uF D2 - 1N914
1- 2M2(2.2M) 1-0.1uF D3- 1N914
1-51pF
POTS: TRANSISTORS & ICs:
1- 20K LIN 2- 2N3904
1- 500K LOG IC1 4558
1- 100K LIN
Schematic and layout ready to transfer, can be found at www.tonepad.com.
TOOLS: pliers, screw driver, soldering, multimeter; if you decide to make the enclosure will need metal sheet at least 20 ga, clamps, folding tool and scissors.
THE ENCLOSURE
Metal sheet abt 20 ga 12x12 in
get the design first including size and draw over the metal start folding the big areas first
get the design first including size and draw over the metal start folding the big areas first

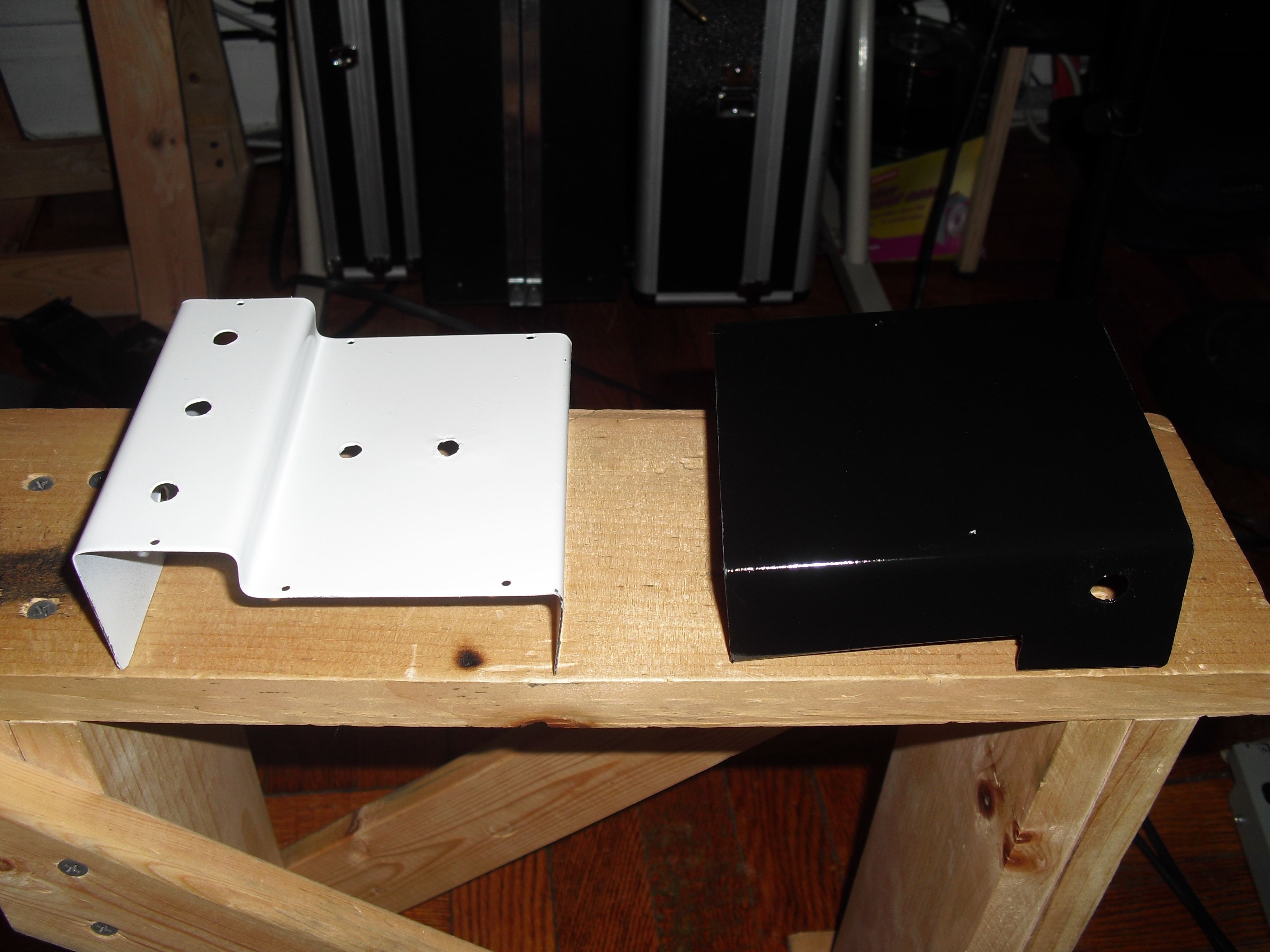

Here is the enclosure top and bottom part
PAINTJOB
Drill holes first make sure there is not sharp edges an spray paint i use gray primer first and about 4 coats of paint

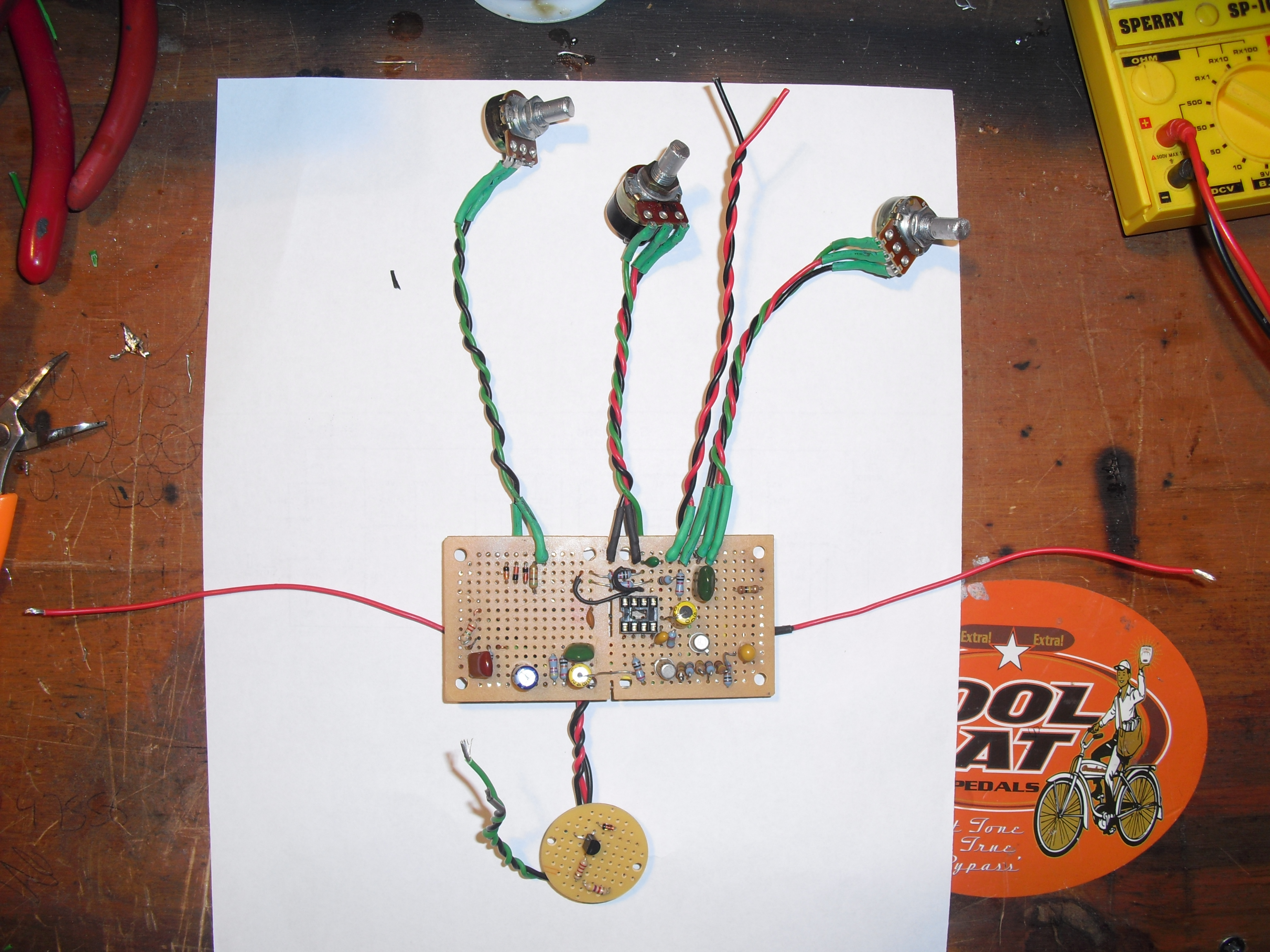

Populating the pc board with all components i use a socket for the Ic to avoid to burn it when soldering an is easy to replace it for a different model to get the sound taste.
Back view 9v power jack
For the switch i made a millenium bypass check www.tonepad.com
Finish product METAL JAMMING NOW thank you for your time.
