TRIPLE CNC MACHINE

MINI LATHE MACHINE FOR WOODWORKING - CHEAP &amp; CHIC

After a few weeks' break, we are back with a new project. In this video, we will try to make a simple cnc machine with you. “ A SIMPLE HOMEMADE TRIPLE MACHINE “. With this cnc machine you will be able to do 3 different jobs.

-Engraving with Dremel,

-Laser cutting

-Drawing with pen

With the new drawings that we designed as a plug-in, it will be quite simple to use cnc. All you have to do is remove the parts we share in the video description from your 3d printer and provide the necessary materials. Our design is quite simple. No unnecessary material. No unnecessary wires.
our design is quite simple. No unnecessary material. No unnecessary wires. In our video, we tried to show how to do our cnc machine in the finest detail. We went step by step.

What We Need ?

Hi everyone,

If you have decided to build a CNC Machine, you are right place. But to build, you will need some equipments and materials. So, ask is coming for you. What we need ?

We have divided the materials we need into 3 groups.

1 - Mechanical Parts

2 - 3D Printable Parts

3 - Electronic Parts

Lets see them...

Mechanical Parts

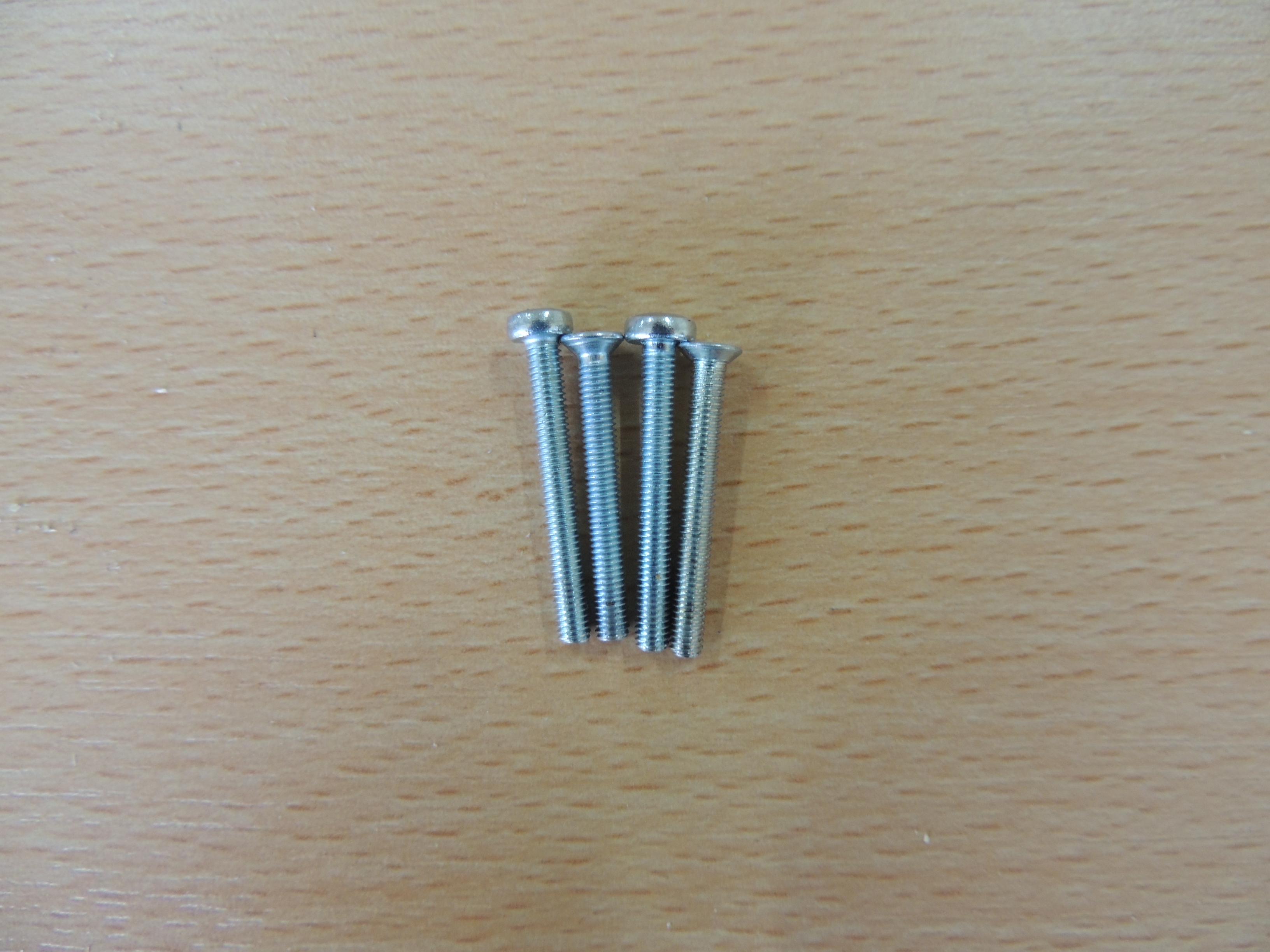

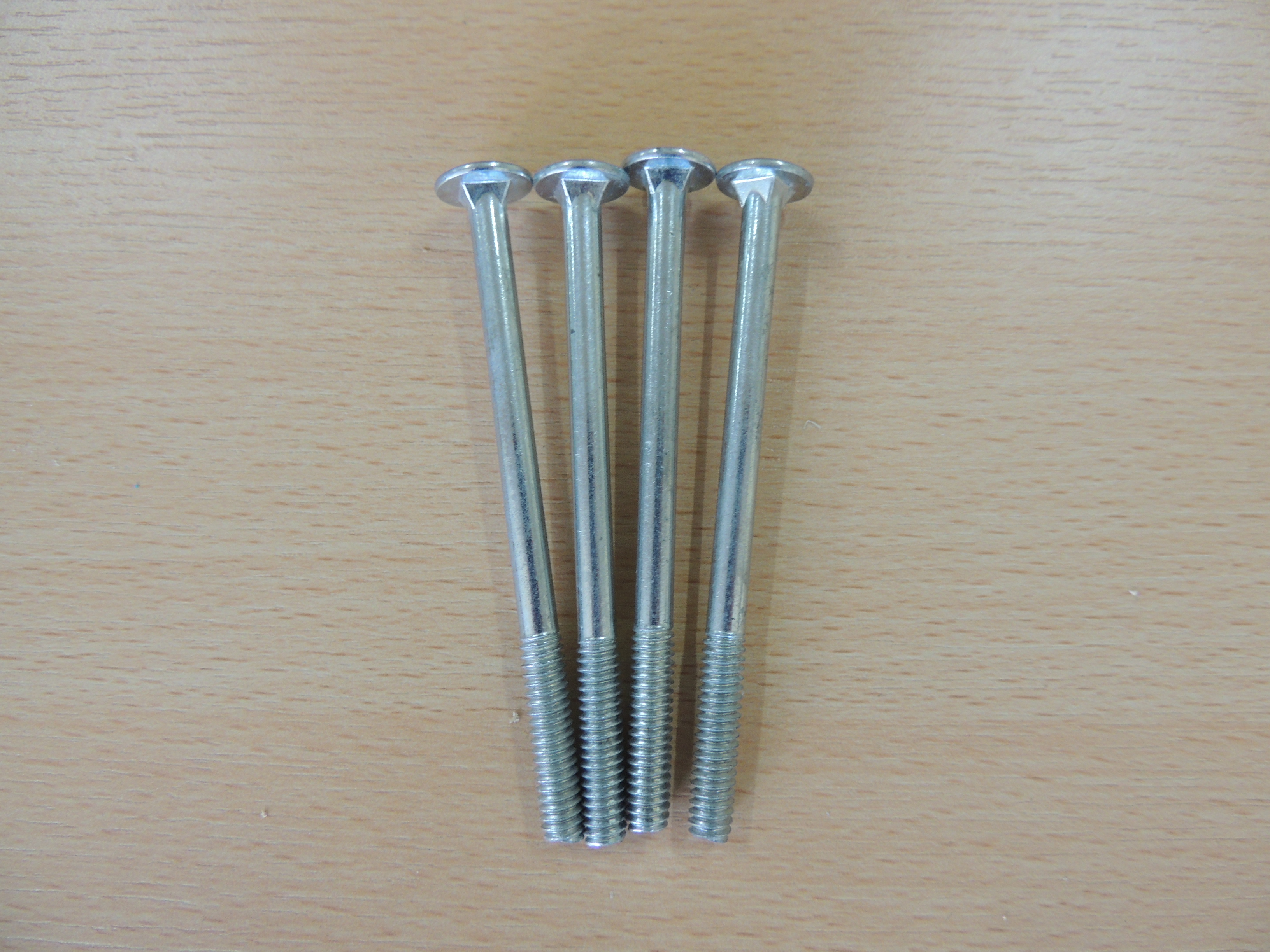

As you can see in pictures, we need some mechanical materials. And you can find detail list in below

=GIJON TIJS=

M8 - 12 CM * 1

M8 - 42 CM * 2

M8 - 44 CM * 3

M10 - 44 CM * 1

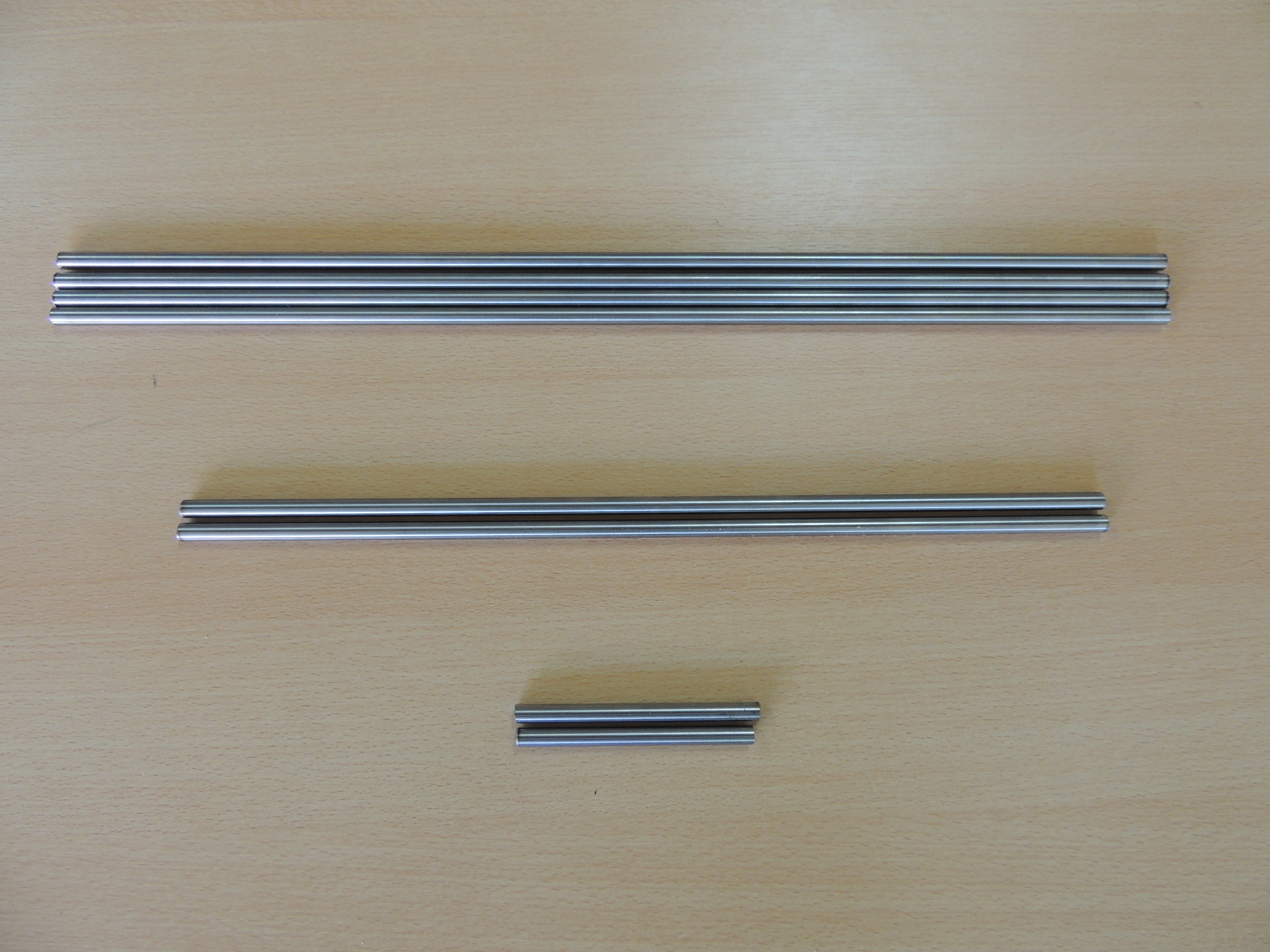

=LINEAR SHAFTS=

M8 - 50 CM * 4

M8 - 40 CM * 2

M8 - 10 CM * 2

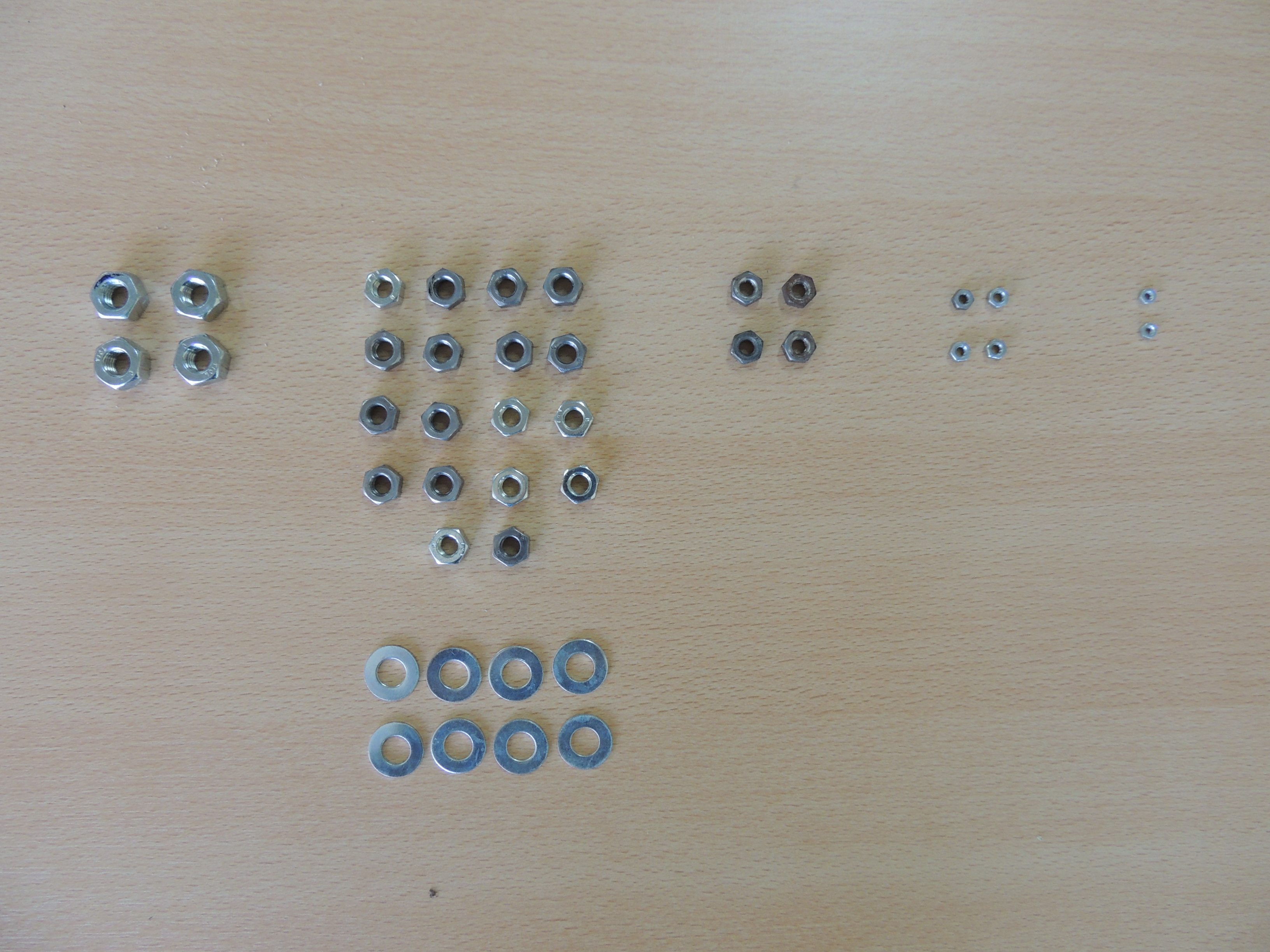

= NUTS =

M3 , M4, M53 M8, M10

= STEPPING MOTORS =

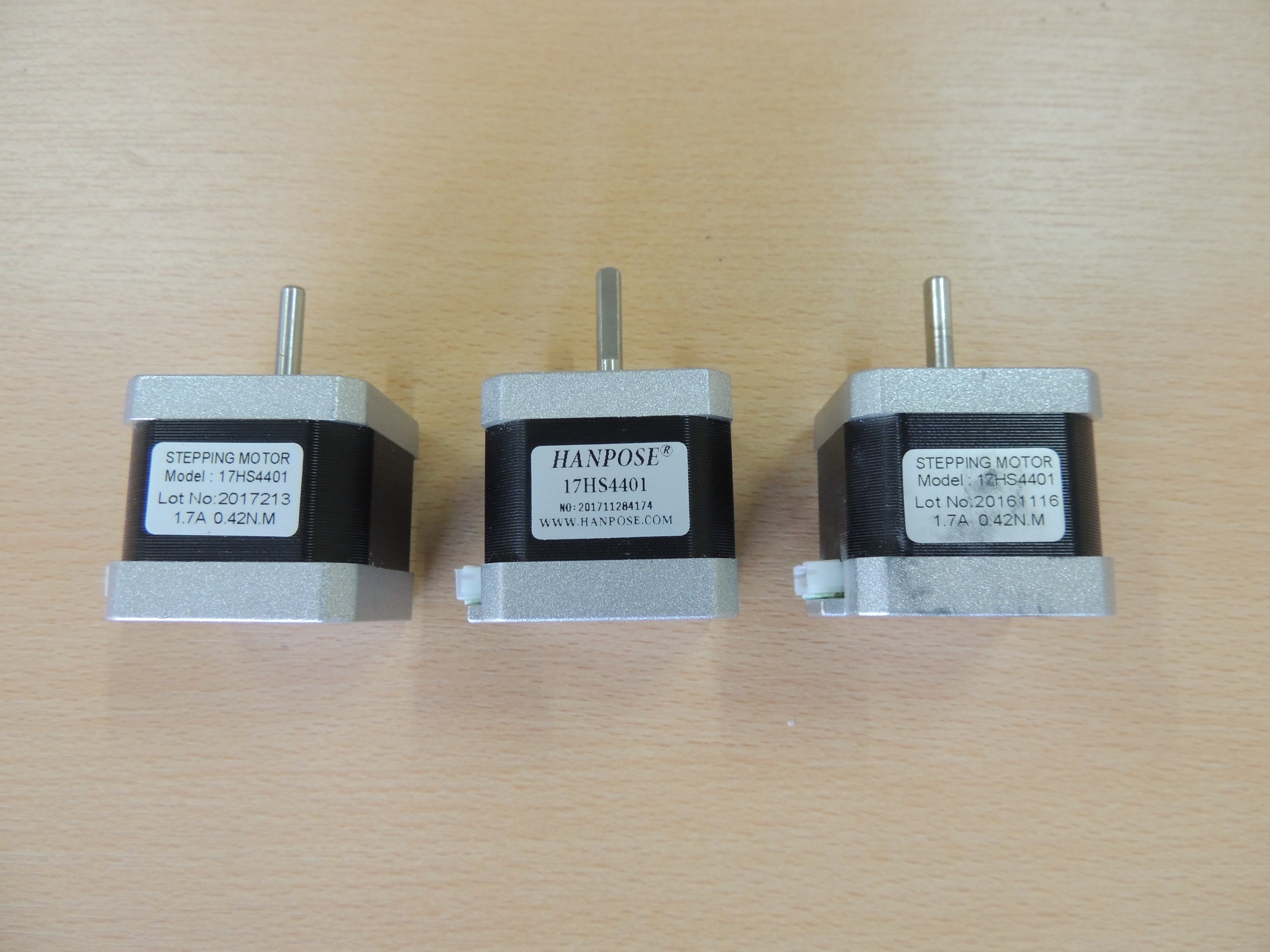

NEMA 17 * 3

= RULMANS =

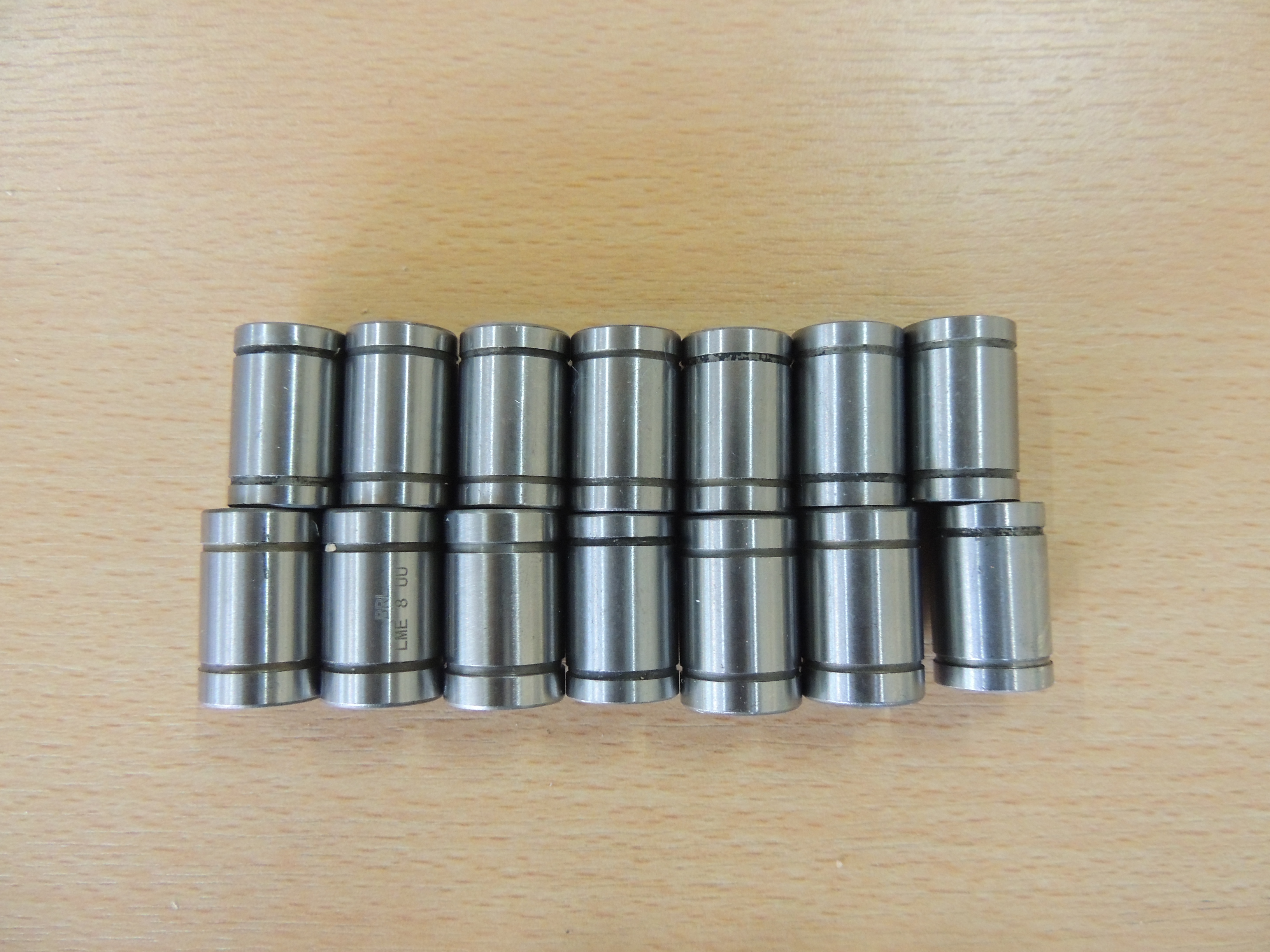

LM8UU LINEAR BEARING * 12

608ZZ BEARING * 3

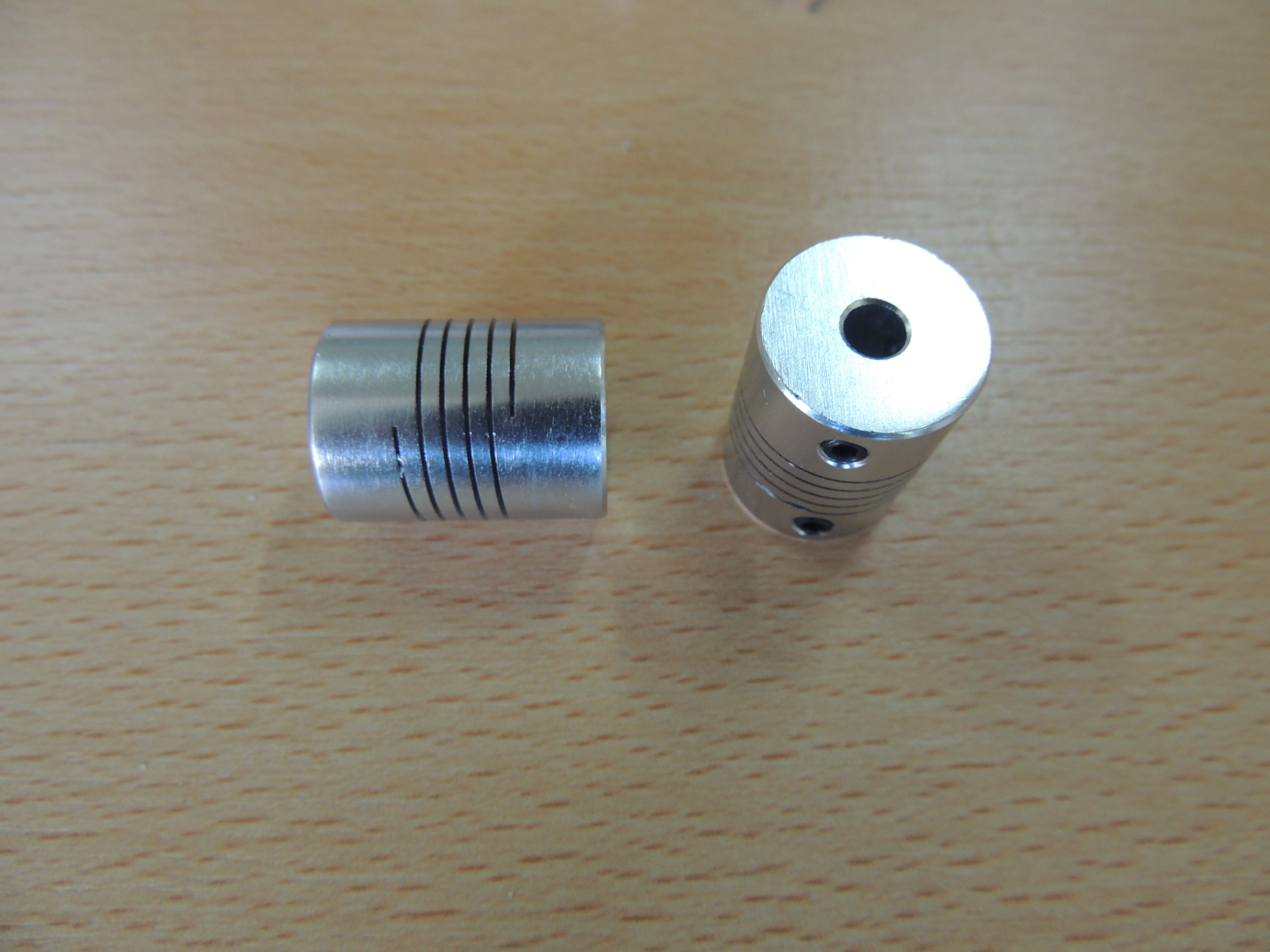

STEPPEE MOTOR COUPLER ENCODER * 2

= SCREW & BOLT=

M6 , M4, M3

= WOODS =

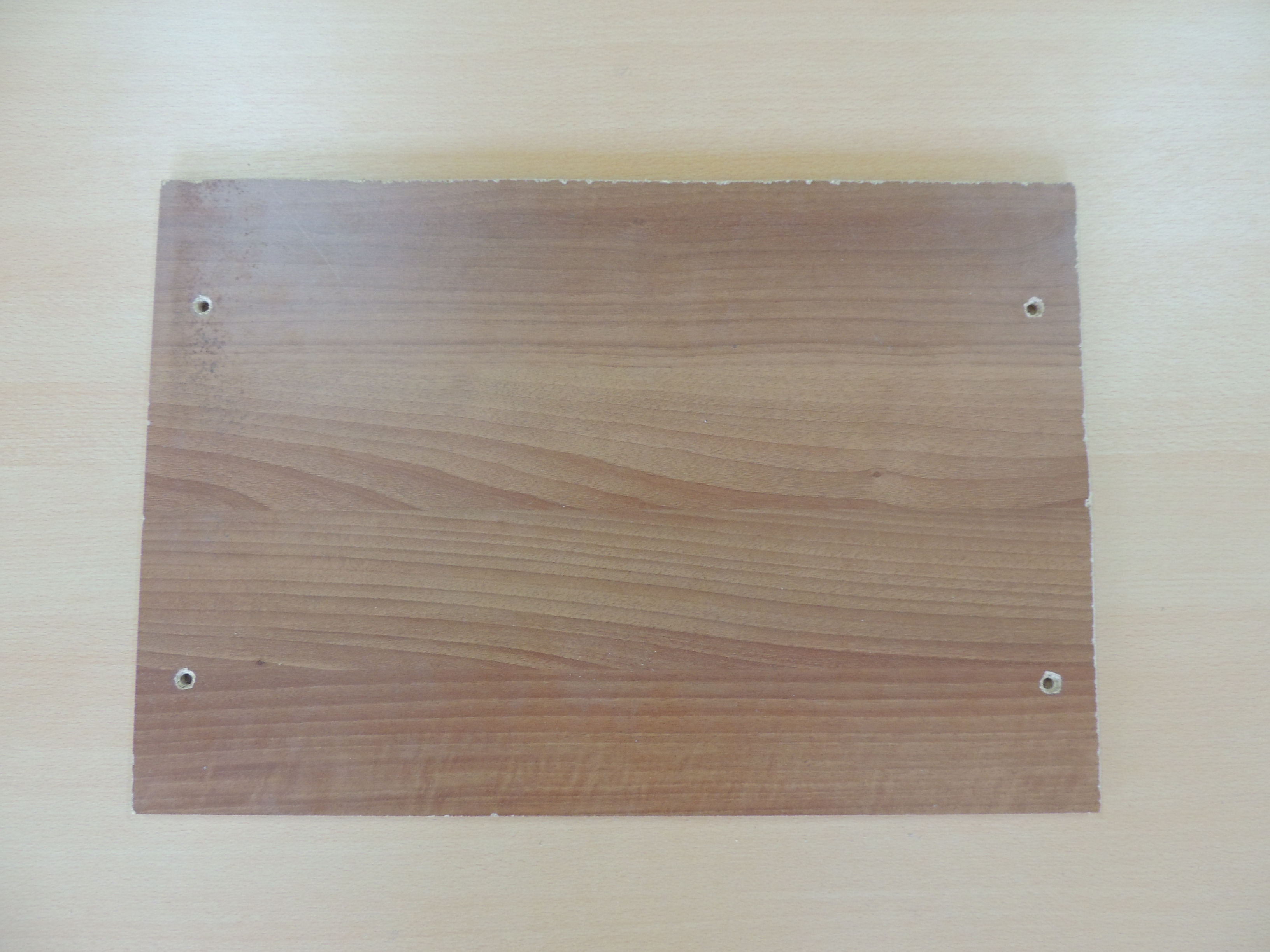

60 CM * 40 CM WOOD

52 CM * 35 CM WOOD

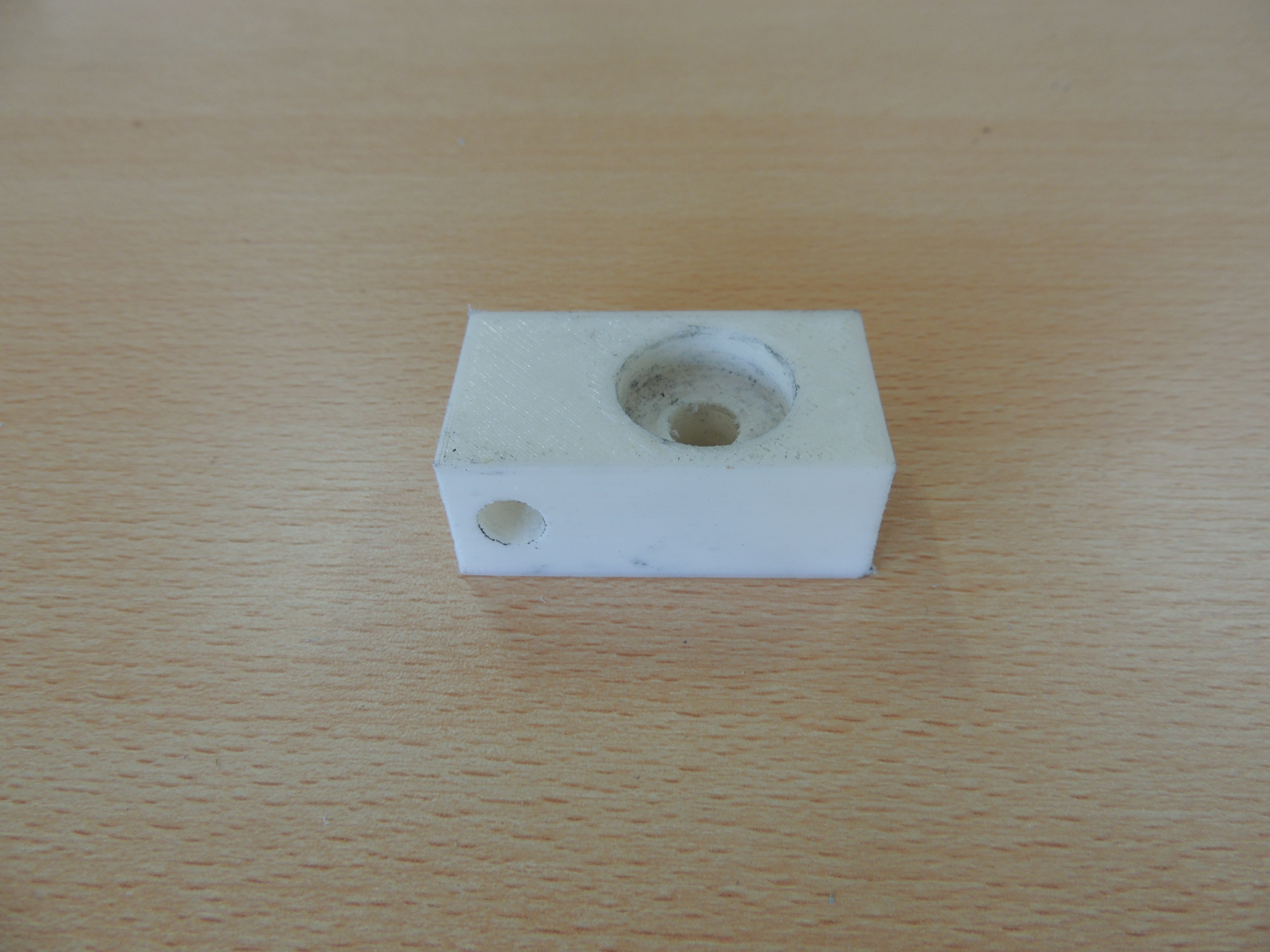

3D Printable Parts

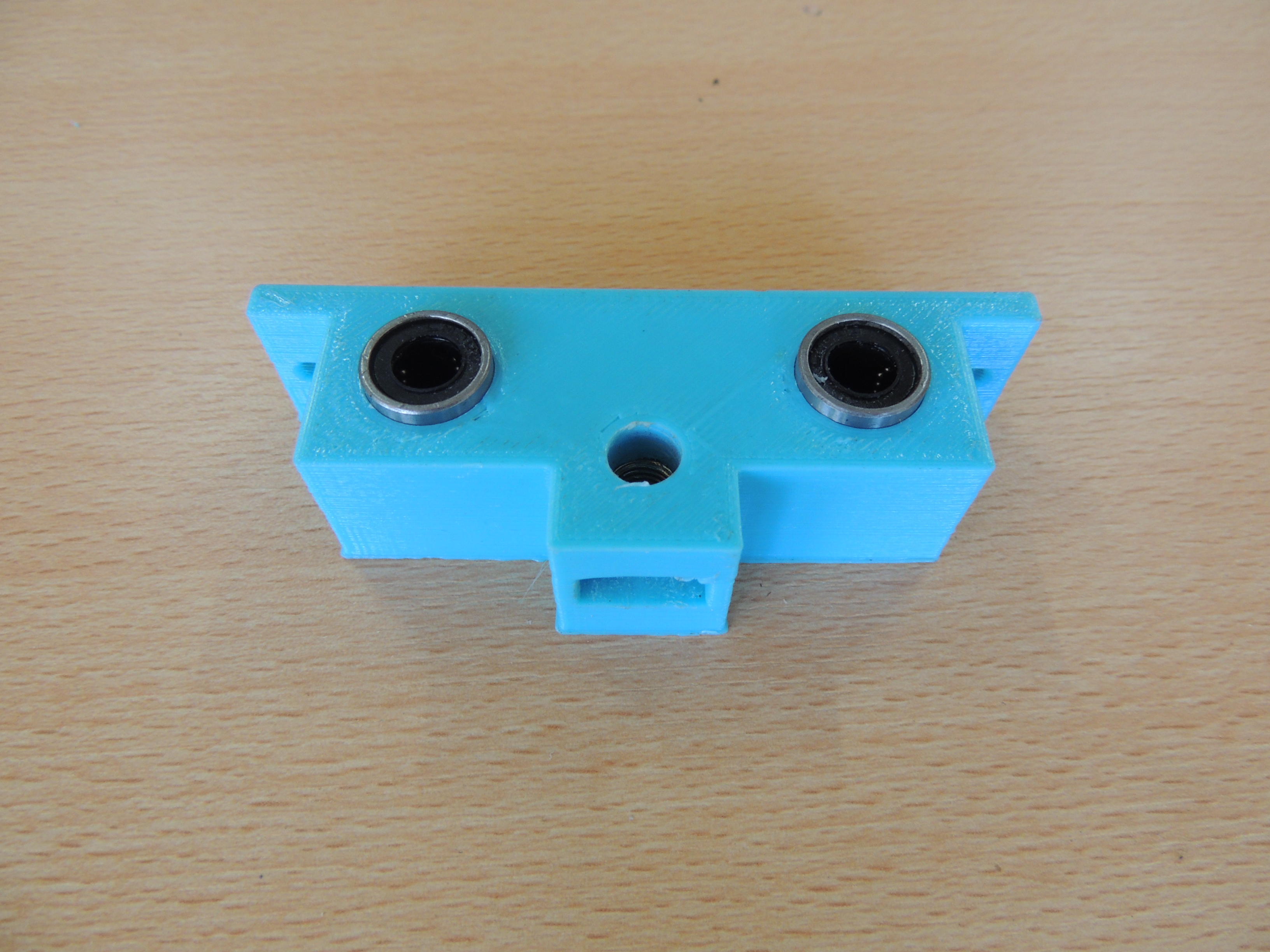

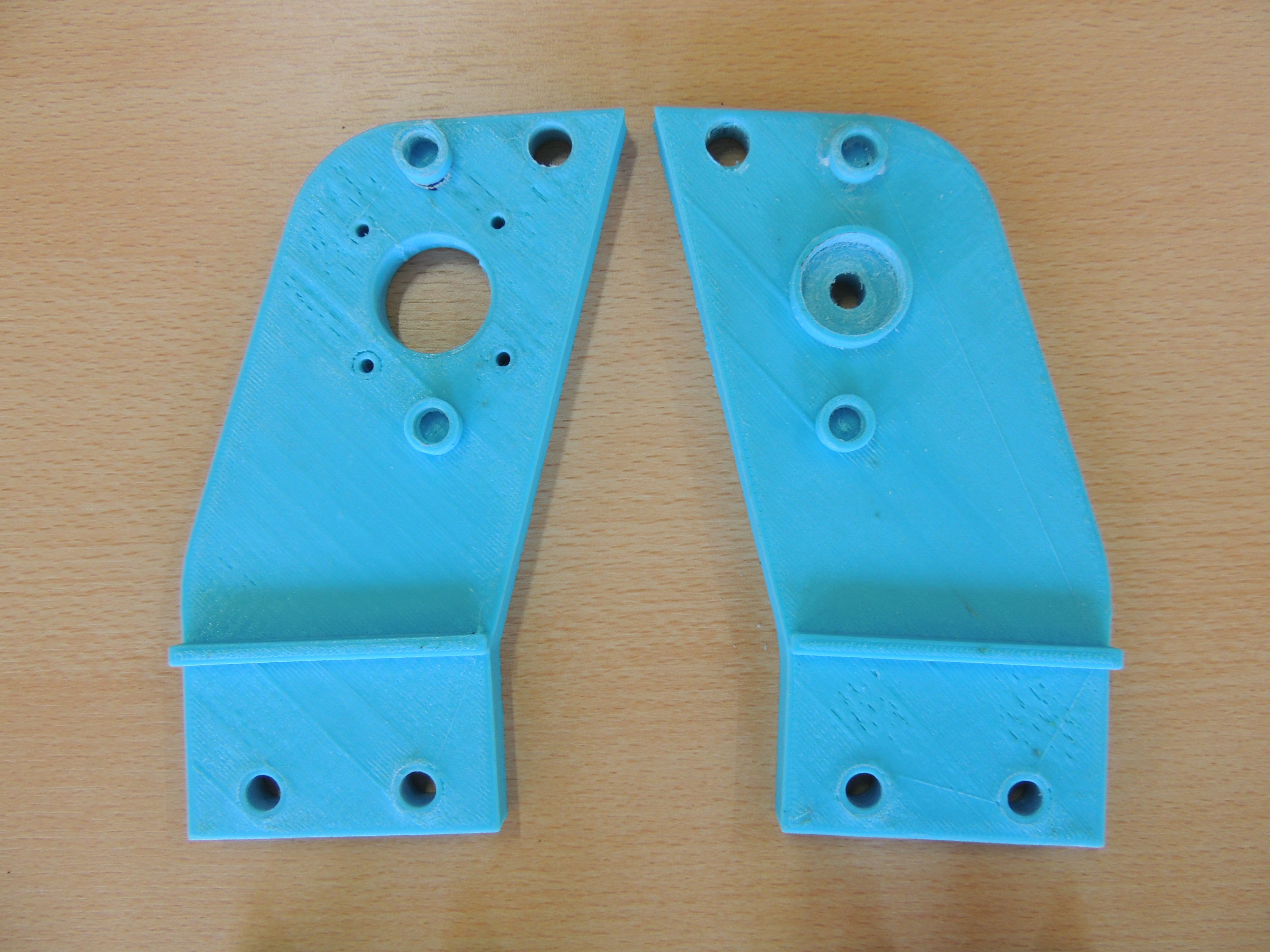

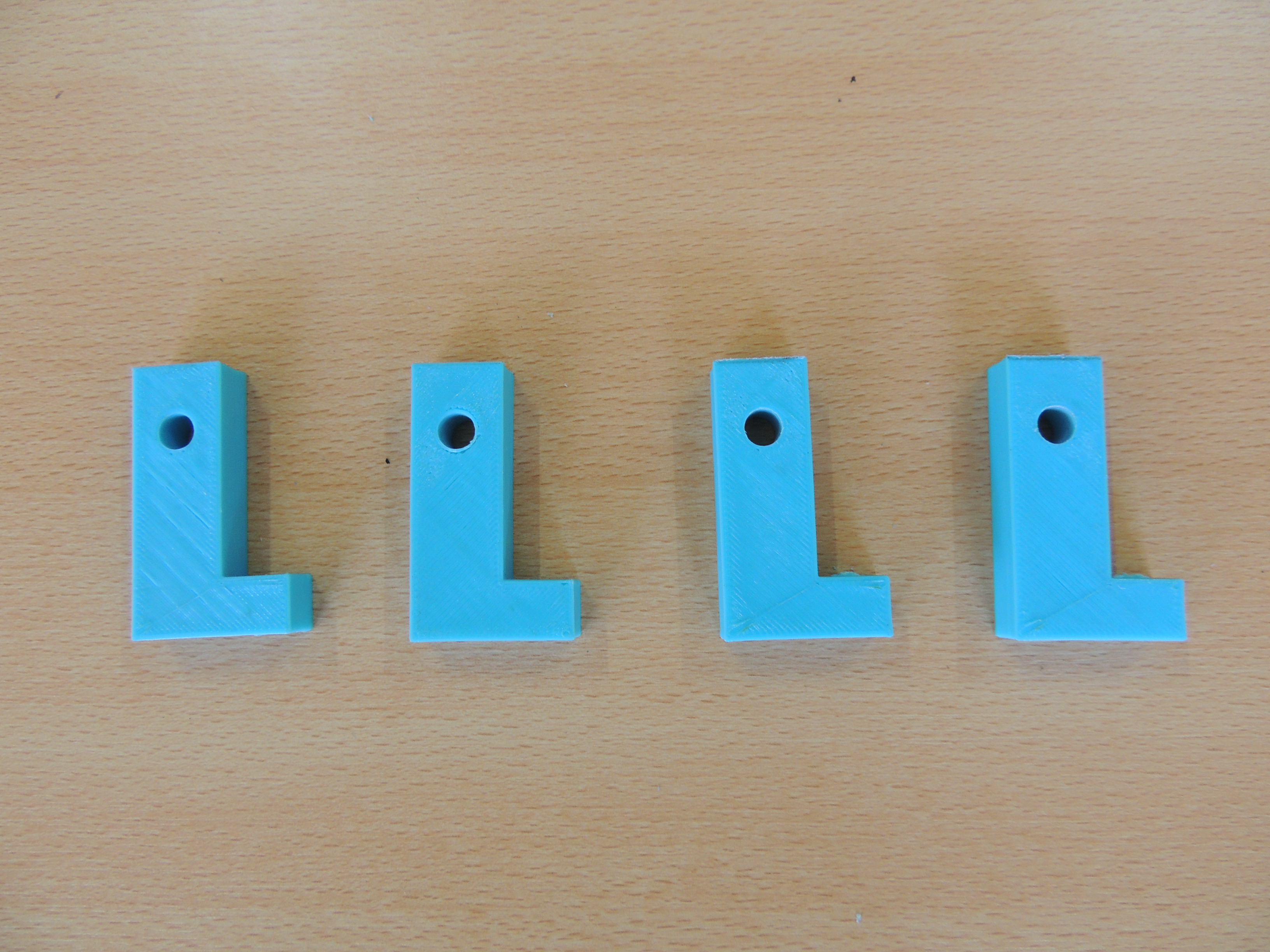

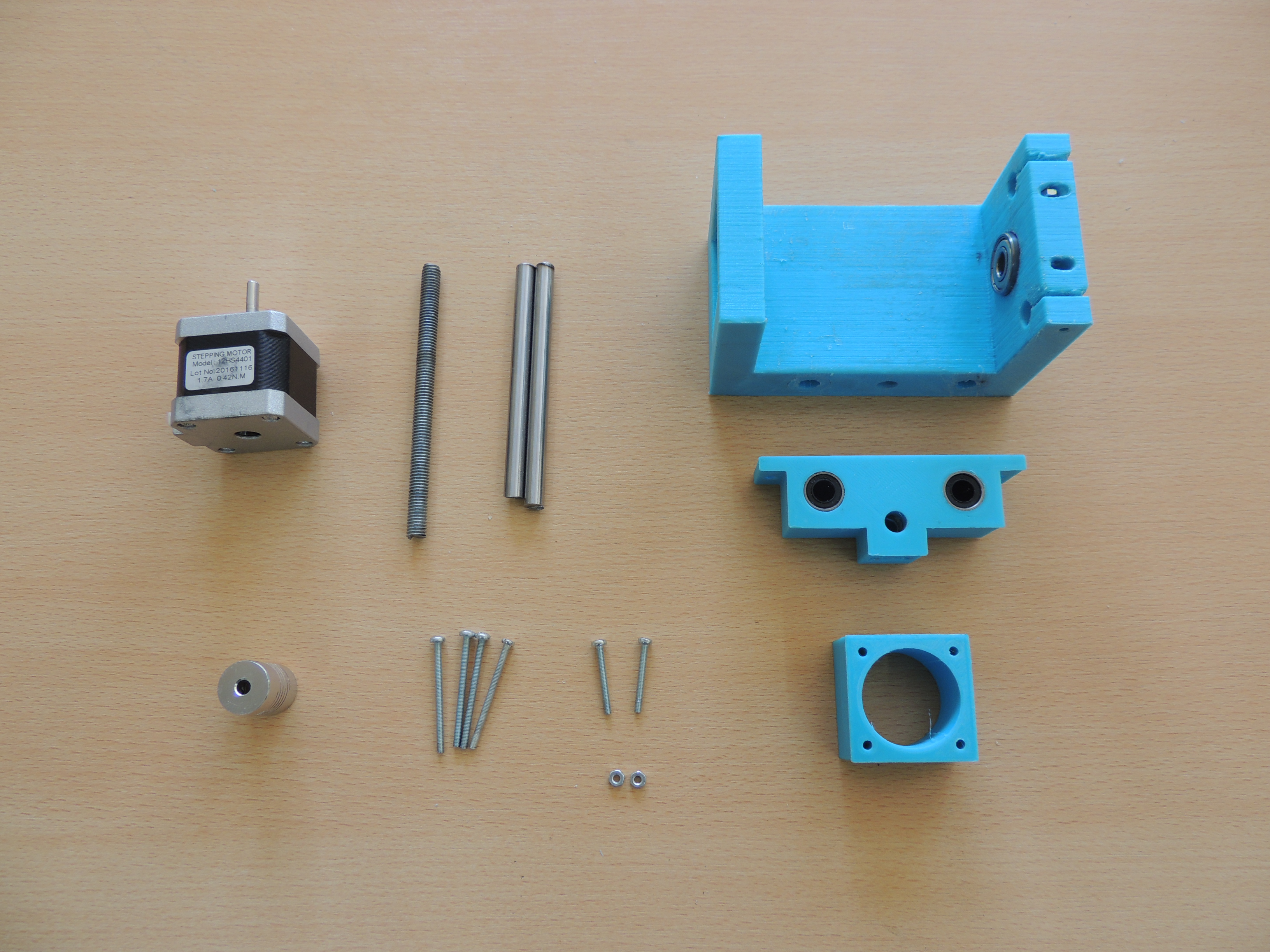

we designed some 3d parts. They were drawn on solidworks. And printed with Prusa i3 3D Printer. We added on last steps STL files for your printer. You can find them there.

Electronic Parts

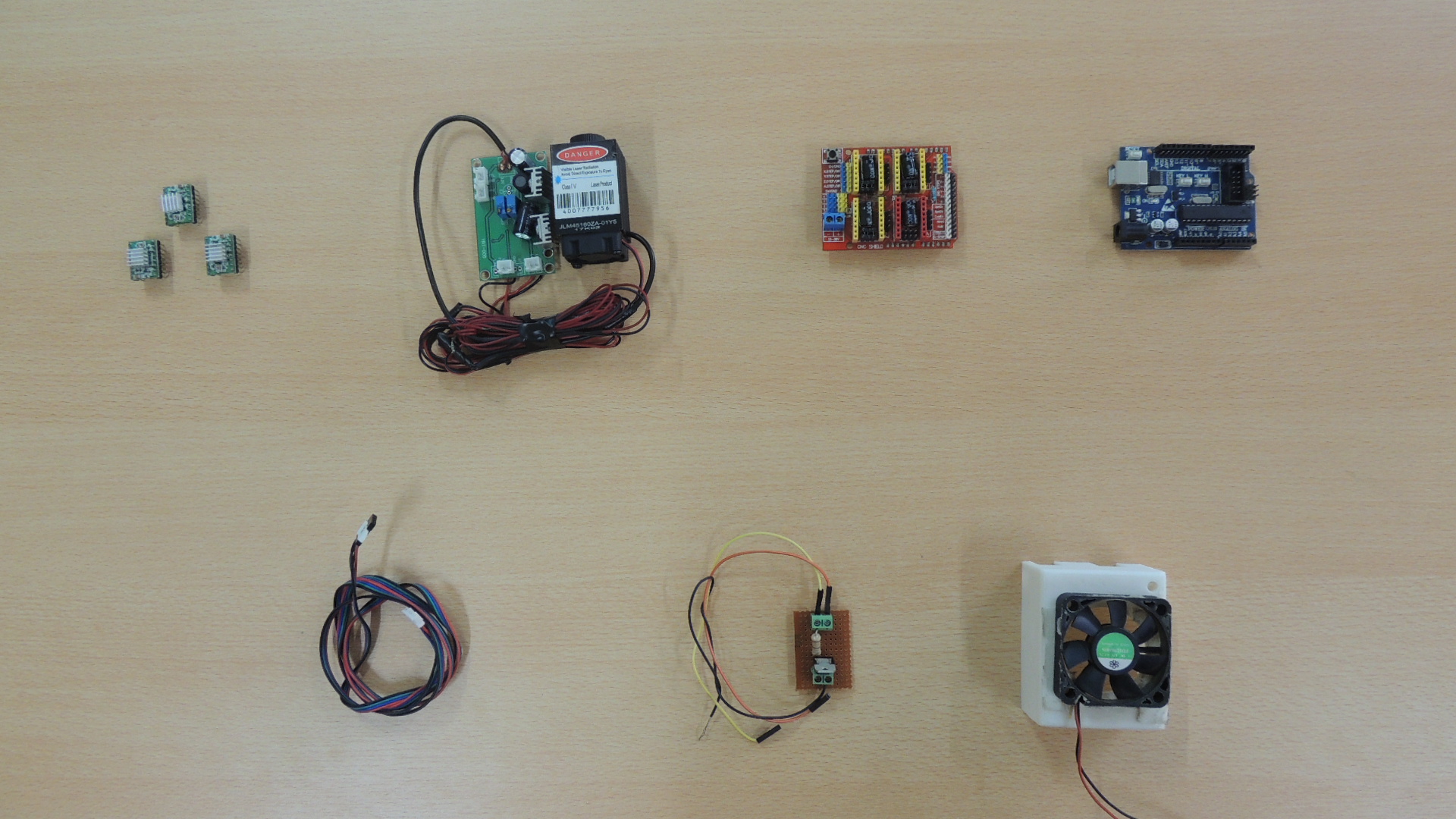

And last materials are about electronic.

- Arduino Uno * 1

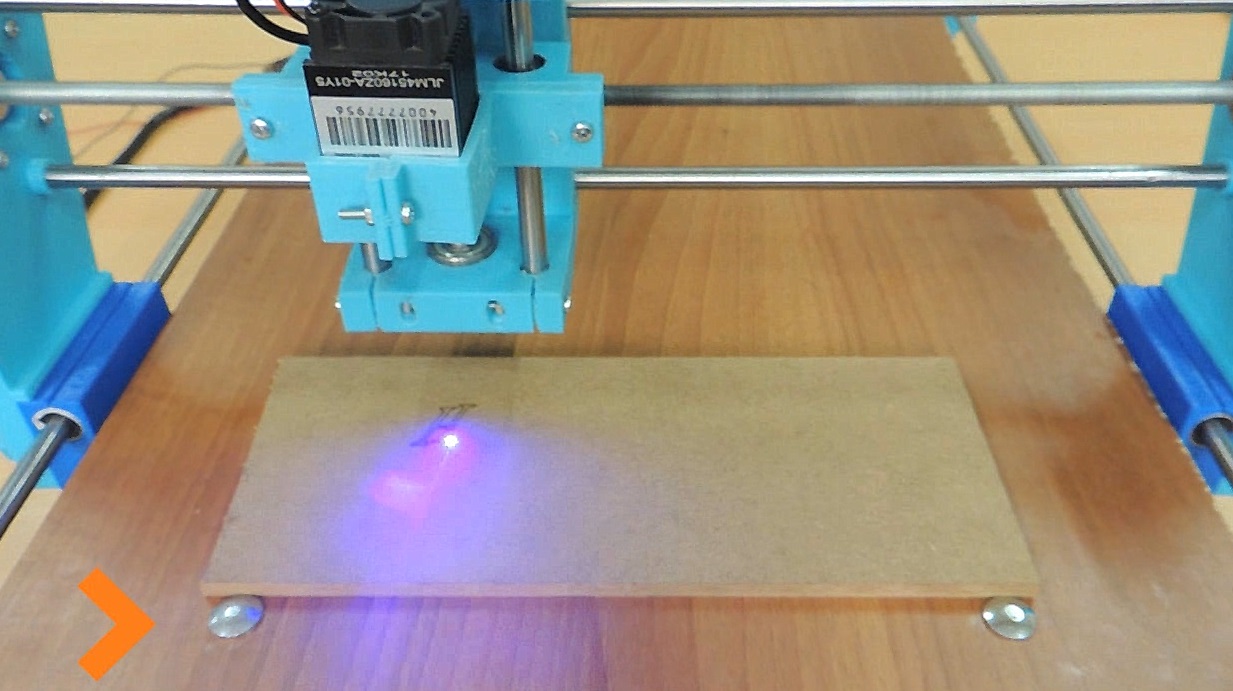

- Blue laser module laser engraving and cutting TTL module * 1

- V3 Engraver Shield 3D Printer CNC for arduino CNC Shield * 1

- A4988 motor driver * 3

- BDX53 * 1

- 100 OHM resistor * 1

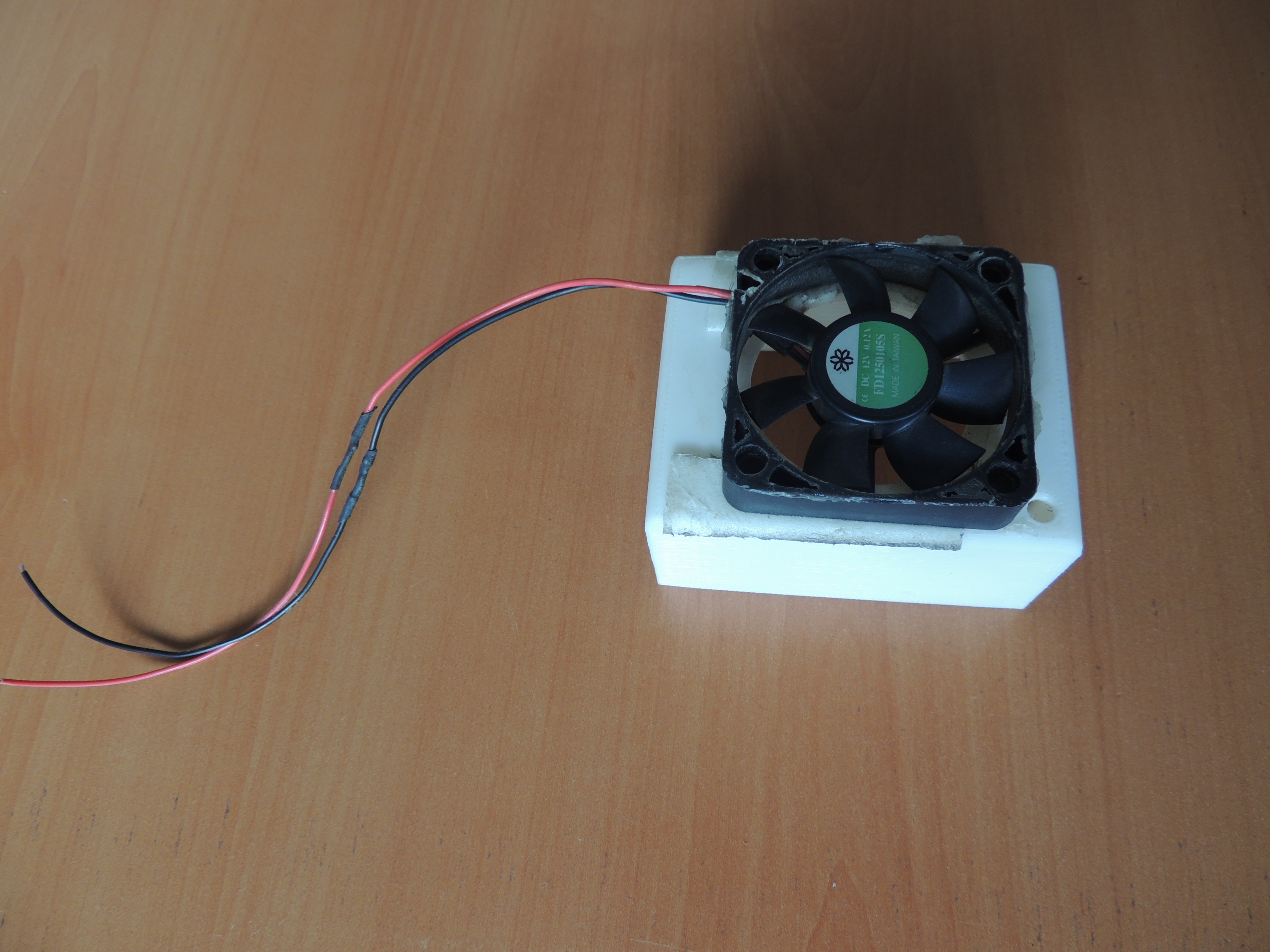

- Fan

3D ANIMATION TO BUILD

if you want to watch 3D animation you can click below video. Will start directly 3D animation time laps.

Downloads

TRIPLE CNC MACHINE - Step #5

Let's Start Project

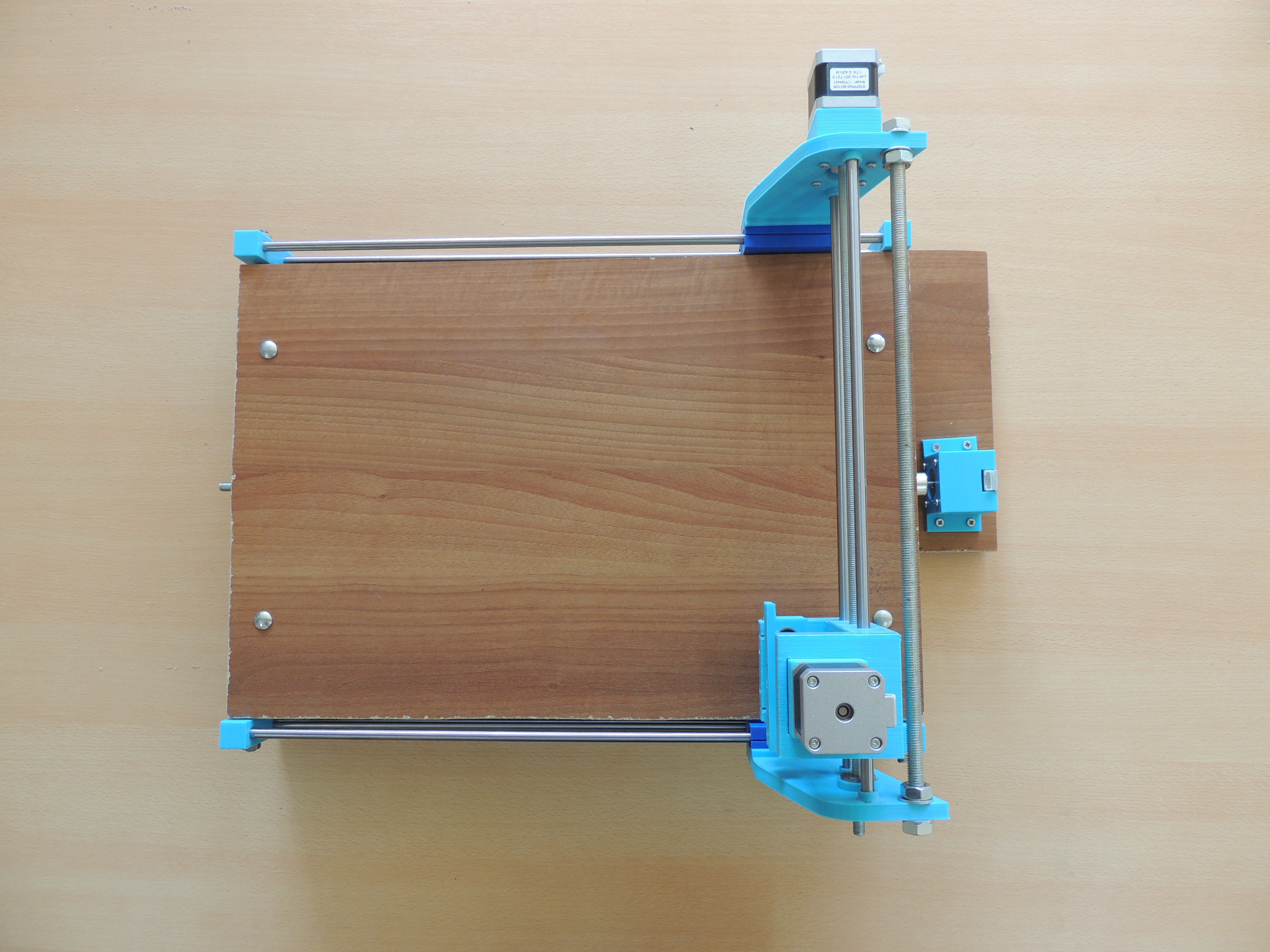

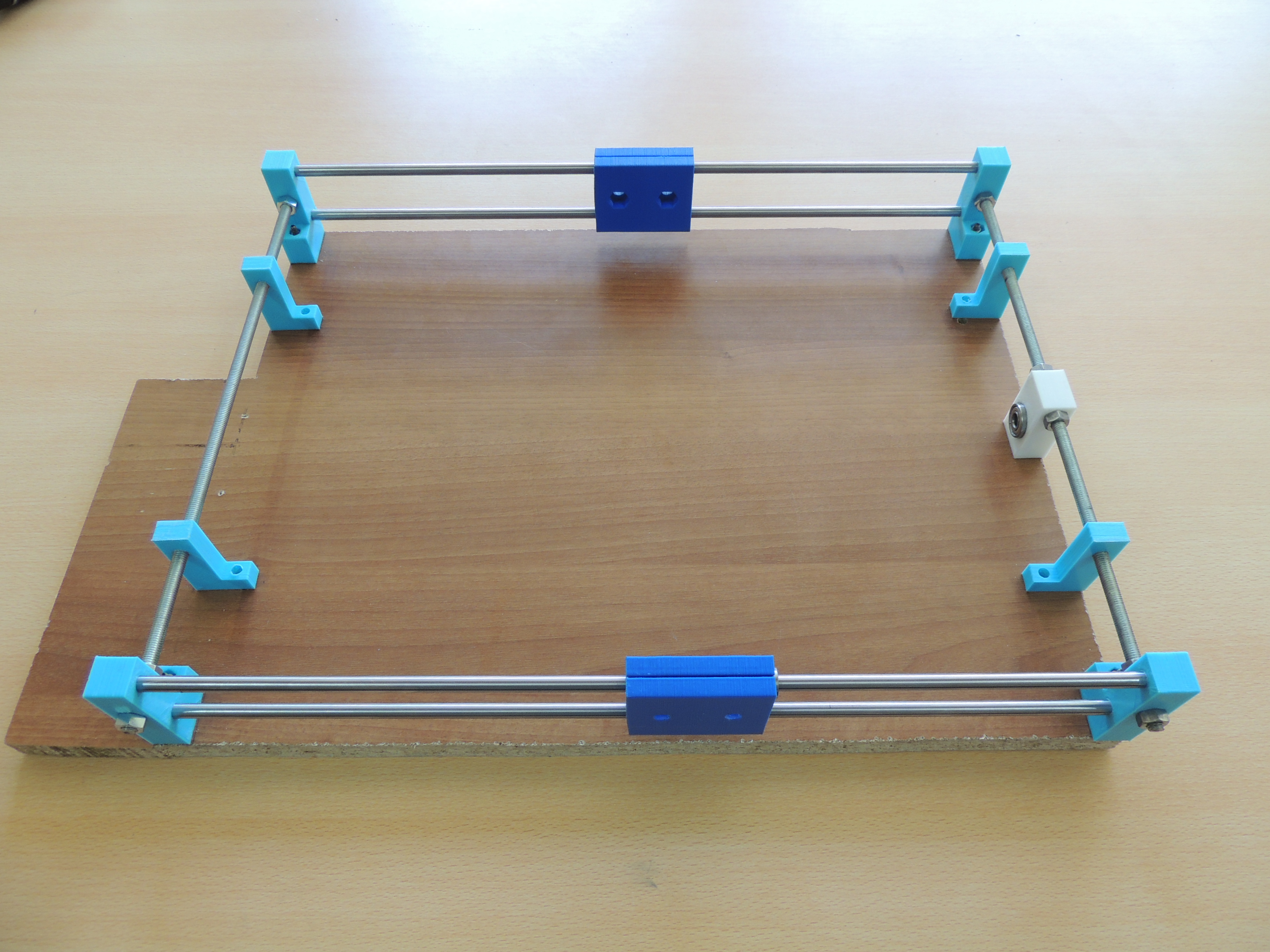

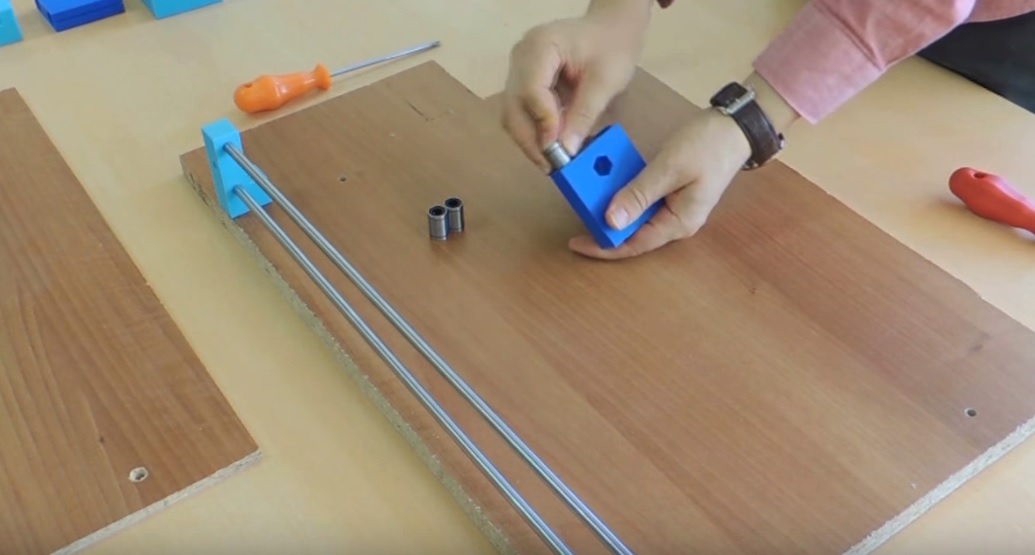

Firstly we will built first floor. We need some materials in pictures. We plug 3d wood parts on wood table. Put shaft and tijs to hole on parts. You can see on pic "how?" or watch our video tutorials

timeline is 04:26

Header Holder

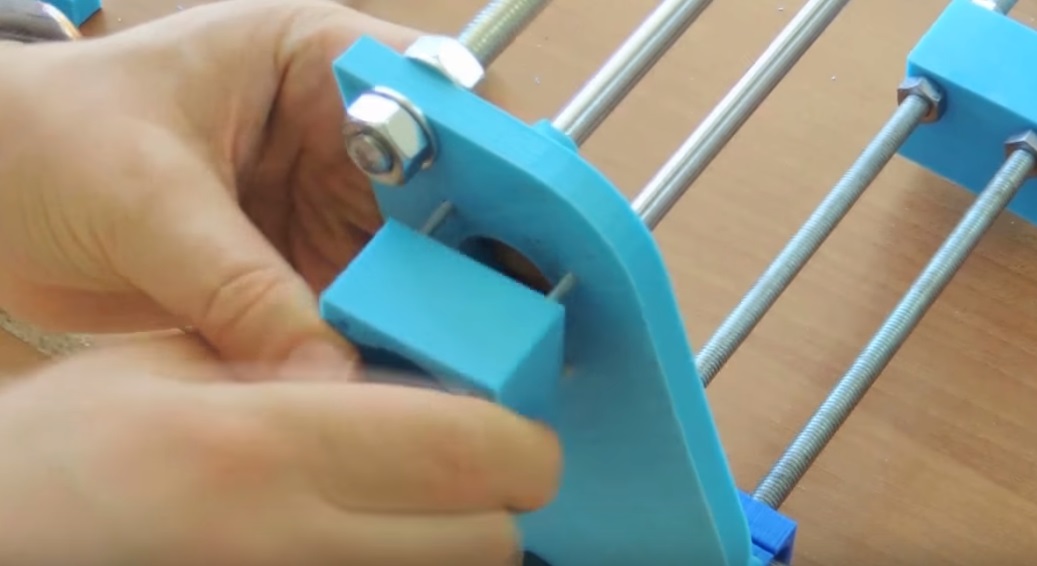

We designed a header. This header will hold 3 different head for Dremel, Laser and Pencil. What do you need ? in pics. Quite simple design. How to built ? Check pics or video tutorial

time line is 11:15

Assembly Header Holder and First Floor

Time line : 14:02

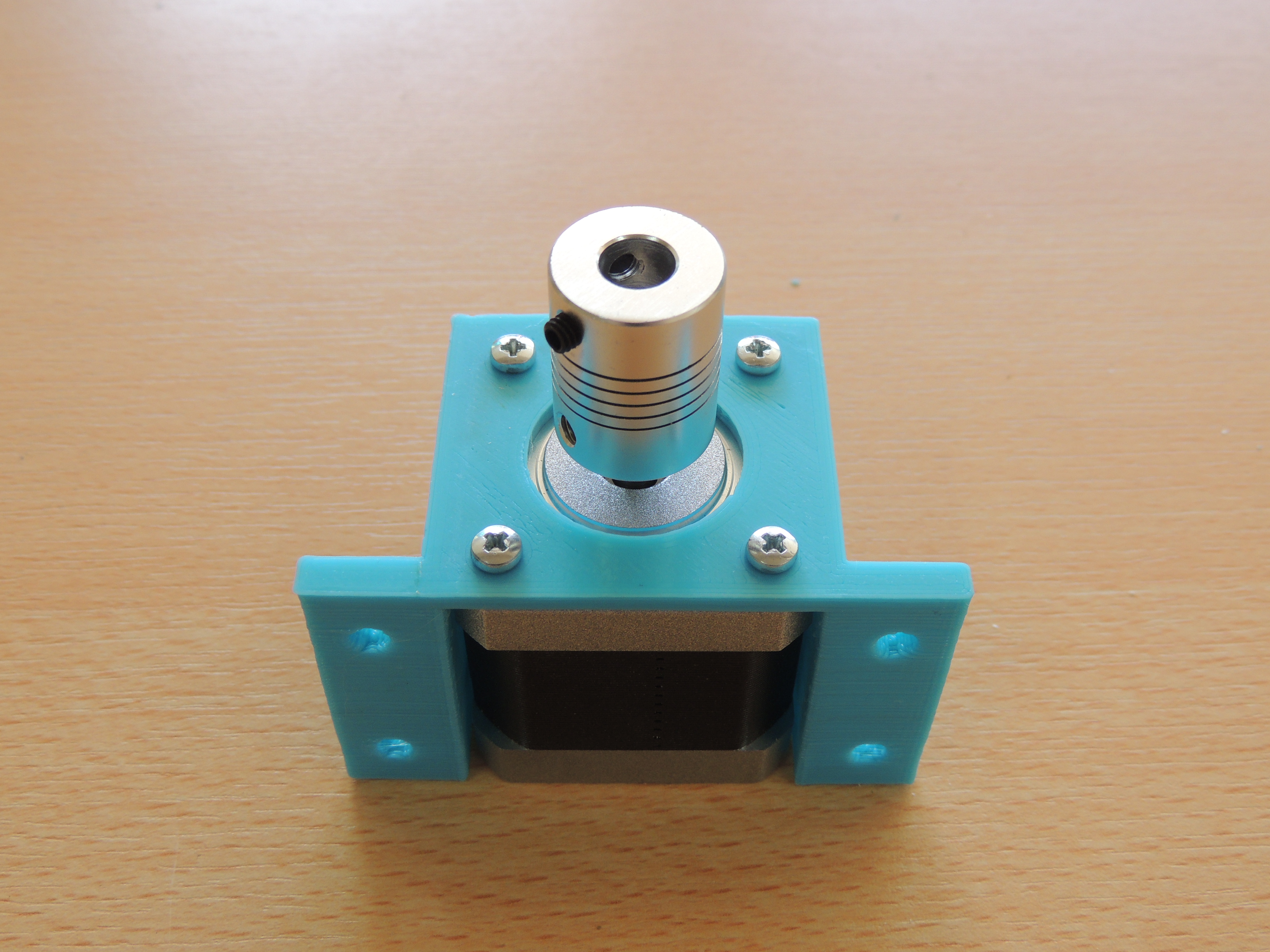

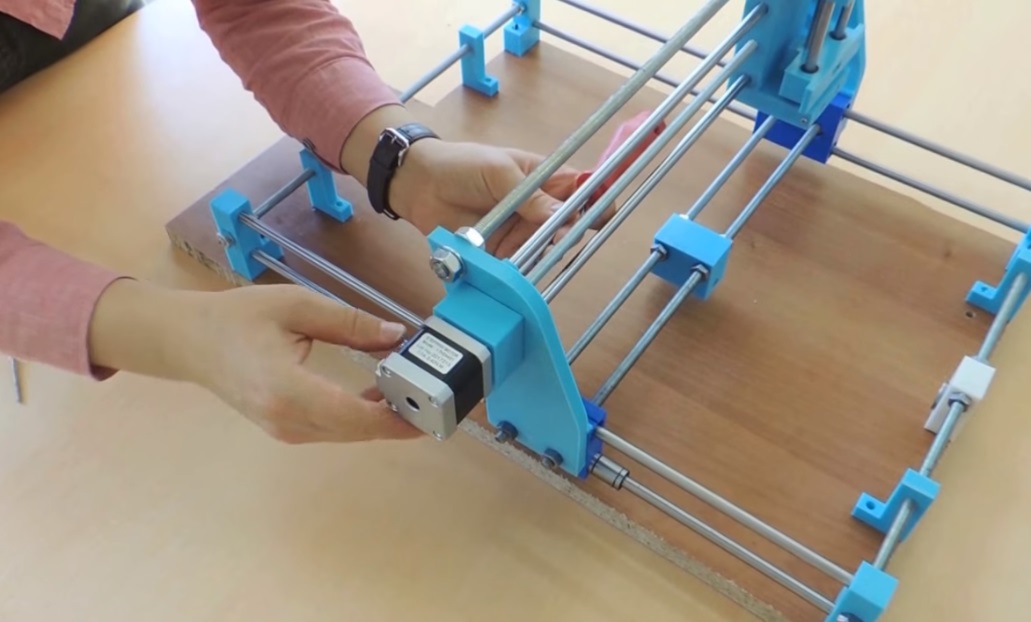

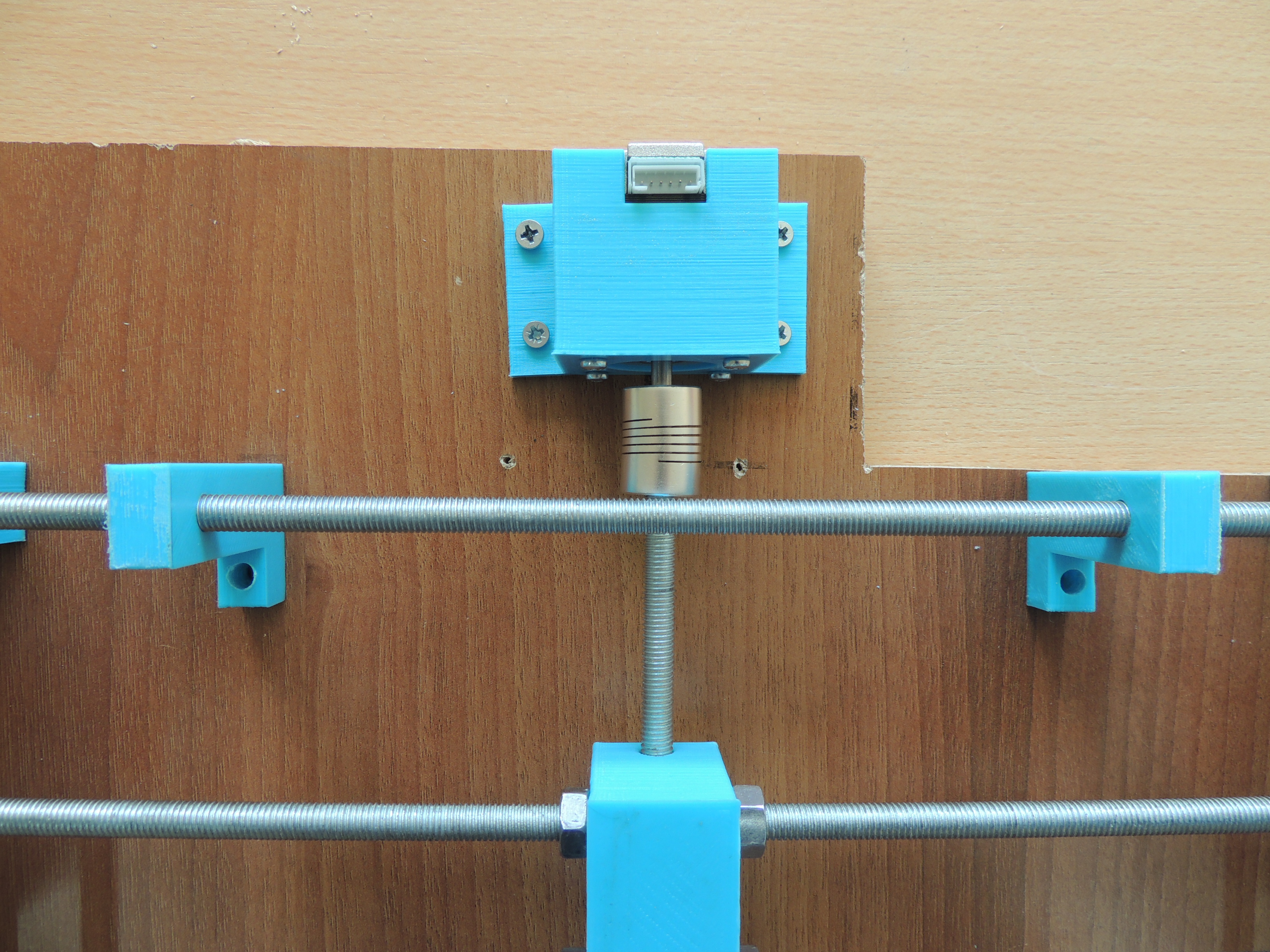

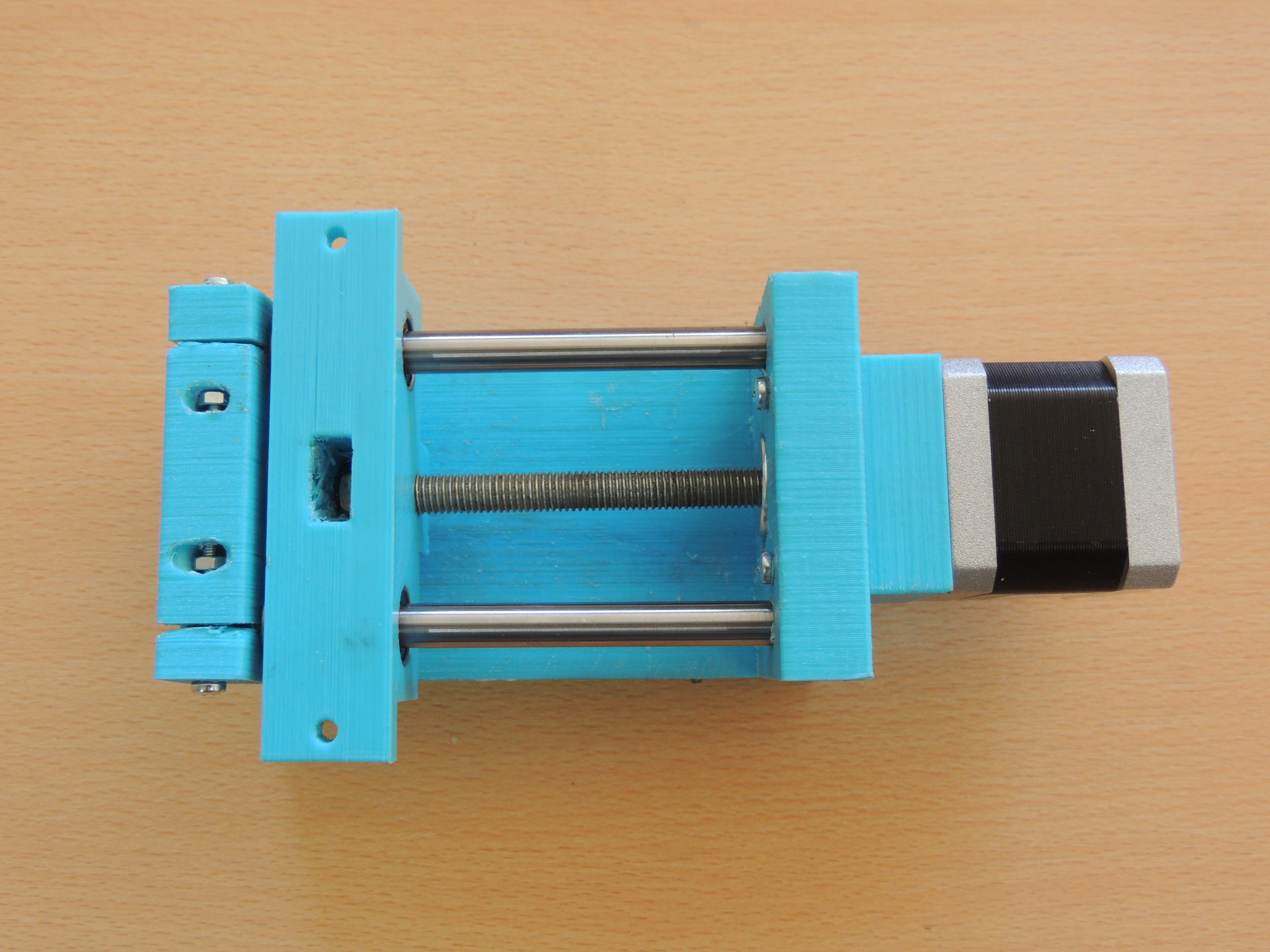

Assembly Nema 17 Motor Stepper to Parts

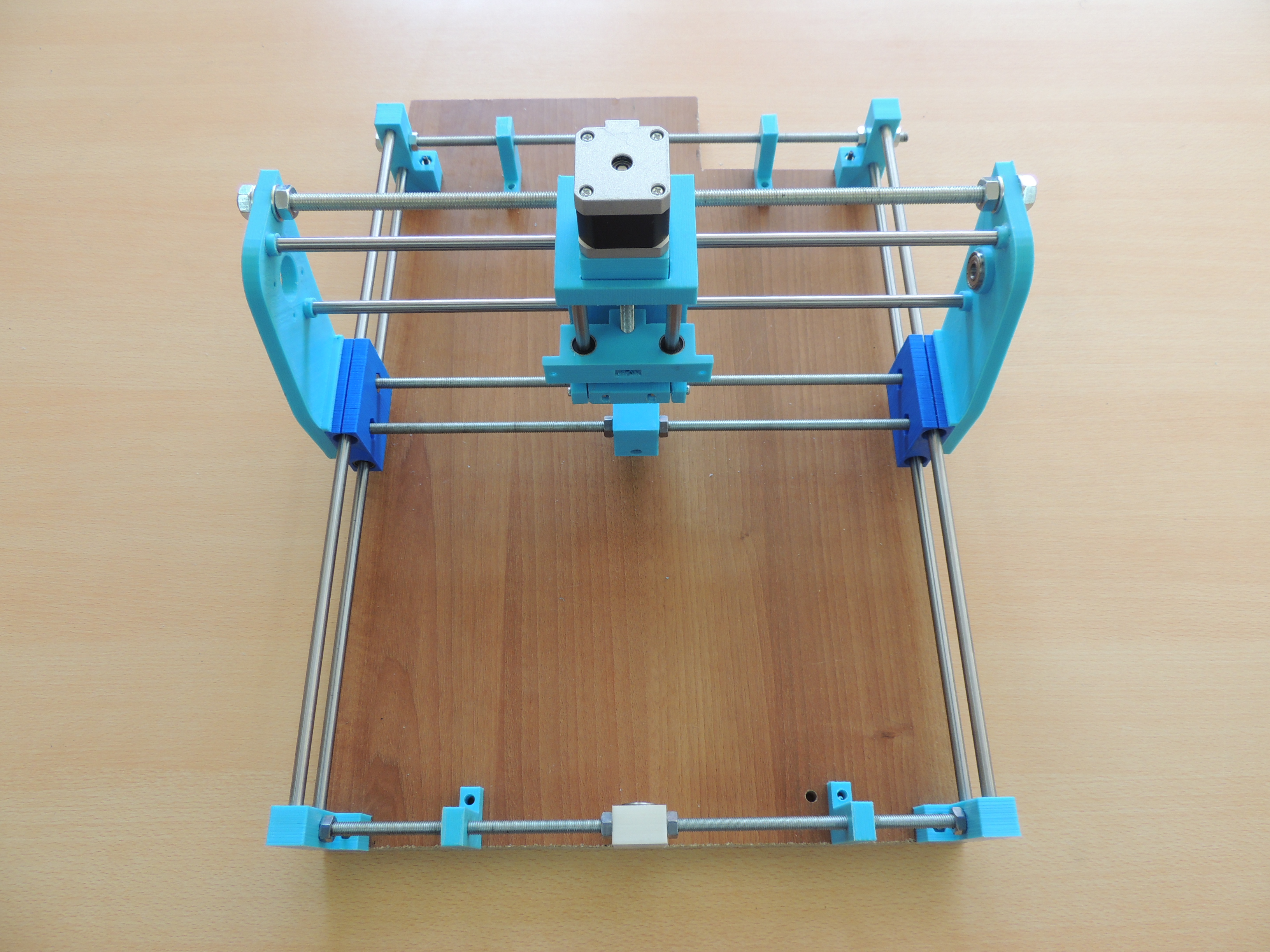

Second Floor Assembling

And now we are building last floor. We are getting second wood and screws.

Time line is 17:13

Electronic Materials

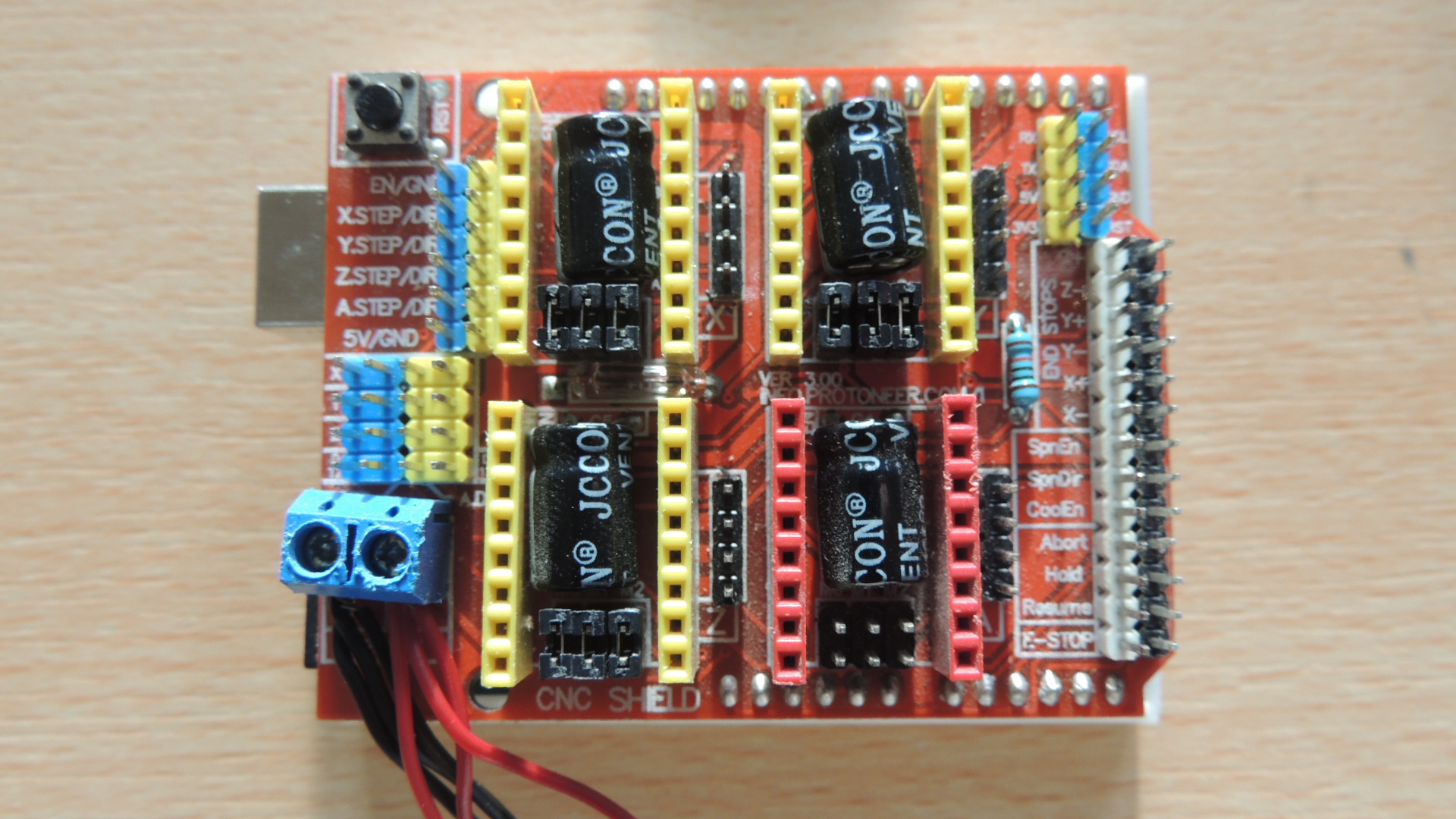

As you can see in pics. We need again some equipments. Arduino Uno, CNC Shield, A4988, A switching circuit and a fan. Now go to step...

Assemble Electronic Materials

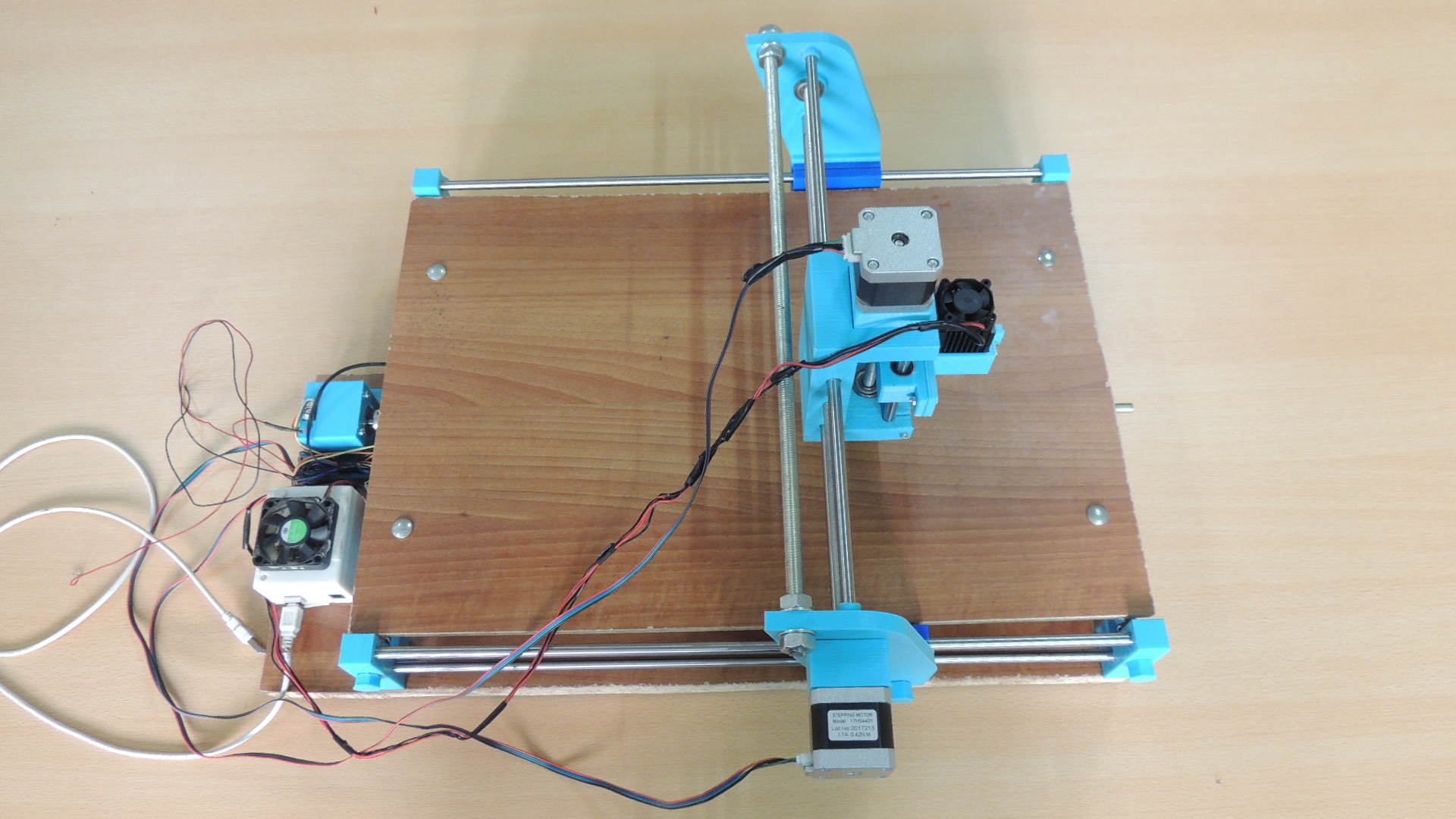

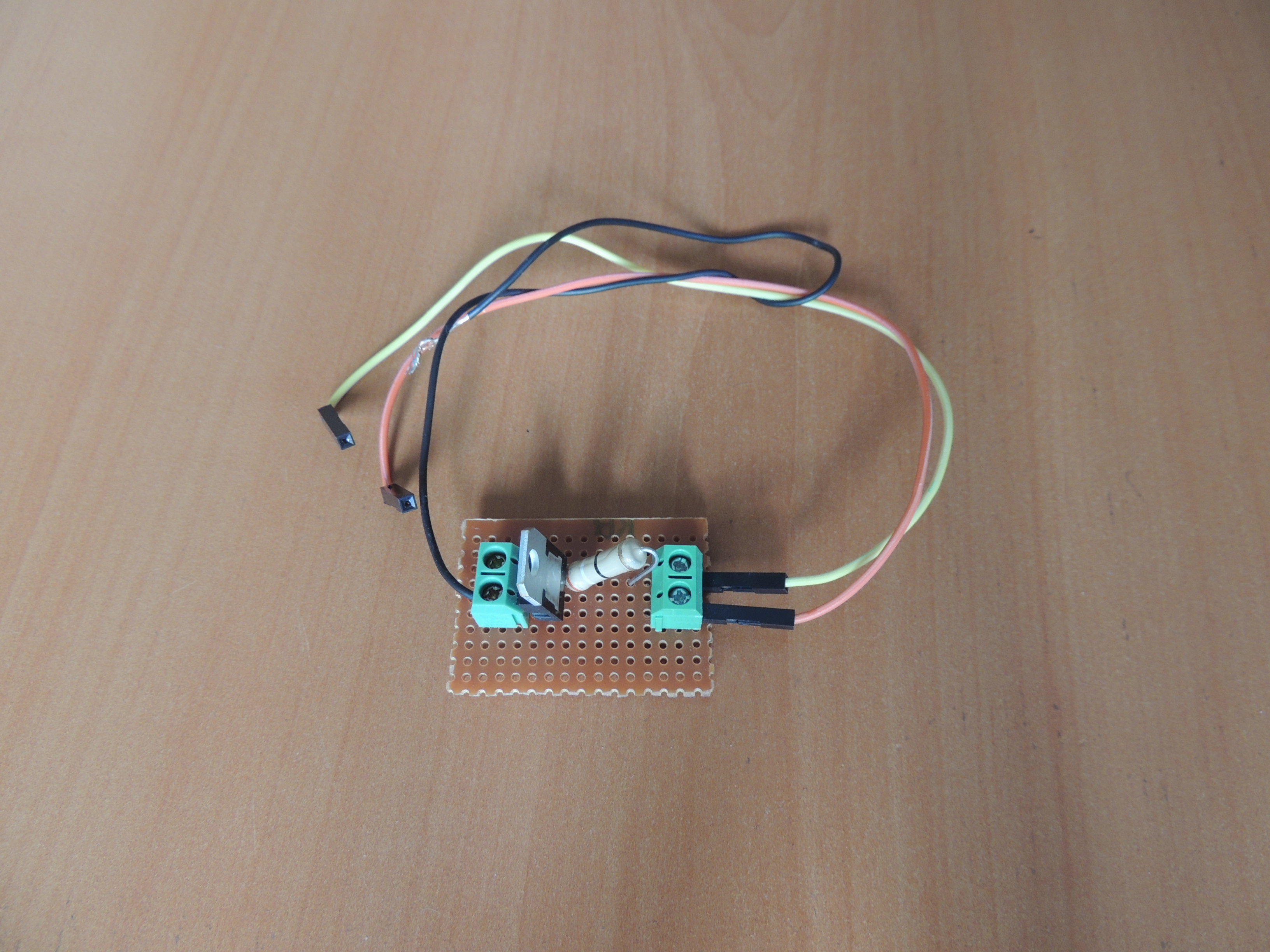

We are using simple a circuit. No more wire, no complex. Will using A4988 motor driver for Nema 17. And added a little circuit for switching for Z axis. You can watch our Part 2 video about Electronic Part.
