TRAFFIC LIGHT IMAGE PEDESTRIAN STOP

by ElectronicaABC in Circuits > Microcontrollers

2333 Views, 1 Favorites, 0 Comments

TRAFFIC LIGHT IMAGE PEDESTRIAN STOP

WhatsApp Image 2023-04-19 at 9.06.15 PM.jpeg

Many times we have seen pedestrian traffic lights on the streets in this case with images and for this project we have made an image of STOP to stop when this image is activated

Supplies

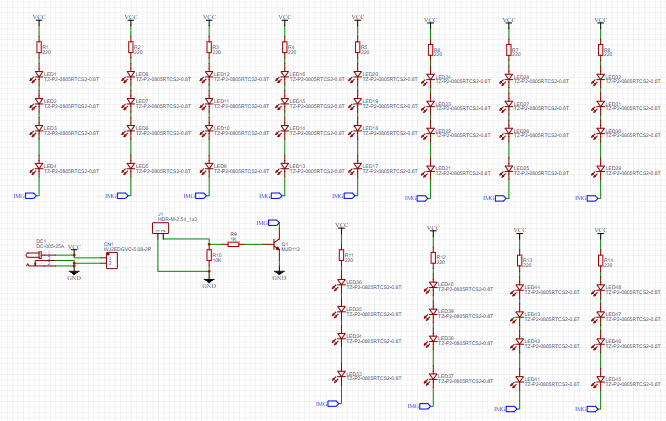

SCHEMATIC DIAGRAM


As you can see this circuit is very simple but very useful for our projects there you can see the electronic components that were used and designed in the EASYEDA software and it works very well

FUNCTIONING

WhatsApp Image 2023-04-19 at 9.18.26 PM (1).jpeg
WhatsApp Image 2023-04-19 at 9.18.26 PM (2).jpeg

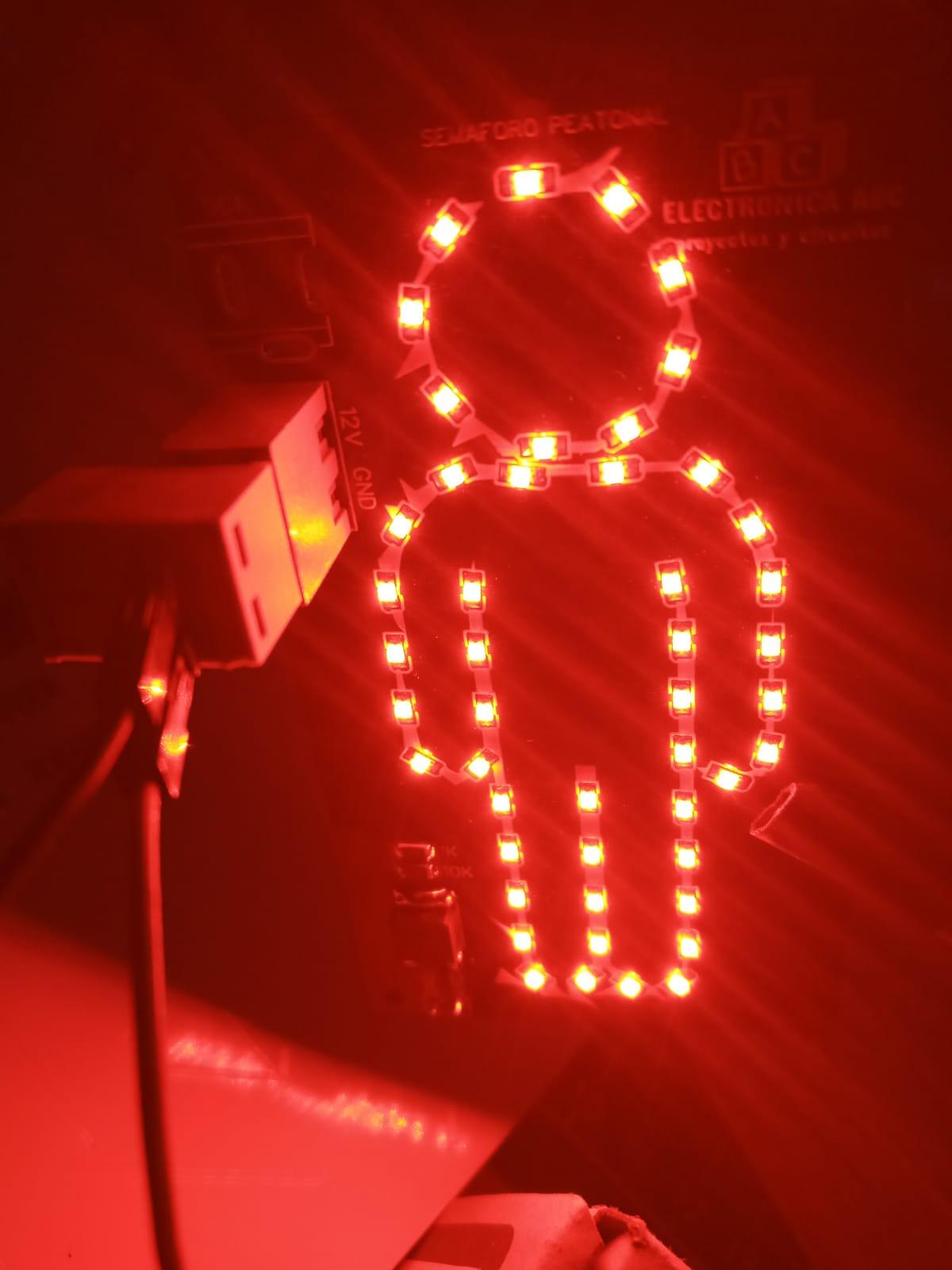

As we already know, in a pedestrian traffic light we have 2 images, the first is a green moving one saying that you can cross the track and the second is a stop image, an immobile image so that they cannot cross since the cars are moving knowing how it works is very basic and understandable.

This project is powered with 12VDC since it is in an arrangement of 5 leds in series and we have 12 series of red smd for a better and ultra-bright visualization.

We can test it directly with a DC 12V source or also take it to the programming in the next step we will see a little code to test it and see if it works correctly we can program it using arduino or another microcontroller.

when we give a 5v signal to our ARD and GND pin it will activate my image and it will turn on when we give it a low pulse or 0V my image will be off everything depends on a pulse whether it is positive or negative

ARDUINO CODE

WhatsApp Image 2023-04-19 at 9.06.15 PM.jpeg
WhatsApp Image 2023-04-19 at 9.06.15 PM (1).jpeg
void loop() {
 digitalWrite(LED_BUILTIN, HIGH);  // turn the LED on (HIGH is the voltage level)
 delay(5000);            // wait 5 seconds
 digitalWrite(LED_BUILTIN, LOW);  // turn the LED off by making the voltage LOW
 delay(1000);            // wait for a second
}

ELECTRONIC COMPONENTS

  • 1 MJD112 NPN 1A
  • 1 RES 1206 1K
  • 1 RES 1206 10K
  • 12 RES 1206 220ohm
  • 48 LEDS RED 0805
  • 1 JACK DC
  • 1 BLOCK TERMINAL GREEN 2 PIN
  • 1 ESPADIN 2 PIN 90°
  • 1 PCB

TECHNICAL CHARACTERISTICS

  • VIN 12VDC
  • PICTURE CONTROL AT 5V
  • IMAX 200mA
  • PROGRAMMABLE WITH ARDUINO U ANY MICROCONTROLLER
  • BRIGHT IMAGE

EASYEDA

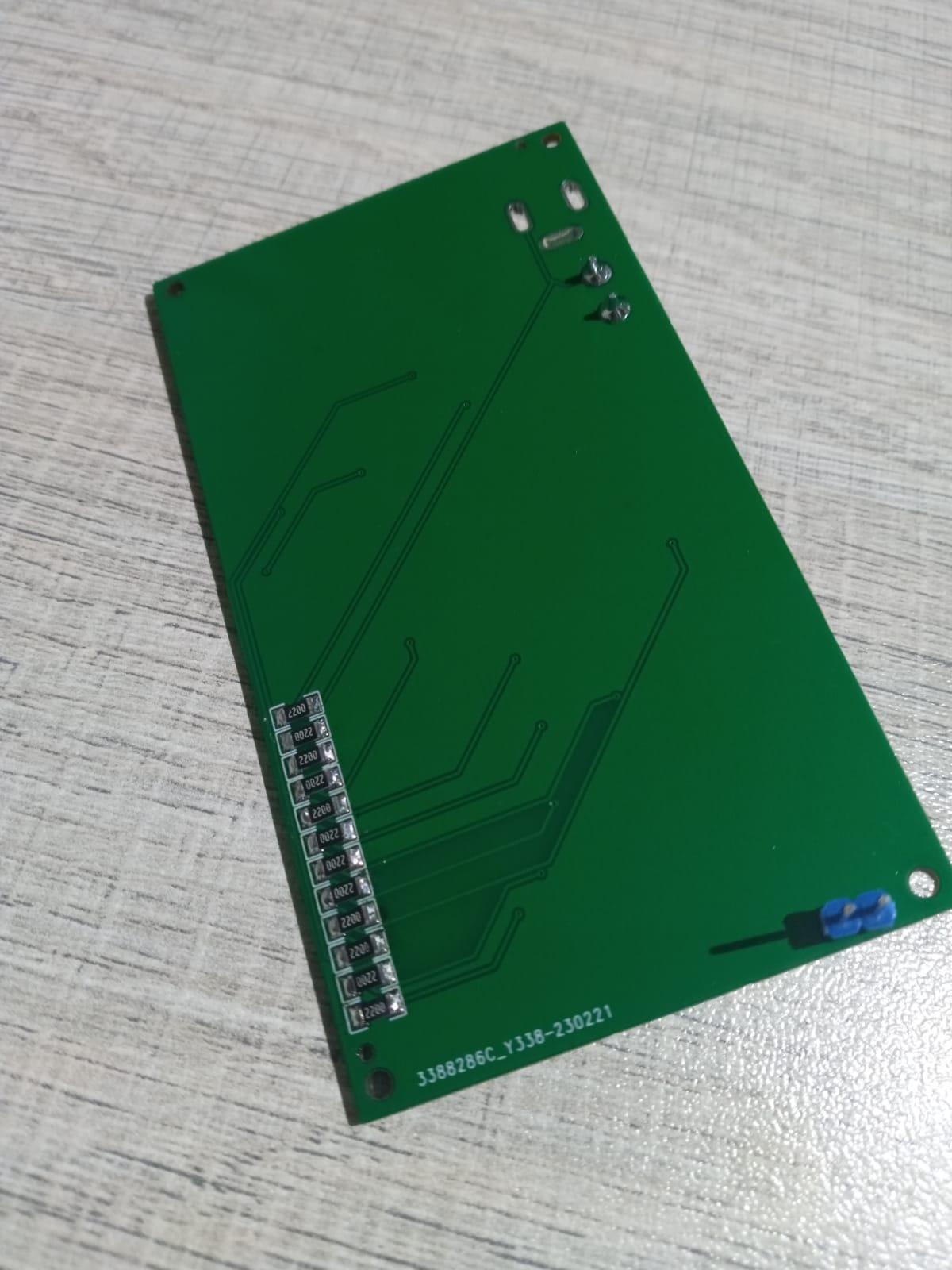

Once the project is finished with all the respective tests, we carry out the PCB design and we will obtain the routed tracks and the 3D image of how our finished PCB would look.

JLCPCB

WhatsApp Image 2023-04-19 at 9.18.26 PM.jpeg
JLCPCB ORDENAR AHORA.png

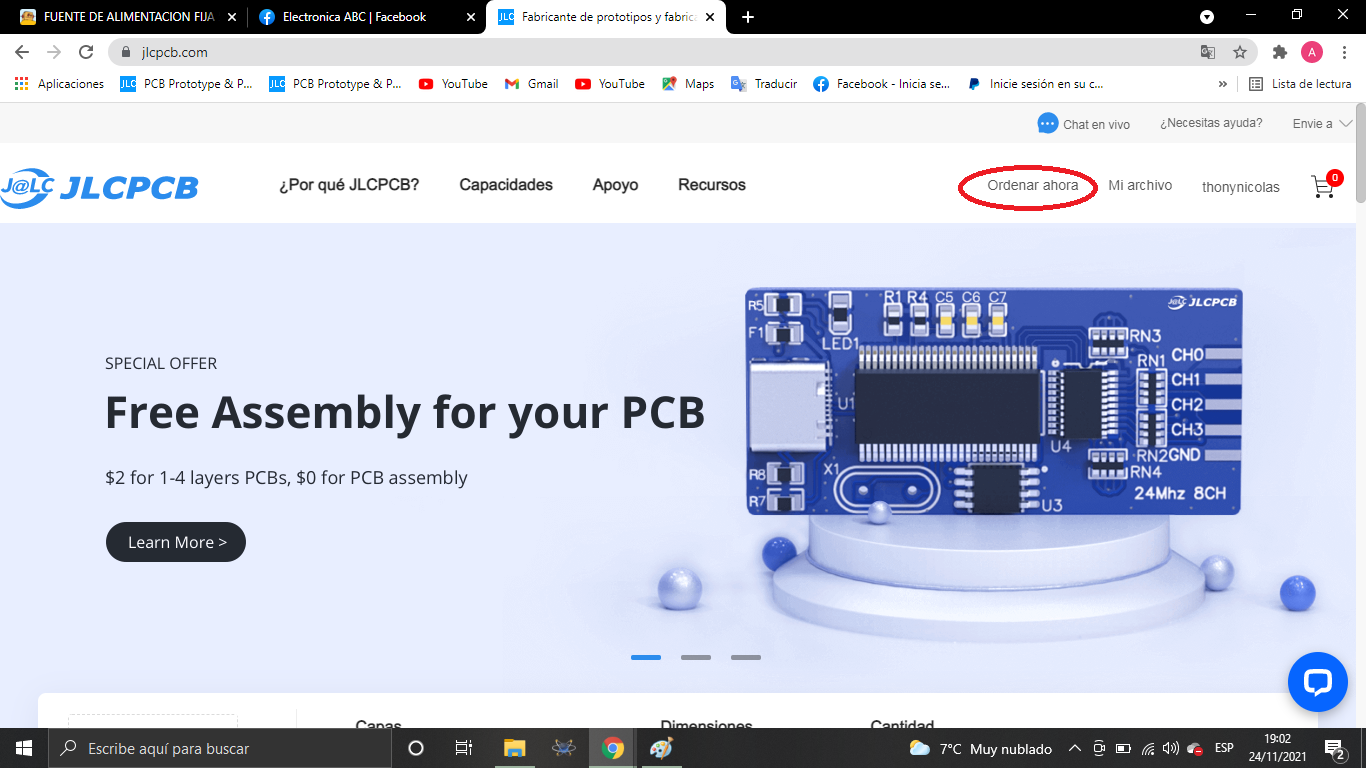

Once the pcb is designed, we will send our friends from JLCPCB to manufacture our PCB.

https://jlcpcb.com/RAV

5pcbs only $2

JLCPCB number 1 PCB manufacturing company worldwide professional pcbs and excellent finish.

GERBER PCB:

https://mega.nz/file/CdYWXSJL#Mqsmnm71ji9BYUiJa48LmBJm_-Sn37o2DtdUUTlJqWE

you can get your pcbs in different sizes and colors.
