TOUCH SENSOR USING BC547 TRANSISTOR
by dhamo1999 in Circuits > Arduino
713 Views, 0 Favorites, 0 Comments
TOUCH SENSOR USING BC547 TRANSISTOR
.png)
This circuit turns on LED with the touch of your finger!. Many a times
we need certain actions to be done with a touch instead of pressing a button. This simple circuit does that using minimal components.
MATERIALS REQUIRED
(1.) Battery - 9V x1
(2.) Battery clipper x1
(3.) LED - 3V x1
(4.) Resistor - 470 ohm x1
(5).BC457
(6).breadboard
OUTPUT
.png)
.png)
LEFT PICTURE SHOWS THAT BEFORE WE TOUCH, THE LIGHT WILL NOT GLOW

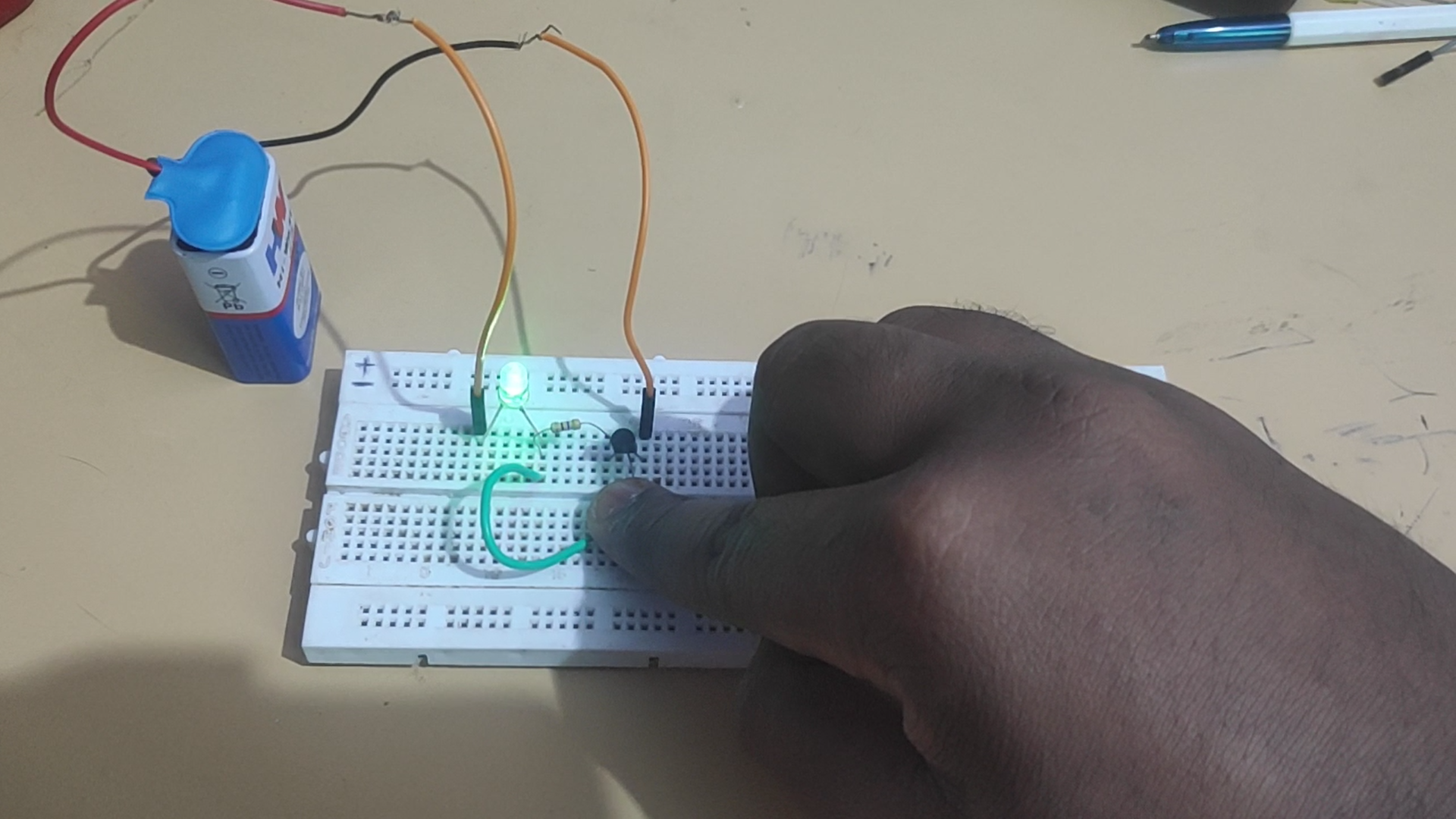

RIGHT PICTURE SHOWS THAT AFTER WE TOUCH ,THE LIGHT WILL GLOW
