TOUCH ON/OFF SENSOR

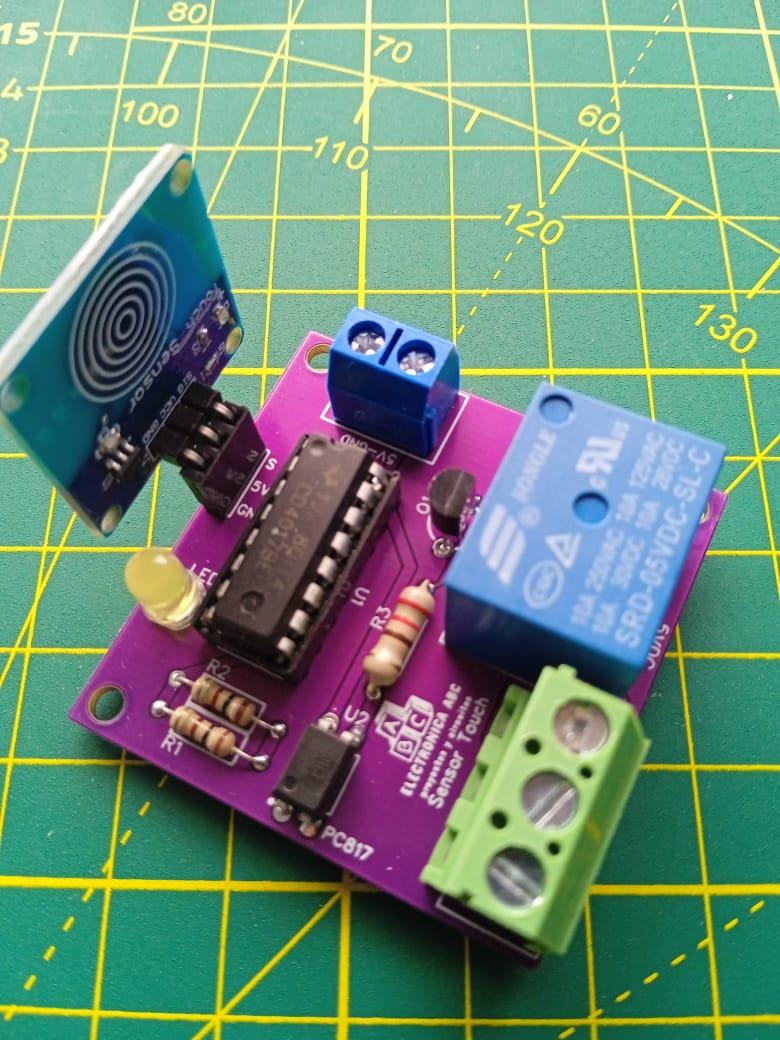

WhatsApp Image 2022-09-23 at 11.16.46 AM.jpeg

You need a project where you can turn on and off a system that runs on AC and is controlled by DC and we have done it using a TOUCH sensor and some discrete components for this project.

Supplies

GERBER PCB:

https://mega.nz/file/bE4VnKoA#JPyMupPt7HJmsZJASxcszPUv11evsL5XZ1L_KDvkKhY

SCHEMATIC DIAGRAM

We will see the schematic diagram with its respective values and electronic components so that you can develop it yourself.

TOUCH SENSOR

There are many touch sensors but in my case it only sends high or low signals depending on the touch to the sensor, since it does not lock, so having a disadvantage with this sensor, it is necessary to design a circuit that will allow me to control alternating current loads to exit with a touch on said sensor.

A touch sensor is a type of device that captures and documents physical contact with a device and/or object. It enables a device or object to detect the contact or close proximity generally of a human user or operator.

First of all, you have to know what a Touch Sensor is and what it works for. This, as its name says, is a sensor that detects when the user presses just like a button. However, this sensor, unlike push buttons, detects a certain capacitance of the human body generated by the effect of pressing it on the ground, so it can be activated with little or no pressure on it.

It is made up of five pins, two of which are for power supply and three for output, as shown in Figure 1.

GND
+ 5V
VIG/SIG: digital input

CD4017 Divider Counter

The CD4017 Divider Counter is a decimal decoder integrated circuit (IC) that has 16 pins and has 10 outputs. In its internal structure it is made up of a 5-stage Johnson counter that can divide or count by any value between 2 and 9, with resources to continue or stop at the end of the cycle.

What is the CD4017 Divider Counter for?

The CD4017 Divider Counter is used for electronic projects ranging from a sequence of LEDs, counter, locks, etc.

SPECIFICATIONS AND FEATURES

· Serial number: CD4017BE

· Logic IC family: HC

· Supply voltage range: 3 V to 18 V

· Input current: 10mA

· Clock maximum input frequency (CL), if powered with;

ü 5VDC runs at 2.5MHz

ü 10VDC runs at 5MHz

ü 15VDC runs at 5.5MHz

· Clock pulse width (tW) : 60 ns

· Maximum number of stages: 5

· Number of decoded outputs: 10 outputs.

· Operating temperature range: -55°C to +125°C

· Dimensions: 20mm x 8.4mm x 7.1mm

· Weight: 1.5g

· Through Hole Mounting Style

· Encapsulated: PDIP-16

FUNCTIONING

WhatsApp Image 2022-09-23 at 11.16.46 AM (1).jpeg

It can be done in many ways, even with programming, but we will do it with a well-known IC, the CD4017, which will allow us to jump from pulse to pulse, turning it on with a touch and then turning it off with a touch on the sensor, we can control loads up to 10 A 220VAC output by which we can control lighting AC DC motors, etc.

This operation is very similar to a direct start in the industrial theme of electricity.
