TO_MY_LOVER_<3
the moon festival is the day of our marry memorial day ,
and the project is the gift that i wanna to do !

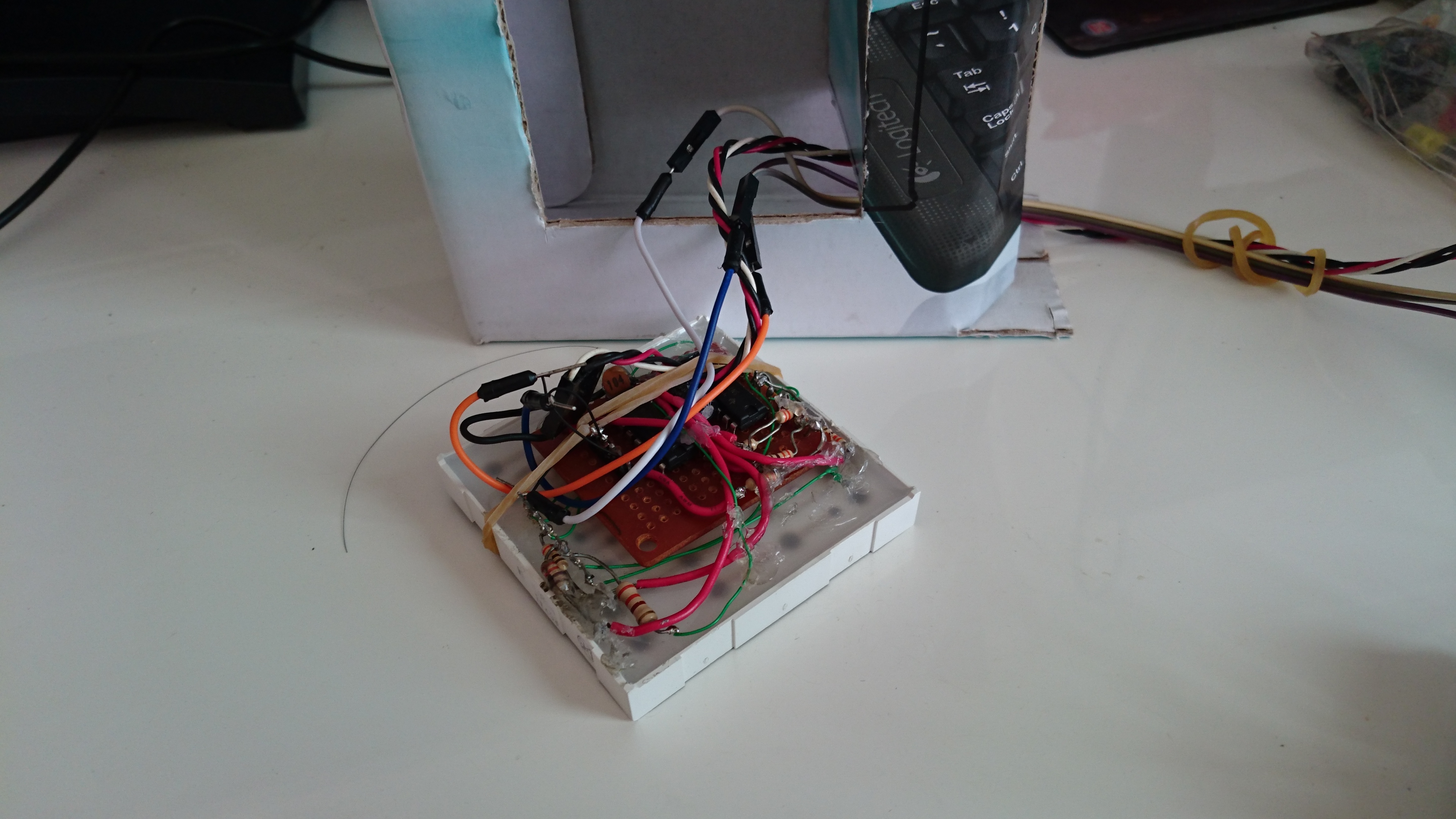

SOLDERING THE ELEMENTS ON THE PCB

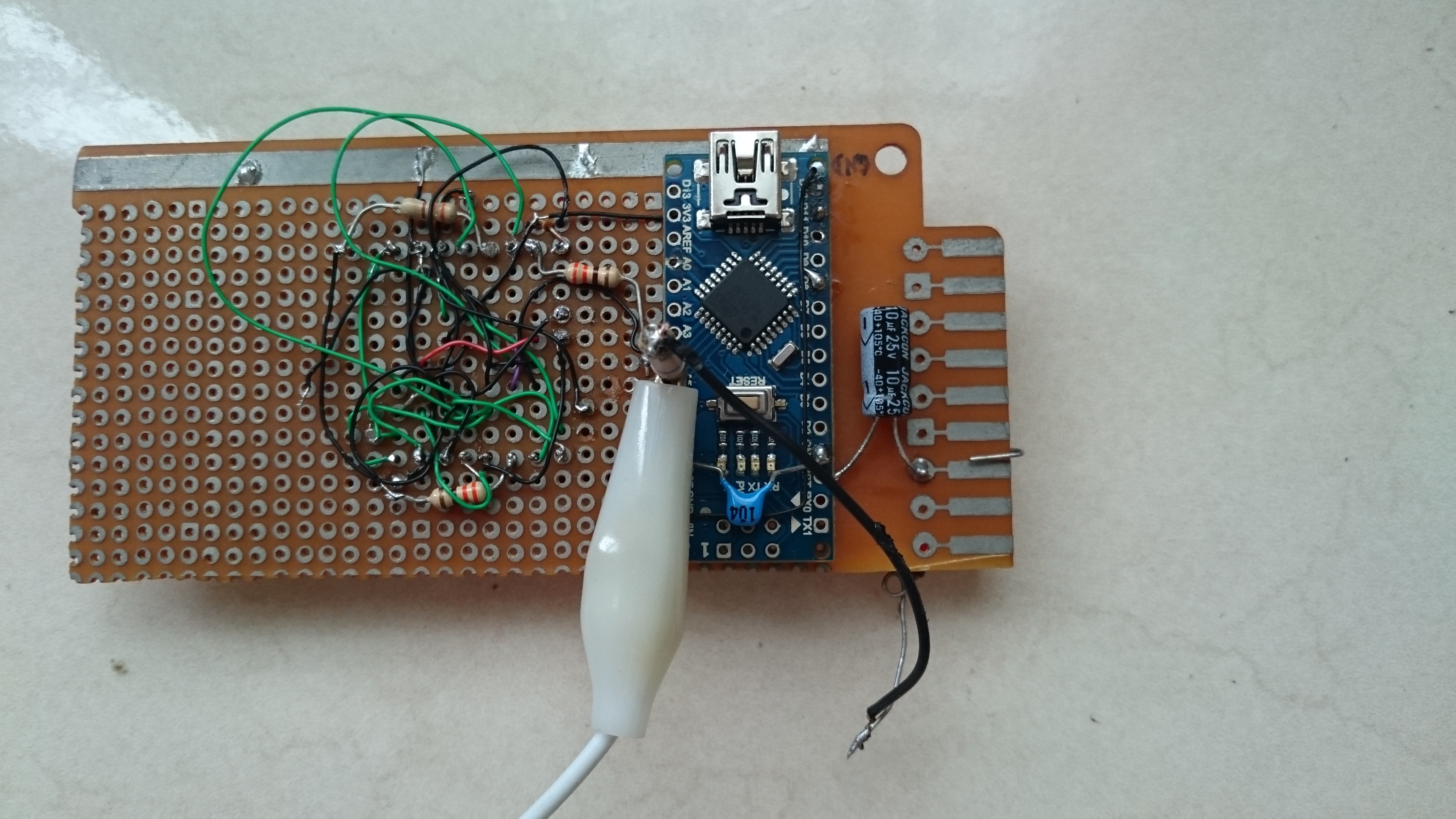

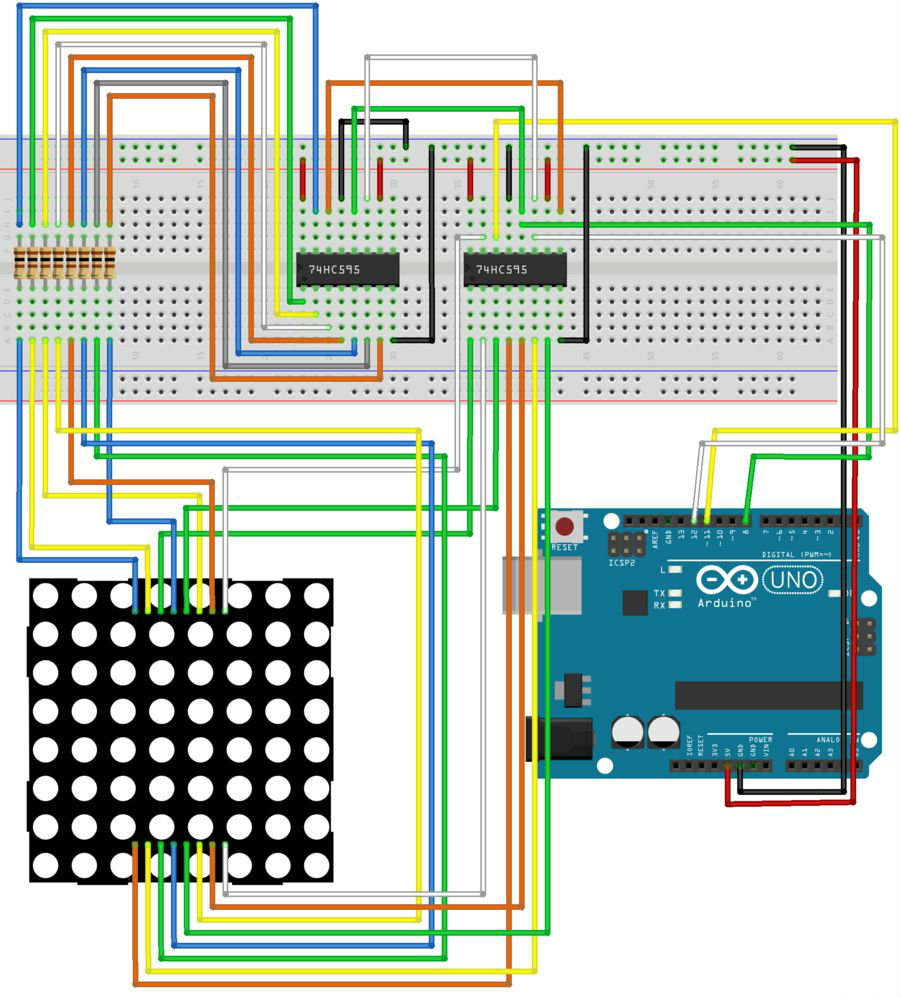

do connecting matrix ckt on the PCB
Downloads

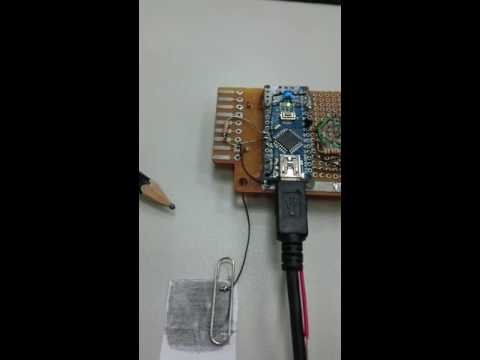

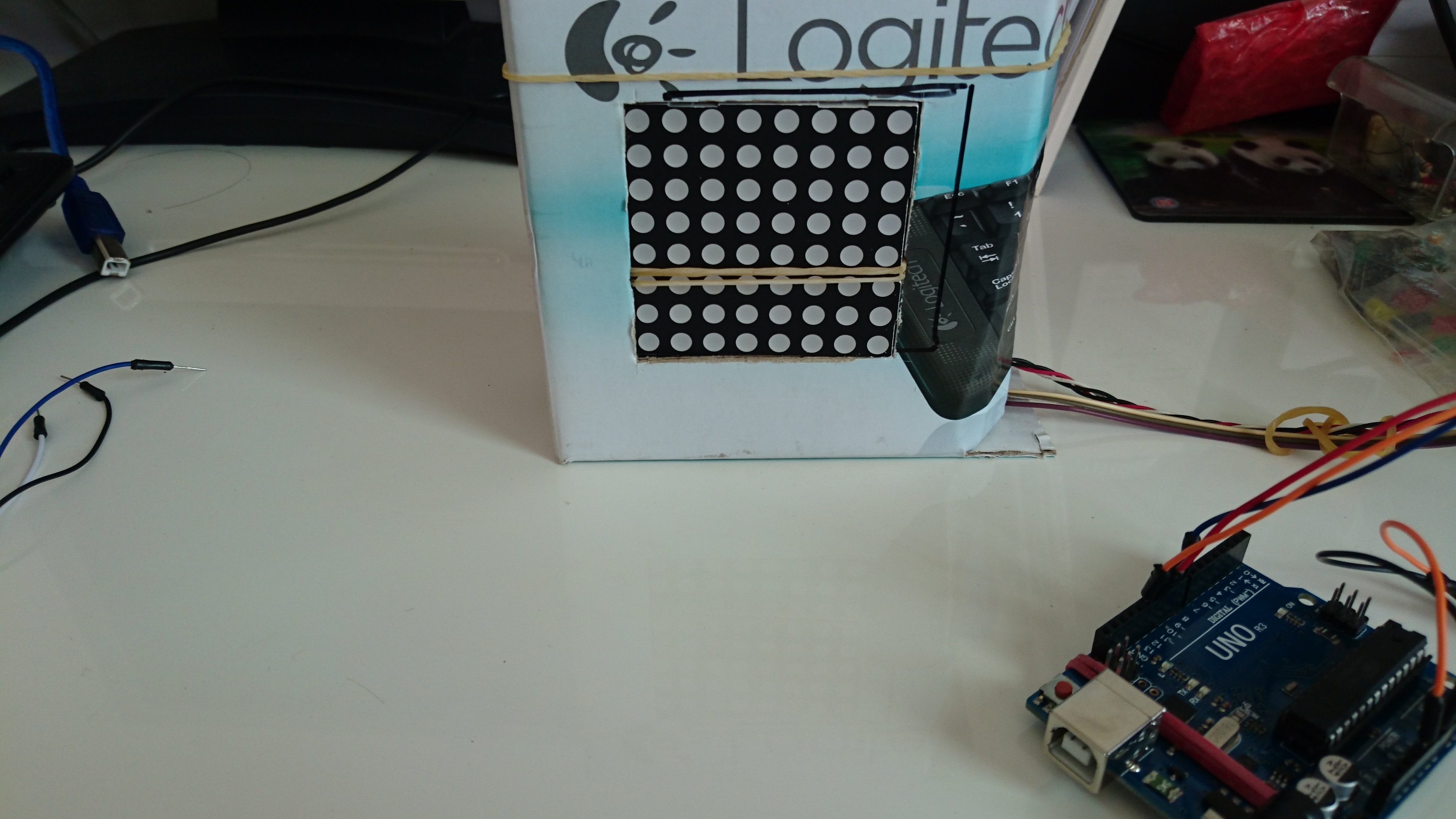

CONNECT TO YOUR ARDUINO NANO AND TESTING IT USE THE USB CABEL
do testing circuits and do testing the text in the program

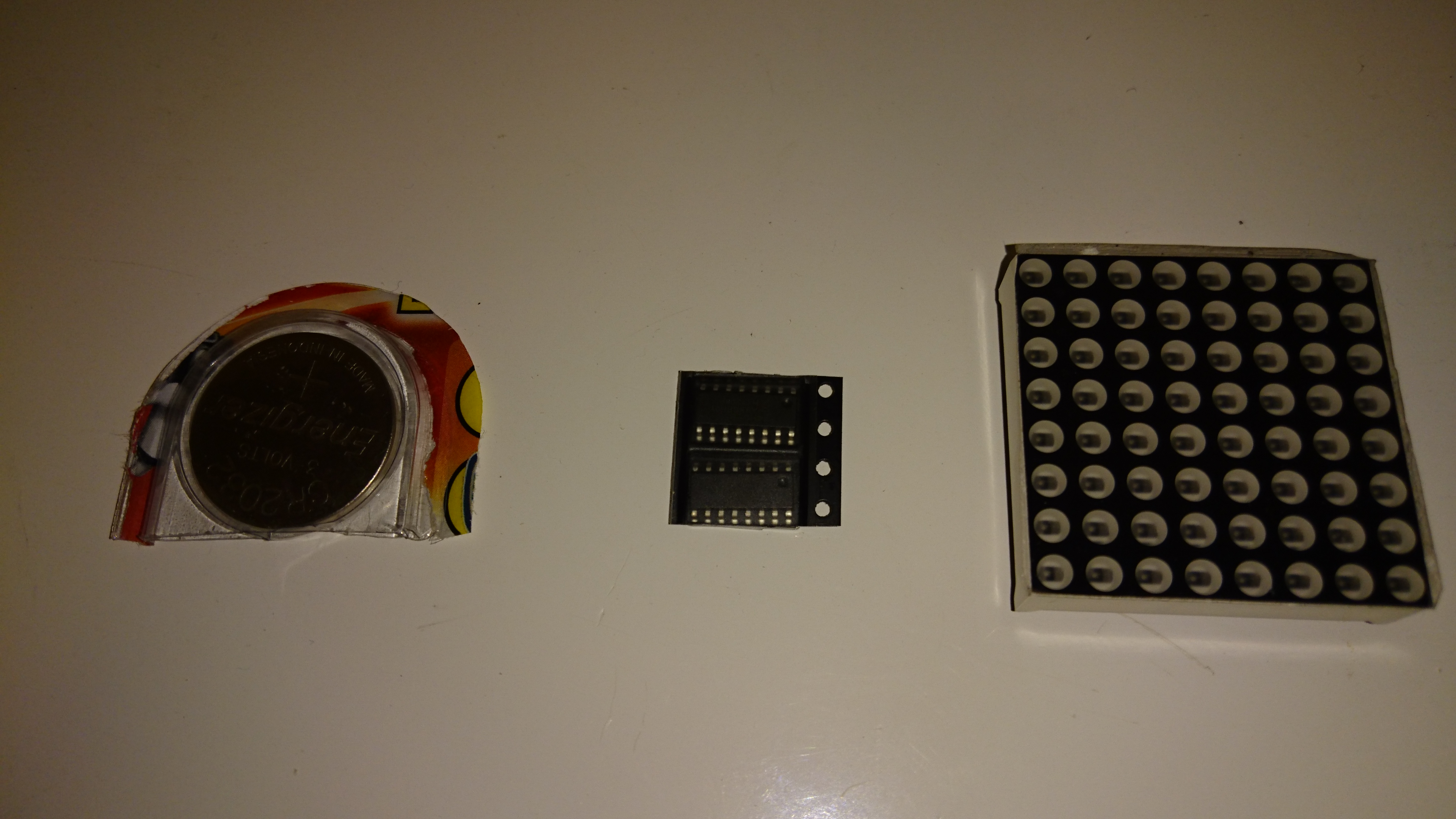

SOLDERING 3V Batt. HOLDER ON PCB AND MODIFYING THE SOFTWARE FOR CAPICITY SENSOR

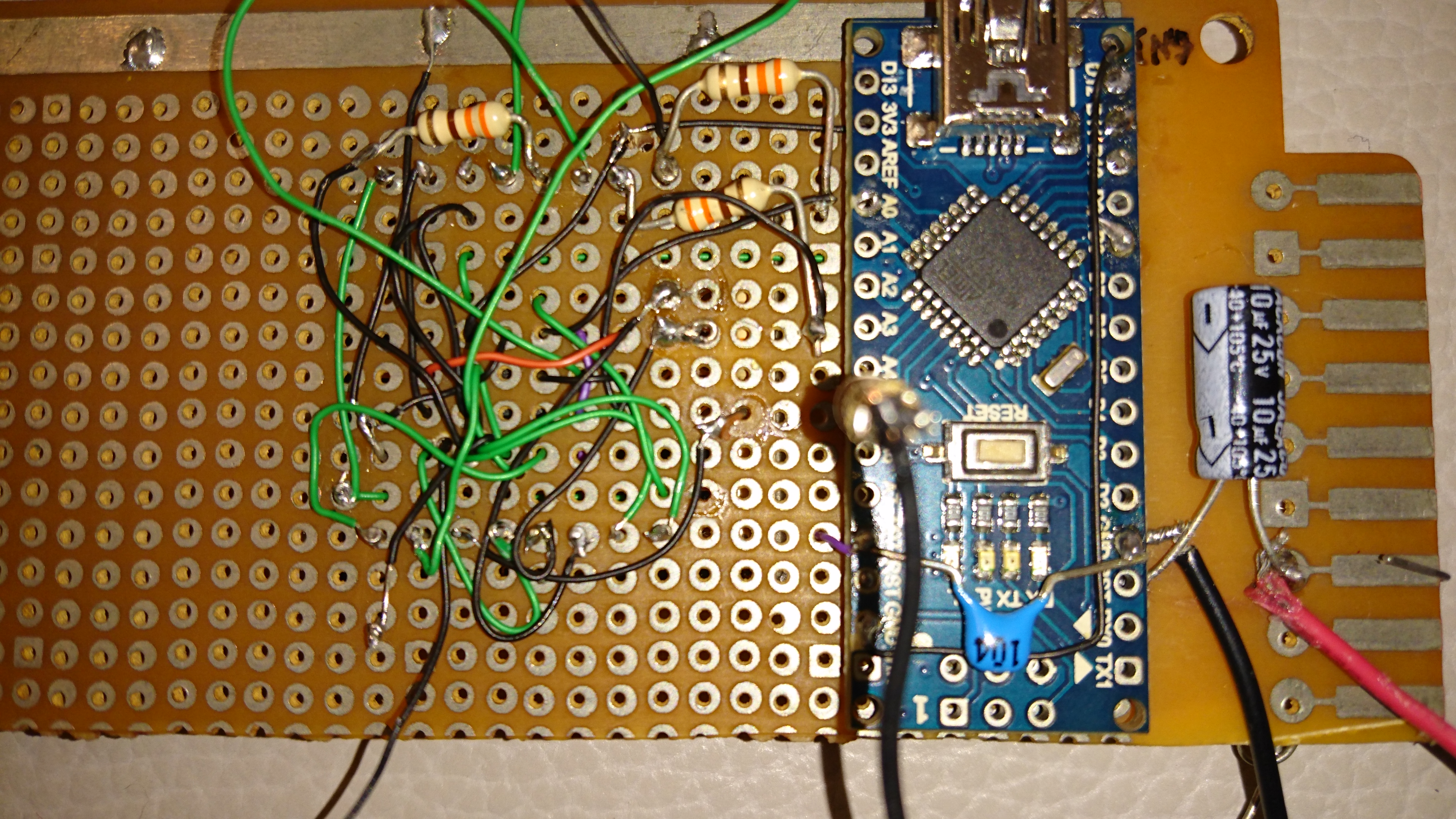

CONNECTING WIRES FOR THE CAPACITY SENSOR AND UPLOAD THE PROGRAM
the black wire as the antenna of capacity sensor,
and the 2.2M ohm connecting to nano PIN6 PIN7.
Downloads

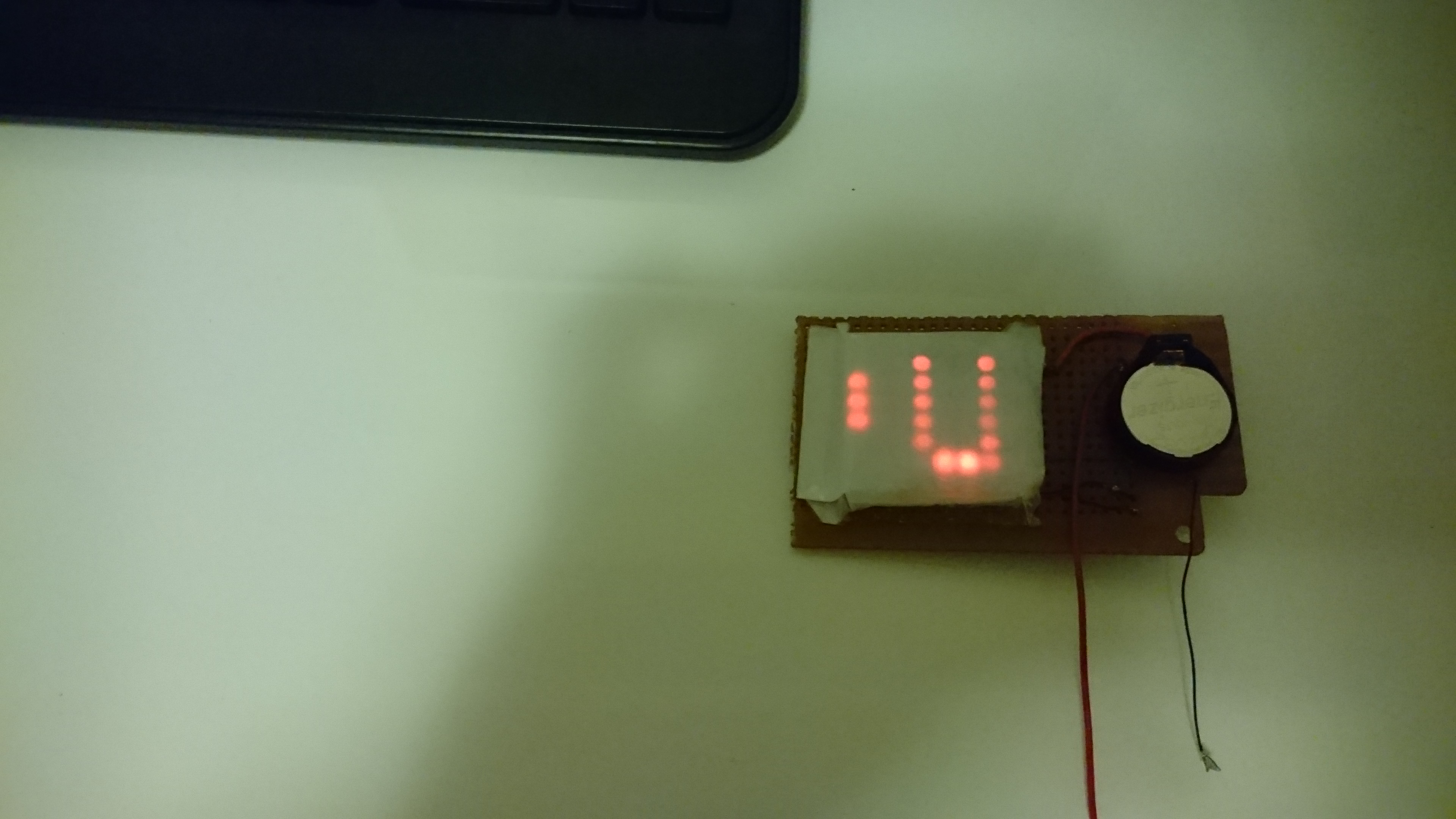

INSERTING THE BATTERY AND TESTING
)
file1 : test the nano touch
file2 : test the nano after touch
EMBEDDING THE PCB INTO a WOODEN BOX
Coding
i merge the code of LED-matrix and
code of capacitor sensor for
sensing the one who touch the box.
