TIMER WITH THE ATTINY85

HOY APRENDEREMOS A REALIZAR UN TEMPORIZADOR DE FUNCIONAMIENTO CON EL MICROCONTROLADOR ATTINY85

GERBER:

https://mega.nz/file/eRwA1Q5D#6HnrcAPaUwlRHEnMkTAI0cX6lRa_7LEuygl4qB_5niA

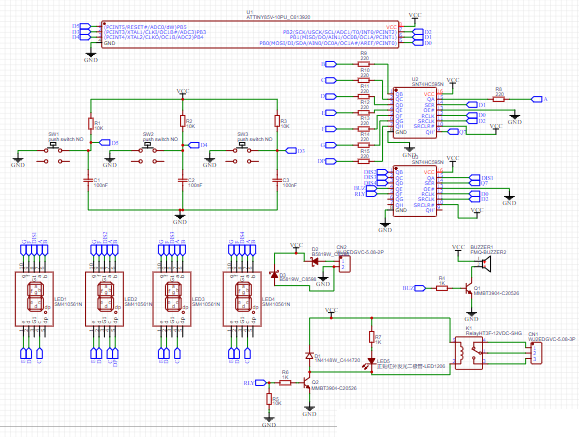

HERE WE WILL SEE THE SCHEMATIC DIAGRAM AND ALL THE VALUES OF THE ELECTRONIC COMPONENTS USED FOR OUR TIMER PROJECT.

INFO

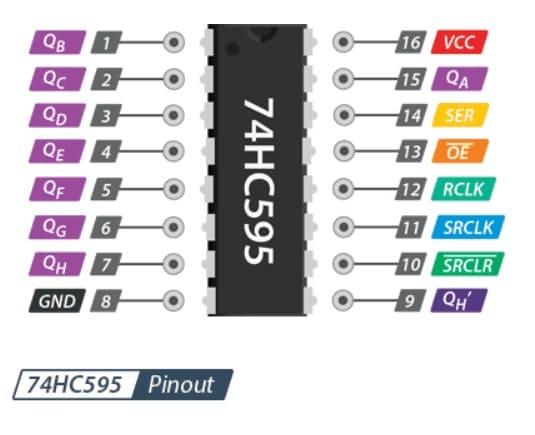

The 74HC595 register allows converting data from serial to parallel format. It is an ideal chip to expand the digital outputs of our Arduino/Pic, 3 Arduino pins can easily handle more than 500 outputs. The 74HC595 is used in the construction of LED Matrix/Cubes, Relay management and more.

The 74HC595 internally has a shift register, a latch register, and tri-state outputs. The shift and storage registers have separate clocks. It has one serial input, eight parallel type outputs (8 bit) and one serial output (Q7S) to use registers in cascade and thus further expand the number of parallel outputs.

TECHNICAL SPECIFICATIONS

Chip: 74HC595

CMOS technology

Compatible with TTL voltages

Operating Voltage: 3.3V - 5V

16 pin DIP type packaging

Offset Frequency (max): 100 MHz

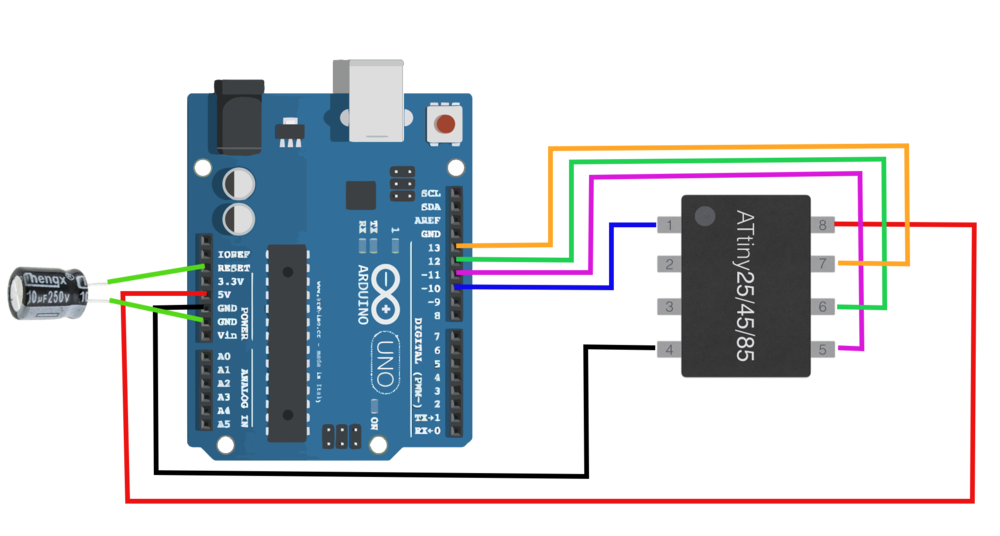

Ok, we have to burn a bootloader to the chi adn then uplaod the code. For both those steps we need the connections below to an Arduino. In my case I will use Arduino UNO. So, make the connections as below between the Arduino SPI port and the PCB. We will sue the Arduino as ISP to uplaod codes.

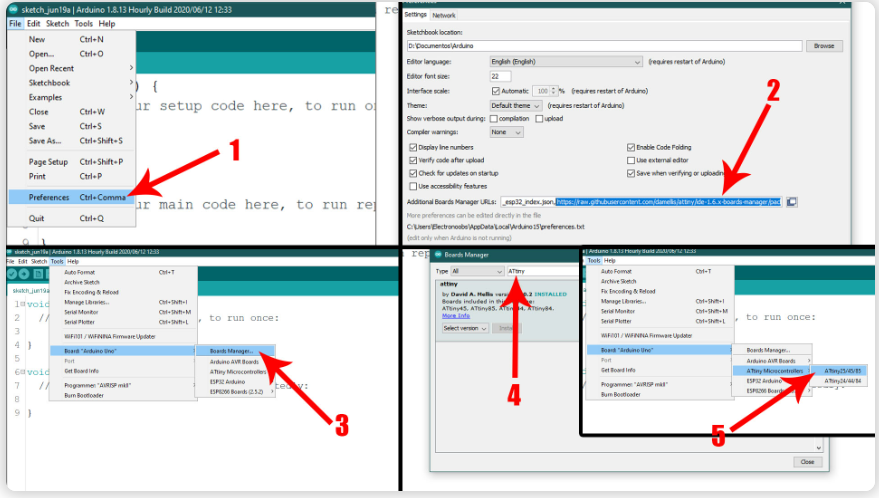

Run your Arduino IDE. We need to install the ATtiny85 boards in case that you don't already have that. To install the boards, copy the link below. Go to Ardduino IDE, to File -> Preferences -> Paste the link in the "Additional Boards Manager URLs". If you already have another link ther, add a comm "," first and then paste the new link. Save and close preferences. Now go to Tools -> Board -> Boards Manager. In this manager search for ATtiny adn install the attiny boards. Now, if you go on tool -> board, you should see the ATtiny boards as well.

https://raw.githubusercontent.com/damellis/attiny/ide-1.6.x-boards-manager/package_damellis_attiny_index.json

In order to use the Arduino as an ISP programmer, we need to uplaod a code to it so for taht, go to Examples -> ArduinoISP -> ArduinoISP and open that example code. Then make sure yous elect the type of board for your Arduino, in my case, Arduino UNO. Select the com and leave the default programmer as "AVRISP mkII". Connect the USB, select the COM and uplaod the code to the Arduino UNO.

Ok, now the Arduino has the ISP code so it will act as a ISP programmer. Now, let's butn the bootloader. Go to Tools -> Board and selectt the ATtiny25/45/85 type of board. Then, once that is selected, go to Tools -> Processor -> And select the ATtiny85. Then go to Clock -> and select the internal 8MHz one so we will burn that bootlaoder. Go to Tools -> Programmer and make sure you now change the normal programmer from "AVRISP mkII" to "Arduino as ISP". Finally, amke sure the Arduino UNO is connected to the PCB to the ISP port and go to Tools -> Burn Bootloader. The Arduino Rx/Tx LEDs will blink and after a while you will get the bootloader burn complete on the screen.

int clockpin = 2; //Cuando ay que leer los bit      SH
	int data     = 1;   //Envio datos                     DS
	int latch    = 0;  //indica pin de salida en el chip ST


	// no cambiar el const int
	const int  left_sen  = 4 ;   // pin 2 como entrada para el sensor izquierdo
	const int  right_sen = 3;    // pin 3 como entrada para el sensor derecho


	//VARIABLES PARA EL CONTADOR ASCENDIENTE
	// estas variables si puede ser cambiado
	int contador             = 0;
	int contadorU            = 0;
	int contadorD            = 0;
	int contadorC            = 0;
	int contadorM            = 0;
	int estado_left_sen      = 0;      // estado  del pulsado actual
	int lastButtonState_left = 1;     // estado  del pulsado anterior






	boolean start            = false;
	boolean start1           = false;
	boolean ena_D            = false;
	boolean ena_C            = false;
	boolean ok               = false;


	unsigned long time;
	float tiempo = 1000;
	unsigned long  t = 0;


	//VARIABLES PARA EL CONTADOR DESCENDIENTE
	// estas variables si puede ser cambiado


	int estado_right_sen      = 0;         // estado  del pulsado actual
	int lastButtonState_right = 1;     // estado  del pulsado anterior


	//Aqui esta el array que contiene todos los UNDs para nuestro display
	//El display tiene las conexiones alcontrario ell pin 8 del 74hc595 es el primer dijito binario


	const int NUM[] = { // segmentos
	  191,   //Numero 0 en binario es : 10111111
	  134,   //Numero 1 en binario es : 10000110
	  219,   //Numero 2 en binario es : 11011011
	  207,   //Numero 3 en binario es : 11001111
	  230,   //Numero 4 en binario es : 11100110
	  237,   //Numero 5 en binario es : 11101101
	  253,   //Numero 6 en binario es : 11111101
	  135,   //Numero 7 en binario es : 10000111
	  255,   //Numero 8 en binario es : 11111111
	  239,   //Numero 9 en binario es : 11101111
	  191,   //Numero 0 en binario es : 10111111




	  14,    //Numero 7 en binario es : 00001110
	  13,    //Numero 8 en binario es : 00001101
	  11,    //Numero 9 en binario es : 00001011
	  7,     //Numero 0 en binario es : 00000111


	  46,    //Numero 7 en binario es : 00101110
	  45,    //Numero 8 en binario es : 00101101
	  43,    //Numero 9 en binario es : 00101011
	  39,    //Numero 0 en binario es : 00100111


	};


	void setup() {


	  pinMode(left_sen, INPUT);
	  pinMode(right_sen, INPUT);


	  pinMode(latch, OUTPUT);
	  pinMode(clockpin, OUTPUT);
	  pinMode(data, OUTPUT);


	}
	void loop()
	{
	  if (start == false) {
	    digitalWrite(latch, LOW);
	    shiftOut(data, clockpin, MSBFIRST, NUM[11]); // lee el arreglo y pasa cada NUM a lectura binaria
	    shiftOut(data, clockpin, MSBFIRST, NUM[0]); // lee el arreglo y pasa cada NUM a lectura binaria
	    digitalWrite(latch, HIGH);
	    delayMicroseconds(1);
	    digitalWrite(latch, LOW);
	    shiftOut(data, clockpin, MSBFIRST, NUM[12]); // lee el arreglo y pasa cada NUM a lectura binaria
	    shiftOut(data, clockpin, MSBFIRST, NUM[0]); // lee el arreglo y pasa cada NUM a lectura binaria
	    digitalWrite(latch, HIGH);
	    delayMicroseconds(1);


	    digitalWrite(latch, LOW);
	    shiftOut(data, clockpin, MSBFIRST, NUM[13]); // lee el arreglo y pasa cada NUM a lectura binaria
	    shiftOut(data, clockpin, MSBFIRST, NUM[0]); // lee el arreglo y pasa cada NUM a lectura binaria
	    digitalWrite(latch, HIGH);
	    delayMicroseconds(1);


	    digitalWrite(latch, LOW);
	    shiftOut(data, clockpin, MSBFIRST, NUM[14]); // lee el arreglo y pasa cada NUM a lectura binaria
	    shiftOut(data, clockpin, MSBFIRST, NUM[0]); // lee el arreglo y pasa cada NUM a lectura binaria
	    digitalWrite(latch, HIGH);
	    delayMicroseconds(1);
	  }


	  estado_left_sen = digitalRead(left_sen);
	  estado_right_sen = digitalRead(right_sen);




	  if (estado_left_sen != lastButtonState_left) {
	    if (estado_left_sen == HIGH) {
	      start = true;
	      start1 = false;
	      ok = false;


	      if (contador <= 5940) {


	        if (contadorU >= 10) {
	          contadorU = 0;
	        }
	        if (contadorU >= 9) {
	          contadorD++;
	        }
	        if (contadorD >= 6) {
	          contadorD = 0;
	          contadorC++;
	        }
	        if (contadorC >= 10) {
	          contadorC = 0;
	          contadorM++;
	        }
	        if (contadorM >= 6) {
	          contadorM = 0;
	        }
	        contador++;
	        contadorU++;


	      }


	    }
	  }
	  lastButtonState_left  = estado_left_sen;


	  if (estado_right_sen != lastButtonState_right ) {
	    if (estado_right_sen == HIGH) {
	      start1 = true;
	      //start = false;
	      ok = true;
	    }
	  }
	  lastButtonState_right  = estado_right_sen;


	  if (start1 == true) {
	    time = millis();
	    if (time - t > tiempo) {
	      t = time;
	      if (contador > 0) {
	        contador--;
	        contadorU--;


	        if (contadorU == 0) {


	          contadorU = 10;


	        }


	        if (contadorU == 9) {
	          if (contadorD > 0) {
	            contadorD--;
	          }
	        }
	        else if (contadorD == 0 && contadorU == 10) {
	          ena_D = true;
	        }


	        if ((ena_D == true) && (contadorU == 9)) {


	          if (contadorC > 0) {
	            contadorD = 5;
	            ena_D = false;
	            contadorC--;
	          }
	        }
	        if (contadorC == 0 && contadorD == 0 && contadorU == 10) {
	          ena_C = true;
	        }
	        if (ena_C == true && contadorD == 5 && contadorU == 9) {
	          if (contadorM > 0) {
	            contadorC = 9 ;
	            ena_C = false;
	            contadorM--;
	          }


	        }
	      }
	    }
	    cont ();
	  }
	  if (contadorU == 10 && contadorD == 0 && contadorC == 0 && contadorM == 0) {
	    ok = false;
	  }
	  if (start == true) {
	    cont ();
	  }




	}
	void cont() {
	  digitalWrite(latch, LOW);
	  if (ok == false && contadorU >= 0 && contadorD >= 0 && contadorC >= 0 && contadorM >= 0) {
	    shiftOut(data, clockpin, MSBFIRST, NUM[11]); // lee el arreglo y pasa cada NUM a lectura binaria
	  }
	  else if (ok == true && (contadorU > 0 || contadorD > 0 || contadorC > 0 || contadorM > 0)) {
	    shiftOut(data, clockpin, MSBFIRST, NUM[15]); // lee el arreglo y pasa cada NUM a lectura binaria
	  }
	  shiftOut(data, clockpin, MSBFIRST, NUM[contadorM]); // lee el arreglo y pasa cada NUM a lectura binaria
	  digitalWrite(latch, HIGH);
	  delayMicroseconds(1);


	  digitalWrite(latch, LOW);
	  if (ok == false && contadorU >= 0 && contadorD >= 0 && contadorC >= 0 && contadorM >= 0) {
	    shiftOut(data, clockpin, MSBFIRST, NUM[12]); // lee el arreglo y pasa cada NUM a lectura binaria
	  }
	  else if (ok == true && (contadorU > 0 || contadorD > 0 || contadorC > 0 || contadorM > 0)) {
	    shiftOut(data, clockpin, MSBFIRST, NUM[16]); // lee el arreglo y pasa cada NUM a lectura binaria
	  }
	  shiftOut(data, clockpin, MSBFIRST, NUM[contadorC]); // lee el arreglo y pasa cada NUM a lectura binaria
	  digitalWrite(latch, HIGH);
	  delayMicroseconds(1);


	  digitalWrite(latch, LOW);
	  if (ok == false && contadorU >= 0 && contadorD >= 0 && contadorC >= 0 && contadorM >= 0) {
	    shiftOut(data, clockpin, MSBFIRST, NUM[13]); // lee el arreglo y pasa cada NUM a lectura binaria
	  }
	  else if (ok == true && (contadorU > 0 || contadorD > 0 || contadorC > 0 || contadorM > 0)) {
	    shiftOut(data, clockpin, MSBFIRST, NUM[17]); // lee el arreglo y pasa cada NUM a lectura binaria
	  }
	  shiftOut(data, clockpin, MSBFIRST, NUM[contadorD]); // lee el arreglo y pasa cada NUM a lectura binaria
	  digitalWrite(latch, HIGH);
	  delayMicroseconds(1);


	  digitalWrite(latch, LOW);
	  if (ok == false && contadorU >= 0 && contadorD >= 0 && contadorC >= 0 && contadorM >= 0) {
	    shiftOut(data, clockpin, MSBFIRST, NUM[14]); // lee el arreglo y pasa cada NUM a lectura binaria
	  }
	  else if (ok == true && (contadorU > 0 || contadorD > 0 || contadorC > 0 || contadorM > 0)) {
	    shiftOut(data, clockpin, MSBFIRST, NUM[18]); // lee el arreglo y pasa cada NUM a lectura binaria
	  }
	  shiftOut(data, clockpin, MSBFIRST, NUM[contadorU]); // lee el arreglo y pasa cada NUM a lectura binaria
	  digitalWrite(latch, HIGH);
	  delayMicroseconds(1);
	}

• 2 DIODOS 1N5819 SMD
• 3 CAP. 100NF 1206
• 2 BT3904 TRANSISTOR NPN SMD
• 3 RESISTOR 1K 1206 SMD
• 4 RESISTOR 10K 1206 SMD
• 8 RESISTOR 220 ohm 1206 SMD
• 1 DIODO 1N4148 SMD
• 1 DIODO LED 1206 RED
• 3 BUTTON 4 PINS
• 4 DISPLAY CATODO COMUN
• 1 BUZZER 5VDC
• 2 CI 74HC595
• 1 RELE 5VDC
• 1 TERMINAL BLUE 2 PIN
• 1 TERMINAL BLUE 3 PIN
• 1 PCB

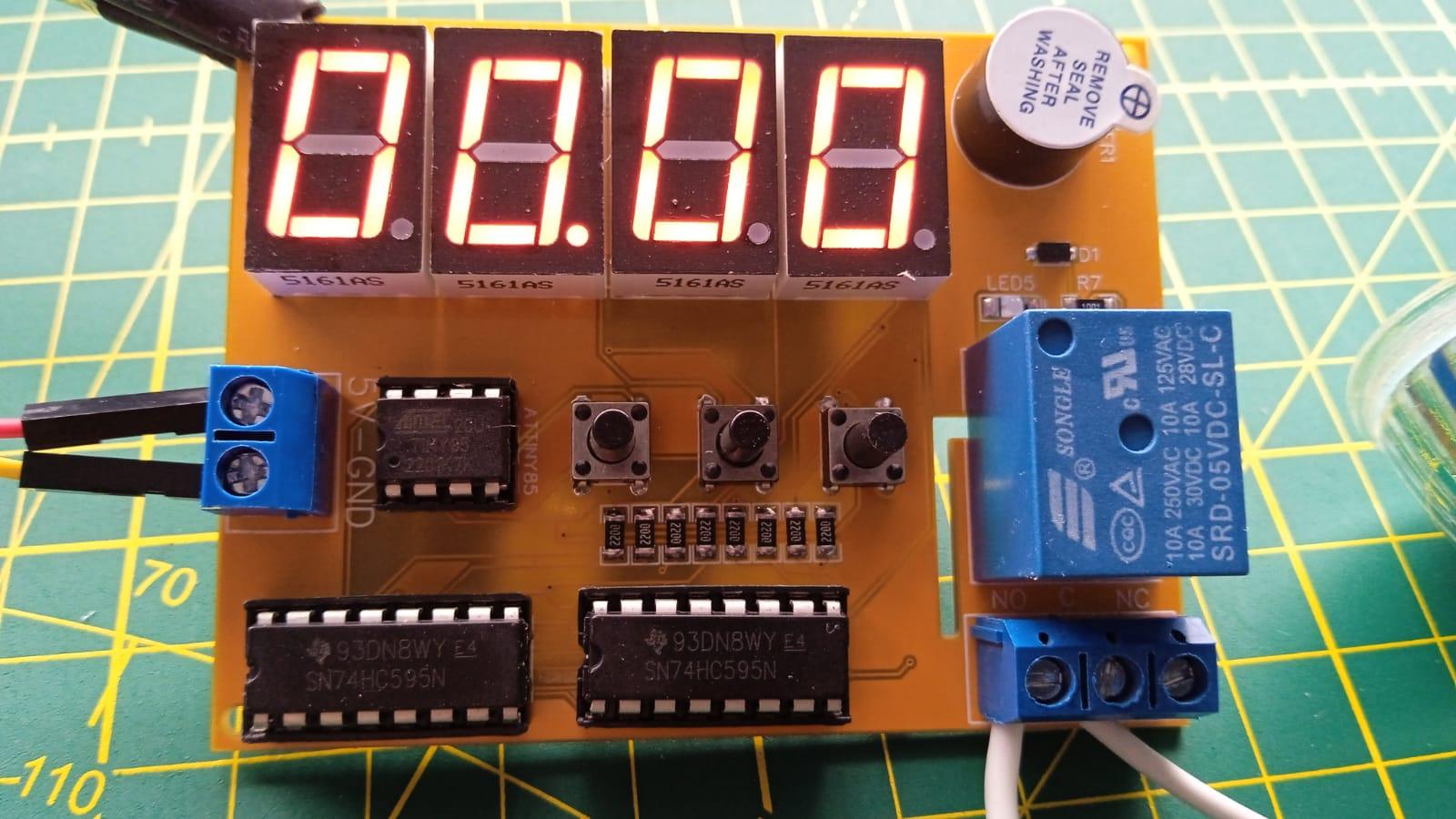

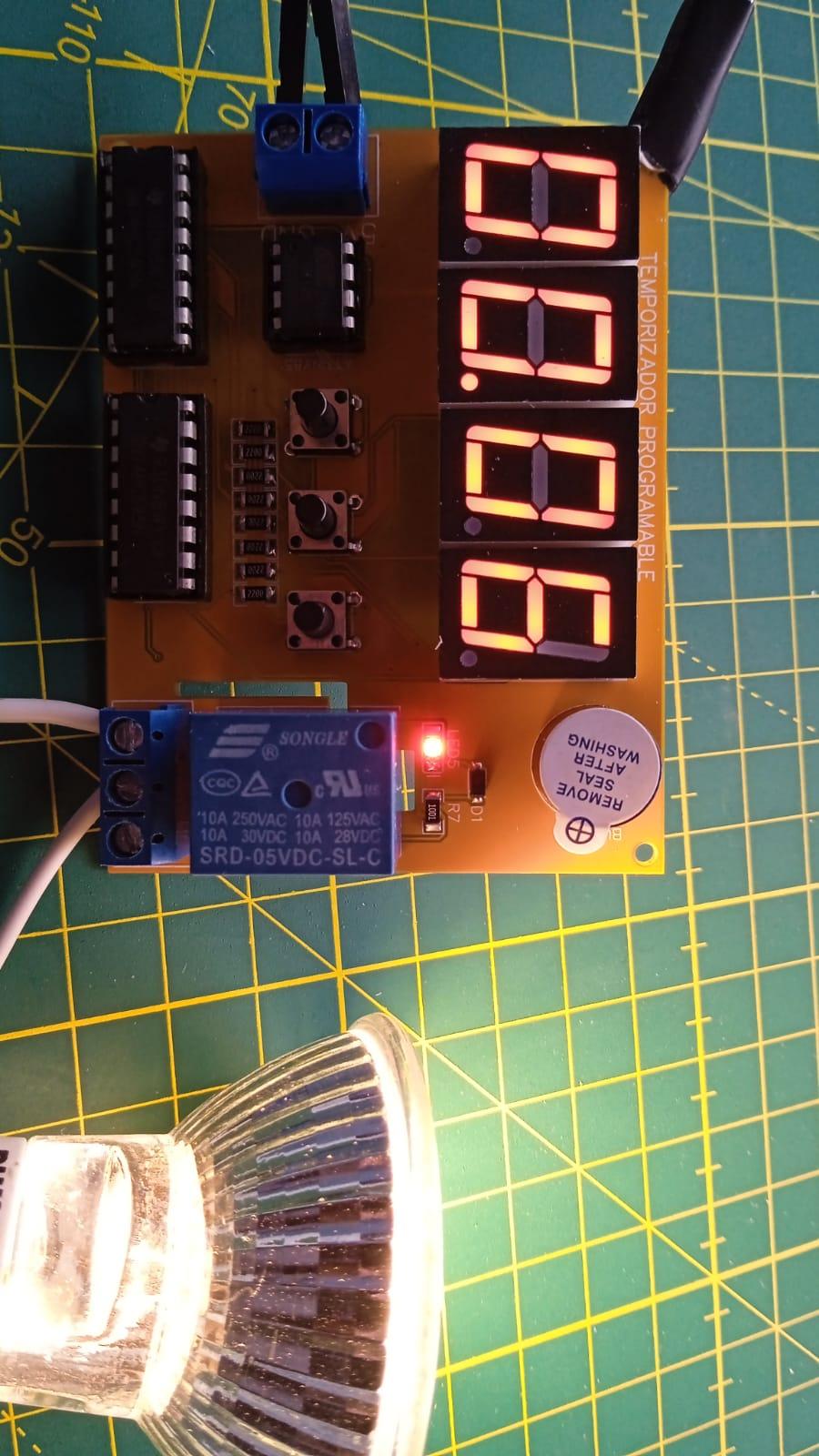

Once the project is finished with all the respective tests, we carry out the PCB design and we will obtain the routed tracks and the 3D image of how our finished PCB would look.

PCBWAY has 10 years in the electronics industry manufacturing professional PCBs, assembling PCBs managing to satisfy the demands of all parts of the world, in addition to meeting the highest quality and delivery time standards. PCBWAY allows the manufacture of your PCBs from 5 units.

This project was carried out thanks to PCBWAY, a company dedicated to the manufacture of prototypes and professional PCBs, in addition to offering you a ready assembly service with all the components in your PCBS, complying with the established quality and delivery time standards.

We thank PCBWAY, a leading company for manufacturing and assembling professional PCBs with the highest quality, PCBWAY has fair reasonable prices, punctual shipping time and 24-hour customer service, it also offers you the option of quoting all its services in his web page. Do not think twice and start manufacturing your professional PCBs from 5 units safely.

10pcbs at $5 order them here www.pcbway.com

We thank PCBWAY for the professional pcb they provide us for this project.

GERBER PCB:

https://mega.nz/file/eRwA1Q5D#6HnrcAPaUwlRHEnMkTAI0cX6lRa_7LEuygl4qB_5niA
