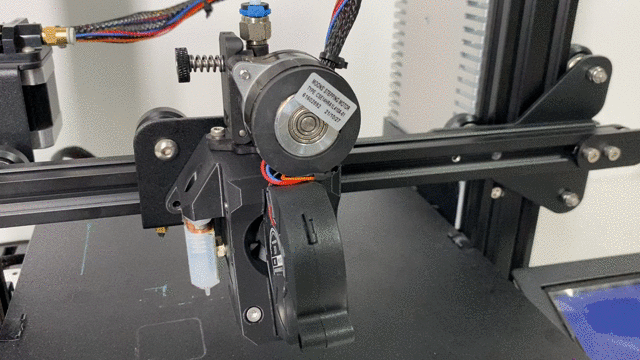

THE DIRECT DRIVE AND ORBITER V1.5

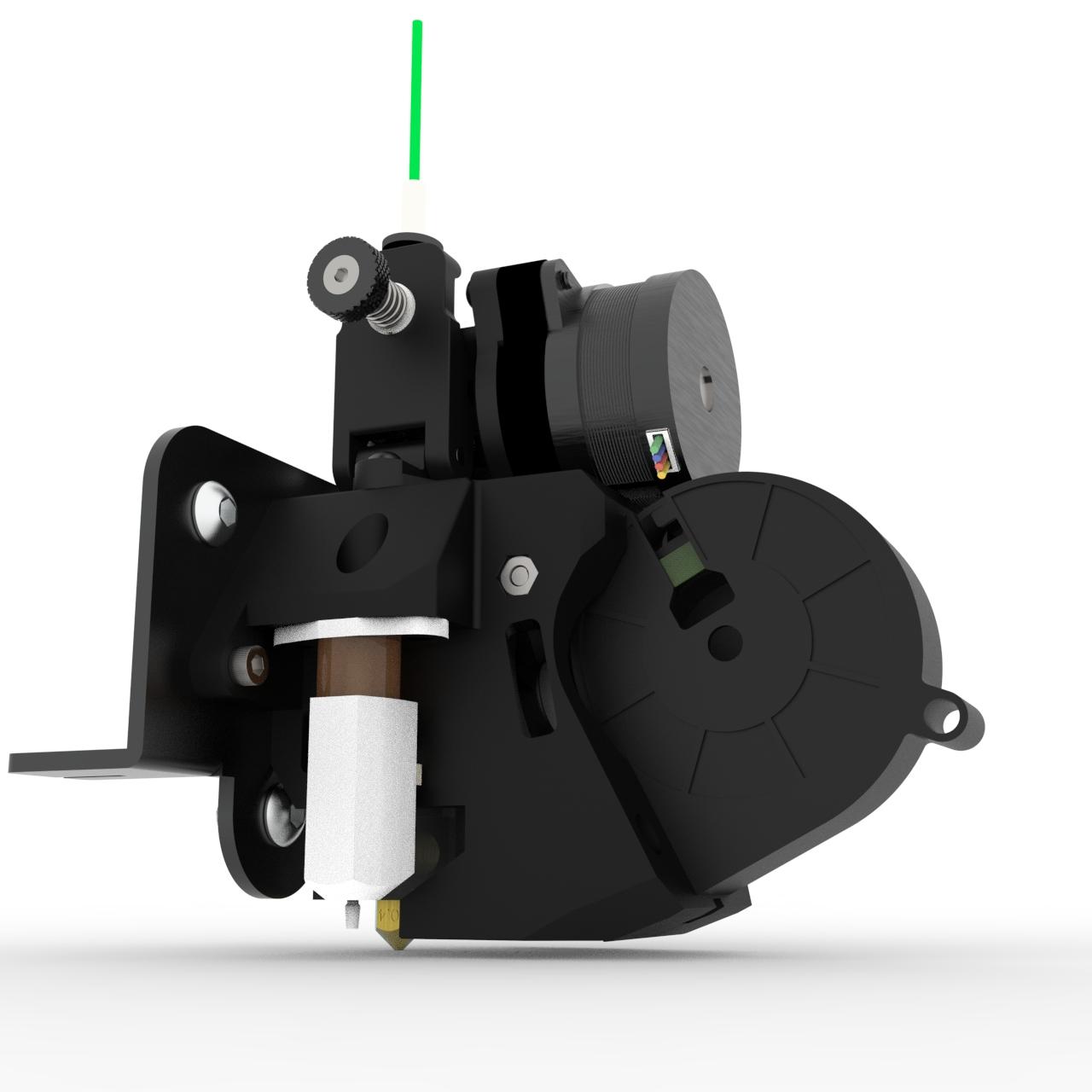

Creality Ender 3 Direct Drive *UPDATED*(THE ORBITER EXTRUDER WITH Ender 3 DESIGN)

This is an direct drive that supports ender3, ender 3S, ender 3 V2, ender 3 PRO, CR-10, CR-10 S5, CR-20, CR-10 MINI, CR-10 S4, CR-10S 3D printer.

video(make): https://youtu.be/EwfdDj4dOdA

The Ender 3 direct drive weight: about 259g (Including the stock hotend, cooling fan, the E motor extruder).

***Nozzle-to-Probe offsets { X, Y, Z }

#define NOZZLE_TO_PROBE_OFFSET { -28.75, -9, Z }

***Features:

1 Printing TPU is more convenient and faster;

2 very light weight;

3 Assembly and disassembly is very convenient(Just need to turn one screw);

4 Support Orbiter extruder: https://www.thingiverse.com/thing:4725897

5 Can also be used as a Long-Distance remote extruder;

6 Support BLtouch and 3Dtouch;

Supplies

***Bill of Materials:

Note: Considering that some people don't have the Insert Nut Tool, this version has two, one of which only requires a normal nut to assemble.

***The source file is also there, if you have an idea, you can edit it.

Version A M3 Knurled Brass Nut:

1 2 prints(Ender3-M3 Knurled Brass Nut.STL);

2 M3 X 6 Socket Head Cap(2);

3 M3 X 8 Socket Head Cap(3);

4 M3 X 12 Socket Head Cap(2);

5 M3 X 35 Socket Head Cap(1);

6 M3 Hexagon nut(1);

7 M3 Knurled Brass Nut(M3X4X4.5mm)(6);

8 3010 fan;

9 5015 fan;

10 The Orbiter V1.5 Extruder;

11 Teflon tube(64.5mm);

Version B M3 Square Thin Nut:

1 1 2 prints(Ender3-M3 Square Thin Nut.STL);

2 M3 X 6 Socket Head Cap(2);

3 M3 X 8 Socket Head Cap(3);

4 M3 X 12 Socket Head Cap(2);

5 M3 X 35 Socket Head Cap(1);

6 M3 Square Thin Nut: 5.4mm X 5.4mm X 1.8mm(5);

7 3010 fan;

8 5015 fan;

9 The Orbiter V1.5 Extruder;

10 Teflon tube(64.5mm);

Print 2 Printed Parts

Creality Ender 3 Direct Drive_Moment(2).jpg
Creality Ender 3 Direct Drive_Moment.jpg
Creality Ender 3 Direct Drive_Moment(3).jpg

If there is any fluff, you can use a lighter to remove it.

Insert the Nuts

Creality Ender 3 Direct Drive_Moment(6).jpg
Creality Ender 3 Direct Drive_Moment(4).jpg
Creality Ender 3 Direct Drive_Moment(7).jpg

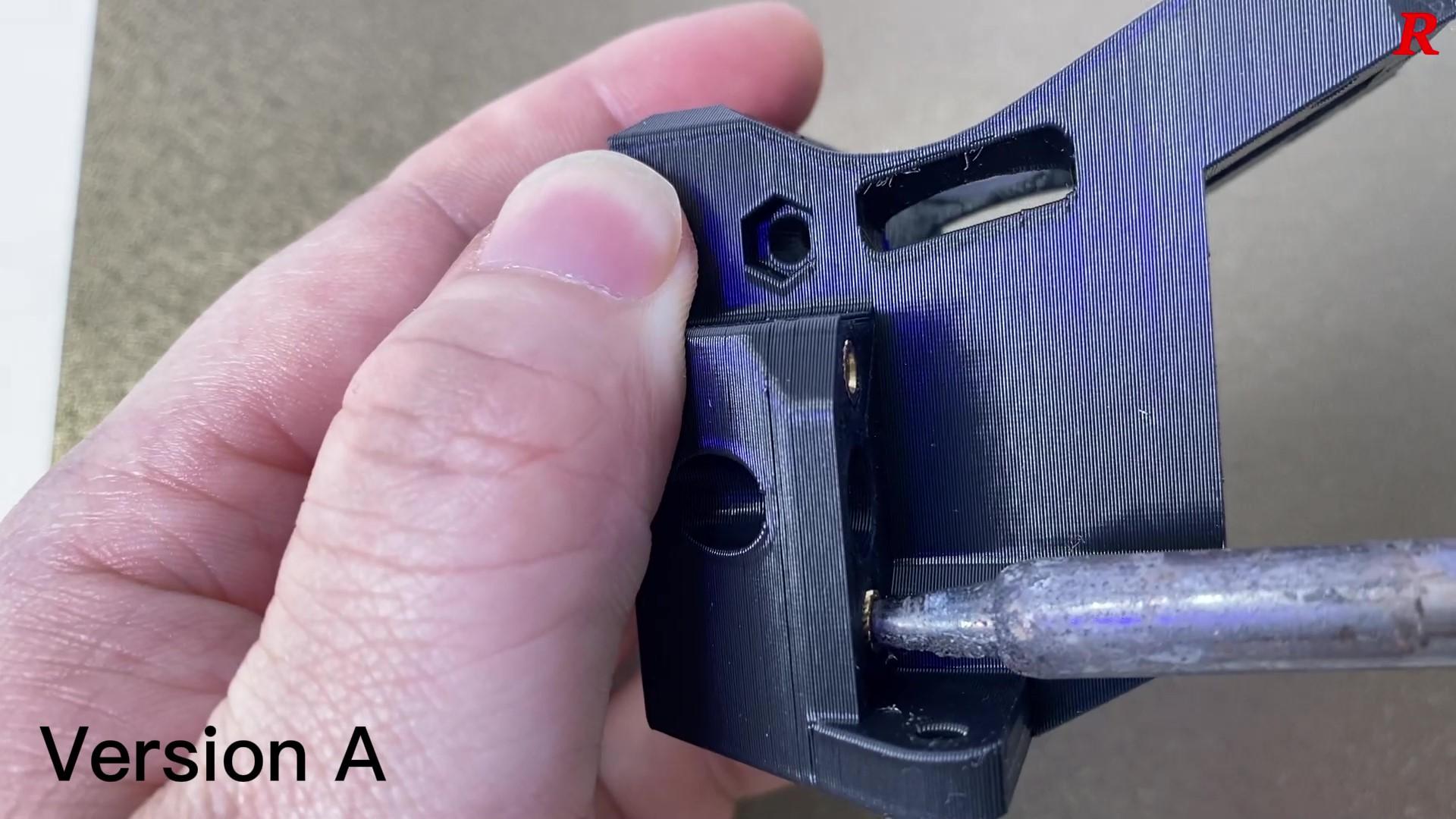

I used a soldering iron, heated to 330℃.

Install the 5015 Turbo Fan

Creality Ender 3 Direct Drive_Moment(8).jpg
Creality Ender 3 Direct Drive_Moment(9).jpg
Creality Ender 3 Direct Drive_Moment(10).jpg

Note: Before installing the 5015 Turbo fan, use needle nose pliers to reduce it into a V shape. Use M3X35 screws to fix.

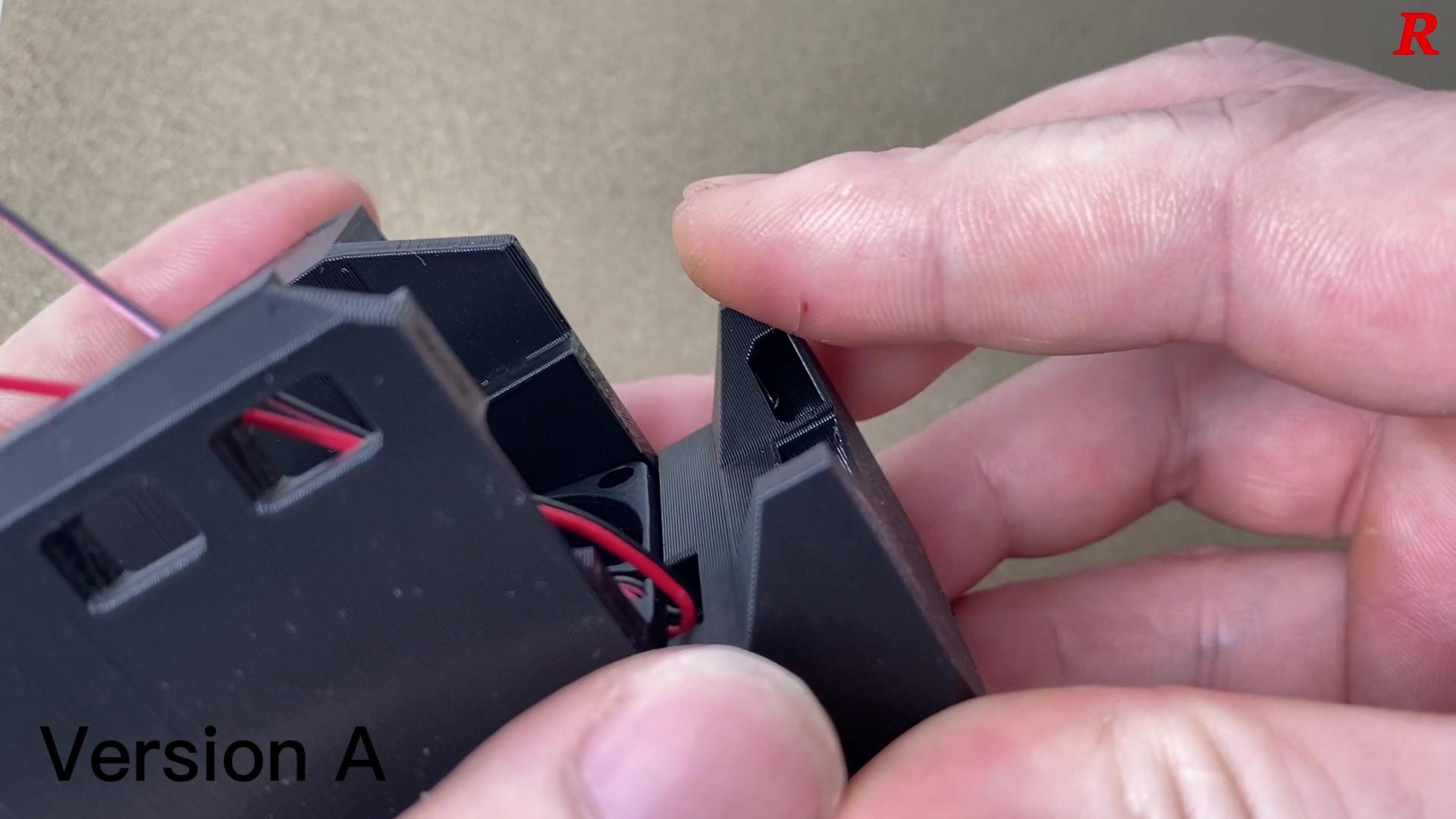

Install the 3010 Fan and Fan Duct

Creality Ender 3 Direct Drive_Moment(11).jpg
Creality Ender 3 Direct Drive_Moment(12).jpg
Creality Ender 3 Direct Drive_Moment(13).jpg
Creality Ender 3 Direct Drive_Moment(14).jpg

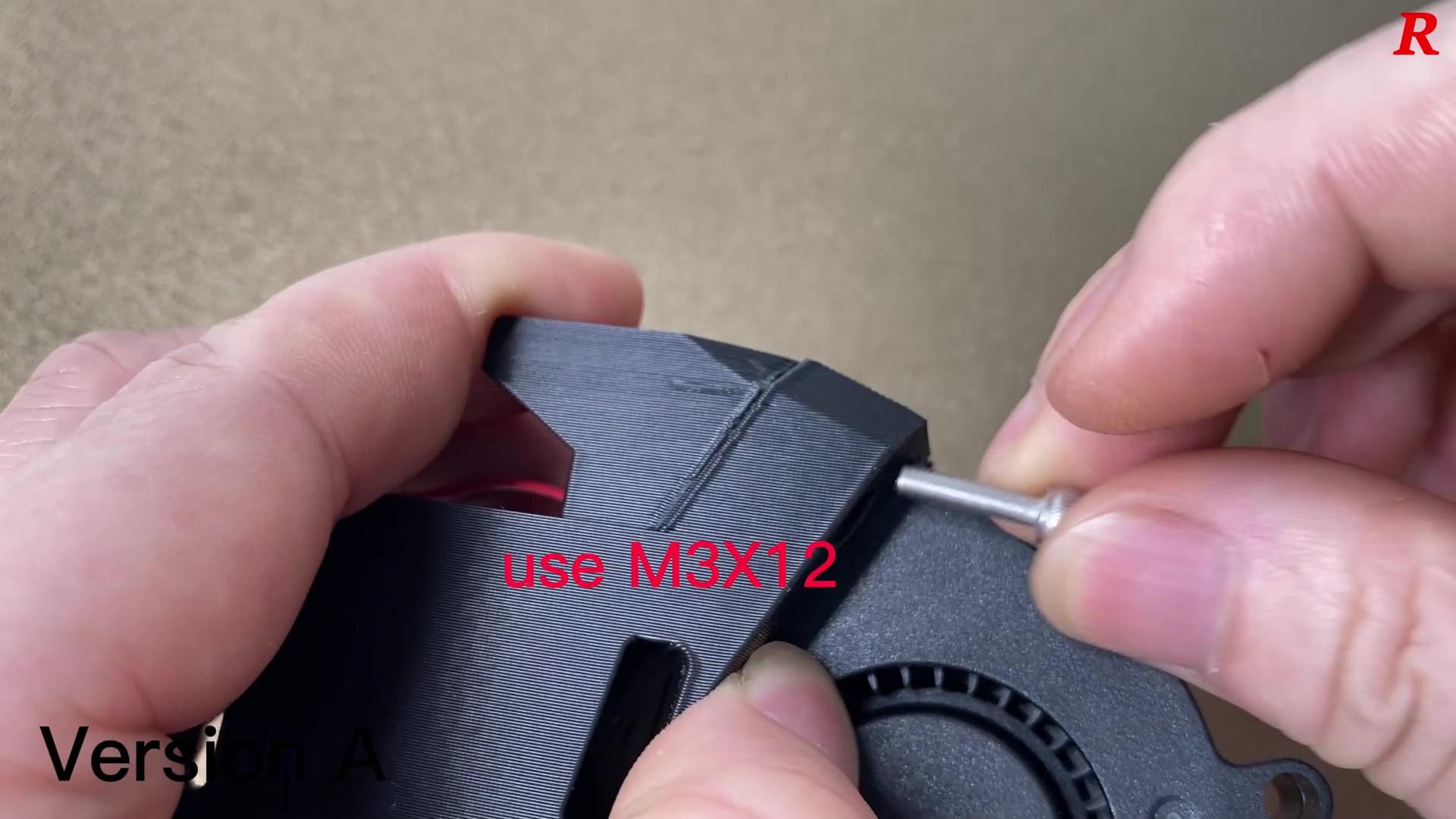

The 3010 fan is fixed by the fan duct, and then use M3X12 screws to fix the fan duct.

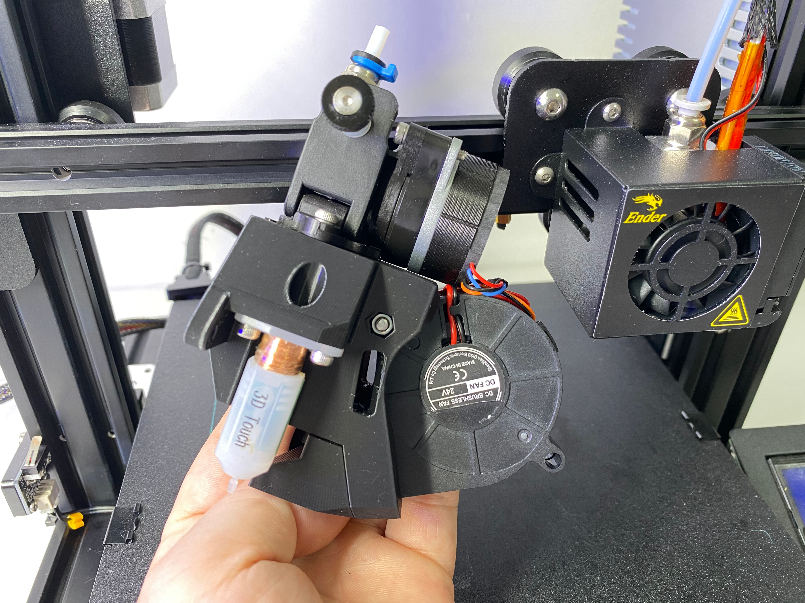

Install the BLTouch or 3D Touch

Creality Ender 3 Direct Drive_Moment(15).jpg

Fix with M3X6 screws.

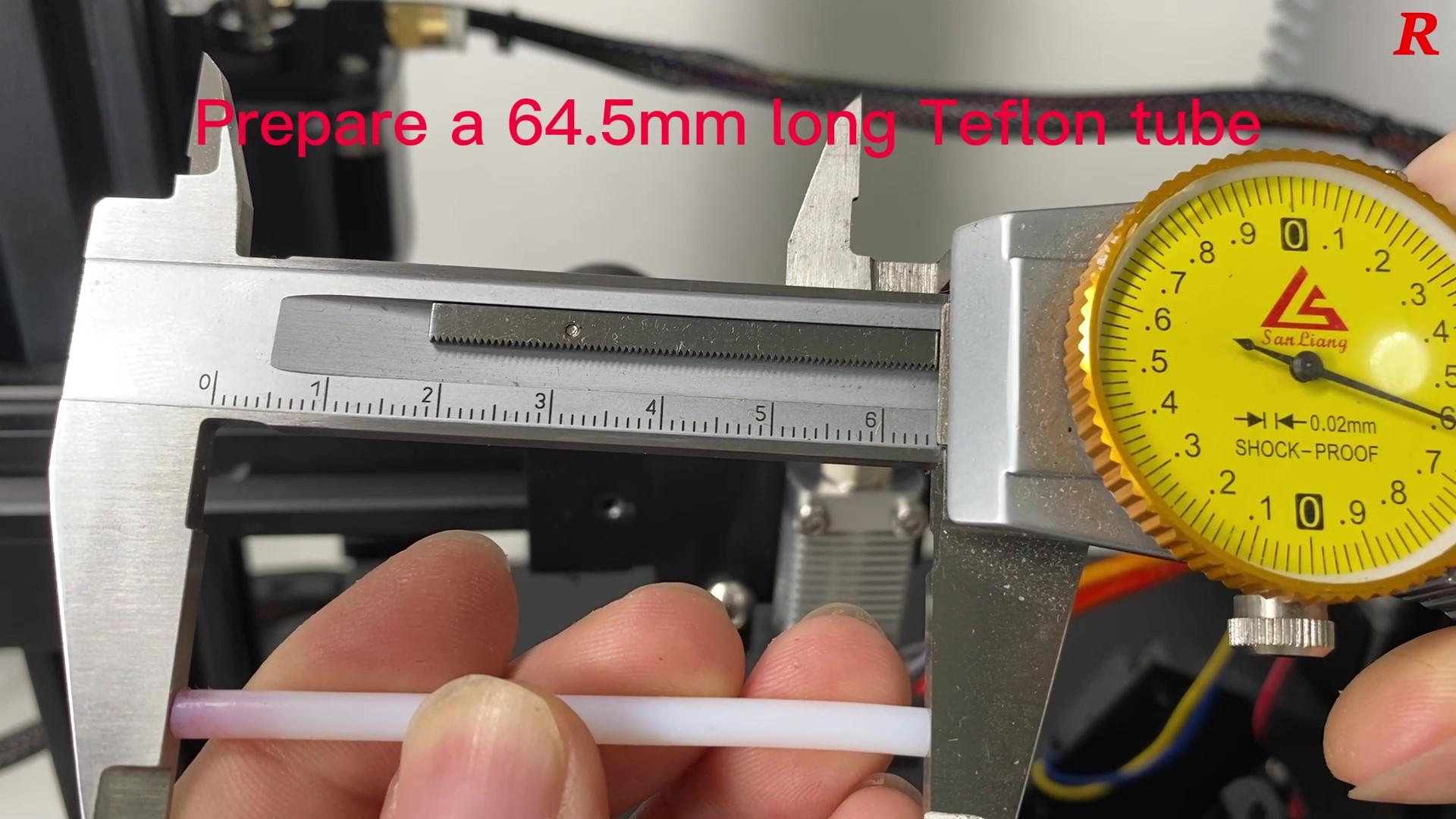

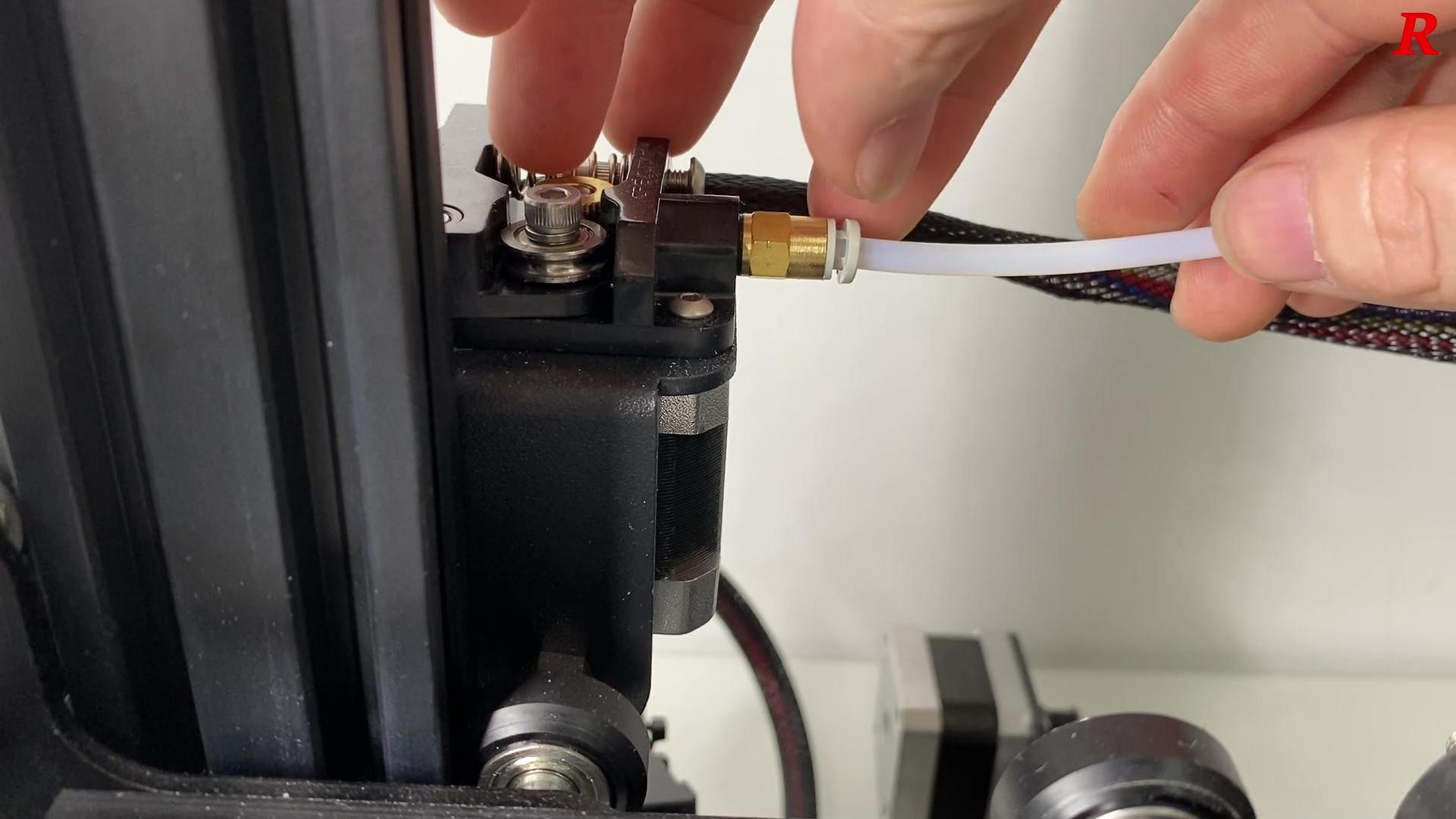

Replacing the Teflon Tube

Creality Ender 3 Direct Drive_Moment(16).jpg
Creality Ender 3 Direct Drive_Moment(17).jpg
Creality Ender 3 Direct Drive_Moment(19).jpg
Creality Ender 3 Direct Drive_Moment(18).jpg
Creality Ender 3 Direct Drive_Moment(20).jpg
Creality Ender 3 Direct Drive_Moment(21).jpg

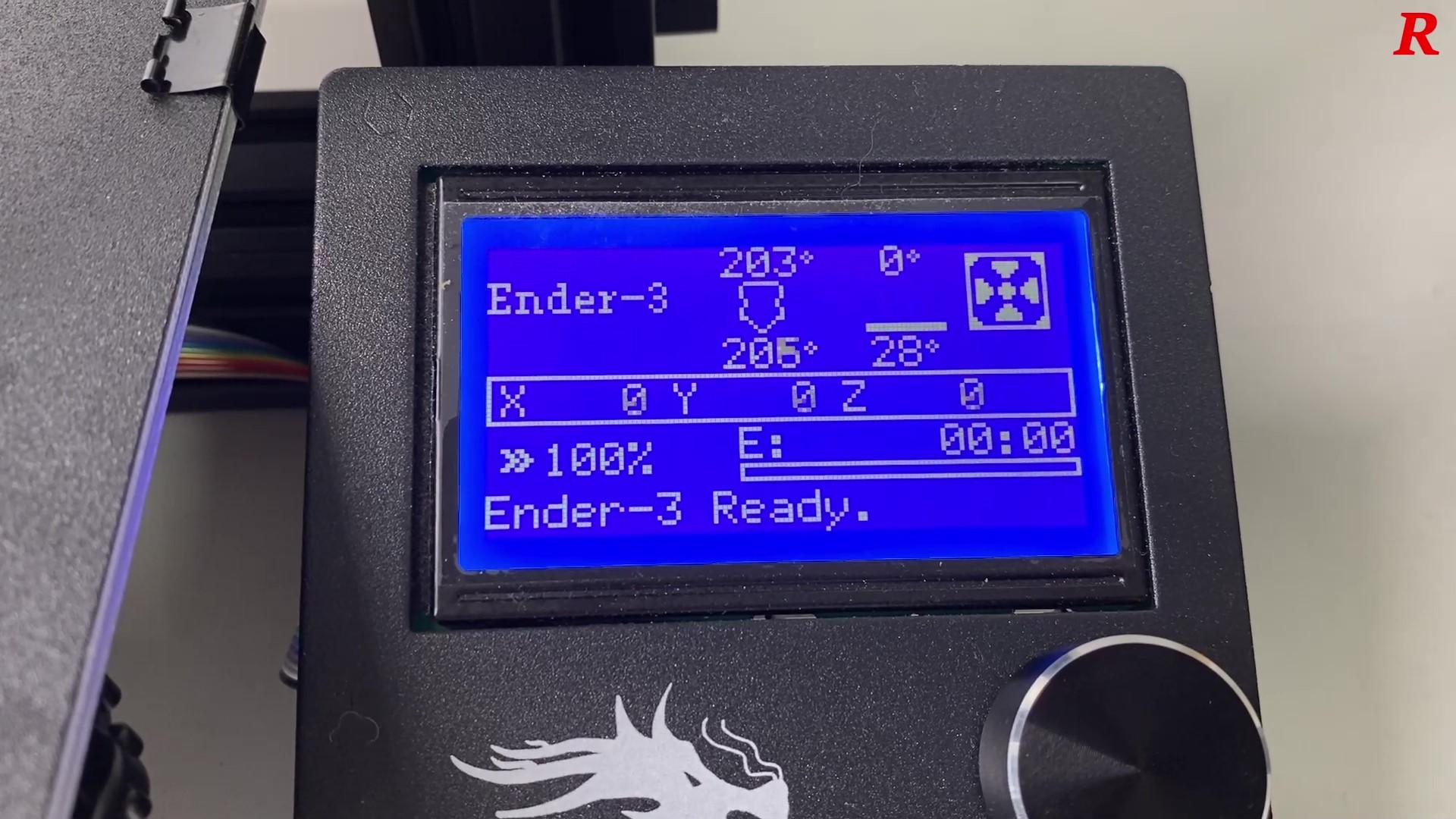

Before replacing the Teflon tube, you need to preheat the hotend to 200°C.New Teflon tube length is 64.5mm

Soldering the Fan

Creality Ender 3 Direct Drive_Moment(22).jpg
Creality Ender 3 Direct Drive_Moment(23).jpg
Creality Ender 3 Direct Drive_Moment(24).jpg
Creality Ender 3 Direct Drive_Moment(25).jpg
Creality Ender 3 Direct Drive_Moment(26).jpg

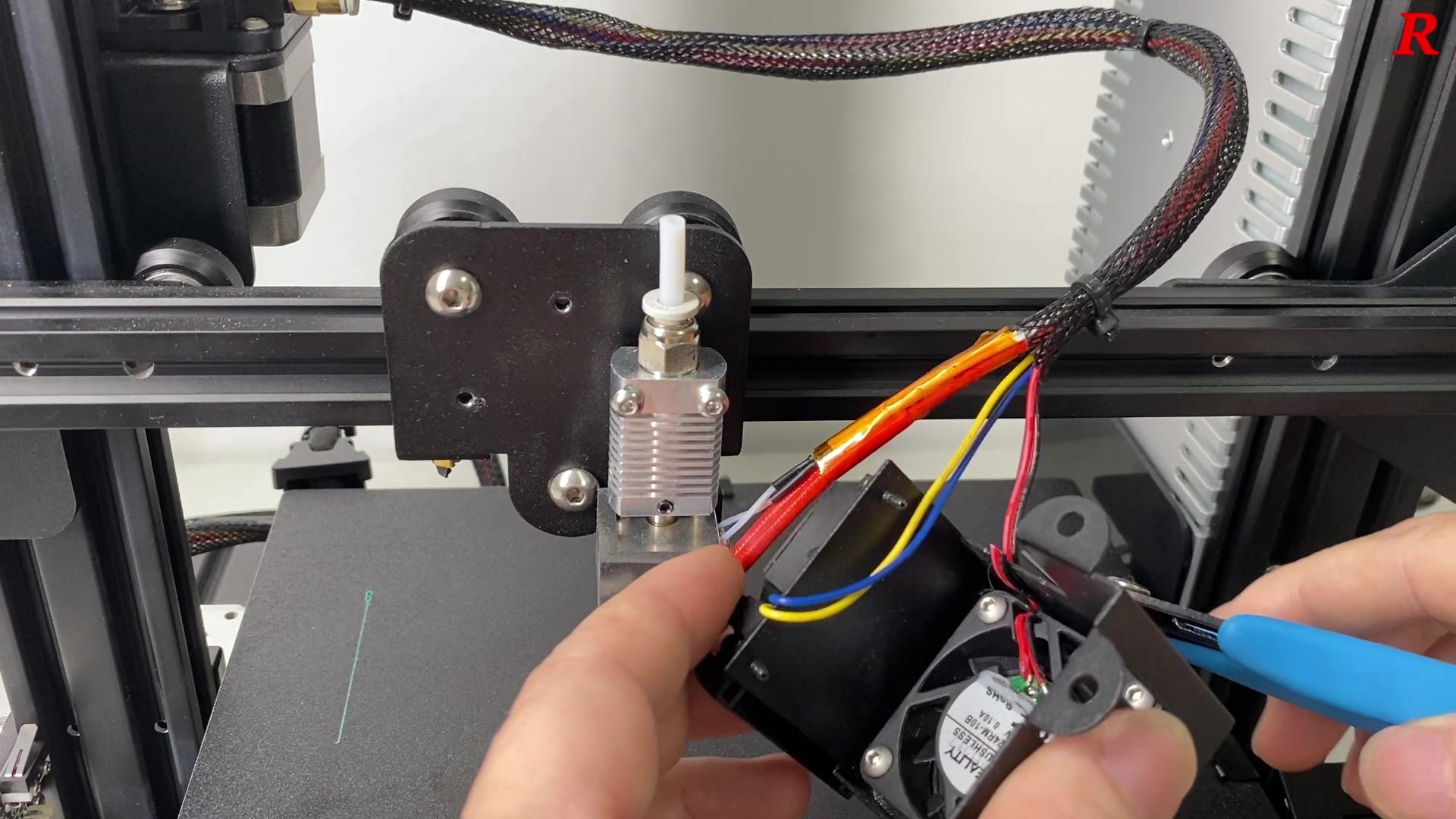

Remove the original fan first, then solder the new fan.Pay attention to the positive and negative.

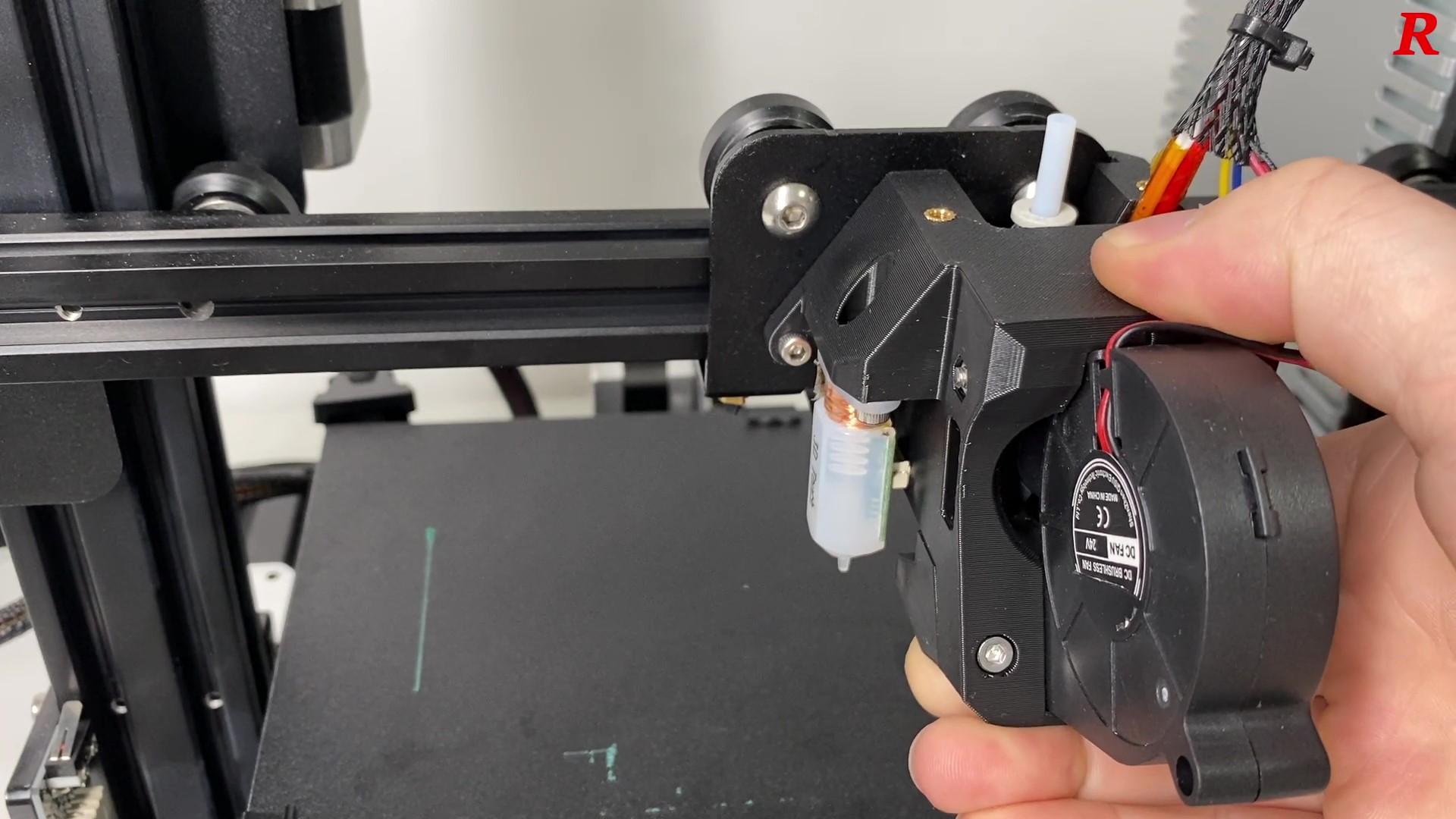

Install the Frame

Creality Ender 3 Direct Drive_Moment(29).jpg
Creality Ender 3 Direct Drive_Moment(28).jpg
Creality Ender 3 Direct Drive_Moment(27).jpg

The right side is fixed by inserting the card, and then fixed with an M3X8 screw.

Creality Ender 3 Direct Drive_Moment(30).jpg
Creality Ender 3 Direct Drive_Moment(31).jpg
Creality Ender 3 Direct Drive_Moment(32).jpg
Creality Ender 3 Direct Drive_Moment(33).jpg
Creality Ender 3 Direct Drive_Moment(34).jpg

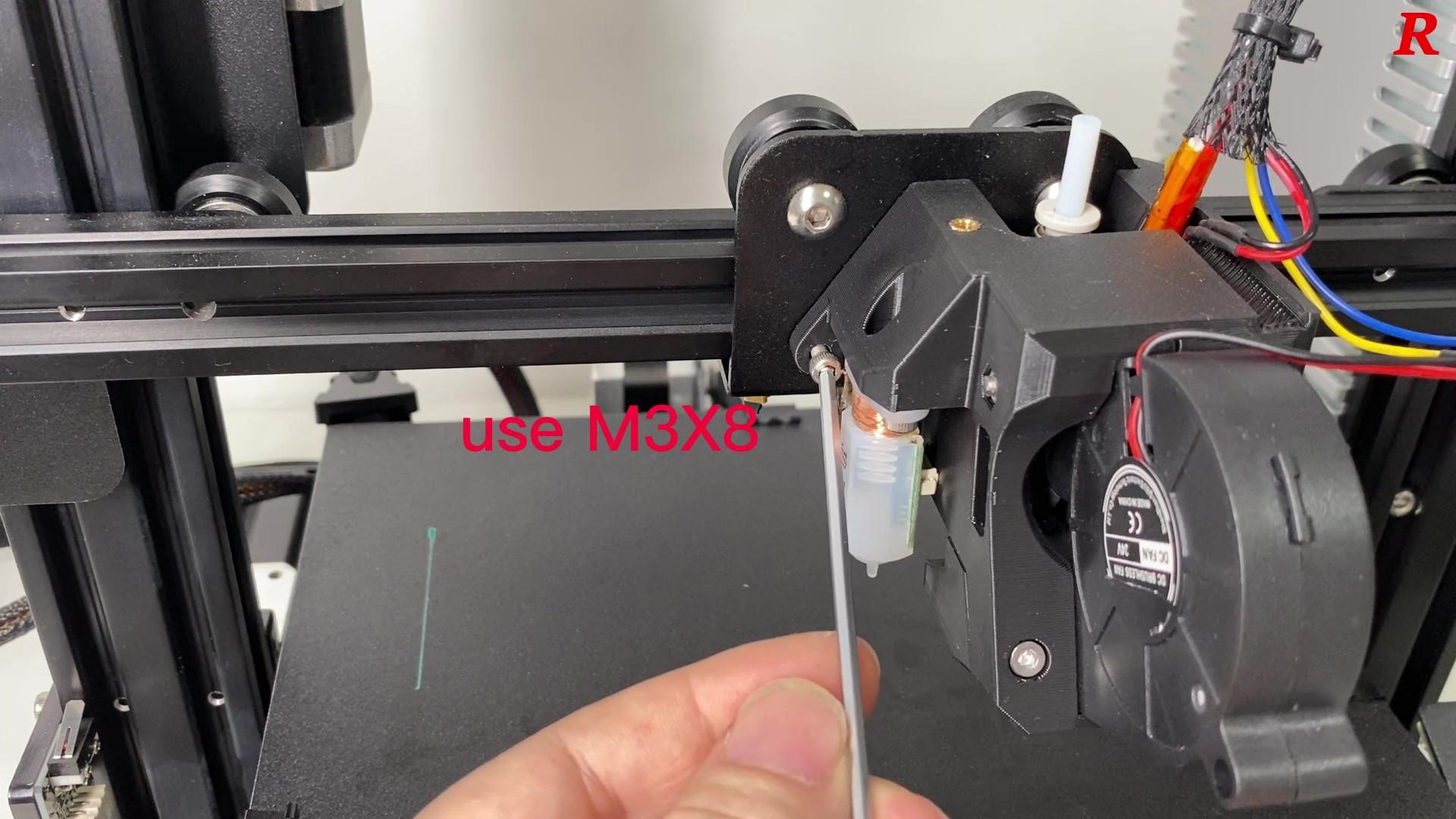

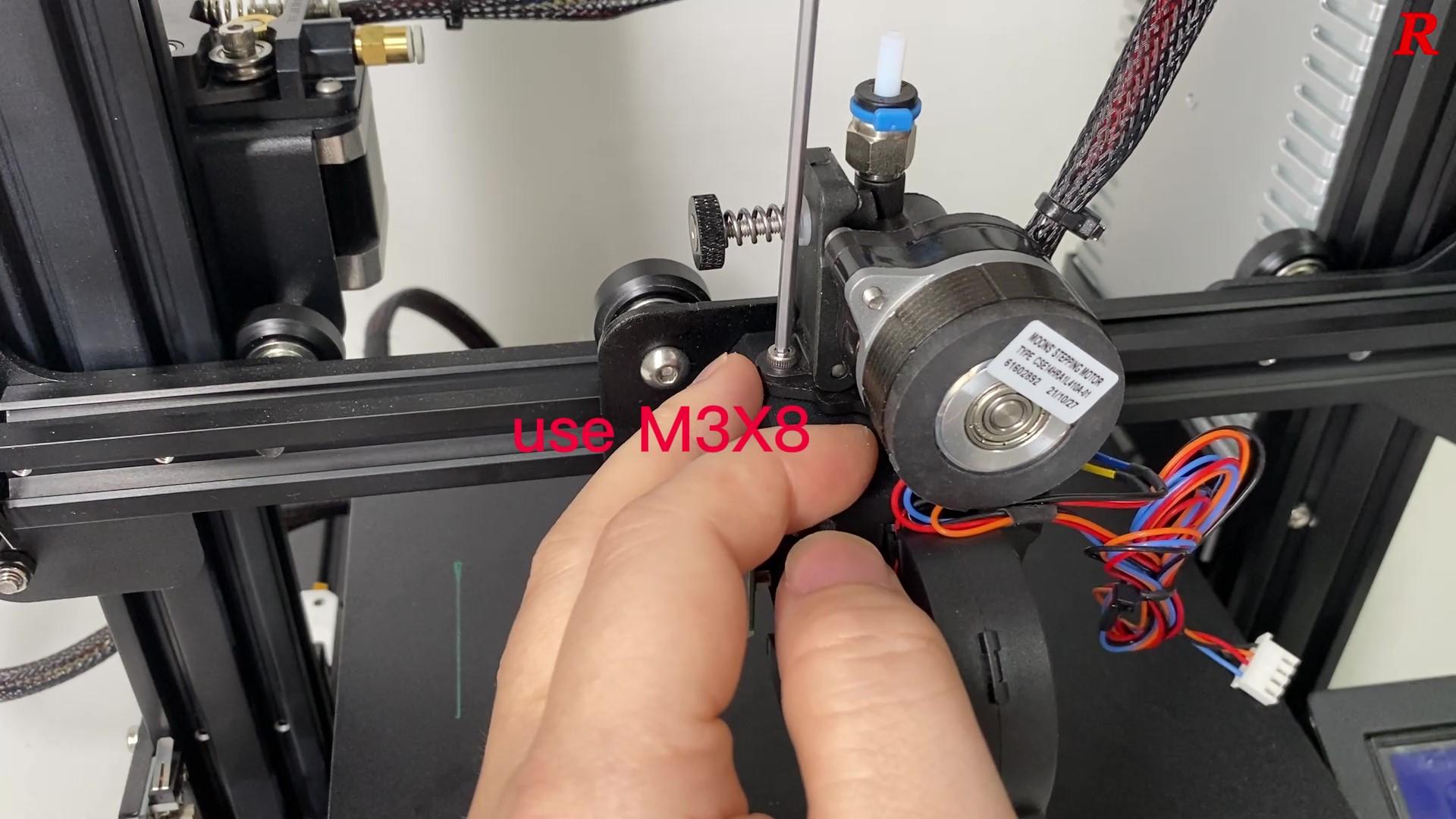

The Orbiter V1.5 extruder is fixed with M3X8 screws.

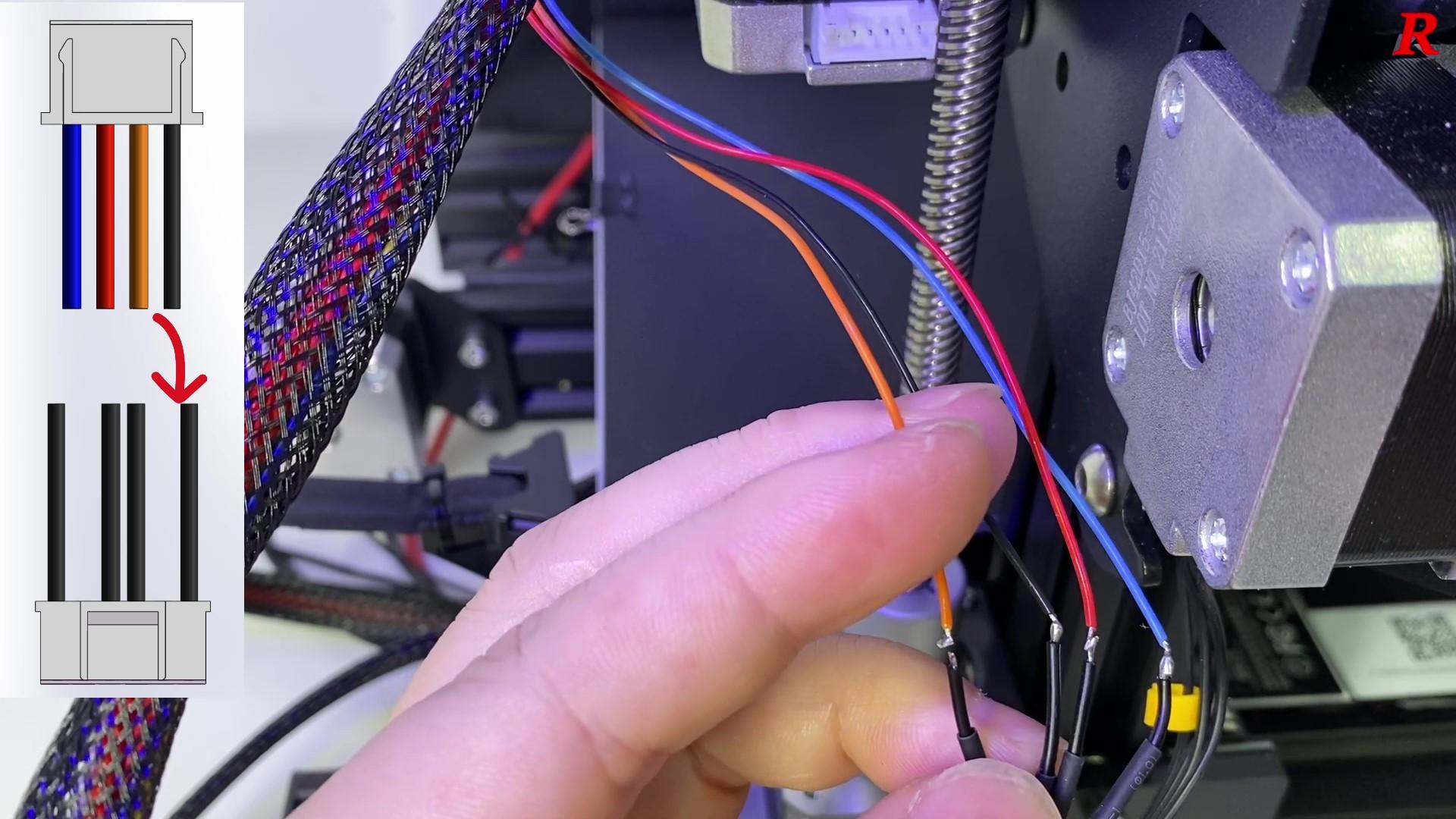

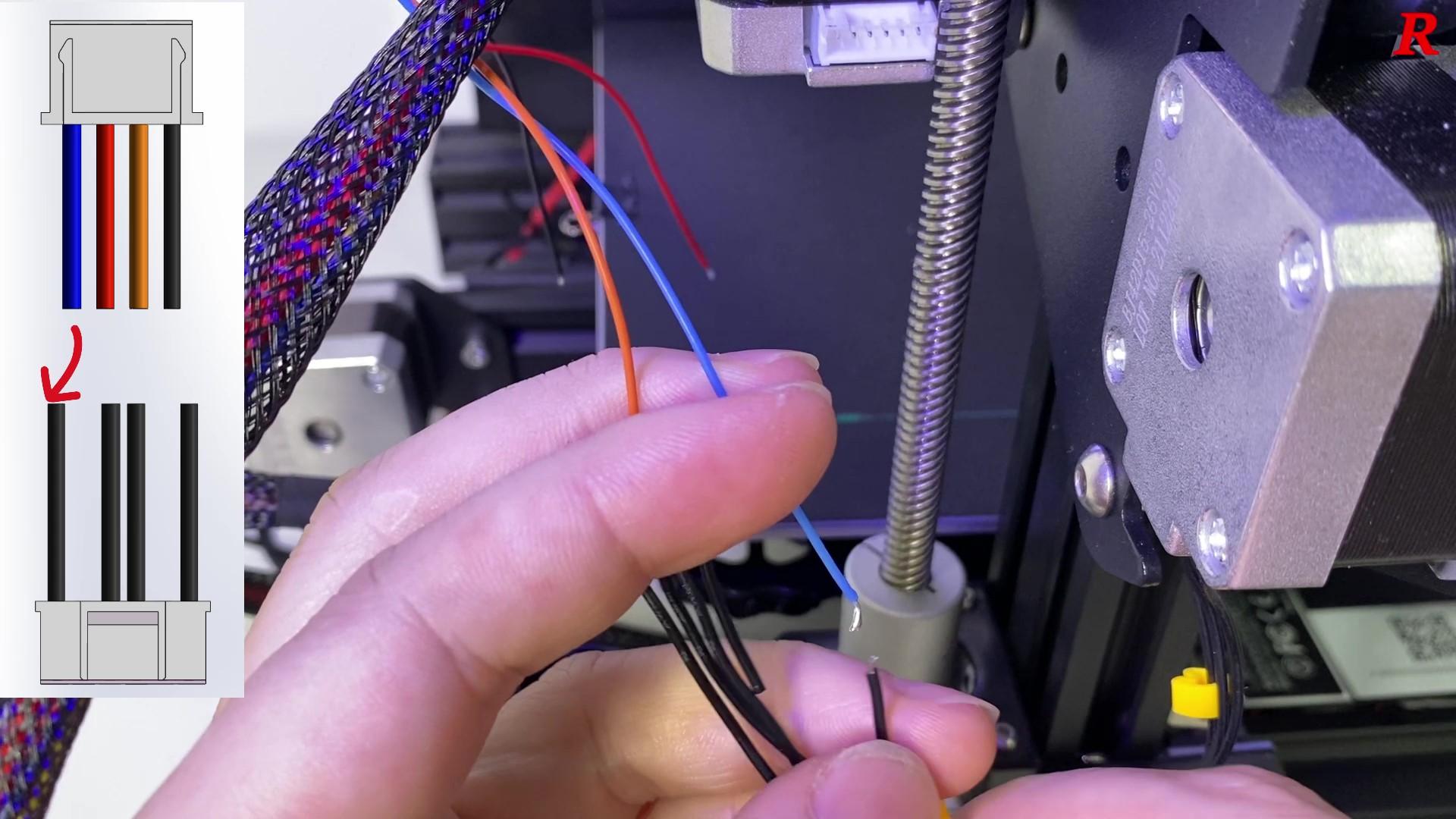

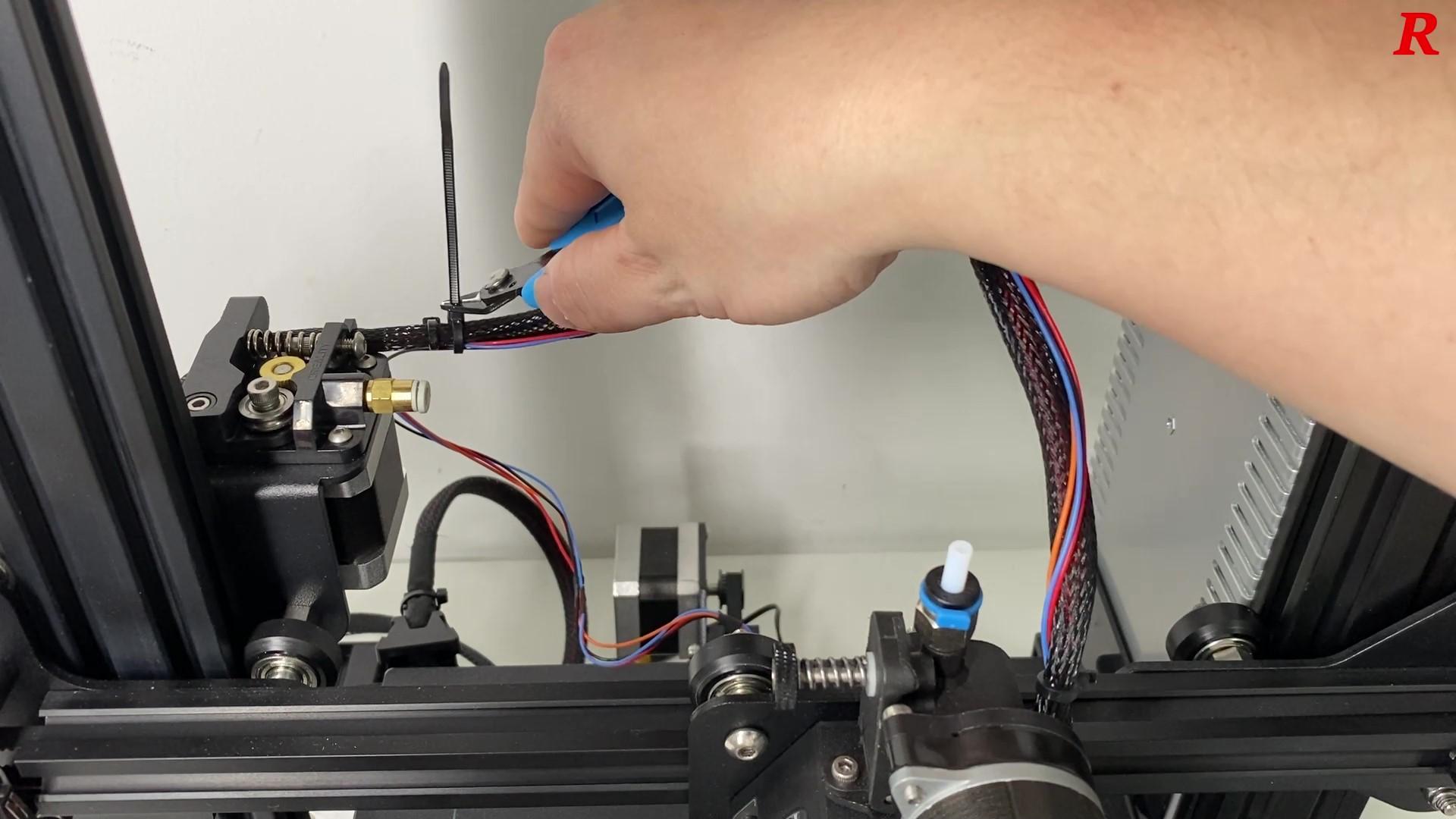

Soldering the Stepper Motor Wires

Creality Ender 3 Direct Drive_Moment(35).jpg
Creality Ender 3 Direct Drive_Moment(36).jpg
Creality Ender 3 Direct Drive_Moment(37).jpg
Creality Ender 3 Direct Drive_Moment(38).jpg
Creality Ender 3 Direct Drive_Moment(39).jpg

Wiring as shown.

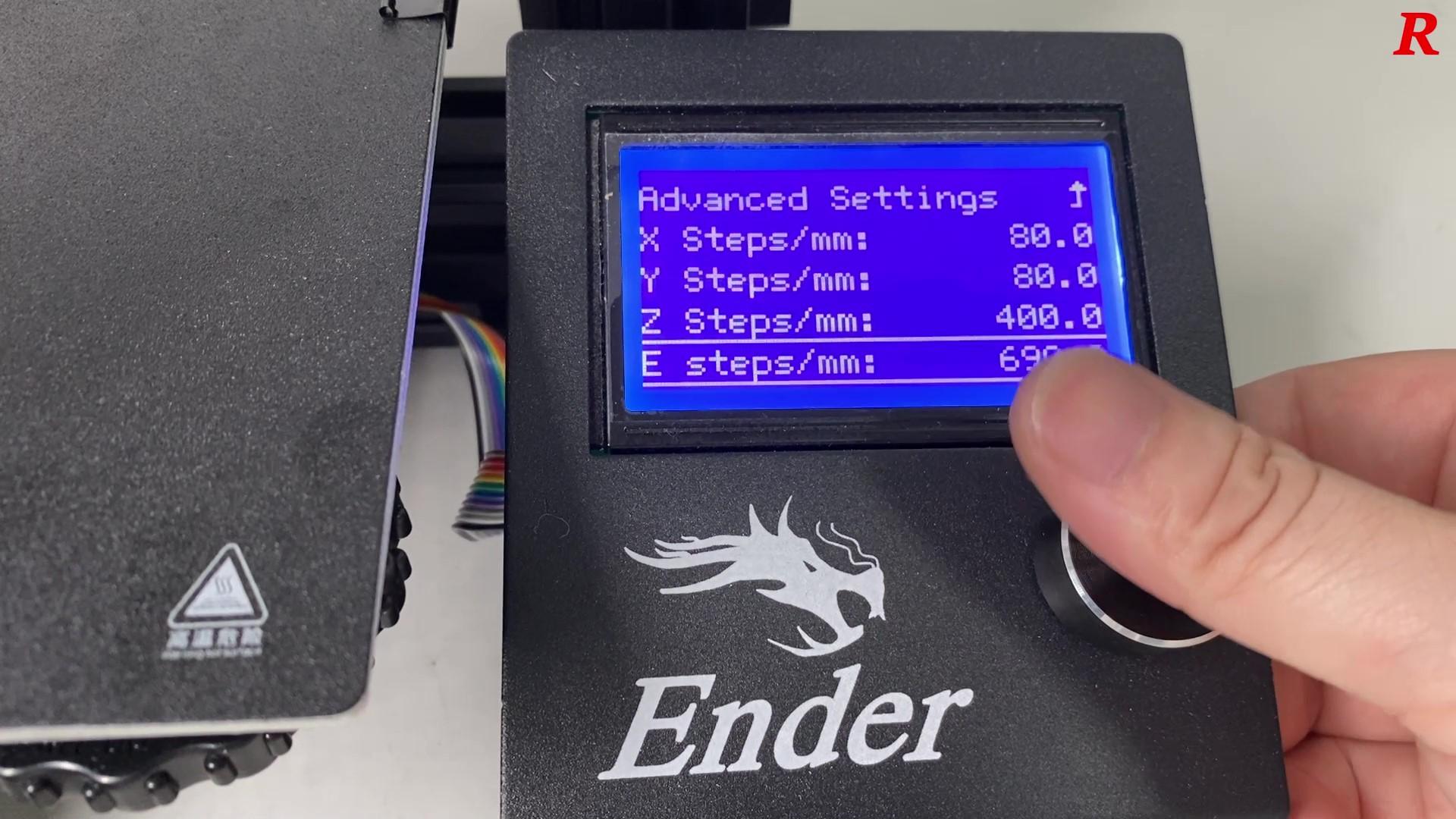

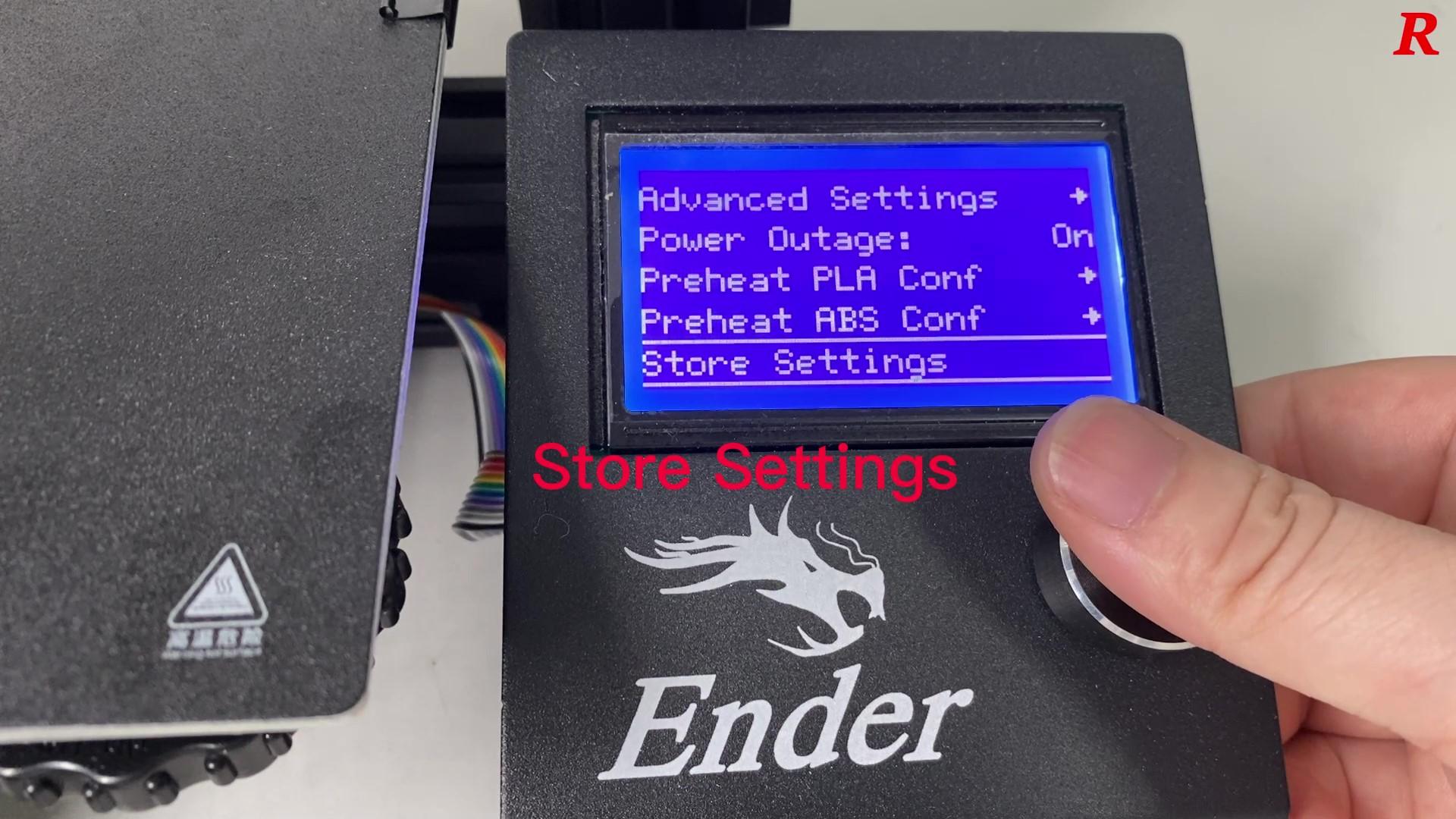

Modify the E Steps to 690

Creality Ender 3 Direct Drive_Moment(40).jpg
Creality Ender 3 Direct Drive_Moment(41).jpg

remember to save.

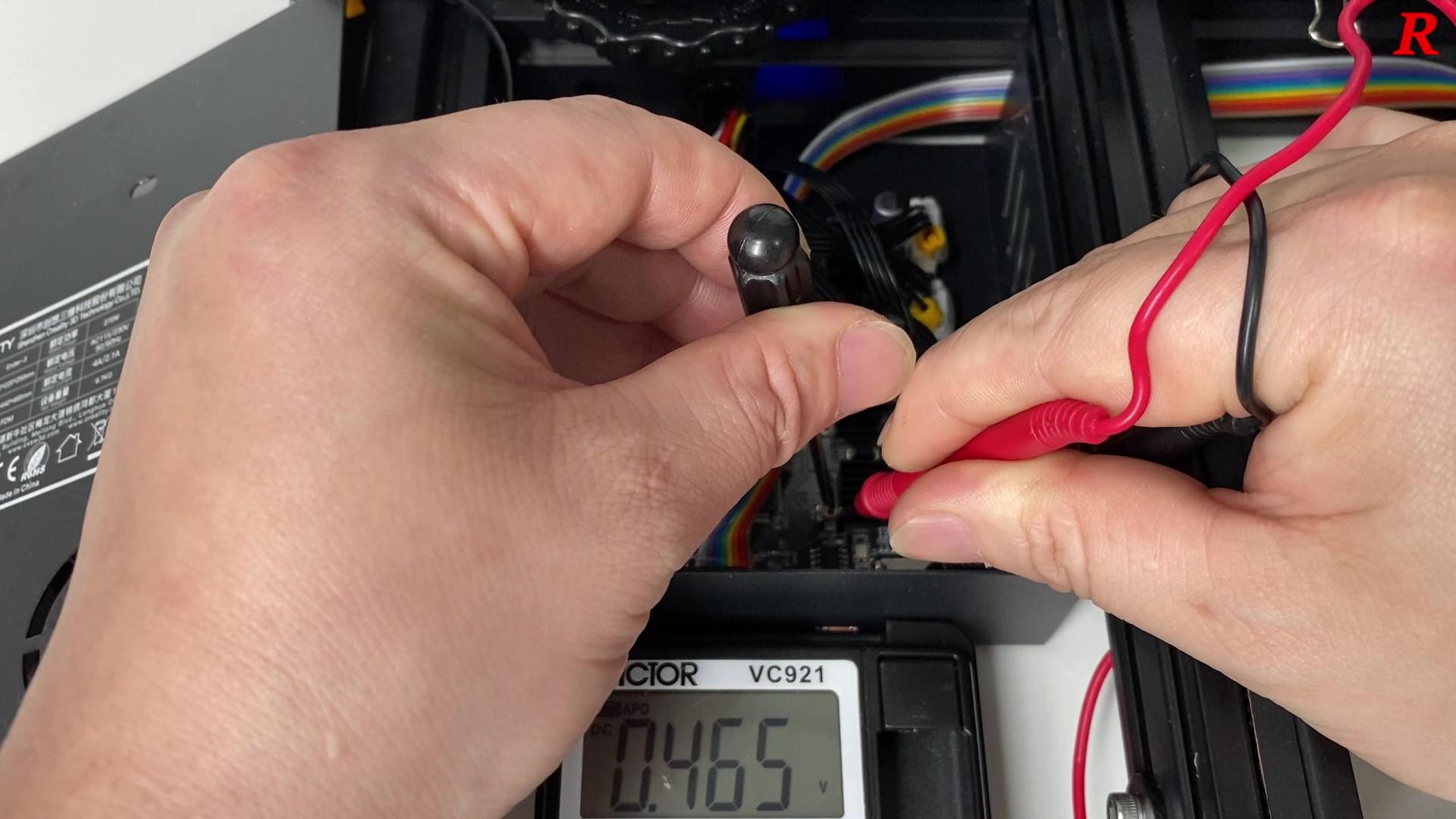

Modify the E Drive Current to 0.45V

Creality Ender 3 Direct Drive_Moment(42).jpg
Creality Ender 3 Direct Drive_Moment(43).jpg
Creality Ender 3 Direct Drive_Moment(44).jpg

Measure with a multimeter.

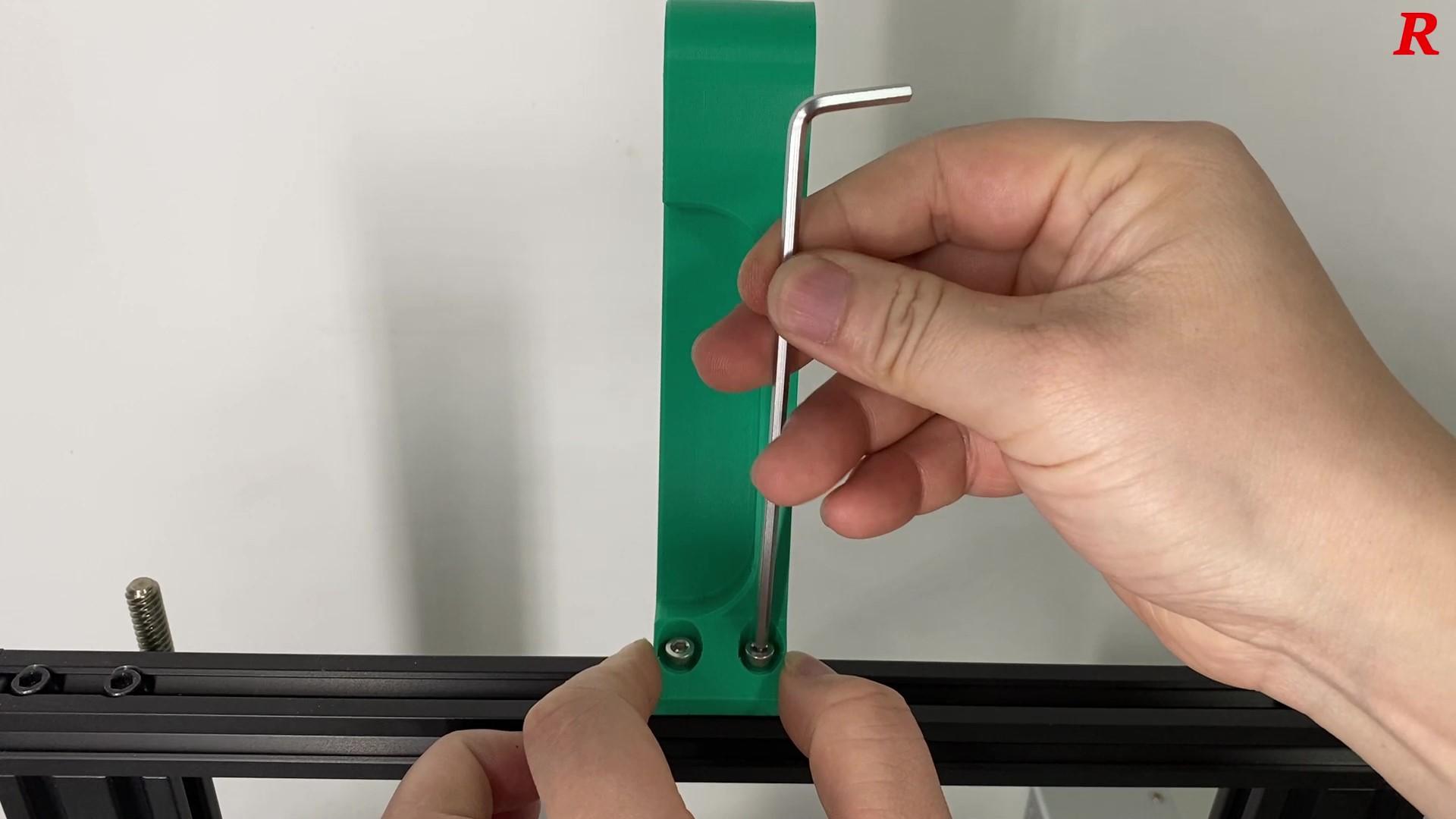

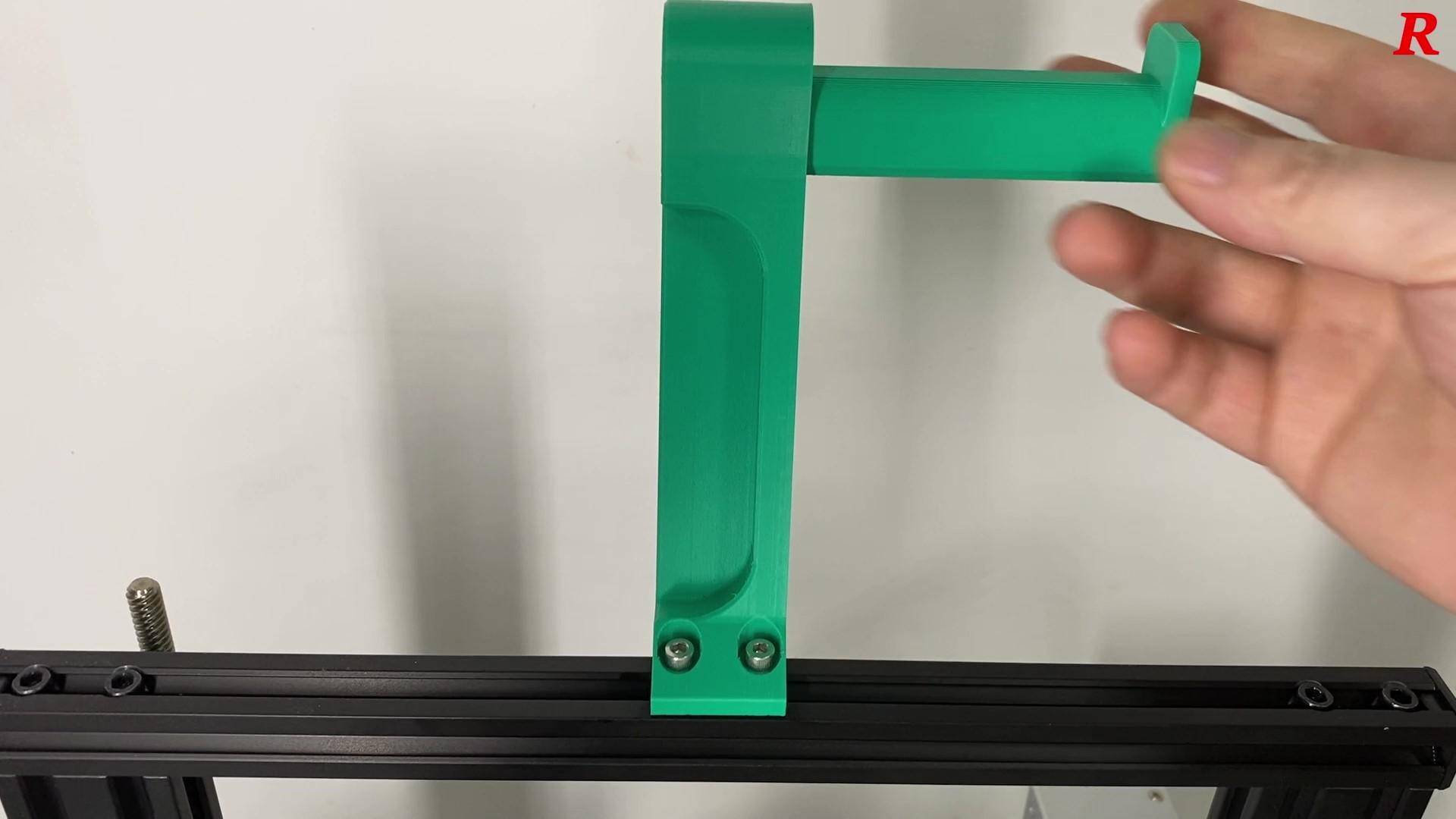

Replacing the Spool Holder

Creality Ender 3 Direct Drive_Moment(45).jpg
Creality Ender 3 Direct Drive_Moment(46).jpg
Creality Ender 3 Direct Drive_Moment(47).jpg
Creality Ender 3 Direct Drive_Moment(48).jpg
Creality Ender 3 Direct Drive_Moment(49).jpg

Use M5X16 screws to fix.

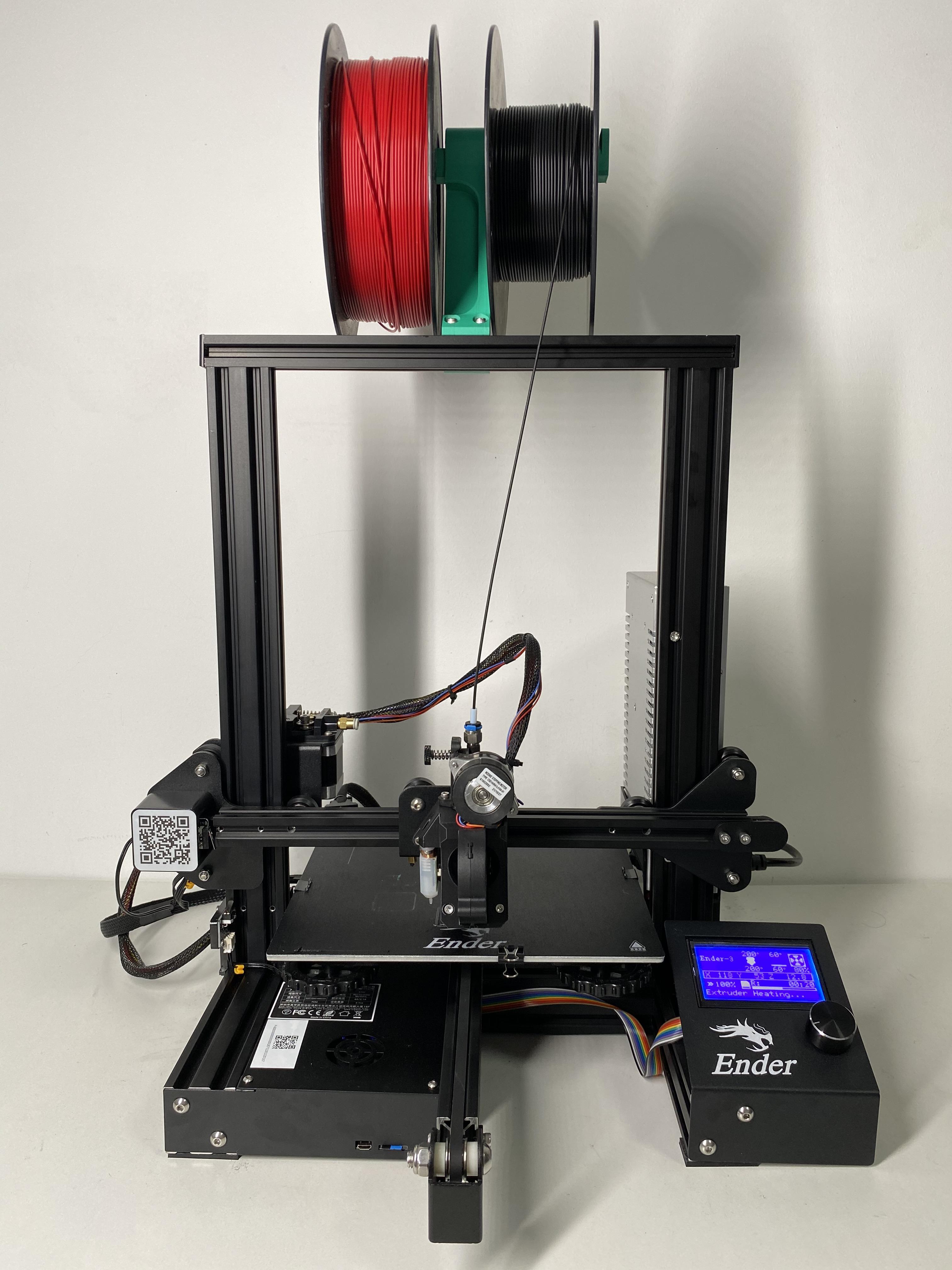

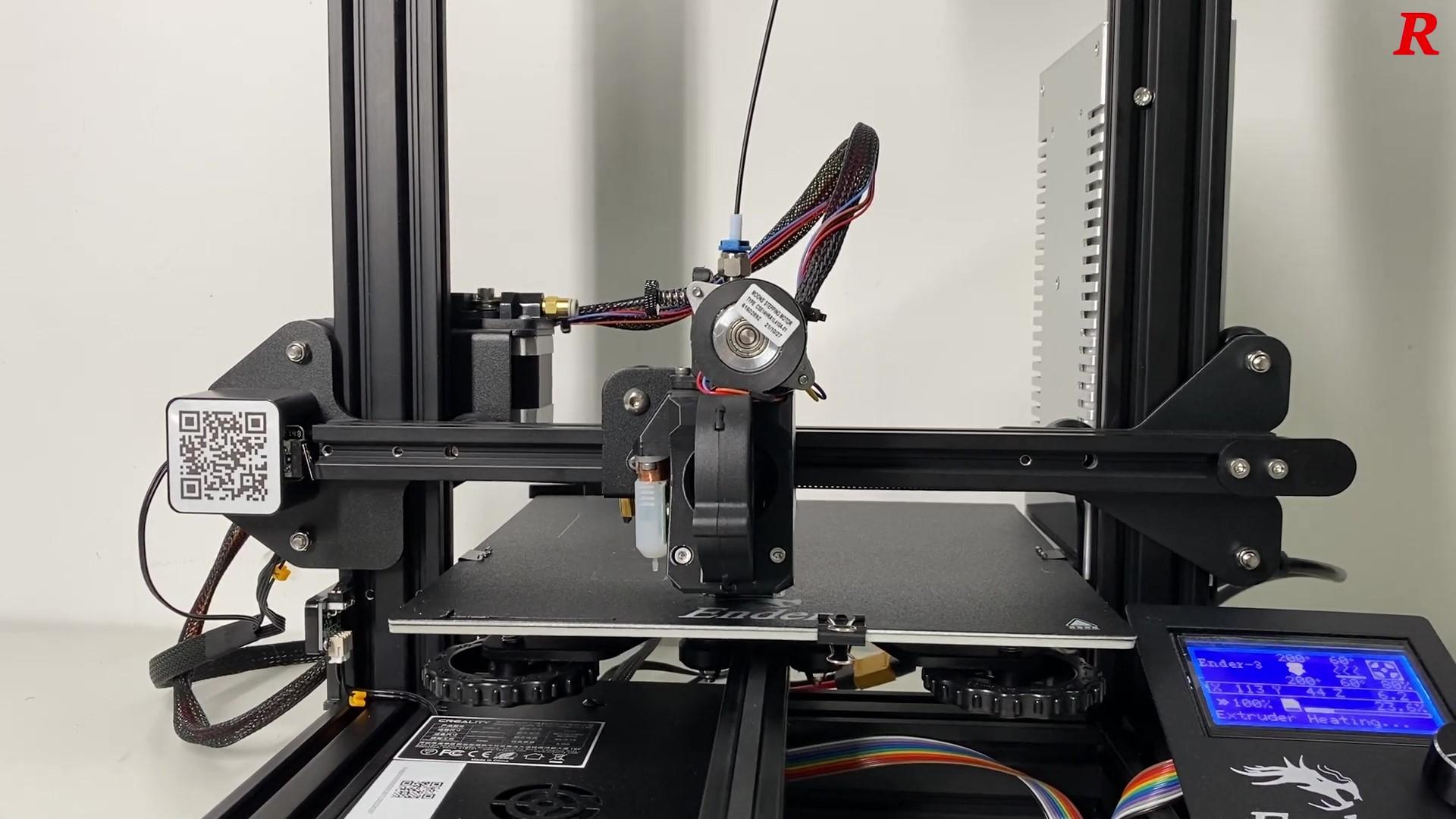

Test Print

Creality Ender 3 Direct Drive_Moment(50).jpg
