TClock - Tissue Box Clock
![Add a heading.gif](/proxy/?url=https://content.instructables.com/FGM/VV8U/KN4LSQ31/FGMVV8UKN4LSQ31.gif&filename=Add a heading.gif)
![ezgif.com-video-to-gif.gif](/proxy/?url=https://content.instructables.com/FAA/9D8S/KN4LSVC8/FAA9D8SKN4LSVC8.gif&filename=ezgif.com-video-to-gif.gif)
![image0.jpeg](/proxy/?url=https://content.instructables.com/FW7/JRMR/KN36F5WY/FW7JRMRKN36F5WY.jpg&filename=image0.jpeg)
![Add a heading.jpg](/proxy/?url=https://content.instructables.com/FD0/QB91/KN4LSXFB/FD0QB91KN4LSXFB.jpg&filename=Add a heading.jpg)
In this Instructable I will show you how you can convert an empty tissue box into a cool Arduino based clock that can show the time, date, current temperature & humidity in the room.
If you like this Instructable consider voting for it in the Trash to Treasure Contest

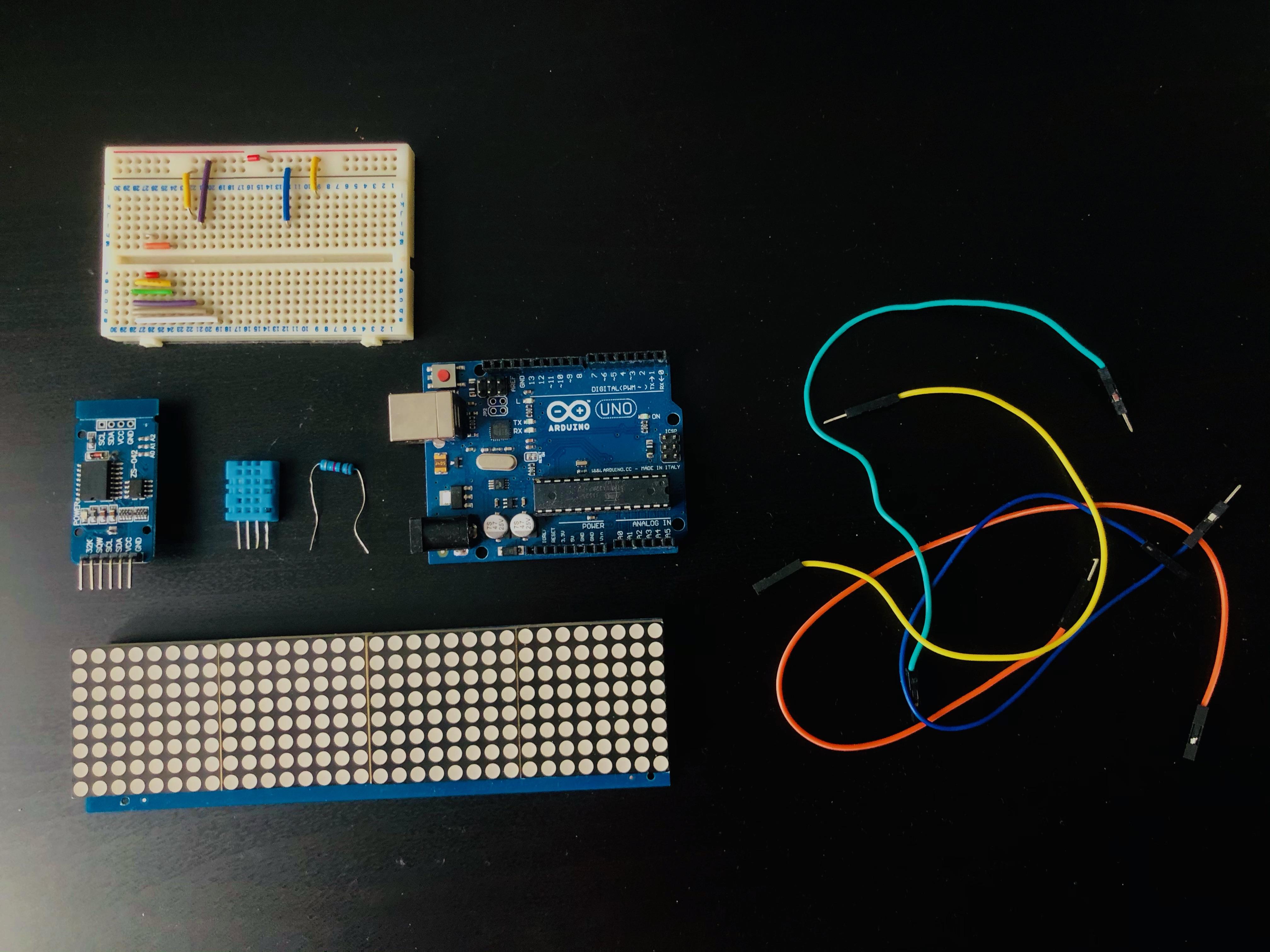

Supplies
Enclosure Supplies:
- Empty Tissue Box
- Utility Knife / Scissor
- Hot Glue Gun / Adhesive
Electronics:
- 32x8 LED Matrix - for the clock display
- DS3231 RTC - for time related functionality
- DHT11 Temperature and Humidity Sensor - To measure internal temperature and humidity
- 10K Ohm Resistor - used as pull up resistor for DHT11
- Arduino UNO ( I used the UNO but you should be able to use any Arduino/Arduino clone) - Brain of the project
- Breadboard
- Jumper Wires
- Laptop and Arduino IDE to program the code to Arduino
- Power Bank / 9V battery for power
Lets Build the Enclosure
![IMG_5121.jpg](/proxy/?url=https://content.instructables.com/FLW/N6HW/KN4LRPHR/FLWN6HWKN4LRPHR.jpg&filename=IMG_5121.jpg)

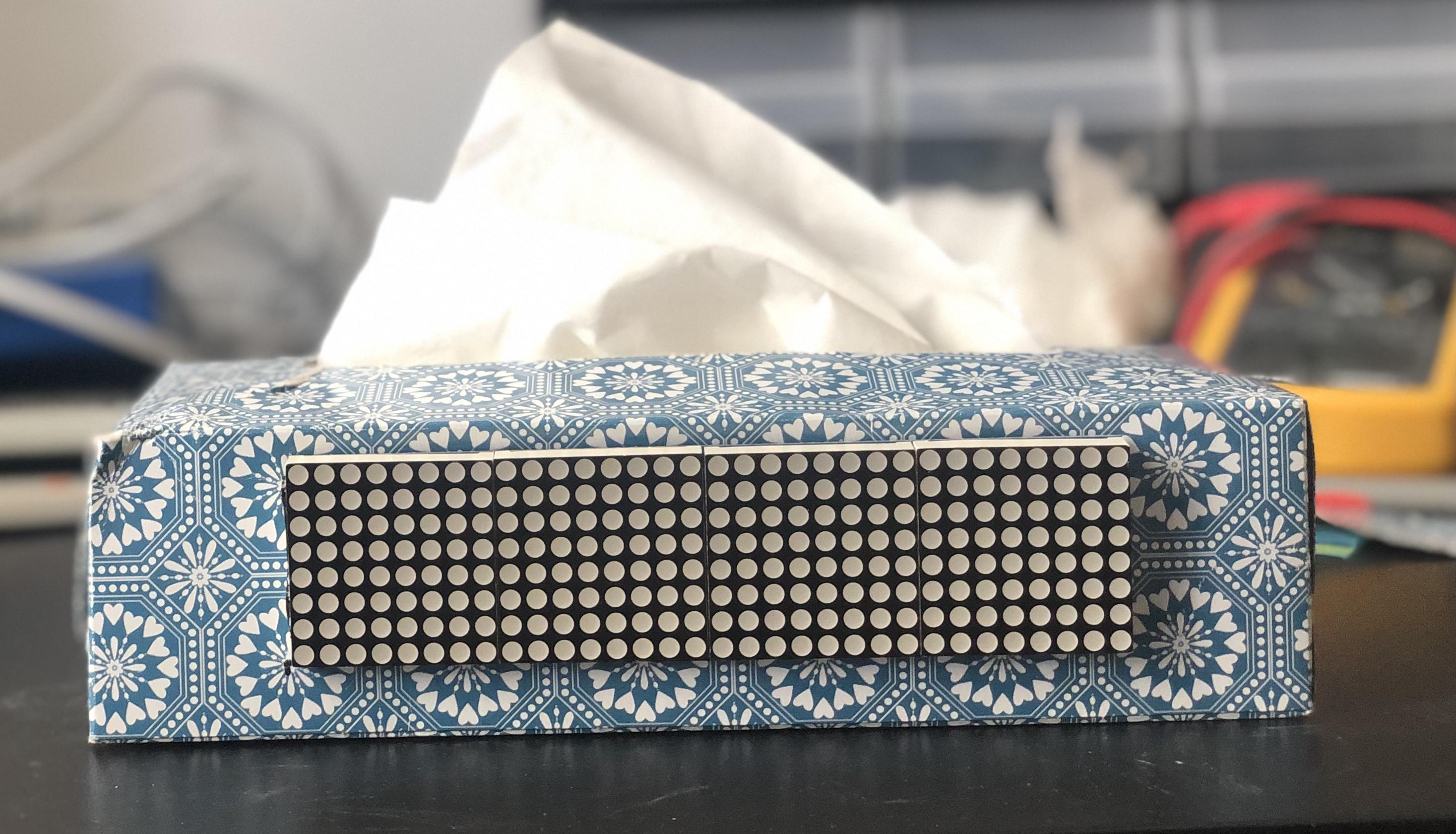

To make the enclosure, just measure the width and height of your LED Matrix and cut a hole in the front of the tissue box for the matrix to come out as shown in the picture
Lets Connect the Electronics
![Screen Shot 2021-04-04 at 17.50.52.png](/proxy/?url=https://content.instructables.com/FQP/TIFA/KN36BNZT/FQPTIFAKN36BNZT.png&filename=Screen Shot 2021-04-04 at 17.50.52.png)
![IMG_5109.png](/proxy/?url=https://content.instructables.com/FVJ/PTX4/KN36F9Z8/FVJPTX4KN36F9Z8.png&filename=IMG_5109.png)
![IMG_5111.png](/proxy/?url=https://content.instructables.com/FFQ/3EFA/KN36F9ZR/FFQ3EFAKN36F9ZR.png&filename=IMG_5111.png)
See the image for the schematics to connect each module to the Arduino. I used a breadboard to organize everything easier
If you don't understand the diagram, then this is a stepwise guide to connect each module:
Connecting the LED Matrix:
For this project I am using a HT1632 based 32x8 LED MATRIX and this is how I connected it to the Arduino UNO
- Arduino 5V --> VCC pin of LED Matrix
- Arduino GND --> GND pin of LED Matrix
- Arduino Digital Pin 9 --> CS pin of LED Matrix
- Arduino Digital Pin 10 --> WR pin of LED Matrix
- Arduino Digital Pin 11 --> DATA pin of LED Matrix
Connecting the RTC Module:
For this project I am using a DS3231 RTC Module. This module uses the I2C bus to communicate and this is how i connected it to the Arduino. If you are unsure which pins are the I2C just google them
- Arduino 5V --> VCC pin of RTC Module
- Arduino GND --> GND pin of RTC Module
- Arduino SDA (next to AREF) --> SDA pin of RTC Module
- Arduino SCL (next to SDA) --> SCL pin of RTC Module
Connecting the Temperature & Humidity Sensor:
- Arduino 5V --> VCC pin of DHT11
- Arduino GND --> GND pin of DHT11
- Arduino Digital Pin 2 --> DATA_OUT pin of DHT11
- Arduino 5V --> 10K Ohm Resistor --> DATA_OUT pin of DHT11 ( connect one end of the 10k resistor to data out of the DHT11 and one end of the resistor to Arduino 5V )
Lets Program
- Install Libraries for the modules:
- For LED Matrix Image Drawing I am using this library by Gaurav Manek. You can download as a ZIP and add it to the Arduino Libraries using the Arduino IDE
- For the DS3231 RTC module I am using the ds3231FS by Petre Rodan Library. This can be installed via the "Manage Libraries" option in Arduino IDE
- For the DHT11 Temp and Humidity Sensor I am using the DHT sensor Library by Adafruit. This also can be installed via the "Manage Libraries" option in the Arduino IDE
- Download the code and upload to the Arduino
Downloads
Connect Everything Together
![IMG_5132.png](/proxy/?url=https://content.instructables.com/FWF/30RX/KN4LSSLO/FWF30RXKN4LSSLO.png&filename=IMG_5132.png)
![IMG_5122.png](/proxy/?url=https://content.instructables.com/F7D/KK7X/KN4LSMWS/F7DKK7XKN4LSMWS.png&filename=IMG_5122.png)
I used some hot glue to hold the LED Matrix in the cut out securely. Then I opened the side of the tissue box carefully and placed the breadboard and Arduino Inside. To power the whole circuit you can use multiple options:
- 9V Battery Connected via a barrel jack
- Power bank connected to the Arduino's USB port
- Arduino connected to a laptop ( My option)
Since this project will be on my desk all the time I will use the 3rd option, but feel free to use the other 2 options if you want a more portable version.
Final Product & Future Improvements
![IMG_5117.jpg](/proxy/?url=https://content.instructables.com/F0P/WP20/KN4LRP3Q/F0PWP20KN4LRP3Q.jpg&filename=IMG_5117.jpg)
![IMG_5114.jpg](/proxy/?url=https://content.instructables.com/FIE/890L/KN4LRP3P/FIE890LKN4LRP3P.jpg&filename=IMG_5114.jpg)
![IMG_5125.jpg](/proxy/?url=https://content.instructables.com/F2S/1TXI/KN4LSQP5/F2S1TXIKN4LSQP5.jpg&filename=IMG_5125.jpg)
![IMG_5129.png](/proxy/?url=https://content.instructables.com/FMM/219O/KN4LSQRQ/FMM219OKN4LSQRQ.png&filename=IMG_5129.png)

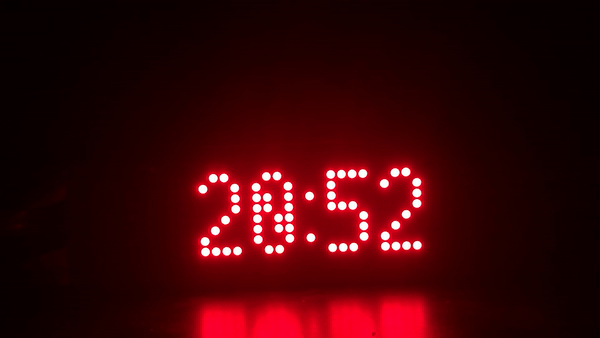

Its finally complete ! I am very happy how it turned out. I still plan to improve somethings in the future such as:
- Add a RGB LED Matrix
- Add a ESP32 to display information from the internet
- Add more sensors
If you have more ideas how I can improve this or have any question about the build , feel free to contact me or leave a comment down below and I will try to reply to them
