TAPSHARE

by shirjc in Living > Cleaning

183 Views, 1 Favorites, 0 Comments

TAPSHARE

final shot.jpg

TAPSHARE is an add-on for round water taps that allows you to use them without a direct hand touch.

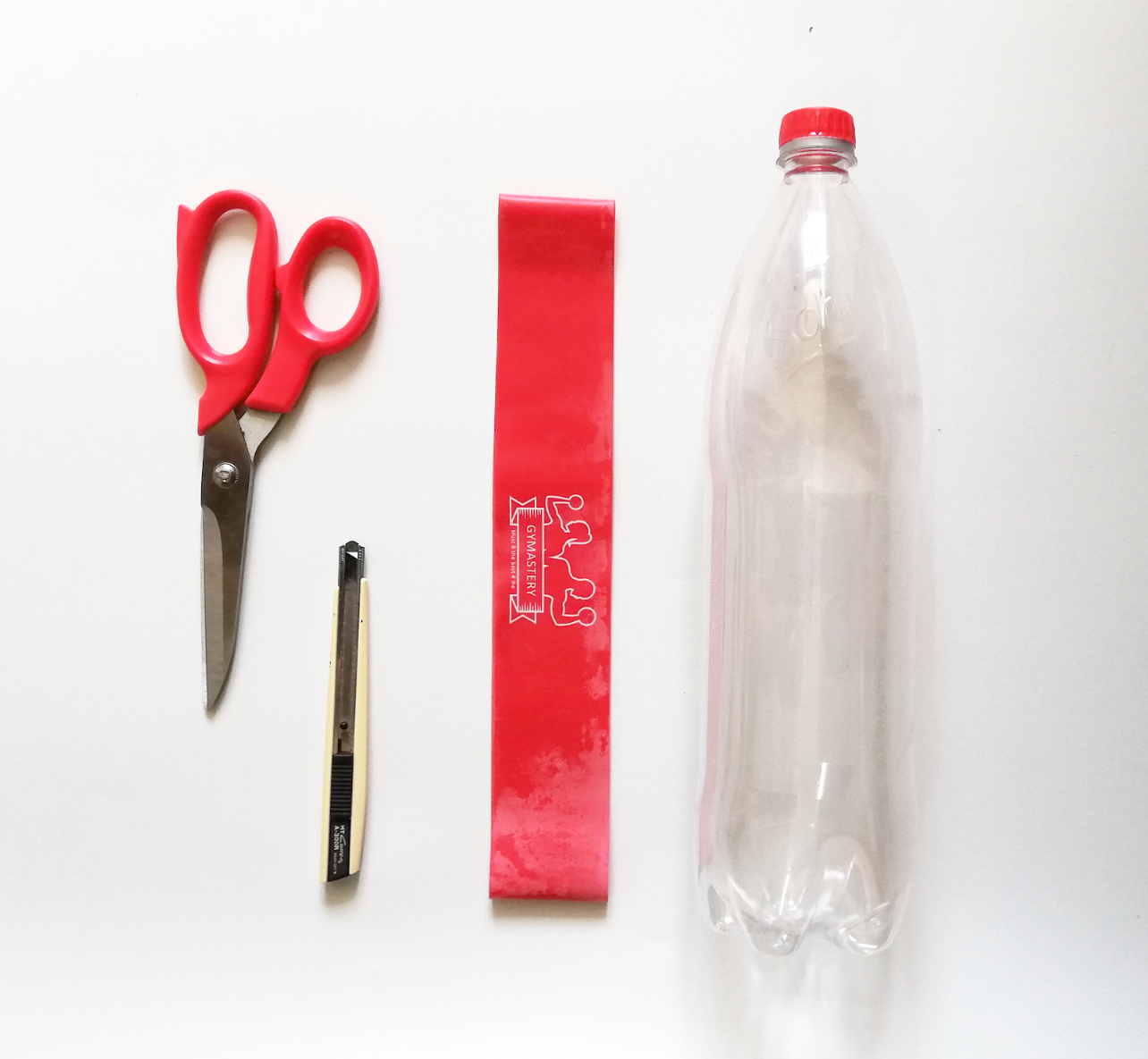

Prepare the Materials:
// Scissors

// Utility Knife

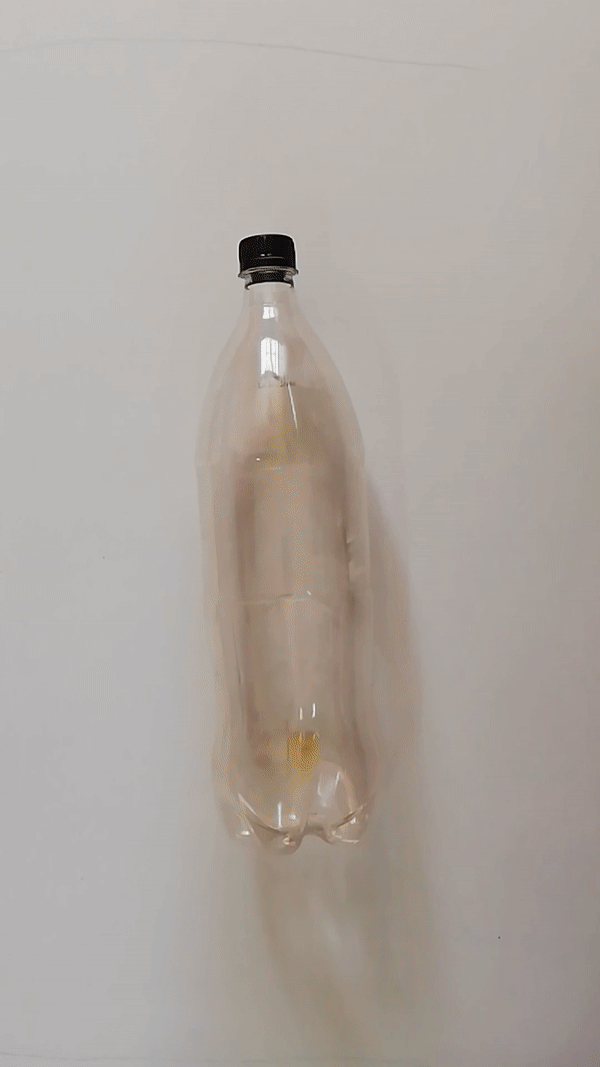

// 1.5 Liter plastic Bottle X3

// “Thera Band” 1mm - (Latex sports band)

// Ruler

// Lighter (optional)

// Hole Puncher (optional)

Caps Manufacturing |

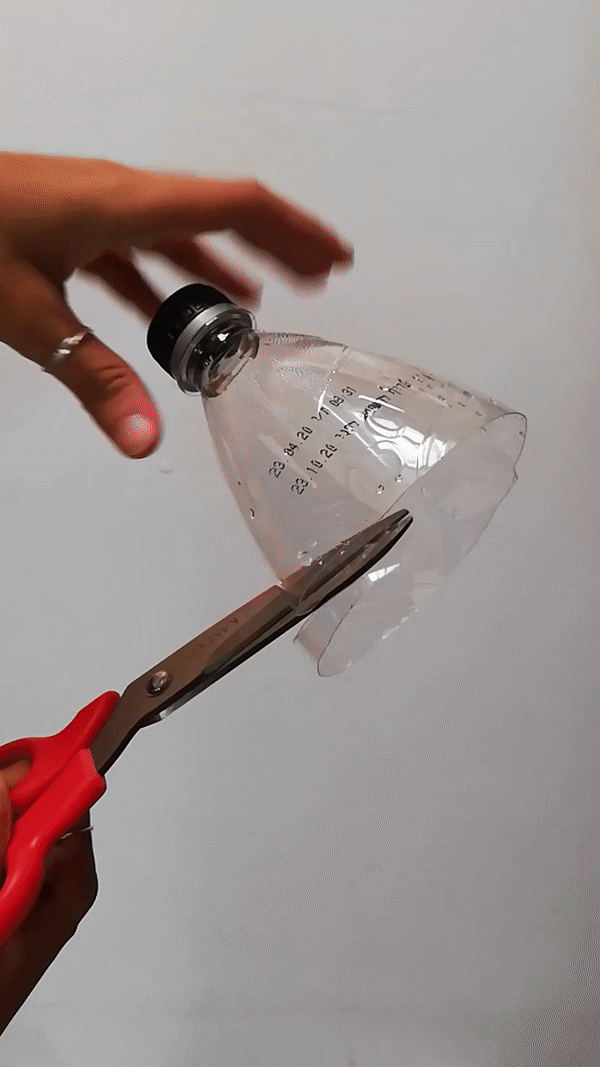

Cut the Top of the Bottle Body

Caps Manufacturing |

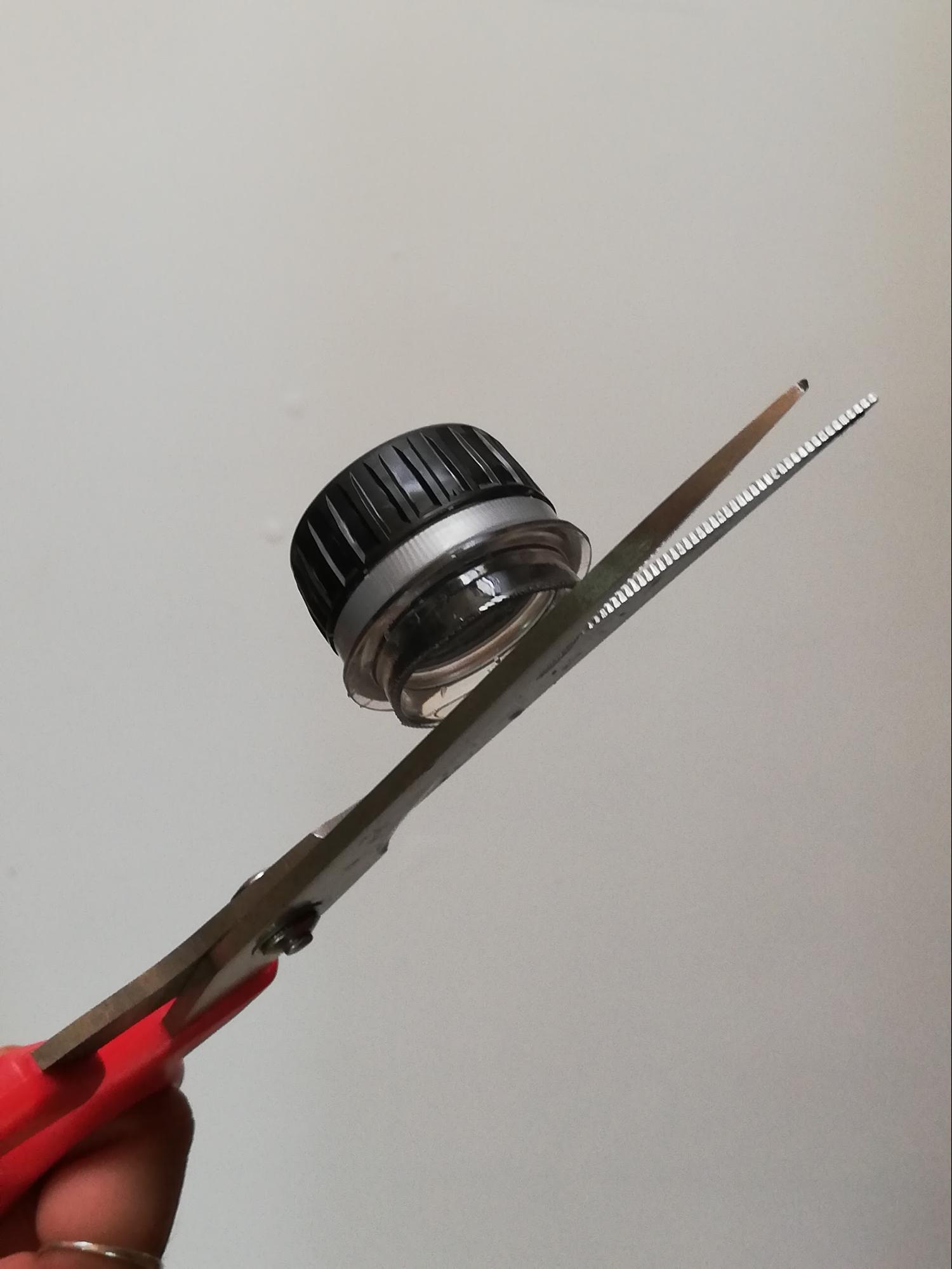

Continue as close as possible to the rim

Caps Manufacturing |


The desired result: 2 mm below the screw.

Make 3 caps.

Band Manufacturing |


Cut the band to a 310mm*50mm strip.

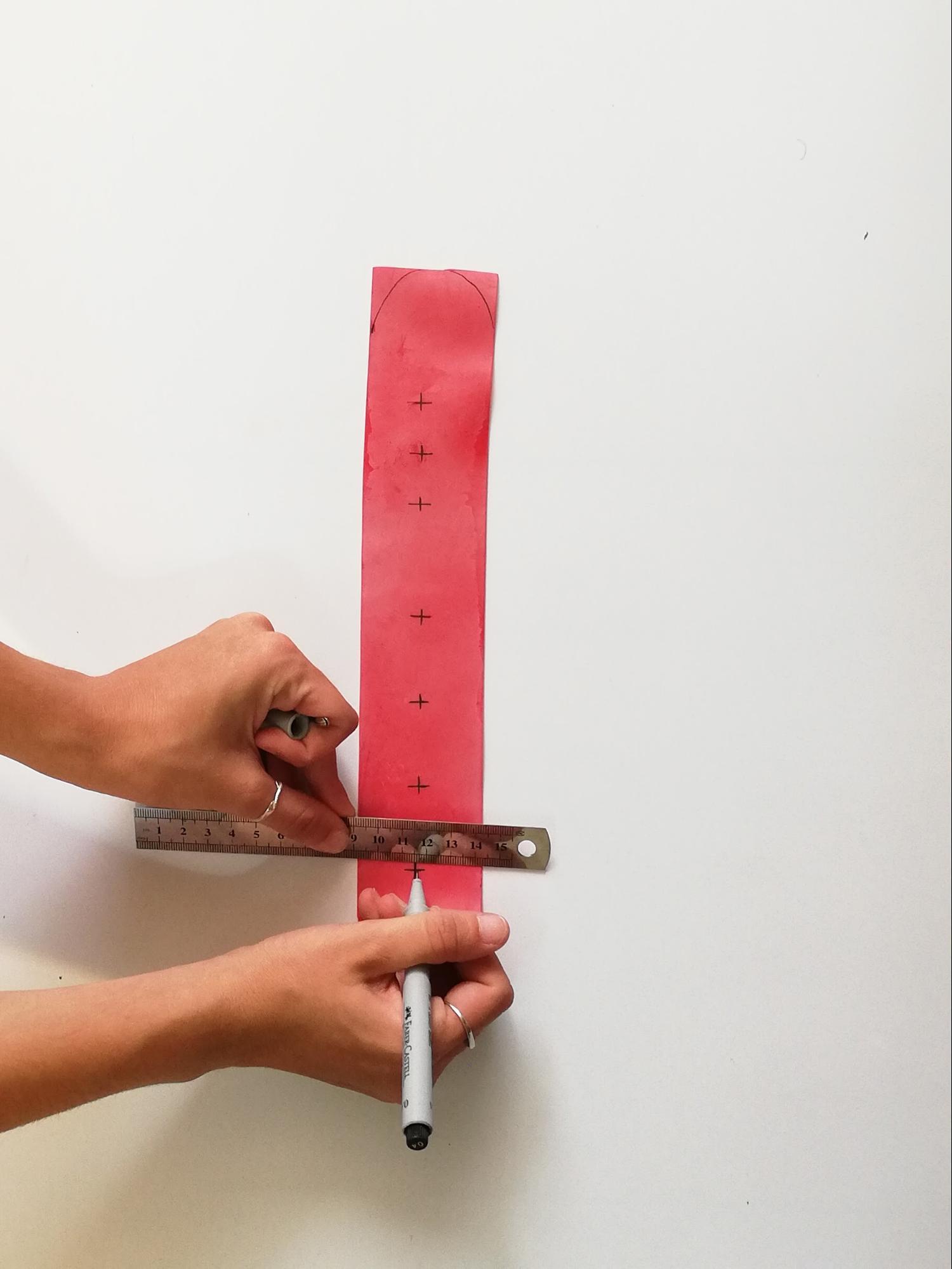

Then copy the markings according to the template with a Marker or a pen.

Downloads

Band Manufacturing | ​

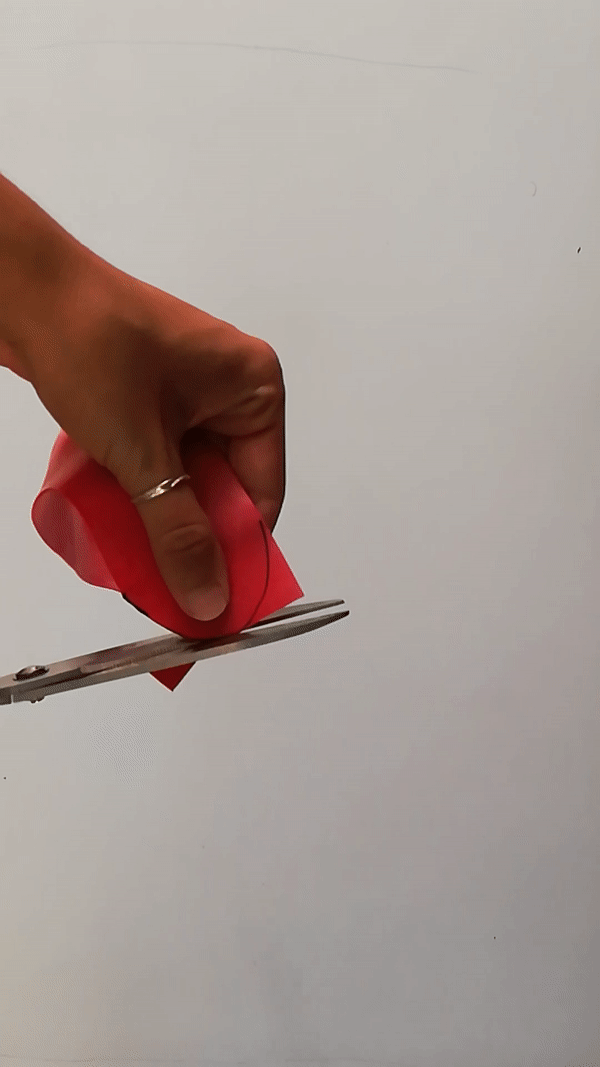

Start cutting.

Band Manufacturing | ​(You Currently Have Two Options)


A- ‘Freestyle’ cutting in a circular motion around the mark

B- Fold the band in half (on the long side), and insert to half of the mark (+) below the Hole Puncher. If you choose this option, your holes will come out slightly oval, don't be alarmed it’s completely fine!

Band Assembly |

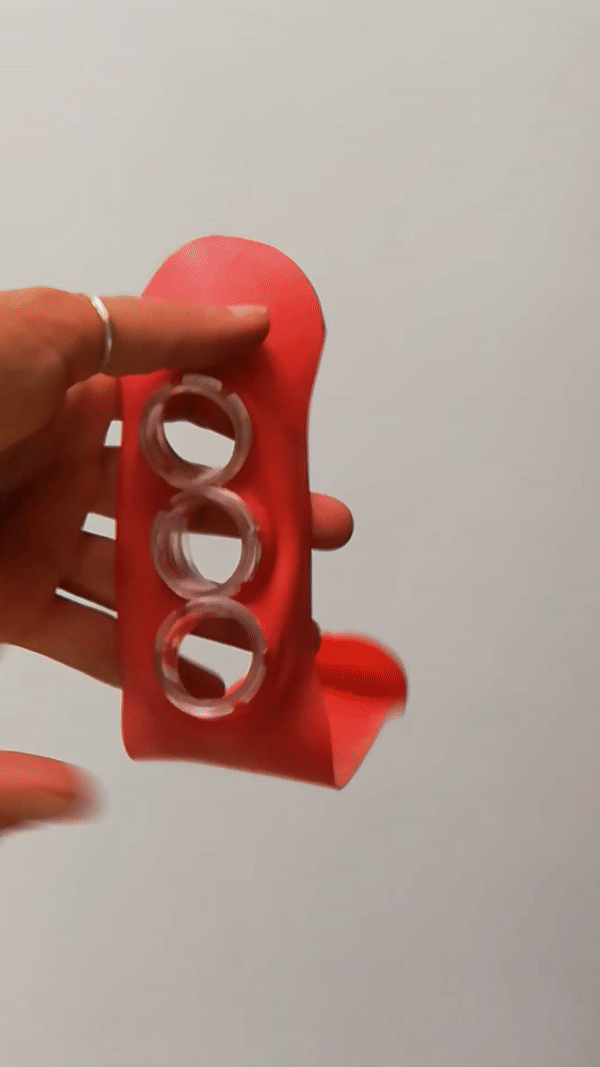

Insert the cap screws through the designated holes.

To make sure this is the right hole, you can check on the drawing.

Band Assembly |


Notice that the caps are uniformly oriented (screw up), and that the band sits above the first helix.

Band Assembly |


Stretch it carefully to make sure the caps are sitting tight.

Caps Manufacturing |


Remove the plastic seal that is attached to the back of the cap

Caps Manufacturing |

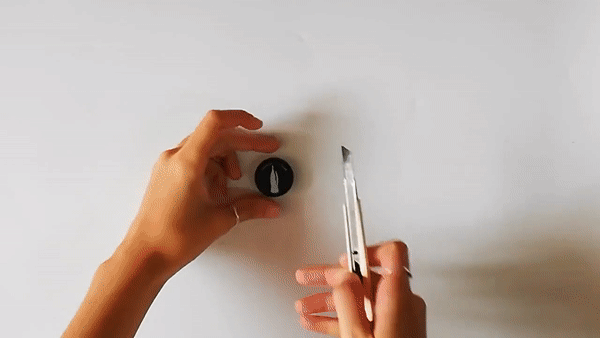

Cut the caps in a half-moon shape.

*If you have difficulty in the initial carving, the knife can be slightly warmed with a lighter.

Caps Manufacturing |


Make 3 parts.

Final Assembly

TAPSHARE

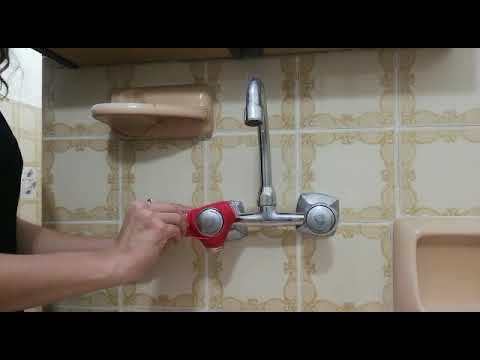

Place the band on top of the tap with the screw facing up. Stretch in a rotary motion.

In the second wrap, lock the remaining holes on the band in the appropriate meetings with the cap heads.

Finally, assemble the caps and lock them in a rotary motion.

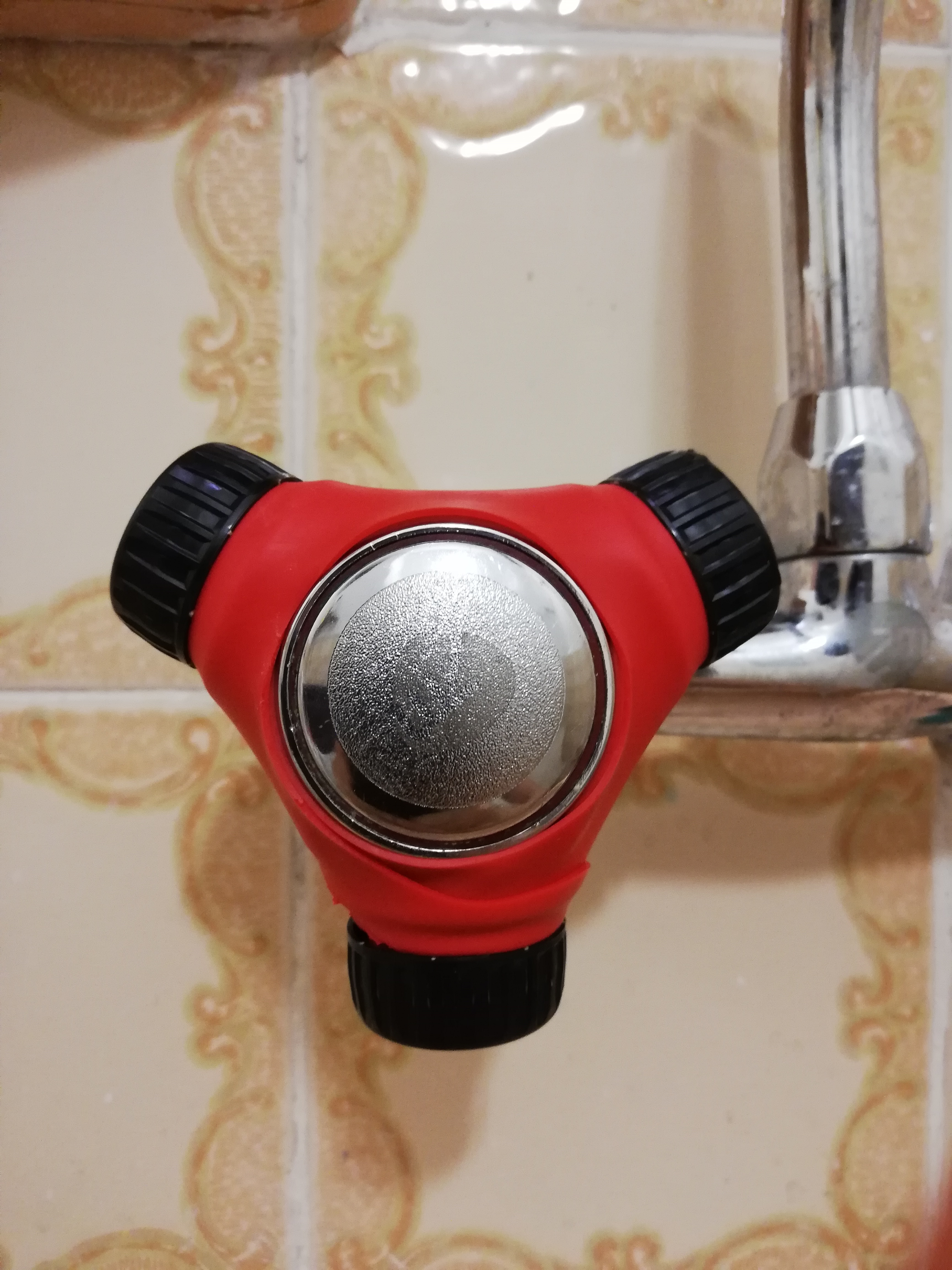

Product is fully assembled and ready for use!
