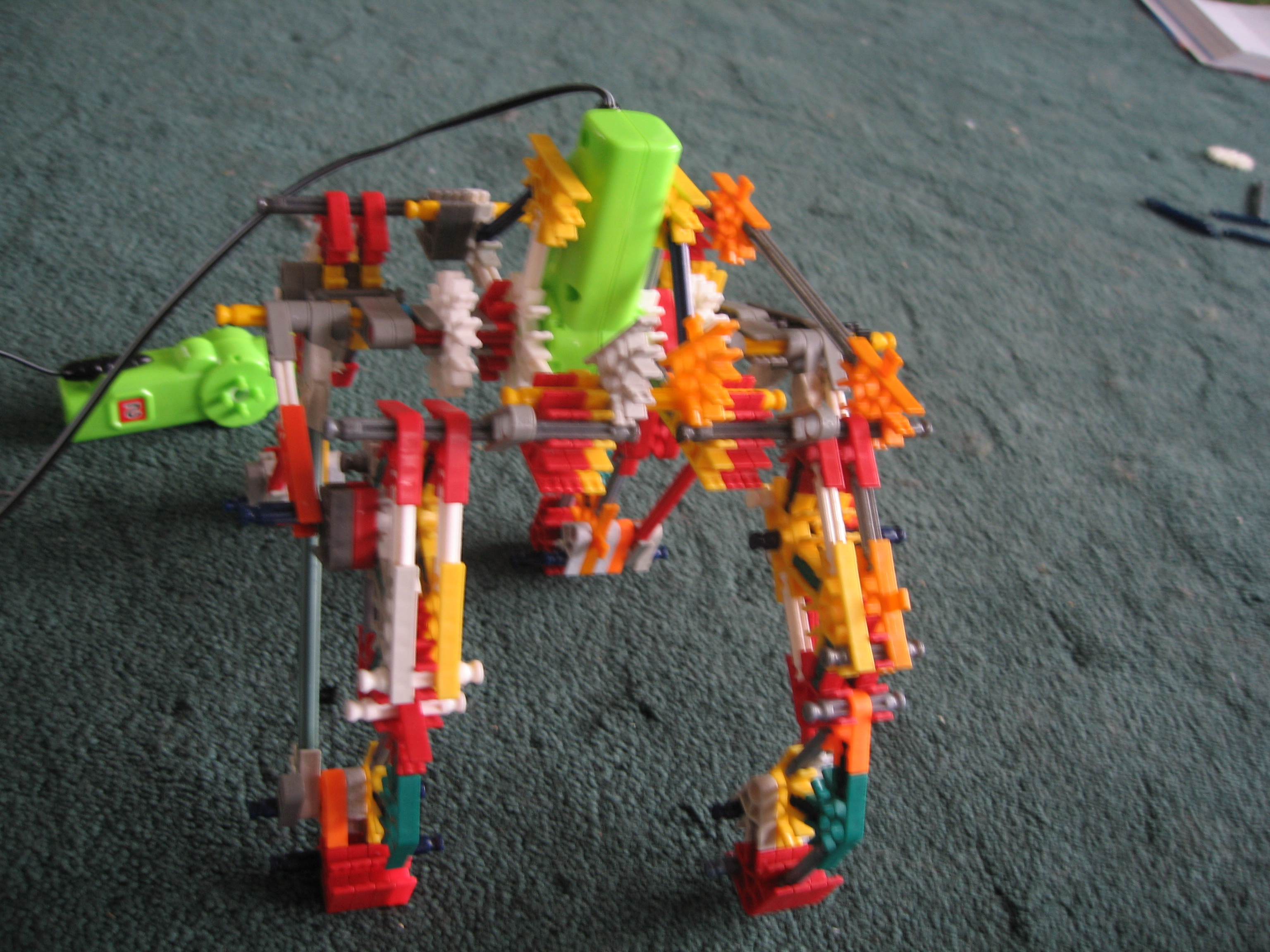

Sypran's Knex Walking Device
after a little bit of changes from the video it is finally done!
now you get to build it (horah for you)
now lets go! also ill be taking off the vid from my orangeboard and posting it here sooo also note my voice does not sound like this my moms camera has the worst mic in history of cameras from 2007+
now you get to build it (horah for you)
now lets go! also ill be taking off the vid from my orangeboard and posting it here sooo also note my voice does not sound like this my moms camera has the worst mic in history of cameras from 2007+

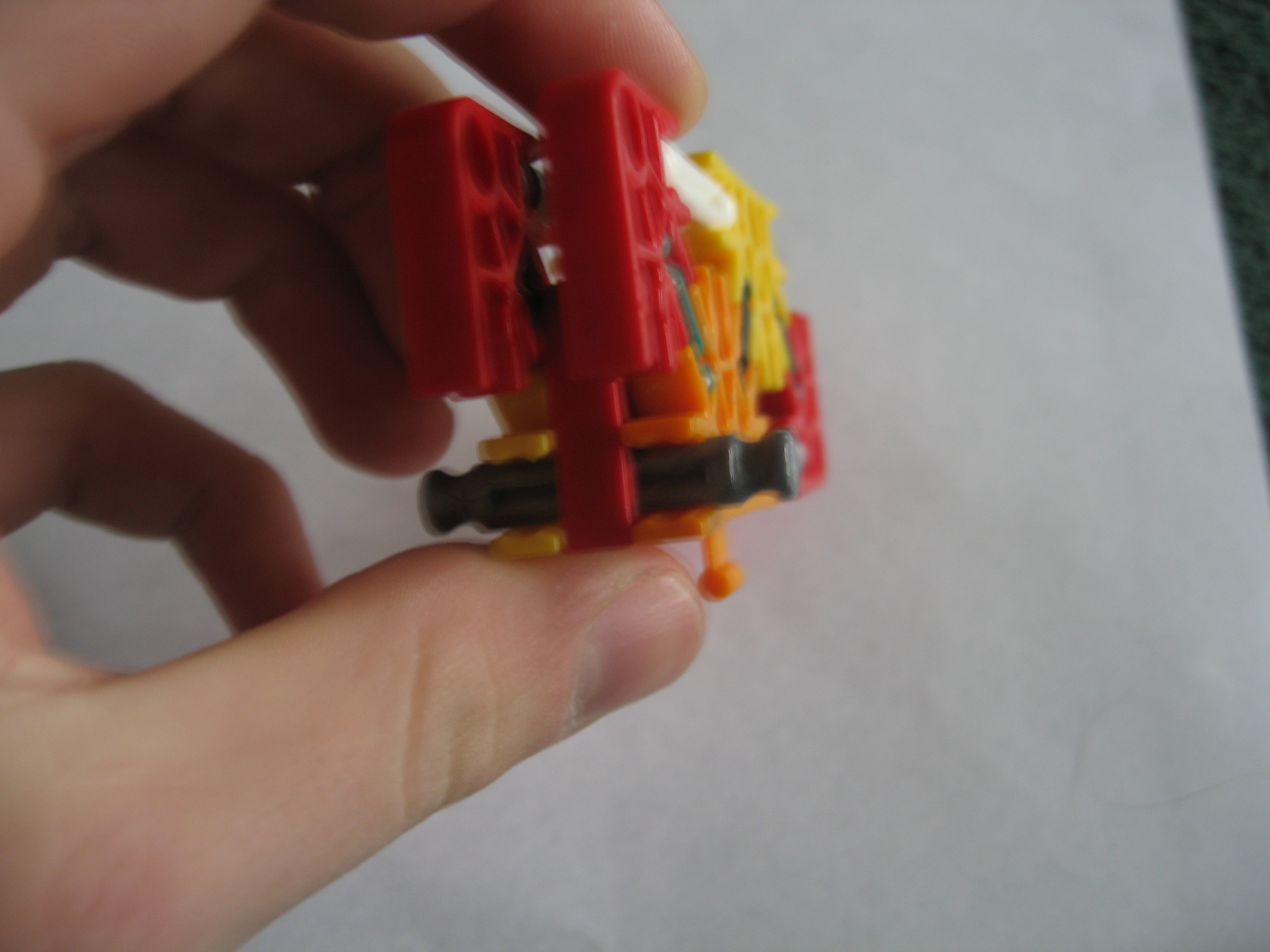

The Legs
you will have to repeat this step 4 times for all 4 legs but two of the four legs are different the last picture shows this, it is just that all extensions are added to the other side
KEEP IN MIND- all... great what do you call them... orange yellow shaped pieces?... anyway any of that kind of piece can be replaced with a yellow connector, I just use them for I have many of them and you can't use them on something like the barrel of KILLERK's SRV1 (and many of my yellows are being used for a new project)
*notes about pictures*

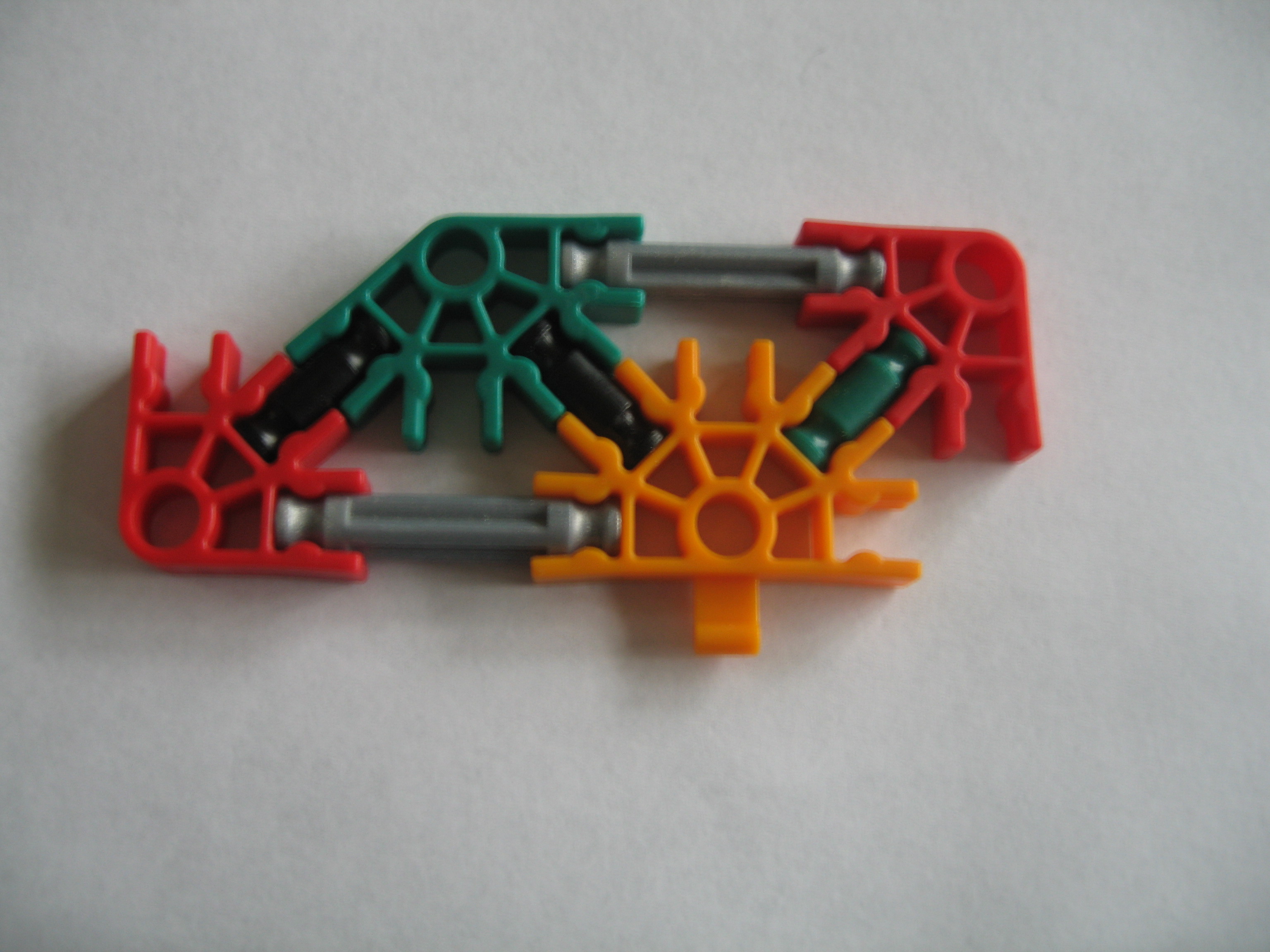

picture 2:build two of these for each leg and save it for picture 4

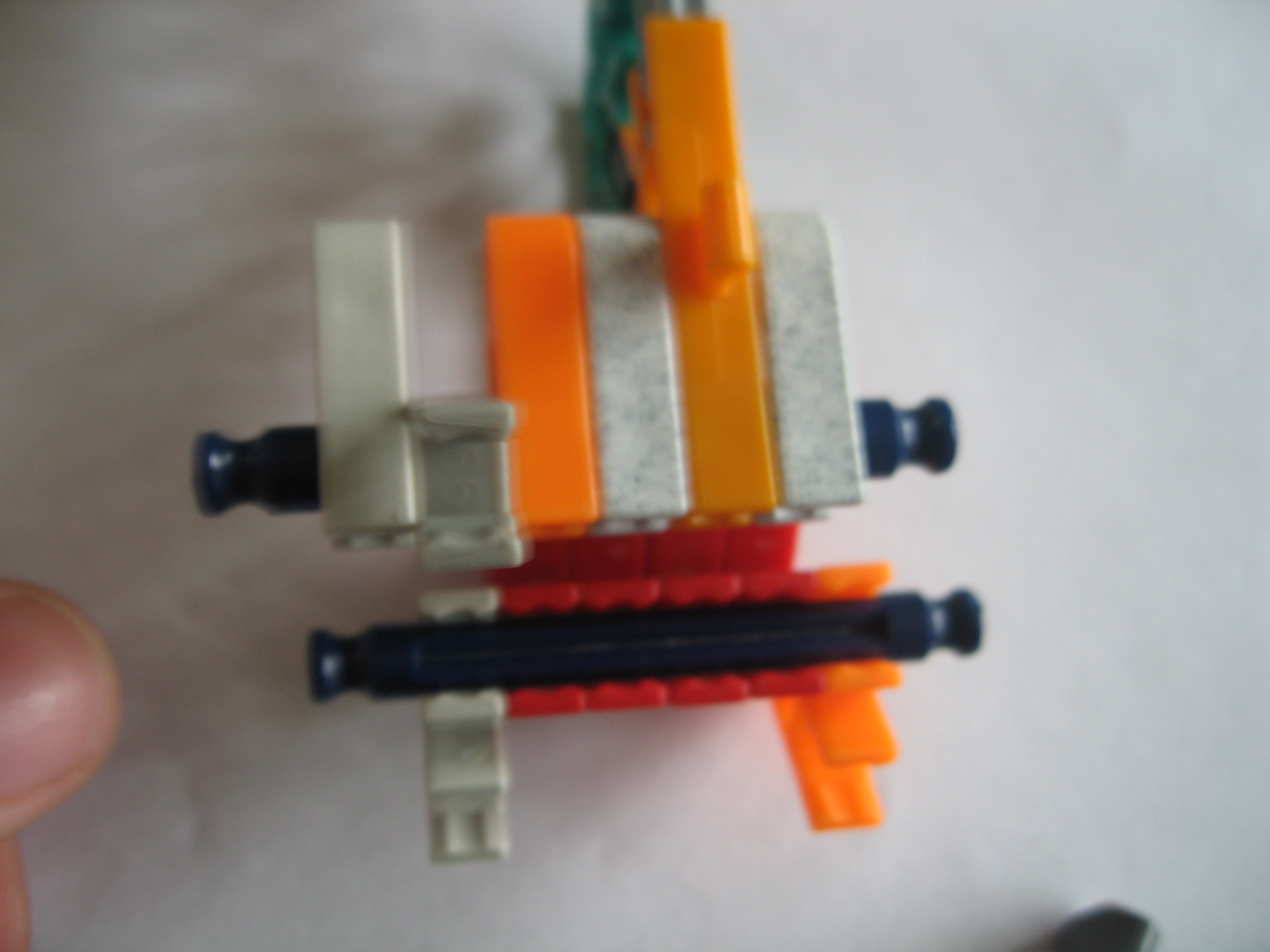

picture 3:unless you want the device to have trouble bending its knees then add this

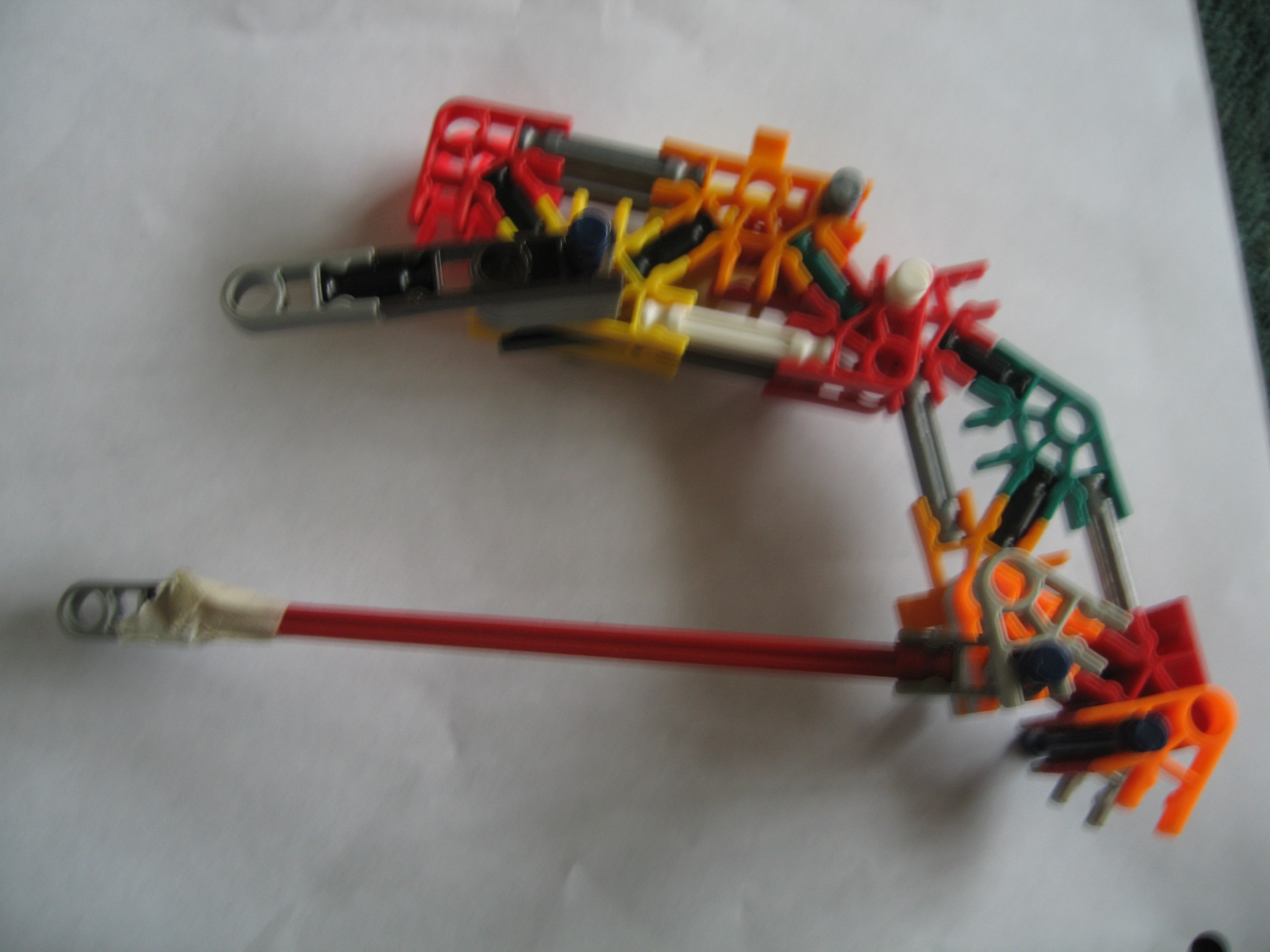

picture 5:Connect the bottom of leg (right) to top of leg (left) on the same side you added the red connector

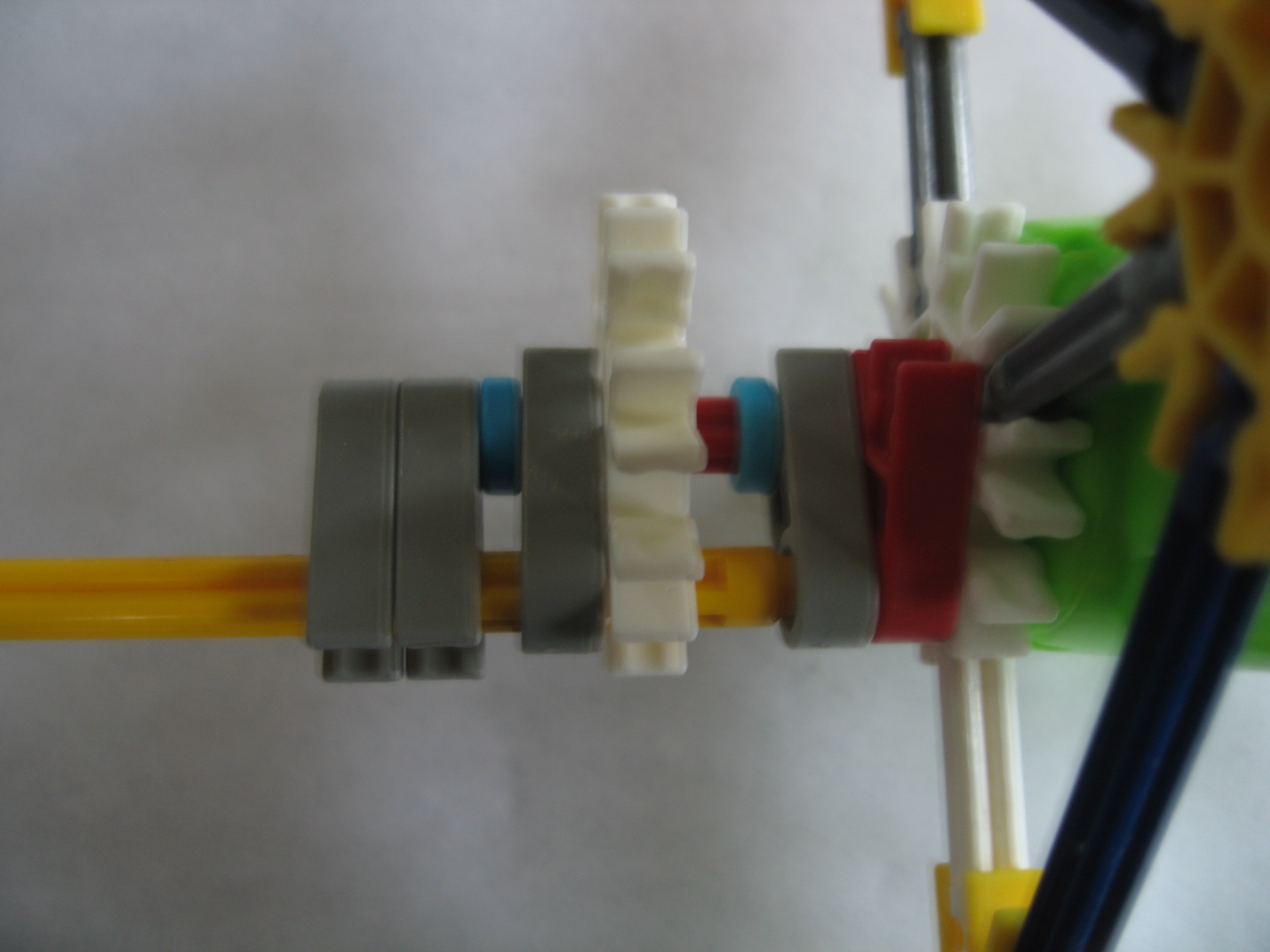

picture 6: the grey 45 connector is only meant for carpet use ( means degree circle because I have no clue where it is someone tell me I will happily thank them)

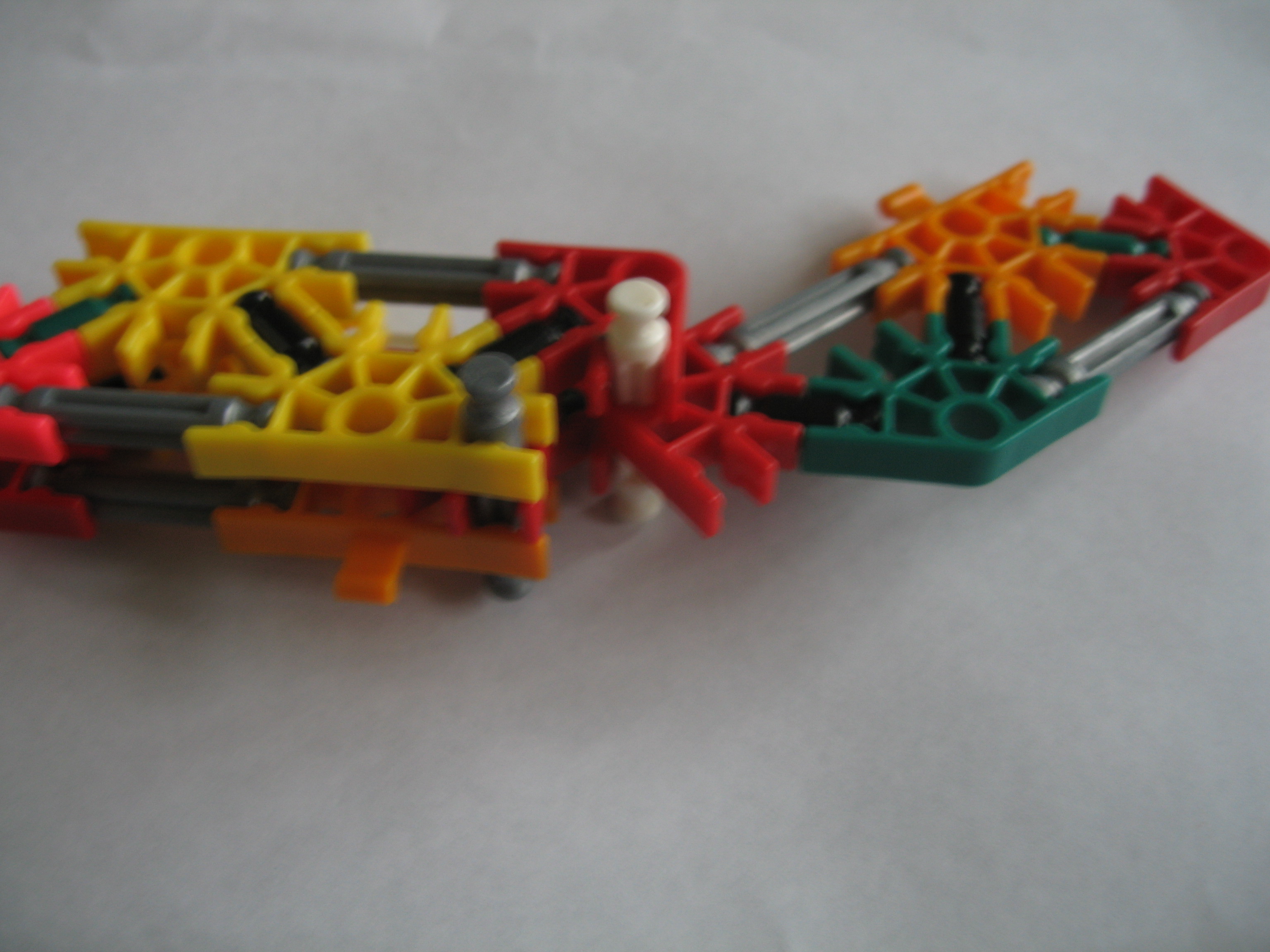

picture 7/8: I suggest using a grey 45 where it was orange and the rest being grey 0 ones and snapping a green rod in the 45 one
picture 9: again the grey and black connectors can be almost anything small enough to fit in it.
picture 10:rebuild and for the other 2 legs put all the pieces added in pictures 6-9 on the other side (like a mirror image)
KEEP IN MIND- all... great what do you call them... orange yellow shaped pieces?... anyway any of that kind of piece can be replaced with a yellow connector, I just use them for I have many of them and you can't use them on something like the barrel of KILLERK's SRV1 (and many of my yellows are being used for a new project)
*notes about pictures*
picture 2:build two of these for each leg and save it for picture 4
picture 3:unless you want the device to have trouble bending its knees then add this
picture 5:Connect the bottom of leg (right) to top of leg (left) on the same side you added the red connector
picture 6: the grey 45 connector is only meant for carpet use ( means degree circle because I have no clue where it is someone tell me I will happily thank them)
picture 7/8: I suggest using a grey 45 where it was orange and the rest being grey 0 ones and snapping a green rod in the 45 one
picture 9: again the grey and black connectors can be almost anything small enough to fit in it.
picture 10:rebuild and for the other 2 legs put all the pieces added in pictures 6-9 on the other side (like a mirror image)
The Body
time for the body of this beast. OK! u must build to the exact of the picture on the part that attaches into the motor! I have had trouble when I changed it and the legs would not move beyond a certain point
in picture 3 for the back of the beast do not add the grey connector.
rebuild everything and add to the other side but whit the wheel make it on the opposite side like this little type drawing
(I will edit if it cannot be seen correct)
0
0-motor-0
0
0-------
in picture 3 for the back of the beast do not add the grey connector.
rebuild everything and add to the other side but whit the wheel make it on the opposite side like this little type drawing
(I will edit if it cannot be seen correct)
0
0-motor-0
0
0-------

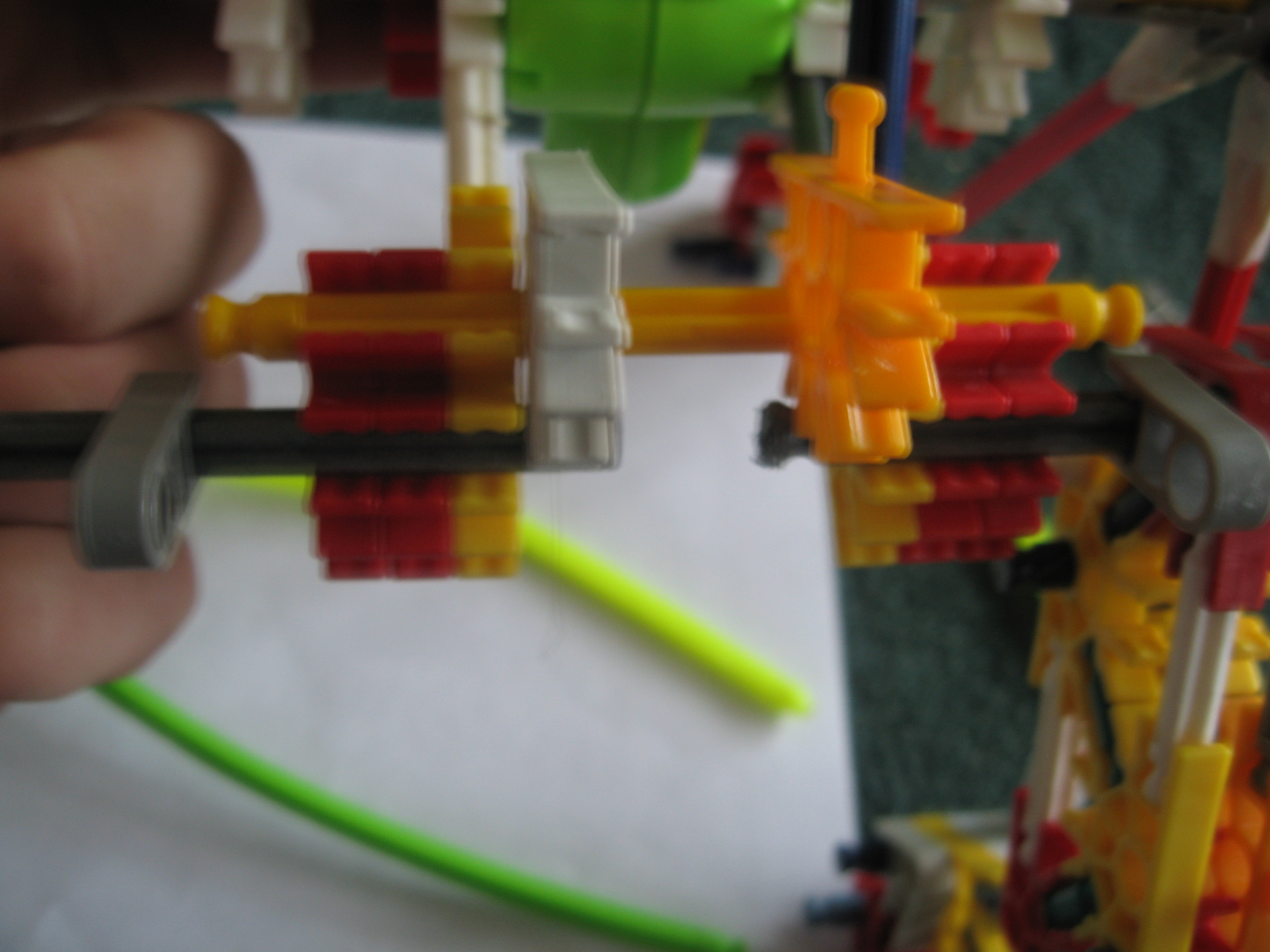

Putting It All Together
to connect it all together follow these steps
for back legs put pic 1
yet for front ones put pic 2 (uses white rod not green)
oh great for pic 3 4 and 5 I made a bad mistake you add the leg loops like ;back long, front long, back short, front short:
6 you add the connectors to the wheel and the end of the rod so the leg does not slip out
7 is one half of the head connect by using a green in the middle of the purple/silver connector and a blue one on the last bit of red (note my cat broke the bend piece...)
8 add this and connect the top bend piece to the top wile the bottom where ever you like to adjust head angle
for back legs put pic 1
yet for front ones put pic 2 (uses white rod not green)
oh great for pic 3 4 and 5 I made a bad mistake you add the leg loops like ;back long, front long, back short, front short:
6 you add the connectors to the wheel and the end of the rod so the leg does not slip out
7 is one half of the head connect by using a green in the middle of the purple/silver connector and a blue one on the last bit of red (note my cat broke the bend piece...)
8 add this and connect the top bend piece to the top wile the bottom where ever you like to adjust head angle
