Swiss Army EDC Key Holder
by hacknmake in Workshop > 3D Printing
1212 Views, 5 Favorites, 0 Comments
Swiss Army EDC Key Holder
![IMG_1544.jpeg](/proxy/?url=https://content.instructables.com/FVI/UC2L/JFMTKOUD/FVIUC2LJFMTKOUD.jpg&filename=IMG_1544.jpeg)
Hi everyone nowadays EDC key organizers become very popular. Unfortunately, functionality comes with price so I decided to do my own EDC key organizer with swiss army knife form-factor. Only required parts are some M6 nuts,bolts and washers.
Some CAD Work
![kb_top v6.png](/proxy/?url=https://content.instructables.com/FKS/QH2V/JFMTKOVT/FKSQH2VJFMTKOVT.png&filename=kb_top v6.png)
![keybar_body v4.png](/proxy/?url=https://content.instructables.com/FE6/LUOH/JFMTKOVU/FE6LUOHJFMTKOVU.png&filename=keybar_body v4.png)
![kb_top v5.png](/proxy/?url=https://content.instructables.com/F59/W08V/JFMTKOUF/F59W08VJFMTKOUF.png&filename=kb_top v5.png)

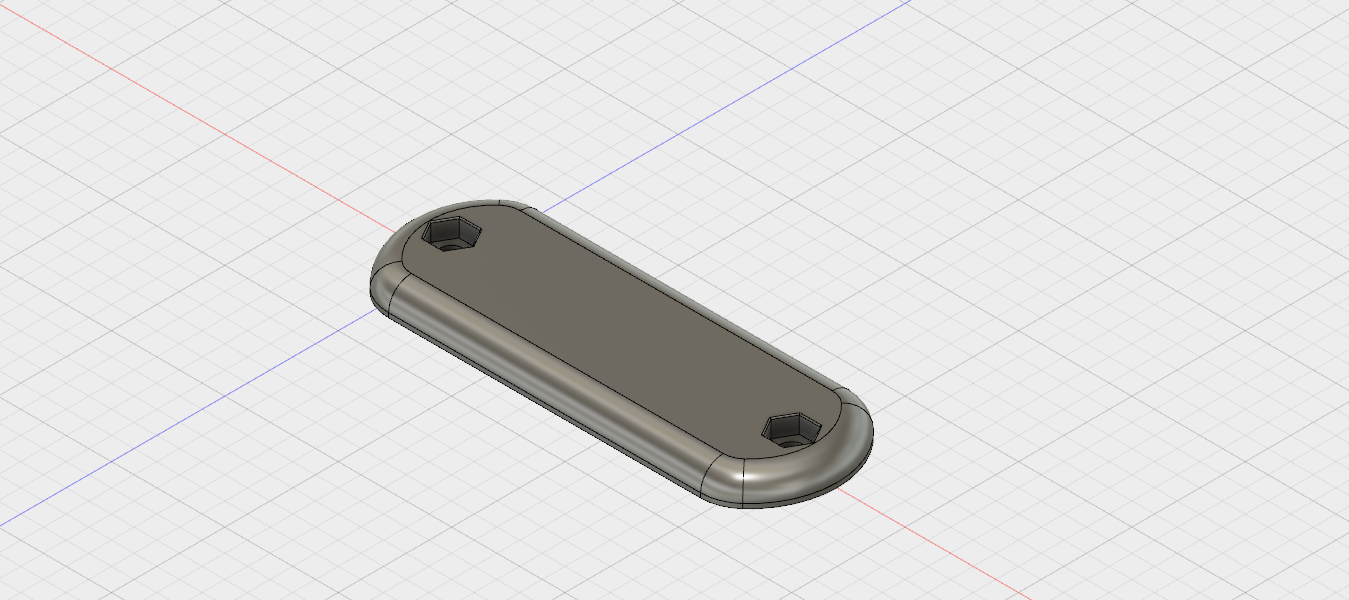

Firstly I laid out two keys against each other and draw the side pieces according to size of M6 nuts and bolts on Fusion360 to fit flush with the frame. I imported Swiss army logo as SVG file. Frames drawn a little bit thicker and wider to fit various key sizes and obtain some durability.
Paint and Assembly
![IMG_1480.jpg](/proxy/?url=https://content.instructables.com/FIT/HRNN/JFMTKOU5/FITHRNNJFMTKOU5.jpg&filename=IMG_1480.jpg)
![IMG_1540.jpg](/proxy/?url=https://content.instructables.com/FBU/Y1N1/JFMTKOU6/FBUY1N1JFMTKOU6.jpg&filename=IMG_1540.jpg)
![IMG_1541.jpeg](/proxy/?url=https://content.instructables.com/F9O/63MA/JFMTKOU7/F9O63MAJFMTKOU7.jpg&filename=IMG_1541.jpeg)
![IMG_1543.jpg](/proxy/?url=https://content.instructables.com/FON/N3M3/JFMTKOU8/FONN3M3JFMTKOU8.jpg&filename=IMG_1543.jpg)
I printed the model with 100%fill ratio by using ABS filament. I noticed to draw recessed side of the model so I cut it with dremel on the back side. I painted frame with maroon nail polish and painted the logo with white nail polish.to match the swiss army knife look. Finally I put keys and tightened the bolts.
