Swinging Frogs

swinging frog8.jpg


These swinging frogs, part of Froggy World amusement park, are made from 3d printed parts and a Jameco gear motor.

Parts and design files at:

http://www.thingiverse.com/thing:53521

Motor is:  Jameco Part no. 2128219  (Jameco.com)

This is powered by one D cell battery.

swinging frog1.jpg
The Jameco motor will slide into the slot on this base--just solder two small wires to the motor before you insert it.

swinging frog5.jpg
Insert the motor in the base and push the cross beam onto the motor shaft.  All parts should friction fit.

swinging frog3.jpg
Print two seats and drill 1/16 inch holes for fishing line "ropes."

swinging frog4.jpg
Drill holes in the top rod to match the holes in the seats.

swinging frog6.jpg

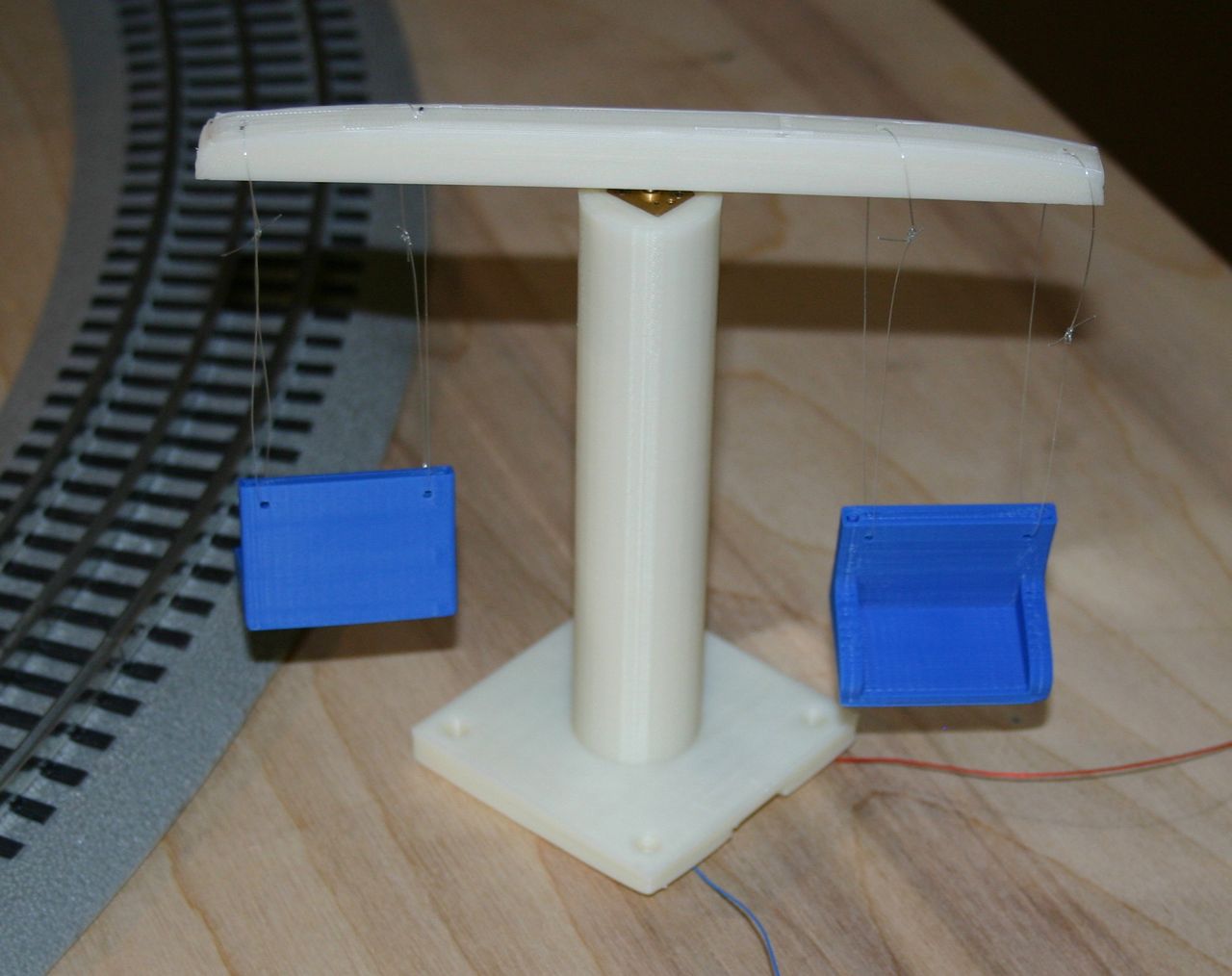

Secure the seats with fishing line.

swinging frog7.jpg
Glue the frogs in their seats--no seat belts here!

swinging frog8.jpg
Apply 1.5 volts (one D cell) to the motor and the frogs will swing.  Put 3 volts on and they will move so fast that you can't see the individual frogs.
