Hi, all this is a small project which uses a sustain pedal to mute or unmute your microphone in google meet.
Supplies
- a sustain pedal (any switch or pushbutton will also do)
- Arduino micro
- female to female jumper wires
- tape
Hardware
![Screenshot 2021-04-23 124907.png](/proxy/?url=https://content.instructables.com/FGH/V7S3/KNT6CCT7/FGHV7S3KNT6CCT7.png&filename=Screenshot 2021-04-23 124907.png)
![Screenshot 2021-04-23 125006.png](/proxy/?url=https://content.instructables.com/F32/3YHU/KNT6CCT8/F323YHUKNT6CCT8.png&filename=Screenshot 2021-04-23 125006.png)
- Take 2 female to female jumper wires and cut them from one end
- then remove their rubber protection to use the copper wire
![Screenshot 2021-04-23 125503.png](/proxy/?url=https://content.instructables.com/F3T/UNRK/KNT6CCXJ/F3TUNRKKNT6CCXJ.png&filename=Screenshot 2021-04-23 125503.png)
![Screenshot 2021-04-23 125728.png](/proxy/?url=https://content.instructables.com/FZY/HLJD/KNT6CCYD/FZYHLJDKNT6CCYD.png&filename=Screenshot 2021-04-23 125728.png)
![Screenshot 2021-04-23 125958.png](/proxy/?url=https://content.instructables.com/FIA/DP8G/KNT6CD1U/FIADP8GKNT6CD1U.png&filename=Screenshot 2021-04-23 125958.png)
- Now connect the wires as shown in the picture
- and then secure the connections with tape
![Screenshot 2021-04-23 130657.png](/proxy/?url=https://content.instructables.com/FI1/LUTS/KNT6CD6Y/FI1LUTSKNT6CD6Y.png&filename=Screenshot 2021-04-23 130657.png)
![Screenshot 2021-04-23 130745.png](/proxy/?url=https://content.instructables.com/FOG/D8WK/KNT6CD71/FOGD8WKKNT6CD71.png&filename=Screenshot 2021-04-23 130745.png)

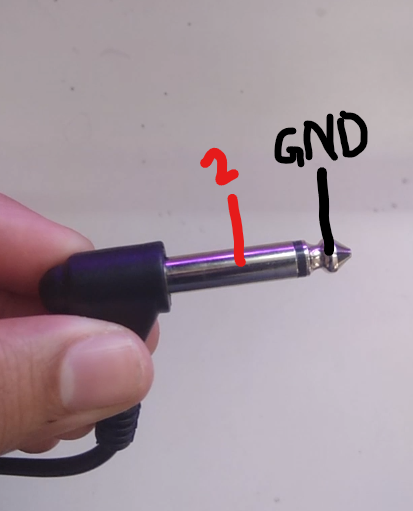

- Now connect one of the wires to pin 2
- and another one to GND pin
Code
- Upload this code to your Arduino micro
- male sure you have installed all the libraries for Arduino micro
Downloads
![Screenshot 2021-04-23 123339.png](/proxy/?url=https://content.instructables.com/FQL/V2QL/KNT6CCE3/FQLV2QLKNT6CCE3.png&filename=Screenshot 2021-04-23 123339.png)
Open google meet and try it !!!!
