Supreme Sports Card Shelf

I attend Sandia Preparatory school

A cool and way to display your favorite cards on your wall.

Qualities:

Inexpensive

durable/long lasting

fun to build

aesthetic appeal

Fuzion 360

Supreme file

perseverance

You should create a base in fusion 360

290mm by 280mm

and 18mm thick

Create a sketch 15.5mm smaller on all angles onto the base

Then finish sketch and extrude onto the sketch and cut into the base 10mm

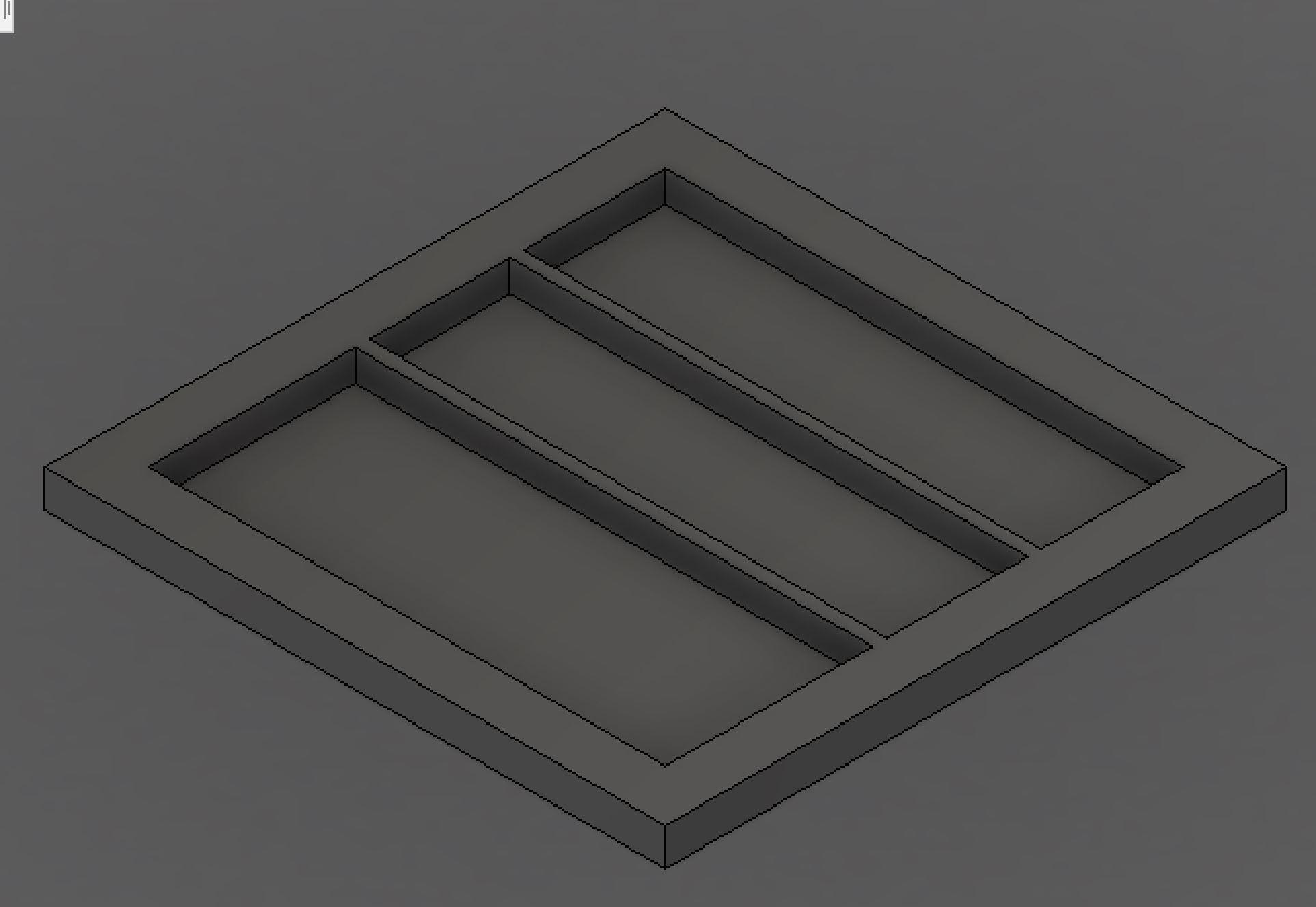

Create a sketch for 2 layers that are 100mm apart from level to level.

Then extrude them up to the surface of the base.

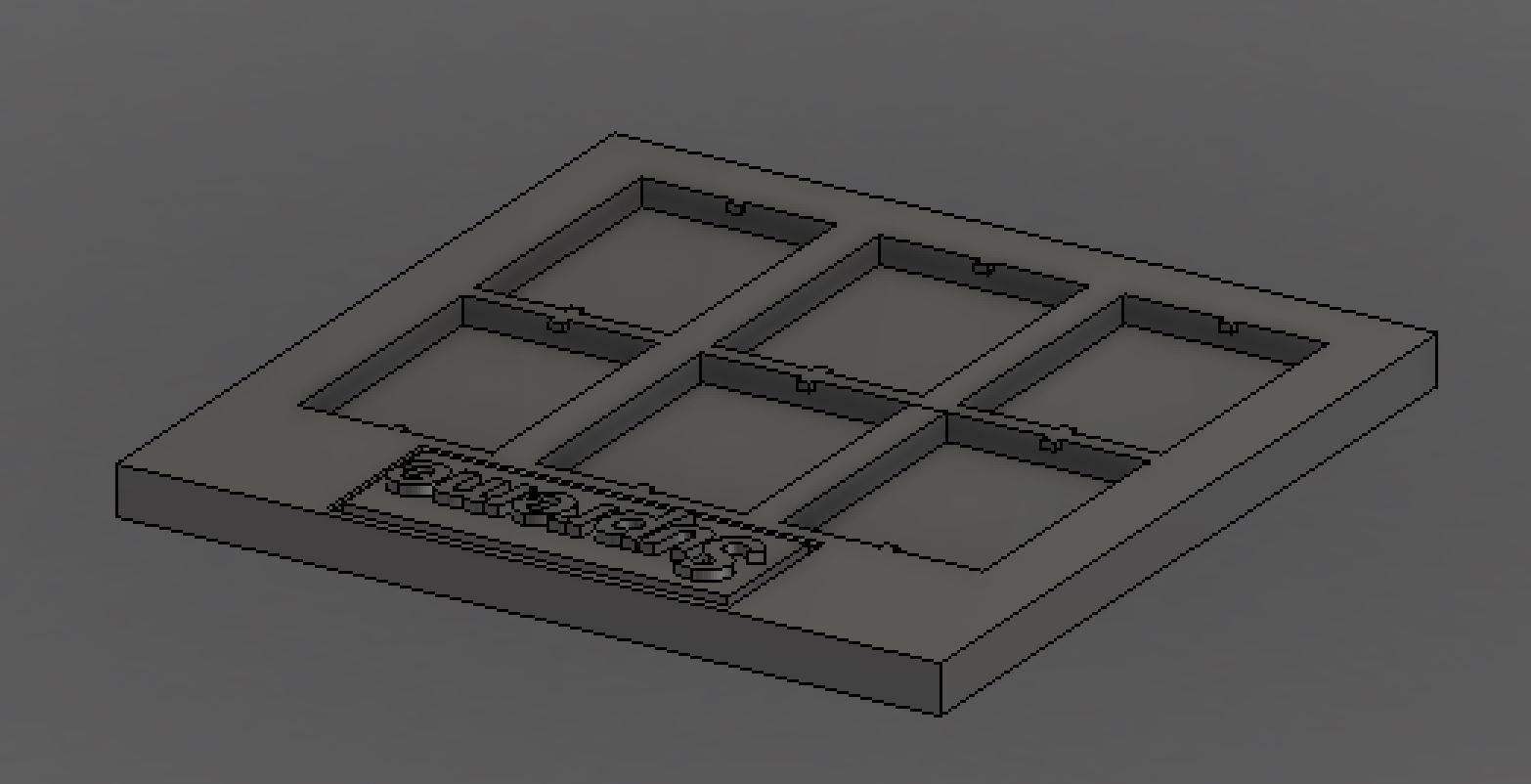

Extrude the top shelf up and create small rectangles that are 3mm by 5mm in the surface of the shelf in the center of the individual holders.

In the center at the top create a rectangle 147mm by 57mm (this will eventually hold the supreme logo).

(ignore the writing at the top that was an experiment).

Copy/paste this file into the upload are to the left hand side in fusion. To do this you must create a new file where the logo can be uploaded into.

Once you have done this, drag the logo into your original file with the shelf.

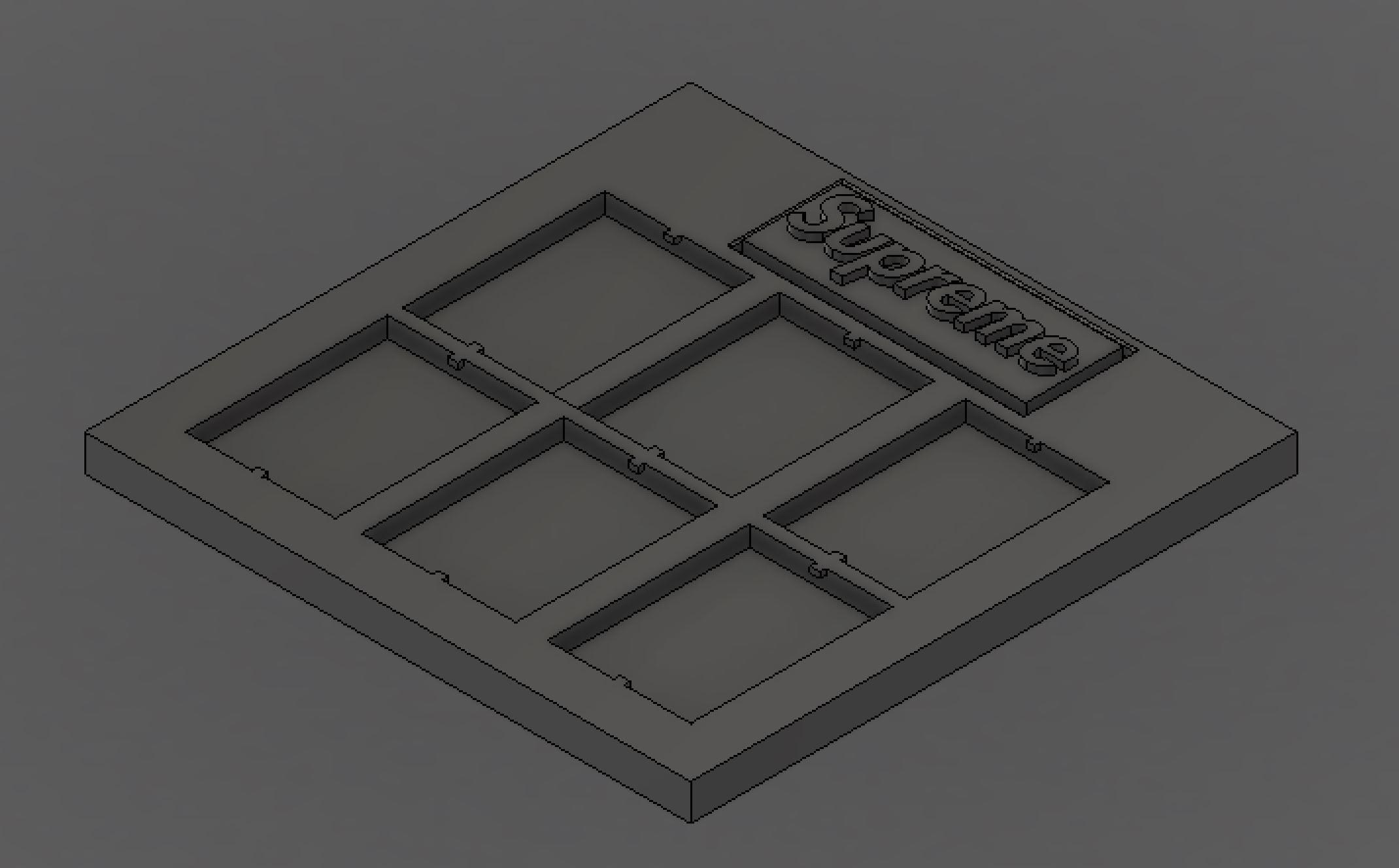

Then bring the logo to the top were you have already created the space for it to fit.

Import download file (below)

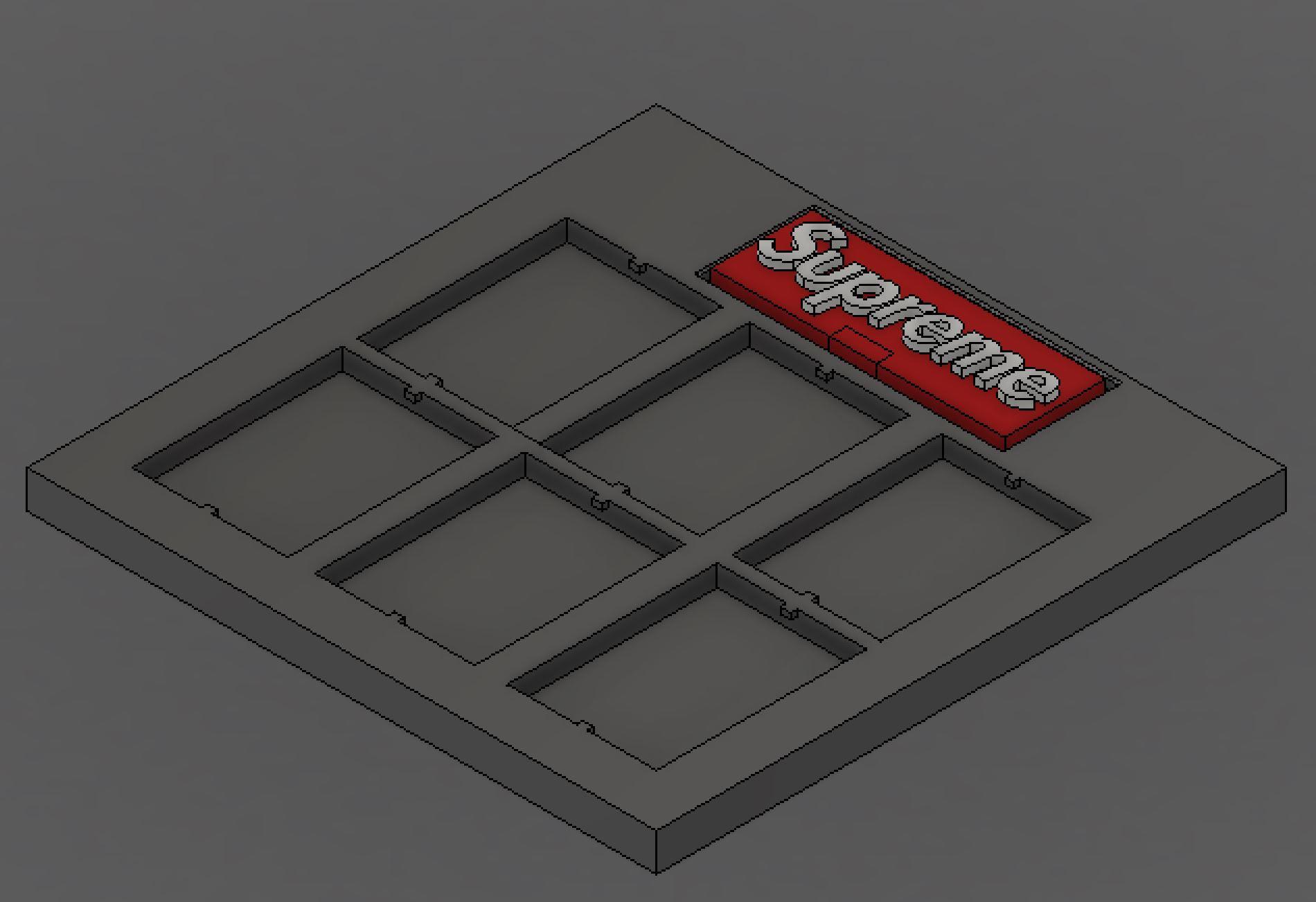

Simply refresh and the logo will join to the shelf itself.

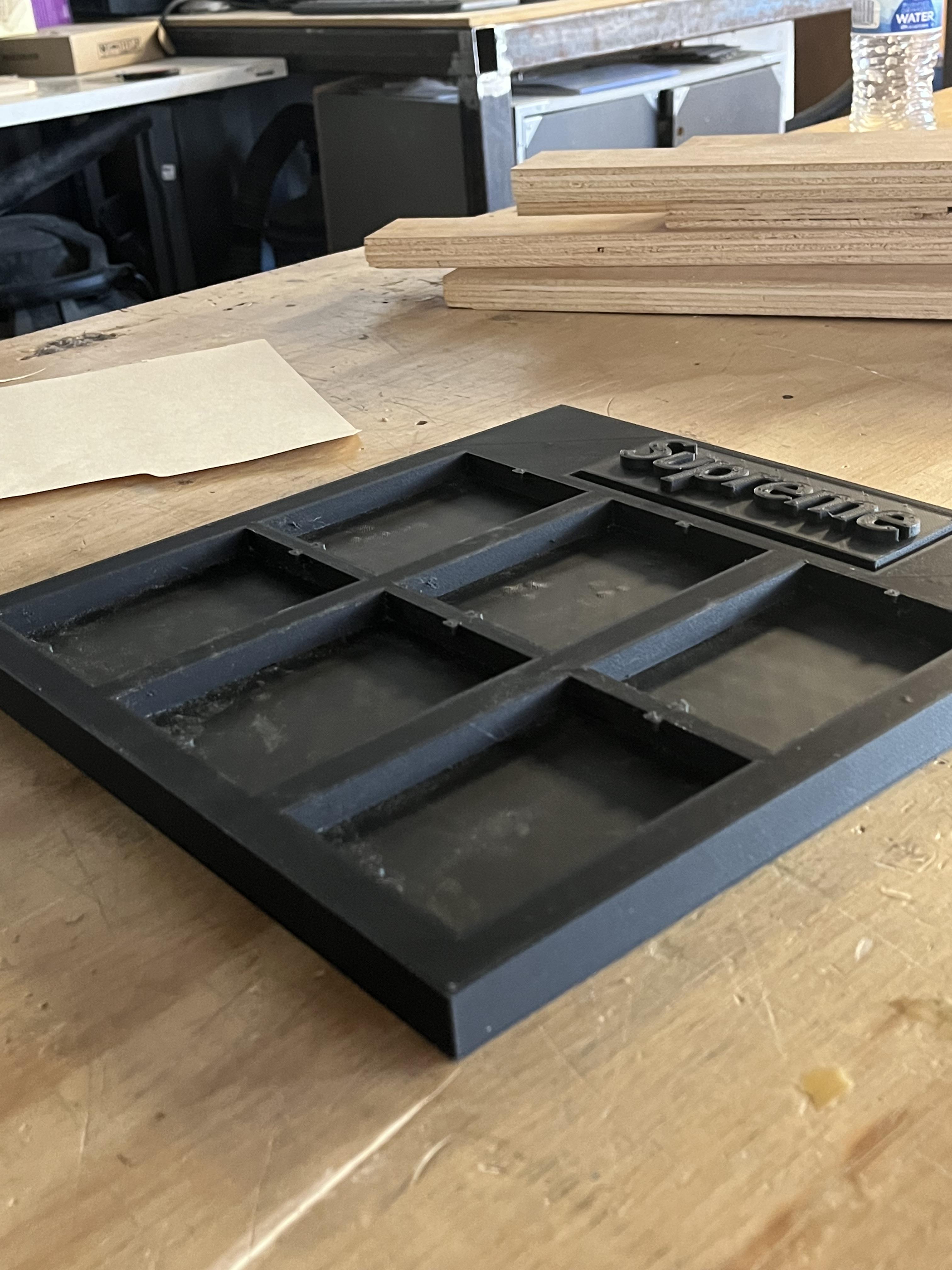

Enjoy mounting your sports cards to the wall in a cheap and fun way!
