Hi Guy to day I will show you how to make Supper High Voltage. At the first watching the video below.

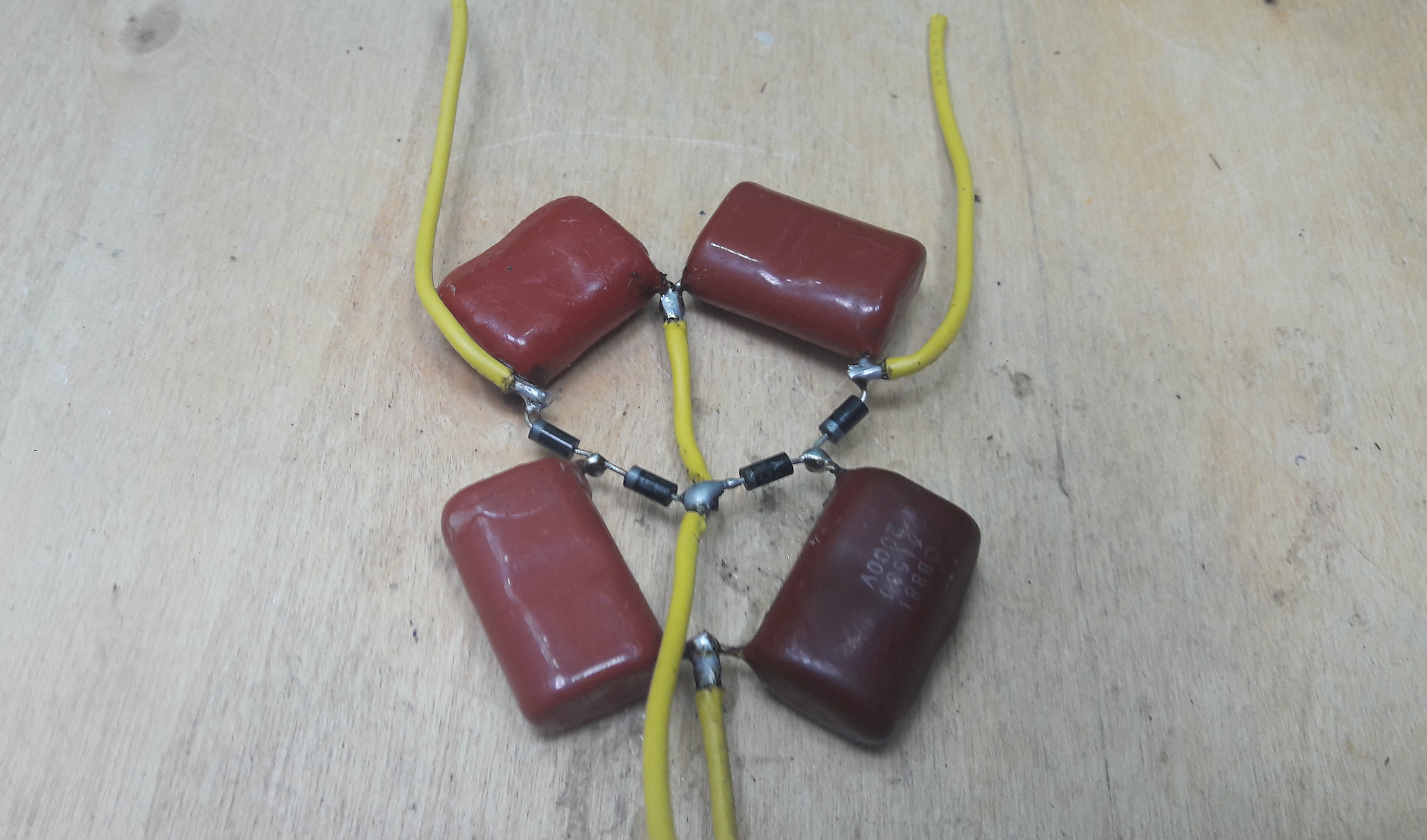

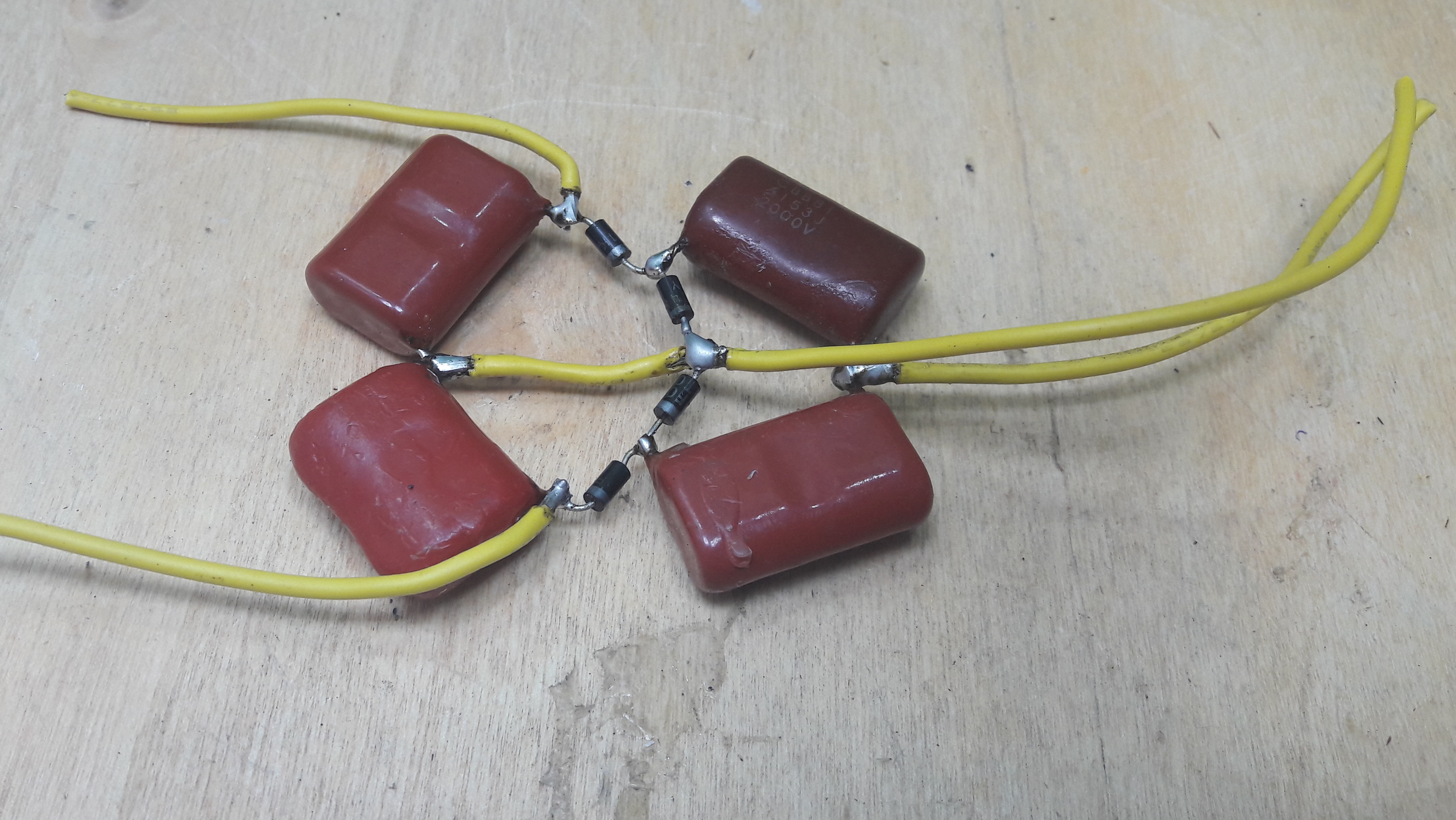

Take the High Voltage Capacitor and Diode


Here the circuit of my project. PIC 12F675 i use for control the led flash. With button i have 3 function of led flash. This PCB control i make and send gerber file to JLCPCB.COM you can download gerber file of it here for make PCB online. I take the high voltage capacitor and diode from 4 mosquito trap electric. I have a lot of mosquito trap electric because it old and the battery not good. The transformer i take from OLD computer PSU and rewinding. You can see the picture of circuit below.

Finish and Test


I hope you like my prject, if you have any problem about my circuit, please comment below i will help you
