Supercapacitor USB Flashlight
![20200814_120805.jpg](/proxy/?url=https://content.instructables.com/FNF/Z3K4/KDX3OZ17/FNFZ3K4KDX3OZ17.jpg&filename=20200814_120805.jpg)
![20200813_085220.jpg](/proxy/?url=https://content.instructables.com/FR7/FGOC/KDX3OZ12/FR7FGOCKDX3OZ12.jpg&filename=20200813_085220.jpg)
![20200804_092710.jpg](/proxy/?url=https://content.instructables.com/FBO/K584/KDX3P18M/FBOK584KDX3P18M.jpg&filename=20200804_092710.jpg)
Like I'm sure most Instructable users I have a jun...err..future projects box and to find things in said box can be quite a challenge...
I needed a small flashlight that doesn't always need new batteries or needs hours to charge....and needs to be very rugged.
Supercapacitors to the rescue, with my current setup it plugs into a USB for less than 1 minute to a full charge for about 30 minutes of runtime.
Supplies

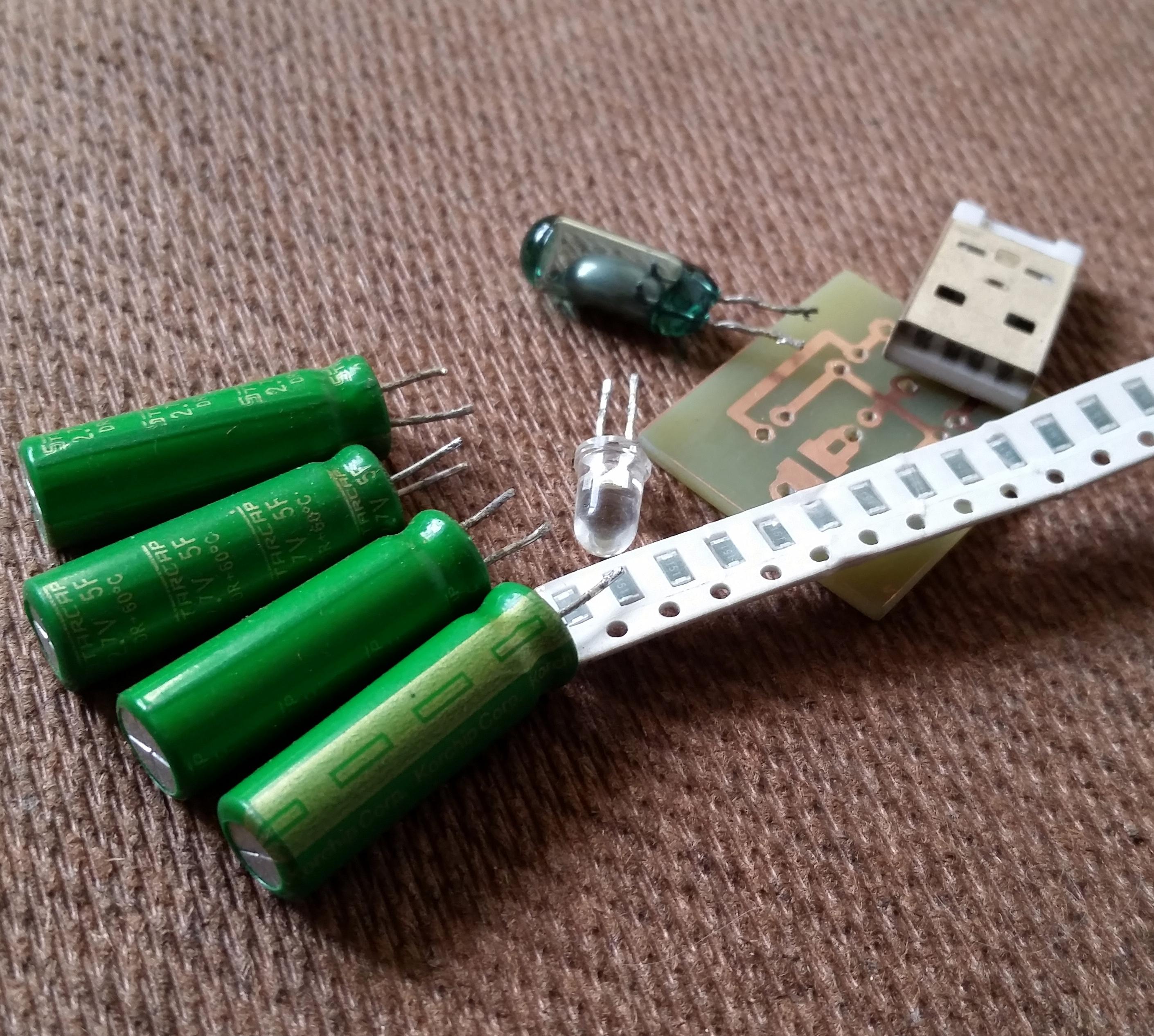

For my build I used:
4 Starcap 2.7V 5F capacitors
Male USB connector
2 Resistors 1ohm & 100ohm
1 Ultra high efficiency CREE 5mm White LED
1 Mercury switch
....Not necessary but I also etched a small PCB to hold the components.
Keep It Together
![20200804_111107.jpg](/proxy/?url=https://content.instructables.com/FCF/5GFK/KDX3OZYB/FCF5GFKKDX3OZYB.jpg&filename=20200804_111107.jpg)
![20200803_171651.jpg](/proxy/?url=https://content.instructables.com/F3F/HEDI/KDX3OYS2/F3FHEDIKDX3OYS2.jpg&filename=20200803_171651.jpg)
![20200803_172342.jpg](/proxy/?url=https://content.instructables.com/FKC/S8Y5/KDX3OYV4/FKCS8Y5KDX3OYV4.jpg&filename=20200803_172342.jpg)
![20200803_172618.jpg](/proxy/?url=https://content.instructables.com/FIO/3BJY/KDX3OYV6/FIO3BJYKDX3OYV6.jpg&filename=20200803_172618.jpg)
![20200804_092710.jpg](/proxy/?url=https://content.instructables.com/F5G/ZKM6/KDX3OYWM/F5GZKM6KDX3OYWM.jpg&filename=20200804_092710.jpg)
![20200804_094524.jpg](/proxy/?url=https://content.instructables.com/FYK/UZWV/KDX3OZ0X/FYKUZWVKDX3OZ0X.jpg&filename=20200804_094524.jpg)
![20200804_113620.jpg](/proxy/?url=https://content.instructables.com/FYG/1NVB/KDX3OZ0Z/FYG1NVBKDX3OZ0Z.jpg&filename=20200804_113620.jpg)
![20200804_121349.jpg](/proxy/?url=https://content.instructables.com/F6U/ZELF/KDX3OZ10/F6UZELFKDX3OZ10.jpg&filename=20200804_121349.jpg)
I decided to make a small PCB on my CNC.

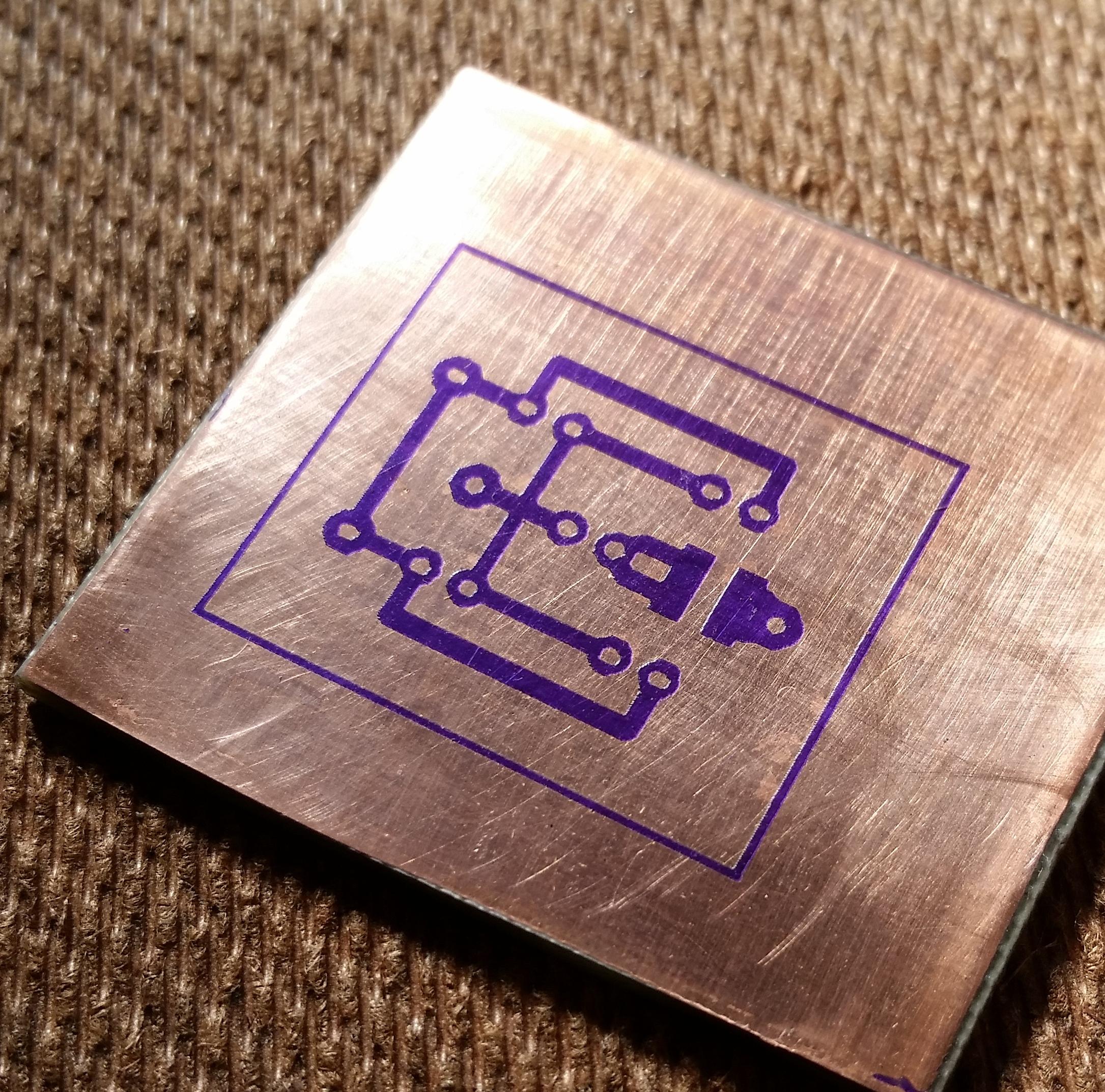

I start with a quick design on EasyEDA exported as a black and white image.
Then I take a photoresist copper board and engrave the image onto the board with my CNC equipped with a 3500mw 405NM laser. You don't need a lot of power it only takes about 50mw of power to expose the board. As you can see I created some sunglasses for my laser to reduce light spill from the laser module.
I run the engraving at about 500mm/min and at ~100mw power.

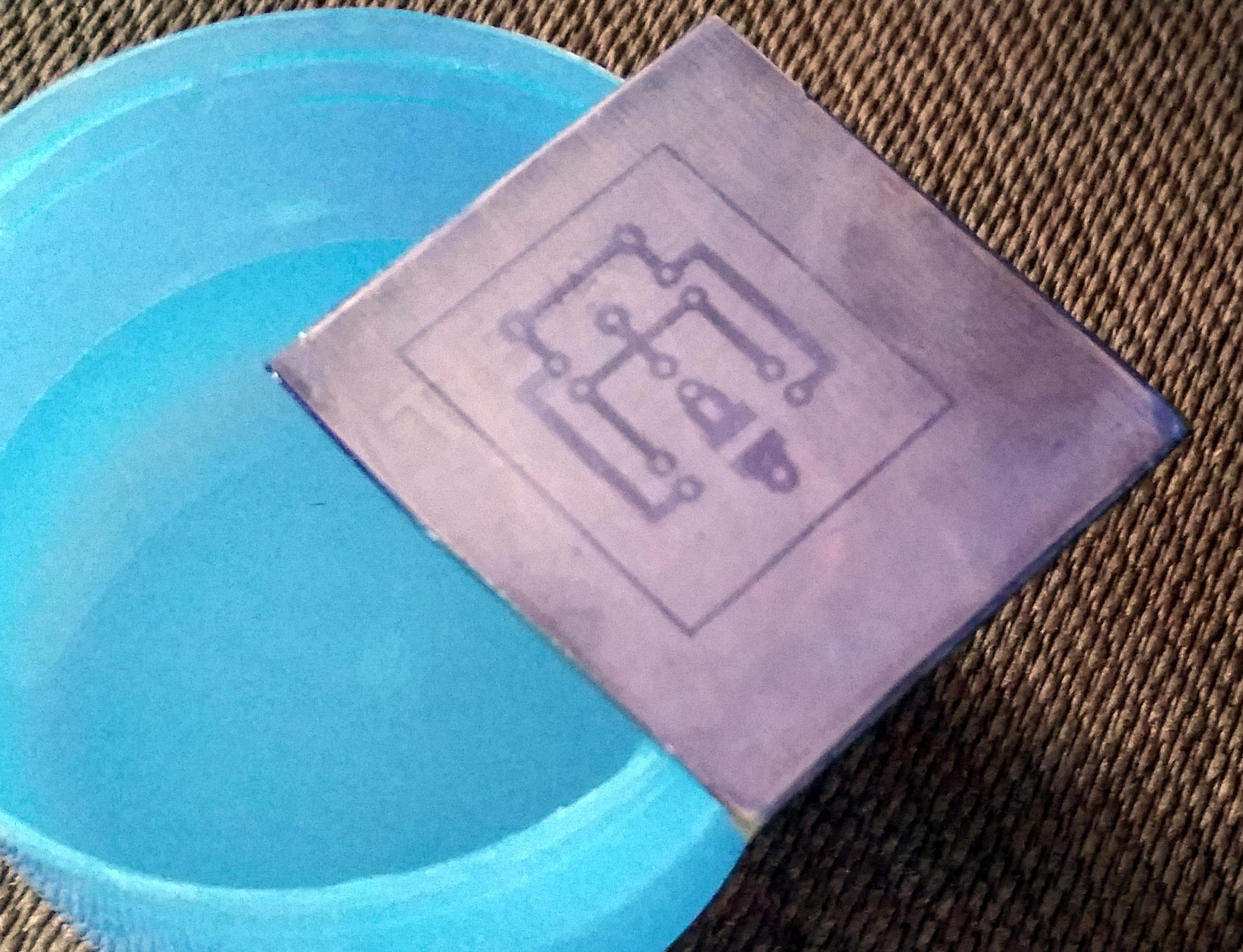

After that is finished I develop the board and etch it in a hydrogen peroxide and pool acid solution.
This is how I make all my PCB's and I'm very happy with the results.

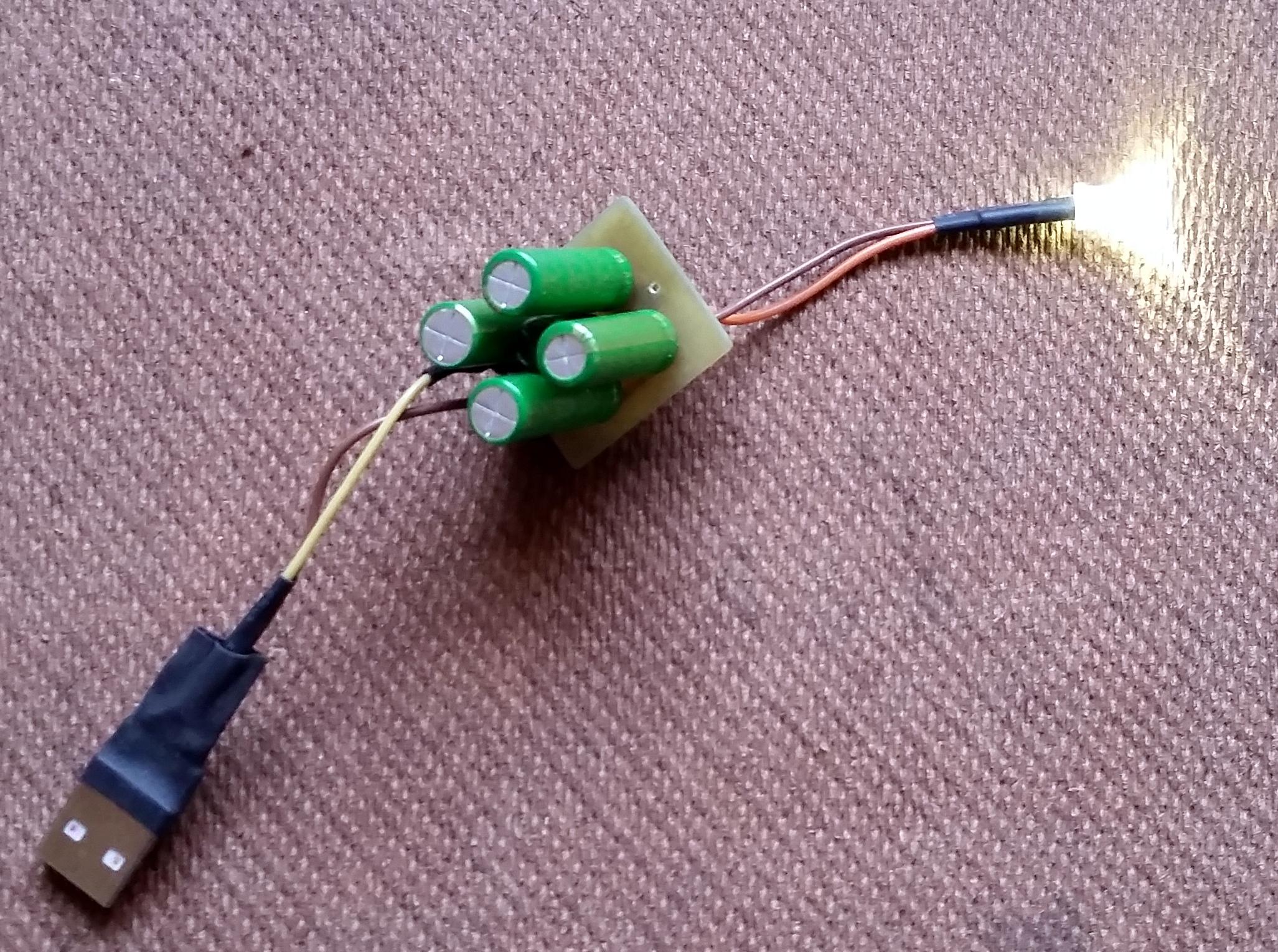

Soldering the flashlight is easy:
USB goes through a resistor to limit the current to supercapacitors this protects your USB, I used a 1ohm resistor.

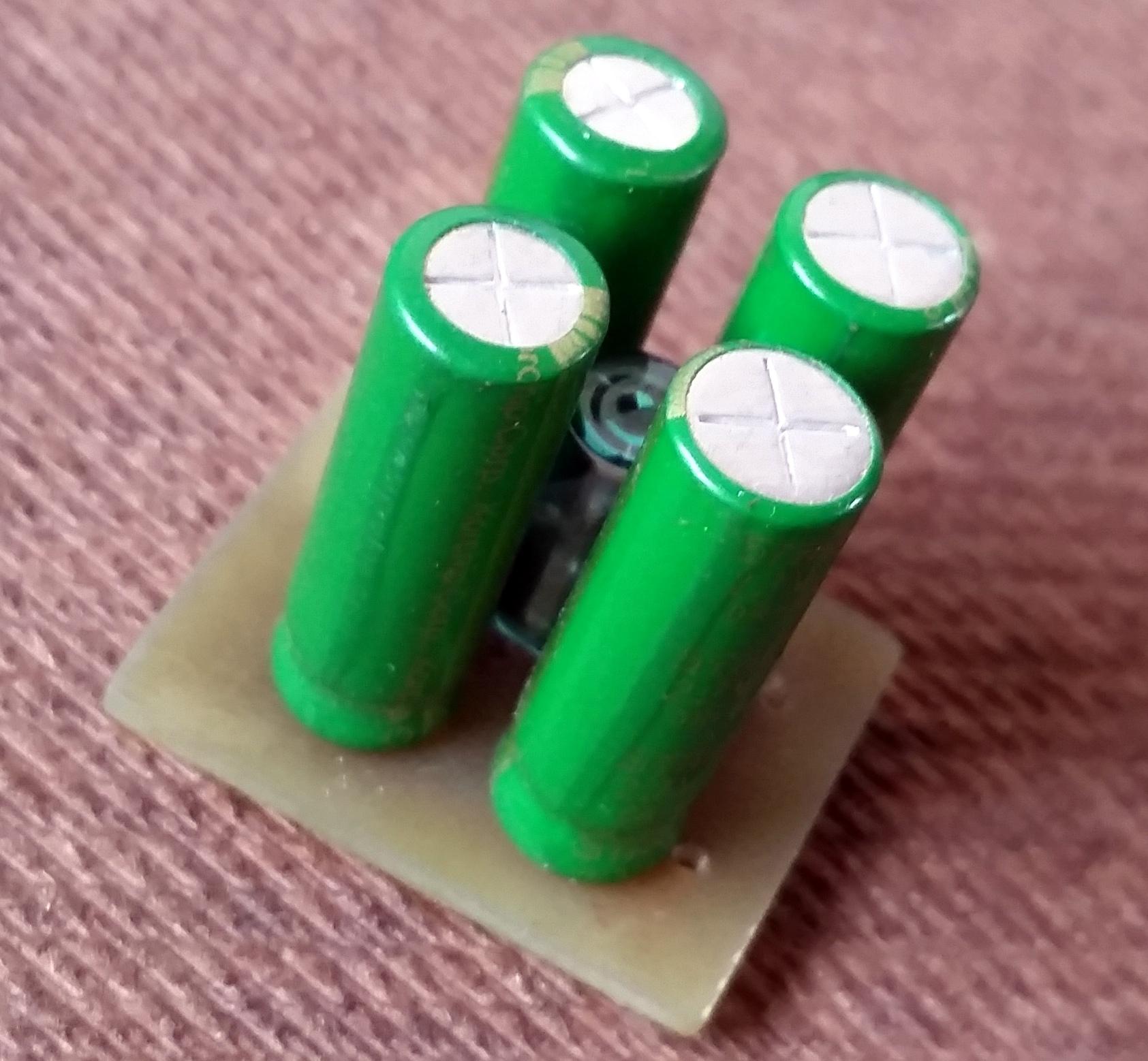

Two of the supercapacitors are first soldered in series to make a 5.4V 2.5F capacitor then in parallel so that we end up with a 5.4V 5F capacitor.
From the capacitors we have the mercury switch that turns the flashlight on when pointed downwards.
This goes to a 100ohm resistor and then to the LED.
USB->1ohm resistor->Supercapacitor->Mercury switch->100ohm resistor->LED
Cover Up!
![20200812_145736.jpg](/proxy/?url=https://content.instructables.com/FKJ/I8EN/KDX3OZ11/FKJI8ENKDX3OZ11.jpg&filename=20200812_145736.jpg)
![Supercap STL.jpg](/proxy/?url=https://content.instructables.com/FV2/9ACP/KDX3P0TL/FV29ACPKDX3P0TL.jpg&filename=Supercap STL.jpg)
To hold everything I just 3D printed a simple enclosure out of ABS.
Finish Line
![20200813_085220.jpg](/proxy/?url=https://content.instructables.com/F43/VX9E/KDX3P0Y4/F43VX9EKDX3P0Y4.jpg&filename=20200813_085220.jpg)
![20200814_120654.jpg](/proxy/?url=https://content.instructables.com/FUD/0Z2G/KDX3OZ15/FUD0Z2GKDX3OZ15.jpg&filename=20200814_120654.jpg)
![20200814_120859.jpg](/proxy/?url=https://content.instructables.com/F6I/F0CD/KDX3OZ18/F6IF0CDKDX3OZ18.jpg&filename=20200814_120859.jpg)
![20200814_120951.jpg](/proxy/?url=https://content.instructables.com/FGU/IZLY/KDX3OZ19/FGUIZLYKDX3OZ19.jpg&filename=20200814_120951.jpg)

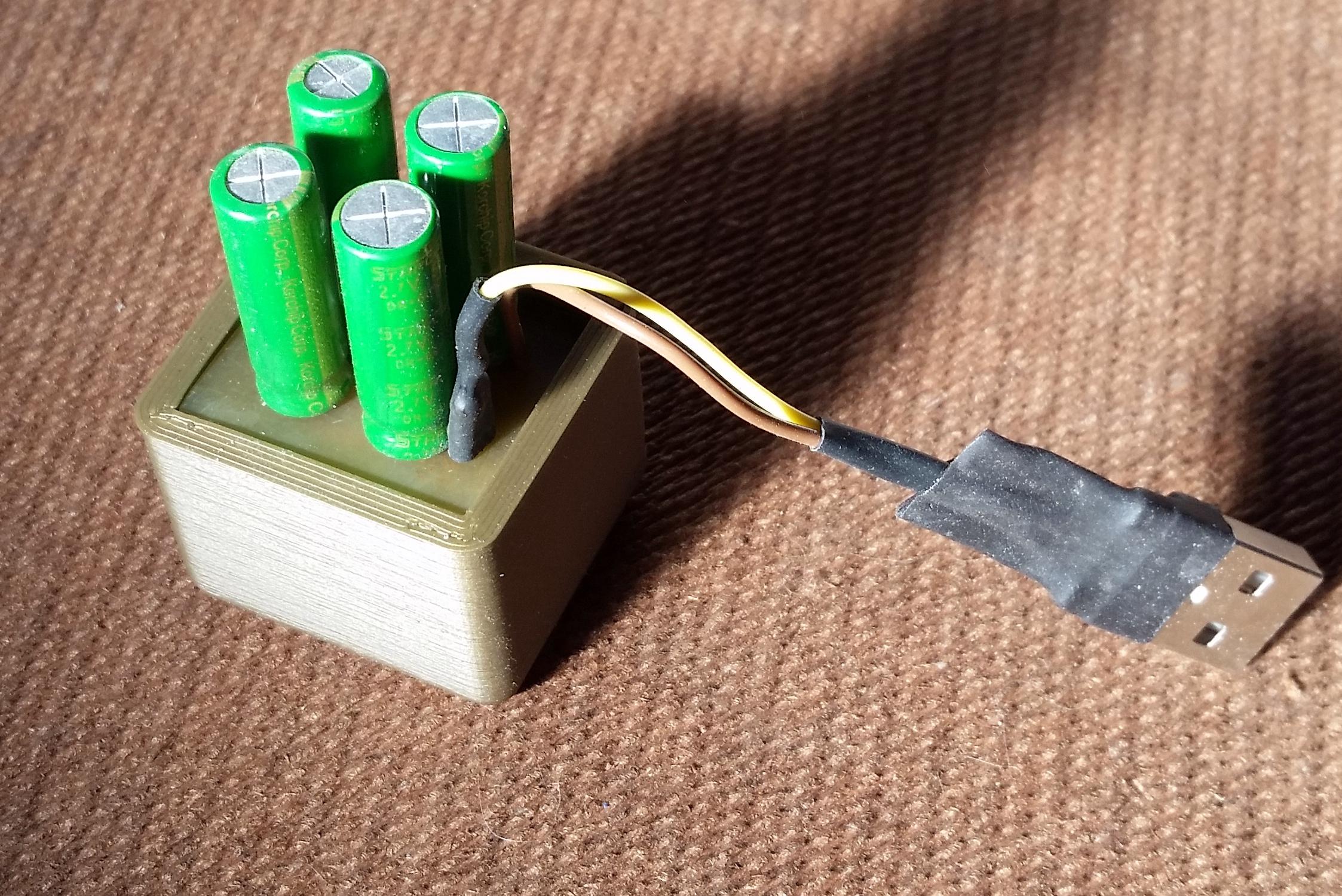

Everything is then put in the enclosure and sealed up to make it waterproof and painted.

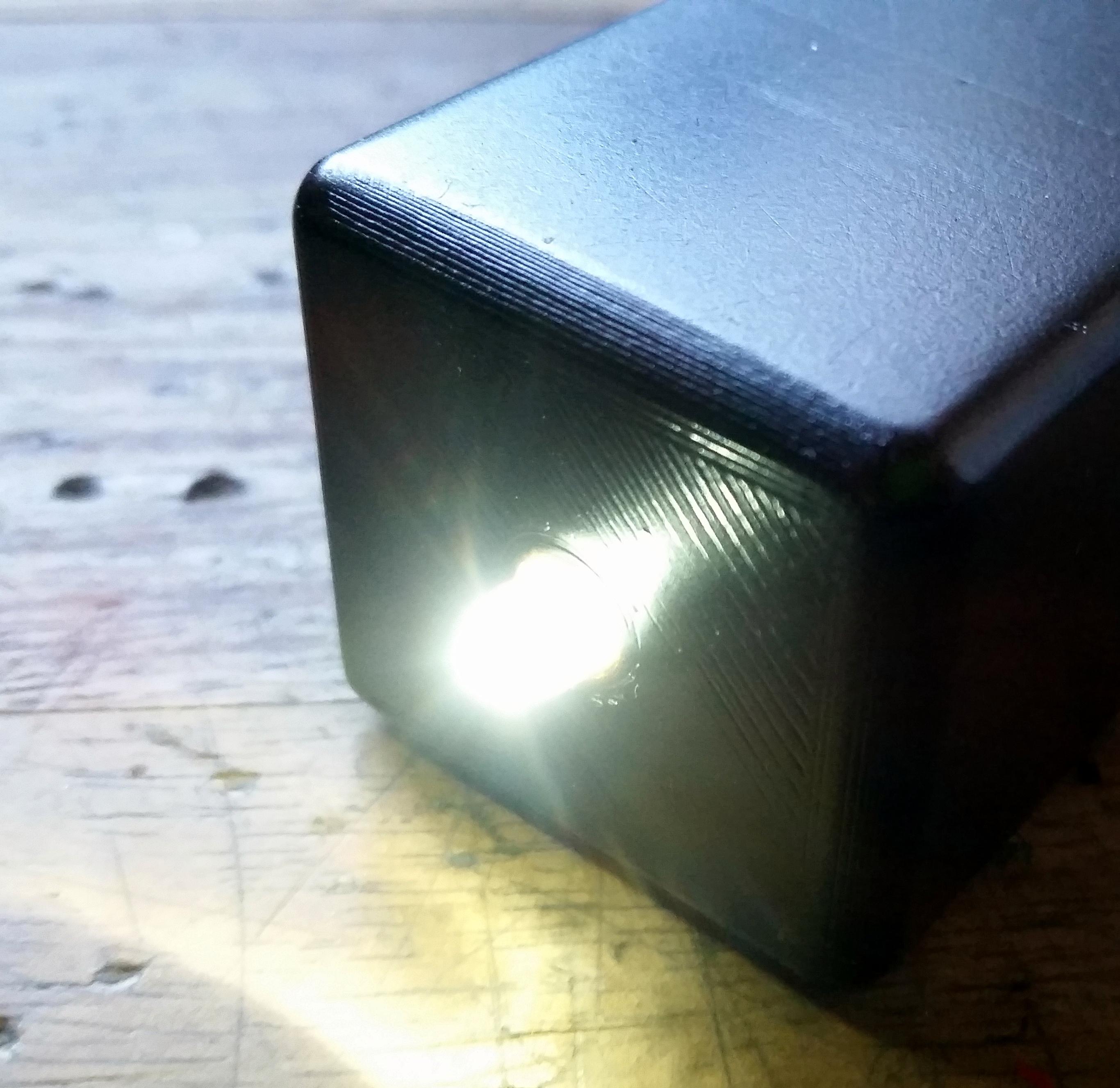

Plugged it in and within a few seconds I was ready to go for a rummage in my part box.
If you have any questions please leave a comment.
Happy making!
